CHASSIS SHEET METAL 11-14

location is shimmed; thus keeping the fender mount-

ing bolts from crushing in the fender mounting

flange.

If shimming is done without the fenders being disas-
asembled, it is suggested that fender mounting bolts

rearward of radiator support be loosened while shims

are inserted and sheet metal fit is checked. Tighten

shimmed mounting bolts first, then all others.

COMPONENT PART REPLACEMENT

BATTERY TRAY (FIG. 21)

Removal

1.
Disconnect battery cables.

2.
Remove screw retaining battery hold down clamp.

3.
Remove battery from vehicle.

4.
Remove screws retaining tray assembly to fender

skirt and support, and remove tray from vehicle.

Installation

Reverse removal procedure.

RADIATOR SUPPORT (FIG. 22)

Removal

1.
Remove grille and related components (Section 13).

Remove battery tray as outlined in this section.

Remove shroud attaching screws and remove shroud

if vehicle is so equipped.

Remove horn relay, horns, voltage regulator, and

wiring harness from radiator support.

Remove shroud and radiator (Section 13)o

Remove screws attaching radiator support to frame,

skirts,
fenders.

Remove radiator support from vehicle (fig. 23).

Installation

1.
Position radiator support in vehicle; align mounting

screw and bolt holes with drift punch.

Install screws and bolts loosely until all are started,

then tighten.

3.
Complete installation following removal procedure in

reverse order. Refer to torque specifications at rear

of manual for correct torque values.

4.
Aim headlamps as outlined in Section 12.

FRONT FENDER ASSEMBLY

Removal

1*
Remove headlamp dooro

2.
Open hood and remove screws joining fender top
2.

Fig. 20 - Front Fender Shimming
Fig.
21 - Battery Tray

flange to skirt. Remove, and record number of

shims at first cap screw forward of windshield (fig.

24).

3.
Remove screw located on upper surface of headlamp

cavity.

4.
From under forward end of fender, remove screw

retaining fender to radiator support.

5.
From inboard side of rocker panel extension, remove

cap screw retaining fender to extension. Remove,

and record number of shims.

6. Separate headlamp filler panel from fender by re-

moving remaining screws.

7.
Remove fender from vehicle.

Installation

1.
Inspect condition of cowl-to-fender seal and replace,

if necessary, as shown in Figure 25.

2.
Install headlamp filler panel on fender.

3.
Position fender on vehicle. Note that eowl-to-fender

seal must be positioned so that outer edge points

toward front of vehicle. Align all mounting screw

and bolt holes with drift punch and install all screws

and bolts loosely. Do not tighten any screws or bolts

until all are started. Refer to removal rocedure

for screw and bolt locations.

4.
Replace shims taken out when fender was removed

from vehicle and continue as outlined under Main-

tenance and Adjustments—Fender Adjustment.

5.
Install headlamp door and cheek headlamp aiming

as outlined in Section 12.

CHEVROLET CHASSIS SERVICE MANUAL

CHASSIS SHEET METAL 11-15

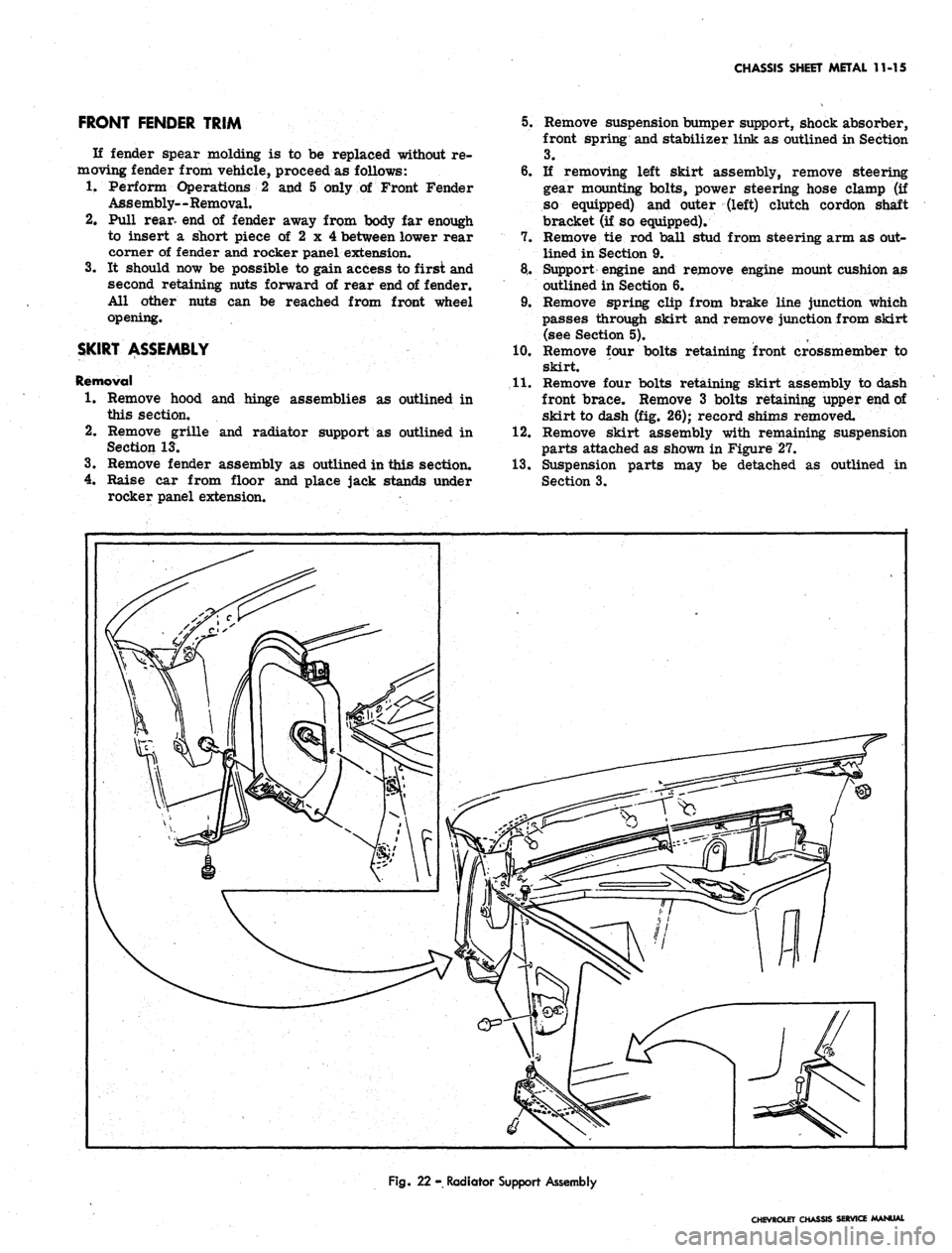

FRONT FENDER TRIM

If fender spear molding is to be replaced without re-

moving fender from vehicle, proceed as follows:

1.
Perform Operations 2 and 5 only of Front Fender

Assembly—Removal.

2.
Pull rear* end of fender away from body far enough

to insert a short piece of 2 x 4 between lower rear

corner of fender and rocker panel extension.

3.
It should now be possible to gain access to first and

second retaining nuts forward of rear end of fender.

All other nuts can be reached from front wheel

opening.

SKIRT ASSEMBLY

Removal

1.
Remove hood and hinge assemblies as outlined in

this section.

2.
Remove grille and radiator support as outlined in

Section ia.

3.
Remove fender assembly as outlined in this section.

4.
Raise car from floor and place jack stands under

rocker panel extension.
5.
Remove suspension bumper support, shock absorber,

front spring and stabilizer link as outlined in Section

3.

6. If removing left skirt assembly, remove steering

gear mounting bolts, power steering hose clamp (if

so equipped) and outer (left) clutch cordon shaft

bracket (if so equipped).

7.
Remove tie rod ball stud from steering arm as out-

lined in Section 9.

8. Support engine and remove engine mount cushion as

outlined in Section 6.

9. Remove spring clip from brake line junction which

passes through skirt and remove junction from skirt

(see Section 5).

10.
Remove four bolts retaining front crossmember to

skirt.

11.
Remove four bolts retaining skirt assembly to dash

front brace. Remove 3 bolts retaining upper end of

skirt to dash (fig. 26); record shims removed.

12.
Remove skirt assembly with remaining suspension

parts attached as shown in Figure 27.

13.
Suspension parts may be detached as outlined in

Section 3.

Fig.
22 - Radiator Support Assembly

CHEVROLET CHASSIS SERVICE MANUAL

CHASSIS SHEET METAL 11-16

Fig. 23 - Removing Radiator Support from Vehicle

Inspection

If car has been involved in a collision it is advisable

to carefully inspect cowl and dash area for damage.

Check front of dash area following directions in Fisher

Body Manual. Pay particular attention to welds, cage

nuts,
weld nuts and skirt mounting surfaces. Cage and

weld nuts may be repaired by outright replacement (the

best method); or by the installation of spiral thread in-

serts.
If the spiral inserts are used, follow the instruc-

tions furnished by the manufacturer.

COWL
Fig. 25 - Replacing Fender Seal

Fig. 26 - Skirt Mounting Bolts

Fig. 24- Fender Mounts

Fig. 27 - Removing Skirt Assembly

CHEVROLET CHASSIS SERVICE MANUAL

CHASSIS SHEET METAL 11-17

Fig.
28- Hood Spring Removal

Installation

Skirt installation is written for the installation of a

stripped skirt, with suspension and otiier parts added

after skirt is attached to vehicle. Proceed as follows:

1.
Position skirt assembly on vehicle with insulator,

shown in Figure 26, in place and original shims in-

stalled at top dash mount

2.
Install the three bolts at top mount and four bolts at

lower dash brace.

3.
Install front crossmember, replacing the four bolts

and nuts removed previously.

4.
Replace engine mount cushion; refer to Section 6.

5.
Install front suspension parts as outlined in Sec-

tion 3. Connect stabilizer link to stabilizer (if so
FINAL POSITION

Fig.
30 - Installing Hood Molding Clip

equipped) and connect tie rod end to steering arm as

outlined in Section 9.

6. Install radiator support and fender assembly as out-

lined in this section. Install grille (Section 13).

7.
If left skirt was removed, proceed as follows:

a. Install steering gear. Carefully follow outline

under Steering Gear - Installation in Section 9.

Do not fail to perform adjustments listed under

Mast Jacket Installation in that section.

b.
Install clutch cordon shaft (if so equipped).

c. Install power steering hose clamp (if so equipped).

8. Install brake lines and bleed brakes as outlined in

Section 5.

9. Install hood and adjust as outlined in this section.

10.
Perform following checks and adjustments:

a. Check and adjust front body section alignment

as outlined in Fisher Body Service Manual.

Fig.
29 - Installing Tool J-9559 in Nev/Spring
Fig.
31 - Removing Front End Assembly from Vehicle

CHEVROLET CHASSIS SERVICE MANUAL

CHASSIS SHEET METAL 11-18

b.
Check and adjust front wheel alignment as out-

lined in Section 3.

c. Check and adjust headlamp aiming as outlined in

Section 12.

HOOD ASSEMBLY

Hood may be removed either with or without hinges.

To shorten aligning time, hood hinge plates may be lo-

cated by scribing a mark on hood and/or body which

outlines entire plate. See Maintenance and Adjustments -

Hood Hinge for hood adjustment procedure. Hood hinge

springs may be easily and safely removed and installed.

through the use of Tool J-9559 as follows:

1.
With hood opened only far enough to allow passage of

mechanic's arm between hood and fender, insert ends

of J-9559 (through bolt removed) between coils of

spring until barrel of tool contacts outer diameter

of spring.

2.
Open hood fully while still holding spring (with tool

installed) in hand; when hood is near fully opened

position, spring may be removed as shown in Figure

28.

3.
As soon as spring is removed, insert long bolt sup-

plied with J-9559 through holes in end of tool, pass-

ing it through spring, and install nut on bolt.

Spring may be removed from J-9559 or J-9559 may be

installed in a new spring by the following method:

1.
Place a closed 6 or 8 inch "C" clamp in a vise or

fasten it to a heavy bench top (bench should be fas-

tened to floor).

2.
Hook one end of spring in clamp and the other end

in hook of a hoist as shown in Figure 29.

3.
Stretch the spring enough to allow insertion of

J-9559. Install through bolt if spring is not to be

installed on hinge at once.

HOOD CATCH AMD LOCK (Fig. 19)

Removal

1.
Remove catch assembly as follows:

a. Remove screws retaining catch assembly to radi-

ator support.

b.
Remove screws retaining catch assembly to catch

support assembly.

c* Remove screws retaining catch assembly to grille

upper bar.

2.
Before removing hood lock plate from hood, locate

position on hood by scribing around base of lock

plate. Remove screws retaining lock plate to hood

and remove lock plate from vehicle.

Installation

1.
Install both catch and lock assemblies in reverse

order of removal procedure.

2.
Align as outlined under Maintenance and Adjust-

ments - Hood Catch.

HOOD TRIM

Crown Molding

Hood crown molding is retained by clips installed on

underside of hood. Clips may be removed by carefully

pressing them off molding mounting studs with screw

driver.
When installing a new molding, force clips onto mount-

ing studs as far as possible and then clench clips with

long-nosed pliers to eliminate gap between molding and

hood, as shown in Figure 30.

Emblem

The hood emblem is retained by four nuts which are

accessible from under the hood.

COWL VENT GRILLE

The cowl vent grille replacement procedure for Chevy

U is the same as for Chevrolet and Chevelle. Refer to

Chevrolet and Chevelle Cowl Vent Grille replacement

procedure and see Figure 16.

FRONT END ASSEMBLY

The Chevy n front end body design allows for removal

of the entire front end of the vehicle without disassembly

of front suspension of sheet metal. One man may remove

and transport the front end assembly using only a floor

jack placed under the crossmember and the vehicle front

wheels. Figure 31 illustrates the assembly in process

of removal with jack stand in position under rocker panel.

Proceed with removal
as.
follows:

Removal

1.
Remove hood assembly as outlined in this section.

2.
Remove engine assembly as outlined in Section 6.

On 4 cylinder models, replace crossmember.

3.
Raise car from floor and install jack stands as

shown in Figure 31.

4.
Remove pitman arm from steering gear as outlined

in Section 9.

5.
Remove steering gear mounting bolts from skirt

assembly.

6. Remove 4 bolts securing each skirt assembly to

lower dash brace.

7.
Remove fender-to-rocker extension mounting screws

and record shimming.

8. Remove brake hydraulic line and fuel line from right

hand skirt.

9. Position floor jack or equivalent under front cross-

member.

10.
Remove hydraulic line from main cylinder.

11.
Remove fender-to-cowl mounting screws and record

shimming.

12.
Remove upper skirt-to-dash mounting screws and

record shimming.

13.

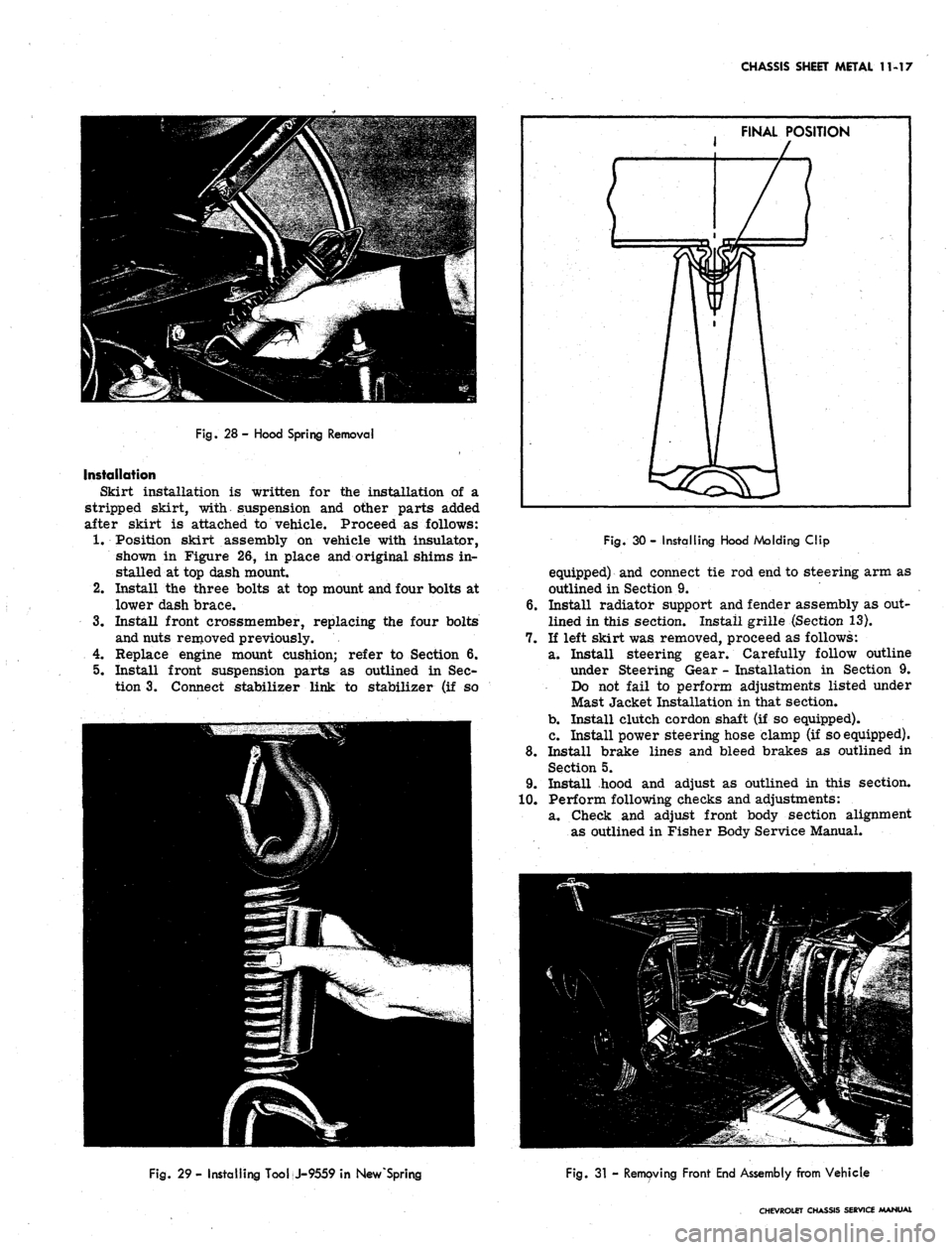

Remove front end from vehicle as shown in Figure

31.

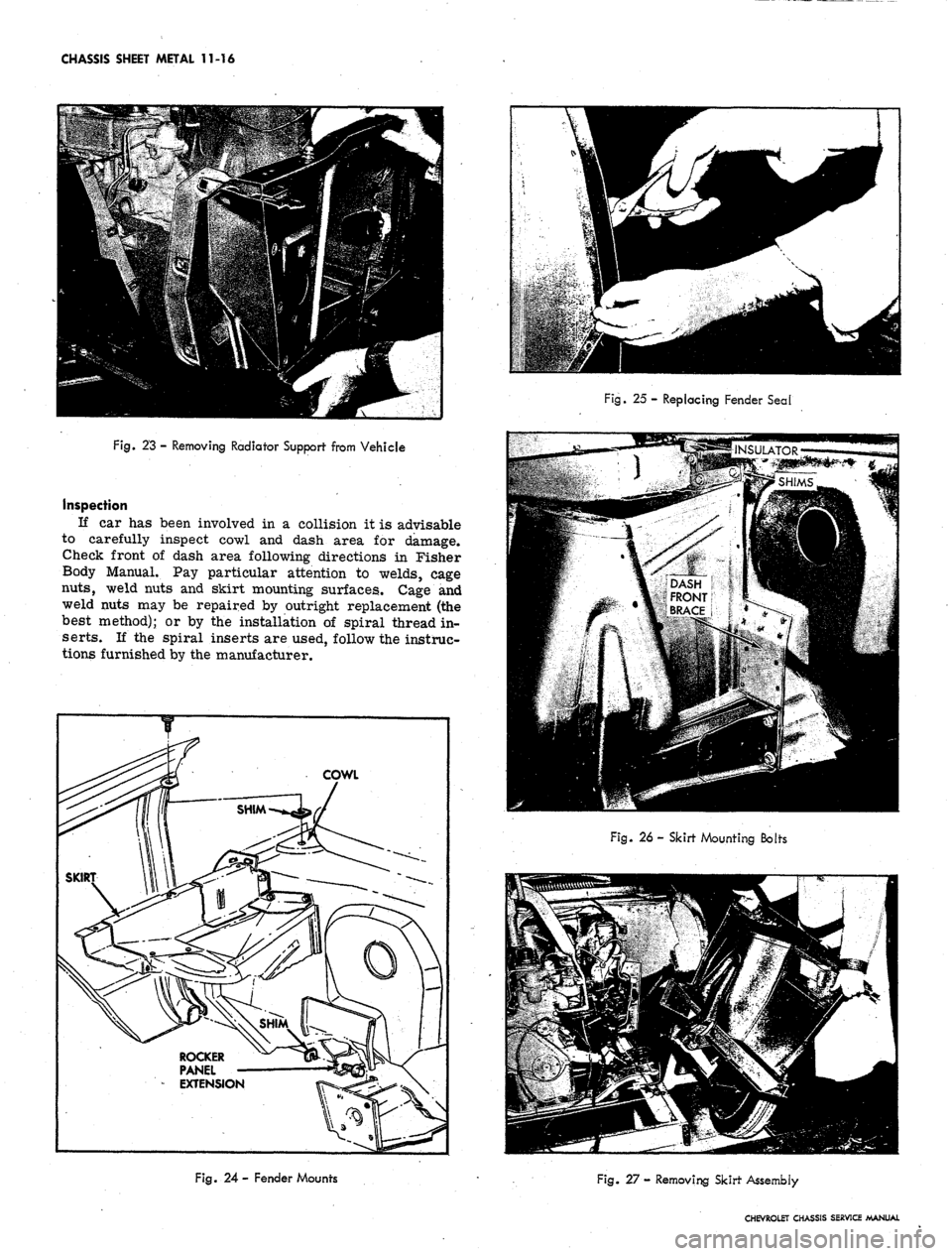

Inspection

If car has been involved in a collision, it is advisable

to carefully inspect cowl and dash area for damage. Pay

particular attention to welds, cage nuts, weld nuts and

skirt mounting surfaces. Cage and weld nuts may be

repaired by outright replacement (the best method), or

by the installation of spiral thread inserts. If the spiral

inserts are used, follow the instructions furnished by the

manufacturer. -

Installation

%, position front end assembly at upper dash mounts

and lower dash support, align screw holes with drift

punch and install all mounting screws and bolts

loosely; do not tighten until all screws and bolts are

started. Replace original shimming.

CHEVROLET CHASSIS SERVICE MANUAL

5.

6.

7.

8.
2.
Install all fender mounting screws, replacing original

shimming. Refer to removal procedure for screw

location.

3.
Install hydraulic lines at main cylinder and right

hand skirt. Install fuel line at right hand skirt.

4.
Install steering gear as outlined in Section 9. Do

not fail to perform adjustment procedure listed under

Mast Jacket - Installation.

CAMARO

INDEX

Page

General Description 20

Maintenance and Adjustments 20

Hood / . 20

Hinge 20

Bumpers ' . . . 20

Catch Assembly 21

Lock . 21

Fenders 21

Sheet Metal 22
CHASSIS SHEET METAL 11-19

Install pitman arm as outlined in Section 9 under

Maintenance and Adjustments - Steering Gear Ad-

justments.

Remove jack stands and jack.

Bleed brakes as outlined in Section 5.

Perform body alignment as outlined in Fisher Body

Service Manual.

Page

Component Part Replacement . 22

Battery Tray 22

Radiator Support 22

Fender and Skirt Assembly 22

Hood Assembly . 22

Lock and Catch Assembly 22

Trim and Insulation . . . 24

Cowl Vent Grille . . 24

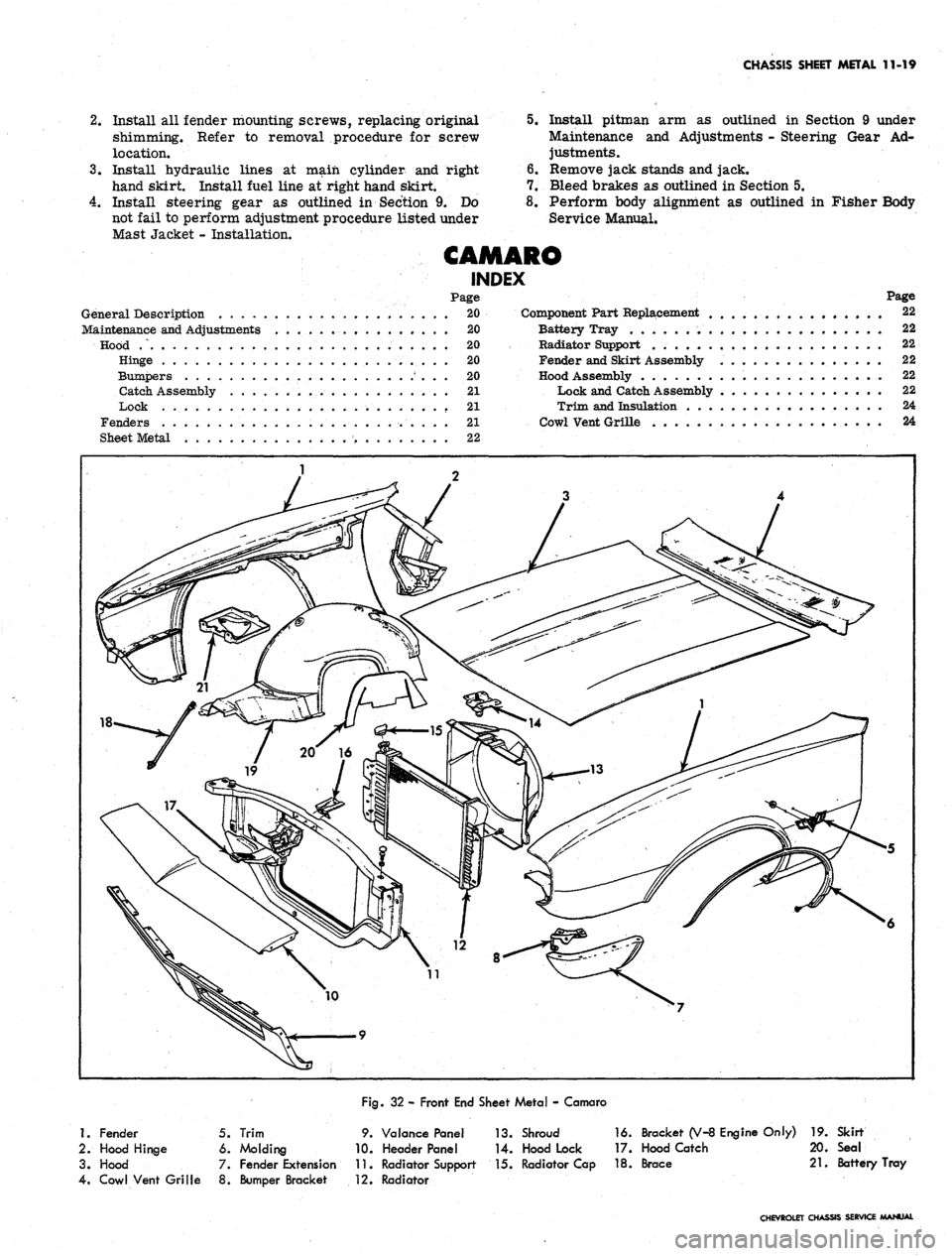

Fig.
32 - Front End Sheet Metal - Camaro

1.
Fender

2.
Hood Hinge

3. Hood

4.
Cowl Vent Grille
5. Trim

6. Molding

7. Fender Extension

8. Bumper Bracket
9. Valance Pane!

10.
Header Panel

11.
Radiator Support

12.
Radiator
13.

14.

15.
Shroud

Hood Lock

Radiator Cap
16.

17.

18.
Bracket (V-8

Hood Catch

Brace
Engine
Only)
19.

20.

21.
Skirt

Seal

Battery
Tray

CHEVROLET CHASSIS SERVICE MANUAL

CHASSIS SHEET METAL 11-20

GENERAL DESCRIPTION

The Camaro sheet metal components are much the

same as other Chevrolet passenger models as shown in

Figure 32. The front end design is such that servicing

of the fenders and skirts is most efficiently performed
by removing the fender and skirt as an assembly. Refer

to Section 14 for bumper service procedures, Section 13

for radiator and grille, and Section 1A for air condition-

ing components.

MAINTENANCE AND ADJUSTMENTS

HOOD ADJUSTMENT

The Camaro hood is adjusted in the conventional man-

ner, by adjustment of the hood bumpers and hinges. The

two hood bumpers are located on each side at the top of

the radiator support. Do not attempt hood latch adjust-

ments until the hinges and bumpers are correctly ad-

justed. Latch adjustments are made so that effort re-

quired to open and close the hood is reasonable, and

hood alignment obtained by hinge and bumper adjust-

ment is maintained when the hood is closed. Note that

the hood latch is not designed to correct basic hood mis-

alignment.

HOOD HINGE (Fig. 33)

NOTE: The body mounted portion of the hood

hinges are slotted to provide up and down move-

ment. The hood mounted end is slotted to pro-

vide forward and rearward movement.

1.
Scribe a. line around the entire. hinge plate to be

repositioned.

2.
Loosen the appropriate screws and shift the position

of the hood into correct alignment using the scribe

marks to check amount of movement. Check align-

ment by tightening screws and closing the hood.

HOOD BUMPERS

Adjust hood bumpers so that hood top surface is flush

with fender and header panel top surfaces. See Figure

34 for correct sheet metal adjustment dimensions.

HOOD CATCH AND LOCK (Fig. 35)

Adjust hood lock bolt so that top surface of hood is

flush with top surface'of header panel. The distance that

the lock bolt protrudes out of the lock plate should be

adjusted so that the hood bumpers are slightly com-

pressed by the fully latched hood, and effort required

to release the hood catch is reasonable. Close the hood

and insure catch engages securely.

FENDERS

Fenders are adjustable with shims at the cowl and

rocker panel. To add or remove shims, loosen bolts
Fig. 33 - Hood Hinge - Camaro

at shim locations (fig. 36) and carefully apply force with

pry bar to provide clearance for shim removal or in-

stallation.

SHEET METAL

For proper operation of doors and hood, and for pre-

sentable appearance, adjust front sheet metal to the di-

mensions shown in Figure 34.

COMPONENT PART REPLACEMENT

NOTE: When replacing sheet metal compo-

nents on Camaro, note position and attachment

of all seals and dust shielding and replace if

necessary.

BATTERY TRAY

Removal

1.
Disconnect battery cables and remove battery from

vehicle.

2.
Remove screws securing battery tray to fender skirt

and radiator support.

3.
Remove battery tray from vehicle.
Installation

Install battery tray following removal procedure in

reverse order.

RADIATOR SUPPORT

Removal

1.
Raise hood, disconnect battery cables, and remove

battery.

2.
Remove front bumper (Section 14).

3.
Remove grille and related components (Section 13).

4.
Disconnect horns, horn relay, voltage regulator,

CHEVROLET CHASSIS SERVICE MANUAL

CHASSIS SHEET METAL 11-21

FENDER TO W/SHIELD

MOLDING .06 ± .06

GRILLE & FENDER .06 TO—•

.18 GAP

.06 TO .18 GAP

BETWEEN HOOD &

GRILLE & FLUSH =t .06

GRILLE TO W/SHIELD —

MLDG.
FLUSH +.06

-.00^1

GRILLE & FENDER

FLUSH ± .06

FENDER FLUSH

TO .06 ABOVE DOOR

FENDER FLUSH TO .060

06 TO .18 GAP

OUTBOARD OF NORMAL

DOOR AT FENDER,

CENTER PEAK UNE.
HOOD & FENDER

FLUSH ± .06

TO FENDER AT

CORNER FLUSH TO + .06
NORMAL DOOR SURFACE

TO BE MEASURED 2" REAR-

WARD OF DOOR EDGE

TO FENDER EDGE.
FENDER

TO DOOR

.18 it .04

HEADER TO FENDER

FLUSH ± .06

FENDER TO

ROCKER .09±.06

—HOOD TO BE FLUSH

TO 4- .06 TO HEADER

TYPICAL ON

SURFACE FLUSH

CONDITION DESIRED

VIEW A
TYPICAL SECTION
REAR BUMPER

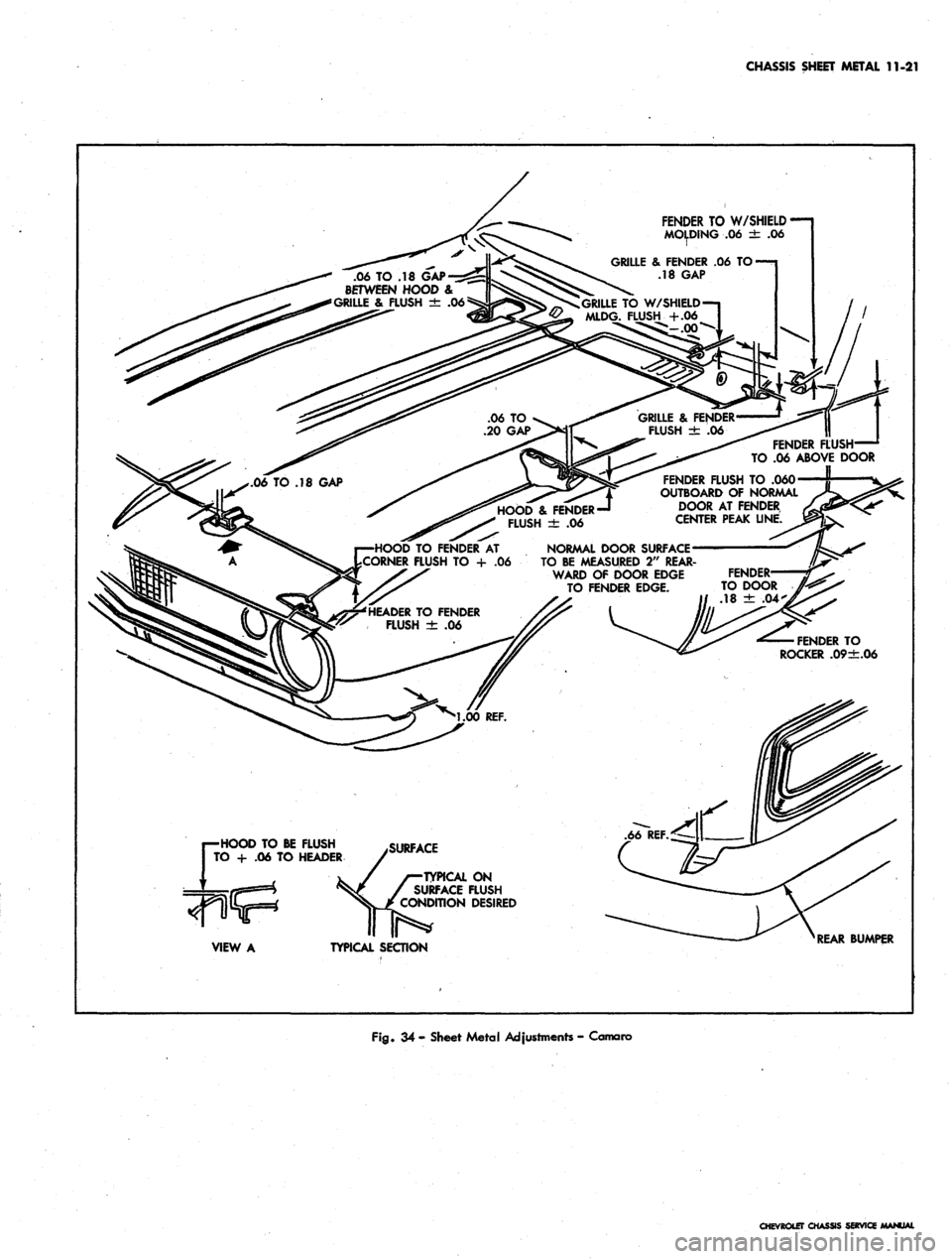

Fig.
34 - Sheet Metal Adiustments - Comoro

CHEVROLET CHASSIS SERVICE

CHASSIS SHEET METAL 11-22

wiring harness, and washer bottle from radiator

support.

5.
Remove screw connecting battery tray to radiator

support.

6. Remove shroud from vehicle if so equipped.

7.
Remove shroud and radiator (Section 13).

8. Remove screws securing support to frame, skirts,

and fenders.

9. Remove radiator support from vehicle.

Installation

Install radiator support following the removal pro-

cedure in reverse order. Refer to torque specifications

in rear of manual for correct torque values for radiator

supportj grille, and bumper.

FENDER AND SKIRT ASSEMBLY

Removal

1.
Remove front bumper (Section 14).

2.
Remove hood and hood.hinges (two men).

3.
Remove bolts securing brace to skirt and dash panel

and remove brace (fig. 32).

4.
Disconnect any components attached to fender and

skirt such as cruise control, hoses, electrical har-

ness etc.

5.
Remove screws securing radiator support to fender

and skirt.

6. Remove headlamp bezel and headlamp.

7.
Remove screws securing fender and skirt assembly

to header panel, headlamp housing and valance panel.

Remove screw securing fender extension to valance

panel.

8. Remove screws securing fender and skirt assembly

to vehicle and remove fender and skirt assembly.

9. If necessary, remove screws attaching fender ex-

tension and bumper bracket to fender and remove

extension and bracket. Replace fender trim if nec-

essary.

Installation

Install fender anci skirt assembly following the removal

procedure in reverse order. Refer to torque specifi-

cations in rear of manual for correct torque values.

HOOD ASSEMBLY

Procedures for hood removal and installation for

Camaro are the same as for Chevrolet and Chevelle.

Refer to Chevrolet and Chevelle hood removal and in-

stallation procedures, Figure 35 for Camaro hood catch,

support, and lock plate, and Figure 37 for Camaro hood

and insulator.

HOOD CATCH AND LOCK (Fig. 35)

Removal

1.
Remove catch plate assembly by removing screws

retaining catch to header panel, center support, and

radiator support.

NOTE: Before removing hood lock plate from

hood, locate position on hood by scribing around

base of lock plate.

2.
Remove lock plate by removing screws retaining lock

plate to hood and remove lock plate.
Fig.
35 - Hood Catch, Support, and Lock Plate - Camaro

Installation

Install lock and catch plate following the removal pro-

cedure in reverse order. Refer to torque specifications

in rear of manual for correct torque values. Adjust lock

and catch plate as outlined under adjustment procedure

in this section.

HOOD TRIM AND INSULATION (Fig. 37}

. Figure 37 shows the installation details of the Camaro

hood ornament and insulation pad. The insulation and

ornament retainers and nuts are accessible from under

the raised hood.

COWL VENT GRILLE

.Procedures'for Camaro cowl vent grille replacement

are the same as for Chevrolet and Chevelle. Refer to

Chevrolet and Chevelle cowl vent grille replacement.

CHEVROLET CHASSIS SERVICE MANUAL

CHASSIS SHEET METAL 11-23

SHIM

VIEW A
SHIM

VIEW B

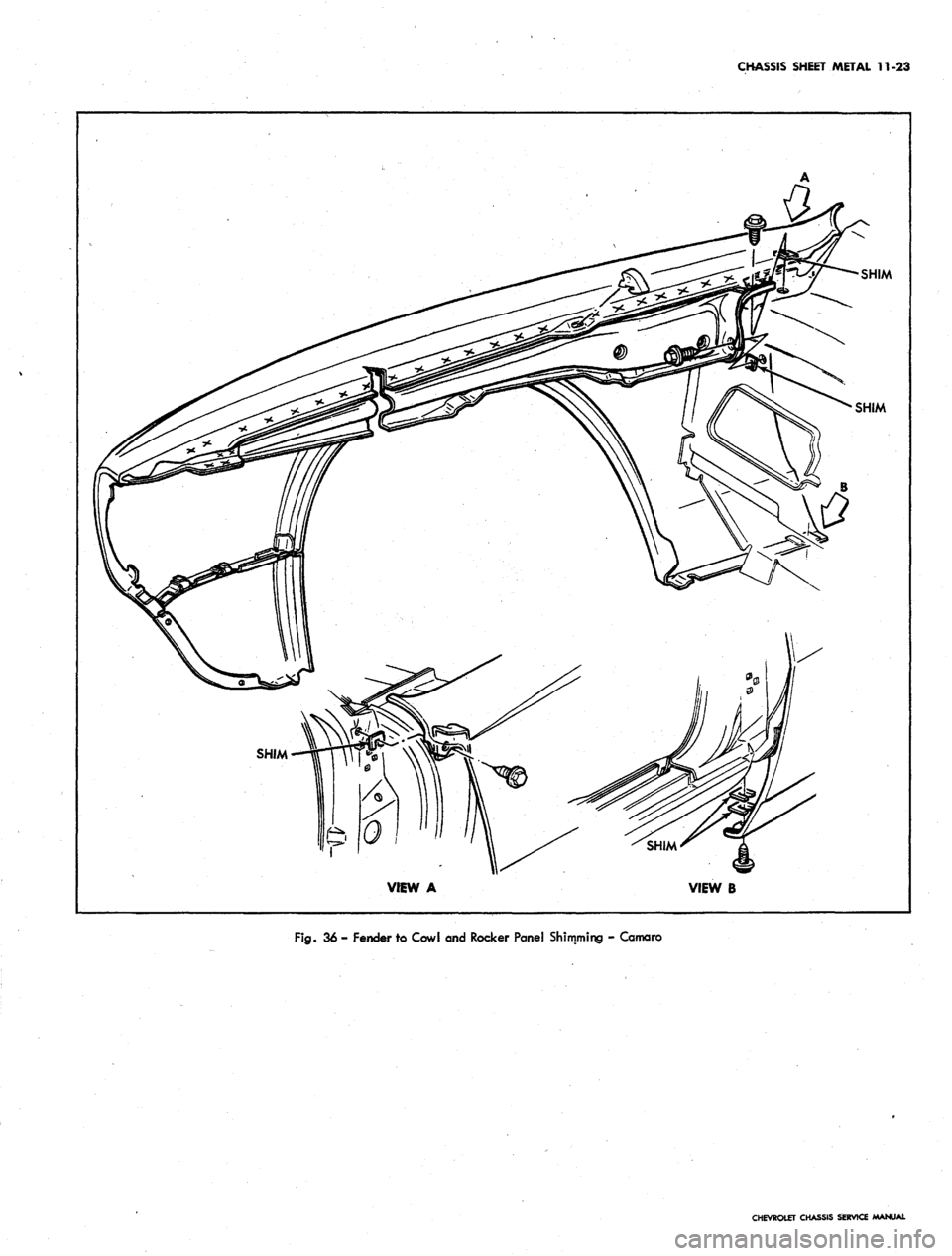

Fig.
36 - Fender to Cowl and Rocker Panel Shimming - Camaro

CHEVROLET CHASSIS SERVICE MANUAL
