Page 2071 of 2438

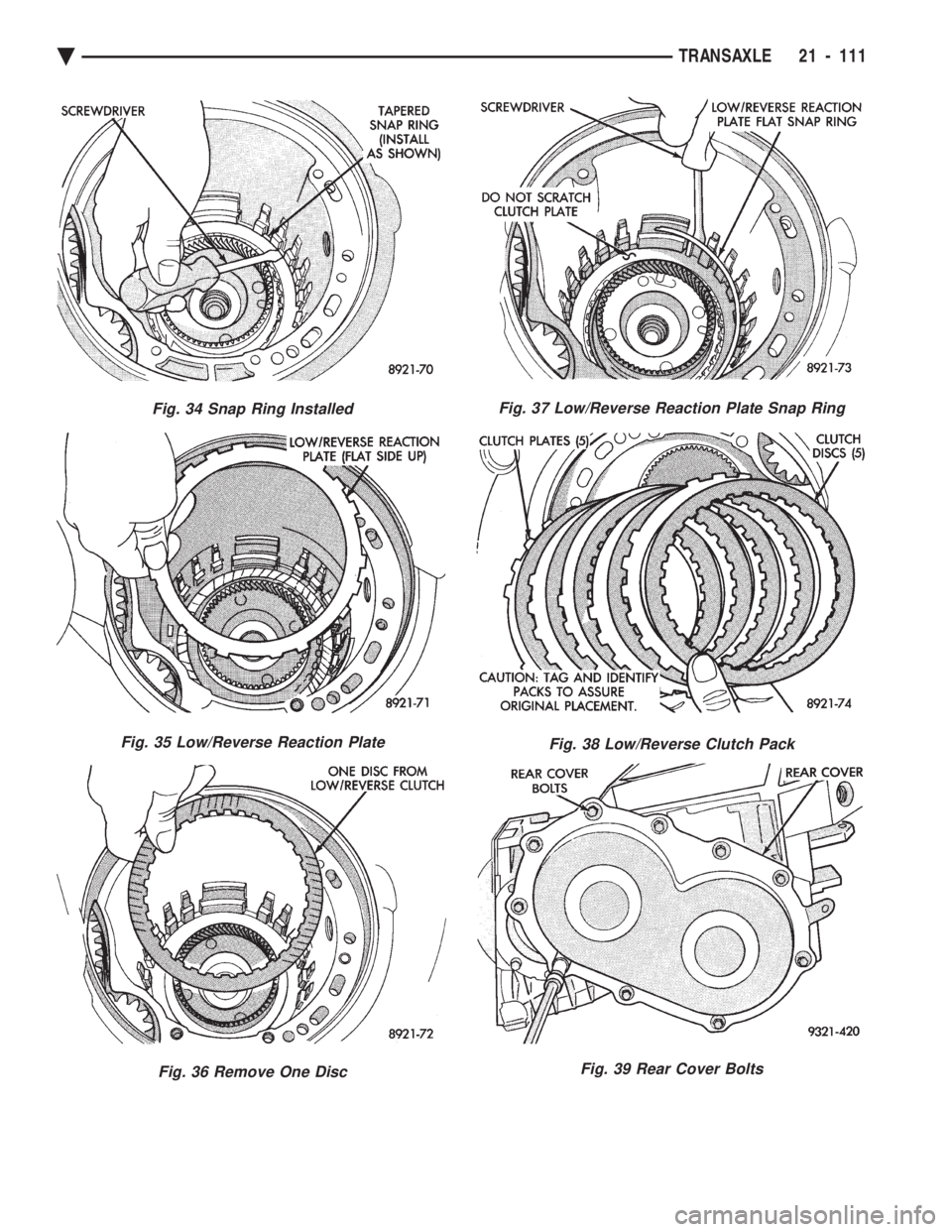

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual Fig. 34 Snap Ring Installed
Fig. 35 Low/Reverse Reaction Plate
Fig. 36 Remove One Disc
Fig. 37 Low/Reverse Reaction Plate Snap Ring
Fig. 38 Low/Reverse Clutch Pack
Fig. 39 Rear Cover Bolts
Ä TRANSAXL

Page 2072 of 2438

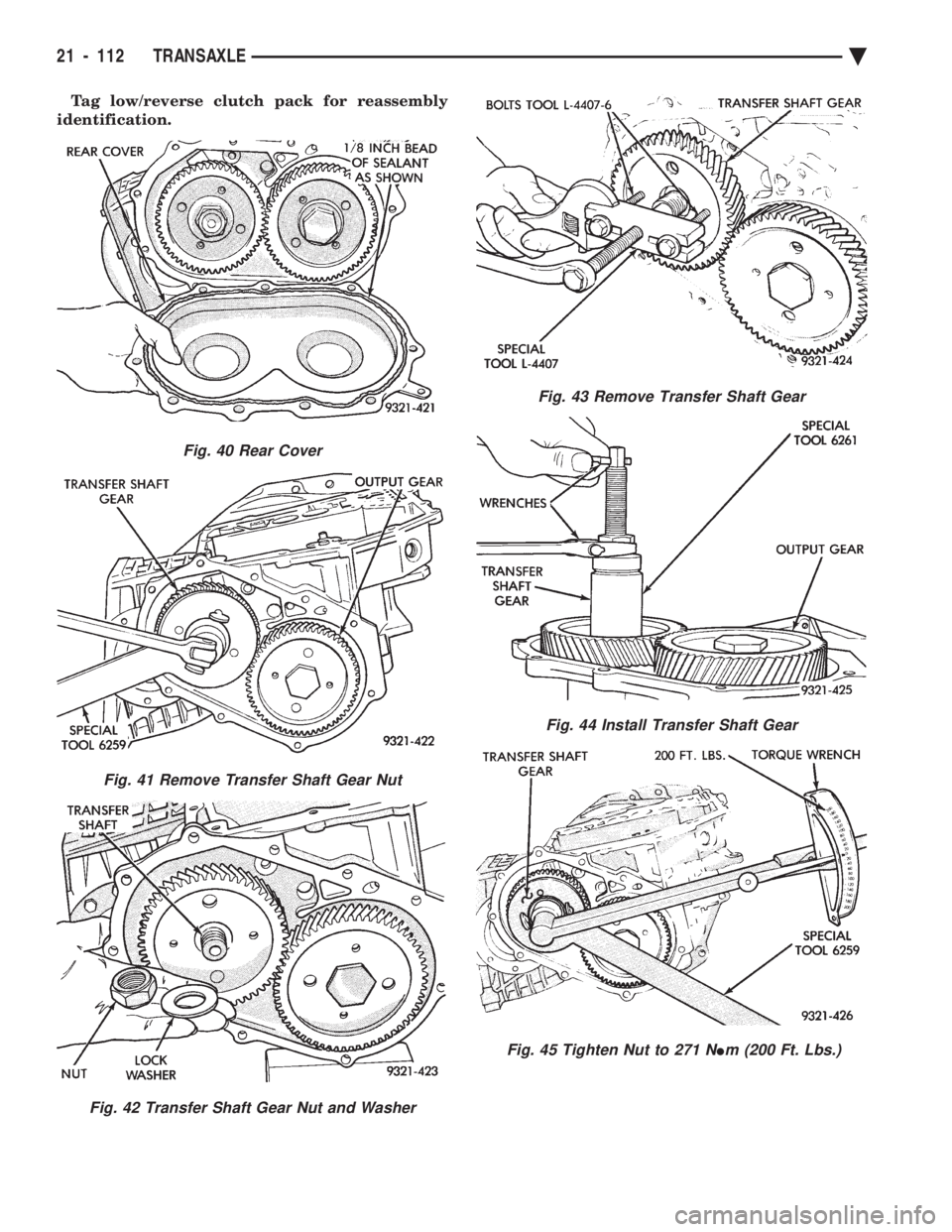

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual Tag low/reverse clutch pack for reassembly
identification.
Fig. 43 Remove Transfer Shaft Gear
Fig. 44 Install Transfer Shaft Gear
Fig. 45 Tighten Nut to 271 NIm (200 Ft. Lbs.)
Fig. 40 Rear Cover
Fig.

Page 2073 of 2438

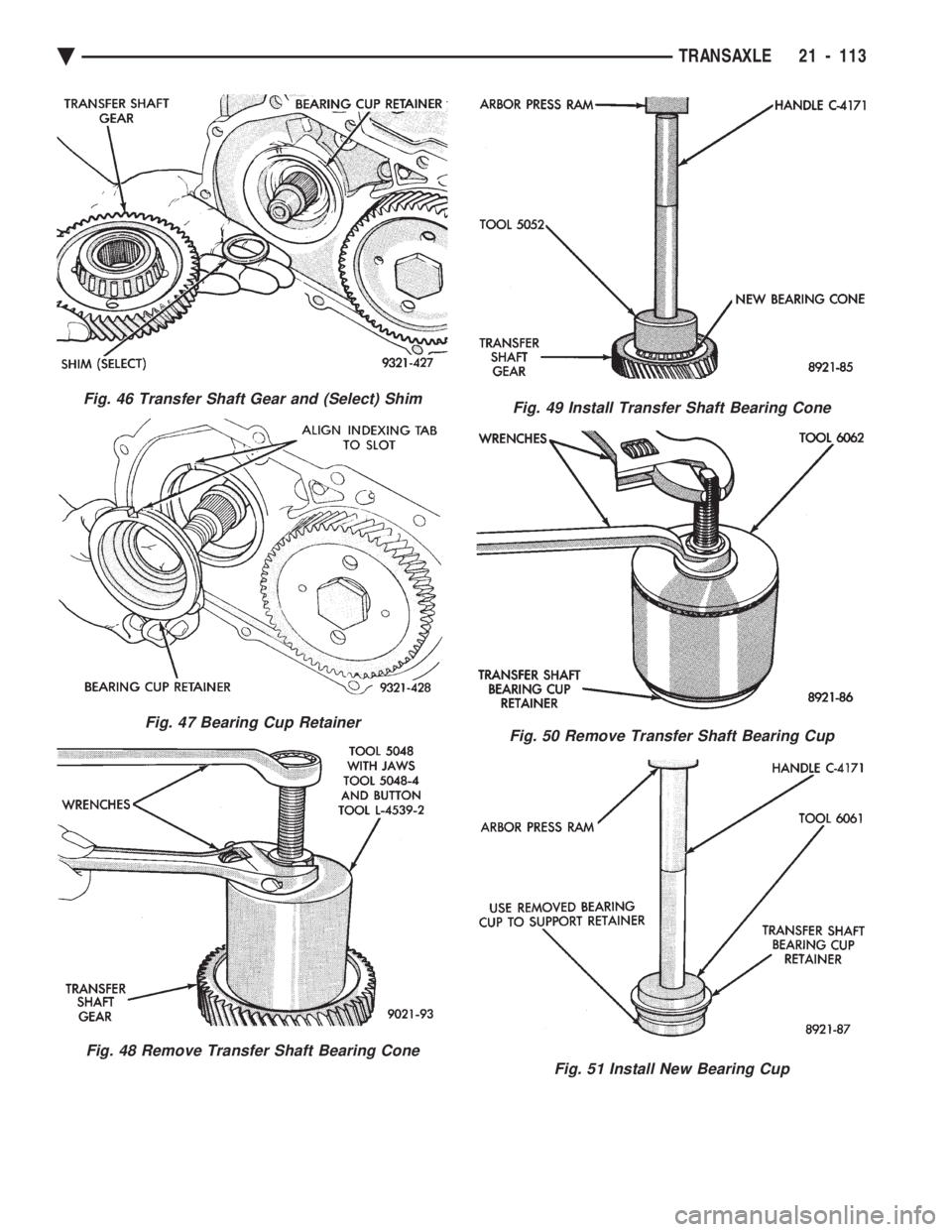

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual Fig. 46 Transfer Shaft Gear and (Select) Shim
Fig. 47 Bearing Cup Retainer
Fig. 48 Remove Transfer Shaft Bearing Cone
Fig. 49 Install Transfer Shaft Bearing Cone
Fig. 50 Remove Transfer Shaft Bearing

Page 2074 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual Fig. 52 Transfer Shaft Bearing Snap Ring
Fig. 53 Transfer Shaft
Fig. 54 Remove Transfer Shaft Bearing Cone
Fig. 55 Install Bearing Cone
Fig. 56 Bearing Cup Removed
Fig. 57 Remove Output Gear Bolt
21 -

Page 2075 of 2438

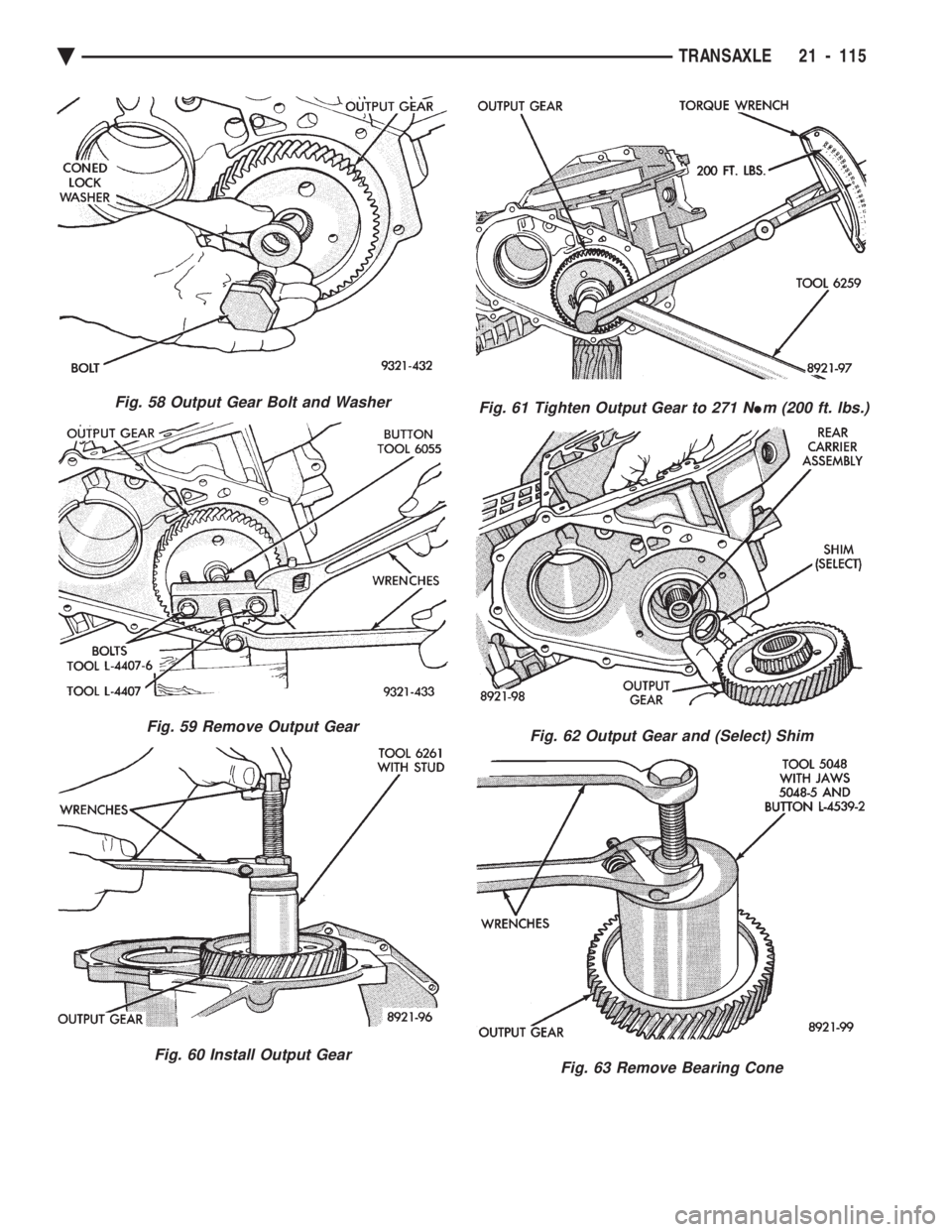

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual Fig. 58 Output Gear Bolt and Washer
Fig. 59 Remove Output Gear
Fig. 60 Install Output Gear
Fig. 61 Tighten Output Gear to 271 NIm (200 ft. lbs.)
Fig. 62 Output Gear and (Select) Shim
Fig. 63 Remove Be

Page 2076 of 2438

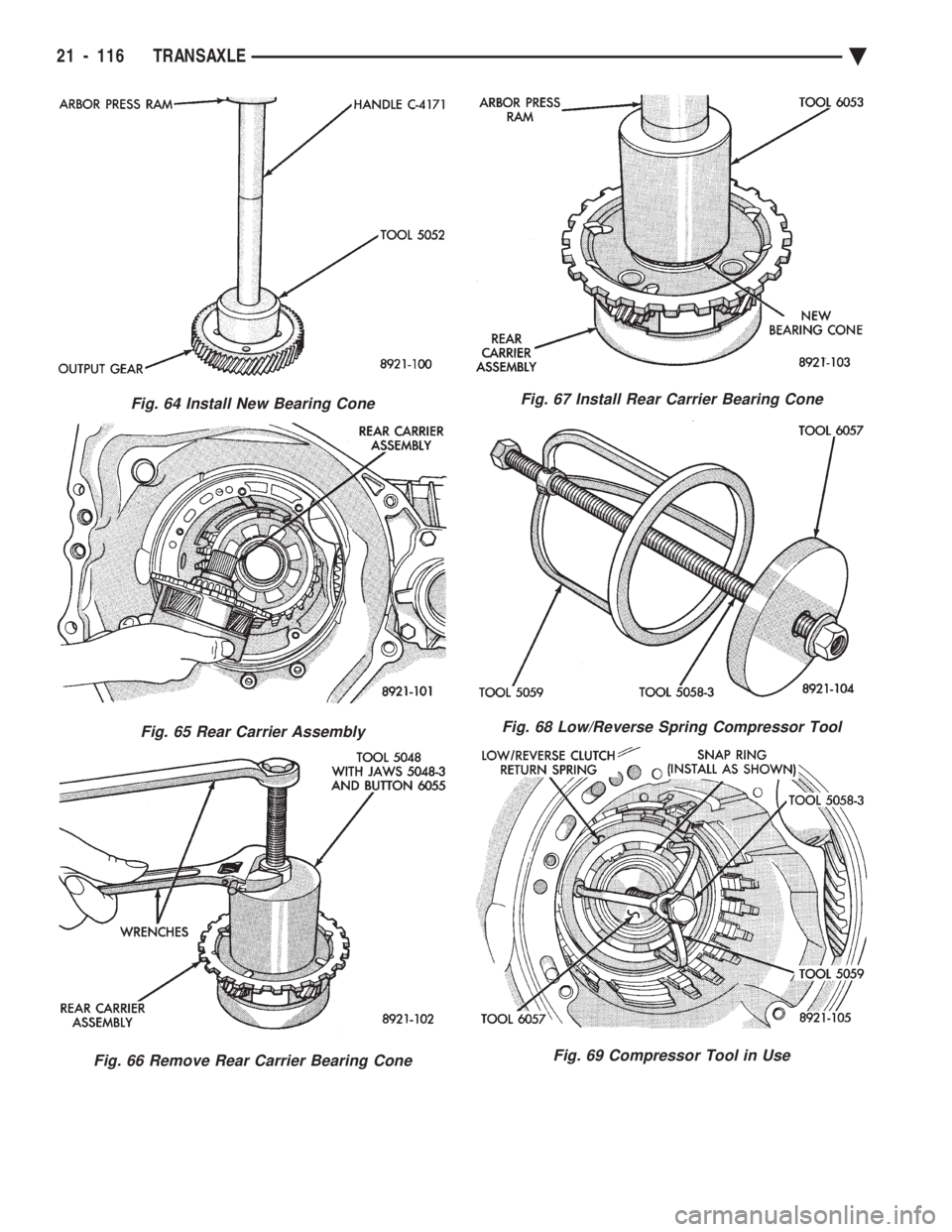

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual Fig. 64 Install New Bearing Cone
Fig. 65 Rear Carrier Assembly
Fig. 66 Remove Rear Carrier Bearing Cone
Fig. 67 Install Rear Carrier Bearing Cone
Fig. 68 Low/Reverse Spring Compressor Tool
Fig. 69 Com

Page 2077 of 2438

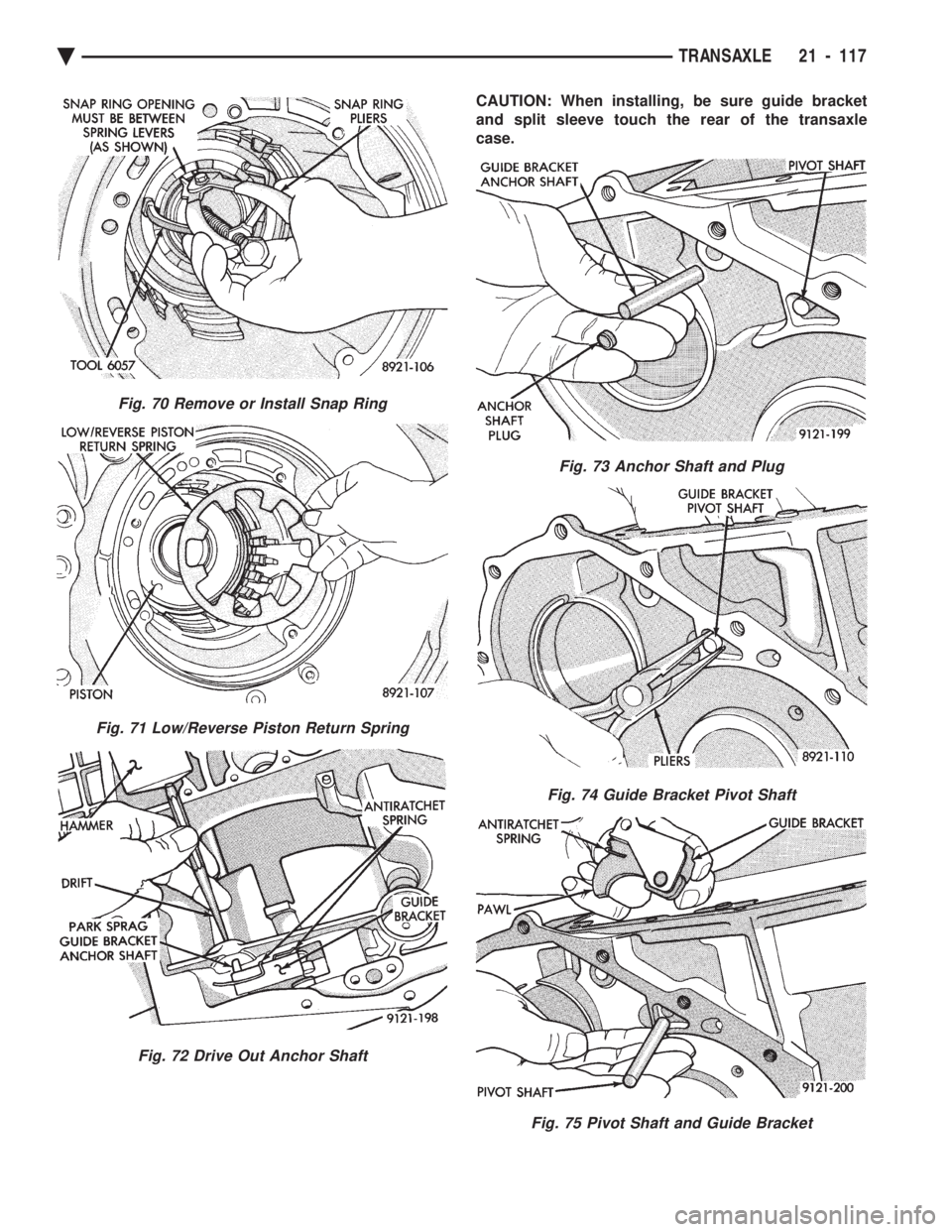

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual CAUTION: When installing, be sure guide bracket
and split sleeve touch the rear of the transaxle
case.
Fig. 70 Remove or Install Snap Ring
Fig. 71 Low/Reverse Piston Return Spring
Fig. 72 Drive Out A

Page 2078 of 2438

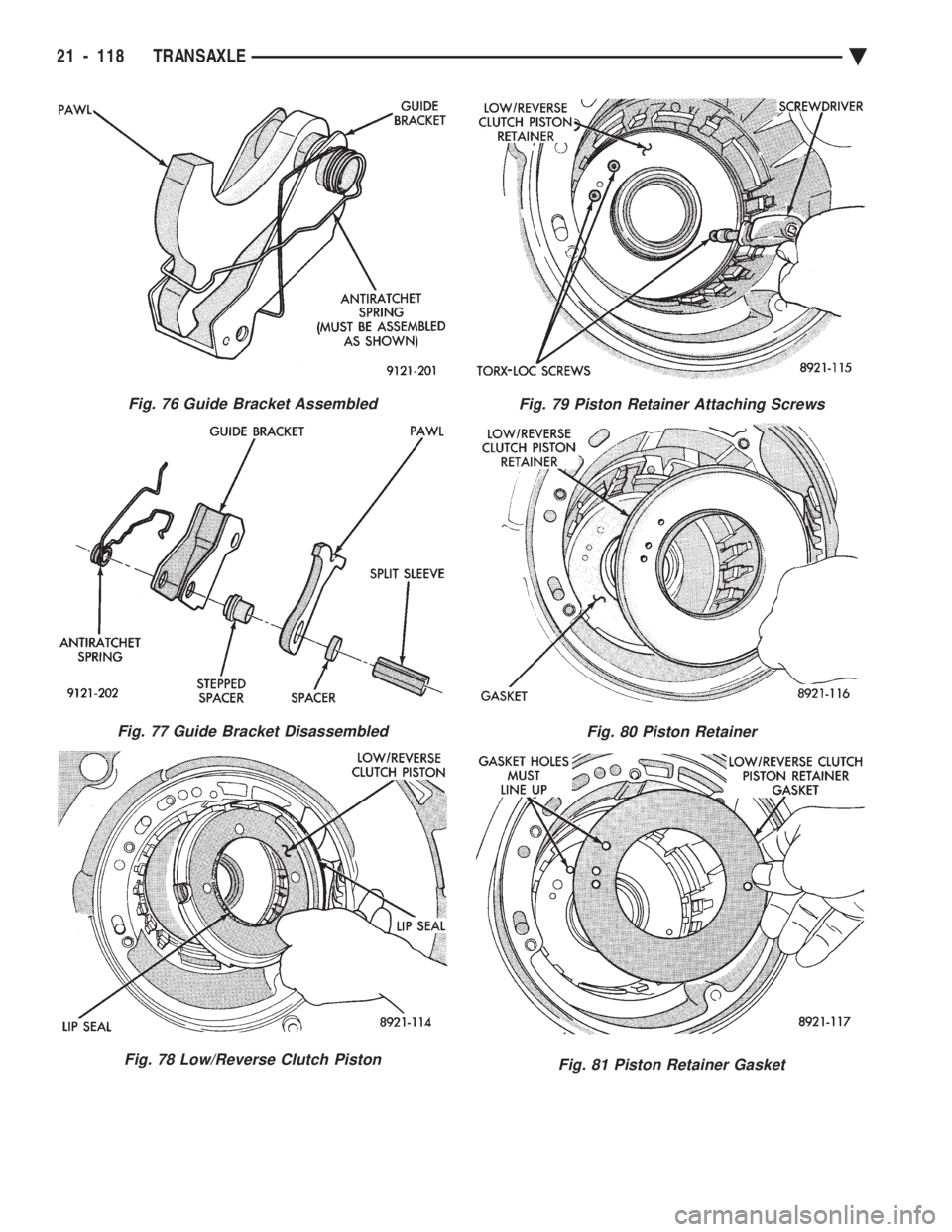

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual Fig. 76 Guide Bracket Assembled
Fig. 77 Guide Bracket Disassembled
Fig. 78 Low/Reverse Clutch Piston
Fig. 79 Piston Retainer Attaching Screws
Fig. 80 Piston Retainer
Fig. 81 Piston Retainer Gasket
21

Page 2079 of 2438

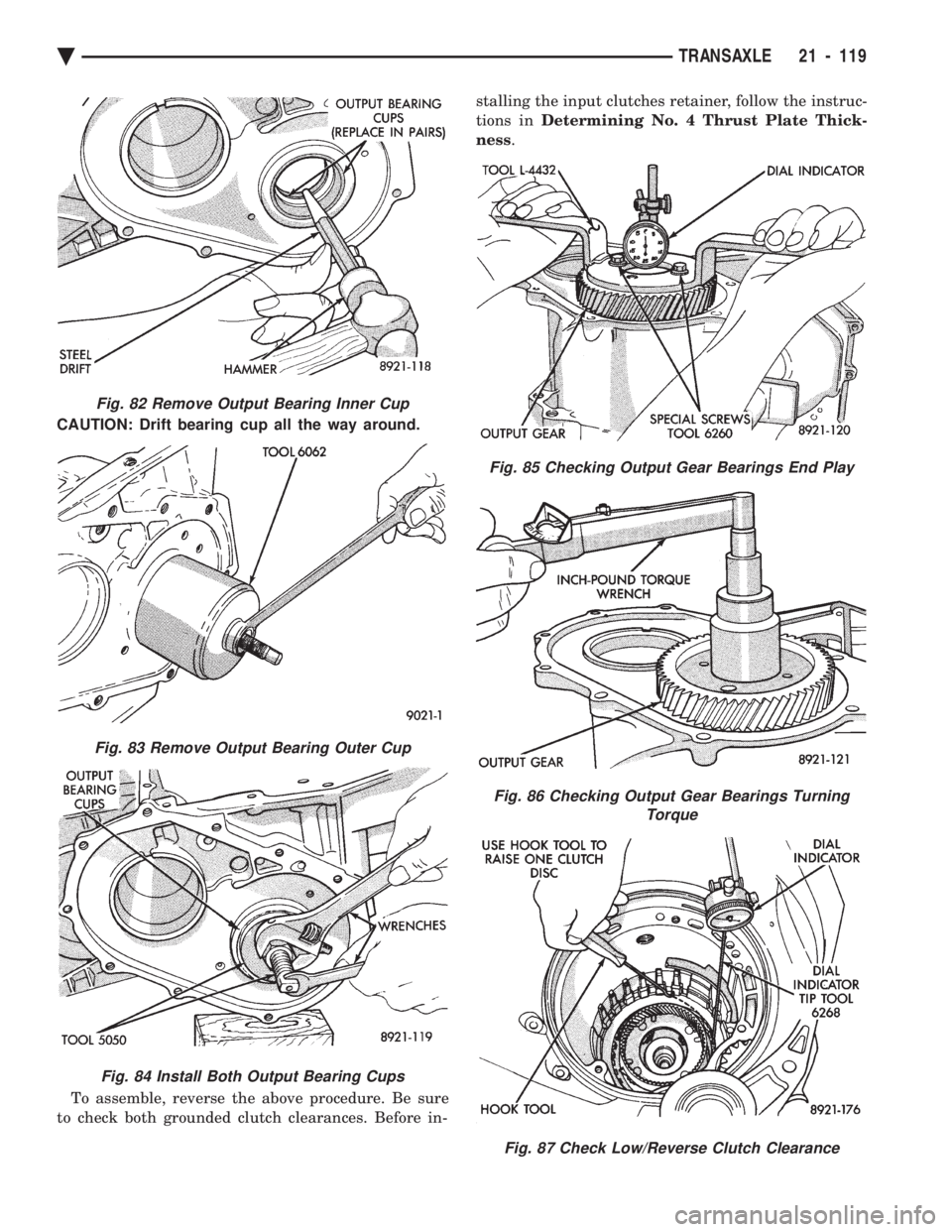

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual CAUTION: Drift bearing cup all the way around. To assemble, reverse the above procedure. Be sure
to check both grounded clutch clearances. Before in-  stalling the input clutches retainer, follow the

Page 2080 of 2438

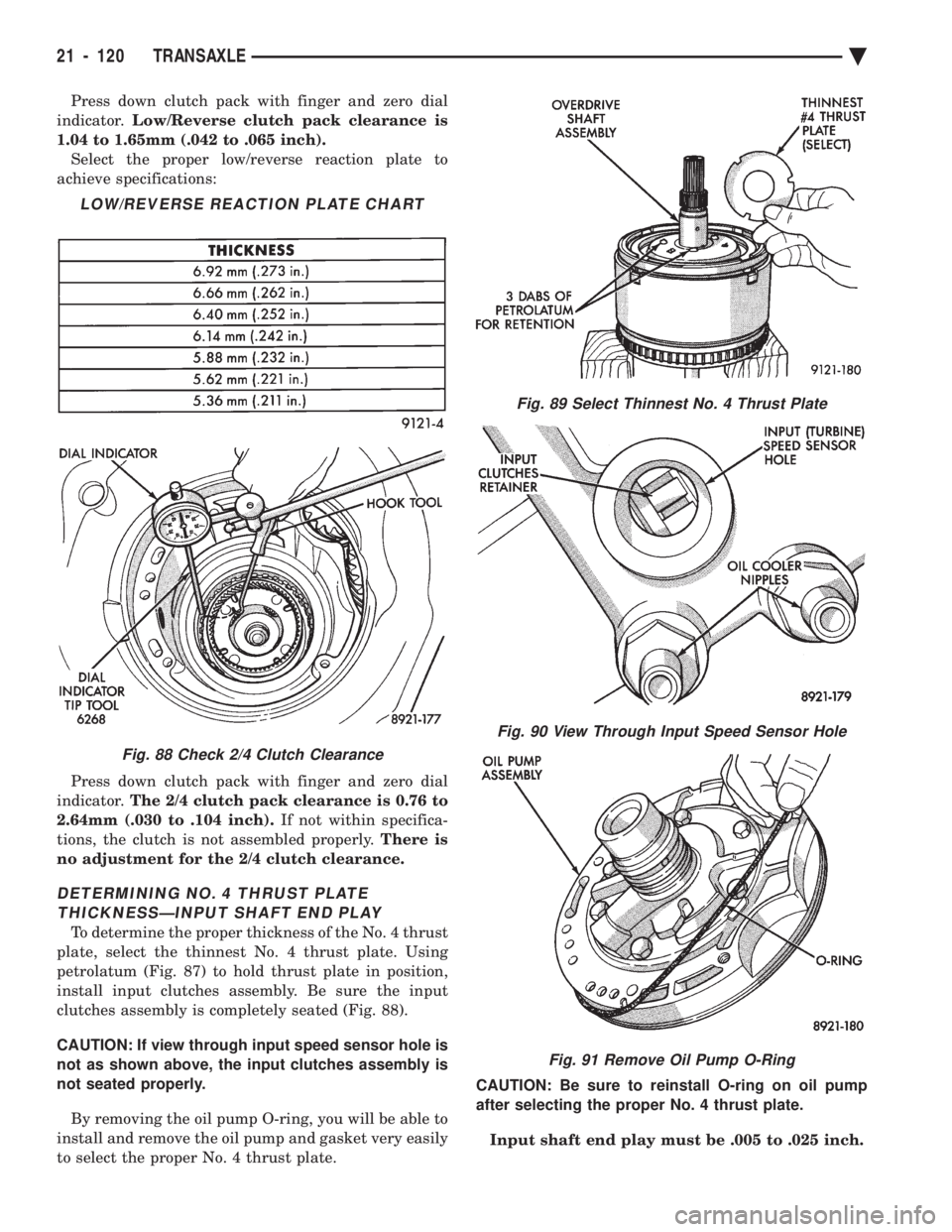

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual Press down clutch pack with finger and zero dial
indicator.  Low/Reverse clutch pack clearance is
1.04 to 1.65mm (.042 to .065 inch). Select the proper low/reverse reaction plate to
achieve specific
