Page 2081 of 2438

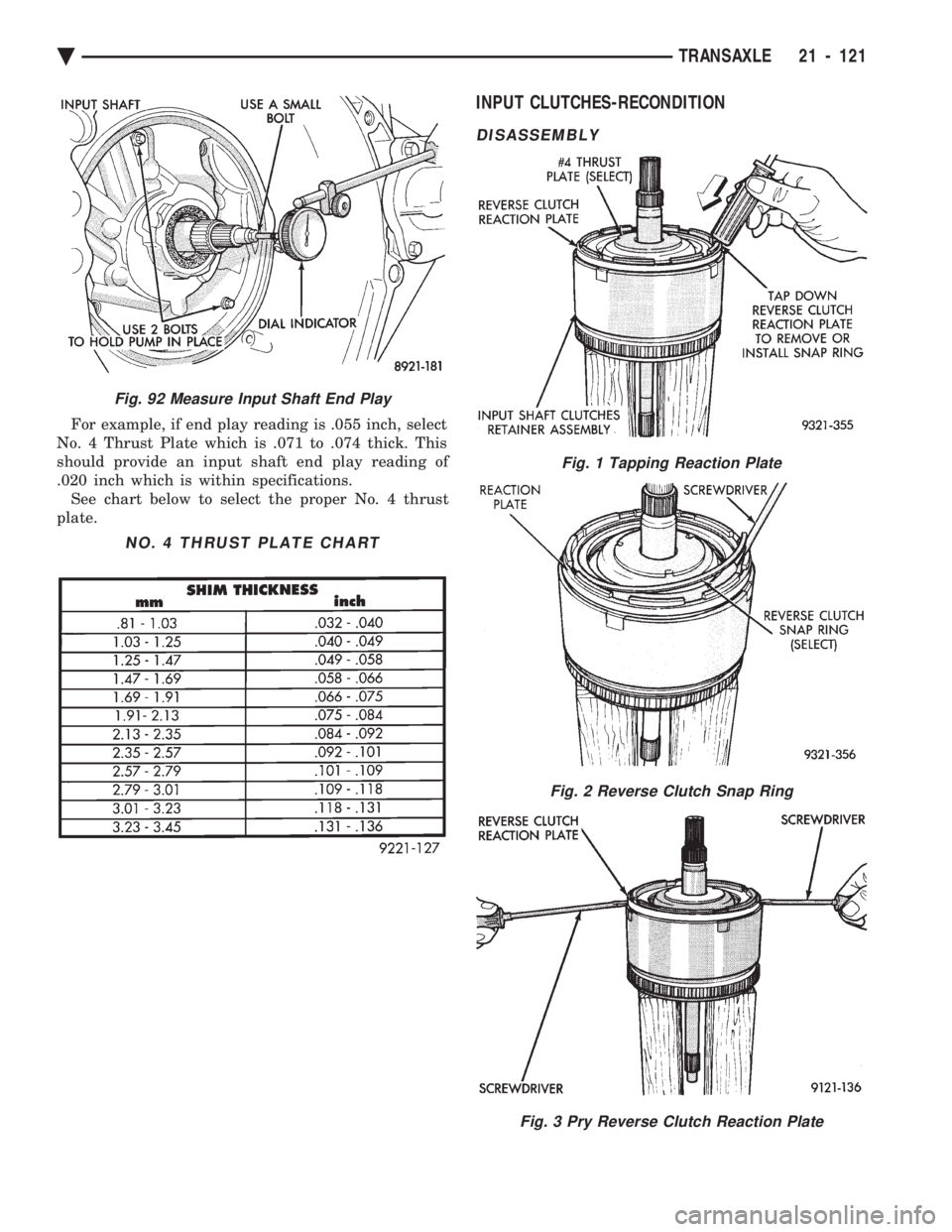

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual For example, if end play reading is .055 inch, select
No. 4 Thrust Plate which is .071 to .074 thick. This
should provide an input shaft end play reading of
.020 inch which is within specifications.

Page 2082 of 2438

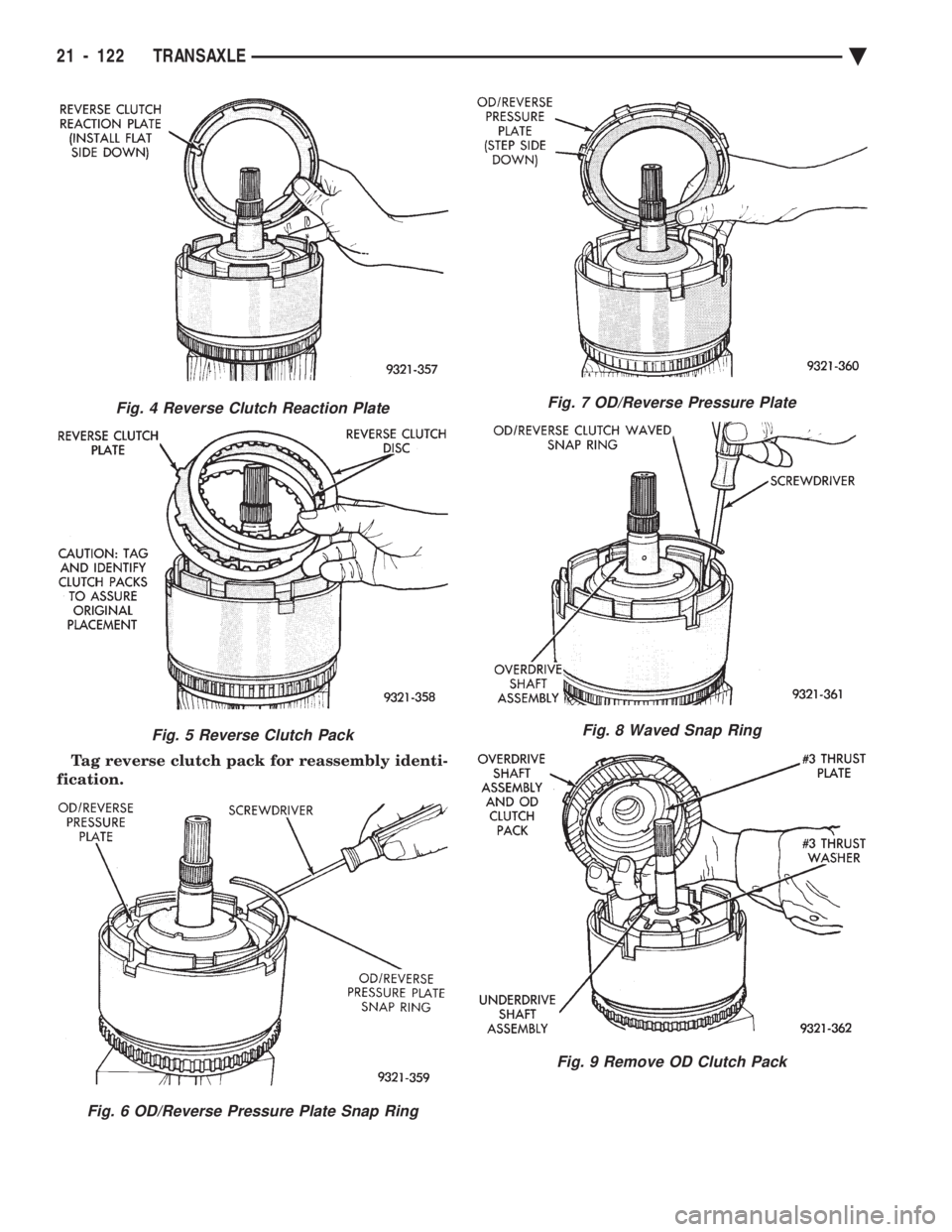

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual Tag reverse clutch pack for reassembly identi-
fication.
Fig. 7 OD/Reverse Pressure Plate
Fig. 8 Waved Snap Ring
Fig. 9 Remove OD Clutch Pack
Fig. 4 Reverse Clutch Reaction Plate
Fig. 5 Reverse Clutc

Page 2083 of 2438

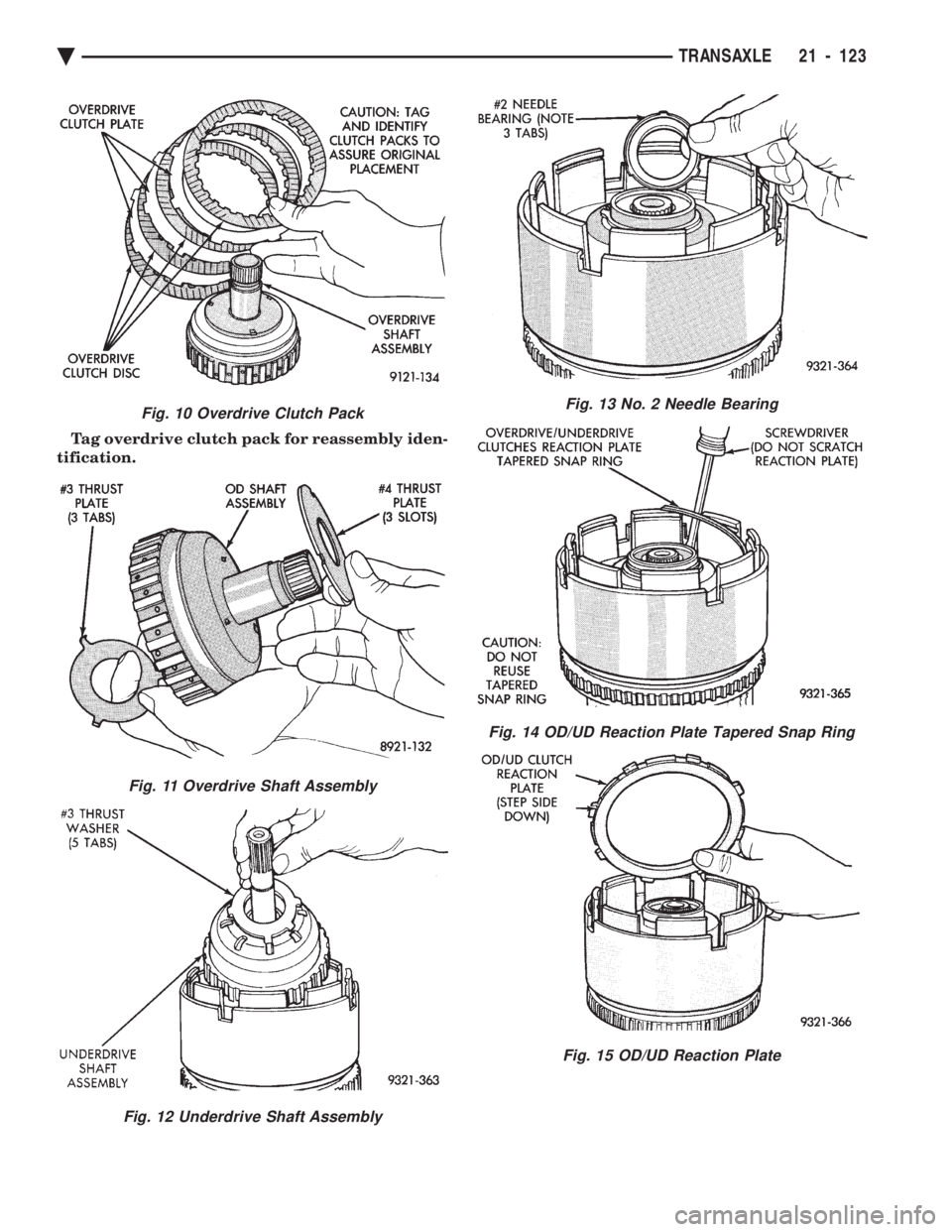

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual Tag overdrive clutch pack for reassembly iden-
tification.
Fig. 13 No. 2 Needle Bearing
Fig. 14 OD/UD Reaction Plate Tapered Snap Ring
Fig. 15 OD/UD Reaction Plate
Fig. 10 Overdrive Clutch Pack
Fig.

Page 2084 of 2438

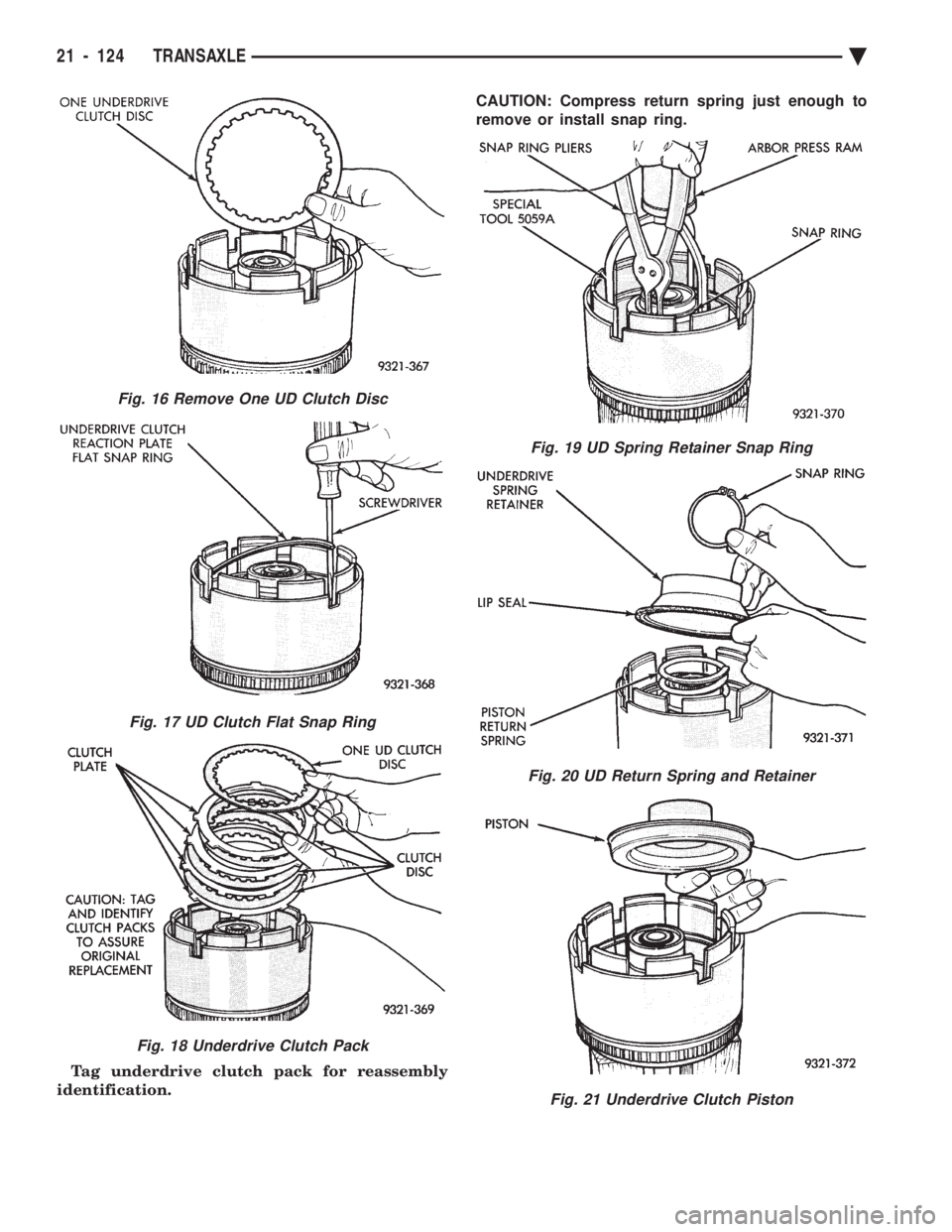

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual Tag underdrive clutch pack for reassembly
identification.  CAUTION: Compress return spring just enough to
remove or install snap ring.
Fig. 19 UD Spring Retainer Snap Ring
Fig. 20 UD Return Spring a

Page 2085 of 2438

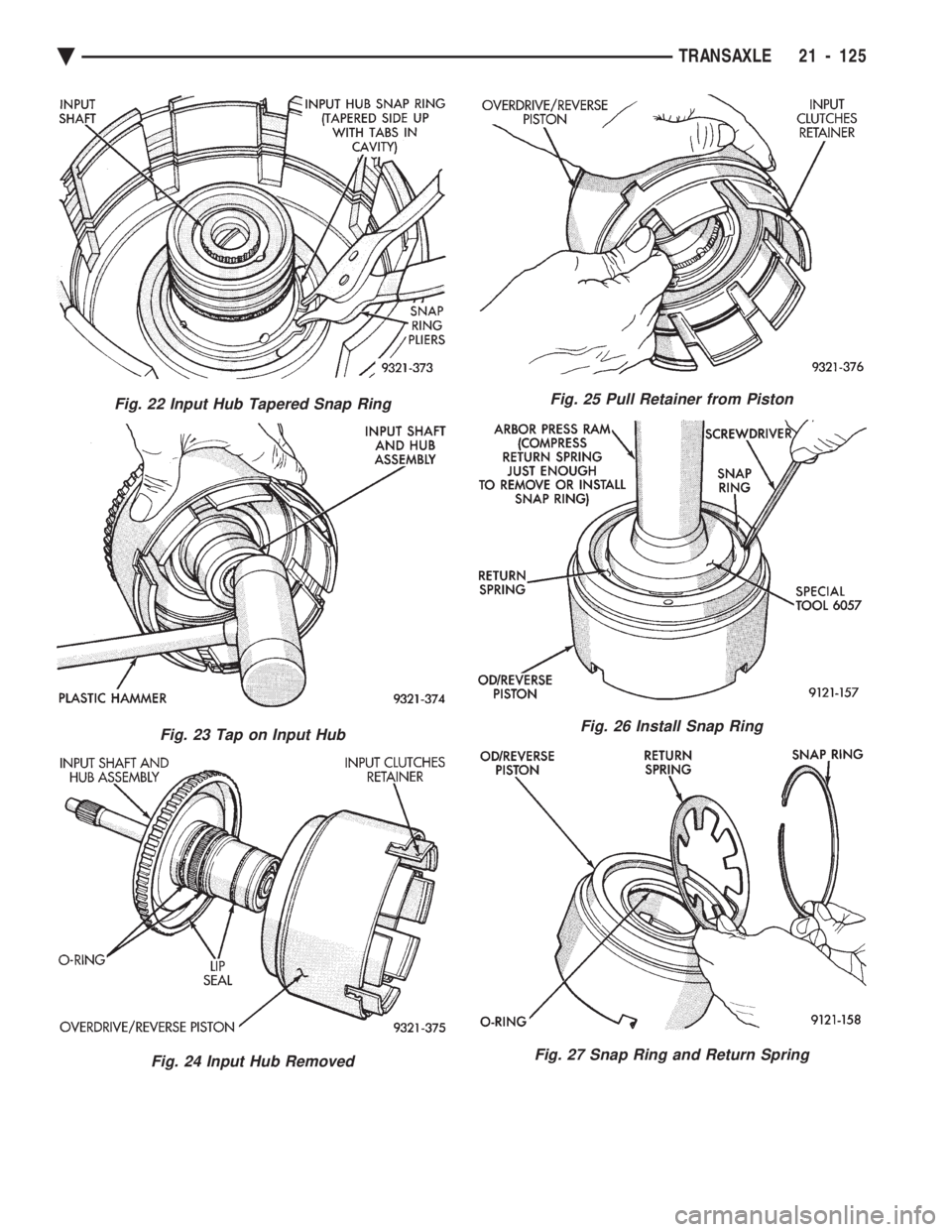

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual Fig. 22 Input Hub Tapered Snap Ring
Fig. 23 Tap on Input Hub
Fig. 24 Input Hub Removed
Fig. 25 Pull Retainer from Piston
Fig. 26 Install Snap Ring
Fig. 27 Snap Ring and Return Spring
Ä TRANSAXLE 21 -

Page 2086 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual ASSEMBLY
Use petrolatum on all seals to ease assembly of
components.

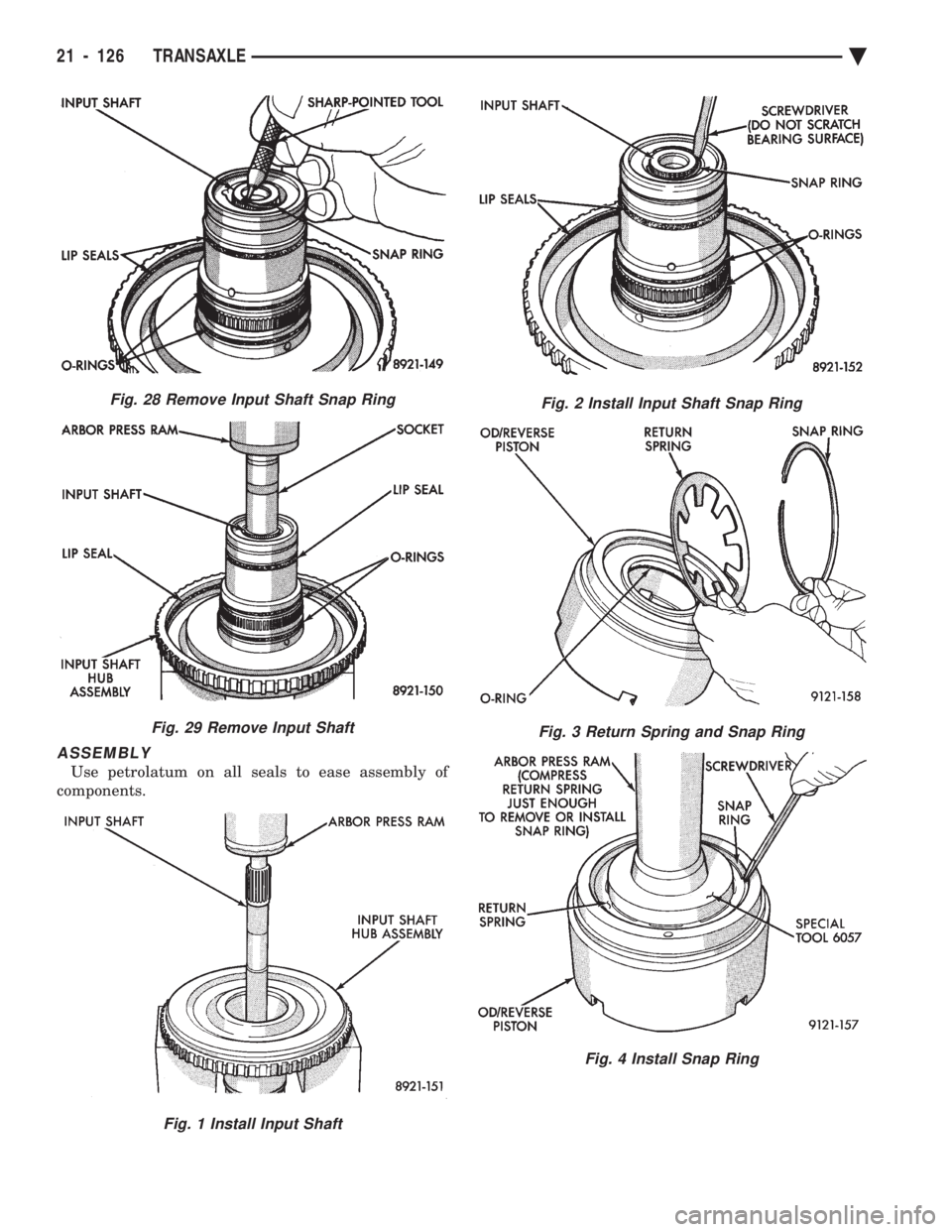

Fig. 28 Remove Input Shaft Snap Ring
Fig. 29 Remove Input Shaft
Fig. 1 Install Input Shaft
Fig. 2 Install Input Shaft Snap Ring
Fi

Page 2087 of 2438

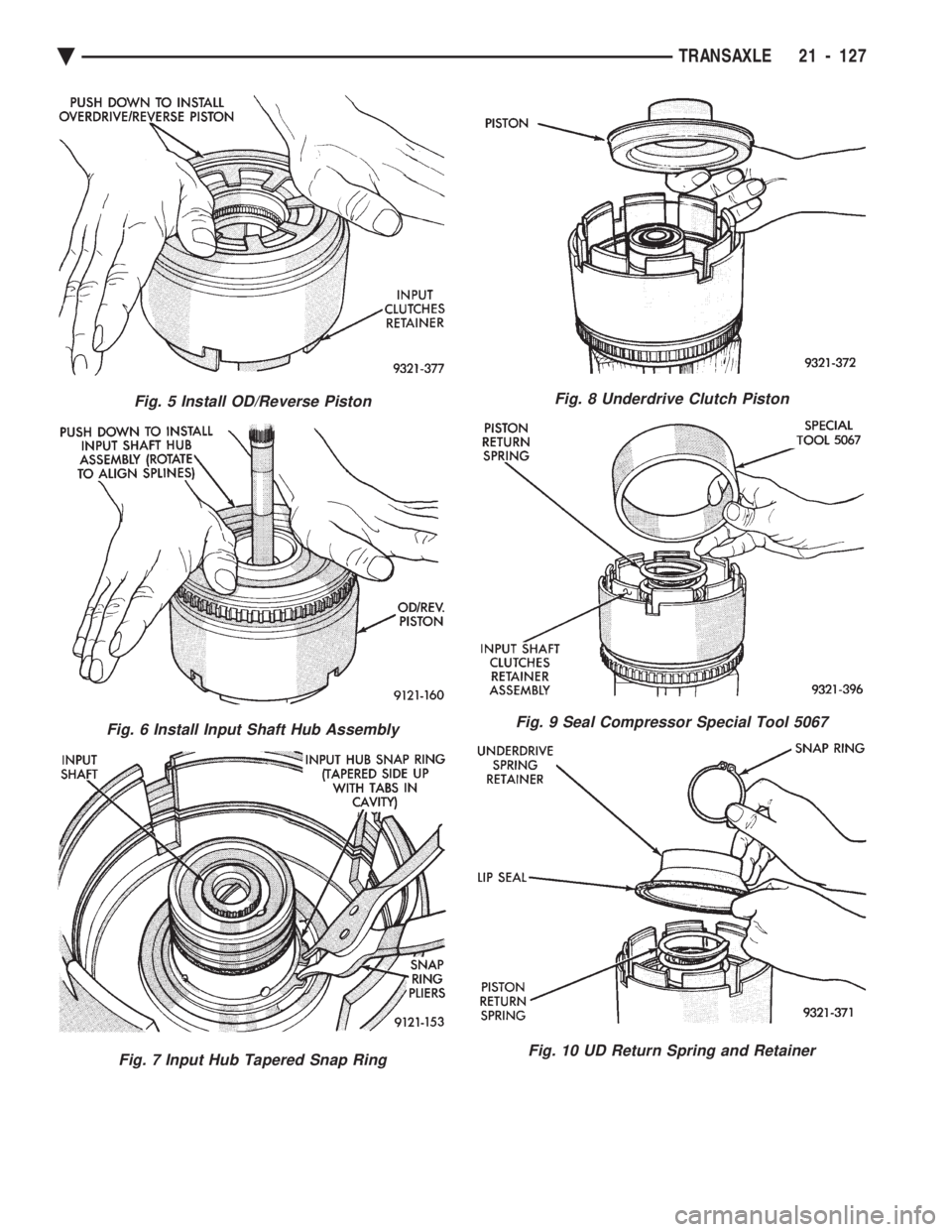

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual Fig. 5 Install OD/Reverse Piston
Fig. 6 Install Input Shaft Hub Assembly
Fig. 7 Input Hub Tapered Snap Ring
Fig. 8 Underdrive Clutch Piston
Fig. 9 Seal Compressor Special Tool 5067
Fig. 10 UD Return S

Page 2088 of 2438

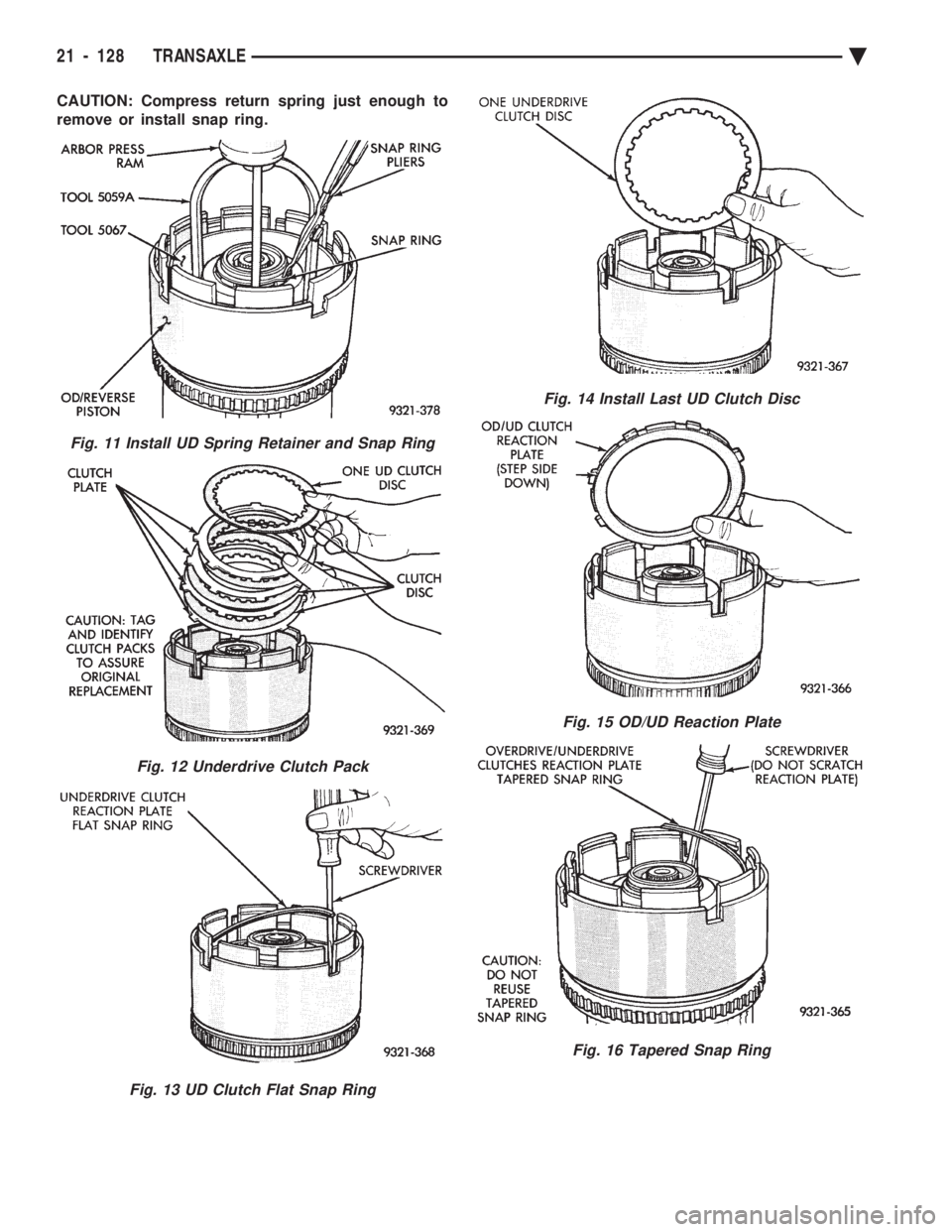

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual CAUTION: Compress return spring just enough to
remove or install snap ring.
Fig. 11 Install UD Spring Retainer and Snap Ring
Fig. 12 Underdrive Clutch Pack
Fig. 13 UD Clutch Flat Snap Ring
Fig. 14 In

Page 2089 of 2438

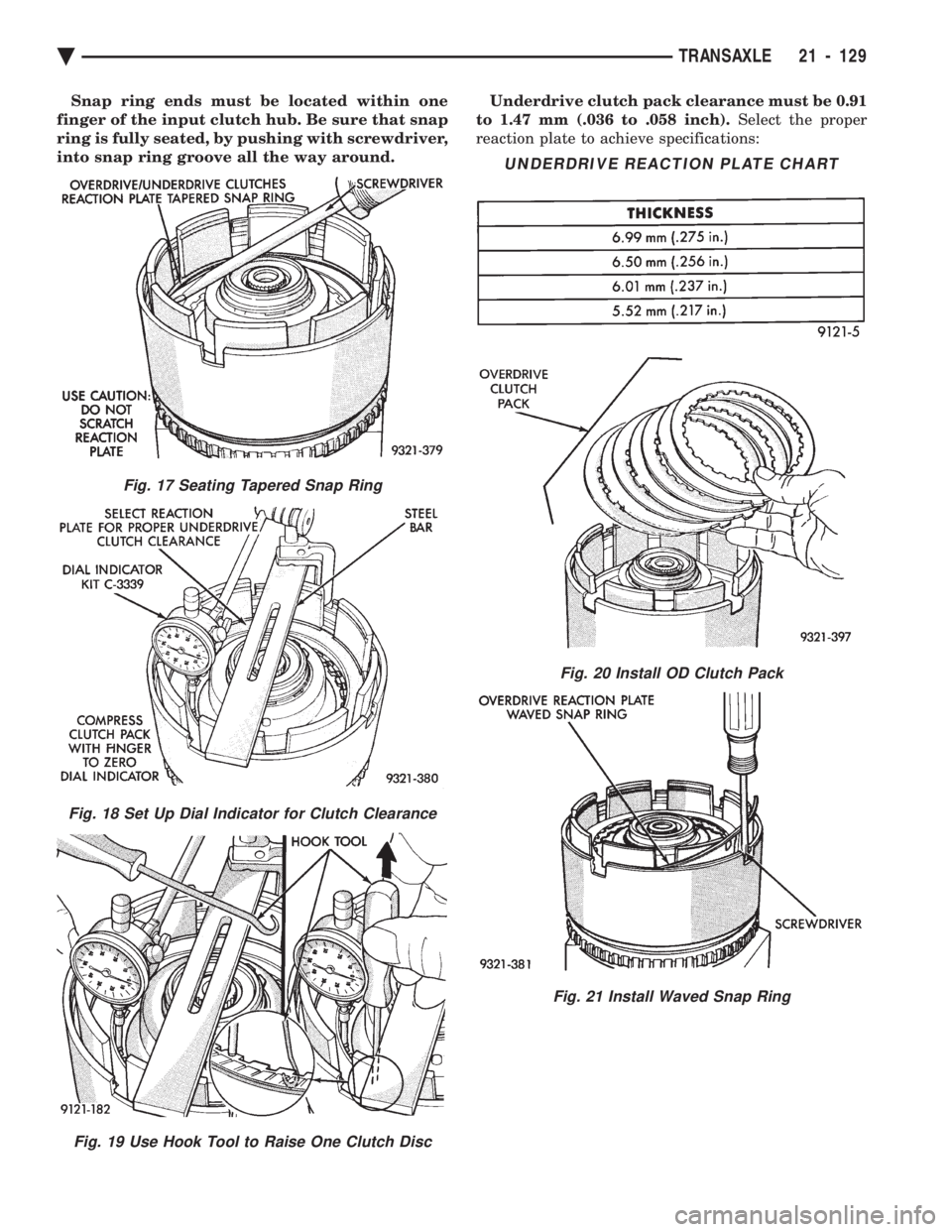

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual Snap ring ends must be located within one
finger of the input clutch hub. Be sure that snap
ring is fully seated, by pushing with screwdriver,
into snap ring groove all the way around.  Underdrive cl

Page 2090 of 2438

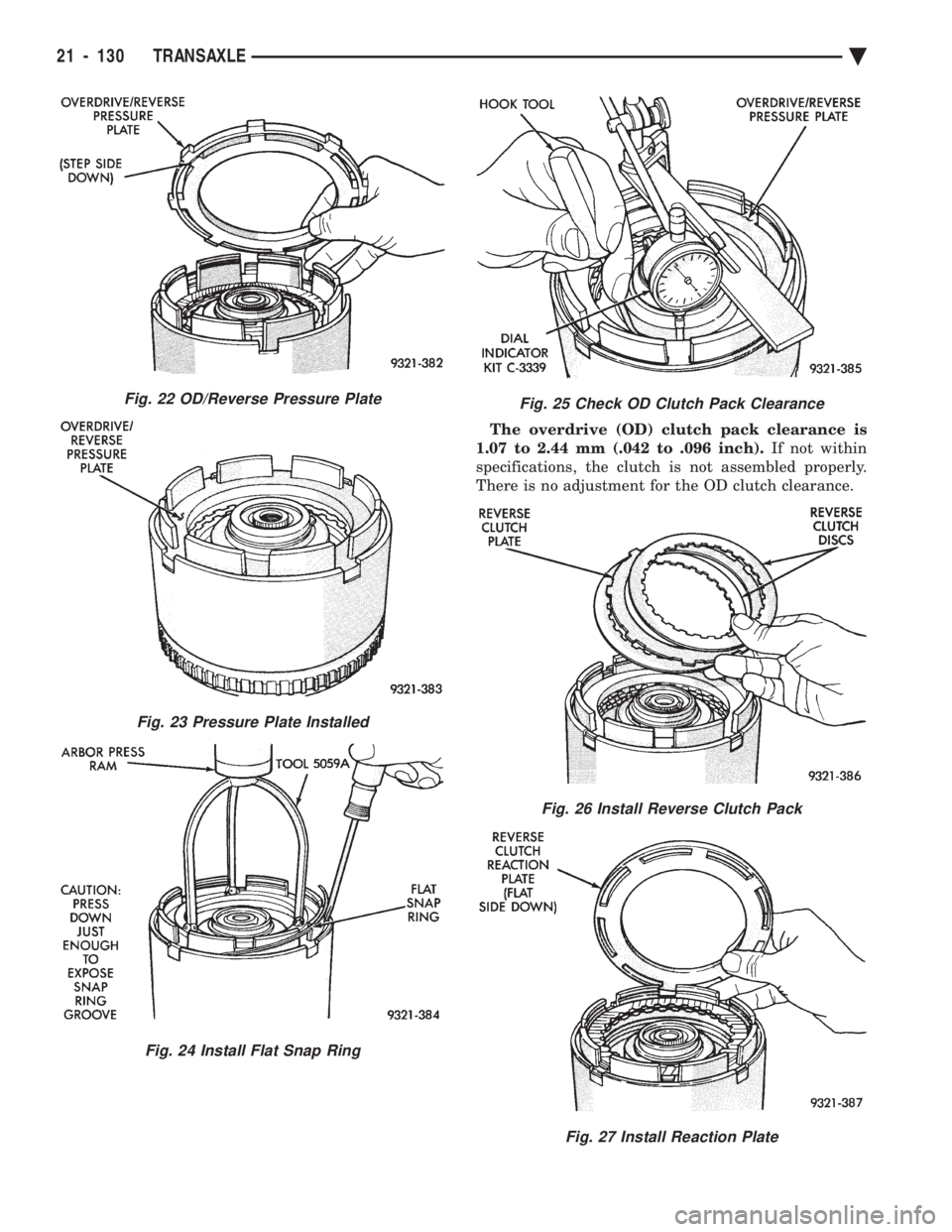

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual The overdrive (OD) clutch pack clearance is
1.07 to 2.44 mm (.042 to .096 inch).  If not within
specifications, the clutch is not assembled properly.
There is no adjustment for the OD clutch clearan
