Page 2061 of 2438

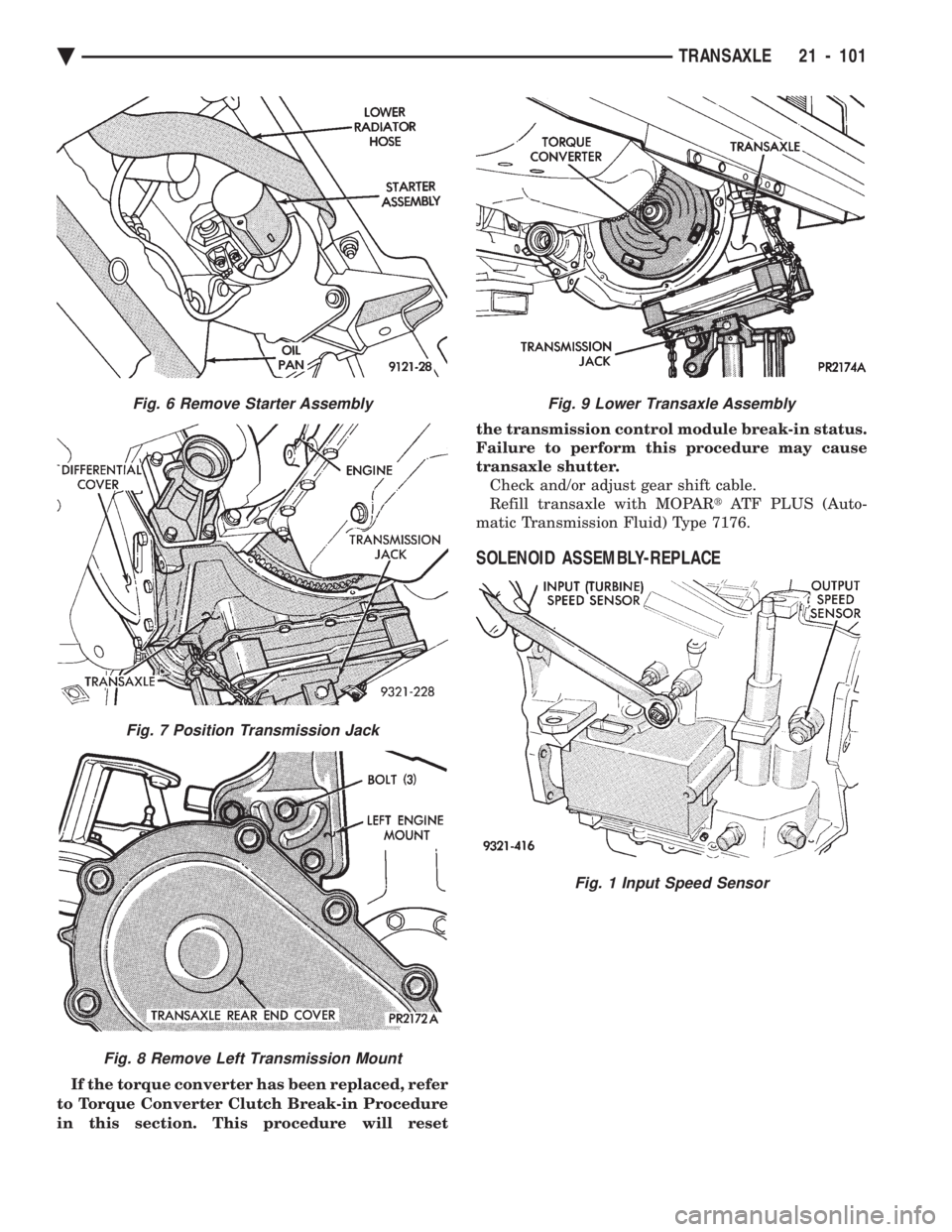

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual If the torque converter has been replaced, refer
to Torque Converter Clutch Break-in Procedure
in this section. This procedure will reset  the transmission control module break-in status.
Failure to

Page 2062 of 2438

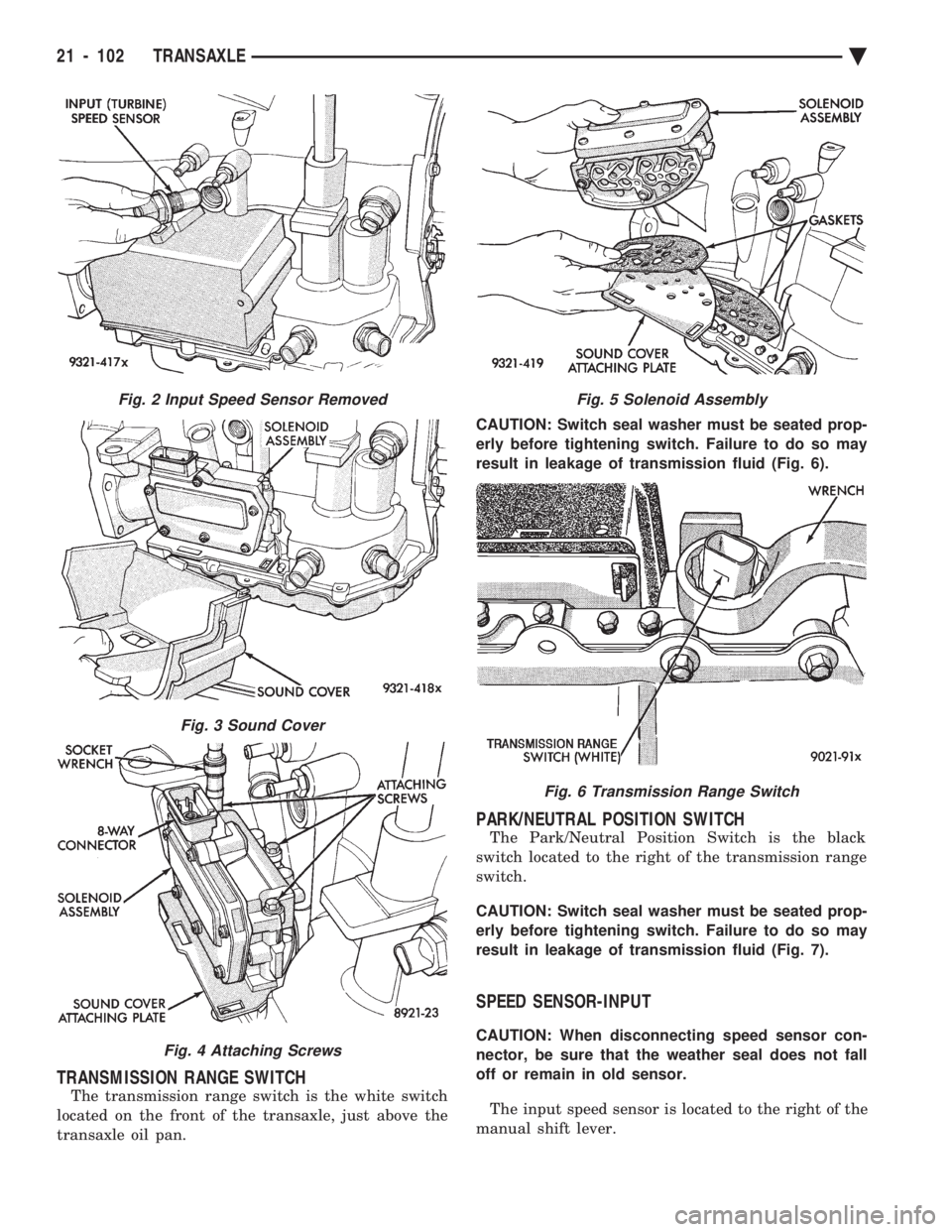

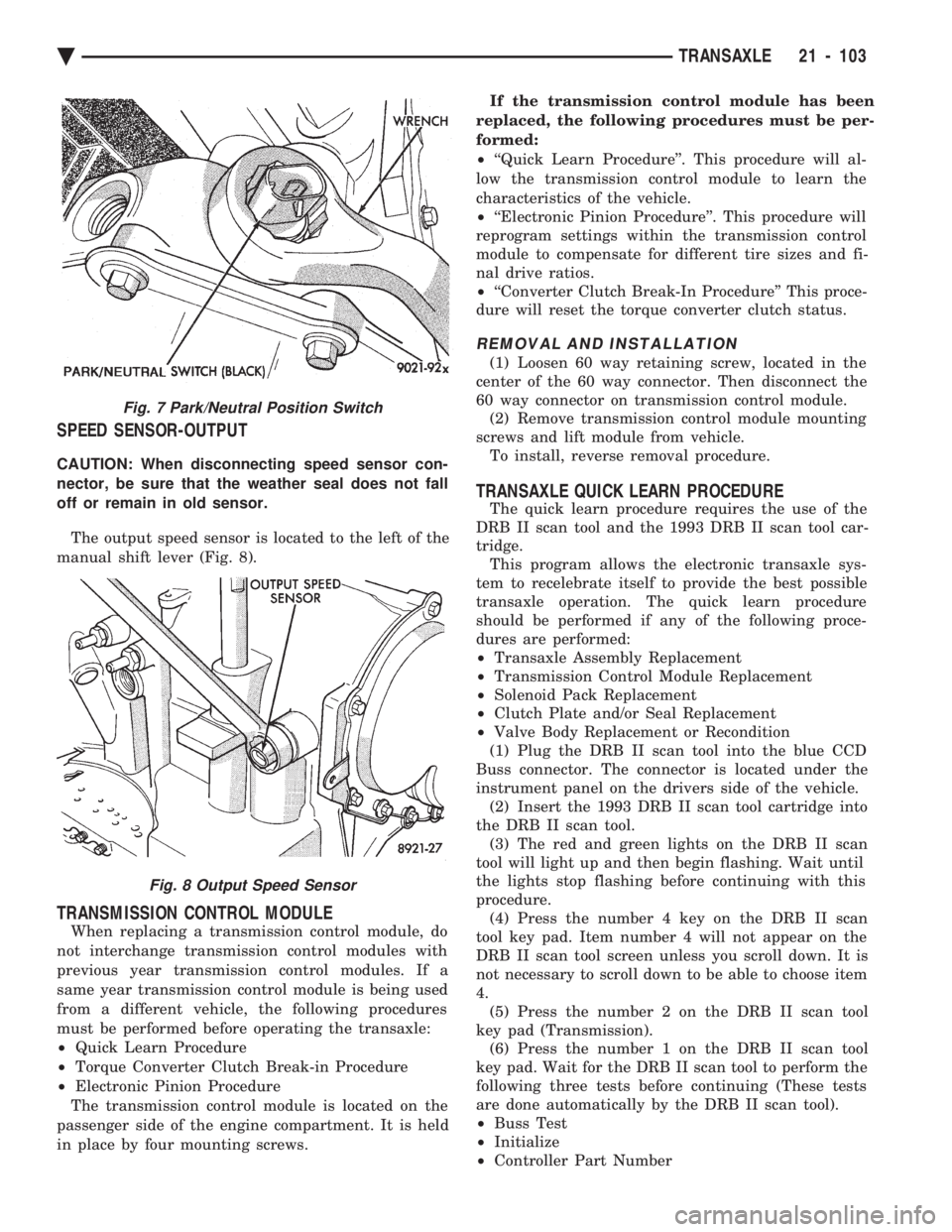

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual TRANSMISSION RANGE SWITCH
The transmission range switch is the white switch
located on the front of the transaxle, just above the
transaxle oil pan.  CAUTION: Switch seal washer must be seated prop-

Page 2063 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual SPEED SENSOR-OUTPUT
CAUTION: When disconnecting speed sensor con-
nector, be sure that the weather seal does not fall
off or remain in old sensor. The output speed sensor is located to the left of th

Page 2064 of 2438

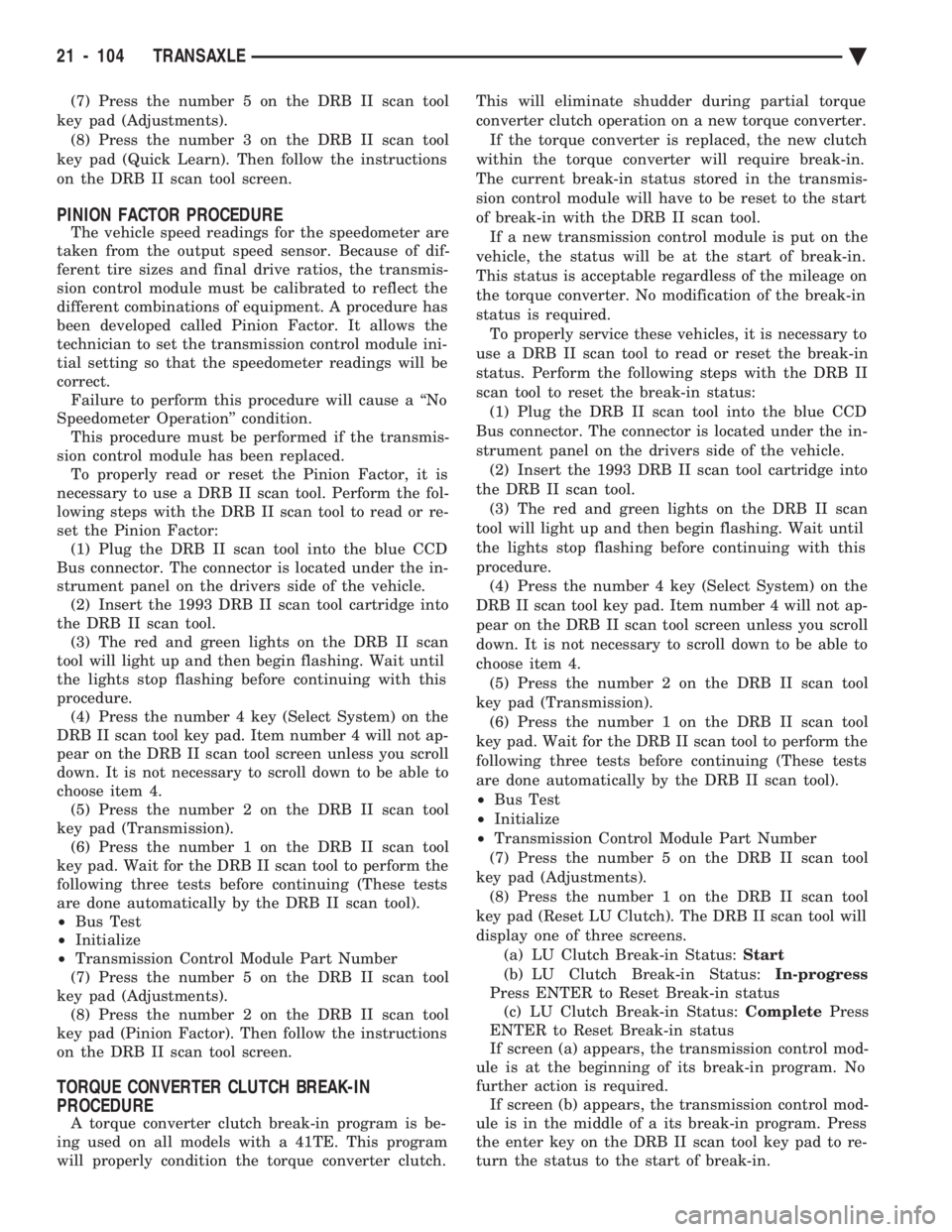

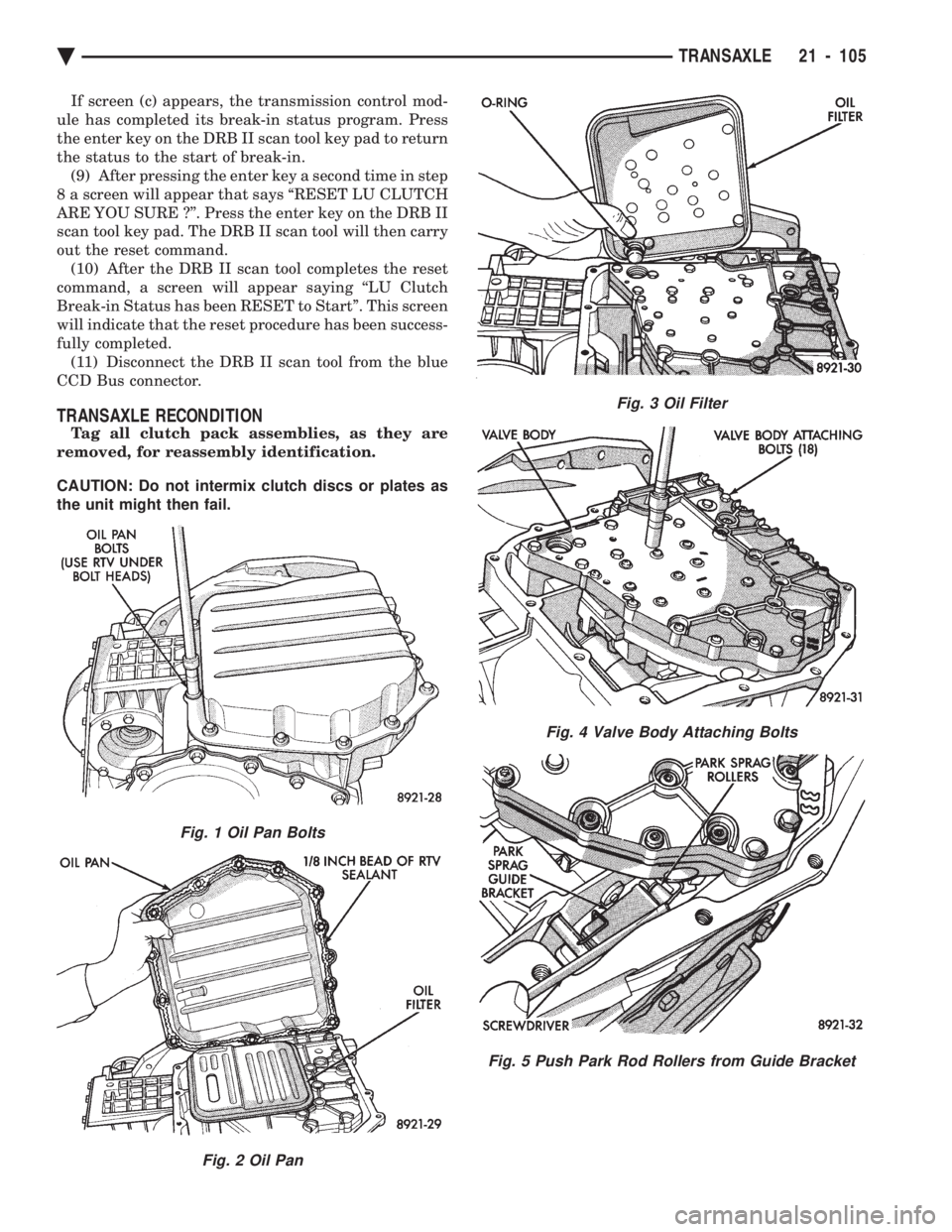

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual (7) Press the number 5 on the DRB II scan tool
key pad (Adjustments). (8) Press the number 3 on the DRB II scan tool
key pad (Quick Learn). Then follow the instructions
on the DRB II scan tool screen

Page 2065 of 2438

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual If screen (c) appears, the transmission control mod-
ule has completed its break-in status program. Press
the enter key on the DRB II scan tool key pad to return
the status to the start of break-in.

Page 2066 of 2438

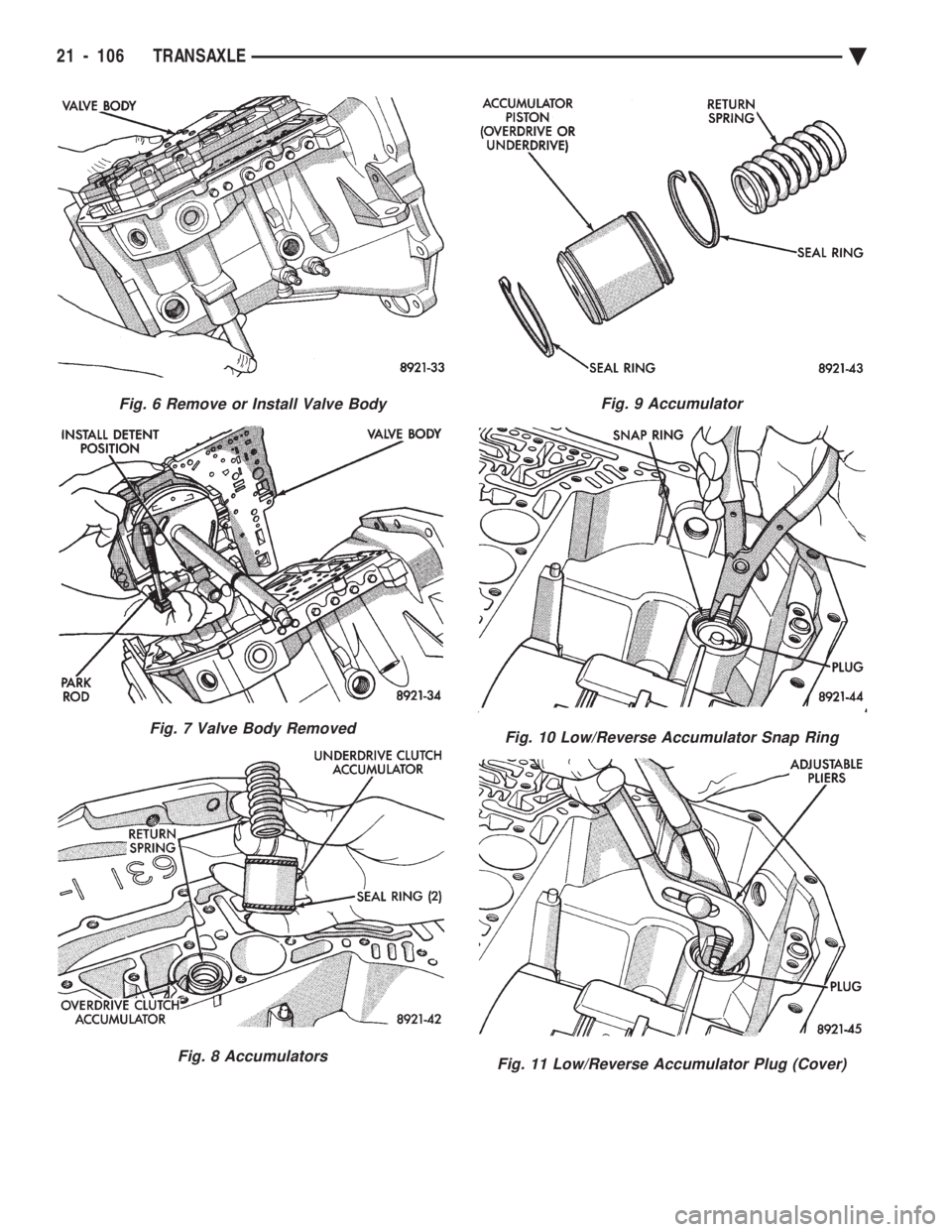

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual Fig. 6 Remove or Install Valve Body
Fig. 7 Valve Body Removed
Fig. 8 Accumulators
Fig. 9 Accumulator
Fig. 10 Low/Reverse Accumulator Snap Ring
Fig. 11 Low/Reverse Accumulator Plug (Cover)
21 - 106 TRA

Page 2067 of 2438

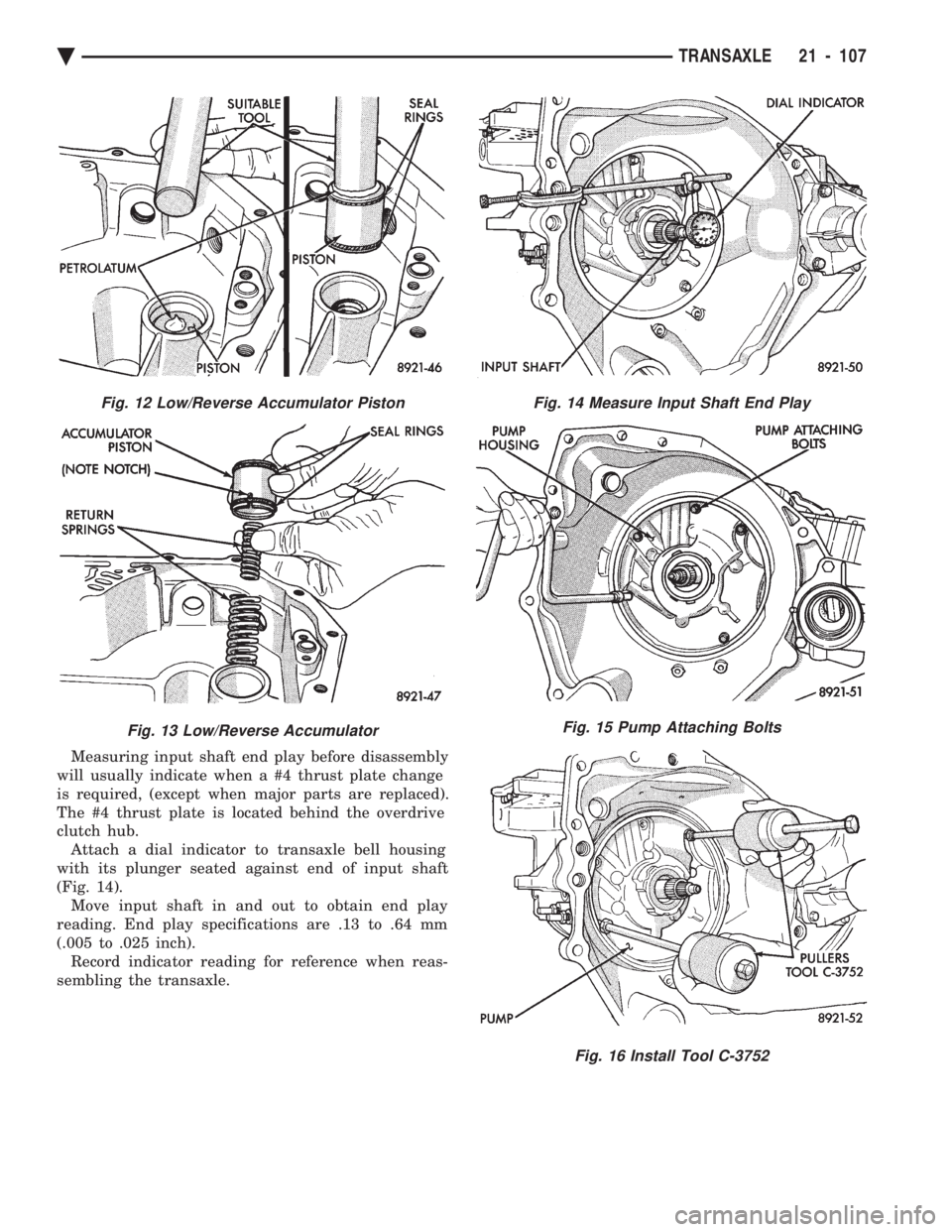

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual Measuring input shaft end play before disassembly
will usually indicate when a #4 thrust plate change
is required, (except when major parts are replaced).
The #4 thrust plate is located behind the ov

Page 2068 of 2438

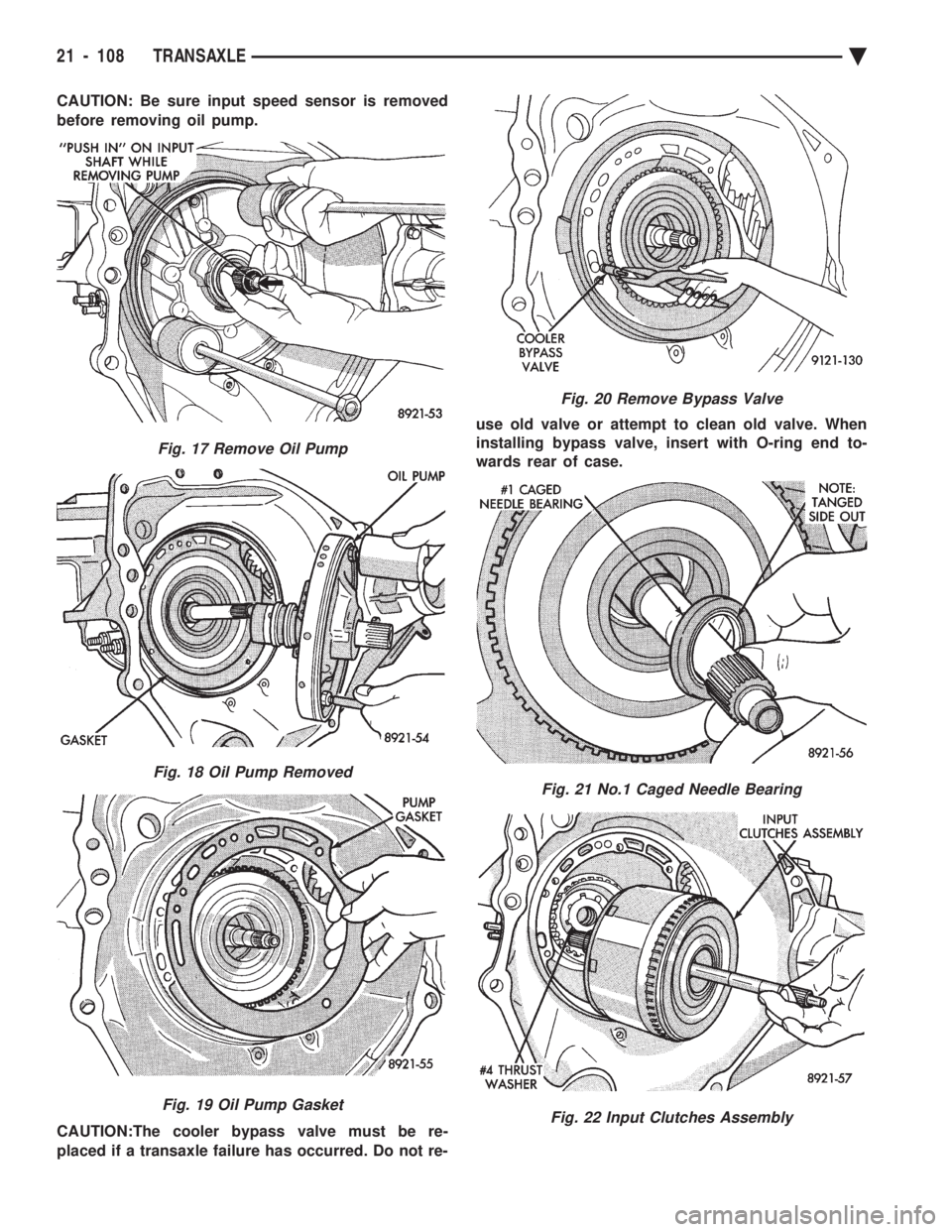

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual CAUTION: Be sure input speed sensor is removed
before removing oil pump.
CAUTION:The cooler bypass valve must be re-
placed if a transaxle failure has occurred. Do not re- use old valve or attempt

Page 2069 of 2438

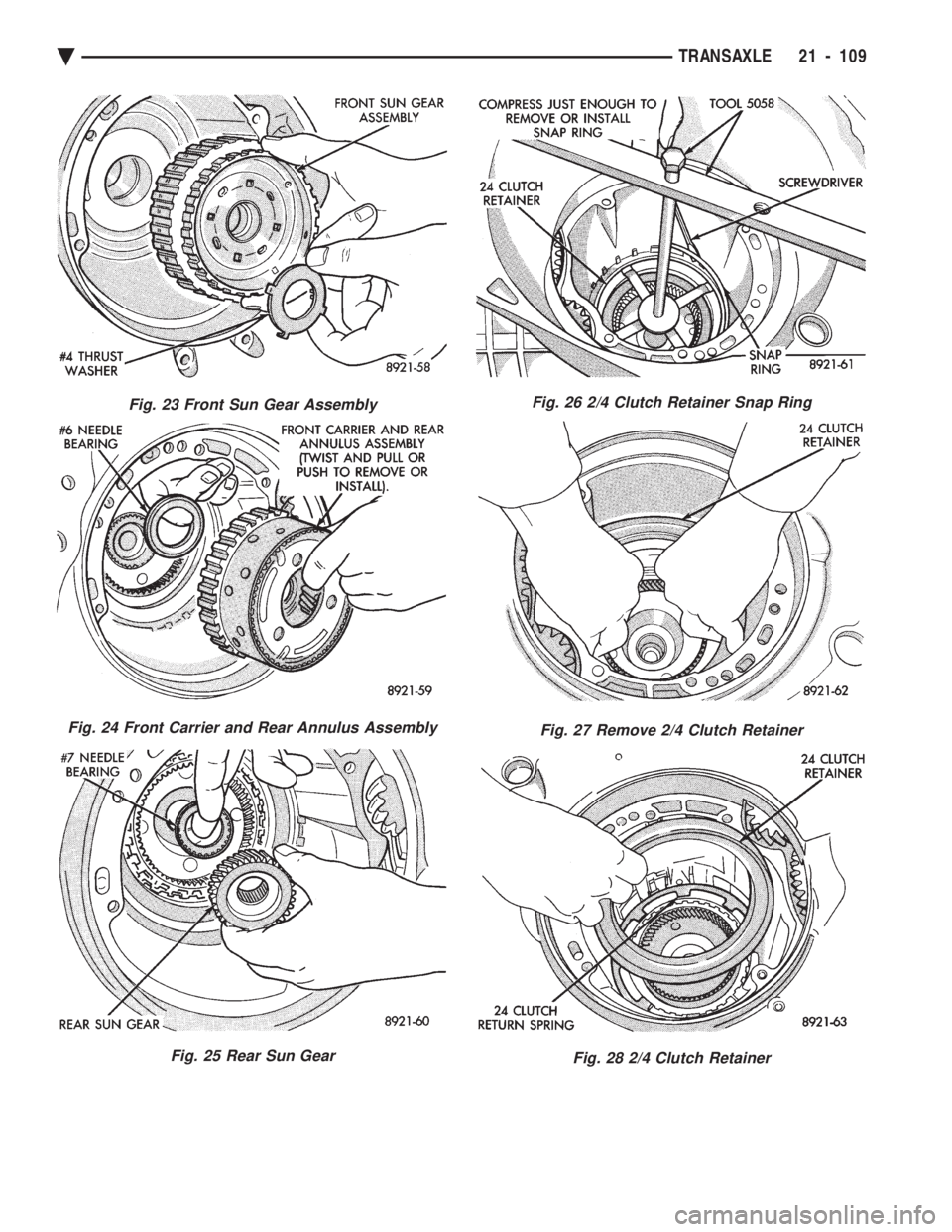

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual Fig. 23 Front Sun Gear Assembly
Fig. 24 Front Carrier and Rear Annulus Assembly
Fig. 25 Rear Sun Gear
Fig. 26 2/4 Clutch Retainer Snap Ring
Fig. 27 Remove 2/4 Clutch Retainer
Fig. 28 2/4 Clutch Retain

Page 2070 of 2438

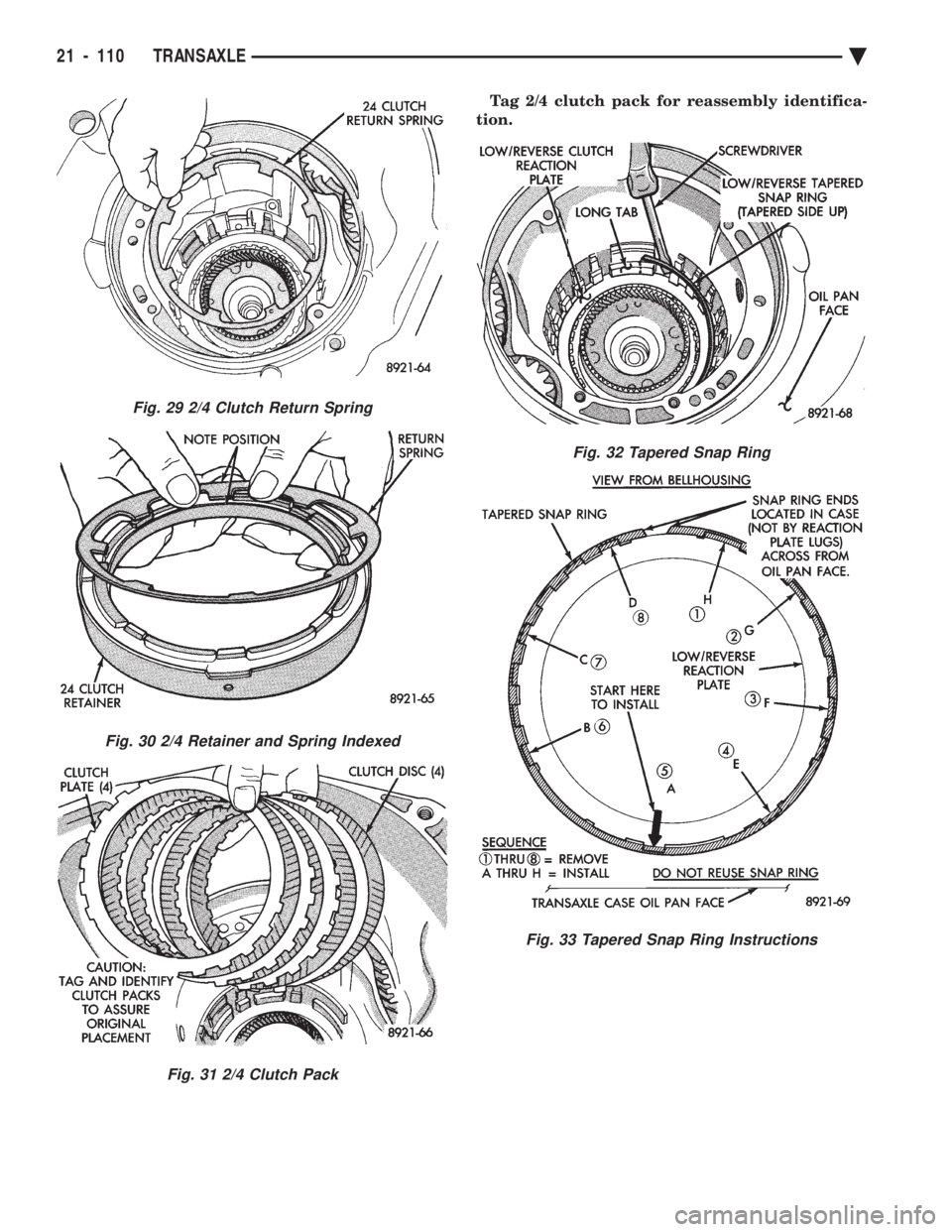

CHEVROLET PLYMOUTH ACCLAIM 1993  Service Manual Tag 2/4 clutch pack for reassembly identifica-
tion.
Fig. 29 2/4 Clutch Return Spring
Fig. 30 2/4 Retainer and Spring Indexed
Fig. 31 2/4 Clutch Pack
Fig. 32 Tapered Snap Ring
Fig. 33 Tapered Snap Ri
