CITROEN BERLINGO FIRST 2011 Handbook (in English)

89 PRACTICAL INFORMATION
-


Fuse N°



Rating



Functions




1



10A

Pre-heater unit (Diesel) -
Brake and clutch switches - Reversing lamps.


2



15A

Fuel pump.


3



10A

ABS control unit.


4



10A

Engine control unit.


5



-

Not used.


6



15A

Front foglamps.


7



20A

Headlamp wash pump.


8



20A

Fan assembly relay -
Engine control unit.


9



15A

Left-hand dipped beam.


10



15A

Right-hand dipped beam.


11



10A

Left-hand main beam.


12



10A

Right-hand main beam.


13



15A

Horn.


14



10A

Front and rear screen wash pumps.


15



30A

Oxygen sensor - Air
fl ow sensor.


16



30A

Air pump relay.


17



30A

Front windscreen wiper.


18



40A

Air conditioning fan.


Engine compartment fusebox

To gain access to the box in the engine
compartment (next to the battery), unclip
the cover.
After carrying out work, close the
cover carefully to ensure its sealing.

PRACTICAL INFORMATION
90 -
ECONOMY MODE FUNCTION
After the engine has stopped, with
the key in the "accessories" position,
certain functions (windscreen wiper,
electric windows, courtesy lights,
audio equipment, etc.) can only be
used for a combined duration of ap-
proximately thirty minutes, to prevent
discharging the battery.
Once the thirty minutes are over, a
switching to economy mode mes-
sage appears on the multi-function
display and the active functions are
put on standby.
These functions are reactivated au-
tomatically next time the vehicle is
driven.
In order to resume the use of these
functions immediately, the engine
must be started and left to run for a
few minutes.
The time available to you will then
be double the duration for which the
engine is left running. However, this
period will always be between fi ve
and thirty minutes.
BATTERY

It is advisable to disconnect the
battery if the vehicle is not to be
used for a period of more than
one month.



Before disconnecting the bat-
tery, you must wait 2 minutes
after switching off the ignition.
Never disconnect a terminal
when the engine is running.
Never charge a battery without fi rst
disconnecting the terminals.
Close the windows and the roof before
disconnecting the battery.
After every reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to allow the
electronic systems to be initialised. If
slight diffi culties are experienced af-
ter this, please contact a CITROËN
dealer.

A fl at battery prevents the
engine from starting.
To start the vehicle from
another battery:


- Connect the red cable to the posi-
tive (+) terminals of the two bat-
teries,

- Connect one end of the green or
black cable to the negative (-) ter-
minal of the slave battery,

- Connect the other end of the
green or black cable to an earth
point on the broken down vehi-
cle as far as possible from the
battery (for example, right-hand
engine mounting).
Operate the starter, let the engine run.

Wait for the engine to return to idle,
then disconnect the cables.

To charge the battery using a
battery charger:


- Disconnect the battery,

- Follow the instructions for use
given by the battery charger man-
ufacturer,

- Reconnect starting with the nega-
tive (-) terminal,

- Check that the terminals and
connectors are clean. If they are
covered with sulphate (white or
greenish deposit), disconnect
them and clean them.

91 PRACTICAL INFORMATION
-

Making the connections
A1: -
A2: - Digital control (manufacturer)
A3: - Digital control (manufacturer)
A4: - Audio equipment multiplexing
(manufacturer)
A5: -
A6: (+ve) Accessories
A7: (+ve) Permanent
A8: (-ve) Earth
B1: (+) -
B2: (-) -
B3: (+) Front right speaker and
tweeter
B4: (-) Front right speaker and
tweeter

B5: (+) Front left speaker and
tweeter
B6: (-) Front left speaker and tweeter


B7: (+) -
B8: (-) -

FITTING SPEAKERS

The factory-fi tted equipment allows
the fi tting of:


- 35 mm diameter tweeters in the
fascia,

- 165 mm diameter speakers in the
front doors.


FITTING AUDIO EQUIPMENT

Your vehicle is equipped with certain
factory-fi tted audio equipment:


- roof aerial,

- coaxial aerial cable,

- basic interference suppression,

- supply to front speakers and
tweeters,

- two 8-way connectors.
Contact a CITROËN dealer
before fi tting audio equip-
ment or speakers in your
vehicle.

PRACTICAL INFORMATION
92 -
SNOW SCREEN *

The snow screen is installed on the
lower part of the front bumper to pre-
vent the accumulation of snow at the
radiator cooling fan.
Remove the snow screen:


- when the exterior temperature is
higher than 10 °C,

- when towing,

- for speeds higher than 75 mph
(120 km/h).


FITTING



)
Offer up the snow screen facing
the front bumper.

)
Put it in place positioning the lower
clips A
in the bumper.

)
Press the snow screen at each
upper clip B
.



REMOVAL



)
Press the two upper clips B
and
pull the snow screen.


*
As an accessory or according to country.

93 PRACTICAL INFORMATION
-

Without lifting
(four wheels on the ground)
You must always use a towbar.

By lifting
(two wheels only on the ground)
It is preferable to lift the vehicle by
the wheels.

TOWING YOUR VEHICLE


From the front or the rear
Attach the towbar to the towing eye.
Never use the radiator cross-
member.
When towing another vehi-
cle, it must freewheel.
Place the gearbox in "neutral".
Failure to observe this instruction
may result in damage to certain brak-
ing components and the absence of
braking assistance when the engine
is started again.

PRACTICAL INFORMATION
94 -
TOWING A TRAILER,CARAVAN, BOAT, ETC.
We recommend the use of original
CITROËN towbars and their har-
nesses that have been tested and
approved from the design stage of
your vehicle and that the fi tting of the
towbar is entrusted to a CITROËN
dealer.
If the towbar is not fi tted by a
CITROËN dealer, it is imperative that
it is fi tted using the electrical pre-
equipment installed at the rear of the
vehicle, in accordance with the man-
ufacturer's instructions.
Your vehicle is primarily designed
for transporting people and luggage
but it may also be used for towing a
trailer.
Driving with a trailer subjects the tow-
ing vehicle to more signifi cant stress
and its driver must be particularly
careful.
Air density decreases with altitude,
thus reducing engine performance.
Above 1 000 metres, the maximum
towing load must be reduced by 10 %
and so on for every 1 000 metres of
altitude.

Driving advice


Tyres:
Check the tyre pressures of
the towing vehicle and of the trailer,
observing the recommended pres-
sures.

Braking:
Towing increases the braking
distance.

Lights:
Check the electrical signalling
on the trailer.

Side wind:
Take into account the
increased sensitivity to side wind.
Cooling:
Towing a trailer on a slope
increases the temperature of the
coolant.
As the fan is electrically controlled,
its cooling capacity is not dependent
on the engine speed.
On the contrary, use a high gear to
lower the engine speed and reduce
your speed.
The maximum towing load on a long
slope depends on the gradient and
the outside temperature.
In all cases, pay attention to the coolant
temperature.
In certain cases of particularly ardu-
ous use (towing the maximum load on
a steep gradient in high temperatures),
switching off the air conditioning permits
the recovery of engine power and there-
fore an increase in the towing capacity.
If the warning light comes on, stop
the vehicle and switch off the engine
as soon as possible.
Distribution of loads:
Distribute the
load in the trailer so that the heaviest
items are as close as possible to the
axle and the nose weight approach-
es the maximum permitted without
exceeding it.

95 PRACTICAL INFORMATION
-

ACCESSORIES

These accessories and parts, hav-
ing been tested and approved for
reliability and safety, are all adapted
to your vehicle. A wide range of rec-
ommended accessories and original
parts is offered.

The fi tting of electrical equip-
ment or accessories which
are not recommended by
Automobiles CITROËN may
result in the failure of your vehicle's
electronic system. Please note this
specifi c warning. You are advised
to contact a representative of the
Marque to be shown the range of
recommended equipment and ac-
cessories.
Depending on the country in which
the vehicle is sold or operated, it is
compulsory to have a high visibility
safety jacket, warning triangle and
replacement bulbs available in the
vehicle.

Screenwash, interior and exterior
cleaning and maintenance products,
replacement bulbs, ...

Anti-theft alarm, window engraving,
fi rst aid kit, high visibility safety jacket,
rear parking assistance, warning tri-
angle, ...


Audio equipment, hands-free kit,
speakers, CD changer, navigation, ...
Regardless of the audio and telematic
equipment offered on the market, the
technical constraints linked with the
fi tting of equipment of these families
of products mean that the special fea-
tures of the equipment and its com-
patibility with the capacities of the your
vehicle's standard equipment must be
taken into account. Please contact a
CITROËN dealer for information be-
fore fi tting such equipment.
Front mud fl aps, rear mud fl aps,
15/17 inch alloy wheels, wheelarch
trim, leather steering wheel, ...

Range of professional equipment
Load retainers (all models).
Loading roller.
Towbar, towbar harness: trailer towbar
which must be fi tted by the CITROËN
network.
Separation partitions and grilles,
smooth, non-slip wooden protective
fl oor.


Protective grilles.


Installation of
radiocommunication transmitters
Before installing accessory radio-
communication transmitters with an
external aerial on your vehicle, you
are advised to contact a representa-
tive of the CITROËN marque.

Range of comfort, leisure and
maintenance equipment

Front seat covers compatible with
airbags, bench, rubber mats, carpet
mats, snow chains, blind, tailgate
bicycle carrier, roof bars (max load
120 kg), transverse roof bars (max
load 100 kg), ...
To prevent the mat from becoming
caught under the pedals:

For any work on your vehicle,
use a qualifi ed workshop that
has the technical information,
competence and equipment
required, which a CITROËN dealer
is able to provide. The CITROËN Network will inform
you of the specifi cations (frequency
band, maximum output power, aerial
position, specifi c installation condi-
tions) of the transmitters which can be
fi tted, in accordance with the Motor
Vehicle Electromagnetic Compatibility
Directive (2004/104/CE).


- ensure that the mat and its fi xings
are positioned correctly,

-
never fi t one mat on top of another.

TECHNICAL DATA
96 -
EXTERIOR DIMENSIONS (IN MM)

97 TECHNICAL DATA
-




Light van
Ludospace


L1


4 137


L2


4 437
-


H


1 796 to 1 819
1 810







A


2 693


B


836


C


608


D


570
550


E


1 440
1 440 or 1 452


F


1 960


G


1 420
1 420 or 1 436


I


1 724

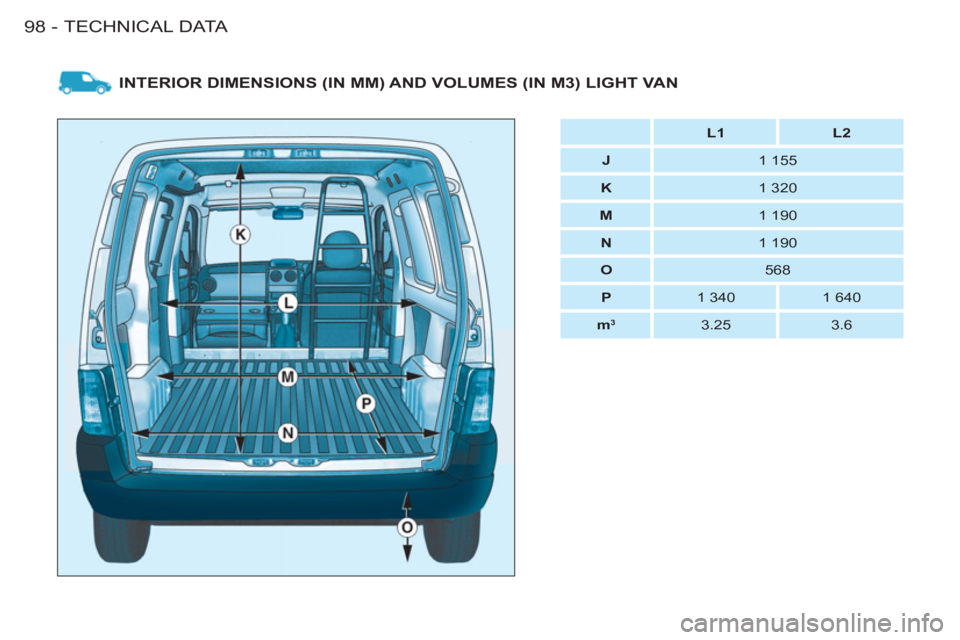

TECHNICAL DATA
98 -
INTERIOR DIMENSIONS (IN MM) AND VOLUMES (IN M3) LIGHT VAN



L1



L2




J


1 155


K


1 320


M


1 190


N


1 190


O


568


P


1 340
1 640


m
3


3.25
3.6
