CITROEN C6 2005 Owners Manual

Downloaded from www.Manualslib.com manuals search engine AXLES
SUSPENSION
STEERING
135
Front pivot.
Front pivot fixed on the pivot support by means of an upper balljoint and a lower balljoint.
Front hub bearing:
- Diameter 83 mm.
- Bearing with double row of balls, with an integral magnetic wheel (48 pairs of poles).
Suspension leg:
- Front axle with wheels independent, of multi-arm type.
- Travel stop: height 60 mm.
- Anti-roll bar
Anti-roll bar
Engines Diameter (mm) Colour ref.
ES9A 23,5 mm Yellow
DT17BTED4 24 mm Pink
NOTE: The geometry specifications are given with the values for checking and adjusting the
axle geometries.
B3CP09CC
FRONT AXLE
Angl-C6-page121-169-2005 4/02/05 17:31 Page 135

Downloaded from www.Manualslib.com manuals search engine AXLES
SUSPENSION
STEERING
136
FRONT AXLE: TIGHTENING TORQUES
Engines: ES9A - DT17BTED4
Suspension leg
1 Body suspension upper support 2,6 ± 0,32 Front suspension cylinder on Suspension upper support 2,4 ± 0,33 Suspension upper arm on Suspension upper support 4,5 ± 0,64 Suspension upper arm on Pivot support 8,5 ± 0,85 Front anti-roll bar rod on Pivot support 20,5 ± 26 Pivot upper balljoint on Pivot support 15 ± 1,57 Pivot upper balljoint nut 6 ± 0,68 Front anti-roll bar rod on Front anti-roll bar 5 ± 0,59 Suspension lower arm on Pivot support 7,5 ± 1,1
B3CP09ECB3CP09DC
Angl-C6-page121-169-2005 4/02/05 17:31 Page 136

Downloaded from www.Manualslib.com manuals search engine AXLES
SUSPENSION
STEERING
137
FRONT AXLE: TIGHTENING TORQUES
Engines: ES9A - DT17BTED4
Suspension leg
10 Pivot lower balljoint on Pivot support 6,5 ± 0,911 Pivot lower balljoint on Pivot support 17 ± 1,712 Steering rack balljoint on Front pivot 3,5 ± 0,3
B3CP09FC
Angl-C6-page121-169-2005 4/02/05 17:31 Page 137

Downloaded from www.Manualslib.com manuals search engine 138
AXLES
SUSPENSION
STEERING
FRONT AXLE: TIGHTENING TORQUES
Engines: ES9A - DT17BTED4
Front subframe
13 Front subframe frame tie-bar on Body 5 ± 0,714 Front subframe frame tie-bar on Front subframe frame 6,5 ± 0,915 Front absorber support tie-bar 6,5 ± 0,916 Front subframe frame on Subframe extension 10 ± 117 Front subframe frame crossmember 10 ± 118 Subframe extension on Front subframe 5,5 ± 0,519 Front subframe stabiliser bar 12,5 ± 1,220 Front subframe on Body 14 ± 1,421 Suspension lower arm on Front subframe 6,5 ± 0,622 Suspension lower arm on Front subframe 11 ± 1,123 Front anti-roll bar bearing on Front subframe 4,5 ± 0,624 Body yoke 10 ± 1
B3CP09HDB3CP09GD
Angl-C6-page121-169-2005 4/02/05 17:31 Page 138

Downloaded from www.Manualslib.com manuals search engine 139
AXLES
SUSPENSION
STEERING
FRONT AXLE: TIGHTENING TORQUES
Engines: ES9A - DT17BTED4
Front subframe
25 Suspension lower arm support on Front subframe 6,5 ± 0,926 Suspension lower arm on Front subframe 12,3 ± 1,2
B3CP09TC
Angl-C6-page121-169-2005 4/02/05 17:31 Page 139

Downloaded from www.Manualslib.com manuals search engine 140
AXLES
SUSPENSION
STEERING
(1)Rear axle crossmember
(2)Rear axle crossmember rear rubber bush
(3)Rear axle crossmember front rubber bush
(4)Suspension longitudinal arm
NOTE:Rear axle in cast aluminium alloy, of multi-arm type.
(5)Suspension upper arm
(6)Rear pivot
(7)Hub-bearing
(8)Tracking adjustment rod
(9)Suspension lower arm
Hub-bearing:
- The rear hub-bearing is equipped with an ABS radial target (48pairs of poles).
Stub axle:
- Diameter 32 mm.
- The stub axle, joined onto the rear pivot, is not separable.
IMPERATIVE: The rear hub-bearing must not be placed in proximity to a source of
magnetism or of pollution by metal particles. Components must be clean and free from
any signs of abnormal wear or damage.
B3DP0BYDB3DP0BZD
REAR AXLE
Rear axleRear pivot
Angl-C6-page121-169-2005 4/02/05 17:31 Page 140

Downloaded from www.Manualslib.com manuals search engine 141
AXLES
SUSPENSION
STEERING
(10)Rear anti-roll bar bearing
(11)Rear anti-roll bar bearing half-support
(12)Rear anti-roll bar
(13)Rear anti-roll bar rod
NOTE:The rear anti-roll bar bearings are not separable.
Anti-roll bar
Engines Diameter (mm) Colour ref.
ES9A - DT17BTED4 20,6 Orange
Vehicle geometry.
NOTE: The geometry specifications are given with the values for checking and adjusting the
axle geometries.
B3BP1AED
REAR AXLE
Angl-C6-page121-169-2005 4/02/05 17:31 Page 141

Downloaded from www.Manualslib.com manuals search engine 142
AXLES
SUSPENSION
STEERING

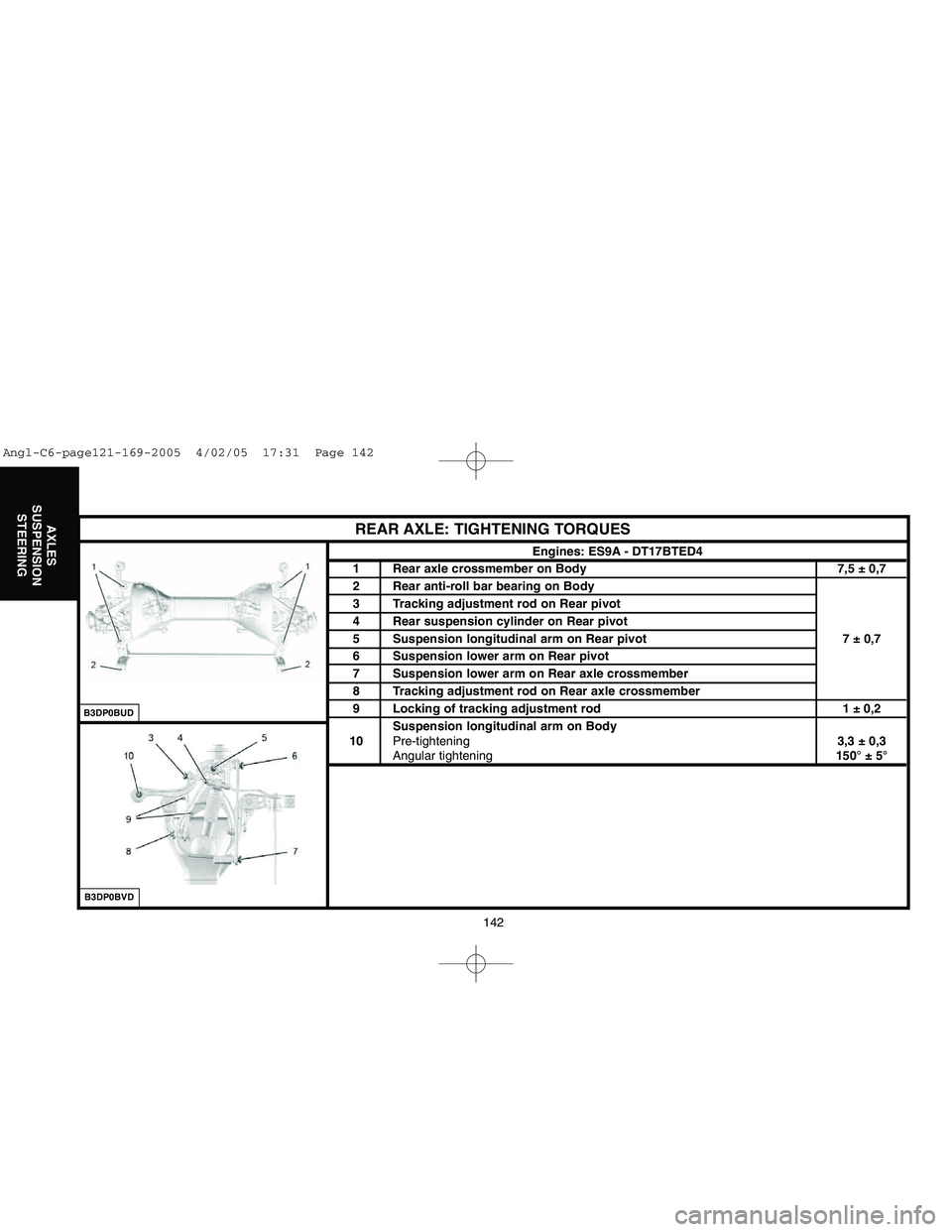

REAR AXLE: TIGHTENING TORQUES
Engines: ES9A - DT17BTED4
1 Rear axle crossmember on Body 7,5 ± 0,7
2 Rear anti-roll bar bearing on Body
3 Tracking adjustment rod on Rear pivot
4 Rear suspension cylinder on Rear pivot
5 Suspension longitudinal arm on Rear pivot 7 ± 0,7
6 Suspension lower arm on Rear pivot
7 Suspension lower arm on Rear axle crossmember8 Tracking adjustment rod on Rear axle crossmember9 Locking of tracking adjustment rod 1 ± 0,2
Suspension longitudinal arm on Body
10Pre-tightening3,3 ± 0,3
Angular tightening 150° ± 5°
B3DP0BVDB3DP0BUD
Angl-C6-page121-169-2005 4/02/05 17:31 Page 142

Downloaded from www.Manualslib.com manuals search engine 143
AXLES
SUSPENSION
STEERING
REAR AXLE: TIGHTENING TORQUES
Engines: ES9A - DT17BTED4
11 Suspension upper arm on Rear pivot
12 Suspension upper arm on Rear axle crossmember 7 ± 0,7
13 Rear suspension cylinder on Rear axle crossmember
14 Rear anti-roll bar rod on Rear pivot
4 ± 0,615 Rear anti-roll bar rod on Rear anti-roll bar16 Rear anti-roll bar bearing half support 1,8 ± 0,417 Rear hub-bearing nut 25 ± 2
B3DP0BXDB3DP0BWD
Angl-C6-page121-169-2005 4/02/05 17:31 Page 143

Downloaded from www.Manualslib.com manuals search engine 144
AXLES
SUSPENSION
STEERING
A:Front suspension
B:Rear suspension
NOTE:The rear stiffness regulator is equipped with two accumulators.
(1)Variable damping suspension actuator
(2)Front suspension accumulator
(3)LDS fluid reservoir
(4)Front suspension cylinder
(5)Built-in Hydro-electronic Interface (BHI)
(6)Front stiffness regulator
(7)Suspension pressure sensor
(8)Front stiffness regulator accumulator
(9)Wheel travel sensor
B3BP1ASDB3CP09AD
ACTIVE SUSPENSION WITH VARIABLE DAMPING
Location of components
Front axle
Angl-C6-page121-169-2005 4/02/05 17:31 Page 144
