CITROEN RELAY 2019 Handbook (in English)

49
By default, pre-selected times are already
stored in the system (1 = 06:00; 2 = 16:00;
3 = 22:00). Any modification cancels and
replaces the previous pre-selected time.
If the battery is disconnected, the default
pre-selected times are restored.
Cancelling the
programming
F Press this button briefly to clear the programmed start
time.
The screen illumination and the pre-selection
number (1, 2
or 3) go off.
Recalling one of the pre-
selected start times
F Press this button as many times as necessary until the
number corresponding to the
required pre-selected start
time (1, 2
or 3) appears.
After ten seconds, the time disappears but
remains stored while the corresponding
number (1, 2
or 3) and the screen remain on.
Setting the period of
operation
The period of operation can be set to between
10 and 60 minutes.
F

P
ress and hold this button. The programmed period of operation is
displayed and the heating or ventilation cycle
indicator flashes.
F

A
djust the period by pressing the "<" or ">"
button.
The setting is confirmed by the period
disappearing from the screen or by pressing
the set button again
In the case of deferred operation, the heating
stops at the end of the programmed period. F
I
n the case of immediate
operation, press this button
again to switch off manually.
The heating cycle indicator and the screen go
of f.
Have the additional heating checked
at least once a
year at the beginning of
winter. Maintenance and repairs should
only be carried out by a
CITROËN dealer
or a


qualified workshop.
Use only genuine replacement parts.
Stopping the heating
If you want to recall another preset time,
press the set button several times within
ten seconds. Within ten seconds, press
the "<" or ">" setting button to select the
required start time.
Setting of the stored time is confirmed by
clearing of the start time, display of the pre-
selection number (1, 2
or 3) and illumination of
the screen.
F

A
t the same time, press the "<" or ">"
button.
The time and the time setting indicator come
on.
F

P
ress and hold the set button again.
F

A
t the same time, press the "<" or ">" button
again.
3
Ease of use and comfort

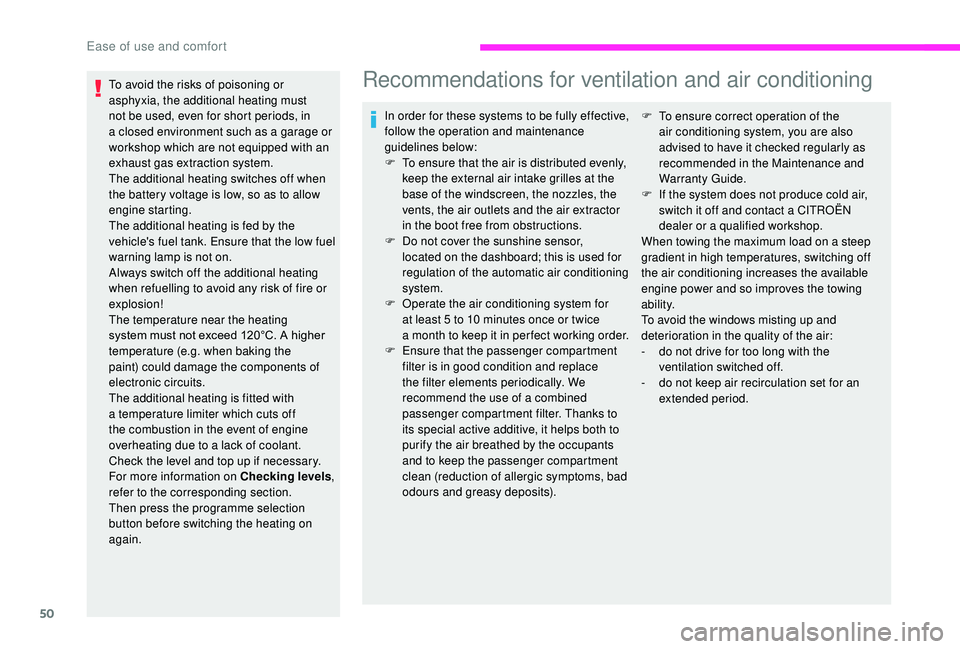

50
To avoid the risks of poisoning or
asphyxia, the additional heating must
not be used, even for short periods, in
a closed environment such as a garage or
workshop which are not equipped with an
exhaust gas extraction system.
The additional heating switches off when
the battery voltage is low, so as to allow
engine starting.
The additional heating is fed by the
vehicle's fuel tank. Ensure that the low fuel
warning lamp is not on.
Always switch off the additional heating
when refuelling to avoid any risk of fire or
explosion!
The temperature near the heating
system must not exceed 120°C. A higher
temperature (e.g. when baking the
paint) could damage the components of
electronic circuits.
The additional heating is fitted with
a
temperature limiter which cuts off
the combustion in the event of engine
overheating due to a
lack of coolant.
Check the level and top up if necessary.
For more information on Checking levels ,
refer to the corresponding section.
Then press the programme selection
button before switching the heating on
again.Recommendations for ventilation and air conditioning
In order for these systems to be fully effective,
follow the operation and maintenance
guidelines below:
F

T
o ensure that the air is distributed evenly,
keep the external air intake grilles at the
base of the windscreen, the nozzles, the
vents, the air outlets and the air extractor
in the boot free from obstructions.
F

D
o not cover the sunshine sensor,
located on the dashboard; this is used for
regulation of the automatic air conditioning
system.
F

O
perate the air conditioning system for
at least 5
to 10 minutes once or twice
a
month to keep it in per fect working order.
F

E
nsure that the passenger compartment
filter is in good condition and replace
the filter elements periodically. We
recommend the use of a
combined
passenger compartment filter. Thanks to
its special active additive, it helps both to
purify the air breathed by the occupants
and to keep the passenger compartment
clean (reduction of allergic symptoms, bad
odours and greasy deposits). F
T o ensure correct operation of the
air conditioning system, you are also
advised to have it checked regularly as
recommended in the Maintenance and
Warranty Guide.
F

I
f the system does not produce cold air,
switch it off and contact a
CITROËN
dealer or a
qualified workshop.
When towing the maximum load on a
steep
gradient in high temperatures, switching off
the air conditioning increases the available
engine power and so improves the towing
ability.
To avoid the windows misting up and
deterioration in the quality of the air:
-

d
o not drive for too long with the
ventilation switched off.
-

d
o not keep air recirculation set for an
extended period.
Ease of use and comfort

51
If after an extended stop in sunshine, the
interior temperature is very high, first air
the passenger compartment for a few
moments.
Put the air flow control at a
setting high
enough to quickly change the air in the
passenger compartment.
The condensation created by the air
conditioning results in a
discharge of
water under the vehicle which is per fectly
normal.
Contains fluorinated greenhouse
gases R134A
Depending on model and country of
sale, the air conditioning system may
contain fluorinated greenhouse gases
R13 4A .
Stop & Star t
The heating and air conditioning systems
only work when the engine is running.
To maintain a
comfortable temperature
in the passenger compartment, you may
temporarily deactivate the Stop & Start
system.
For more information on Stop & Star t ,
refer to the corresponding section.Front demist – defrost
These markings on the control panel
indicate the control positions for
rapid demisting or defrosting of the
windscreen and side windows.
With manual air
conditioning
F Put the air flow and distribution controls to the appropriately
marked position.
For faster and more effective demisting and
defrosting of the windscreen:
F

i

ncrease the air flow setting, F

m
ove the exterior air intake
control temporarily to air
recirculation.
With automatic air
conditioning
F Press this button, the indicator lamp comes on. The system manages the cooling, flow and
intake of air, defrosting of the rear screen and
provides optimum distribution of the air to the
windscreen and front side windows.
If your vehicle is fitted with additional heating,
switch it off to ensure rapid and effective
demisting/defrosting.
Defrosting the rear screen
and door mirrors
F Press this button to activate
demisting/defrosting of the rear
screen and door mirrors. The
indicator lamp comes on.
This function switches off automatically to
prevent excessive energy consumption.
It is possible to stop the demisting/defrosting
operation before it is switched off automatically
by pressing this button again. The indicator
lamp goes off. Rear screen demisting/defrosting can only
operate when the engine is running.
3
Ease of use and comfort

52
With Stop & Start, when the rear screen
demisting is switched on, STOP mode is
not available.
Cab layout
Sun visor
F To avoid glare from ahead, fold the sun visor down.
Pockets are arranged in the sun visors for
storing toll cards, tickets, etc.
Central storage Front seat storage
If your vehicle is fitted with a seat with
v ariable damping, it does not have any
storage compartments.
The space under the passenger's seat is
used to store the tool box containing the tools
required to change a
wheel or bulb or to tow the
vehicle.
An open storage space is provided, located
under the centre console panel.
It gives access to the auxiliary Jack socket and
the USB port intended for the transfer of data to
the audio system.
Depending on equipment, it is also fitted with a
double cup holder and/or a

smartphone holder. There is a
fixed storage tray under the driver's
seat.
Ease of use and comfort

53
To take out the box, turn the control a quarter
t urn to unlock it, then pull the box for ward.
Folding writing table
To insert or remove a CD, you must first
f old the table.
If your vehicle is fitted with a
two-seat
front bench and a
front passenger airbag,
the table cannot be raised.
Multifunction carrier
It keeps mobile equipment such as
a smartphone in a vertical position or a touch
screen tablet in a
horizontal position.
F
P
ull or push the top of the table to unfold or
fold it.
The clip can be used to secure documents,
notes, etc. When putting it back, do not forget to turn the
control a

quarter turn in the other direction to
lock the box in its housing.
3
Ease of use and comfort

54
Before folding the carrier, remove the
portable device by repeating the same
operations.
Push the top of the carrier to fold it.
F

P
ull the top of the carrier to unfold it.
F

T
urn the side lever to release the upper and
lower clamps.
F

S
pread the clamps to fit the portable device.
F

R
aise the side lever to lock the clamps.
Front door pockets
Passenger glove box
Depending on the country of sale, one of
the door pockets may house the temporary
puncture repair kit.
Ease of use and comfort

55
Cooled glove box
This is located on the top of the dashboard,
passenger side.
The air delivered to the glove box is the same
as that from the vents.
USB port
12 Volt socketThe connection of an electrical device
not approved by CITROËN, such as
a USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor telephone
reception or inter ference with displays in
the screens.
Cigarette lighter
This port is used only to power or recharge the
portable device connected.
Maximum power: 180
W. F

P
ress and wait a few moments until the
lighter pops out automatically.
3
Ease of use and comfort

56
Portable ashtray
F After opening the ashtray, pull it upwards then empty it into a bin.
Overhead storage
This is located above the sun visors.
Maximum load: approximately 20 kg.
Reading lamps
Controls located at the bottom
of the dashboard on the driver's
side allow the driver to switch
the passenger reading lamp on
or of f.
These are controlled by the switches.
The driver's switch controls both reading lamps
simultaneously.
The passenger switch controls either the
driver's reading lamp or the passenger's
reading lamp.
Courtesy lamp
It can be activated by means of:
-
t he switches on the courtesy lamp, with the
ignition on – MAR position,
-

o
pening or closing one of the front doors,
-
l

ocking/unlocking the vehicle.
It switches off automatically:
-

i
f the switch is not pressed to the right or to
the left,
-

i
n all cases after 15 minutes, if the doors
remain open,
-

o
r when the ignition is switched on.
Ease of use and comfort

57
Rear fittings
Stowing rings
As a safety precaution in case of sharp
b raking, you are advised to place heavy
objects as far for wards towards the cab as
possible.
Support for stowing rail
Supports for securing a stowing rail are
a vailable above the trims, on each side of the
vehicle.
Maximum load: 200
kg.
Side trim
The lower parts of the sides are fitted with load
protection trims.
Stowing rings are provided on the floor to
secure and make safe your loads: 8

for L1

and
L2

length vehicles, 10

for L3

and L4

length
vehicles.
Two additional rings are located on the partition
behind the cab.
Maximum load: 500

kg.
12 Volt socket
The connection of an electrical device
not approved by CITROËN, such as
a
USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor radio
reception or inter ference with displays in
the screens.
Maximum power: 180
W.
3
Ease of use and comfort

58
Cigarette lighter
F Press and wait a few moments until the
lighter pops out automatically.
Courtesy lamps Reading lamps
They are located above each row
of seats.
Interior roof rack
This is a storage compartment located in the
l oad space, above the cab. Its capacity varies
depending on the height of the van (type H2
or
H3).
As a
safety measure, do not place heavy
objects in the roof storage space.
Load retainerIf fitted on your vehicle, one or two courtesy
lamps are located above the rear and side
doors.
They can be activated by:
-

t
ilting the courtesy lamp (to the left or to the
right),
-

o
pening or closing the rear or side doors.
This lighting switches off automatically, after
a
few minutes, if the doors are left open. On the floor, behind the front seats, a
horizontal partition protects the driver and front
passengers against the risk of load movement.
Ladder type vertical
partition
Depending on the country of sale, behind the
driver's seat, a ladder type vertical partition
protects the driver against the risk of load
movement.
Ease of use and comfort
