DODGE CHARGER 2015 7.G User Guide

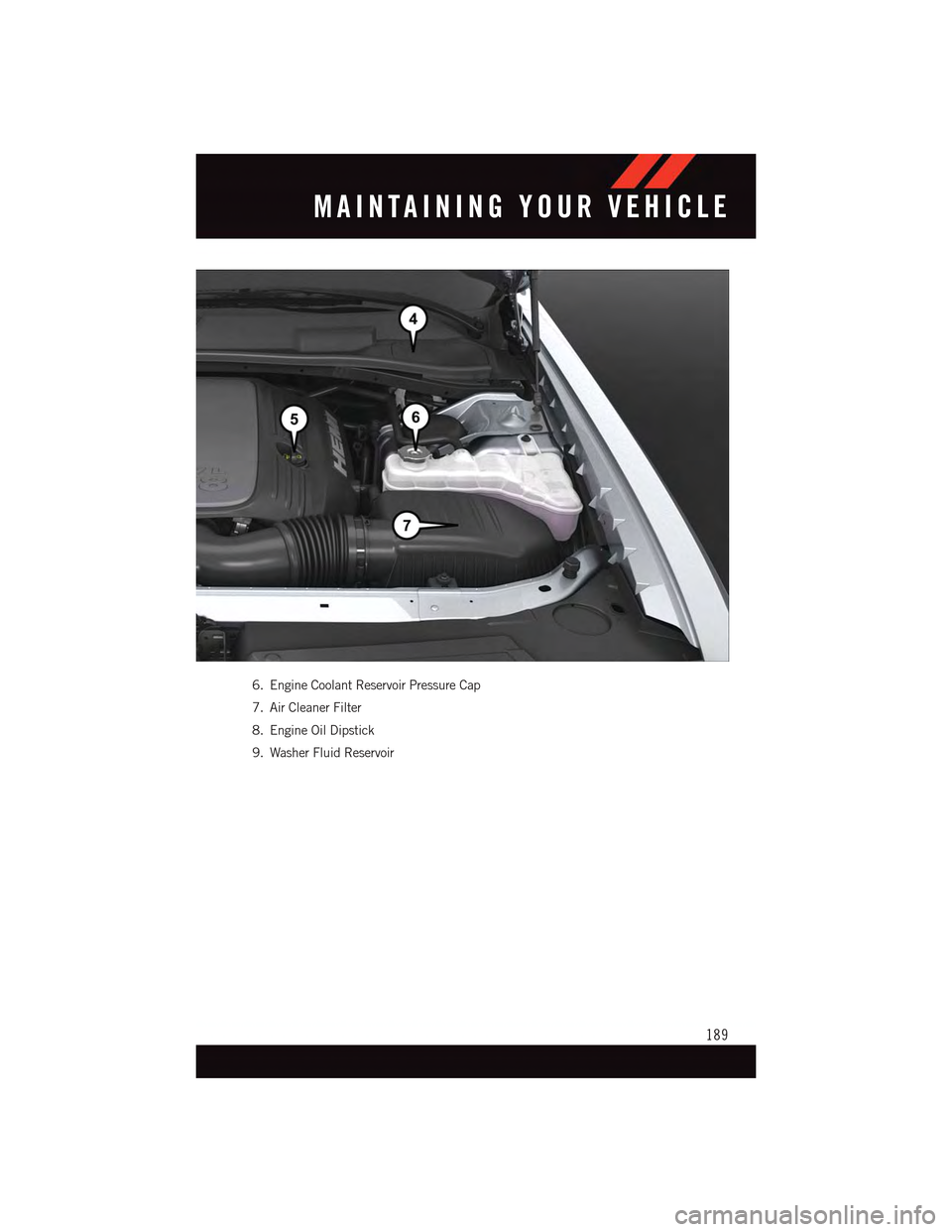

6. Engine Coolant Reservoir Pressure Cap
7. Air Cleaner Filter
8. Engine Oil Dipstick
9. Washer Fluid Reservoir
MAINTAINING YOUR VEHICLE
189

6.2L Engine
1. Remote Jump Start Positive Terminal
2. Intercooler Coolant Reservoir Pressure Cap
3. Power Distribution Center (Fuses)
4. Engine Oil Fill
5. Brake Fluid Reservoir Access Cover
6. Engine Coolant Reservoir Pressure Cap
MAINTAINING YOUR VEHICLE
190

7. Air Filter Cleaner
8. Power Steering Fluid Reservoir
9. Remote Jump Start Negative Terminal
10. Engine Oil Dipstick
11. Washer Fluid Reservoir
MAINTAINING YOUR VEHICLE
191

6.4L Engine
1. Remote Jump Start Positive Terminal
2. Power Distribution Center (Fuses)
3. Remote Jump Start Negative Terminal
4. Brake Fluid Reservoir Access Cover
5. Engine Oil Fill
MAINTAINING YOUR VEHICLE
192

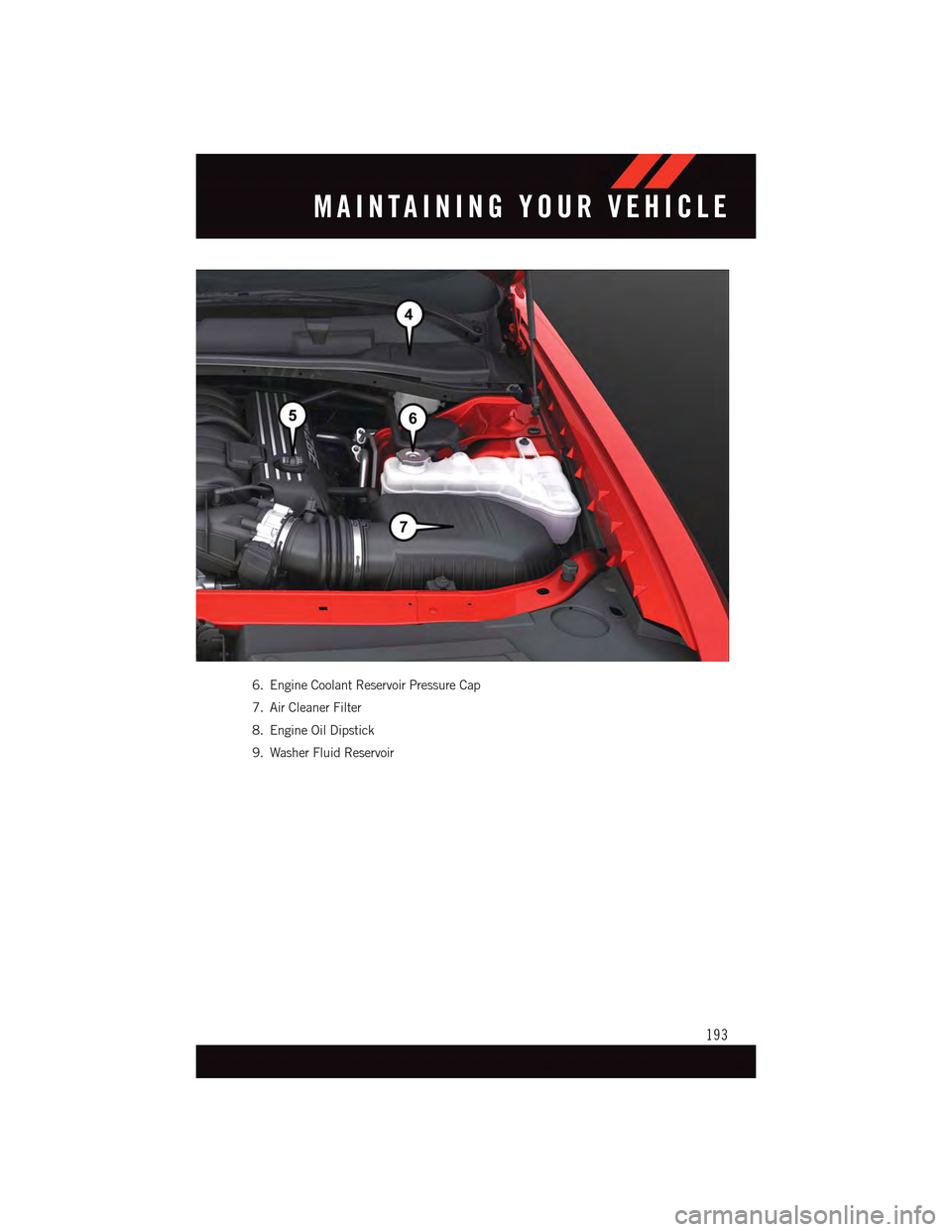

6. Engine Coolant Reservoir Pressure Cap
7. Air Cleaner Filter
8. Engine Oil Dipstick
9. Washer Fluid Reservoir
MAINTAINING YOUR VEHICLE
193

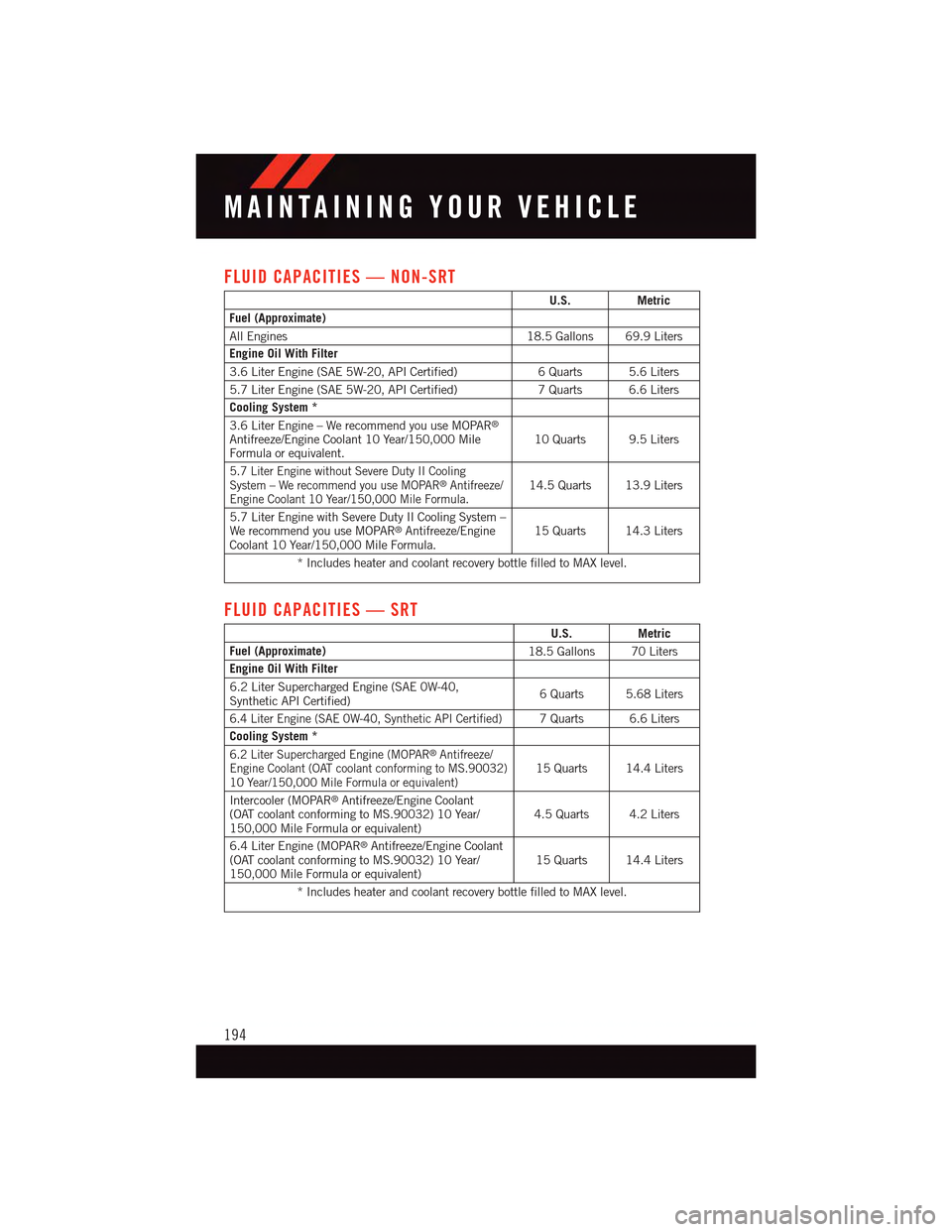

FLUID CAPACITIES — NON-SRT
U.S.Metric
Fuel (Approximate)
All Engines18.5 Gallons 69.9 Liters
Engine Oil With Filter
3.6 Liter Engine (SAE 5W-20, API Certified)6Quarts 5.6Liters
5.7 Liter Engine (SAE 5W-20, API Certified)7Quarts 6.6Liters
Cooling System *
3.6 Liter Engine – We recommend you use MOPAR®
Antifreeze/Engine Coolant 10 Year/150,000 MileFormula or equivalent.10 Quarts 9.5 Liters
5.7 Liter Engine without Severe Duty II CoolingSystem – We recommend you use MOPAR®Antifreeze/Engine Coolant 10 Year/150,000 Mile Formula.14.5 Quarts 13.9 Liters
5.7 Liter Engine with Severe Duty II Cooling System –We recommend you use MOPAR®Antifreeze/EngineCoolant 10 Year/150,000 Mile Formula.15 Quarts 14.3 Liters
*IncludesheaterandcoolantrecoverybottlefilledtoMAXlevel.
FLUID CAPACITIES — SRT
U.S.Metric
Fuel (Approximate)18.5 Gallons 70 Liters
Engine Oil With Filter
6.2 Liter Supercharged Engine (SAE 0W-40,Synthetic API Certified)6Quarts 5.68Liters
6.4 Liter Engine (SAE 0W-40, Synthetic API Certified)7Quarts 6.6Liters
Cooling System *
6.2 Liter Supercharged Engine (MOPAR®Antifreeze/Engine Coolant (OAT coolant conforming to MS.90032)10 Year/150,000 Mile Formula or equivalent)15 Quarts 14.4 Liters
Intercooler (MOPAR®Antifreeze/Engine Coolant(OAT coolant conforming to MS.90032) 10 Year/150,000 Mile Formula or equivalent)4.5 Quarts 4.2 Liters
6.4 Liter Engine (MOPAR®Antifreeze/Engine Coolant(OAT coolant conforming to MS.90032) 10 Year/150,000 Mile Formula or equivalent)15 Quarts 14.4 Liters
*IncludesheaterandcoolantrecoverybottlefilledtoMAXlevel.
MAINTAINING YOUR VEHICLE
194

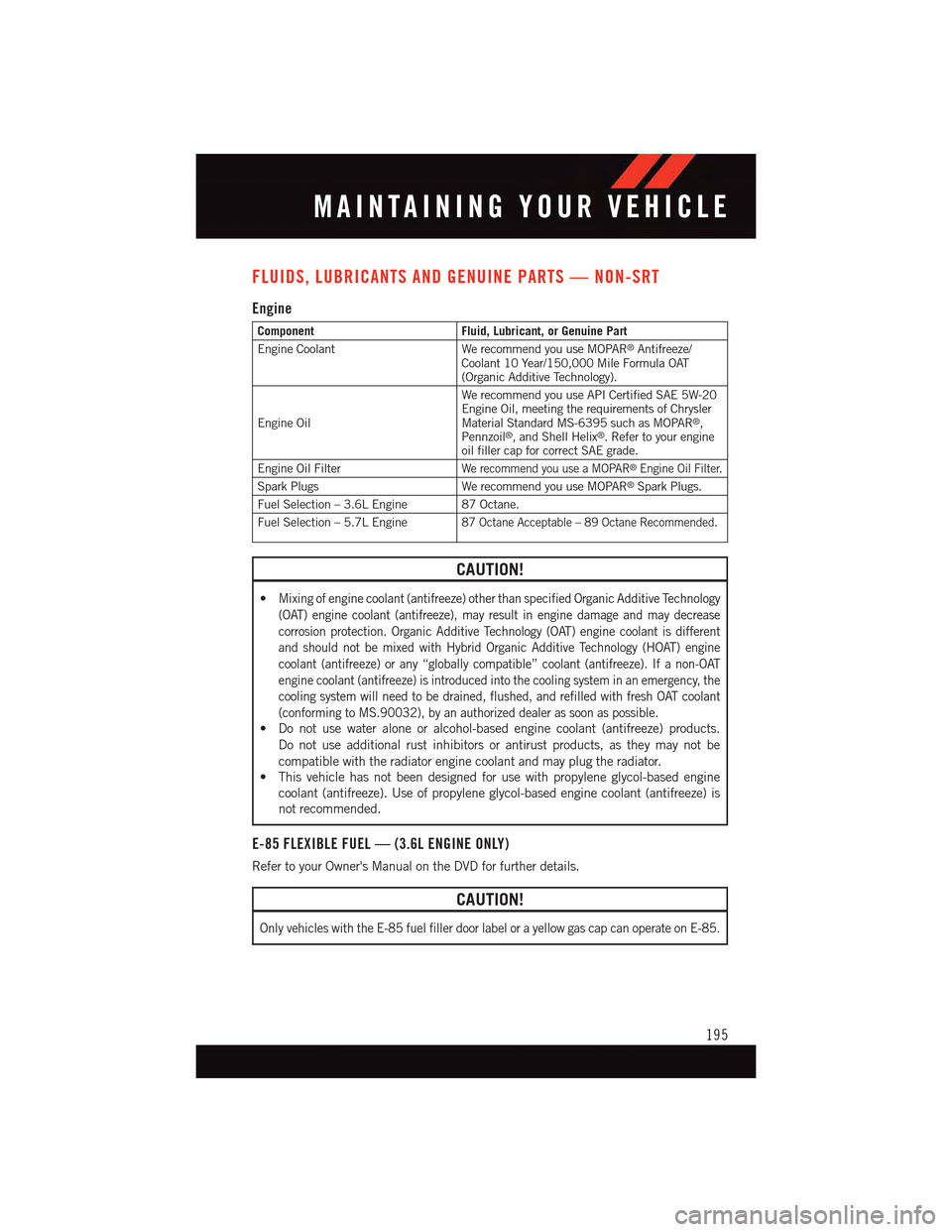

FLUIDS, LUBRICANTS AND GENUINE PARTS — NON-SRT
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine CoolantWe recommend you use MOPAR®Antifreeze/Coolant 10 Year/150,000 Mile Formula OAT(Organic Additive Technology).
Engine Oil
We recommend you use API Certified SAE 5W-20Engine Oil, meeting the requirements of ChryslerMaterial Standard MS-6395 such as MOPAR®,Pennzoil®,andShellHelix®.Refertoyourengineoil filler cap for correct SAE grade.
Engine Oil FilterWe recommend you use a MOPAR®Engine Oil Filter.
Spark PlugsWe recommend you use MOPAR®Spark Plugs.
Fuel Selection – 3.6L Engine 87 Octane.
Fuel Selection – 5.7L Engine87 Octane Acceptable – 89 Octane Recommended.
CAUTION!
•Mixing of engine coolant (antifreeze) other than specified Organic Additive Technology
(OAT) engine coolant (antifreeze), may result in engine damage and may decrease
corrosion protection. Organic Additive Technology (OAT) engine coolant is different
and should not be mixed with Hybrid Organic Additive Technology (HOAT) engine
coolant (antifreeze) or any “globally compatible” coolant (antifreeze). If a non-OAT
engine coolant (antifreeze) is introduced into the cooling system in an emergency, the
cooling system will need to be drained, flushed, and refilled with fresh OAT coolant
(conforming to MS.90032), by an authorized dealer as soon as possible.
•Donotusewateraloneoralcohol-basedenginecoolant(antifreeze)products.
Do not use additional rust inhibitors or antirust products, as they may not be
compatible with the radiator engine coolant and may plug the radiator.
•Thisvehiclehasnotbeendesignedforusewithpropyleneglycol-basedengine
coolant (antifreeze). Use of propylene glycol-based engine coolant (antifreeze) is
not recommended.
E-85 FLEXIBLE FUEL — (3.6L ENGINE ONLY)
Refer to your Owner's Manual on the DVD for further details.
CAUTION!
Only vehicles with the E-85 fuel filler door label or a yellow gas cap can operate on E-85.
MAINTAINING YOUR VEHICLE
195

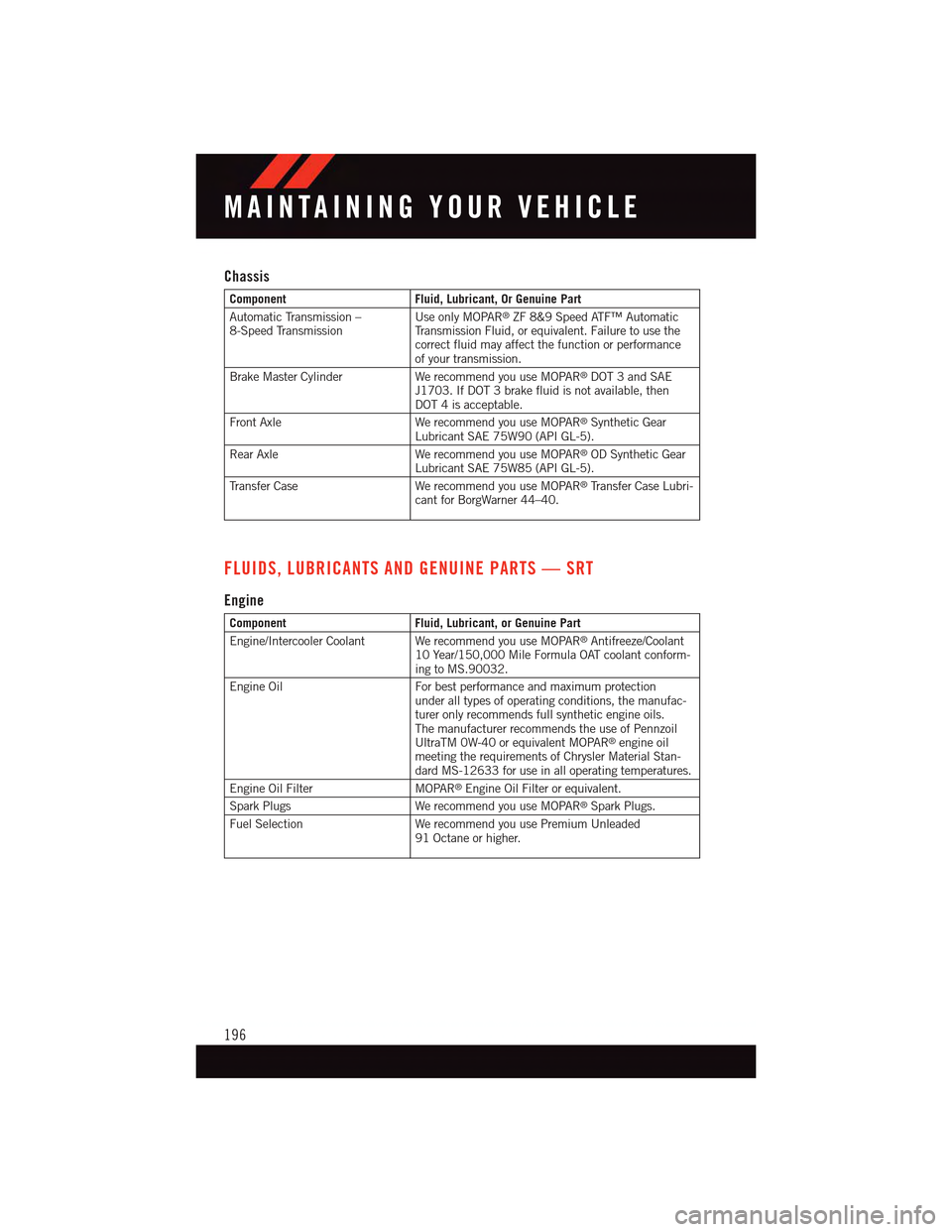

Chassis
ComponentFluid, Lubricant, Or Genuine Part
Automatic Transmission –8-Speed TransmissionUse only MOPAR®ZF 8&9 Speed ATF™ AutomaticTr a n s m i s s i o n F l u i d , o r e q u i v a l e n t . F a i l u r e t o u s e t h ecorrect fluid may affect the function or performanceof your transmission.
Brake Master Cylinder We recommend you use MOPAR®DOT 3 and SAEJ1703. If DOT 3 brake fluid is not available, thenDOT 4 is acceptable.
Front Axle We recommend you use MOPAR®Synthetic GearLubricant SAE 75W90 (API GL-5).
Rear Axle We recommend you use MOPAR®OD Synthetic GearLubricant SAE 75W85 (API GL-5).
Tr a n s f e r C a s e W e r e c o m m e n d y o u u s e M O PA R®Tr a n s f e r C a s e L u b r i -cant for BorgWarner 44–40.
FLUIDS, LUBRICANTS AND GENUINE PARTS — SRT
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine/Intercooler Coolant We recommend you use MOPAR®Antifreeze/Coolant10 Year/150,000 Mile Formula OAT coolant conform-ing to MS.90032.
Engine Oil For best performance and maximum protectionunder all types of operating conditions, the manufac-turer only recommends full synthetic engine oils.The manufacturer recommends the use of PennzoilUltraTM 0W-40 or equivalent MOPAR®engine oilmeeting the requirements of Chrysler Material Stan-dard MS-12633 for use in all operating temperatures.
Engine Oil FilterMOPAR®Engine Oil Filter or equivalent.
Spark PlugsWe recommend you use MOPAR®Spark Plugs.
Fuel SelectionWe recommend you use Premium Unleaded91 Octane or higher.
MAINTAINING YOUR VEHICLE
196

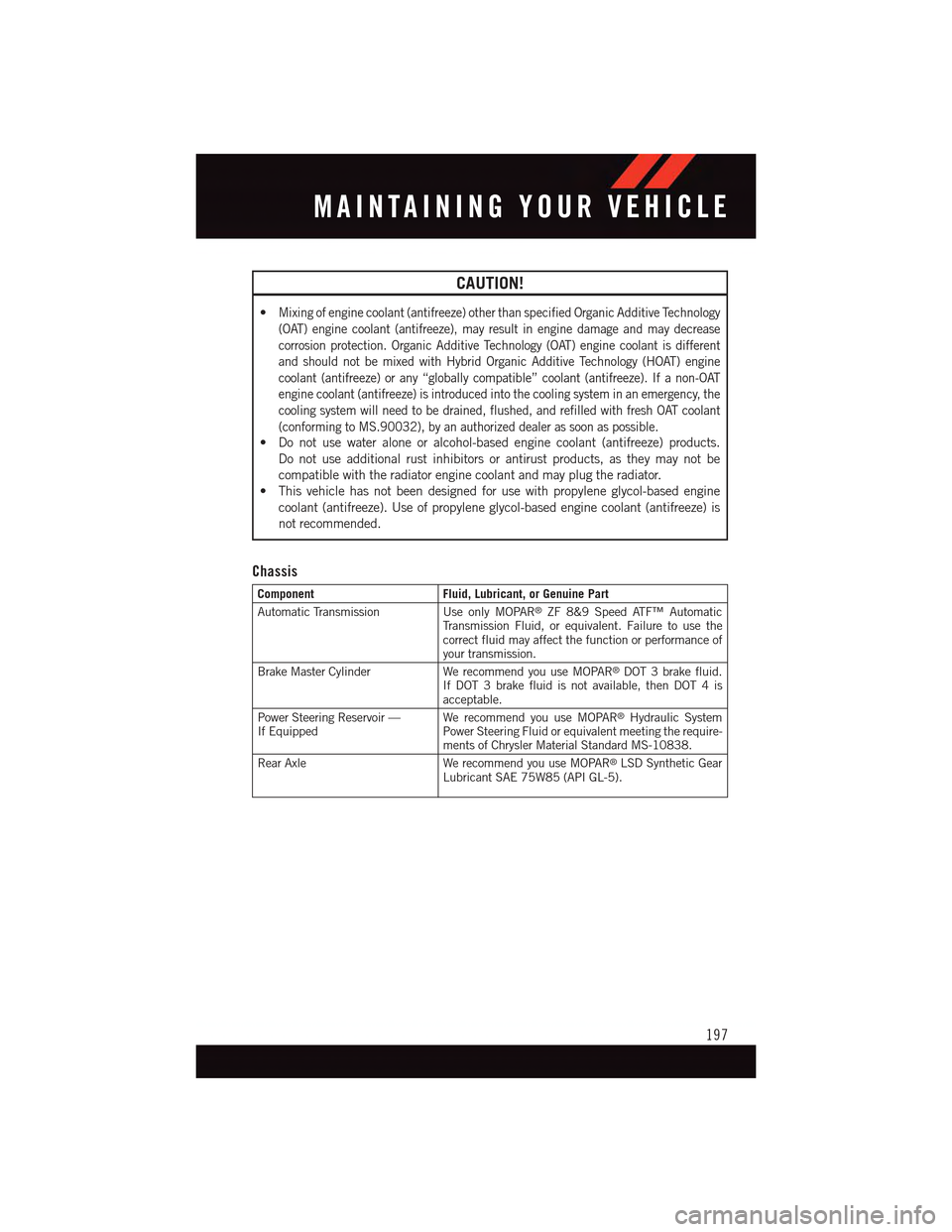

CAUTION!
•Mixing of engine coolant (antifreeze) other than specified Organic Additive Technology
(OAT) engine coolant (antifreeze), may result in engine damage and may decrease
corrosion protection. Organic Additive Technology (OAT) engine coolant is different
and should not be mixed with Hybrid Organic Additive Technology (HOAT) engine
coolant (antifreeze) or any “globally compatible” coolant (antifreeze). If a non-OAT
engine coolant (antifreeze) is introduced into the cooling system in an emergency, the
cooling system will need to be drained, flushed, and refilled with fresh OAT coolant
(conforming to MS.90032), by an authorized dealer as soon as possible.
•Donotusewateraloneoralcohol-basedenginecoolant(antifreeze)products.
Do not use additional rust inhibitors or antirust products, as they may not be
compatible with the radiator engine coolant and may plug the radiator.
•Thisvehiclehasnotbeendesignedforusewithpropyleneglycol-basedengine
coolant (antifreeze). Use of propylene glycol-based engine coolant (antifreeze) is
not recommended.
Chassis
ComponentFluid, Lubricant, or Genuine Part
Automatic TransmissionUse only MOPAR®ZF 8&9 Speed ATF™ AutomaticTr a n s m i s s i o n F l u i d , o r e q u i v a l e n t . F a i l u r e t o u s e t h ecorrect fluid may affect the function or performance ofyour transmission.
Brake Master Cylinder We recommend you use MOPAR®DOT 3 brake fluid.If DOT 3 brake fluid is not available, then DOT 4 isacceptable.
Power Steering Reservoir —If EquippedWe recommend you use MOPAR®Hydraulic SystemPower Steering Fluid or equivalent meeting the require-ments of Chrysler Material Standard MS-10838.
Rear Axle We recommend you use MOPAR®LSD Synthetic GearLubricant SAE 75W85 (API GL-5).
MAINTAINING YOUR VEHICLE
197

MAINTENANCE PROCEDURES
For information on the maintenance procedures for your vehicle, please refer to “Main-
tenance Procedures” in “Maintaining Your Vehicle” in your Owner’s Manual or applicable
supplement on the DVD for further details.
MAINTENANCE SCHEDULE — NON-SRT
Yo u r v e h i c l e i s e q u i p p e d w i t h a n a u t o m a t i c o i l c h a n g e i n d i c a t o r s y s t e m . T h e o i l c h a n g e
indicator system will remind you that it is time to take your vehicle in for scheduled
maintenance.
Based on engine operation conditions, the oil change indicator message will illuminate.
This means that service is required for your vehicle. Operating conditions such as frequent
short-trips, trailer tow, extremely hot or cold ambient temperatures, and E85 fuel usage
will influence when the “Change Oil” or “Oil Change Required” message is displayed.
Severe Operating Conditions can cause the change oil message to illuminate as early as
3,500 miles (5,600 km) since last reset. Have your vehicle serviced as soon as possible,
within the next 500 miles (805 km).
The “Oil Change Required” message will be displayed in the DID and a single chime will
sound, indicating that an oil change is necessary.
Yo u r a u t h o r i z e d d e a l e r w i l l r e s e t t h e o i l c h a n g e i n d i c a t o r m e s s a g e a f t e r c o m p l e t i n g t h e
scheduled oil change. If a scheduled oil change is performed by someone other than your
authorized dealer, the message can be reset by referring to the steps described under
“Instrument Cluster Warning Lights” in “What To Do In Emergencies” in this guide or
“Driver Information Dispay (DID)” in “Understanding Your Instrument Panel” in your
Owners Manual on the DVD for further information.
NOTE:
Under no circumstances should oil change intervals exceed 10,000 miles (16,000 km)
or twelve months, whichever comes first.
