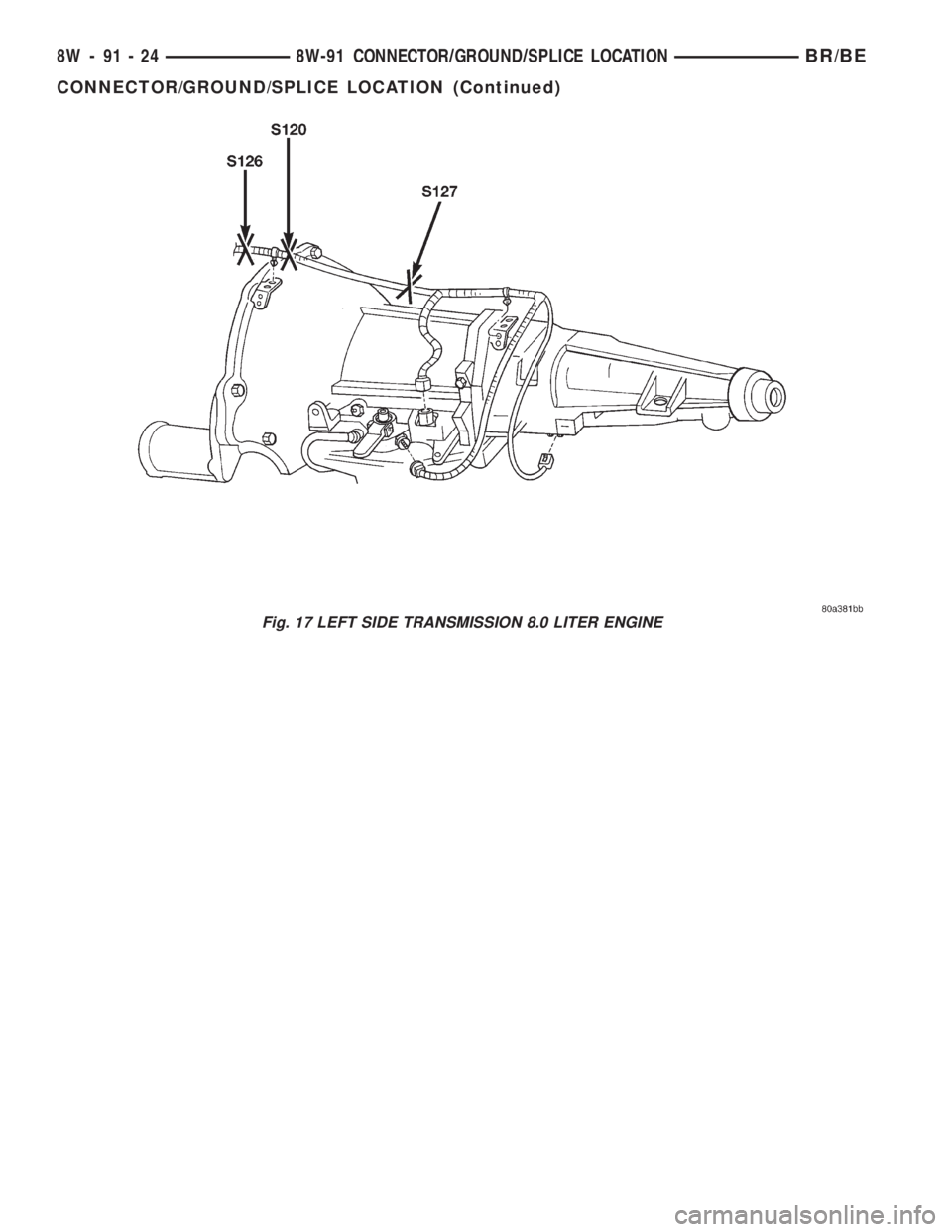

Fig. 17 LEFT SIDE TRANSMISSION 8.0 LITER ENGINE
8W - 91 - 24 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONBR/BE
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

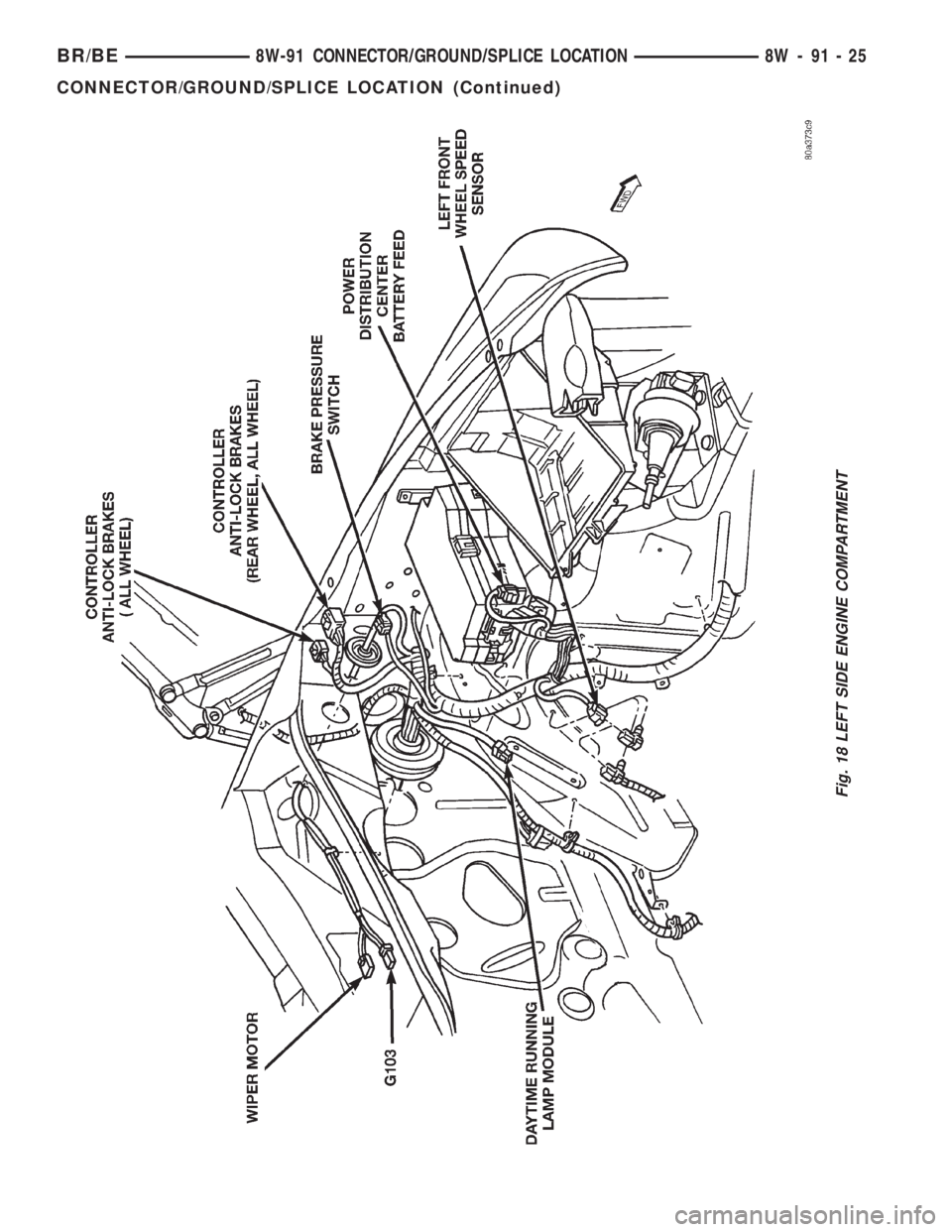

Fig. 18 LEFT SIDE ENGINE COMPARTMENT
BR/BE8W-91 CONNECTOR/GROUND/SPLICE LOCATION 8W - 91 - 25
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

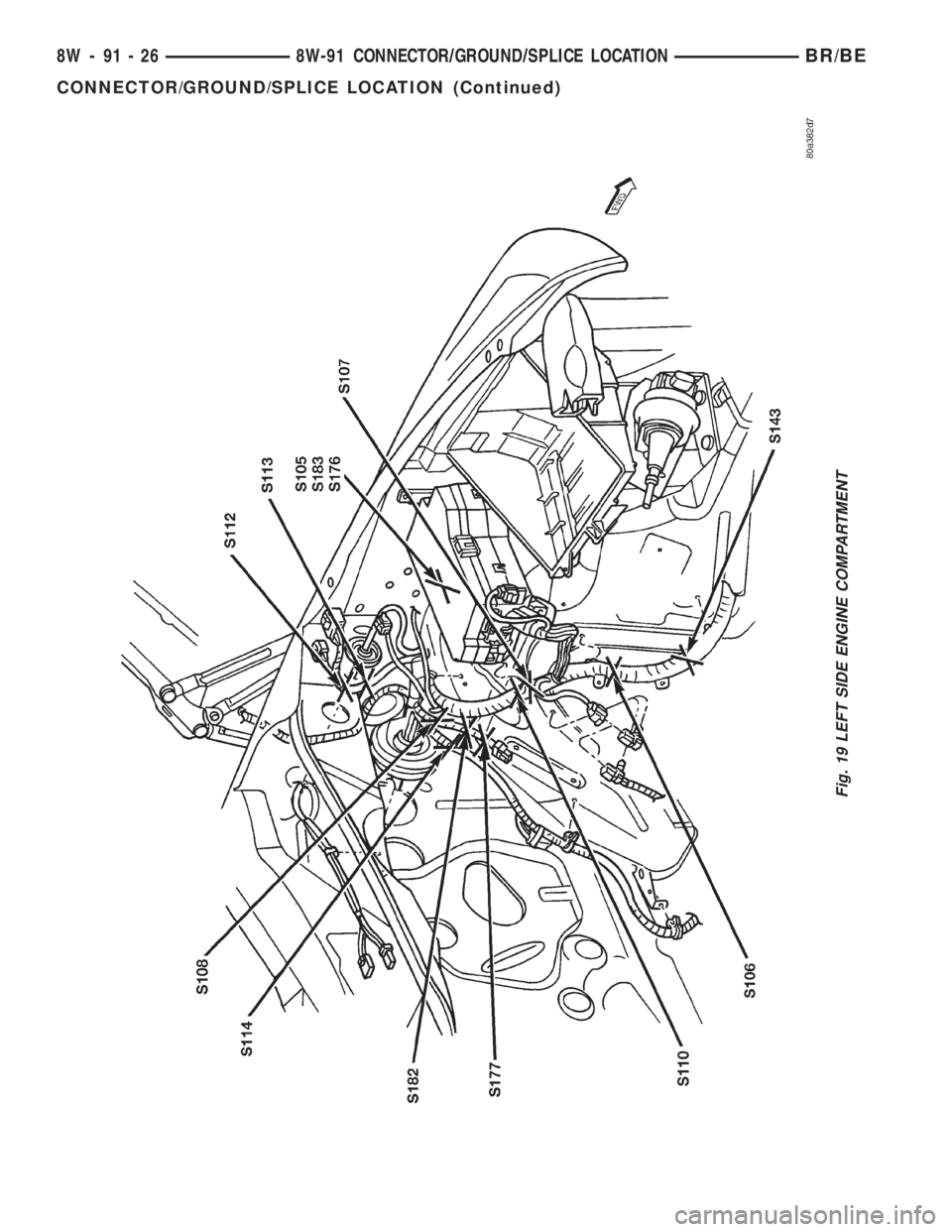

Fig. 19 LEFT SIDE ENGINE COMPARTMENT
8W - 91 - 26 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONBR/BE
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

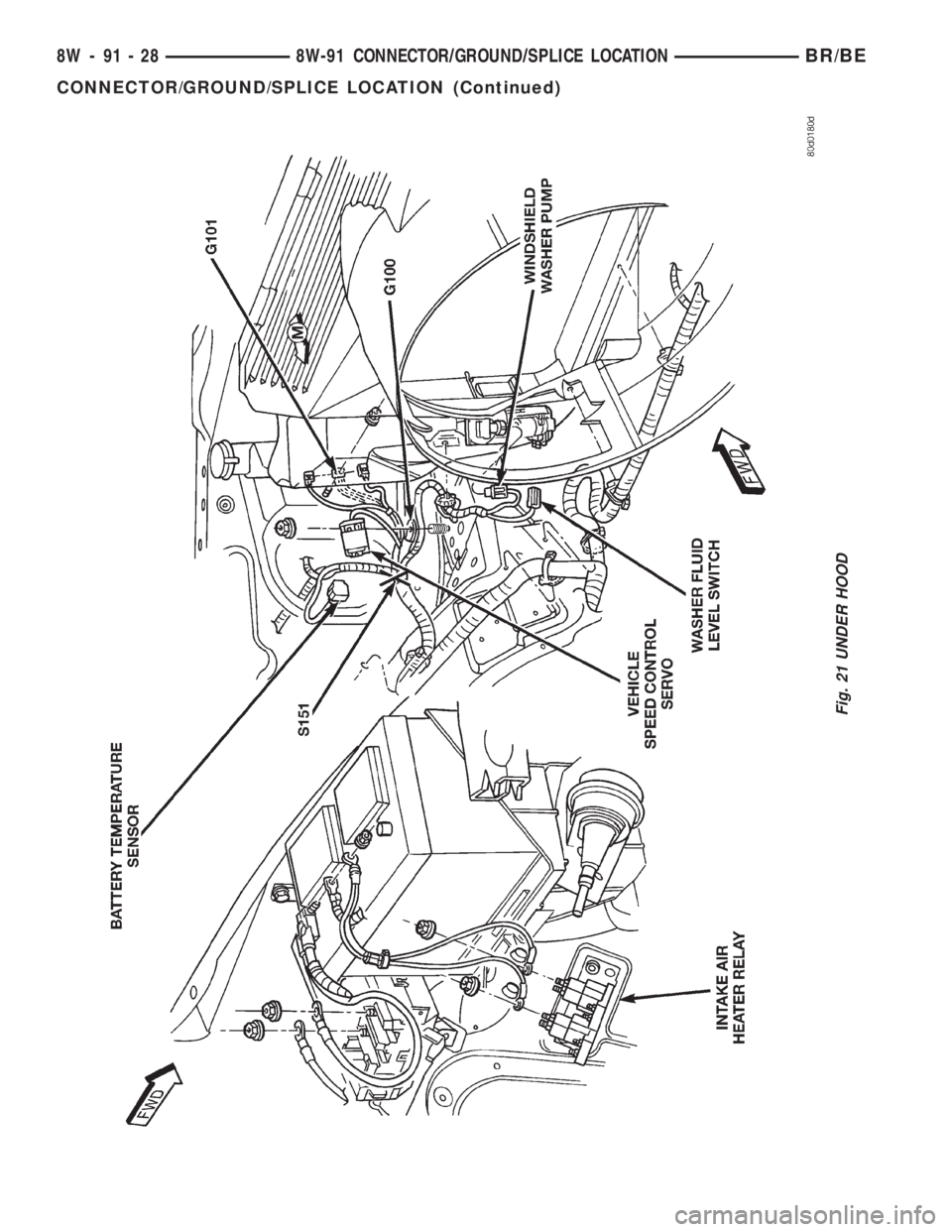

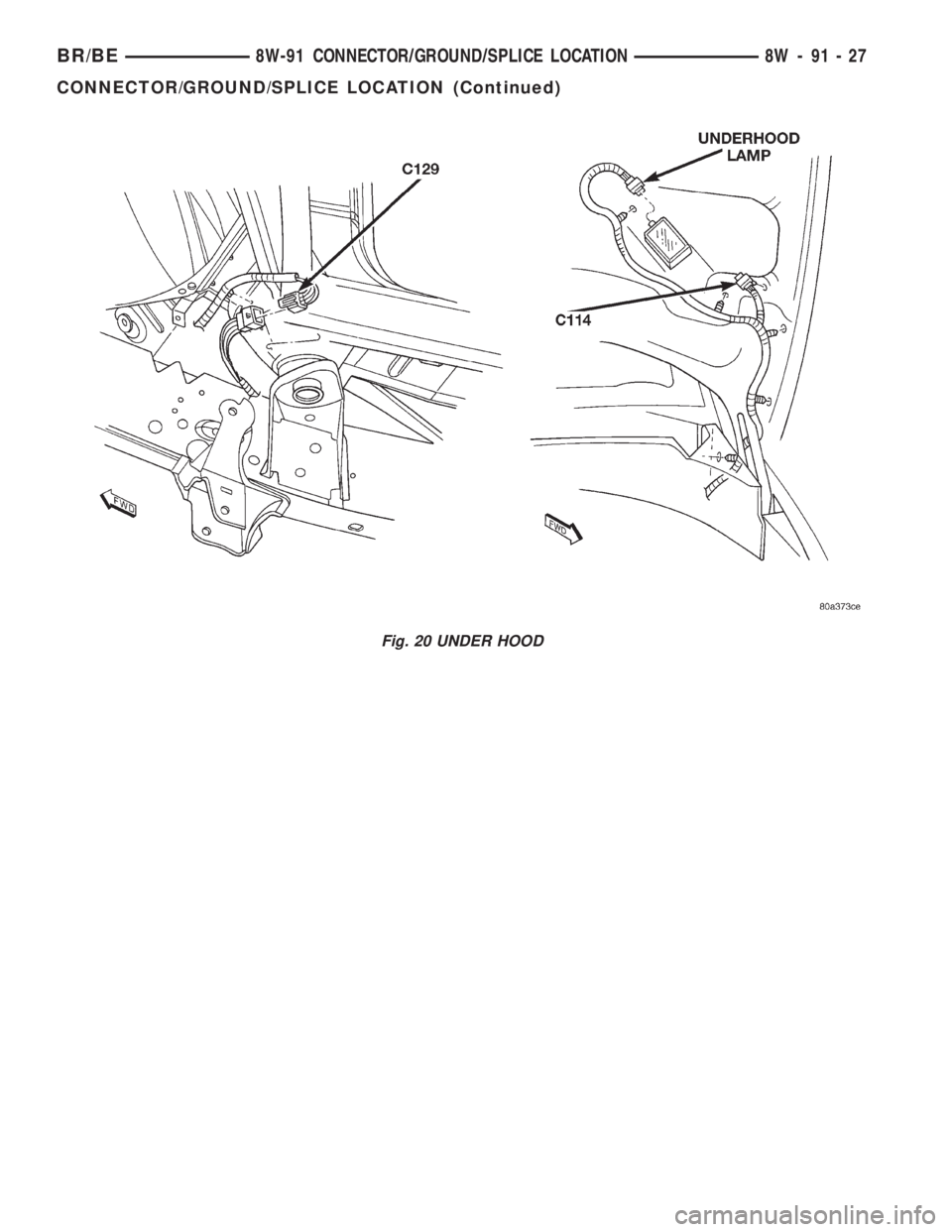

Fig. 20 UNDER HOOD
BR/BE8W-91 CONNECTOR/GROUND/SPLICE LOCATION 8W - 91 - 27
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Fig. 21 UNDER HOOD
8W - 91 - 28 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONBR/BE
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

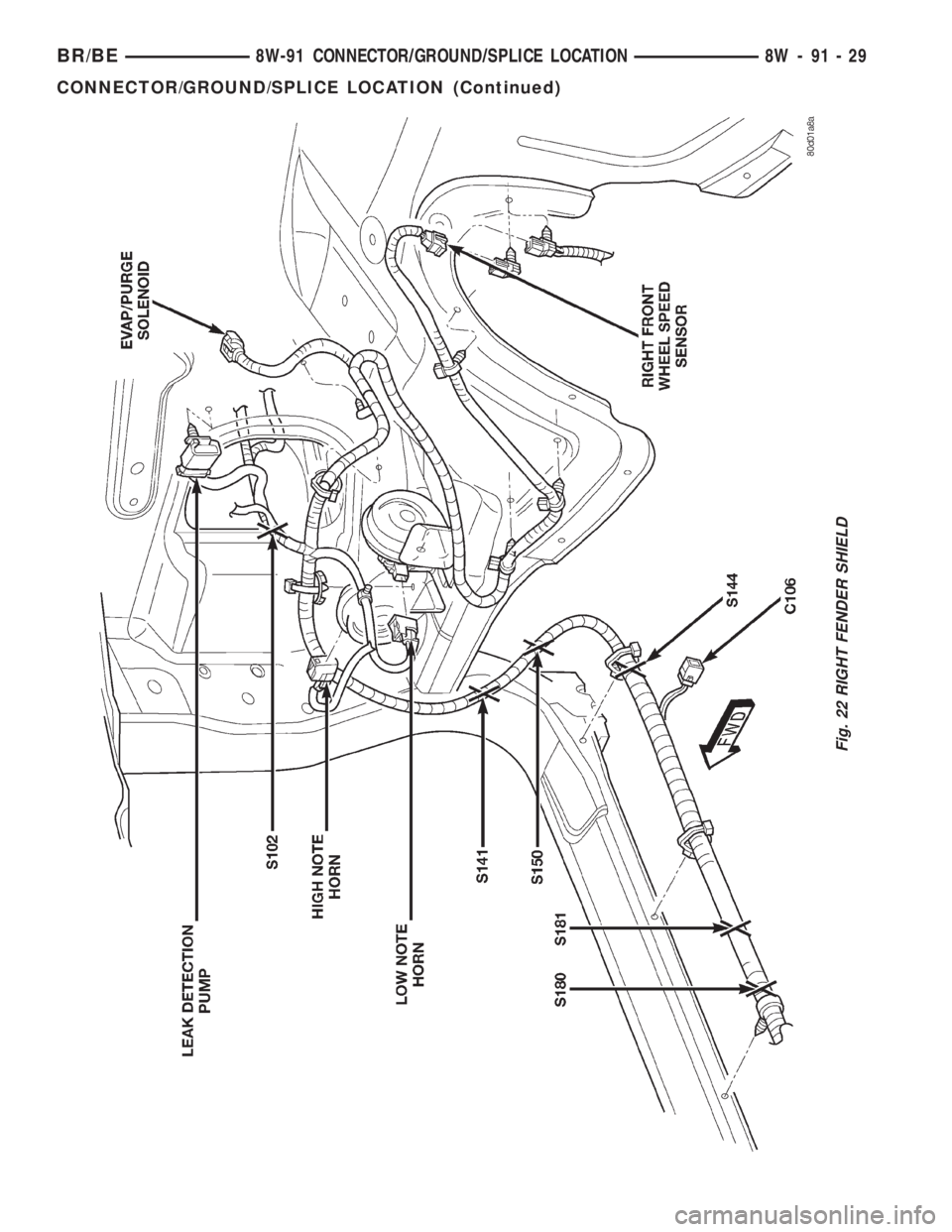

Fig. 22 RIGHT FENDER SHIELD
BR/BE8W-91 CONNECTOR/GROUND/SPLICE LOCATION 8W - 91 - 29
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Fig. 23 CENTER HIGH MOUNTED STOP LAMP
8W - 91 - 30 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONBR/BE
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Fig. 24 DOOR
BR/BE8W-91 CONNECTOR/GROUND/SPLICE LOCATION 8W - 91 - 31
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

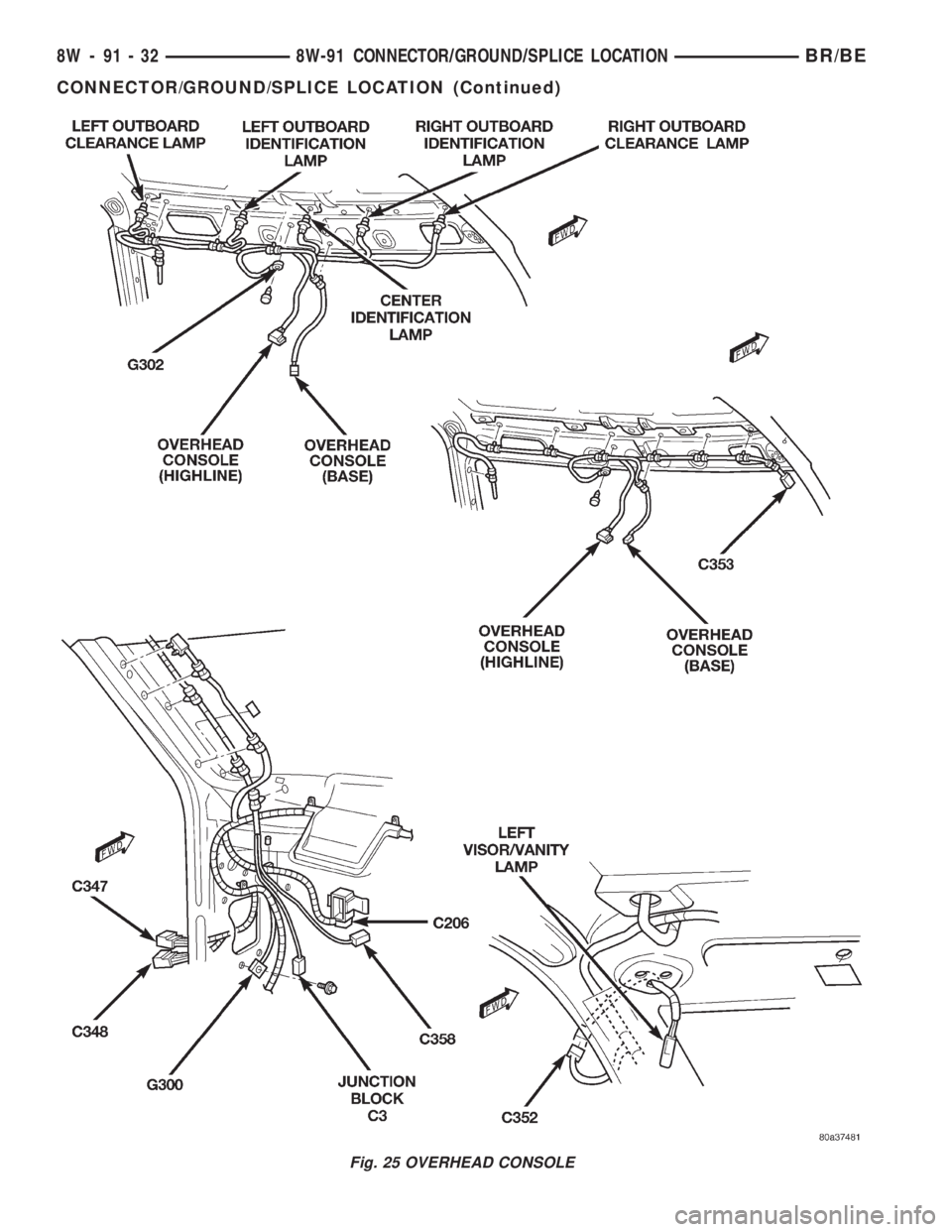

Fig. 25 OVERHEAD CONSOLE
8W - 91 - 32 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONBR/BE
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

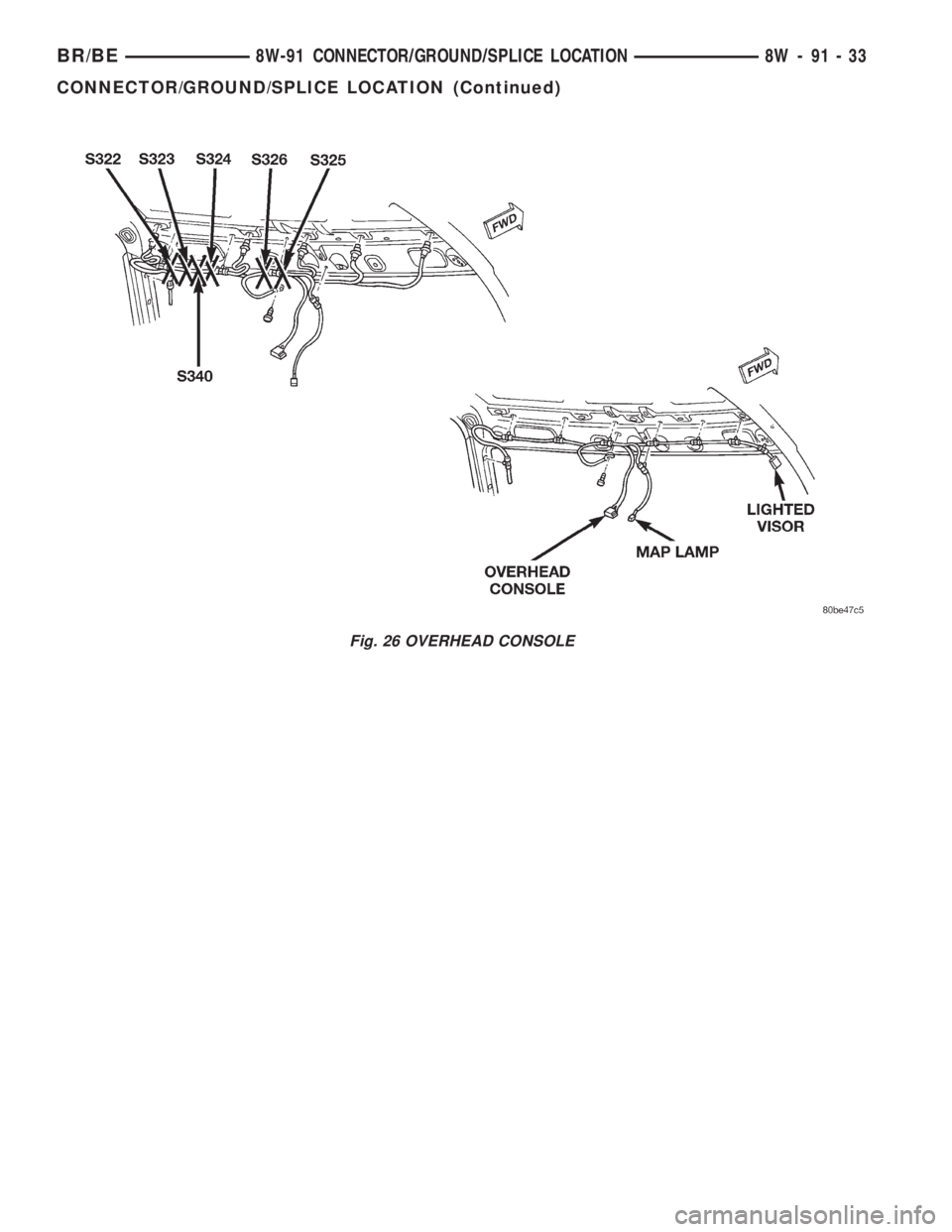

Fig. 26 OVERHEAD CONSOLE
BR/BE8W-91 CONNECTOR/GROUND/SPLICE LOCATION 8W - 91 - 33
CONNECTOR/GROUND/SPLICE LOCATION (Continued)
