(8) Install adapter housing on geartrain.
(9) Install rear bearing snap ring on output shaft
(Fig. 98).
(10) Lubricate lip of new rear seal (Fig. 99) with
Mopar Door Ease, or transmission fluid.
(11) Installnewrear seal in adapter housing bore
with Installer C-3860-A. Verify seal is seated in hous-
ing bore (Fig. 99).SHIFT SHAFT, SHAFT LEVER AND BUSHING AND
SHIFT SOCKET
(1) Verify all synchro sleeves are in Neutral posi-
tion (centered on hub).
CAUTION: Transmission synchros must all be in
Neutral position to prevent damaging the housings,
shift forks and gears while installing the housings.
(2) Install 3-4 shift fork in synchro sleeve (Fig.
100). Verify groove in fork arm is aligned with
grooves in 1-2 and fifth-reverse fork arms as shown.
(3) Slide shift shaft through 3-4 shift fork (Fig.
101).
Fig. 98 REAR BEARING SNAP RING
1 - SNAP RING PLIERS
2 - SNAP RING
3 - OUTPUT SHAFT
Fig. 99 ADAPTER HOUSING REAR SEAL
1 - REAR SEAL
2 - SEAL LIP
3 - OUTPUT SHAFT
Fig. 100 3-4 SHIFT FORK
1 - 3-4 FORK
2 - ALIGN GROOVES IN FORK ARMS
Fig. 101 SHIFT SHAFT
1 - SHIFT SHAFT
2 - 3-4 FORK
3 - SHAFT DETENT NOTCHES
21 - 32 MANUAL TRANSMISSION - NV3500DR
MANUAL TRANSMISSION - NV3500 (Continued)

(4) Assemble shift shaft shift lever and bushing
(Fig. 102). Verify slot in bushing is facing up and roll
pin hole for lever is aligned with hole in shaft.
(5) Install assembled lever and bushing on shift
shaft (Fig. 103).
(6) Slide shift shaft through 1-2 and fifth-reverse
fork and into shift lever opening in rear housing (Fig.
104).
(7) Align shift socket with shaft and slide shaft
through socket and into shift shaft bearing in rear
housing (Fig. 105).
(8) Rotate shift shaft so detent notches in shaft are
facing the TOP of the transmission housing.
CAUTION: Both shaft roll pins can be installed
when the shaft is 180É off. If this occurs, the trans-mission will have to be disassembled again to cor-
rect shaft alignment.
(9) Select correctnewroll pin for shift shaft lever
(Fig. 106). Shaft lever roll pin is approximately 22
mm (7/8 in.) long. Shift socket roll pin is approxi-
mately 33 mm (1-1/4 in.) long.
Fig. 102 SHIFT SHAFT LEVER AND BUSHING
1 - SHAFT LEVER
2 - LEVER BUSHING
3 - BUSHING LOCK PIN SLOT
Fig. 103 SHIFT SHAFT LEVER AND BUSHING
1 - SHIFT SHAFT
2 - SHAFT LEVER AND BUSHING
3 - 3-4 FORK
Fig. 104 SHAFT LEVER OPENING
1 - SHIFT SHAFT
Fig. 105 SHIFT SOCKET
1 - SHIFT SOCKET
2 - SHIFT SHAFT
Fig. 106 ROLL PIN IDENTIFICATION
1 - SHAFT LEVER ROLL PIN
2 - SHIFT SOCKET ROLL PIN
DRMANUAL TRANSMISSION - NV3500 21 - 33
MANUAL TRANSMISSION - NV3500 (Continued)

(10) Align roll pin holes in shift shaft, lever and
bushing. Then start roll pin into shaft lever by hand
(Fig. 107).
(11) Seat shaft lever roll pin with pin punch (Fig.
108).
CAUTION: Shaft lever roll pin must be flush with
the surface of the lever. The lever bushing will bind
on the roll pin if the pin is not seated flush.
(12) Verify that lock pin slot in lever bushing is
positioned as shown (Fig. 108).(13) Align roll pin holes in shift socket and shift
shaft. Then start roll pin into shift shaft by hand
(Fig. 109).
(14) Seat roll pin in shift socket with pin punch.
Roll pin must be flush with socket after installation
(Fig. 110).
Fig. 107 SHIFT SHAFT ROLL PIN
1 - SHAFT LEVER ROLL PIN
2 - LEVER AND BUSHING
Fig. 108 SHIFT SHAFT/LEVER ROLL PIN
1 - BUSHING LOCK PIN SLOT
2 - SEAT ROLL PIN FLUSH WITH LEVER
Fig. 109 SHIFT SOCKET ROLL PIN
1 - ROLL PIN
2 - SHIFT SOCKET
3 - SHIFT SHAFT
Fig. 110 SEAT SHIFT SOCKET
1 - PIN PUNCH
2 - SHIFT SOCKET
3 - SEAT ROLL PIN FLUSH
4 - SHIFT SOCKET
21 - 34 MANUAL TRANSMISSION - NV3500DR
MANUAL TRANSMISSION - NV3500 (Continued)

(15) Verify that notches in shift fork arms are
aligned (Fig. 111). Realign arms if necessary.
(16) Rotate shift lever and bushing downward to
expose detent bore in the lever.
(17) Install detent spring then the ball into the
detent bore (Fig. 112) and hold the ball in the lever.
Then rotate the lever upward into the fork arm
notches.
NOTE: Verify detent ball is seated in the fork arms
before proceeding.
FRONT HOUSING AND INPUT SHAFT BEARING
RETAINER
(1) If previously removed, install input shaft bear-
ing in front housing bore (Fig. 113). Install snap ringand use plastic mallet to seat bearing. Bearing goes
in from front side of housing only.
(2) Apply liberal quantity of petroleum jelly to
countershaft front bearing. Then insert bearing in
front housing race (Fig. 113). Large diameter side of
bearing cage goes toward countershaft (Fig. 114).
Small diameter side goes toward bearing race in
housing.
(3) Reach into countershaft front bearing with fin-
ger and push each bearing roller outward against
race. Then apply extra petroleum jelly to hold rollers
in place during housing installation.
(4) Apply small amount of petroleum jelly to shift
shaft bushing in front housing.
Fig. 111 SHIFT LEVER POSITION
1 - SHIFT FORK ARMS
2 - DETENT BORE
Fig. 112 DETENT SPRING AND BALL
1 - SHAFT LEVER
2 - SPRING AND BALL
3 - MAGNET
Fig. 113 INPUT SHAFT & COUNTERSHAFT
BEARING
1 - INPUT SHAFT BEARING
2 - COUNTERSHAFT FRONT BEARING
3 - SHIFT SHAFT BUSHING
Fig. 114 COUNTERSHAFT FRONT BEARING
1 - BEARING RACE
2 - PETROLEUM JELLY
3 - COUNTERSHAFT FRONT BEARING
DRMANUAL TRANSMISSION - NV3500 21 - 35
MANUAL TRANSMISSION - NV3500 (Continued)

(5) Apply 1/8 in. wide bead of Mopar Gasket
Maker or equivalent to mating surfaces of front and
rear housings (Fig. 115).
(6) Have helper hold rear housing and geartrain in
upright position. Then install front housing on rear
housing and geartrain.
(7) Work front housing downward onto geartrain
until seated on rear housing.
CAUTION: Front housings will not seat if shift com-
ponents are not in Neutral or one or more compo-
nents are misaligned. Do not force the front
housing into place.
(8) Tap rear housing alignment dowels back into
place with hammer and pin punch. Both dowels
should be flush fit in each housing. Have helper hold
transmission upright while dowels are tapped back
into place.
(9) Place transmission in horizontal position.
(10) Apply Mopar Gasket Maker or equivalent to
housing attaching bolts. Apply sealer material sealer
to underside of bolt heads and to bolt shanks and
threads (Fig. 116).
(11) Install and start housing attaching bolts by
hand (Fig. 116). Then tighten bolts to 34 N´m (25 ft.
lbs.).(12) Install shift shaft bushing lock bolt (Fig. 117).
Apply Mopar Gasket Maker or equivalent to bolt
threads, shank and underside of bolt head before
installation.
CAUTION: If lock bolt cannot be fully installed the
shift shaft is not in Neutral, or the shaft bushing (or
lever) is misaligned.
(13) Lubricate then install shift shaft detent
plunger in housing bore. Lubricate plunger with
semi-synthetic/synthetic grease. Verify plunger is
fully seated in detent notch in shift shaft.
(14) Install detent spring inside plunger.
(15) Install detent plug in end of Installer 8123.
Position plug on detent spring and compress spring
until detent plug pilots in detent plunger bore. Drive
detent plug into transmission case until plug seats.
Fig. 115 SEAL HOUSINGS
1 - HOUSING FLANGE SURFACE
2 -GASKET MAKER
Fig. 116 HOUSING BOLTS
1 - HOUSING BOLTS
Fig. 117 SHAFT LOCK BOLT
1 - SHIFT SHAFT LOCK BOLT
2 - SHAFT SOCKET
21 - 36 MANUAL TRANSMISSION - NV3500DR
MANUAL TRANSMISSION - NV3500 (Continued)

(16) Install backup light switch (Fig. 118).
(17) Install input shaft snap ring (Fig. 119).
(18) Installnewoil seal in front bearing retainer
with Installer 6448 (Fig. 120).(19) Apply bead of Mopar silicone sealer or equiv-
alent to flange surface of front bearing retainer (Fig.
121).
(20) Align and install front bearing retainer over
input shaft and onto housing mounting surface (Fig.
122). Verify bolt holes are aligned before seating
retainer.
CAUTION: Be sure sealer does not get into the oil
feed hole in the transmission case or bearing
retainer.
Fig. 118 BACKUP LIGHT SWITCH
1 - BACKUP LIGHT SWITCH
Fig. 119 SHAFT SNAP RING - TYPICAL
1 - INPUT SHAFT SNAP RING
Fig. 120 BEARING RETAINER OIL SEAL
1 - INSTALLER
2 - FRONT BEARING RETAINER
Fig. 121 SEAL BEARING RETAINER - TYPICAL
1 - APPLY SEALER BEAD
2 - INPUT SHAFT BEARING RETAINER
Fig. 122 INPUT SHAFT BEARING RETAINER
1 - INPUT SHAFT
2 - OIL FEED
3 - BEARING RETAINER
DRMANUAL TRANSMISSION - NV3500 21 - 37
MANUAL TRANSMISSION - NV3500 (Continued)

(21) Install and tighten bearing retainer bolts to
7-10 N´m (5-7 ft. lbs.) (Fig. 123).
SHIFT TOWER AND LEVER
(1) Apply petroleum jelly to ball end of shift lever
and interior of shift socket.
(2) Shift the transmission into third gear.
(3) Align and install shift tower and lever assem-
bly (Fig. 124). Be sure shift ball is seated in socket
and the offset in the tower is toward the passenger
side of the vehicle before installing tower bolts.
(4) Install shift tower bolts (Fig. 125) and tighten
bolts to 8.5 N´m (75.2 in. lbs.).
(5) Fill transmission to bottom edge of fill plug
hole with lubricant.
(6) Install and tighten fill plug to 34 N´m (25 ft.
lbs.).(7) Check transmission vent. Be sure vent is open
and not restricted.
INSTALLATION
NOTE: If a new transmission is being installed, use
all components supplied with the new transmission.
For example, if a new shift tower is supplied, do not
re-use the original shift tower.
(1) Clean transmission front housing mounting
surface.
(2) Apply light coat of Mopar high temperature
bearing grease or equivalent to contact surfaces (Fig.
126) of following components:
²release fork ball stud.
²release bearing slide surface.
²input shaft splines.
²release bearing bore.
²propeller shaft slip yoke.
(3) Support and secure transmission to jack.
(4) Raise and align transmission input shaft with
clutch disc, then slide transmission into place.
(5) Verify front housing is fully seated. Install
transmission bolts without washers and tighten bolts
into the engine to 41 N´m (30 ft. lbs.). Tighten the
bolts with washers into the transmission to 68 N´m
(50 ft. lbs.) (Fig. 127).
(6) Install rear crossmember and tighten nuts to
102 N´m (75 ft. lbs.).
(7) Install transmission rear mounting bolts and
tighten to 68 N´m (50 ft. lbs.).
(8) Install front dust shield.
(9) Install structural dust cover and tighten the
bolts to 73 N´m (54 ft. lbs.).
(10) Install starter motor.
(11) Install suspension crossmember and tighten
nuts to 102 N´m (75 ft. lbs.).
Fig. 123 BEARING RETAINER BOLTS - TYPICAL
1 - RETAINER BOLTS
2 - RETAINER
Fig. 124 SHIFT TOWER
1 - SHIFT TOWER
2 - SHAFT SOCKET
3 - SHIFT BALL
Fig. 125 SHIFT TOWER BOLTS
1 - SHIFT TOWER AND LEVER ASSEMBLY
21 - 38 MANUAL TRANSMISSION - NV3500DR
MANUAL TRANSMISSION - NV3500 (Continued)

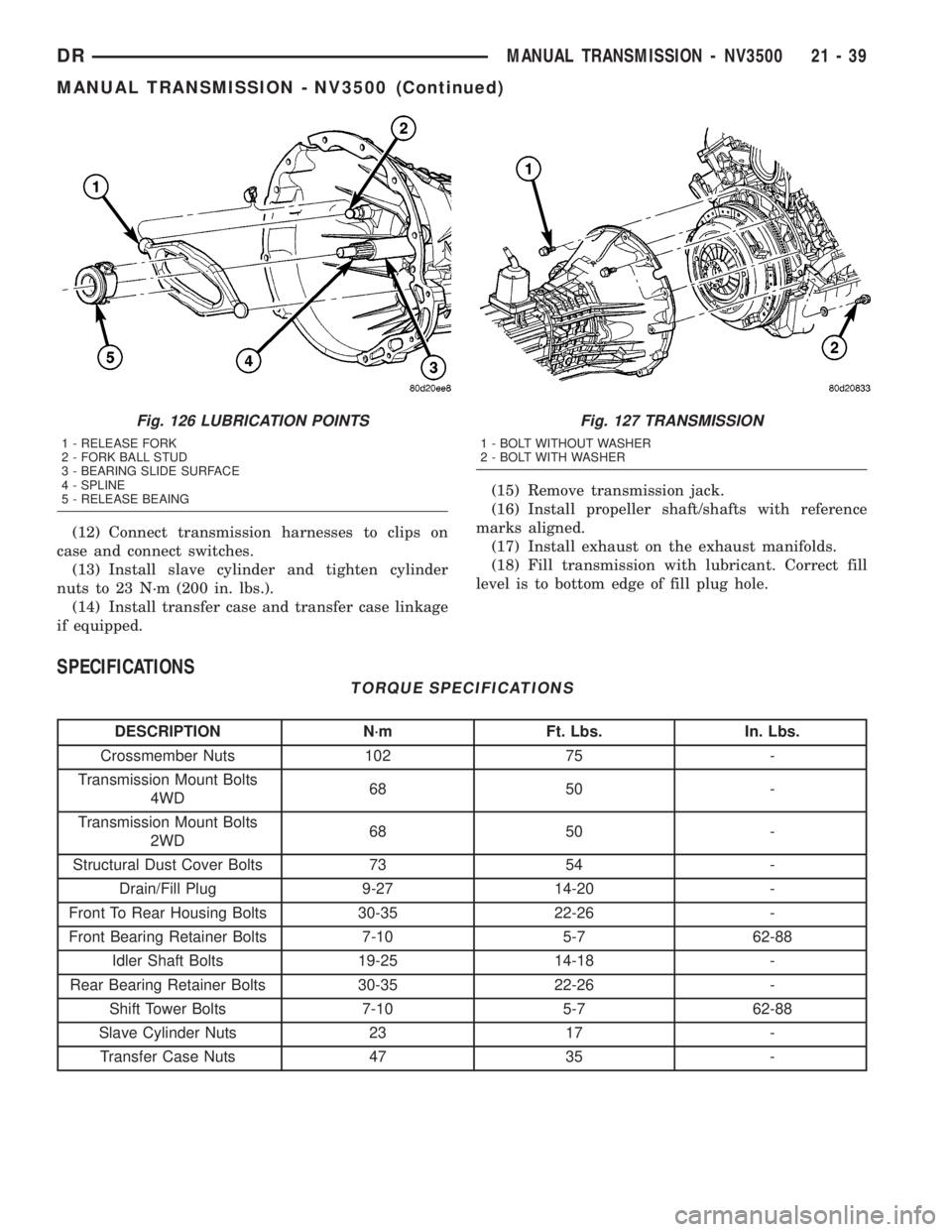

(12) Connect transmission harnesses to clips on
case and connect switches.
(13) Install slave cylinder and tighten cylinder
nuts to 23 N´m (200 in. lbs.).
(14) Install transfer case and transfer case linkage
if equipped.(15) Remove transmission jack.
(16) Install propeller shaft/shafts with reference
marks aligned.
(17) Install exhaust on the exhaust manifolds.
(18) Fill transmission with lubricant. Correct fill
level is to bottom edge of fill plug hole.
SPECIFICATIONS
TORQUE SPECIFICATIONS
DESCRIPTION N´m Ft. Lbs. In. Lbs.
Crossmember Nuts 102 75 -
Transmission Mount Bolts
4WD68 50 -
Transmission Mount Bolts
2WD68 50 -
Structural Dust Cover Bolts 73 54 -
Drain/Fill Plug 9-27 14-20 -
Front To Rear Housing Bolts 30-35 22-26 -
Front Bearing Retainer Bolts 7-10 5-7 62-88
Idler Shaft Bolts 19-25 14-18 -
Rear Bearing Retainer Bolts 30-35 22-26 -
Shift Tower Bolts 7-10 5-7 62-88
Slave Cylinder Nuts 23 17 -
Transfer Case Nuts 47 35 -
Fig. 126 LUBRICATION POINTS
1 - RELEASE FORK
2 - FORK BALL STUD
3 - BEARING SLIDE SURFACE
4 - SPLINE
5 - RELEASE BEAING
Fig. 127 TRANSMISSION
1 - BOLT WITHOUT WASHER
2 - BOLT WITH WASHER
DRMANUAL TRANSMISSION - NV3500 21 - 39
MANUAL TRANSMISSION - NV3500 (Continued)

SPECIAL TOOLS
REMOVER C-3985-B
INSTALLER C-3972-A
REMOVER 6957
INSTALLER 6951
HANDLE C-4171
REMOVER/INSTALLER 6858
FIXTURE 6747
ADAPTER 6747-1A
ADAPTER 6747-2A
21 - 40 MANUAL TRANSMISSION - NV3500DR
MANUAL TRANSMISSION - NV3500 (Continued)

CUP 8115
BEARING SPLITTER 1130
TUBE 6310-1
INSTALLER 8118
REMOVER/INSTALLER 8119
ALIGNMENT STUD 8120
INSTALLER C-3860-A
INSTALLER 8123
INSTALLER 64428
REMOVER 8117A
DRMANUAL TRANSMISSION - NV3500 21 - 41
MANUAL TRANSMISSION - NV3500 (Continued)
