DODGE RAM SRT-10 2006 Service Repair Manual

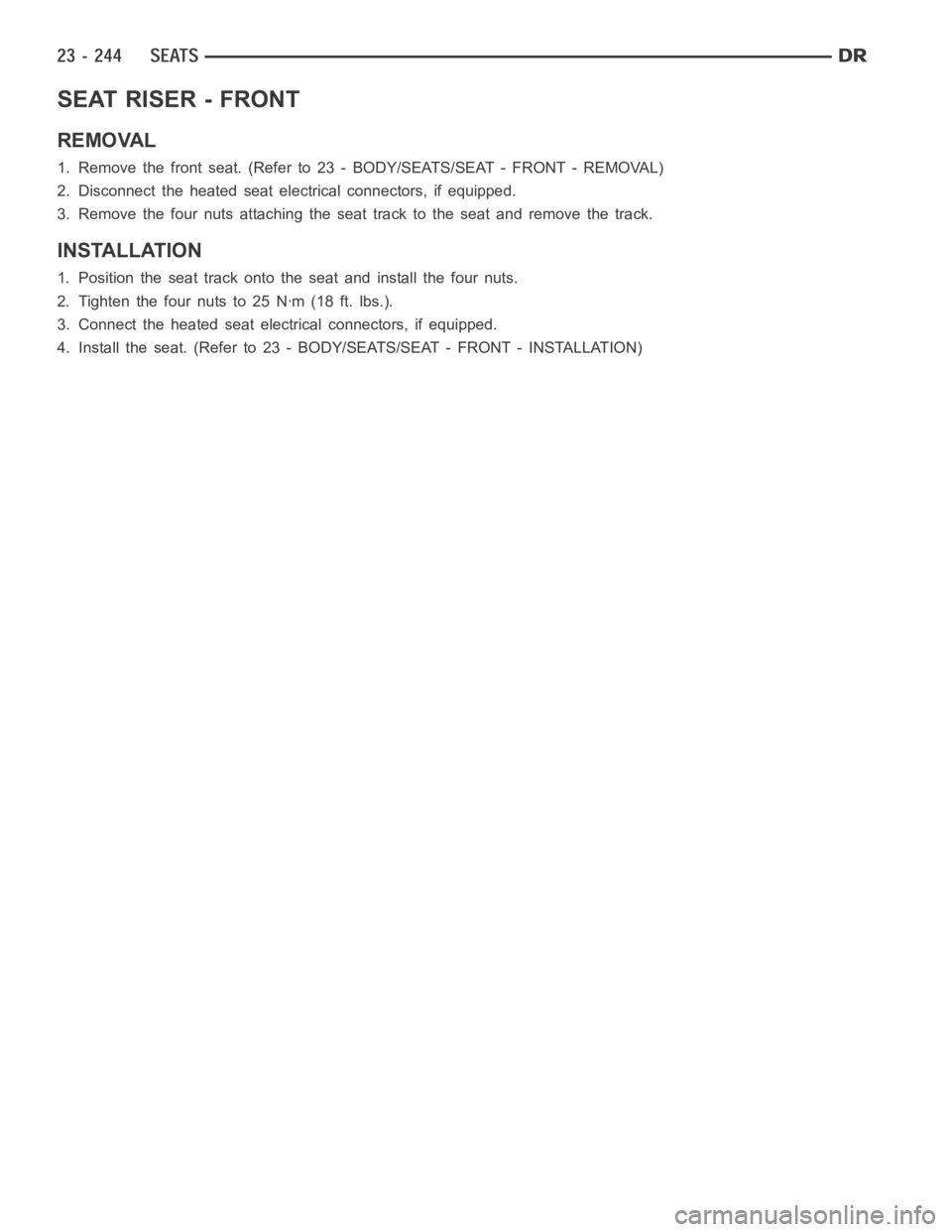

SEAT RISER - FRONT
REMOVAL
1. Remove the front seat. (Refer to 23 -BODY/SEATS/SEAT - FRONT - REMOVAL)
2. Disconnect the heated seat electrical connectors, if equipped.
3. Remove the four nuts attaching the seat track to the seat and remove the track.
INSTALLATION
1. Position the seat track onto the seat and install the four nuts.
2. Tighten the four nuts to 25 Nꞏm (18 ft. lbs.).
3. Connect the heated seat electrical connectors, if equipped.
4. Install the seat. (Refer to 23 - BODY/SEATS/SEAT - FRONT - INSTALLATION)

SEAT - REAR
REMOVAL
1. Remove the load floor (Refer to 23 - BODY/INTE-
RIOR/LOAD FLOOR - REMOVAL).
2. Fold the rear seat cushions up and remove the
rear bolts (1, 3, and 5).
3. Lift each seat assembly up and disengage the seat
back frame hooks (1 and 3) from the footmans
loops (2 and 4) bolted to the rear cab back.
4. Remove the seats from the vehicle.

INSTALLATION
1. Install the seats into the vehicle and engage the
seat back frame hooks (1 and 3) with the footmans
loops (2 and 4) in the cab back panel.
2. Install the rear seat bolts (1, 3, and 5) and tighten
to 40 Nꞏm (30 ft. lbs.).
3. Install the load floor (Refer to 23 - BODY/INTERI-
OR/LOAD FLOOR - INSTALLATION).

SEAT BACK - REAR
REMOVAL
1. Remove the rear seat (Refer to 23 - BODY/SEATS/
SEAT - REAR - REMOVAL).
2. Remove the seat back bolts (1) and remove the
seat back (4).
INSTALLATION
1. Install the seat back (4) and install the bolts (1).
2. Tightenthebolts(1)to25Nꞏm(18ft.lbs.).
3. Install the rear seat (Refer to 23 - BODY/SEATS/
SEAT - REAR - INSTALLATION).

SEAT BACK CUSHION / COVER - REAR
REMOVAL
1. Remove the rear seat back. (Refer to23 - BODY/SEATS/SEAT BACK - REAR - REMOVAL)
2. Remove the headrest sleeves. (Refer to 23 - BODY/SEATS/HEADREST SLEEVE- REMOVAL)
3. Unzip the zip strip at the bottom of the seat back and remove the cover.
INSTALLATION
1. Install the seat back cover and connect the zip strip.
2. Install the headrest sleeves. (Refer to 23 - BODY/SEATS/HEADREST SLEEVE-INSTALLATION)
3. Install the seat back. (Refer to 23 - BODY/SEATS/SEAT BACK - REAR - INSTALLATION)

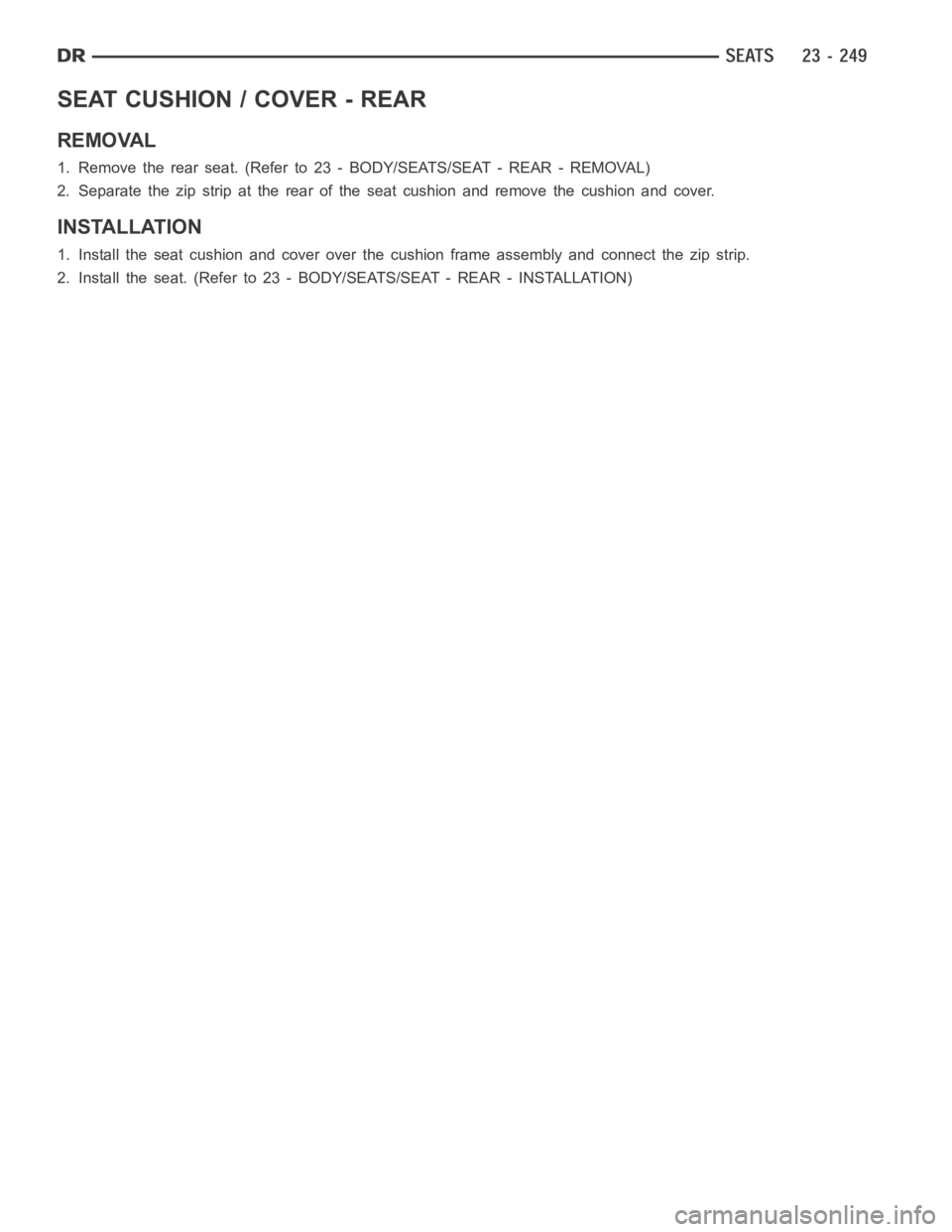

SEAT CUSHION / COVER - REAR
REMOVAL
1. Remove the rear seat. (Refer to 23- BODY/SEATS/SEAT - REAR - REMOVAL)
2. Separate the zip strip at the rear of the seat cushion and remove the cushion and cover.
INSTALLATION
1. Install the seat cushion and cover over the cushion frame assembly and connect the zip strip.
2. Install the seat. (Refer to 23 - BODY/SEATS/SEAT - REAR - INSTALLATION)

SEAT CUSHION FRAME - REAR
REMOVAL
1. Remove the seat cushion/cover (Refer to 23 -
BODY/SEATS/SEAT CUSHION/COVER - REAR -
REMOVAL).
2. Remove the bolts (3) and remove the seat cushion
frame (2).
INSTALLATION
1. Install the seat cushion frame (2) onto the rear seat
cushion hinges (4).
2. Install the bolts (3) and tighten to 85 Nꞏm (63 ft.
lbs.).
3. Install the seat cushion/cover (Refer to 23 - BODY/
SEATS/SEAT CUSHION / COVER - REAR -
INSTALLATION).

UNDER SEAT STORAGE BIN LID
REMOVAL
NOTE: Do not reuse the seat fasteners, always
replace with new ones.
1. Open the center seat cushion/storage bin.
2. Position the seat cushion cover aside, remove the
hinge bolts (2) and discard.
3. Remove the seat cushion (4).
INSTALLATION
NOTE: Do not reuse the seat fasteners, always
replace with new ones.
1. Position the center seat cushion (4) on the hinges
(3) and install new bolts (2).
2. Tightenthebolts(2)to20Nꞏm(15ft.lbs.).
3. Position the cushion cover back over the hinges.

UNDER SEAT STORAGE BIN
REMOVAL
1. Remove the amplifier, if equipped.(Refer to 8 - ELECTRICAL/AUDIO/AMPLIFIER - REMOVAL)
2. Remove the center seat cushion. (Refer to 23 - BODY/SEATS/CENTER SEAT CUSHION - REMOVAL)
3. Remove the six screws and remove the bin.
INSTALLATION
1. Install the bin over the seat cushion hinges and install the six screws.
2. Install the center seat cushion. (Refer to 23 - BODY/SEATS/CENTER SEAT CUSHION - INSTALLATION)
3. Install the amplifier, if equipped. (Refer to 8 - ELECTRICAL/AUDIO/AMPLIFIER - INSTALLATION)

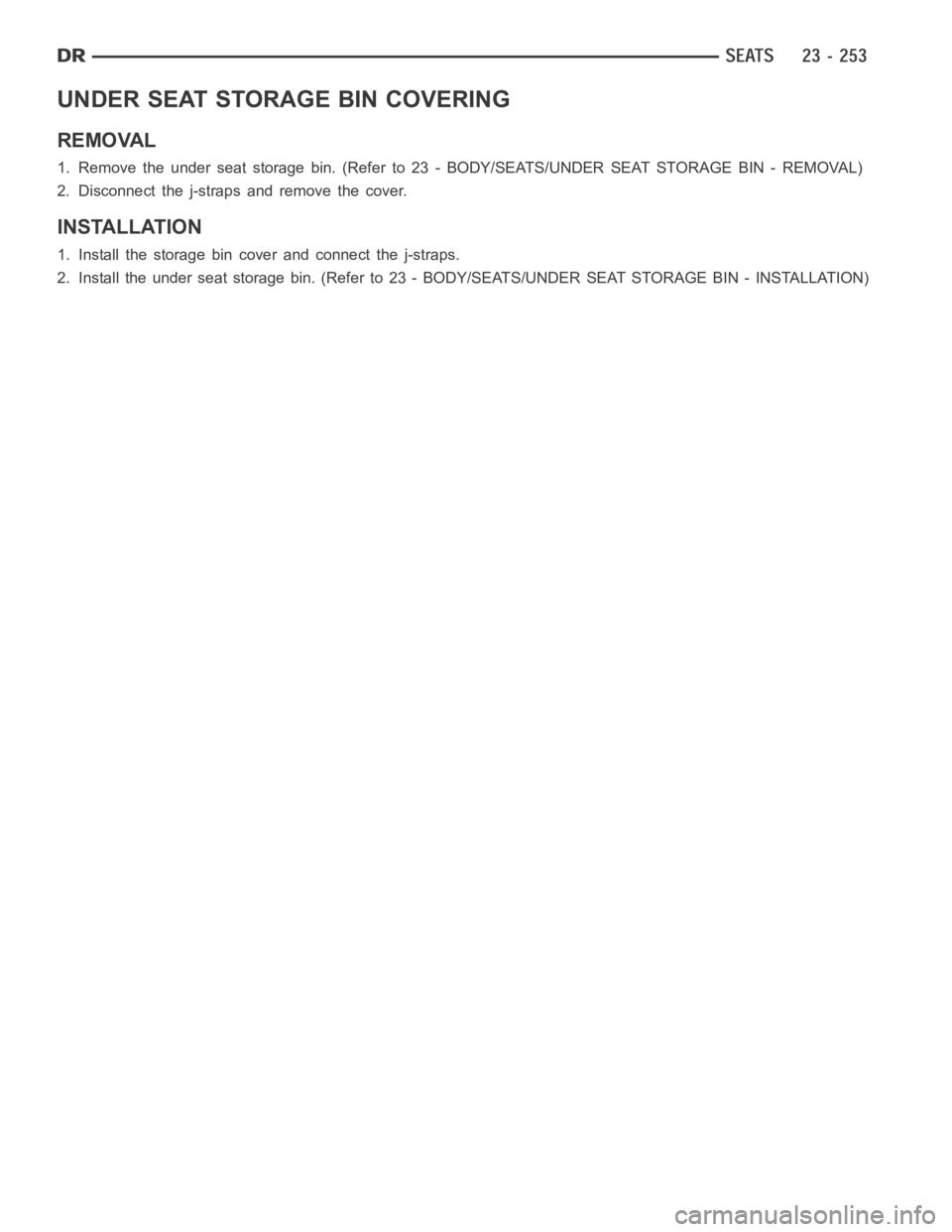

UNDER SEAT STORAGE BIN COVERING
REMOVAL
1. Remove the under seat storage bin. (Refer to 23 - BODY/SEATS/UNDER SEAT STORAGE BIN - REMOVAL)
2. Disconnect the j-straps and remove the cover.
INSTALLATION
1. Install the storage bin cover and connect the j-straps.
2. Install the under seat storage bin. (Refer to 23 - BODY/SEATS/UNDER SEATSTORAGE BIN - INSTALLATION)
