FIAT 500 2018 Owner handbook (in English)

179
Unladen weight (with all fluids,
fuel tank 90% full and
without optional equipment): 980 1020 865
Payload
including the driver: 440 415 480
Maximum permitted loads
– front axle: 830 830 770
– rear axle: 640 640 640
– total: 1420 1435 1345
Towable loads
with braked trailer: 800 800 –
trailer without brakes: 400 400 –
Maximum load on the tow hook
with braked trailer: 60 60 60
Weights (kg)1.3 16V 78 HP / 95 HP EURO 61.2 8V
69 HP LPG
If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload.
Loads not to be exceeded. The driver is responsible for arranging goods in the luggage compartment and/or load platform within the
maximum permitted loads.
Dualogic versions.
* For versions/markets, where provided

TECHNICAL DATA
180
CAPACITIES21) 38) 11) 22) 3)
Fuel tank (litres): 35 35 35 35
Including a reserve of (litres): 5 5 5 5
Engine cooling system 4.85/
(litres): 5.2 5.3 5.2 4.4
Engine sump (litres): 2.8  2.8  2.5  2.75
Engine sump and filter (litres): 3.2  3.2  2.8  2.90
Gearbox/differential casing (litres): 1.65 1.65 1.65 1.65
Dualogic gearbox hydraulic
activation system (litres/kg): – 0.7/0.59 0.7/0.59 0.7/0.59

Hydraulic brake circuit (kg): 0.55 0.55 0.55 0.55
Hydraulic clutch controls
(RH drive versions): – – 0.100 0.100
Windscreen and rear window
washer fluid reservoir (litres): 2.5 2.5 2.5 2.5
* For versions/markets, where provided
** When the vehicle is used in particularly harsh weather conditions, we recommend using a 60% mixture of PARAFLUUPand 40% of
demineralised water.
LPG versions
Petrol versions
0.9
TwinAir
60 HP
*65 HP
0.9
TwinAir
80 HP
*85 HP
105 HP
1.2 8V
69 HP1.4 16V
100 HP*Prescribed fuels and
original lubricants
Unleaded petrol with R.O.N.
no lower than 95 (EN 228 specifications)
Mixture of distilled water and
PARAFLU
UPat 50% (**)
SELENIA K P.E.

SELENIA DIGITEK P.E. SELENIA MULTIPOWER GAS 5W-40
TUTELA GEAR FORCE
TUTELA CS SPEED
Special oil with
“ATF DEXRON III” type additive
TUTELA TOP 4 or TUTELA TOP 4/S
Mixture of water and
PETRONAS DURANCE SC35

181
Fuel tank (litres): 35 35
Including a reserve of (litres): 5 5
Engine cooling system
(litres): 6.3 6.3
Engine sump (litres): 2.8 3.7
Engine sump and filter (litres): 3.0 3.9
Gearbox
casing/differential: 1.55 (kg) 1.55 (kg)
Hydraulic brake circuit (kg): 0.55 0.55
Hydraulic clutch controls
(RH drive versions): – –
Hydraulic clutch controls
(RH drive versions): 2.5 2.5
When the vehicle is used in particularly harsh weather conditions, we recommend using a 60% mixture of PARAFLUUPand 40% of
demineralised water.

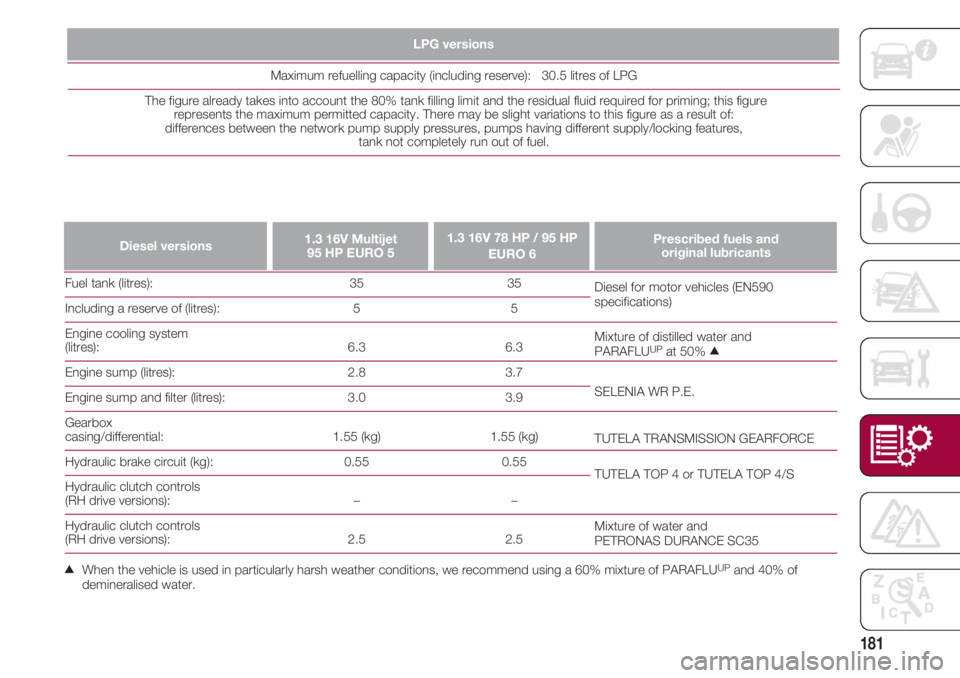

Diesel versions1.3 16V Multijet
95 HP EURO 51.3 16V 78 HP / 95 HP
EURO 6Prescribed fuels and
original lubricants
Diesel for motor vehicles (EN590
specifications)
Mixture of distilled water and
PARAFLU
UPat 50%
SELENIA WR P.E.
TUTELA TRANSMISSION GEARFORCE
TUTELA TOP 4 or TUTELA TOP 4/S
Mixture of water and
PETRONAS DURANCE SC35
Maximum refuelling capacity (including reserve): 30.5 litres of LPG
The figure already takes into account the 80% tank filling limit and the residual fluid required for priming; this figure
represents the maximum permitted capacity. There may be slight variations to this figure as a result of:
differences between the network pump supply pressures, pumps having different supply/locking features,
tank not completely run out of fuel.
LPG versions

TECHNICAL DATA
182
Replacement
frequency

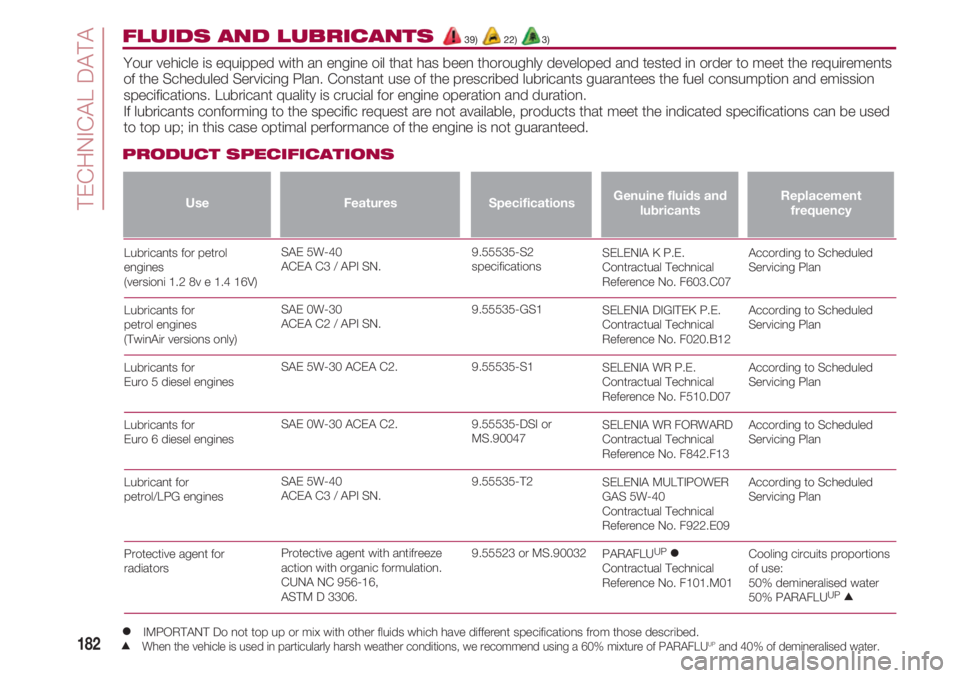

FLUIDS AND LUBRICANTS 39) 22) 3)
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements
of the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the fuel consumption and emission
specifications. Lubricant quality is crucial for engine operation and duration.
If lubricants conforming to the specific request are not available, products that meet the indicated specifications can be used
to top up; in this case optimal performance of the engine is not guaranteed.
PRODUCT SPECIFICATIONS
Lubricants for petrol
engines
(versioni 1.2 8v e 1.4 16V)
Lubricants for
petrol engines
(TwinAir versions only)
Lubricants for
Euro 5 diesel engines
Lubricants for
Euro 6 diesel engines
Lubricant for
petrol/LPG engines
Protective agent for
radiators
9.55535-S2
specifications
9.55535-GS1
9.55535-S1
9.55535-DSI or
MS.90047
9.55535-T2
9.55523 or MS.90032SELENIA K P.E.
Contractual Technical
Reference No. F603.C07
SELENIA DIGITEK P.E.
Contractual Technical
Reference No. F020.B12
SELENIA WR P.E.
Contractual Technical
Reference No. F510.D07
SELENIA WR FORWARD
Contractual Technical
Reference No. F842.F13
SELENIA MULTIPOWER
GAS 5W-40
Contractual Technical
Reference No. F922.E09
PARAFLU
UPContractual Technical
Reference No. F101.M01According to Scheduled
Servicing Plan
According to Scheduled
Servicing Plan
According to Scheduled
Servicing Plan
According to Scheduled
Servicing Plan
According to Scheduled
Servicing Plan
Cooling circuits proportions
of use:
50% demineralised water
50% PARAFLU
UP

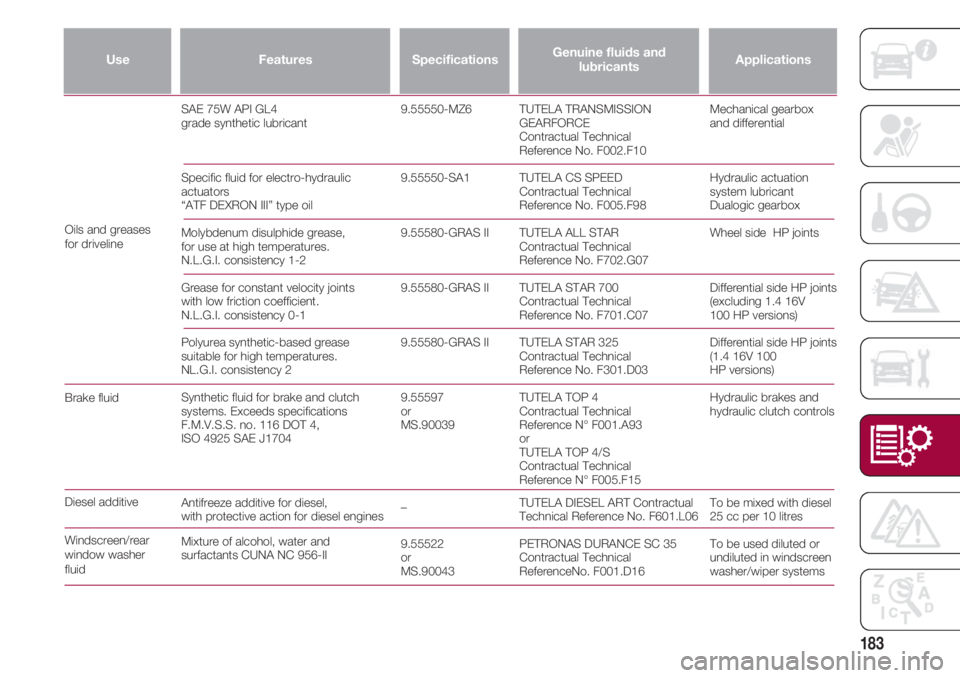

UseFeaturesSpecificationsGenuine fluids and
lubricants
SAE 5W-40
ACEA C3 / API SN.
SAE 0W-30
ACEA C2 / API SN.
SAE 5W-30 ACEA C2.
SAE 0W-30 ACEA C2.
SAE 5W-40
ACEA C3 / API SN.
Protective agent with antifreeze
action with organic formulation.
CUNA NC 956-16,
ASTM D 3306.
IMPORTANT Do not top up or mix with other fluids which have different specifications from those described.When the vehicle is used in particularly harsh weather conditions, we recommend using a 60% mixture of PARAFLUUPand 40% of demineralised water.

183
Brake fluid
Diesel additive
Windscreen/rear
window washer
fluid
Applications
TUTELA TRANSMISSION
GEARFORCE
Contractual Technical
Reference No. F002.F10
TUTELA CS SPEED
Contractual Technical
Reference No. F005.F98
TUTELA ALL STAR
Contractual Technical
Reference No. F702.G07
TUTELA STAR 700
Contractual Technical
Reference No. F701.C07
TUTELA STAR 325
Contractual Technical
Reference No. F301.D03
TUTELA TOP 4
Contractual Technical
Reference N° F001.A93
or
TUTELA TOP 4/S
Contractual Technical
Reference N° F005.F15
TUTELA DIESEL ART Contractual
Technical Reference No. F601.L06
PETRONAS DURANCE SC 35
Contractual Technical
ReferenceNo. F001.D16Mechanical gearbox
and differential
Hydraulic actuation
system lubricant
Dualogic gearbox
Wheel side HP joints
Differential side HP joints
(excluding 1.4 16V
100 HP versions)
Differential side HP joints
(1.4 16V 100
HP versions)
Hydraulic brakes and
hydraulic clutch controls
To be mixed with diesel
25 cc per 10 litres
To be used diluted or
undiluted in windscreen
washer/wiper systems
UseFeaturesSpecificationsGenuine fluids and
lubricants
Oils and greases
for drivelineSAE 75W API GL4
grade synthetic lubricant
Specific fluid for electro-hydraulic
actuators
“ATF DEXRON III” type oil
Molybdenum disulphide grease,
for use at high temperatures.
N.L.G.I. consistency 1-2
Grease for constant velocity joints
with low friction coefficient.
N.L.G.I. consistency 0-1
Polyurea synthetic-based grease
suitable for high temperatures.
NL.G.I. consistency 2
Synthetic fluid for brake and clutch
systems. Exceeds specifications
F.M.V.S.S. no. 116 DOT 4,
ISO 4925 SAE J1704
Antifreeze additive for diesel,
with protective action for diesel engines
Mixture of alcohol, water and
surfactants CUNA NC 956-II9.55550-MZ6
9.55550-SA1
9.55580-GRAS II
9.55580-GRAS II
9.55580-GRAS II
9.55597
or
MS.90039
–
9.55522
or
MS.90043

TECHNICAL DATA
184

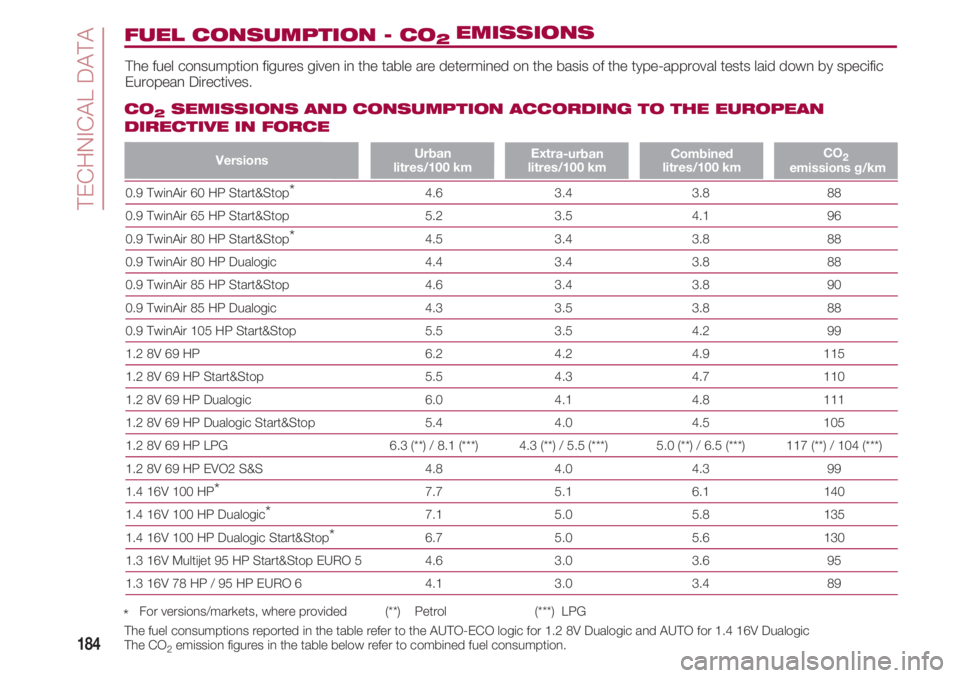

FUEL CONSUMPTION - CO2 EMISSIONS
The fuel consumption figures given in the table are determined on the basis of the type-approval tests laid down by specific
European Directives.
CO2SEMISSIONS AND CONSUMPTION ACCORDING TO THE EUROPEAN
DIRECTIVE IN FORCE
0.9 TwinAir 60 HP Start&Stop* 4.6 3.4 3.8 88
0.9 TwinAir 65 HP Start&Stop 5.2 3.5 4.1 96
0.9 TwinAir 80 HP Start&Stop* 4.5 3.4 3.8 88
0.9 TwinAir 80 HP Dualogic 4.4 3.4 3.8 88
0.9 TwinAir 85 HP Start&Stop 4.6 3.4 3.8 90
0.9 TwinAir 85 HP Dualogic 4.3 3.5 3.8 88
0.9 TwinAir 105 HP Start&Stop 5.5 3.5 4.2 99
1.2 8V 69 HP 6.2 4.2 4.9 115
1.2 8V 69 HP Start&Stop 5.5 4.3 4.7 110
1.2 8V 69 HP Dualogic 6.0 4.1 4.8 111
1.2 8V 69 HP Dualogic Start&Stop 5.4 4.0 4.5 105
1.2 8V 69 HP LPG 6.3 (**) / 8.1 (***) 4.3 (**) / 5.5 (***) 5.0 (**) / 6.5 (***) 117 (**) / 104 (***)
1.2 8V 69 HP EVO2 S&S 4.8 4.0 4.3 99
1.4 16V 100 HP* 7.7 5.1 6.1 140
1.4 16V 100 HP Dualogic* 7.1 5.0 5.8 135
1.4 16V 100 HP Dualogic Start&Stop* 6.7 5.0 5.6 130
1.3 16V Multijet 95 HP Start&Stop EURO 5 4.6 3.0 3.6 95
1.3 16V 78 HP / 95 HP EURO 6 4.1 3.0 3.4 89
VersionsUrban
litres/100 kmExtra-urban
litres/100 kmCombined
litres/100 kmCO2emissions g/km
*For versions/markets, where provided (**) Petrol (***) LPG
The fuel consumptions reported in the table refer to the AUTO-ECO logic for 1.2 8V Dualogic and AUTO for 1.4 16V Dualogic
The CO
2emission figures in the table below refer to combined fuel consumption.

185

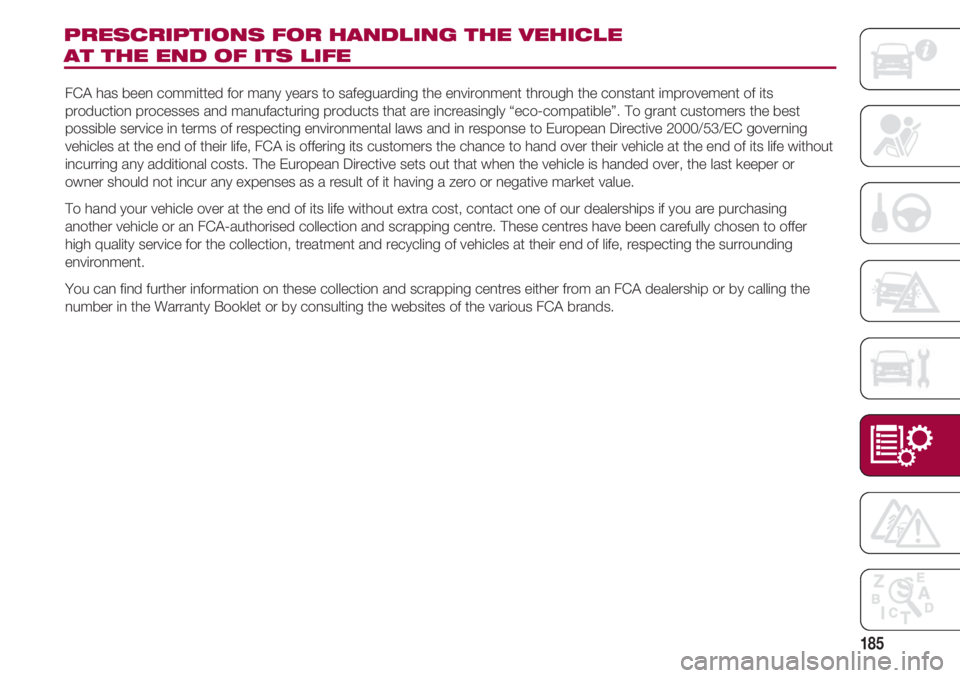

PRESCRIPTIONS FOR HANDLING THE VEHICLE
AT THE END OF ITS LIFE
FCA has been committed for many years to safeguarding the environment through the constant improvement of its
production processes and manufacturing products that are increasingly “eco-compatible”. To grant customers the best
possible service in terms of respecting environmental laws and in response to European Directive 2000/53/EC governing
vehicles at the end of their life, FCA is offering its customers the chance to hand over their vehicle at the end of its life without
incurring any additional costs. The European Directive sets out that when the vehicle is handed over, the last keeper or
owner should not incur any expenses as a result of it having a zero or negative market value.
To hand your vehicle over at the end of its life without extra cost, contact one of our dealerships if you are purchasing
another vehicle or an FCA-authorised collection and scrapping centre. These centres have been carefully chosen to offer
high quality service for the collection, treatment and recycling of vehicles at their end of life, respecting the surrounding
environment.
You can find further information on these collection and scrapping centres either from an FCA dealership or by calling the
number in the Warranty Booklet or by consulting the websites of the various FCA brands.

Blank page

PERSONAL SAFETY
187
IMPORTANT INFORMATION AND
RECOMMENDATIONS

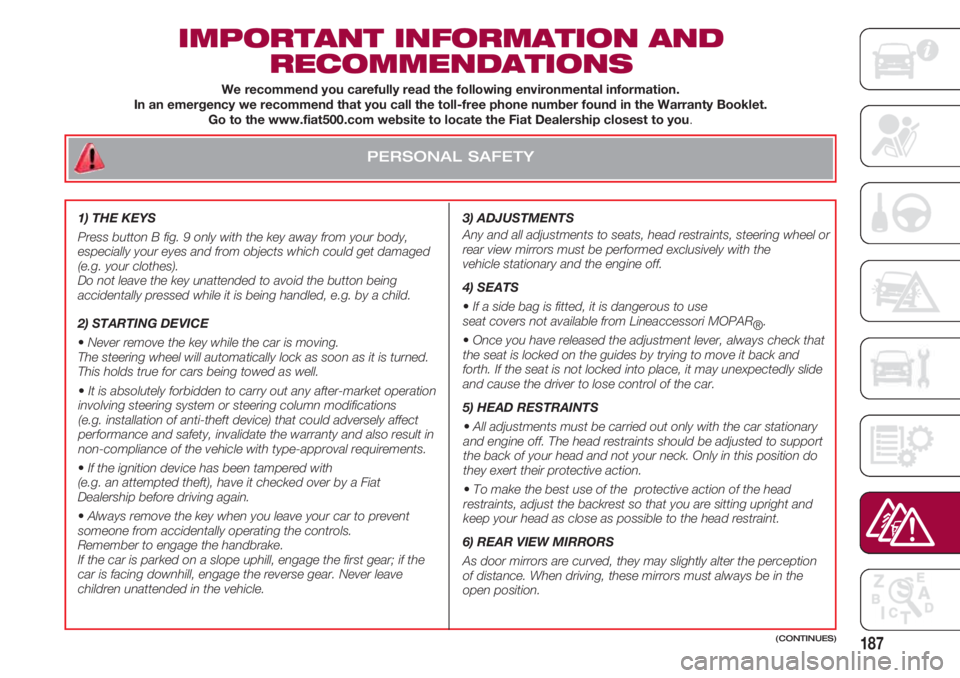

3) ADJUSTMENTS
Any and all adjustments to seats, head restraints, steering wheel or
rear view mirrors must be performed exclusively with the
vehicle stationary and the engine off.
4) SEATS
•If a side bag is fitted, it is dangerous to use
seat covers not available from Lineaccessori MOPAR
®.
•Once you have released the adjustment lever, always check that
the seat is locked on the guides by trying to move it back and
forth. If the seat is not locked into place, it may unexpectedly slide
and cause the driver to lose control of the car.
5) HEAD RESTRAINTS
• All adjustments must be carried out only with the car stationary
and engine off. The head restraints should be adjusted to support
the back of your head and not your neck. Only in this position do
they exert their protective action.
• To make the best use of the protective action of the head
restraints, adjust the backrest so that you are sitting upright and
keep your head as close as possible to the head restraint.
6) REAR VIEW MIRRORS
As door mirrors are curved, they may slightly alter the perception
of distance. When driving, these mirrors must always be in the
open position.
We recommend you carefully read the following environmental information.
In an emergency we recommend that you call the toll-free phone number found in the Warranty Booklet.
Go to the www.fiat500.com website to locate the Fiat Dealership closest to you.
(CONTINUES)
1) THE KEYS
Press button B fig. 9 only with the key away from your body,
especially your eyes and from objects which could get damaged
(e.g. your clothes).
Do not leave the key unattended to avoid the button being
accidentally pressed while it is being handled, e.g. by a child.
2) STARTING DEVICE
• Never remove the key while the car is moving.
The steering wheel will automatically lock as soon as it is turned.
This holds true for cars being towed as well.
• It is absolutely forbidden to carry out any after-market operation
involving steering system or steering column modifications
(e.g. installation of anti-theft device) that could adversely affect
performance and safety, invalidate the warranty and also result in
non-compliance of the vehicle with type-approval requirements.
•If the ignition device has been tampered with
(e.g. an attempted theft), have it checked over by a Fiat
Dealership before driving again.
•Always remove the key when you leave your car to prevent
someone from accidentally operating the controls.
Remember to engage the handbrake.
If the car is parked on a slope uphill, engage the first gear; if the
car is facing downhill, engage the reverse gear. Never leave
children unattended in the vehicle.

IMPORTANT INFORMATION AND RECOMMENDATIONS
188(CONTINUES)
PERSONAL SAFETY
(CONTINUED)
7) DAYTIME RUNNING LIGHTS (DRL)
•The daytime running lights are an alternative to the dipped
beam headlights for driving during the daytime in countries
where it is compulsory to have lights on during the day, and
they are also permitted in those countries where this is not
obligatory.
•Daytime running lights cannot replace dipped beam
headlights when driving at night or through tunnels.
•The use of daytime running lights is governed by the highway
code of the country in which you are driving. Comply with legal
requirements.
8) FUEL CUT-OFF SYSTEM
If, after an impact, you smell fuel or notice leaks from the fuel
system, do not reactivate the system to avoid the risk of fire.
9) INTERIOR FITTINGS
•The cigar lighter gets extremely hot. Handle it with caution and
do not allow it to be used by children to avoid the risk of fire or
burns. Always check that the cigar lighter has switched off.
•Only accessories with a maximum power of 180 W (maximum
absorption 15 A) can be connected to the socket.
•Never travel with the glove compartment open: it could injure
the passenger in the event of a crash.
•On both sides of the passenger side sun visor there is a label
remembering that it is compulsory to deactivate the airbags if a
rearward facing child restraint system is fitted.
Always comply with the instructions on the label.10) SUNROOF – ELECTRIC SOFT TOP
ELECTRIC WINDOWS
When leaving the car, always remove the key from the ignition
device to avoid the risk of injury to the vehicle occupants due to
accidental operation of these devices: improper use can be
dangerous. Before and during operation, always check that
nobody is exposed to the risk of being injured either directly by
the moving window or through objects getting
caught or hit by it.
11) SOFT TOP
•Keep hands away from the soft top mechanism while opening
and closing the soft top or if the soft top stops in a position before
the cycle is completed to prevent damage and injury.
•Keep children away from the area in which the top is folding
during opening or closing operations.
12) DOORS
Before opening a door, ensure that you can do it in conditions of
safety. Open the doors only when the vehicle is stationary.
13) LUGGAGE COMPARTMENT
•Never exceed the maximum allowed load in the luggage
compartment, see chapter “Technical specifications”. Also make
sure that the objects you place in the luggage compartment have
been properly secured, to avoid them from being thrown forward
consequent to sudden braking and injuring your passengers.
•Do not drive with the tailgate open as exhaust fumes may enter
the vehicle.
•If you are travelling in areas with few filling stations and you
want to transport fuel in a spare tank, comply with the law by
using only an approved, suitably secured tank. In the event of a
collision the fire risk is increased all the same.
