FIAT 500 2018 Owner handbook (in English)

169
GENERAL1.2 8V 69 HP LPG1.2 8V 69 HP1.2 8V 69 HP
EVO2 S&S 1.4 16V 100 HP (*)
Engine code 169A4000 169A4000 169A400 169A3000
Cycle Otto Otto Otto Otto
Number and position of cylinders 4 straight 4 straight 4 straight 4 straight
Piston diameter and stroke (mm) 70.8 x 78.86 70.8 x 78.86 70.8 x 78.86 72 x 84
Total capacity (cm3
) 1242 1242 1242 1368
Compression ratio 11.1 : 1 11.1 : 1 11.1 : 1 10.8 : 1
Maximum power (EEC) (kW) 51 51 51 73,5
Maximum power (EEC) (HP) 69 69 69 100
corresponding engine speed (rpm) 5500 5500 5500 6000
Maximum torque (EEC) (Nm) 102 102 102 131
Maximum torque (EEC) (kgm) 10.4 10.4 10.4 13.4
corresponding engine speed (rpm) 3000 3000 3000 4250
Spark plugs NGK ZKR7AI-8 NGK ZKR7A-10 NGK DCPR7EN-10 NGK DCPR7EN-10
Champion RA8MC x 4
Fuel LPG
95 RON
unleaded petrol
(EN228
specifications)95 RON
unleaded petrol
(EN228
specifications)95 RON
unleaded petrol
(EN228
specifications)
(*) For versions/markets, where provided

TECHNICAL DATA
170
GENERAL1.3 16V
Multijet 95 HP
EURO 51.3 16V
Multijet 95 HP
EURO 61.3 16V
Multijet 78 HP
EURO 6
Engine code 199B1000 312B1000 312B5000
Cycle Diesel Diesel Diesel
Number and position of cylinders 4 straight 4 straight 4 straight
Piston diameter and stroke (mm) 69.6 x 82 69.6 x 82 69.6 x 82
Total capacity (cm3
) 1248 1248 1248
Compression ratio 16.8 : 1 16.8 : 1 16.8 : 1
Maximum power (EEC) (kW) 70 70 57.3
Maximum power (EEC) (HP) 95 95 78
corresponding engine speed (rpm) 4000 4000 3750
Maximum torque (EEC) (Nm) 200 200 200
Maximum torque (EEC) (kgm) 20.4 20.4 20.4
Corresponding engine speed (rpm) 1500 1500 1500
Fuel
Diesel for motor
vehicles
(EN590 specifications)Diesel for motor
vehicles
(EN590 specifications)Diesel for
motor vehicles
(EN590 specifications)
(*) For versions/markets, where provided

171
0.9 TwinAir
3571 720 2300 551 1488  1413
1627 1407 60 HP* - 65 HP 1414  1048
0.9 TwinAir
3571 720 2300 551 1488  1413
1627 1407
80 HP* - 85 HP - 105 HP 1414  1048
1.2 8V 69 HP 3571 720 2300 551 1488  1413 1627 1407
1.4 16V 100 HP
*
3571 720 2300 551 1488  1413
1627 1408 1414
1.3 Multijet
3571 720 2300 551 1488
 1413 1627 140778 HP - 95 HP
Sport version 3612 734 2300 578 1490
 1413
1627 1407 1414  1048
VersionsABCDEFGI
Track measurements may vary according to rim/tyre size.  With 195/45 R16 tyres*For versions/markets, where provided
151DVDF0S0205c
DIMENSIONS
Dimensions in fig. 151 are expressed in millimetres and refer to the vehicle equipped with its original tyres.
Height is measured with vehicle unladen.

TECHNICAL DATA
172
0.9 TwinAir 60 HP 5½Jx14H2-ET35 175/65 R14 82T 175/65 R14 82Q (M+S)
5½Jx14H2-ET35 175/65 R14 86T 175/65 R14 82Q (M+S)
4.00Bx14 ET43 135x80 R14 84M
6Jx15H2-ET35  185/55 R15 82H  185/55 R15 82Q (M+S)
6½Jx16H2-ET35  195/45 R16 84H  195/45 R16 84Q (M+S)
0.9 TwinAir 65 HP 5½Jx14H2-ET35 175/65 R14 82 T 175/65 R14 82Q (M+S)
5½Jx14H2-ET35 175/65 R14 82 T 175/65 R14 82Q (M+S)
4.00Bx14 ET43 135x80 R14 84M
0.9 TwinAir 80 HP 6Jx15H2-ET35  185/55 R15 82H  185/55 R15 82Q (M+S) 4.00Bx14 ET43 135x80 R14 84P
0.9 TwinAir 85 HP 6½Jx16H2-ET35  195/45 R16 84H  195/45 R16 84Q (M+S) 4.00Bx14 ET43 135x80 R14 80P (*)
0.9 TwinAir105 HP 6Jx15H2-ET35  185/55 R15 82H  185/55 R15 82Q (M+S) 4.00Bx14 ET43 135x80 R14 84P
6½Jx16H2-ET35  195/45 R16 84H  195/45 R16 84Q (M+S) 4.00Bx14 ET43 135x80 B14 80P
VersionsRimsTyres
providedSnow
tyresSpace-saver wheel
WHEELS 30) 32) 39) 43) 15)
RimTyre
4.00Bx14 ET43 135x80 B14 84M4.00Bx14 ET43 135x80 B14 84M (**)
For versions/markets, where provided  Alloy rim  Not suitable for snow chains
(*) For 0.9 TwinAir 80 HP versions only (**) Excluding 0.9 TwinAir 80 HP version
RIMS AND TYRES
Alloy or pressed steel rims. Tubeless radial carcass tyres. All approved tyres are listed in the Registration Document.
IMPORTANT In the event of discrepancies between the information provided in this Owner Handbook and the Log Book, the
latter takes precedence. For safe driving, the car must be fitted with tyres of the same make and type on all wheels.
IMPORTANT Do not use inner tubes with tubeless tyres.
WHEEL GEOMETRY
Total front toe-in 0.5 ± 1 mm The values refer to the car in running order.

173
1.2 8V 69 HP 5½Jx14H2-ET35 175/65 R14 82T 175/65 R14 82Q (M+S) 4.00Bx14 ET43 135x80 R14 84P
5½Jx14H2-ET35 175/65 R14 86T 175/65 R14 82Q (M+S)
6½Jx15H2-ET35  185/55 R15 82H  185/55 R15 82Q (M+S) 4.00Bx14 ET43 135x80 R14 84M

6½Jx16H2-ET35  195/45 R16 84H  195/45 R16 84Q (M+S) 4.00Bx14 ET43 135x80 B14 84M
1.4 16V 100 HP 6Jx15H2-ET35  185/55 R15 82H  185/55 R15 82Q (M+S) 4.00Bx14 ET43 135x80 R14 84P
6Jx15H2-ET40 185/55 R15 82H  185/55 R15 82Q (M+S) 4.00Bx14 ET43 135x80 R14 84M

6½Jx16H2-ET35  195/45 R16 84H  195/45 R16 84Q (M+S) 4.00Bx14 ET43 135x80 B14 84M
1.3 16V Multijet 5½Jx14H2-ET35 175/65 R14 82T 175/65 R14 82Q (M+S)
4.00Bx14 ET43 135x80 R14 84P
5½Jx14H2-ET35 175/65 R14 86T 175/65 R14 82Q (M+S) 78 HP - 95 HP
6Jx15H2-ET35  185/55 R15 82H  185/55 R15 82Q (M+S) 4.00Bx14 ET43 135x80 R14 84M
6½Jx16H2-ET35  195/45 R16 84H

 195/45 R16 84Q (M+S) 4.00Bx14 ET43 135x80 B14 84M
For versions/markets, where provided  Alloy rim  Not suitable for snow chains
VersionsTyres
providedSnow
tyresSpace-saver spare
RimTyre
Rims

TECHNICAL DATA
174
175/65 R14 82T/86T 2.4 (*) 2.2 (*) 2.4 (*)
2.2 (*)(1.2 ECO versions)
2.2 (**) 2.0 (**) 2.3 (**) 2.2 (**)
175/65 R14 82T 2.2 2.0 2.3
2.2
175/65 R14 86T 2.2 2.0 2.3 2.2 2.8
185/55 R15 82H 2.2 2.1 2.3 2.3
195/45 R16 84H 2.2 2.1 2.4 2.3
TyresMedium load (bar)
rearfront
Full load (bar)
rearfront
Space-saver
spare(bar)
(*) ECO
(**) COMFORT: ECO consumption is not guaranteed with comfort pressures
(
) For versions/markets, where provided
TYRE INFLATION PRESSURES 33) 39)
When the tires are warm, the inflation pressure should be + 0.3 bar in relation to the recommended figure. However, recheck
that the value is correct with the tyre cold.
SNOW CHAINS 15)
The use of snow chains should be in compliance with local regulations of each country. Snow chains can be fitted to the
tyres of the front wheels (drive wheels) only. Check the tension of the snow chains after the first few metres have been
driven.
IMPORTANT Snow chains cannot be fitted to the space-saver spare wheel. If a front tyre is punctured, replace a rear wheel
with the space-saver wheel and move the rear wheel to the front axle. In this way, with two normal drive wheels at the front,
snow chains can be fitted.

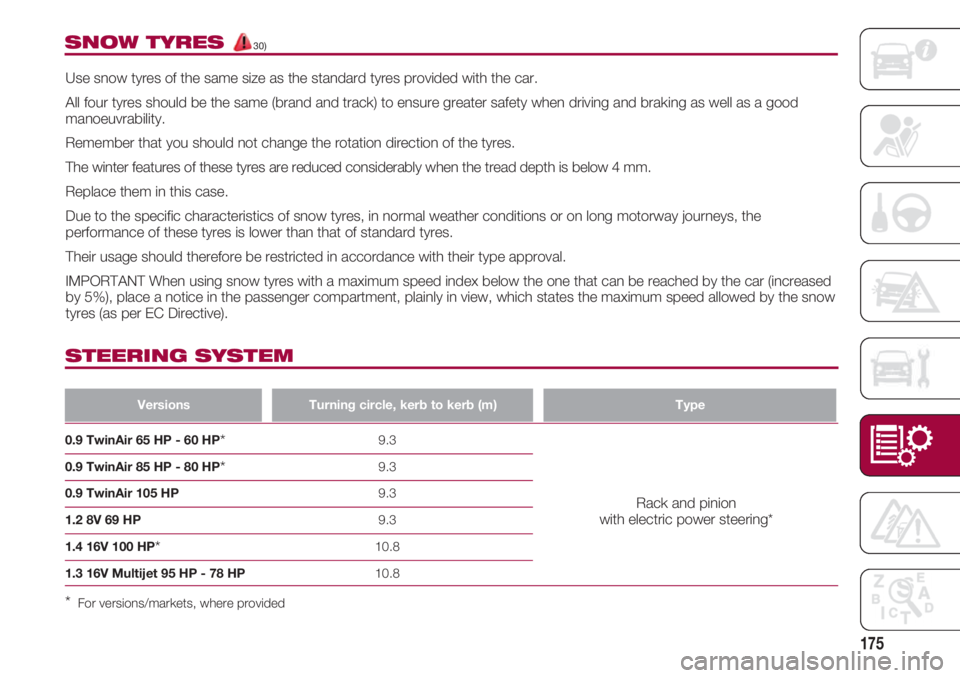

175
SNOW TYRES 30)
Use snow tyres of the same size as the standard tyres provided with the car.
All four tyres should be the same (brand and track) to ensure greater safety when driving and braking as well as a good
manoeuvrability.
Remember that you should not change the rotation direction of the tyres.
The winter features of these tyres are reduced considerably when the tread depth is below 4 mm.
Replace them in this case.
Due to the specific characteristics of snow tyres, in normal weather conditions or on long motorway journeys, the
performance of these tyres is lower than that of standard tyres.
Their usage should therefore be restricted in accordance with their type approval.
IMPORTANT When using snow tyres with a maximum speed index below the one that can be reached by the car (increased
by 5%), place a notice in the passenger compartment, plainly in view, which states the maximum speed allowed by the snow
tyres (as per EC Directive).
0.9 TwinAir 65 HP - 60 HP* 9.3
0.9 TwinAir 85 HP - 80 HP* 9.3
0.9 TwinAir 105 HP 9.3
1.2 8V 69 HP 9.3
1.4 16V 100 HP* 10.8
1.3 16V Multijet 95 HP - 78 HP 10.8
*For versions/markets, where provided
STEERING SYSTEM
Versions Turning circle, kerb to kerb (m)Type
Rack and pinion
with electric power steering*

TECHNICAL DATA
176
0.9 TwinAir 60 HP* 157 (in 4thgear)
0.9 TwinAir 65 HP 159 (in 4thgear)
0.9 TwinAir 80 HP* 171
0.9 TwinAir 85 HP 173
0.9 TwinAir 105 HP 188
1.2 8V 69 HP 160
1.2 8V 69 HP LPG 160
1.4 16V 100 HP* 182
1.3 16V 78 HP Euro 6 169
1.3 16V Multijet 95 HP 180
*For versions/markets, where provided
PERFORMANCE
Max. speed in km/h that can be reached after initial car use.
Versionskm/h

177
Unladen weight (with all fluids,
fuel tank 90% full and
without optional equipment): 865 905 930/940  970/980  940 980
Payload
 including the driver: 475 445 440 415 440 415
Maximum
permitted loads
– front axle: 770 770 830 830 830 830
– rear axle: 640 640 640 640 640 640
– total: 1340 1350 1370/1380  1385/1395  1380 1395
Towable loads
with braked trailer: 800 800 800 800 800 800
trailer without brakes: 400 400 400 400 400 400
Maximum load on the tow hook
with braked trailer: 60 60 60 60 60 60
Weights (kg)
0.9 TwinAir
60 HP*- 65 HP0.9 TwinAir 105 HP
If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload.
Loads not to be exceeded. The driver is responsible for arranging goods in the luggage compartment and/or load platform within the
maximum permitted loads.
Dualogic versions.
* For versions/markets, where provided
0.9 TwinAir 80 HP*- 85 HP
WEIGHTS

TECHNICAL DATA

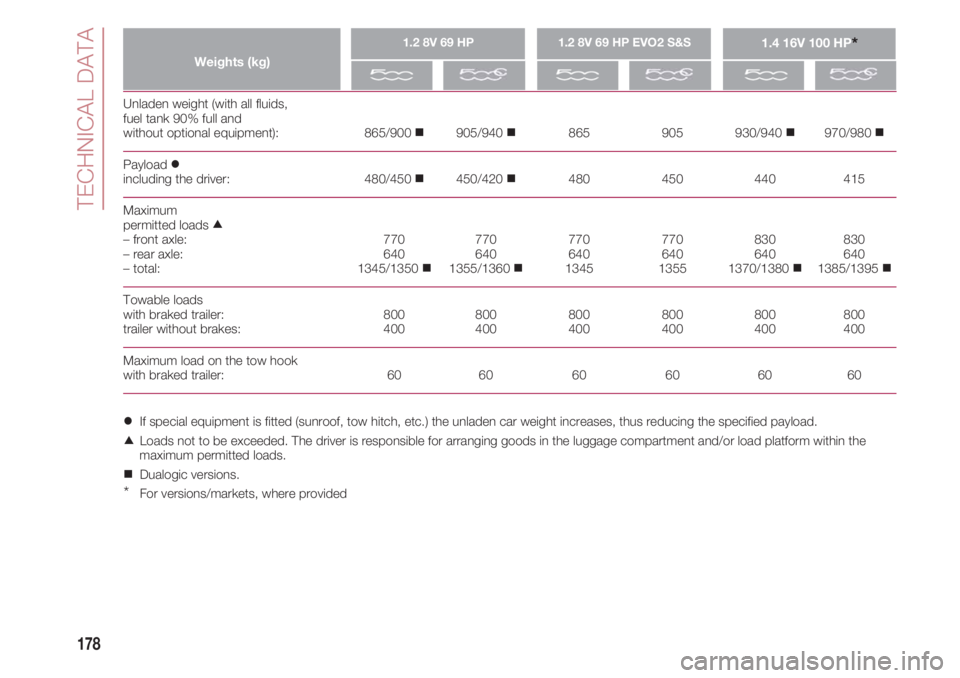

178
Unladen weight (with all fluids,
fuel tank 90% full and
without optional equipment): 865/900  905/940  865 905 930/940  970/980
Payload  including the driver: 480/450  450/420  480 450 440 415
Maximum
permitted loads
– front axle: 770 770 770 770 830 830
– rear axle: 640 640 640 640 640 640
– total: 1345/1350  1355/1360  1345 1355 1370/1380  1385/1395
Towable loads
with braked trailer: 800 800 800 800 800 800
trailer without brakes: 400 400 400 400 400 400
Maximum load on the tow hook
with braked trailer: 60 60 60 60 60 60
Weights (kg)
1.2 8V 69 HP
If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload.
Loads not to be exceeded. The driver is responsible for arranging goods in the luggage compartment and/or load platform within the
maximum permitted loads.
Dualogic versions.
* For versions/markets, where provided
1.4 16V 100 HP*1.2 8V 69 HP EVO2 S&S
