90

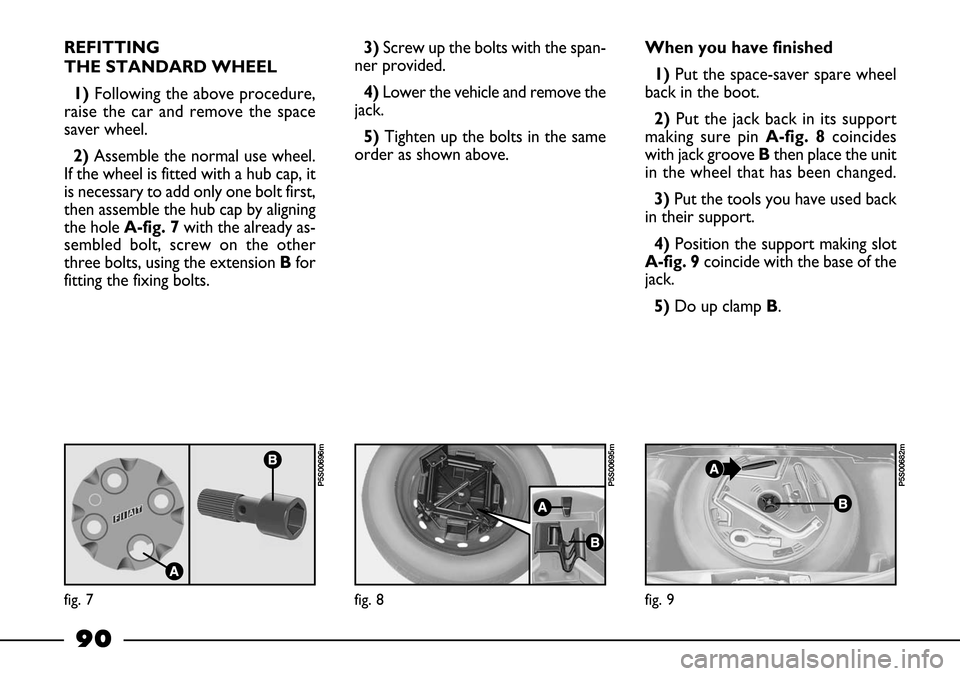

3)Screw up the bolts with the span-
ner provided.
4) Lower the vehicle and remove the
jack.
5)Tighten up the bolts in the same
order as shown above.When you have finished
1)Put the space-saver spare wheel
back in the boot.
2) Put the jack back in its support
making sure pin A-fig. 8coincides
with jack groove Bthen place the unit
in the wheel that has been changed.
3) Put the tools you have used back
in their support.
4)Position the support making slot
A-fig. 9coincide with the base of the
jack.
5)Do up clamp B. REFITTING
THE STANDARD WHEEL
1) Following the above procedure,
raise the car and remove the space
saver wheel.
2)Assemble the normal use wheel.
If the wheel is fitted with a hub cap, it
is necessary to add only one bolt first,
then assemble the hub cap by aligning
the hole A-fig. 7with the already as-
sembled bolt, screw on the other
three bolts, using the extension Bfor
fitting the fixing bolts.
fig. 7
P5S00696m
fig. 8
P5S00695m
fig. 9
P5S00682m

91

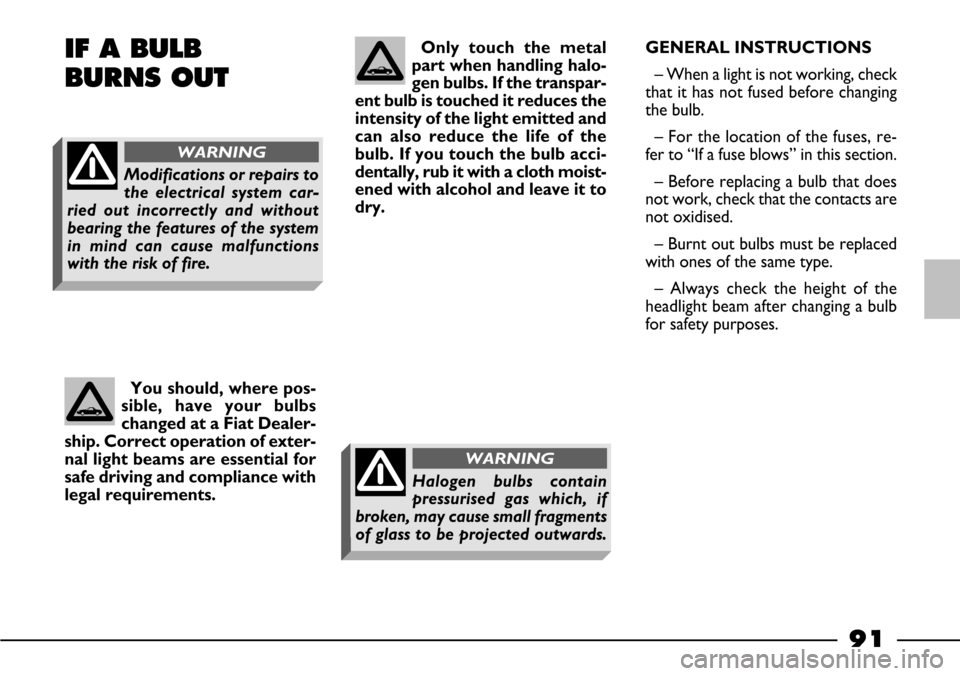

IF A BULB
BURNS OUT
You should, where pos-
sible, have your bulbs
changed at a Fiat Dealer-
ship. Correct operation of exter-
nal light beams are essential for
safe driving and compliance with
legal requirements.Only touch the metal
part when handling halo-
gen bulbs. If the transpar-
ent bulb is touched it reduces the
intensity of the light emitted and
can also reduce the life of the
bulb. If you touch the bulb acci-
dentally, rub it with a cloth moist-
ened with alcohol and leave it to
dry.
GENERAL INSTRUCTIONS
– When a light is not working, check
that it has not fused before changing
the bulb.
– For the location of the fuses, re-
fer to “If a fuse blows” in this section.
– Before replacing a bulb that does
not work, check that the contacts are
not oxidised.
– Burnt out bulbs must be replaced
with ones of the same type.
– Always check the height of the
headlight beam after changing a bulb
for safety purposes.
Halogen bulbs contain
pressurised gas which, if
broken, may cause small fragments
of glass to be projected outwards.
WARNING
Modifications or repairs to
the electrical system car-
ried out incorrectly and without
bearing the features of the system
in mind can cause malfunctions
with the risk of fire.
WARNING

92

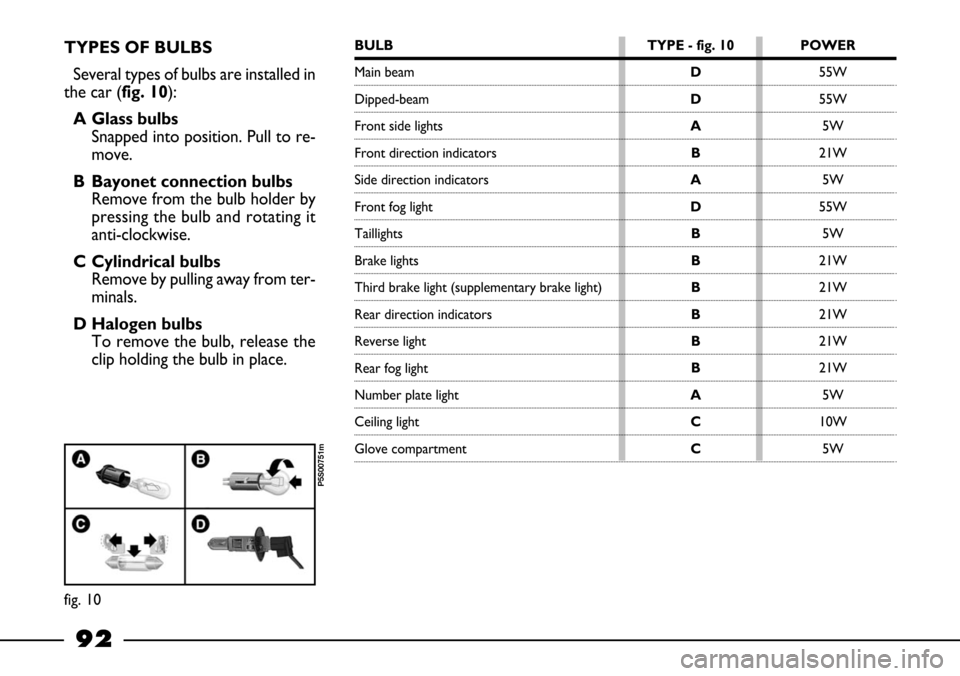

TYPES OF BULBS
Several types of bulbs are installed in
the car (fig. 10):
A Glass bulbs
Snapped into position. Pull to re-
move.
B Bayonet connection bulbs
Remove from the bulb holder by
pressing the bulb and rotating it
anti-clockwise.
C Cylindrical bulbs
Remove by pulling away from ter-
minals.
D Halogen bulbs
To remove the bulb, release the
clip holding the bulb in place.
fig. 10
P5S00751m
D55W
D55W
A5W
B21W
A5W
D55W
B5W
B21W
B21W
B21W
B21W
B21W
A5W
C10W
C5W
BULB TYPE - fig. 10 POWER
Main beam
Dipped-beam
Front side lights
Front direction indicators
Side direction indicators
Front fog light
Taillights
Brake lights
Third brake light (supplementary brake light)
Rear direction indicators
Reverse light
Rear fog light
Number plate light
Ceiling light
Glove compartment

93
2)Remove the bulb holder B, ro-
tating it slightly to uncouple it.
3)Pull out bulb C, change it and
press fit the bulb holder back into po-

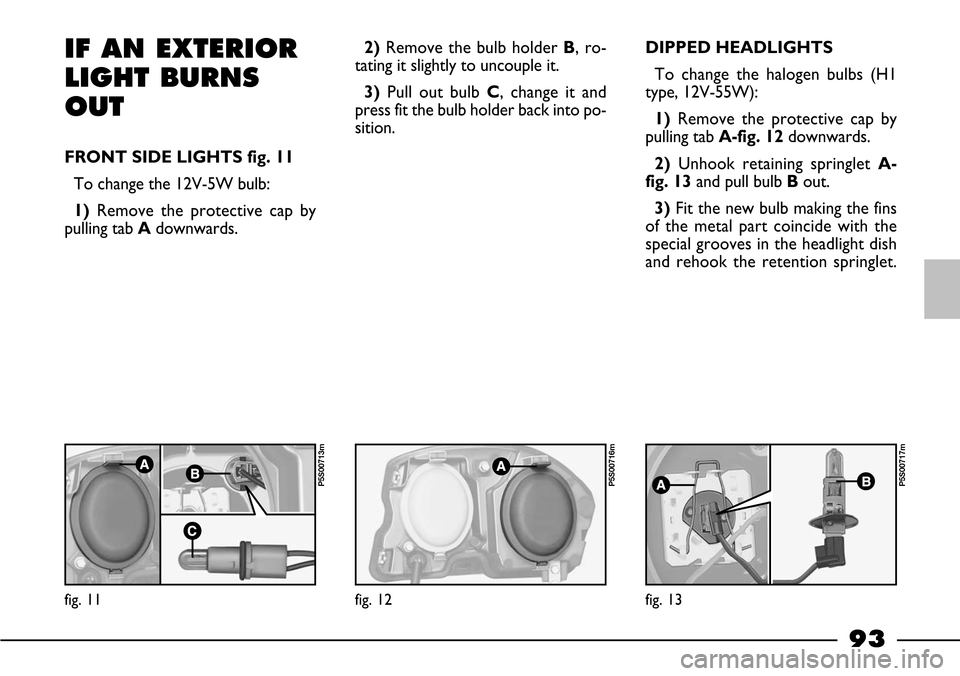

sition.IF AN EXTERIOR
LIGHT BURNS
OUT
FRONT SIDE LIGHTS fig. 11
To change the 12V-5W bulb:
1)Remove the protective cap by
pulling tab Adownwards.DIPPED HEADLIGHTS
To change the halogen bulbs (H1
type, 12V-55W):
1)Remove the protective cap by
pulling tab A-fig. 12 downwards.
2) Unhook retaining springlet A-
fig. 13and pull bulb Bout.
3) Fit the new bulb making the fins
of the metal part coincide with the
special grooves in the headlight dish
and rehook the retention springlet.
fig. 11
P5S00713m
fig. 12
P5S00716m
fig. 13
P5S00717m

94

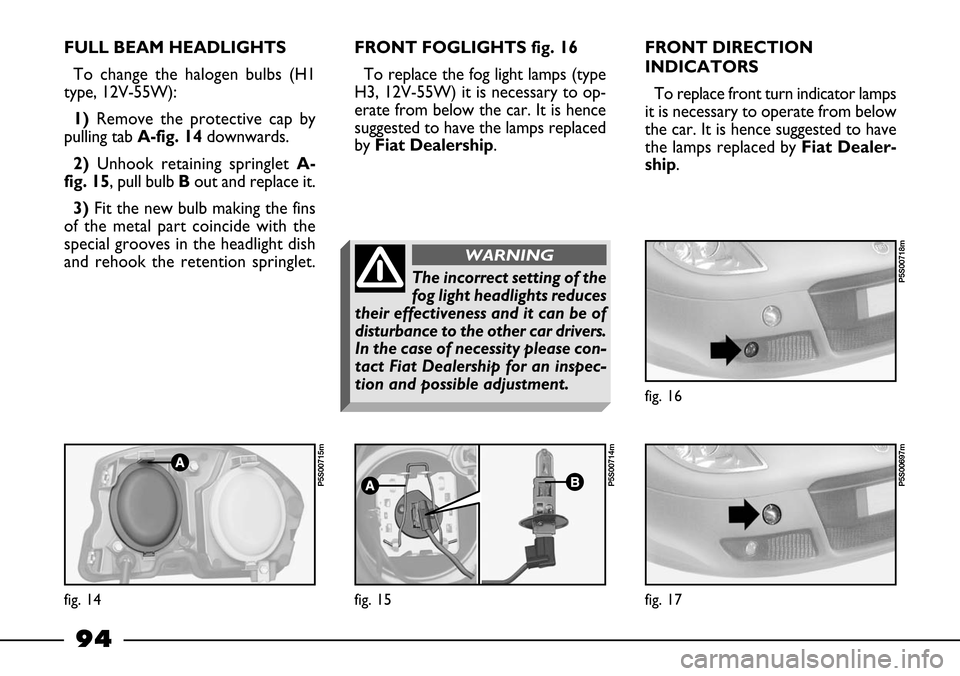

FULL BEAM HEADLIGHTS
To change the halogen bulbs (H1
type, 12V-55W):
1) Remove the protective cap by
pulling tab A-fig. 14downwards.
2)Unhook retaining springlet A-
fig. 15, pull bulb Bout and replace it.
3) Fit the new bulb making the fins
of the metal part coincide with the
special grooves in the headlight dish
and rehook the retention springlet.FRONT FOGLIGHTS fig. 16
To replace the fog light lamps (type
H3, 12V-55W) it is necessary to op-
erate from below the car. It is hence
suggested to have the lamps replaced
by Fiat Dealership.FRONT DIRECTION
INDICATORS
To replace front turn indicator lamps
it is necessary to operate from below
the car. It is hence suggested to have
the lamps replaced by Fiat Dealer-
ship.
fig. 15
P5S00714m
fig. 14
P5S00715m
fig. 16
P5S00718m
fig. 17
P5S00697m
The incorrect setting of the
fog light headlights reduces
their effectiveness and it can be of
disturbance to the other car drivers.
In the case of necessity please con-
tact Fiat Dealership for an inspec-
tion and possible adjustment.
WARNING

95

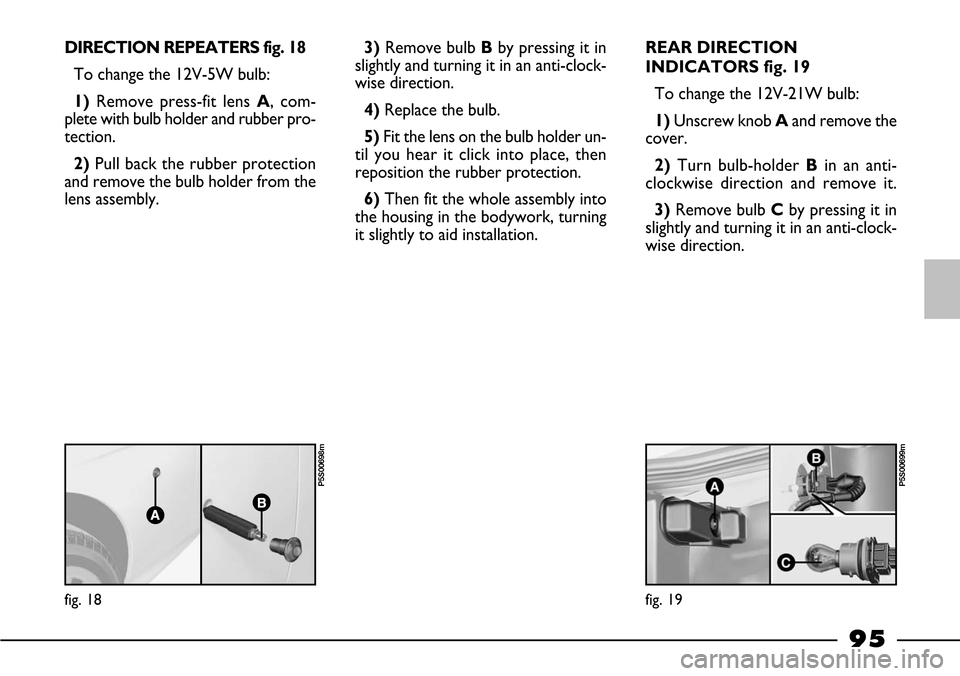

DIRECTION REPEATERS fig. 18
To change the 12V-5W bulb:
1) Remove press-fit lens A, com-
plete with bulb holder and rubber pro-
tection.
2) Pull back the rubber protection
and remove the bulb holder from the
lens assembly.3) Remove bulb Bby pressing it in
slightly and turning it in an anti-clock-
wise direction.
4) Replace the bulb.
5)Fit the lens on the bulb holder un-
til you hear it click into place, then
reposition the rubber protection.
6) Then fit the whole assembly into
the housing in the bodywork, turning
it slightly to aid installation.REAR DIRECTION
INDICATORS fig. 19
To change the 12V-21W bulb:
1)Unscrew knob Aand remove the
cover.
2) Turn bulb-holder Bin an anti-
clockwise direction and remove it.
3)Remove bulb Cby pressing it in
slightly and turning it in an anti-clock-
wise direction.
fig. 18
P5S00698m
fig. 19
P5S00699m

96

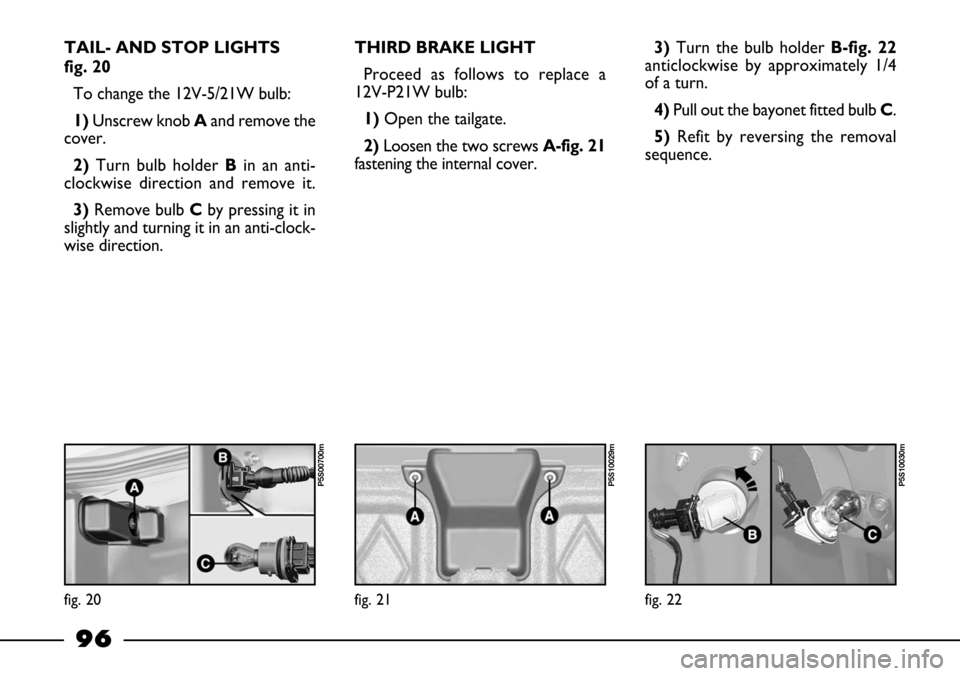

TAIL- AND STOP LIGHTS
fig. 20
To change the 12V-5/21W bulb:
1) Unscrew knob Aand remove the
cover.
2) Turn bulb holder Bin an anti-
clockwise direction and remove it.
3) Remove bulb Cby pressing it in
slightly and turning it in an anti-clock-
wise direction.THIRD BRAKE LIGHT
Proceed as follows to replace a
12V-P21W bulb:
1) Open the tailgate.
2) Loosen the two screws A-fig. 21
fastening the internal cover.3) Turn the bulb holder B-fig. 22
anticlockwise by approximately 1/4
of a turn.
4) Pull out the bayonet fitted bulb C.
5) Refit by reversing the removal
sequence.
fig. 20
P5S00700m
fig. 22
P5S10030m
fig. 21
P5S10029m

97

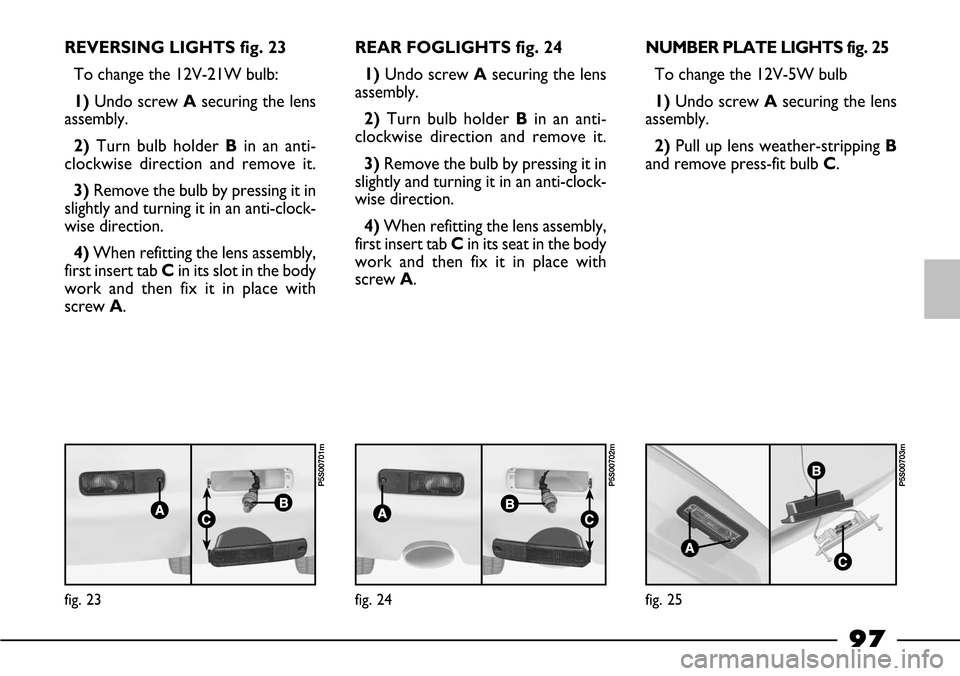

REVERSING LIGHTS fig. 23
To change the 12V-21W bulb:
1)Undo screw Asecuring the lens
assembly.
2) Turn bulb holder Bin an anti-
clockwise direction and remove it.
3)Remove the bulb by pressing it in
slightly and turning it in an anti-clock-
wise direction.
4) When refitting the lens assembly,
first insert tab Cin its slot in the body
work and then fix it in place with
screw A.REAR FOGLIGHTS fig. 24
1)Undo screw Asecuring the lens
assembly.
2)Turn bulb holder Bin an anti-
clockwise direction and remove it.
3)Remove the bulb by pressing it in
slightly and turning it in an anti-clock-
wise direction.
4)When refitting the lens assembly,
first insert tab Cin its seat in the body
work and then fix it in place with
screw A.NUMBER PLATE LIGHTS fig. 25
To change the 12V-5W bulb
1) Undo screw Asecuring the lens
assembly.
2) Pull up lens weather-stripping B
and remove press-fit bulb C.
fig. 23
P5S00701m
fig. 24
P5S00702m
fig. 25
P5S00703m

98

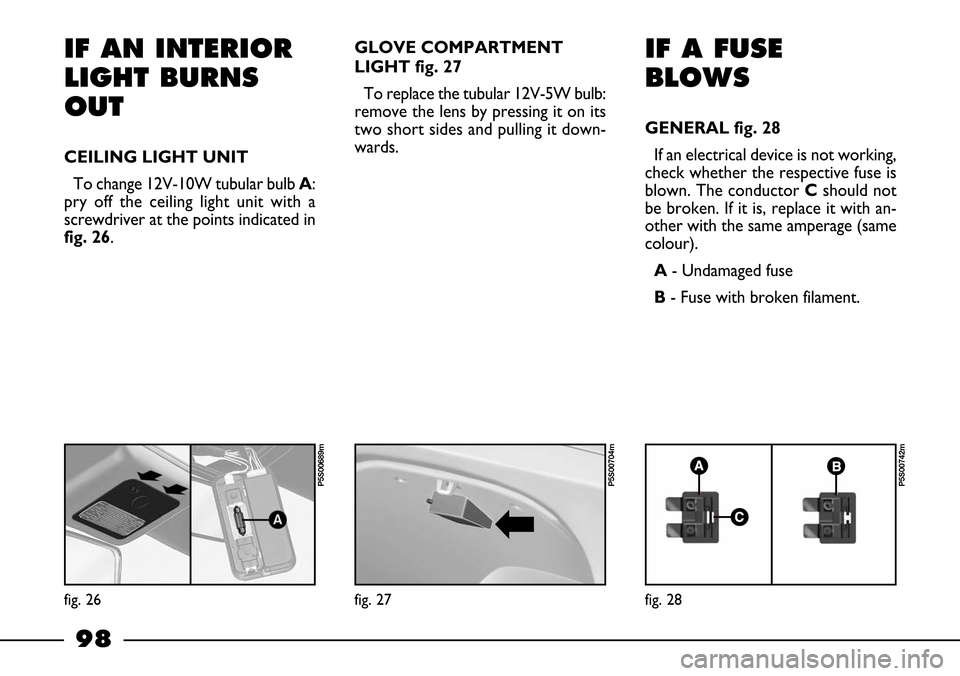

IF AN INTERIOR
LIGHT BURNS
OUT
CEILING LIGHT UNIT
To change 12V-10W tubular bulb A:
pry off the ceiling light unit with a
screwdriver at the points indicated in
fig. 26.GLOVE COMPARTMENT
LIGHT fig. 27
To replace the tubular 12V-5W bulb:
remove the lens by pressing it on its
two short sides and pulling it down-
wards.
IF A FUSE
BLOWS
GENERAL fig. 28
If an electrical device is not working,
check whether the respective fuse is
blown. The conductor Cshould not
be broken. If it is, replace it with an-
other with the same amperage (same
colour).
A- Undamaged fuse
B- Fuse with broken filament.
fig. 26
P5S00689m
fig. 27
P5S00704m
fig. 28
P5S00742m

99

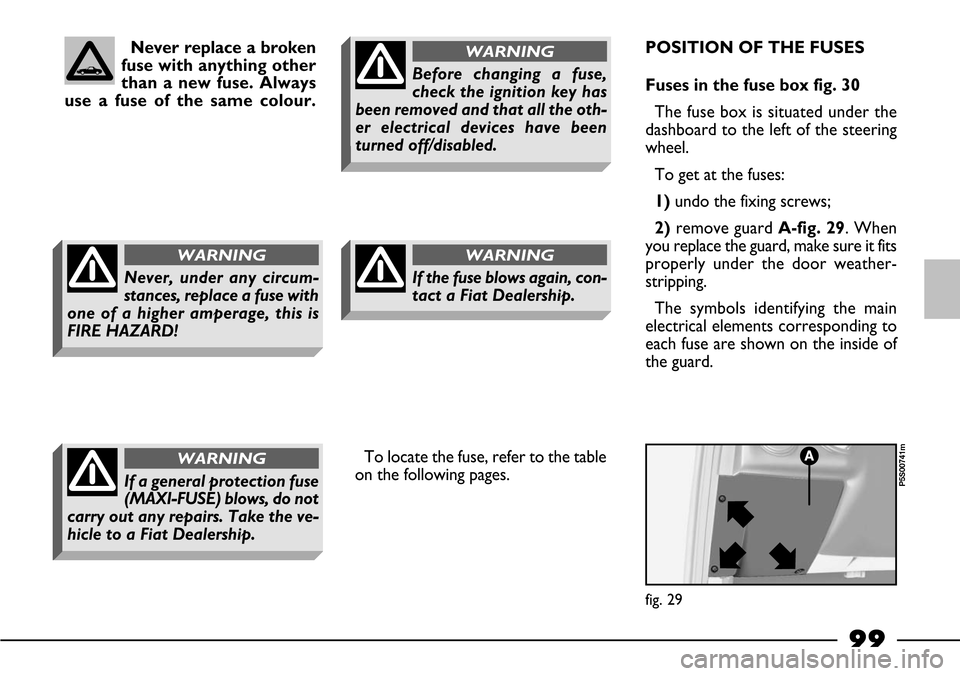

POSITION OF THE FUSES
Fuses in the fuse box fig. 30
The fuse box is situated under the
dashboard to the left of the steering
wheel.
To get at the fuses:
1)undo the fixing screws;
2)remove guard A-fig. 29. When
you replace the guard, make sure it fits
properly under the door weather-
stripping.
The symbols identifying the main
electrical elements corresponding to
each fuse are shown on the inside of
the guard.
fig. 29
P5S00741m
Never replace a broken
fuse with anything other
than a new fuse. Always
use a fuse of the same colour.
To locate the fuse, refer to the table
on the following pages.
Never, under any circum-
stances, replace a fuse with
one of a higher amperage, this is
FIRE HAZARD!
WARNING
Before changing a fuse,
check the ignition key has
been removed and that all the oth-
er electrical devices have been
turned off/disabled.
WARNING
If a general protection fuse
(MAXI-FUSE) blows, do not
carry out any repairs. Take the ve-
hicle to a Fiat Dealership.
WARNING
If the fuse blows again, con-
tact a Fiat Dealership.
WARNING
