FIAT STILO 2004 1.G Connect NavPlus Manual
Manufacturer: FIAT, Model Year: 2004, Model line: STILO, Model: FIAT STILO 2004 1.GPages: 166, PDF Size: 3.8 MB
Page 11 of 166
CONNECT Nav+
10

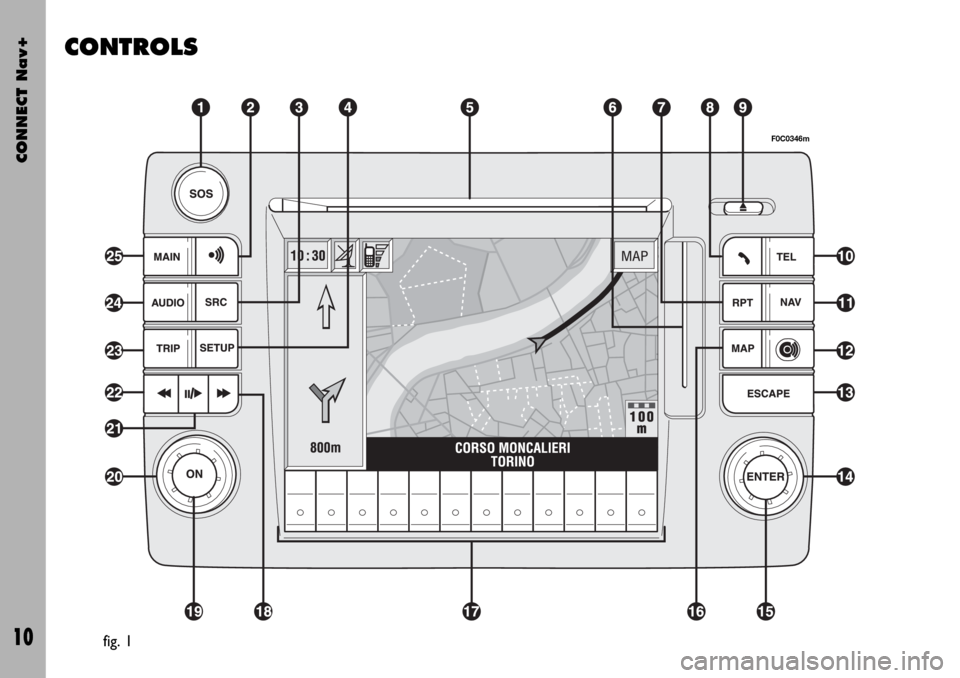

CONTROLS
fig. 1
F0C0346m
Page 12 of 166
CONNECT Nav+
11
FRONT PANEL CONTROLS
On the CONNECT Nav+ front panel there are 30 buttons and two rotating selectors (composed of an encoder and a
button). Certain controls have multiple functions which depend on the system operating conditions active. Turning on the
function chosen is in some cases controlled by the push duration (short or long), as shown in the following table:
Legend
1 - SOS
2 - ô
3 - SRC
4 - SETUP
5
6
7 - RPT
8 -
ß
9 - ˚
10 - TEL
11 - NAV
12 - •
Short push function
(less than 1 second)
SOS menu display (medical, technical assistance, ...)
with appropriate logic for automatic call.
Voice recognition function on/off.
Operating mode choice: FM1/2/3/AST –
MW/LW/AMAST – CD – CDC.
SETUP mode.
Slot for CD.
Slot for SIM card.
Repetition of last navigator voice instruction.
Forward the phone call set.
Accept the incoming call.
Eject navigation CD–ROM or audio CD.
Telephone mode on.
Navigation mode on.
Targasysmode.Long push function
(more than 1 second)
–
Voice message memo.
–
–
–
–
–
Refuse the incoming call
and stop the automatic phone number redial.
If a call is already active, to close it.
–
Telephone mode off.
Navigation mode off.
–
Page 13 of 166
CONNECT Nav+
12
Legend
13 - ESCAPE
14
15 - ENTER
16 - MAP
17 - KEYPAD
18 - ˙˙
19 - ON
20
21 - 11/˙
22 - ¯¯
Long push function
(more than 1 second)
–
–
–
–
–
Radio: forward radio frequency skip, i.e. jump
forward to the first tunable radio station.
CD: next track skip.
MP3: next 10 tracks/
“not empty folder”.
–
–
Pause for CD/CDC
Radio: backward radio frequency skip, i.e. jump
backward to the first tunable radio station.
CD: previous track skip.
MP3: previous 10 tracks/
“not empty folder”. Short push function
(less than 1 second)
This button lets the user get out from a selection list
or jump from a submenu to an upper menu.
Encoder for selecting the required function
in a system menu.
It is used to confirm the function
selected with the encoder.
MAP mode.
Multiple function buttons whose function depends
on the active mode which is identified by a label
shown on the screen, just above the buttons.
In some cases a label covers some adjacent buttons:
the function of all these buttons will be the same.
Radio: forward radio frequency skip, i.e. jump forward
to the first tunable radio station.
CD: next track skip.
MP3: next track skip.
System on/off.
Volume control encoder.
Play/stop for CD/CDC.
Radio: backward radio frequency skip, i.e. jump
backward to the first tunable radio station.
CD: previous track skip.
MP3: previous track skip.
Page 14 of 166
CONNECT Nav+
13
Legend
23 - TRIP
24 - AUDIO
25 - MAIN
Short push function
(less than 1 second)
Trip mode on.
Audio mode on.
Main mode on.Long push function
(more than 1 second)
–
Disable audio module (radio, CD/CDC).
Audio module is switched on again by
pushing the AUDIO button: audio
status and parameters are
fully restored.
Dark mode: the display is switched
off completely.
The display is switched on again
by pushing the MAIN, TEL or SOS
button or on incoming call.
Page 15 of 166
CONNECT Nav+
14
STEERING WHEEL
CONTROLS
The main functions of the CON-
NECT Nav+ are repeated on the
steering wheel, which facilitates con-
trol.
Source (SRC 1-fig. 2)
The “SRC” button changes the audio
source, starting from the current one
and following rolling order:
FM1/FM2/FM3/FMAST/MW/
LW/AMAST/CD/CDC.Volume (+/– 2-fig. 2)
Buttons “+/–” control volume level;
if the user pushes the button for more
than 2 seconds, button function is re-
peated regularly until button is re-
leased.
Voice recognition (
ô3-fig. 2)
A short push on “
ô” button acti-
vates or stops vocal recognition.
A long push on it activates vocal
recording, which can be interrupted
by a further short or long button push.Connect mode (
=4-fig. 2)
Button “=” allows switching
through the various CONNECT
Nav+ modules: MAIN, AUDIO,
TRIP, TEL, NAV, MAP, starting from
the module which is currently active.
Scan (
¯¯ ˙˙5-fig. 2)
Buttons “
¯¯and ˙˙” enable the
following:
– In radio mode: jump to the fol-
lowing or previous tunable radio sta-
tion.
– In CD/MP3/CDC mode: jump to
the previous or next track.
Telephone (
ß6-fig. 2)
Button “
ß” allows telephone man-
agement.
Turning on of the function chosen is
in certain cases controlled by push du-
ration (short or long), as shown in the
following table.
fig. 2
F0C0347m
Page 16 of 166
CONNECT Nav+
15
With reconfigurable multifunction
display, long push on
ß6-fig. 2will
display a menu (where provided) on
the instrument panel that enables to
choose directory (by pushing
˙˙) or
last numbers called (by pushing
¯¯).Push on
¯¯and ˙˙to scroll the list.
Push on
ß8-fig. 1or ß6-fig. 2to
start the call.
At the same time, all CONNECT
Nav+ telephone functions and buttons
are disabled fig. 3.Pushing on ß8-fig. 1or a 5-seconds
timeout with no user intervention, will
enable the telephone functions again.
fig. 3
F0C40004g
Telephone state
Incoming call
Active call
Stand-by
Short push
(less than 1 second)
Accept call
End call or stop dial
Display last dialled number or, with a second
push within 5 seconds, call start Long push
(more than 1 second)
Refuse call
–
Only with reconfigurable multifunction display:
display of the main phone menu on the
instrument panel display. Then, press Scan
˙˙
or Scan ¯¯to select directory or last
numbers called.
A further short push on
ßwill start the call.
Page 17 of 166
CONNECT Nav+
16
ENTER button (i8-fig. 2)
This button is used to confirm the
previous selection made through but-
tons
RandE7 and 9.Screen icon keys
Screen icon keys are strictly con-
nected to the external front panel but-
tons. Icon keys are divided into:
– Upper keys: these keys are usual-
ly shown in column on the right side
of the screen. They can be selected by
rotating the encoder 14-fig. 1and
confirmed by pushing “ENTER” 15-
fig. 1.
– Bottom keys: these are located in
the lowest video section and are
switched on/off by the corresponding
buttons on the keypad 17-fig. 1.
These buttons are “multifunction”
since they change their function ac-
cording to the active menu. Selection buttons
(
RE7 and 9-fig. 2)
These buttons perform the same
functions of the encoder 14-fig. 1:
scroll the screen and allow item se-
lection.
Page 18 of 166
CONNECT Nav+
17
GENERAL
INFORMATION
IMPORTANT NOTES FOR
USE AND ROAD SAFETY
The CONNECT Nav+ with Ra-
dio/Telephone/Navigator/On-board
computer makes it possible to easily
control the main functions of the car. To avoid creating dangerous situa-
tions for yourself and others in use of
the system, please pay attention to the
following points:
– the CONNECT Nav+ must be
used keeping full control of the car;
in the case of doubt in the use of the
functions, it is necessary to stop be-
fore performing the various opera-
tions;
– use of the cell phone is prohibited
near explosive substances.
The navigation system allows you to
reach your destination, indicating each
route change stored on the navigation
CD-ROM. In fact, in calculating the
route, the system takes into account
of all the information stored concern-
ing the roads, advising the best route.
However it cannot take account of the
traffic, sudden interruptions or any
other inconvenience.In carrying out any manoeuvre it is
always necessary to follow the rules of
the road, regardless of the advice giv-
en by the navigation system. If you
leave the suggested route, the naviga-
tion system will calculate a new one
and suggest it to you.
The navigation system
helps the driver while dri-
ving by suggesting, vocally and
graphically, the best route to be fol-
lowed to reach the preset destina-
tion. The suggestions given by the
navigation system do not exempt
the driver from full responsibility
due to driving behaviour and com-
pliance with road and other traffic
regulations. The responsibility for
road safety always and anyway lies
with the car’s driver.
WARNING
Page 19 of 166
CONNECT Nav+
18
SYSTEM POWER ON
The CONNECT Nav+ can be
switched on according to two differ-
ent methods:
automatic switching onwith ig-
nition key to MAR;
manual switching on:
– by “ON” button 19-fig. 1;
– direct access to SOS menu by
pressing button “SOS” 1-fig. 1.Automatic switching on
Turning the ignition key to MAR, will
turn the CONNECT Nav+ system on
automatically, thus activating or mak-
ing available all the functions described
in this manual.
Manual switching on
With ignition key to STOP, press
button “ON” 19-fig. 1to switch on
the CONNECT Nav+ system thus
making available the following mod-
ules:
– MAIN
– AUDIO
– NAV
– MAP
– TEL
– SOS
– Targasys
•.IMPORTANTIn this mode, the
SETUP and TRIP modules can be ac-
tivated; however, it will not be possi-
ble to validate any operation con-
cerning parameter change, language
change, units change and any other
type of adjustment provided by the
CONNECT Nav+ system. These lim-
itations are normal when switching the
system on manually by the “ON” but-
ton 19-fig. 1, since with engine off
(key at STOP), the car data trans-
mission devices are not operating.
Turning the ignition key to MARwill
make all system functions active.
Page 20 of 166
CONNECT Nav+
19
SYSTEM POWER OFF
The CONNECT Nav+ system can
be switched off according to two dif-
ferent modes:
– deactivation independentof ig-
nition key
– deactivation dependenton ig-
nition key
To choose the power-off mode, see
the Power OFF submenu in the SET-
UP menu.Deactivation independent
of ignition key
With this mode active, CONNECT
Nav+ can be turned off by pressing
the “ON” button 19-fig. 1.
The display will show the message
“DEACTIVATION PROCEDURE IN
PROGRESS. PLEASE WAIT”.
IMPORTANTWith ignition key at
STOP, deactivation is delayed and will
take place after 20 minutes if the sys-
tem has a destination set or a phone
call is in progress.Deactivation dependent
on ignition key
With this mode active, CONNECT
Nav+ can be switched off by turning
the ignition key to STOPor by press-
ing the “ON” button19-fig. 1.
IMPORTANTDeactivation with
ignition key to STOPis delayed and
will take place after 20 minutes if the
system has a destination set or a
phone call is in progress.
