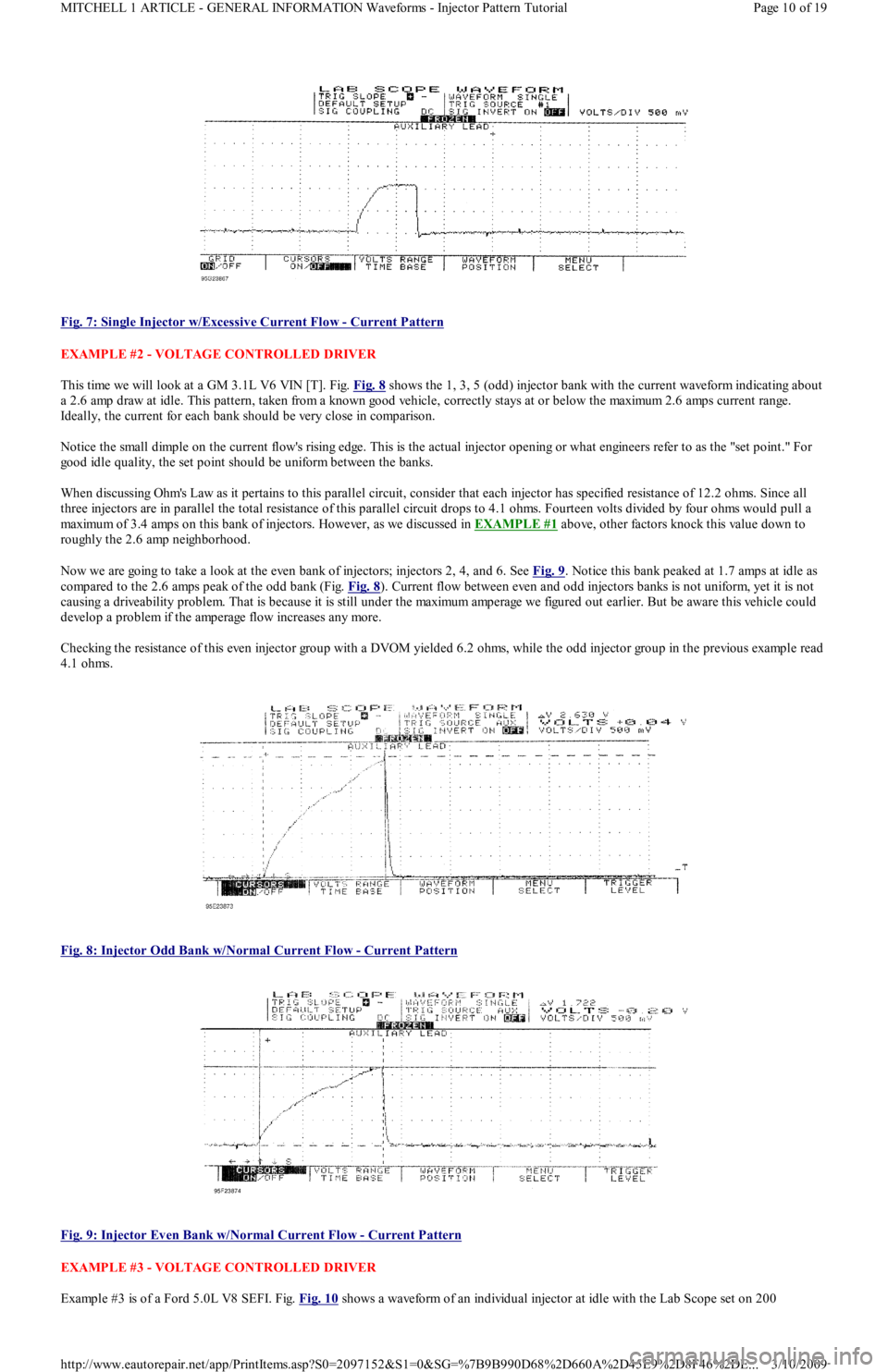

Fig. 7: Single Injector w/Excessive Current Flow
- Current Pattern
EXAMPLE #2 - VOLTAGE CONTROLLED DRIVER
This time we will look at a GM 3.1L V6 VIN [T]. Fig. Fig. 8
shows the 1, 3, 5 (odd) injector bank with the current waveform indicating about
a 2.6 amp draw at idle. This pattern, taken from a known good vehicle, correctly stays at or below the maximum 2.6 amps current range.
Ideally, the current for each bank should be very close in comparison.
Notice the small dimple on the current flow's rising edge. This is the actual injector opening or what engineers refer to as the "set p o in t . " Fo r
good idle quality, the set point should be uniform between the banks.
When discussing Ohm's Law as it pertains to this parallel circuit, consider that each injector has specified resistance of 12.2 ohms. Since all
three injectors are in parallel the total resistance of this parallel circuit drops to 4.1 ohms. Fourteen volts divided by four ohms would pull a
maximum of 3.4 amps on this bank of injectors. However, as we discussed in EXAMPLE #1
above, other factors knock this value down to
roughly the 2.6 amp neighborhood.
Now we are going to take a look at the even bank of injectors; injectors 2, 4, and 6. See Fig. 9. Notice this bank peaked at 1.7 amps at idle as
compared to the 2.6 amps peak of the odd bank (Fig. Fig. 8
). Current flow between even and odd injectors banks is not uniform, yet it is not
causing a driveability problem. That is because it is still under the maximum amperage we figured out earlier. But be aware this vehicle could
develop a problem if the amperage flow increases any more.
Checking the resistance of this even injector group with a DVOM yielded 6.2 ohms, while the odd injector group in the previous example read
4.1 ohms.

Fig. 8: Injector Odd Bank w/Normal Current Flow
- Current Pattern

Fig. 9: Injector Even Bank w/Normal Current Flow
- Current Pattern
EXAMPLE #3 - VOLTAGE CONTROLLED DRIVER
Example #3 is of a Ford 5.0L V8 SEFI. Fig. Fig. 10
shows a waveform of an individual injector at idle with the Lab Scope set on 200
Page 10 of 19 MITCHELL 1 ARTICLE - GENERAL INFORMATION Waveforms - Injector Pattern Tutorial
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

milliamps per division. Notice the dimple in the rising edge. This dimple indicates the actual opening of the injector (set point) occurred at 400
milliamps and current peaked at 750 milliamps. This is a good specification for this engine.
The next waveform pattern in Fig. Fig. 11
shows an abnormality with another injector. With the Lab Scope set on 500 milliamps per division,
you can see that the current waveform indicates a 1200 milliamp draw. This is a faulty injector.
Abnormally low resistance injectors create excessive current draw, causing rough idle, and possible computer driver damage.

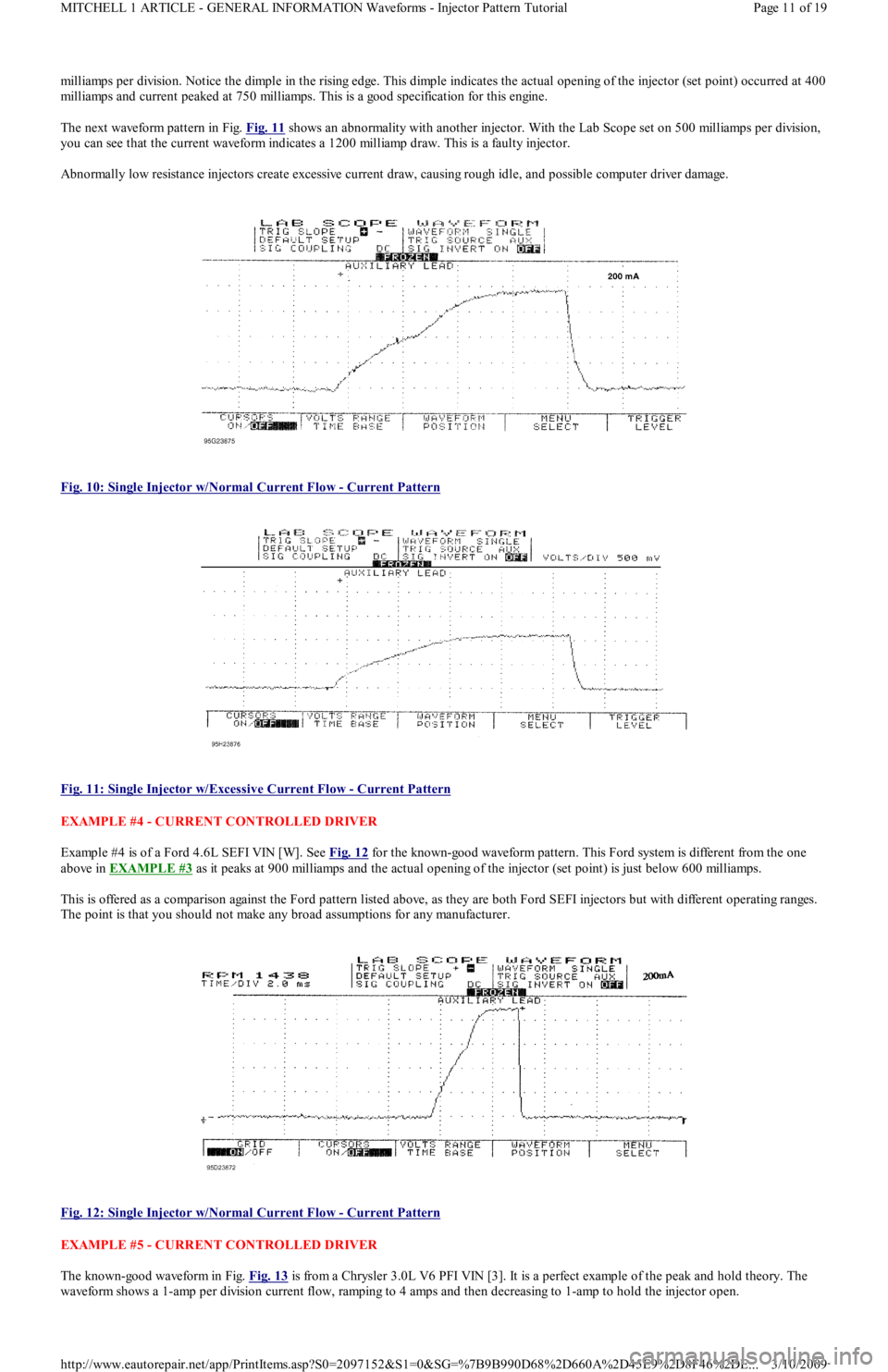

Fig. 10: Single Injector w/Normal Current Flow
- Current Pattern

Fig. 11: Single Injector w/Excessive Current Flow
- Current Pattern
EXAMPLE #4 - CURRENT CONTROLLED DRIVER
Example #4 is of a Ford 4.6L SEFI VIN [W]. See Fig. 12
for the known-good waveform pattern. This Ford system is different from the one
above in EXAMPLE #3
as it peaks at 900 milliamps and the actual opening of the injector (set point) is just below 600 milliamps.
This is offered as a comparison against the Ford pattern listed above, as they are both Ford SEFI injectors but with different operating ranges.
The point is that you should not make any broad assumptions for any manufacturer.

Fig. 12: Single Injector w/Normal Current Flow
- Current Pattern
EXAMPLE #5 - CURRENT CONTROLLED DRIVER
Th e kn o wn - go o d wa ve fo r m in F ig. Fig. 13
is from a Chrysler 3.0L V6 PFI VIN [3]. It is a perfect example of the peak and hold theory. The
waveform shows a 1-amp per division current flow, ramping to 4 amps and then decreasing to 1-amp to hold the injector open.
Page 11 of 19 MITCHELL 1 ARTICLE - GENERAL INFORMATION Waveforms - Injector Pattern Tutorial
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

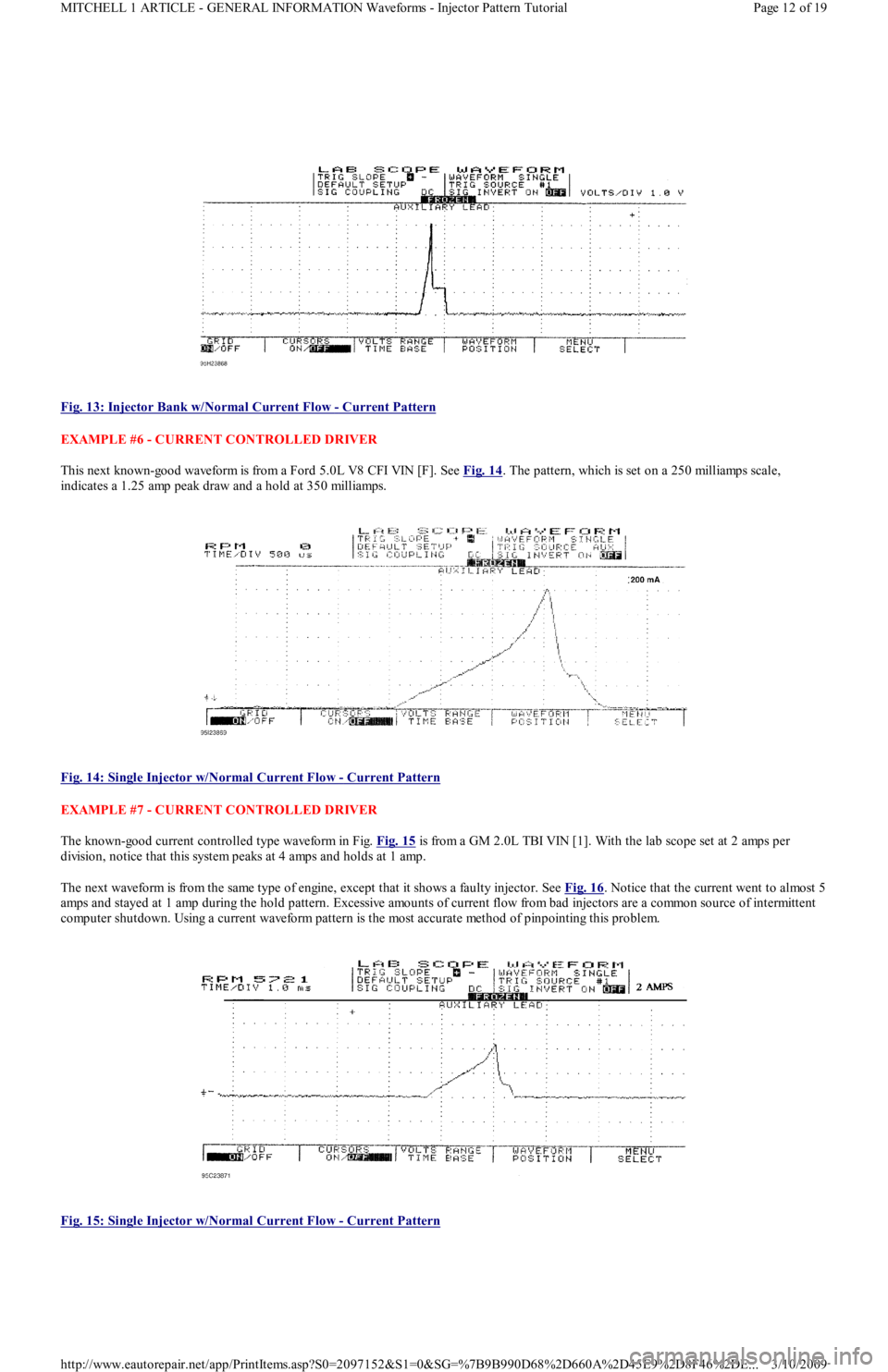

Fig. 13: Injector Bank w/Normal Current Flow
- Current Pattern
EXAMPLE #6 - CURRENT CONTROLLED DRIVER
This next known-good waveform is from a Ford 5.0L V8 CFI VIN [F]. See Fig. 14
. The pattern, which is set on a 250 milliamps scale,
indicates a 1.25 amp peak draw and a hold at 350 milliamps.

Fig. 14: Single Injector w/Normal Current Flow
- Current Pattern
EXAMPLE #7 - CURRENT CONTROLLED DRIVER
The known-good current controlled type waveform in Fig. Fig. 15
is from a GM 2.0L TBI VIN [1]. With the lab scope set at 2 amps per
division, notice that this system peaks at 4 amps and holds at 1 amp.
The next waveform is from the same type of engine, except that it shows a faulty injector. See Fig. 16
. Notice that the current went to almost 5
amps and stayed at 1 amp during the hold pattern. Excessive amounts of current flow from bad injectors are a common source of intermittent
computer shutdown. Using a current waveform pattern is the most accurate method of pinpointing this problem.

Fig. 15: Single Injector w/Normal Current Flow
- Current Pattern
Page 12 of 19 MITCHELL 1 ARTICLE - GENERAL INFORMATION Waveforms - Injector Pattern Tutorial
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

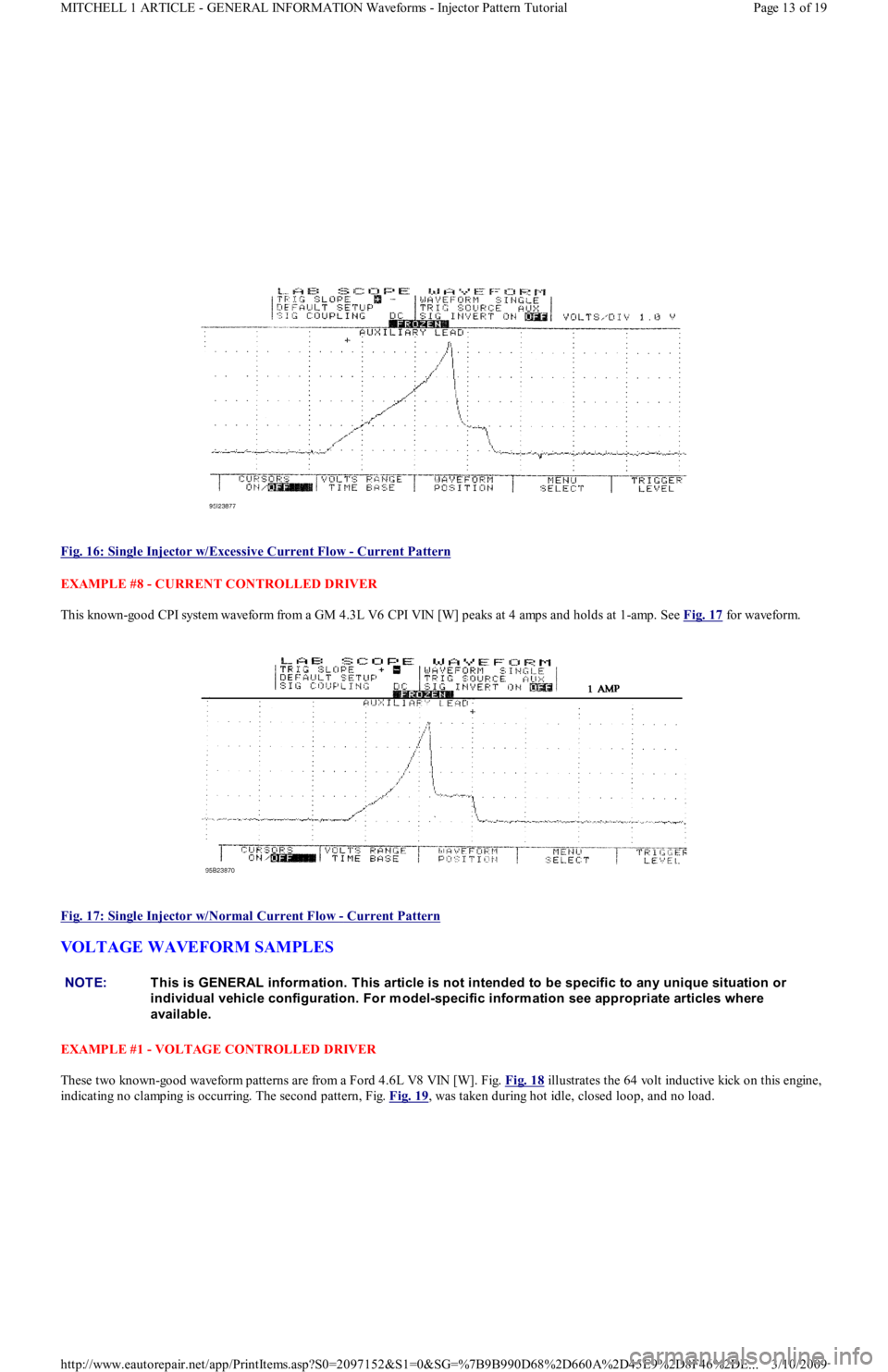

Fig. 16: Single Injector w/Excessive Current Flow
- Current Pattern
EXAMPLE #8 - CURRENT CONTROLLED DRIVER
This known-good CPI system waveform from a GM 4.3L V6 CPI VIN [W] peaks at 4 amps and holds at 1-amp. See Fig. 17
fo r wavefo rm.

Fig. 17: Single Injector w/Normal Current Flow
- Current Pattern
VOLTAGE WAVEFORM SAMPLES
EXAMPLE #1 - VOLTAGE CONTROLLED DRIVER
These two known-good waveform patterns are from a Ford 4.6L V8 VIN [W]. Fig. Fig. 18
illustrates the 64 volt inductive kick on this engine,
indicating no clamping is occurring. The second pattern, Fig. Fig. 19
, was taken during hot idle, closed loop, and no load.
NOTE:This is GENERAL inform ation. This article is not intended to be specific to any unique situation or
individual vehicle configuration. For m odel-specific inform ation see appropriate articles where
available.
Page 13 of 19 MITCHELL 1 ARTICLE - GENERAL INFORMATION Waveforms - Injector Pattern Tutorial
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

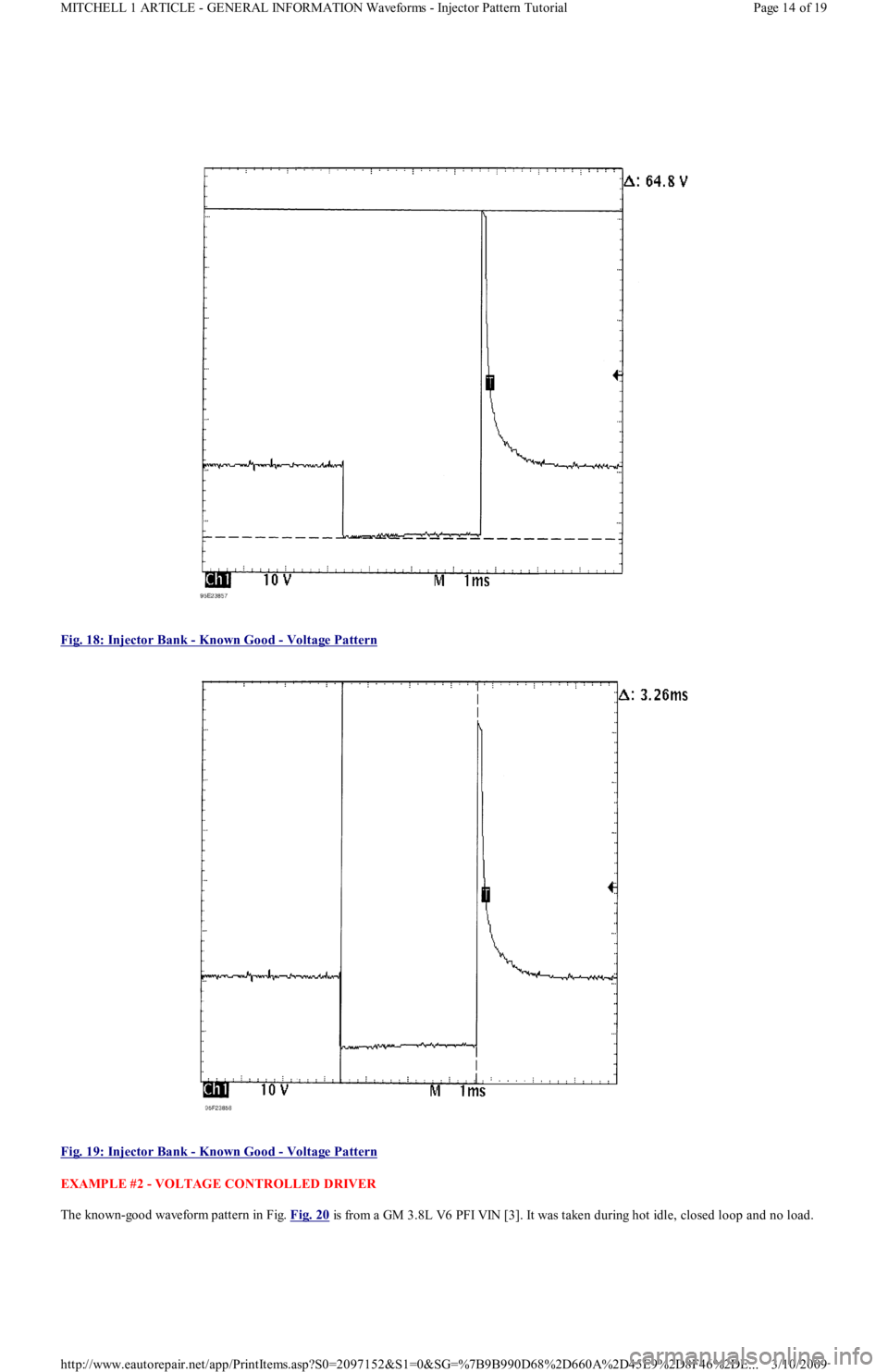

Fig. 18: Injector Bank
- Known Good - Voltage Pattern

Fig. 19: Injector Bank
- Known Good - Voltage Pattern
EXAMPLE #2 - VOLTAGE CONTROLLED DRIVER
The known-good waveform pattern in Fig. Fig. 20
is from a GM 3.8L V6 PFI VIN [3]. It was taken during hot idle, closed loop and no load.
Page 14 of 19 MITCHELL 1 ARTICLE - GENERAL INFORMATION Waveforms - Injector Pattern Tutorial
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

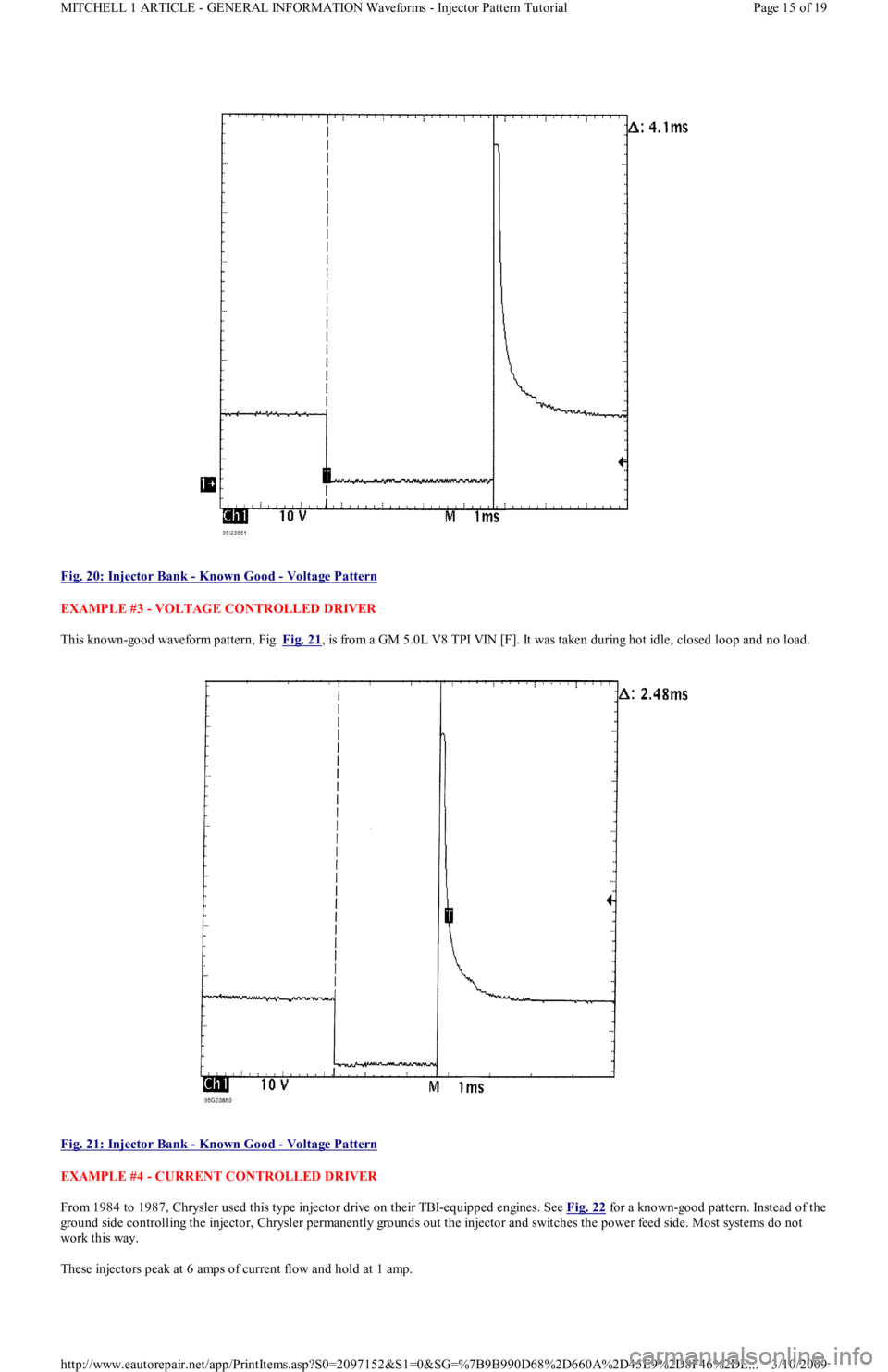

Fig. 20: Injector Bank
- Known Good - Voltage Pattern
EXAMPLE #3 - VOLTAGE CONTROLLED DRIVER
This known-good waveform pattern, Fig. Fig. 21
, is from a GM 5.0L V8 TPI VIN [F]. It was taken during hot idle, closed loop and no load.

Fig. 21: Injector Bank
- Known Good - Voltage Pattern
EXAMPLE #4 - CURRENT CONTROLLED DRIVER
From 1984 to 1987, Chrysler used this type injector drive on their TBI-equipped engines. See Fig. 22
for a known-good pattern. Instead of the
ground side controlling the injector, Chrysler permanently grounds out the injector and switches the power feed side. Most systems do not
work this way.
These injectors peak at 6 amps of current flow and hold at 1 amp.
Page 15 of 19 MITCHELL 1 ARTICLE - GENERAL INFORMATION Waveforms - Injector Pattern Tutorial
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

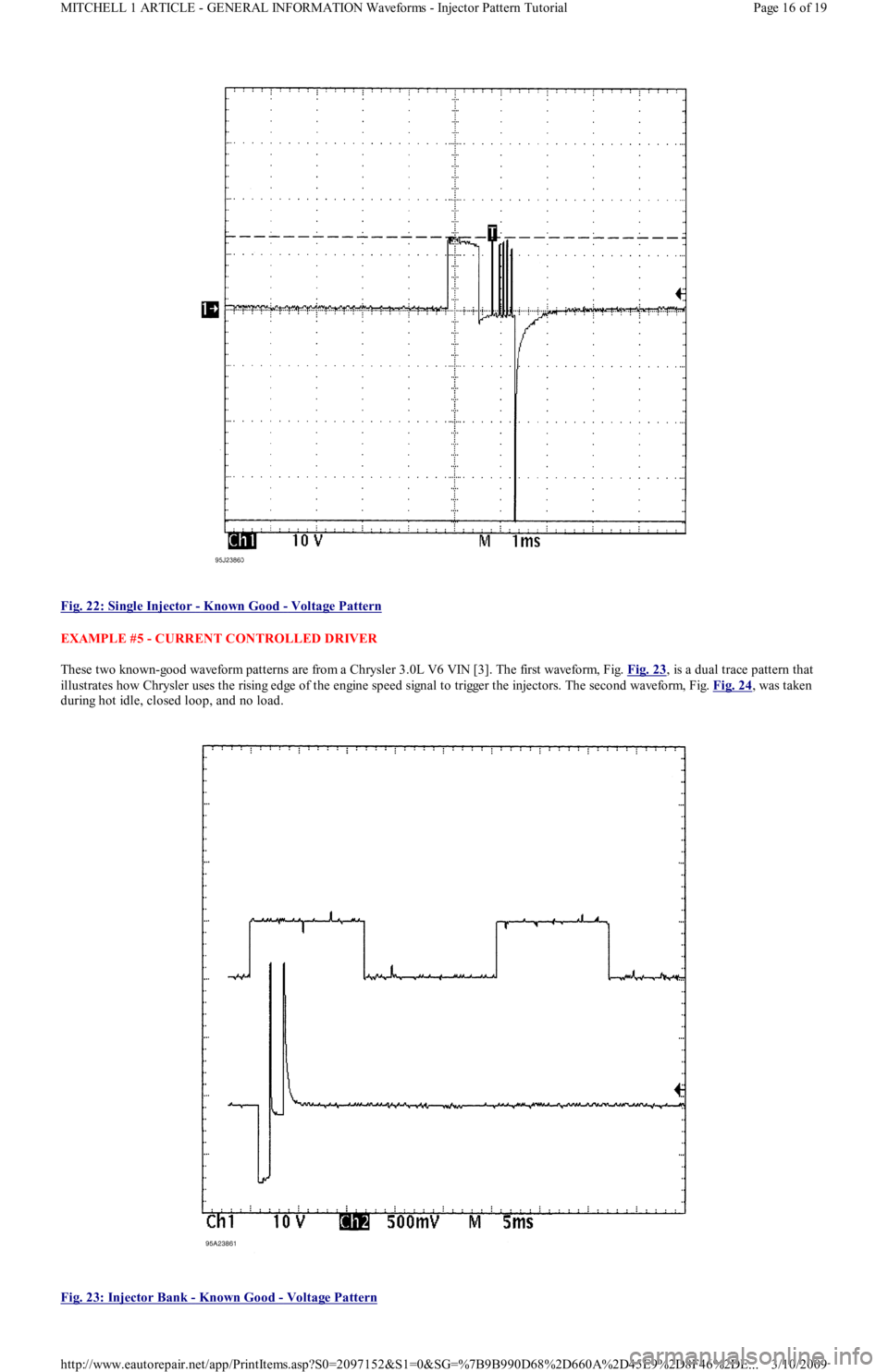

Fig. 22: Single Injector
- Known Good - Voltage Pattern
EXAMPLE #5 - CURRENT CONTROLLED DRIVER
These two known-good waveform patterns are from a Chrysler 3.0L V6 VIN [3]. The first waveform, Fig. Fig. 23
, is a dual trace pattern that
illustrates how Chrysler uses the rising edge of the engine speed signal to trigger the injectors. The second waveform, Fig. Fig. 24
, was taken
during hot idle, closed loop, and no load.

Fig. 23: Injector Bank
- Known Good - Voltage Pattern
Page 16 of 19 MITCHELL 1 ARTICLE - GENERAL INFORMATION Waveforms - Injector Pattern Tutorial
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

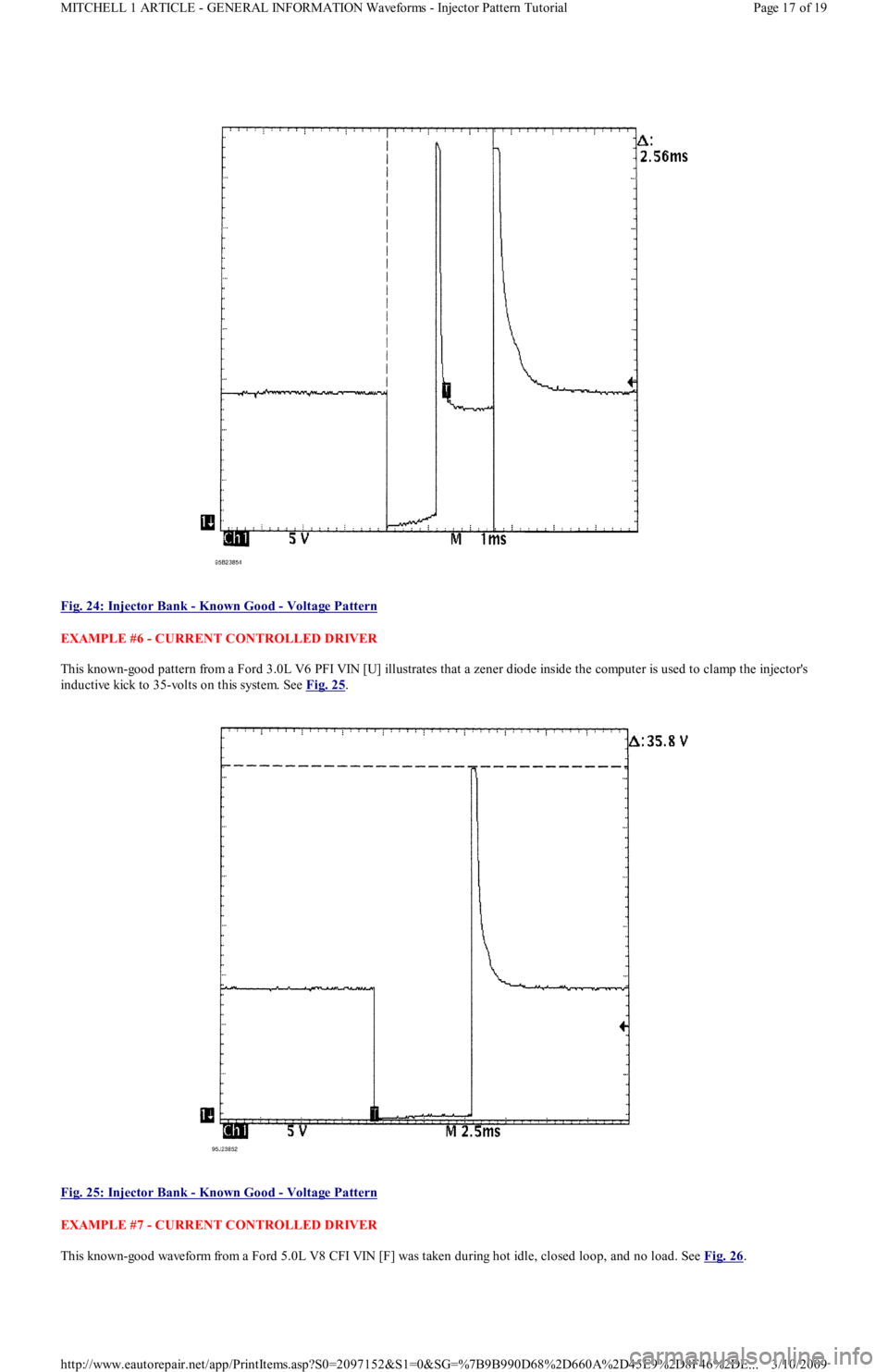

Fig. 24: Injector Bank
- Known Good - Voltage Pattern
EXAMPLE #6 - CURRENT CONTROLLED DRIVER
This known-good pattern from a Ford 3.0L V6 PFI VIN [U] illustrates that a zener diode inside the computer is used to clamp the injector's
inductive kick to 35-volts on this system. See Fig. 25
.

Fig. 25: Injector Bank
- Known Good - Voltage Pattern
EXAMPLE #7 - CURRENT CONTROLLED DRIVER
This known-good waveform from a Ford 5.0L V8 CFI VIN [F] was taken during hot idle, closed loop, and no load. See Fig. 26
.
Page 17 of 19 MITCHELL 1 ARTICLE - GENERAL INFORMATION Waveforms - Injector Pattern Tutorial
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

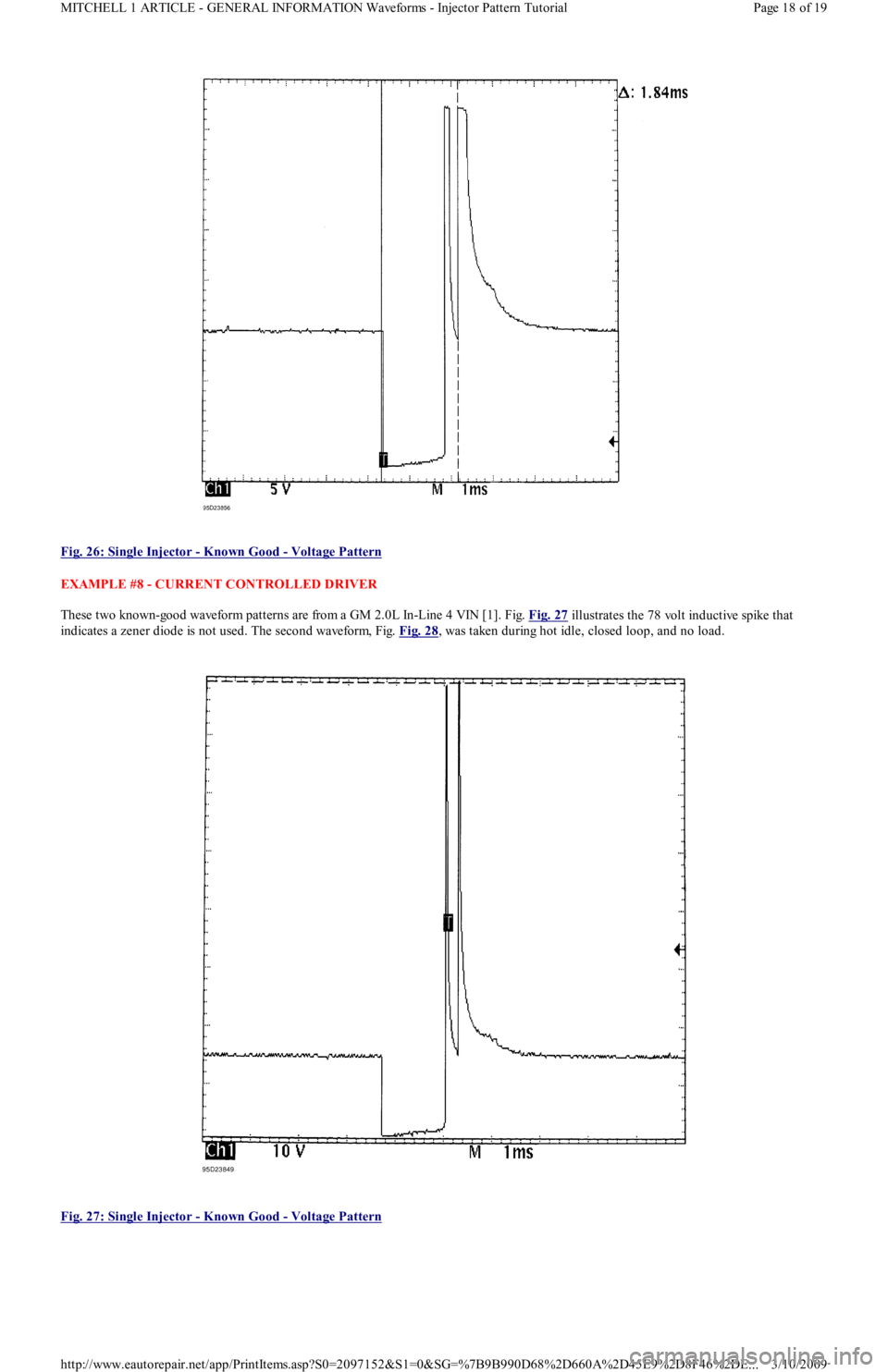

Fig. 26: Single Injector
- Known Good - Voltage Pattern
EXAMPLE #8 - CURRENT CONTROLLED DRIVER
These two known-good waveform patterns are from a GM 2.0L In-Line 4 VIN [1]. Fig. Fig. 27
illustrates the 78 volt inductive spike that
indicates a zener diode is not used. The second waveform, Fig. Fig. 28
, was taken during hot idle, closed loop, and no load.

Fig. 27: Single Injector
- Known Good - Voltage Pattern
Page 18 of 19 MITCHELL 1 ARTICLE - GENERAL INFORMATION Waveforms - Injector Pattern Tutorial
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

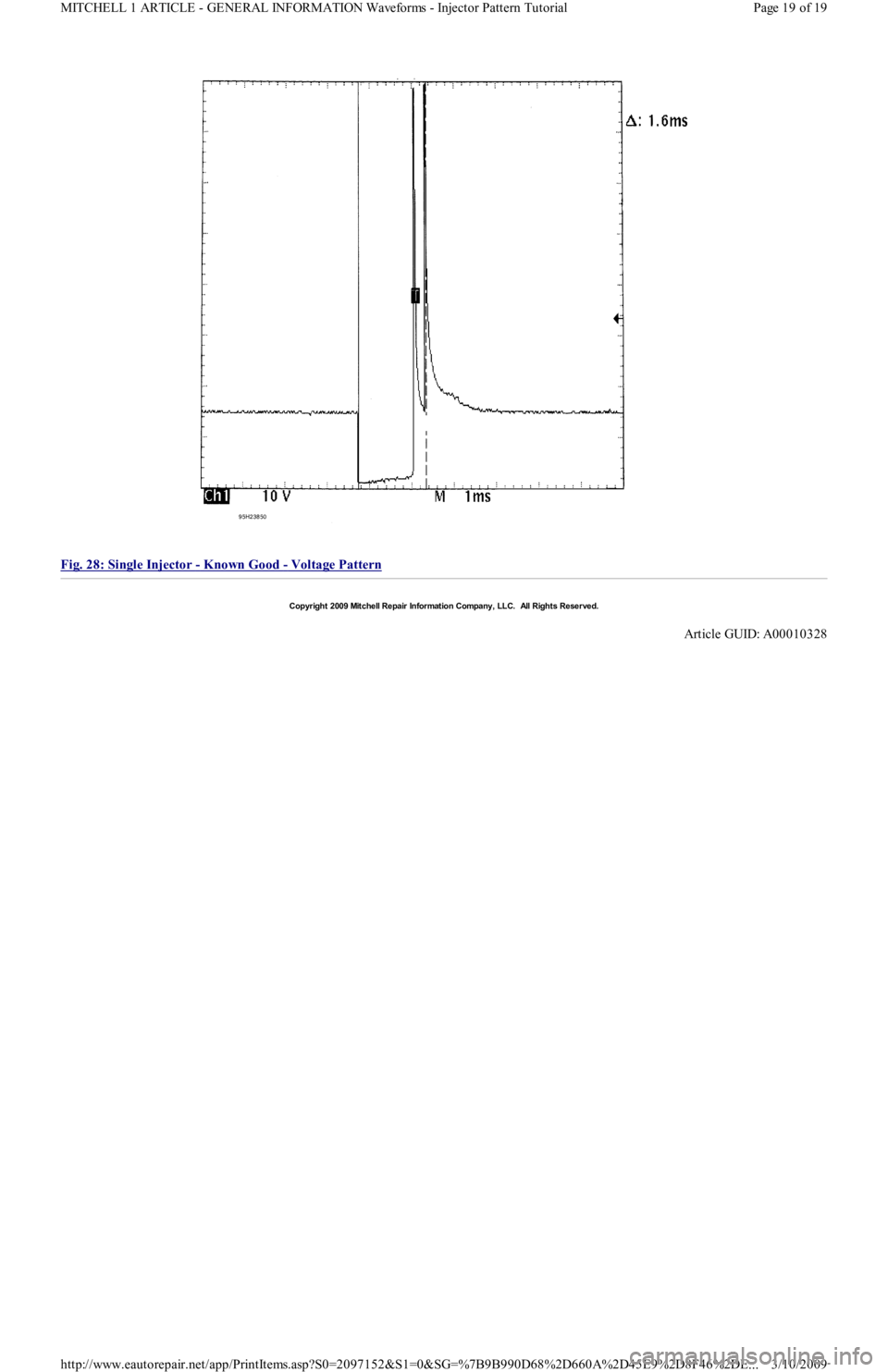

Fig. 28: Single Injector
- Known Good - Voltage Pattern
Copyr ight 2009 Mitchell Repair Information Company, LLC. All Rights Reserved.
Article GUID: A00010328
