206-09A-9 Anti-Lock Control 206-09A-9
REMOVAL AND INSTALLATION
6. Disconnect the anti-lock brake system (ABS)
module electrical connector.
11. Detach the HCU and ABS module assembly
from the support bracket.
5. Detach the brake tubes from the bulkhead. 10. Remove the HCU and ABS module
7. Raise and support the vehicle. For additional
information, refer to Section
100-02 [Jacking 12. Remove the HCU to ABS module retaining
and Lifting]. bolts.
/
8. Remove the HCU and ABS module support
bracket lower retaining bolt. assembly
and the support bracket.
9. Lower the vehicle.
13. Remove the HCU.
Installation
1. To install, reverse the removal procedure.
2006.0 Fiesta 1212006 GI 83774en
procarmanuals.com

206-09A-I 2 Anti-Lock Control 206-0949-12
REMOVAL AND INSTALLATION
Aplug the HCU ports to prevent fluid loss
or dirt ingress.
N0TE:Make a note of the position of the brake
tubes to aid installation.
Disconnect the brake tubes from the HCU.
Detach the brake tubes from the bulkhead.
7m &AUTION:C~~ the anti-lock brake system
(ABS) module electrical connector and
socket to prevent dirt and fluid ingress.
Disconnect the ABS module electrical
connector.
I. Depress the locking tangs.
2. Release the retainer.
8.
Raise and support the vehicle. For additional
information, refer to: (100-02 Jacking and
Lifting)
Jacking (Description and Operation),
Lifting (Description and Operation).
9. Remove the HCU and ABS module support
bracket lower retaining bolt.
f
10. Lower the vehicle.
11. Remove the HCU and ABS module
assembly and the support bracket.
12. Detach the HCU and ABS module assembly
from the support bracket.
2006.0 Fiesta 1212006 ~406271 en
procarmanuals.com

206-09A-I 5 Anti-Lock Control 206-09A-15
REMOVAL AND INSTALLATION
5. Detach the brake tubes from the bulkhead. 10. Remove the HCU and ABS module
assembly and the support bracket.
6. Disconnect the anti-lock brake system (ABS)
module electrical connector.
11. Detach the HCU and ABS module assembly
from the support bracket.
7. Raise and support the vehicle. For additional
information, refer to Section
100-02 [Jacking 12. Remove the HCU to ABS module retaining
and Lifting]. bolts.
8. Remove the HCU and ABS module support
bracket lower retaining bolt.
I 9. Lower the vehicle.
13. Remove the ABS module.
Installation
I. To install, reverse the removal procedure.
2006.0 Fiesta 1212006 G327317en
procarmanuals.com

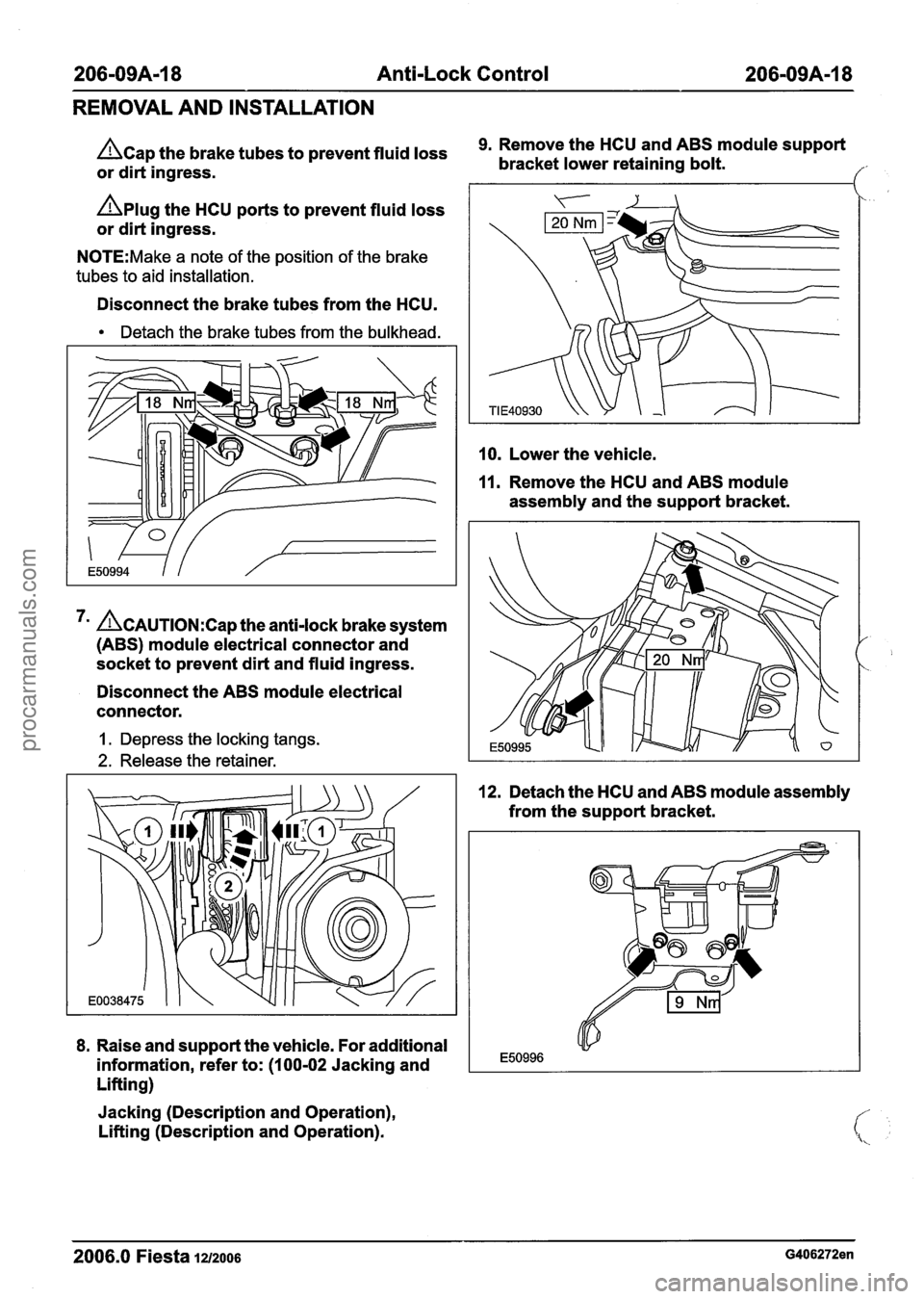

206-09A-I 8 Anti-Lock Control 206-09A-18
REMOVAL AND INSTALLATION
9. Remove the HCU and ABS module support hap the brake tubes to prevent fluid loss bracket lower retaining or dirt ingress. /-
Aplug the HCU ports to prevent fluid loss
or dirt ingress.
N0TE:Make a note of the position of the brake
tubes to aid installation.
Disconnect the brake tubes from the HCU.
Detach the brake tubes from the bulkhead.
7m &AUTION:C~~ the anti-lock brake system
(ABS) module electrical connector and
socket to prevent dirt and fluid ingress.
Disconnect the ABS module electrical
connector.
1. Depress the locking tangs.
2. Release the retainer.
8. Raise and support the vehicle. For additional
information, refer to: (100-02 Jacking and
Lifting)
Jacking (Description and Operation),
Lifting (Description and Operation). 10.
Lower the vehicle.
11. Remove the HCU and ABS module
assembly and the support bracket.
12. Detach the HCU and ABS module assembly
from the support bracket.
2006.0 Fiesta 12/2006 G406272en
procarmanuals.com

206-09A-20 Anti-Lock Control 206-0949-20
REMOVAL AND INSTALLATION
Rear Wheel Speed Sensor(l2 785 0)
Removal
All vehicles
I. Raise and support the vehicle. For additional
information, refer to: (100-02 Jacking and
Lifting)
Jacking (Description and Operation),
Lifting (Description and Operation).
Vehicles with rear drum brakes
2. Detach the wheel speed sensor from the
wheel spindle on both sides.
Vehicles with rear disc brakes
3. Detach the wheel speed sensor from the
wheel spindle on both sides.
4. Detach the wheel speed sensor wiring
harness from the wheel speed sensor wiring
harness support bracket on both sides.
All vehicles
5. Disconnect the wheel speed sensor electrical
connector.
6. Detach the wheel speed sensor support
bracket and wheel speed sensor wiring
harness from the beam axle.
Discard the retaining clips.
2006.0 Fiesta 1212006 GI 83775en
procarmanuals.com

206-09C-5 Anti-Lock Control - Stability Assist 206-096-5
REMOVAL AND INSTALLATION
6. Disconnect the stability assist module
electrical connector.
11. Detach the HCU and stability assist module
assembly from the support bracket.
5. Detach the brake tubes from the bulkhead. 10. Remove the HCU and stability assist
7. Raise and support the vehicle. For additional
information, refer to Section
100-02 [Jacking 12. Remove the HCU to stability assist module
and Lifting]. retaining bolts.
i
8. Remove the HCU and stability assist module
support bracket lower retaining bolt. module
assembly and the support bracket.
9. Lower the vehicle.
13. Remove the HCU.
Installation
I. To install, reverse the removal procedure.
--- -- - --
2006.0 Fiesta 1212006 ~327341 en
procarmanuals.com

206-096-1 3 Anti-Lock Control - Stability Assist 206-09C-13
REMOVAL AND INSTALLATION
5. Detach the brake tubes from the bulkhead. 10. Remove the HCU and stability assist
module assembly and the support bracket.
6. Disconnect the stability assist module
electrical connector.
11. Detach the HCU and stability assist module
assembly from the support bracket.
7. Raise and support the vehicle. For additional
information, refer to Section
100-02 [Jacking 12. Remove the HCU to stability assist module
and Lifting]. retaining bolts.
8. Remove the HCU and stability assist module
support bracket lower retaining bolt.
9. Lower the vehicle.
13. Remove the stability assist module.
Installation
I. To install, reverse the removal procedure.
2006.0 Fiesta 1212006 G327320en
procarmanuals.com

21 1-00-1 5 Steering System - General Information 21 I -00-1 5
DIAGNOSIS AND TESTING
2. With the road wheels in the straight ahead
position, gently turn the steering wheel to the
1 left and the right to check free play in the
steering linkage.
3. There should be no excessive free play at the
steering wheel rim. If there is excessive free
play, CHECK the tie-rod inner and outer ball
joints, REFER to Tie-Rod Component Test in
this procedure. CHECK the steering column
universal joint, REFER to Steering Column
Universal Joint Component Test in this
procedure. If there is no free play in the tie-rod
and the steering column, install a new steering
gear.
REFER to: Steering Gear (211-02 Power
Steering, Removal and installation).
Tie-Rod
A CAUTI0N:The steering gear boots must be
handled carefully to avoid damage. Use
new steering gear boot clamps when
installing the steering gear boots.
N0TE:Noises such as knocks, which may appear
to originate from the steering linkage, may also be
( , generated by front suspension components.
1. Raise and support the vehicle. REFER to:
(1 00-02 Jacking and Lifting)
Jacking (Description and Operation),
Lifting (Description and Operation).
3m ACAUTION:T~ prevent damage to the
steering linkage, turn the steering wheel to move the steering linkage to the steering
lock stop.
Turn the steering wheel to position the steering
linkage against the right-hand steering lock stop.
4. N0TE:To isolate the steering gear design
clearance, check the right-hand tie-rod with
the steering held against the right-hand
steering lock stop.
With the aid of another technician holding the
steering against the right-hand steering lock
stop, firmly grasp the right-hand road wheel and
apply a rocking motion to check for any free play
in the tie-rod.
5. Detach the steering gear boot from the steering
gear body and check for free play at the tie-rod
inner ball joint.
2. Firmly grasp the road wheel and apply a rocking 6. If there is free play at the tie-rod inner ball joint,
motion to check for any free play in the wheel
install a new tie-rod.
bearing or suspension components.
REFER to: Tie Rod (211-03 Steering Linkage,
Removal and installation).
7. If there is free play at the tie-rod end, install a
new tie-rod end.
REFER to: Tie Rod End (21 1-03 Steering
Linkage, Removal and Installation).
2006.0 Fiesta 1212006 GI 49906en
procarmanuals.com

211 -00-1 8 Steering System - General Information 211 -00-1 8
DIAGNOSIS AND TESTING
Steering Gear Checks After a Collision
f
system REFER to: Steering Gear (211-02 Power
The following list of steering gear conditions and
Steering, Removal and Installation).
the methods
of testing should be taken into ~CCOU~~ 2. Check the tightening torque of the tiemrod end when carrying out checks to the steering system:
to wheel knuckle nut.
General
Equipment TIE-RODS (.
If
the steering gear has no faults after
REFER to: Tie Rod End (21 1-03 Steering
completing the following checks, do not install
Linkage, Removal and Installation).
a new steering gear.
3. Check the tightening torque of the tie-rod end
Surface corrosion and marks on the tie-rod are
locking nut.
acceptable.
When checking for turning effort torque peaks REFER to: Tie
Rod End
(211-03 Steering
in the steering gear, turn the steering wheel from Linkage,
Removal and lnstallation).
Feeler gauge
Straight edge
steering lock-stop to steering lock
stop in CHECK FOR TURNING EFFORT TORQUE
approximately 15 seconds. PEAKS
IN THE STEERING GEAR
1.
Using a straight edge and feeler gauge, check
the tie-rods to see if they are straight. If the
distance between the tie-rod and straight edge
A steady increase of turning effort torque from
steering center to steering lock stop is
acceptable.
When checking for power steering fluid leaks,
turn the steering wheel to the steering lock stop
in approximately
10 seconds.
Noises from the power steering, for example
the power steering pump relief valve, are
acceptable. is
greater than 0.5 mm, install a new steering
Items to be observed when checking the steering gear.
STEERING GEAR HOUSING
I. Raise and support the vehicle.
REFER to: Lifting
(1 00-02 Jacking and Lifting,
Description and Operation).
2. Visually inspect the steering gear housing for
cracks and damage. If the steering gear housing
is cracked or damaged, install a new steering
gear.
REFER to: Steering Gear
(21 1-02 Power
Steering, Removal and lnstallation).
1. Lower and support the vehicle making sure that
the road wheels are just clear of the floor.
2. With the ignition switch in position
I, slowly turn
the steering wheel from steering lock stop to
steering lock stop. If a turning effort torque peak
or judder is felt while turning the steering wheel,
detach the tie-rods from the wheel knuckles.
3. Slowly turn the steering wheel from steering
lock stop to steering lock stop. If a turning effort
torque peak or judder is felt while turning the
steering wheel, install a new steering gear.
REFER to: Steering Gear
(211-02 Power
Steering, Removal and lnstallation).
CHECK FOR POWER STEERING FLUID LEAKS
1. Lower the vehicle.
2. Run the engine at a fast idle and slowly turn the
steering wheel to the left-hand steering lock
stop. Hold the steering wheel in this position for
5 seconds with a turning effort torque of
15 Nm
at the steering wheel rim.
3. Turn the steering wheel away from the left-hand
steering lock stop for 30 seconds.
4. Run the engine at a fast idle and slowly turn the
steering wheel to the right-hand steering lock
stop. Hold the steering wheel in this position for
5 seconds with a turning effort torque of
15 Nm '
at the steering wheel rim. (\,
2006.0 Fiesta 1212006 ~538091 en
procarmanuals.com

21 1 -00-20 Steering System - General Information 21 1-00-20
GENERAL PROCEDURES
Power Steering System Filling(l3 002 0)
Special Tool(s)
Adapter, Power Steering
Bleeding
211-189 (13-016)
I ( Hand Vacuum
Refill
"%s a3
1. N0TE:When filling the power steering fluid
reservoir, make sure that the power steering
fluid is clean and not agitated prior to use.
The power steering fluid should be poured
slowly into the reservoir to minimize the
possibility of aeration. The power steering
fluid level should be checked with the power
steering fluid cold.
PumpIPressure Pump
41 6-DO01 (23-036A)
Fill the power steering fluid reservoir to the
MAX mark with the appropriate power
steering fluid.
For additional information, refer to:
Specifications (211-00 Steering System
-
General Information, Specifications).
2. Raise and support the vehicle making sure
that the road wheels are just clear of the
floor. For additional information, refer to:
(1 00-02 Jacking and Lifting)
Jacking (Description and Operation),
Lifting (Description and Operation).
3.
N0TE:Do not start the engine at this stage.
N0TE:Make sure that the power steering fluid in
the power steering fluid reservoir does not fall
below the MIN mark,
as air could enter the system.
Slowly turn the steering wheel from lock to
lock and add power steering fluid until the
power steering fluid in the power steering
fluid reservoir stops dropping. 4.
N0TE:Make sure that
the power steering fluid \.
in the power steering fluid reservoir does
not fall below the MIN mark, as air could
enter the system.
Start the engine and slowly turn the steering
wheel from lock to lock and add power
steering fluid until the power steering fluid
in the power steering fluid reservoir stops
dropping.
5. Switch the engine OFF and using the special
tools, create a vacuum of
62cm-Hg - 75cm-Hg
for 30 seconds.
6. Observe the vacuum gauge reading.
If the vacuum decreases by more than
5cm-Hg
in 5 minutes, the system should be
checked for leaks.
7. Remove the special tools. Fill the power
steering fluid reservoir to the
MAX mark with
the appropriate power steering fluid as
necessary.
For additional information, refer to:
Specifications (211 -00 Steering System
-
General Information, Specifications).
8. Lower the vehicle.
2006.0 Fiesta 1212006 GI 7562en
procarmanuals.com
