303-01 B-86 Engine - 2.OL Duratec-HE (M14) 303-01 B-86
DISASSEMBLY
15. Disconnect the exhaust gas recirculation 18. Disconnect the heated oxygen (H20S)
(EGR) valve electrical connector. sensor electrical connector. f
16. Disconnect the electronic ignition (El) 19. Disconnect the throttle body (TB) electrical
electrical connector. connector.
17. Disconnect the engine coolant temperature 20. Disconnect the intake manifold runner
(ECT) sensor electrical connector. control (IMRC) electrical connector.
2006.0 Fiesta 1212006 G451309en
procarmanuals.com

303-01 B-88 Engine - 2.OL Duratec-HE (M14) 303-01 B-88
DISASSEMBLY

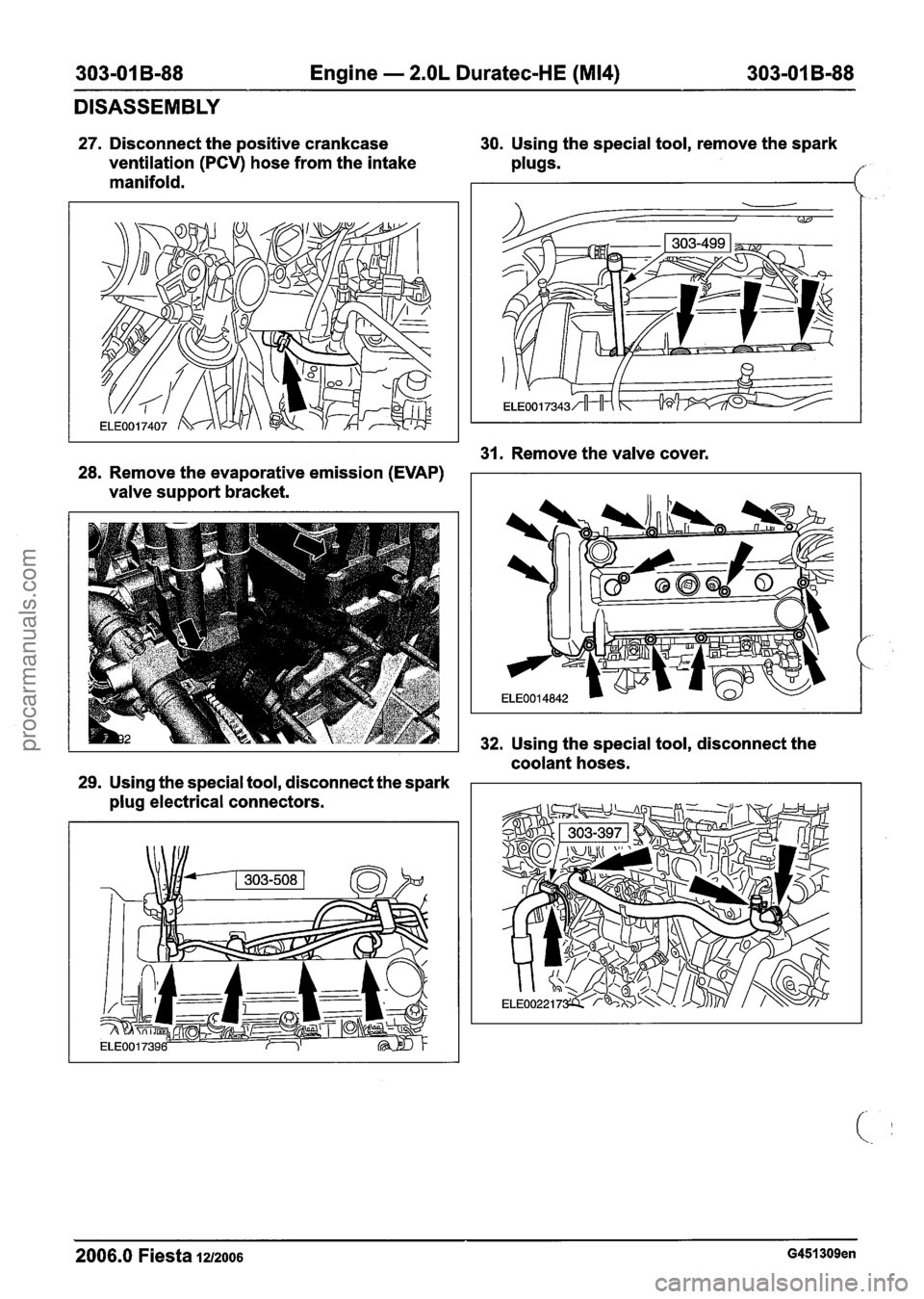

27. Disconnect the positive crankcase
ventilation
(PCV) hose from the intake
manifold. 30.
Using the special tool, remove the spark
plugs.
31. Remove the valve cover.
28. Remove the evaporative emission
(EVAP)
valve support bracket.
32. Using the special tool, disconnect the
coolant hoses.
29. Using the special tool, disconnect the spark
plug electrical connectors.
2006.0 Fiesta 1212006 G451309en
procarmanuals.com

303-01 B-89 Engine - 2.OL Duratec-HE (M14) 303-01 B-89
DISASSEMBLY

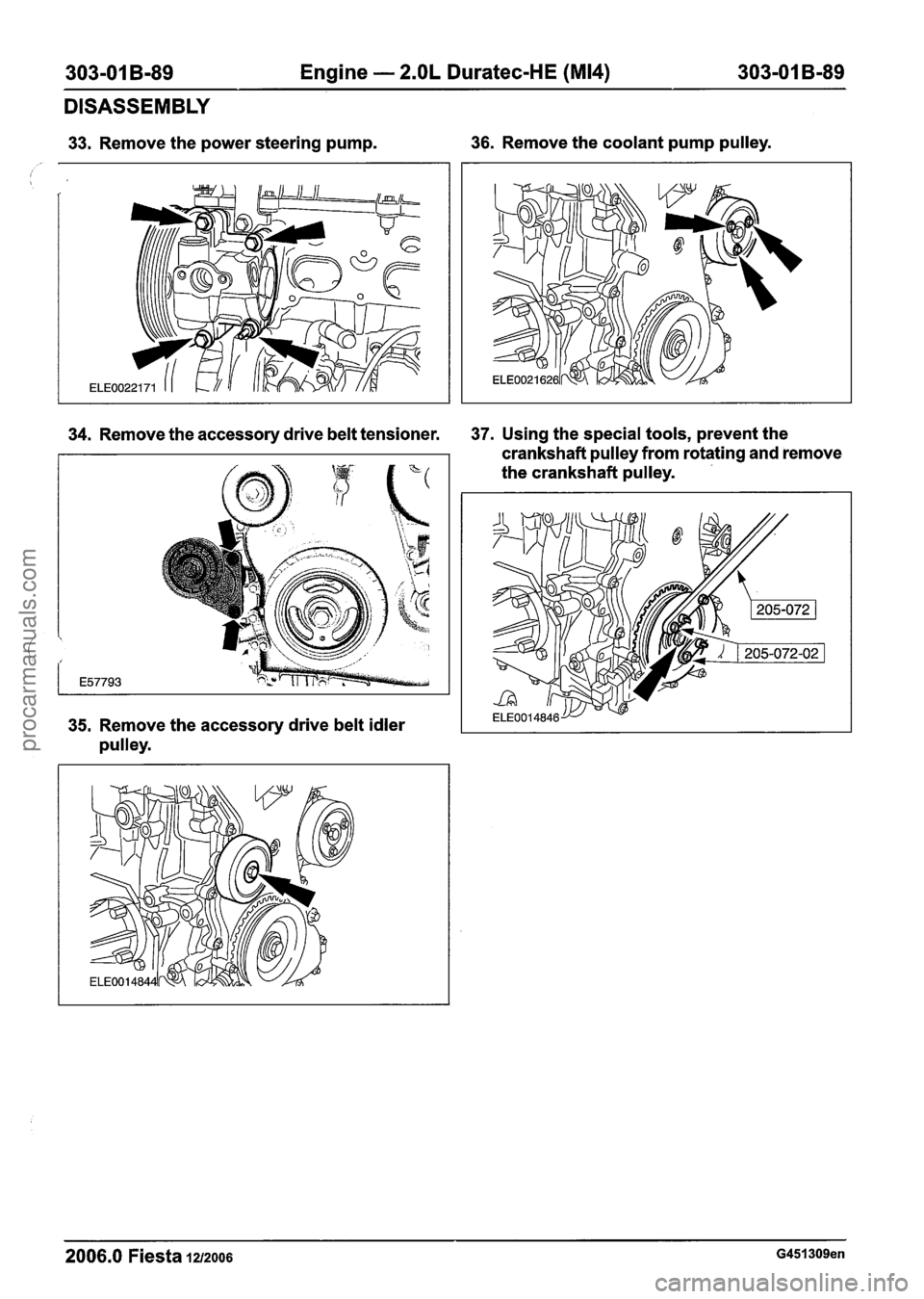

33. Remove the power steering pump. 36. Remove the coolant pump pulley.
34. Remove the accessory drive belt tensioner. 37. Using the special tools, prevent the
crankshaft pulley from rotating and remove
the crankshaft pulley.
35. Remove the accessory drive belt idler
pulley.
2006.0 Fiesta 1212006 G451309en
procarmanuals.com

303-01 B-92 Engine - 2.OL Duratec-HE (M14) 303-01 B-92
DISASSEMBLY
Discard the friction washer. Discard the gasket.
50. CAUTIONS: 53. Remove the knock sensor (KS).
A~eep the camshaft bearing caps in order I - -
for installation.
A~emove the camshaft bearing caps in the
sequence shown.
N0TE:Working in several stages, release each
camshaft bearing cap retaining bolt two turns at
a
time.
Remove the camshaft bearing caps.
Remove the camshafts.
' ACAUTION:K~~~ the valve tappets in
order for installation.
Remove the valve tappets.
52m ACAUTION:R~~~~~ the cylinder head
bolts in the sequence shown.
Remove the cylinder head.
54. Remove the coolant pump.
Discard the O-ring seal.
55. Remove the thermostat housing.
2006.0 Fiesta 1212006 G451309en
procarmanuals.com

303-01 B-97 Engine - 2.OL Duratec-HE (M14) 303-01 B-97
ASSEMBLY
11. lnstall the clutch disc and pressure plate. 15. N0TE:lnstall a
new thermostat housing
'. For additional information, refer to: Clutch gasket.
Disc and Pressure Plate (308-01 Clutch, Install
the thermostat housing.
Removal and Installation).
12.
N0TE:lnstall a new oil filter adapter gasket.
lnstall the oil filter adapter.
13. lnstall the crankcase vent oil separator. 16.
N0TE:lnstall a
new coolant pump O-ring.
lnstall the coolant pump.
17.
N0TE:lnstall new cylinder head bolts and
gasket.
14.
N0TE:Rotate the knock sensor (KS) as far Install
the cylinder head.
counter-clockwise as possible without
it Tighten the cylinder head bolts in five stages. touching the crankcase vent oil separator. Stage I: 5 Nm.
lnstall the KS. stage 2: 15 Nm.
Stage 3: 45 Nm.
Stage 4: 90 degrees.
2006.0 Fiesta 1212006 G451310en
procarmanuals.com

303-01 B-I 04 Engine - 2.OL Duratec-HE (M14) 303-01 B-I 04
ASSEMBLY
51. Remove the crankshaft pulley securing bolt. 2. Insert the alignment tool supplied, so that it
is hooked in the crankshaft pulley teeth.
I
52. Remove the special tool.
53. Install the cylinder block lower blanking
plug9
54. N0TE:When installing a new crankshaft
pulley or engine front cover, the crankshaft
position
(CKP) sensor must be aligned
using the alignment tool supplied with the
new component.
N0TE:Do not tighten the bolts at this stage.
Align the CKP sensor.
1.
Loosen the CKP sensor retaining bolts.
55. Install the CKP sensor.
I. Tighten the CKP sensor retaining bolts.
2. Remove the alignment tool.
56. Install the coolant pump pulley.
2006.0 Fiesta 1212006 G451310en
procarmanuals.com

303-01 B-I 06 Engine - 2.OL Duratec-HE (M14) 303-01 B-106
ASSEMBLY
63. Using the special tool, connect the spark 66. Connect the positive crankcase ventilation
plug electrical connectors.
(PCV) hose to the intake manifold.
{-
64. Install the power steering pump. 67. Install the intake manifold.
65. Using the special tool, install the coolant 68. Install the oil level indicator tube and oil
hoses. level indicator.
69. N0TE:lnstall a new exhaust manifold
gasket.
N0TE:Do not tighten the exhaust manifold
retaining nuts at this stage.
2006.0 Fiesta 1212006 G451310en
procarmanuals.com

303-01 B-I08 Engine - 2.OL Duratec-HE (M14) 303-01 B-108
ASSEMBLY
75. Connect the heated oxygen (HZOS) sensor 78. Connect the exhaust gas recirculation
electrical connector. (EGR)
valve electrical connector.
('
76. Connect the engine coolant temperature 79. Connect the camshaft position (CMP)
(ECT) sensor electrical connector. sensor electrical connector.
77. Connect the electronic ignition (El) 80.
Connect the fuel injector electrical
electrical connector. connectors.
2006.0 Fiesta 1212006 G451310en
procarmanuals.com

303-01 B-I17 Engine - 2.OL Duratec-HE (M14) 303-01 B-117
INSTALLATION
37. Using the special tool, connect the steering
Connect the clutch slave cylinder supply
gear to power steering fluid reservoir return
line.
I I line to the power steering fluid reservoir. Install the spring clip.
38.
Attach the steering gear to power steering 41. Connect the reversing lamp switch
fluid reservoir return line support bracket
electrical connector.
to the generator.
42. Lower the vehicle.
39. Connect the A/C low pressure switch
connector. 43. Install the coolant expansion tank.
40a &AUTION:I~ brake fluid is spilt on the
paintwork, the affected area must be
immediately washed down with cold water.
N0TE:Make sure the spring clip is correctly seated.
2006.0 Fiesta 1212006 ~451291 en
procarmanuals.com

303-01 B-1/19 Engine - 2.OL Duratec-HE (M14) 303-01 B-119
INSTALLATION
50. Connect the brake booster vacuum line to
53. Tighten the strut and spring assembly top
the intake manifold. mount nuts.
/
51. Attach the evaporative emission (EVAP)
valve from EVAP valve support bracket.
I. Connect the EVAP valve electrical connector.
2. Connect the low pressure line to the EVAP
valve.
3. Push the EVAP valve onto the support
bracket.
52. Using the special tool, connect the coolant
hose to the coolant outlet connector. 54.
Install the right-hand
headlamp assembly.
For additional information, refer to:
Headlamp Assembly (41 7-01 Exterior
Lighting, Removal and Installation).
55. Attach the exhaust flexible pipe to the
exhaust manifold.
For additional information, refer to: Exhaust
Flexible Pipe
- 2.OL Duratec-HE (M14)
(309-00 Exhaust System, Removal and
Installation).
56. Install the cooling fan motor and shroud.
2006.0 Fiesta 1212006 ~451291 en
