FORD FIESTA 2007 Workshop Manual

303-01 B-49 Engine - 2.OL Duratec-HE (M14) 303-01 B-49
IN-VEHICLE REPAIR

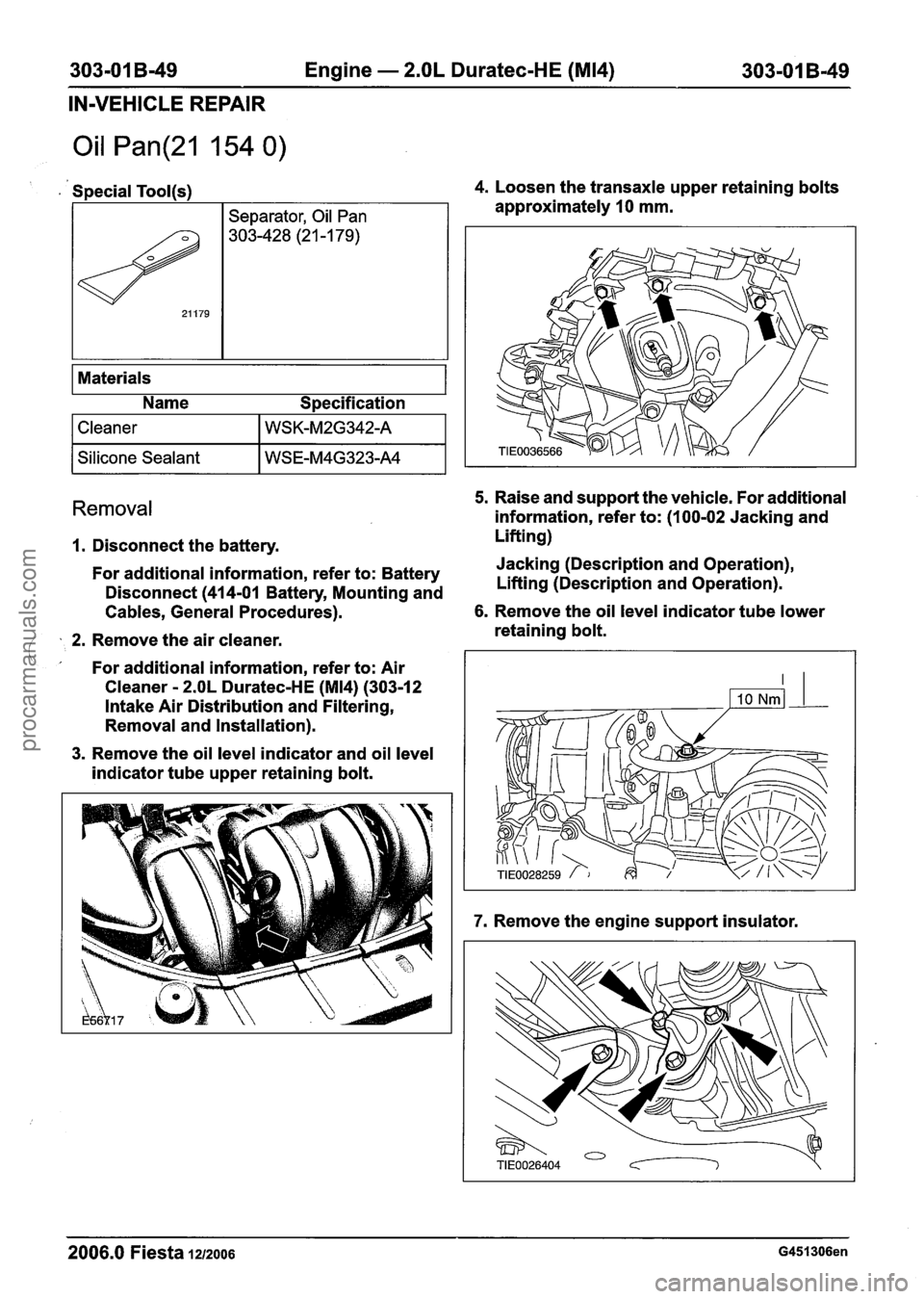

Oil Pan(21 154 0)
Materials
Name Specification
. Special Tool(s) 4. Loosen the transaxle upper retaining bolts
1 Cleaner I WSK-M2G342-A I
I Silicone Sealant I WSE-M4G323-A4 I
approximately 10 mm.
/ 21 179
Removal
1. Disconnect the battery.
Separator, Oil Pan
303-428 (21 -1
79)
5. Raise and support the vehicle. For additional
information, refer to: (100-02 Jacking and
Lifting)
-
For additional information, refer to: Battery Jacking
(Description and Operation),
Disconnect
(414-01 Battery, Mounting and Lifting
(Description and Operation).
Cables, General Procedures).
2. Remove the air cleaner.
' For additional information, refer to: Air
Cleaner
- 2.OL Duratec-HE (M14) (303-12
Intake Air Distribution and Filtering,
Removal and Installation).
3. Remove the oil level indicator and oil level
indicator tube upper retaining bolt.
6. Remove the oil level indicator tube lower
retaining bolt.
7. Remove the engine support insulator.
2006.0 Fiesta 1212006 G451306en
procarmanuals.com

303-01 B-50 Engine - 2.OL Duratec-HE (M14) 303-01 B-50 -
IN-VEHICLE REPAIR

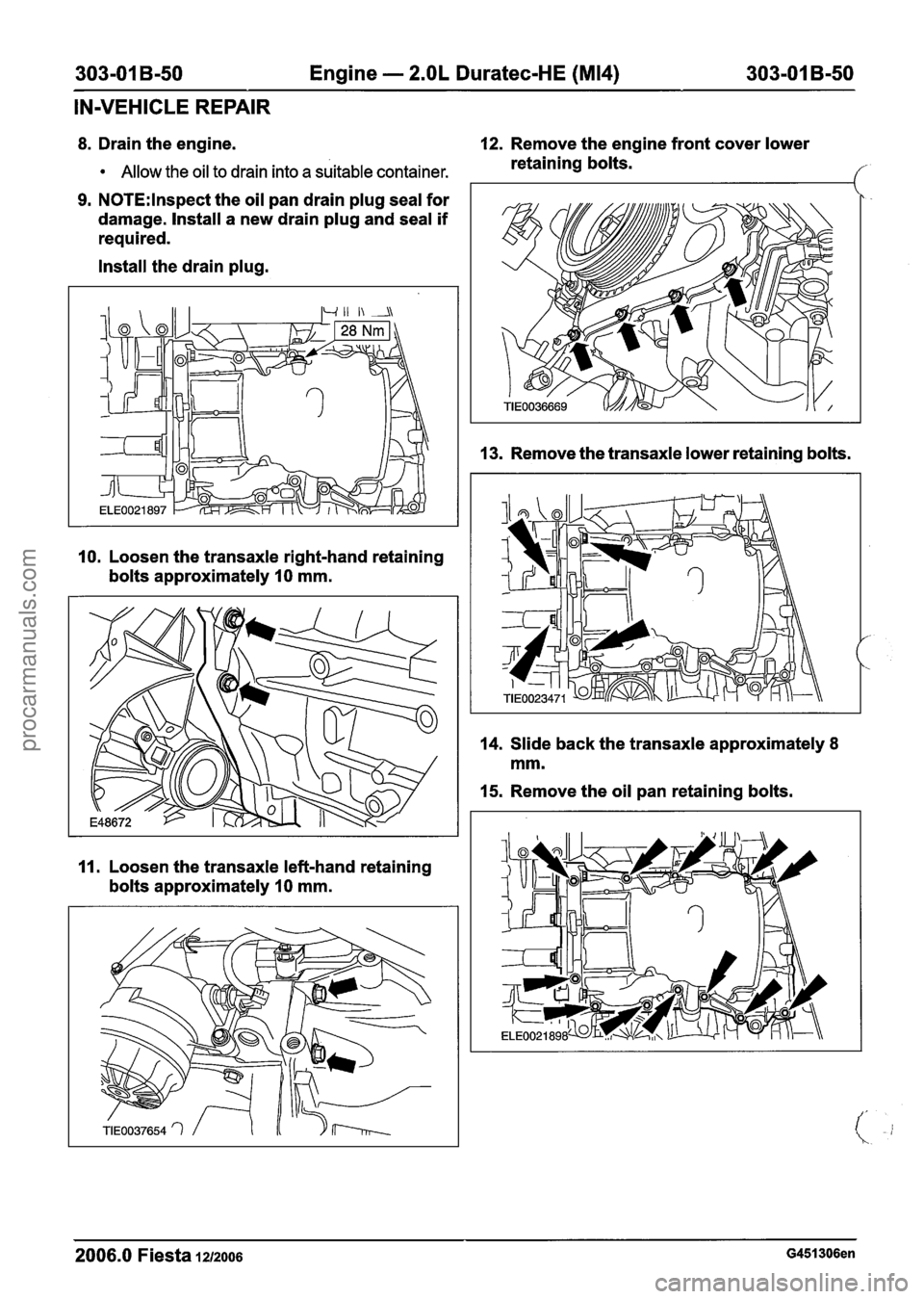

8. Drain the engine. 12. Remove the engine front cover lower
Allow the oil to drain into a suitable container. retaining bolts. //
9. N0TE:lnspect the oil pan drain plug seal for
damage. Install a new drain plug and seal if
required.
lnstall the drain plug.
10. Loosen the transaxle right-hand retaining
bolts approximately
10 mm.
11. Loosen the transaxle left-hand retaining
bolts approximately 10 mm. 13.
Remove the transaxle lower retaining bolts.
14. Slide back the transaxle approximately
8
mm.
15. Remove the oil pan retaining bolts.
2006.0 Fiesta 1212006 G451306en
procarmanuals.com

303-01 B-51 Engine - 2.OL Duratec-HE (M14) 303-01 B-51
IN-VEHICLE REPAIR
16. Using the special tool, remove the oil pan. Install the
oil pan.
1
Installation 5. N0TE:Do not tighten the transaxle lower
retaining bolts at this stage.
I. Clean the mating faces of the cylinder block,
Install the transaxle lower retaining bolts.
the oil pan and the engine front cover with
cleaner.
2. Apply a 3 mm bead of sealant to the oil pan.
3. N0TE:lnstall the oil pan within 10 minutes
of applying the silicone sealant and tighten
the retaining bolts within a further
5 minutes.
Apply a 3 mm bead of sealant to the oil pan.
4. N0TE:Do not tighten the oil pan retaining
bolts at this stage. 6.
Install the engine front cover lower retaining
bolts.
2006.0 Fiesta 1212006 G451306en
procarmanuals.com

303-01 B-52 Engine - 2.OL Duratec-HE (M14) 303-01 B-52
IN-VEHICLE REPAIR

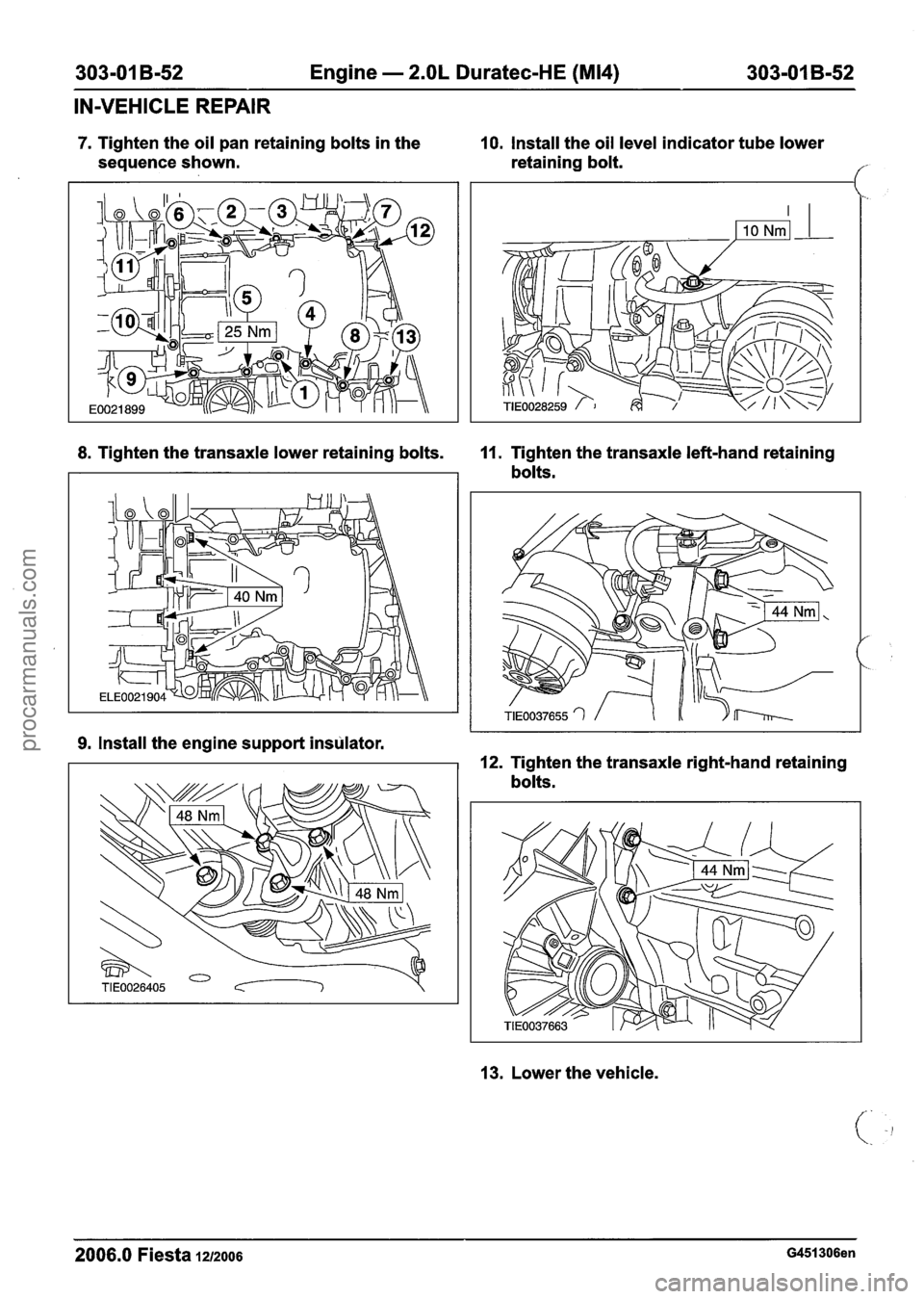

7. Tighten the oil pan retaining bolts in the 10. Install the oil level indicator tube lower
sequence shown. retaining bolt.
f'
8. Tighten the transaxle lower retaining bolts. 11. Tighten the transaxle left-hand retaining
bolts.
9. Install the engine support insulator.
12. Tighten the transaxle right-hand retaining
bolts.
13. Lower the vehicle.
2006.0 Fiesta 1212006 G451306en
procarmanuals.com

303-01 B-53 Engine - 2.OL Duratec-HE (M14) 303-01 B-53
IN-VEHICLE REPAIR

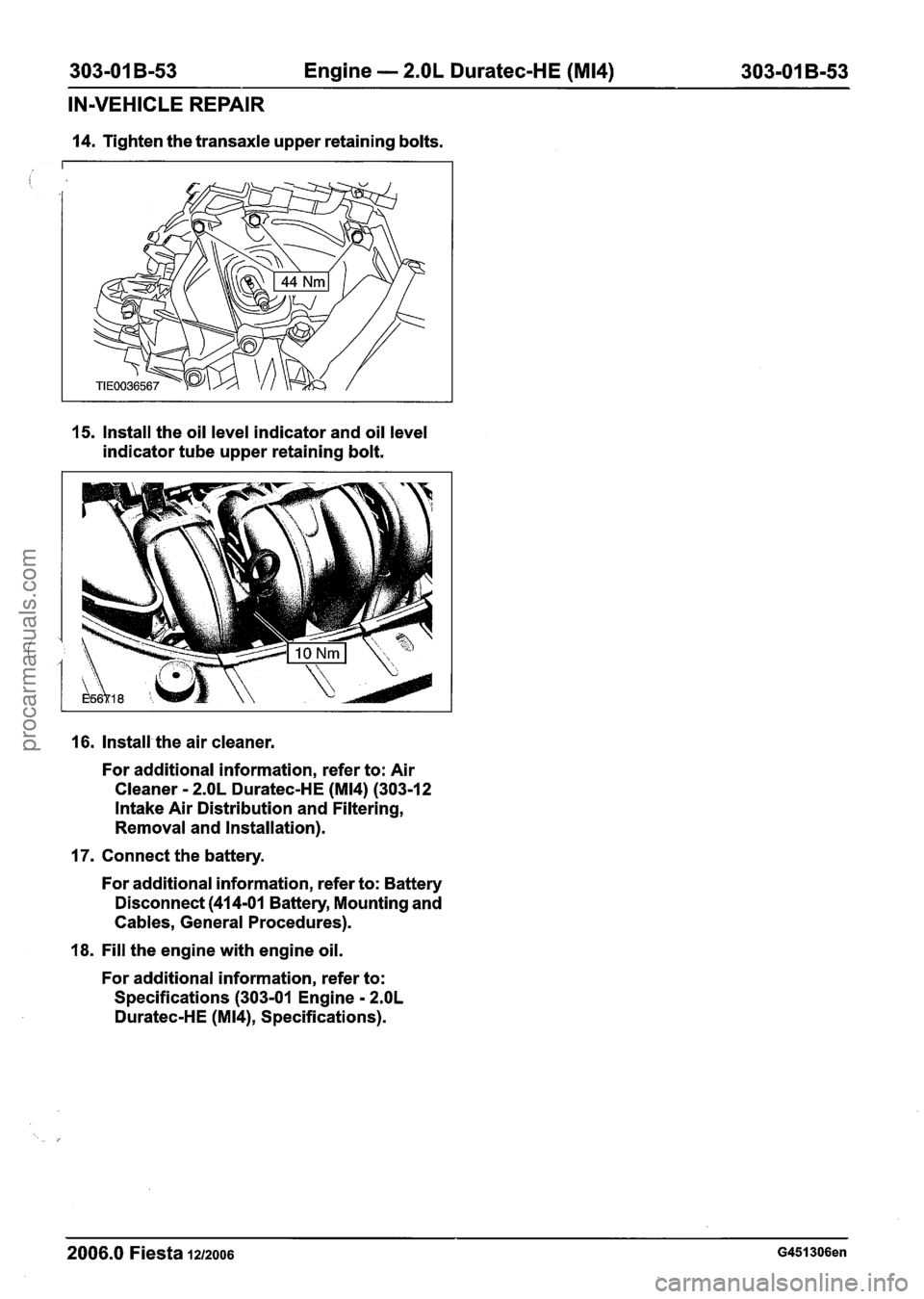

14. Tighten the transaxle upper retaining bolts.
15. Install the oil level indicator and oil level
indicator tube upper retaining bolt.
16. Install the air cleaner.
For additional information, refer to: Air
Cleaner
- 2.OL Duratec-HE (M14) (303-12
Intake Air Distribution and Filtering,
Removal and Installation).
17. Connect the battery.
For additional information, refer to: Battery
Disconnect
(414-01 Battery, Mounting and
Cables, General Procedures).
18. Fill the engine with engine oil.
For additional information, refer to:
Specifications
(303-01 Engine - 2.OL
Duratec-HE (M14), Specifications).
2006.0 Fiesta 1212006 G451306en
procarmanuals.com

303-01 B-54 Engine - 2.OL Duratec-HE (M14) 303-01 B-54
IN-VEHICLE REPAIR

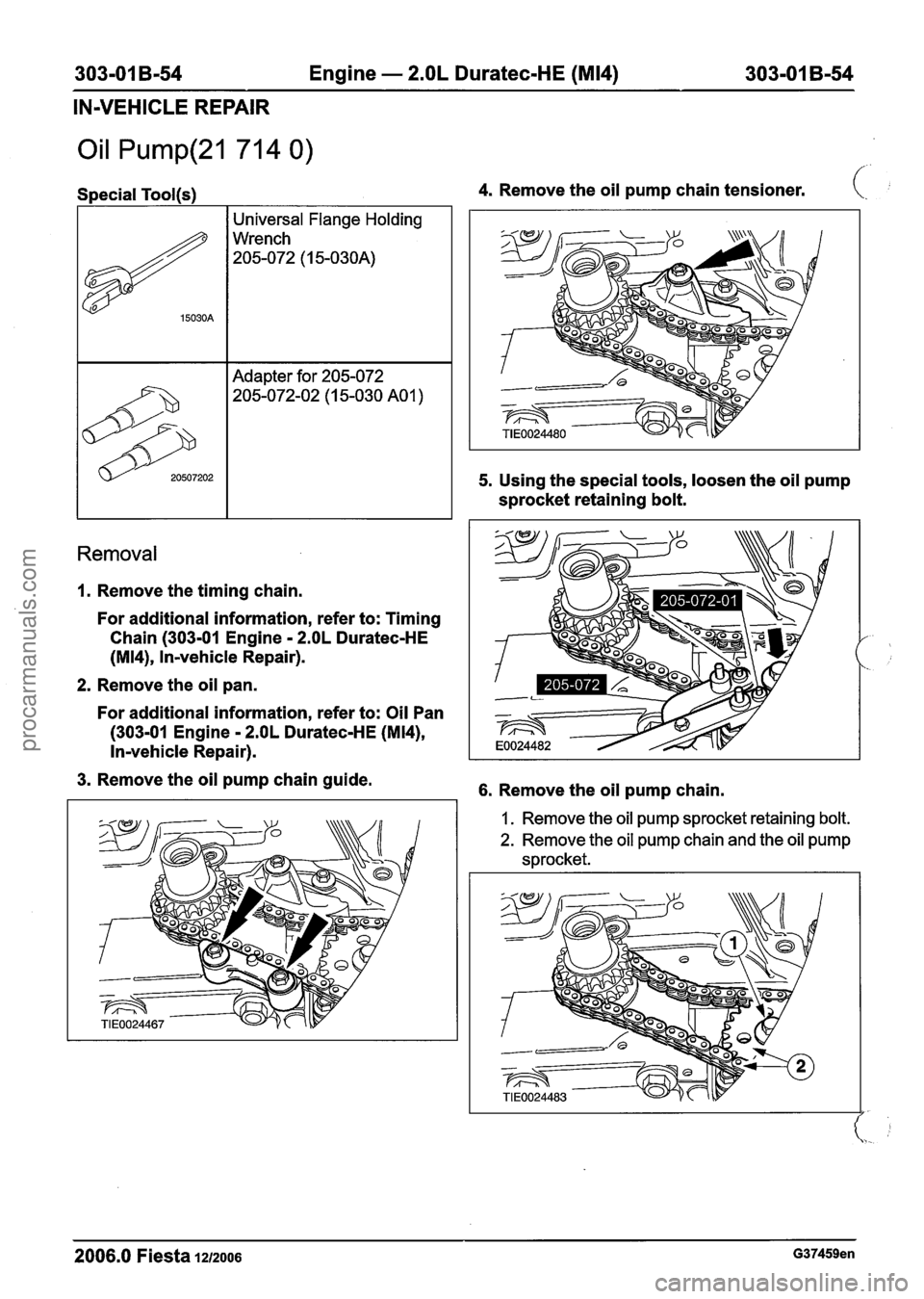

Oil Pump(21 714 0)
Special Tool(s)
15030A
Removal
Universal Flange Holding
Wrench 205-072 (1 5-03OA)
20507202
1. Remove the timing chain.
Adapter for 205-072
205-072-02 (1 5-030
A0 1 )
For additional information, refer to: Timing
Chain (303-01 Engine
- 2.OL Duratec-HE
(M14), Invehicle Repair).
2. Remove the oil pan.
For additional information, refer to: Oil Pan
(303-01 Engine
- 2.OL Duratec-HE (M14),
Invehicle Repair).
3. Remove the oil pump chain guide. 4.
Remove the oil pump chain tensioner.
(.
5. Using the special tools, loosen the oil pump
sprocket retaining bolt.
6. Remove the oil pump chain.
1. Remove the oil pump sprocket retaining bolt.
2. Remove the oil pump chain and the oil pump
sprocket.
2006.0 Fiesta 1212006 G37459en
procarmanuals.com

303-01 B-55 Engine - 2.OL Duratec-HE (M14) 303-01 B-55
IN-VEHICLE REPAIR

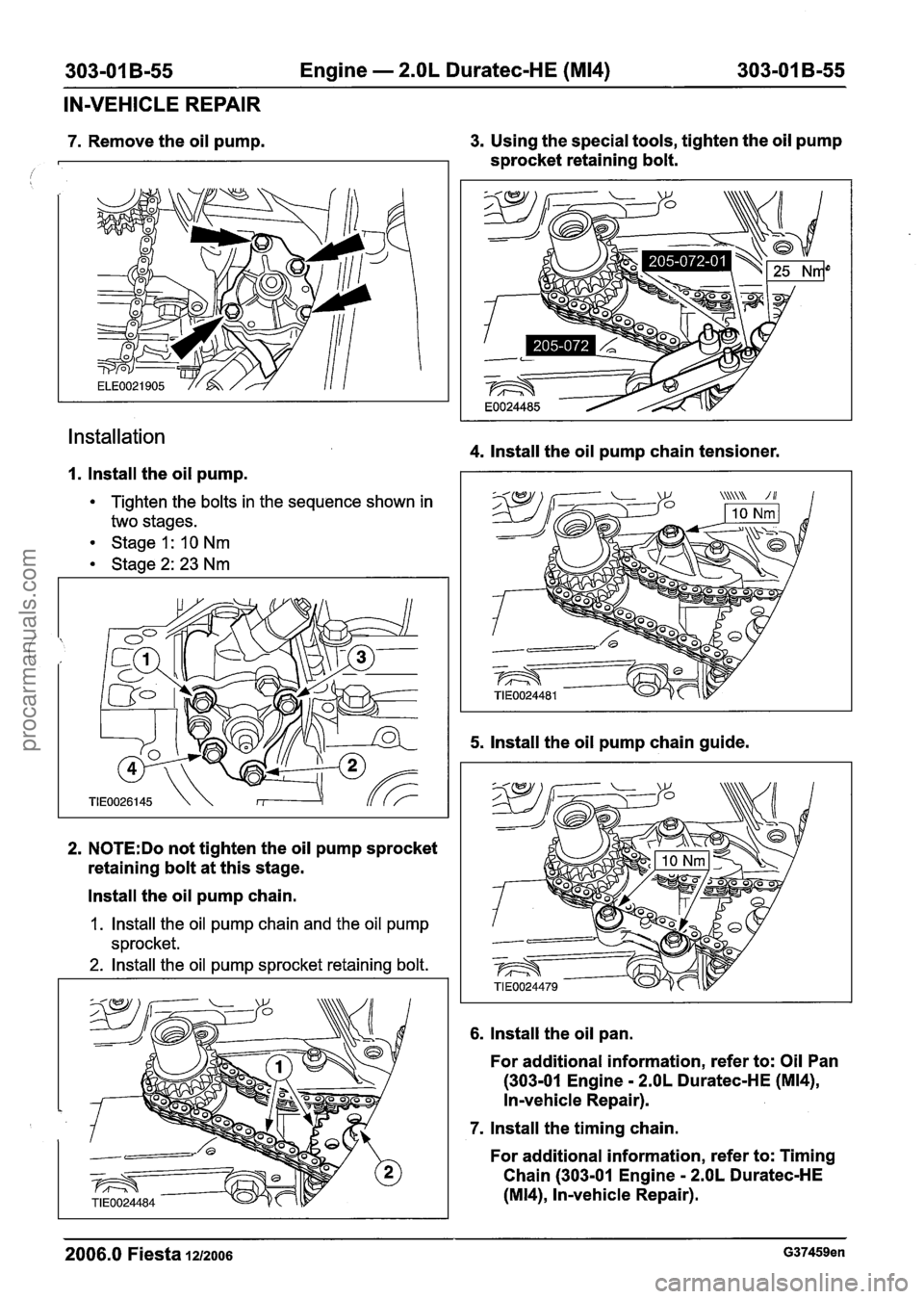

7. Remove the oil pump. 3.
Using the special tools, tighten the oil pump
sprocket retaining bolt.
Installation 4. Install the oil pump chain tensioner.
I. lnstall the oil pump.
Tighten the bolts in the sequence shown in
two stages.
Stage
I : 10 Nm
Stage
2: 23 Nm
2. N0TE:Do not tighten the oil pump sprocket
retaining bolt at this stage.
lnstall the oil pump chain.
1. lnstall the oil pump chain and the oil pump
sprocket.
2. lnstall the oil pump sprocket retaining bolt.
5. Install the oil pump chain guide.
6. lnstall the oil pan.
For additional information, refer to: Oil Pan
(303-01 Engine
- 2.OL Duratec-HE (M14),
In-vehicle Repair).
7. lnstall the timing chain.
For additional information, refer to: Timing
Chain (303-01 Engine
- 2.OL Duratec-HE
(M14), Invehicle Repair).
2006.0 Fiesta i212006 G37459en
procarmanuals.com

303-01 B-56 Engine - 2.OL Duratec-HE (M14) 303-01 B-56
IN-VEHICLE
REPAIR

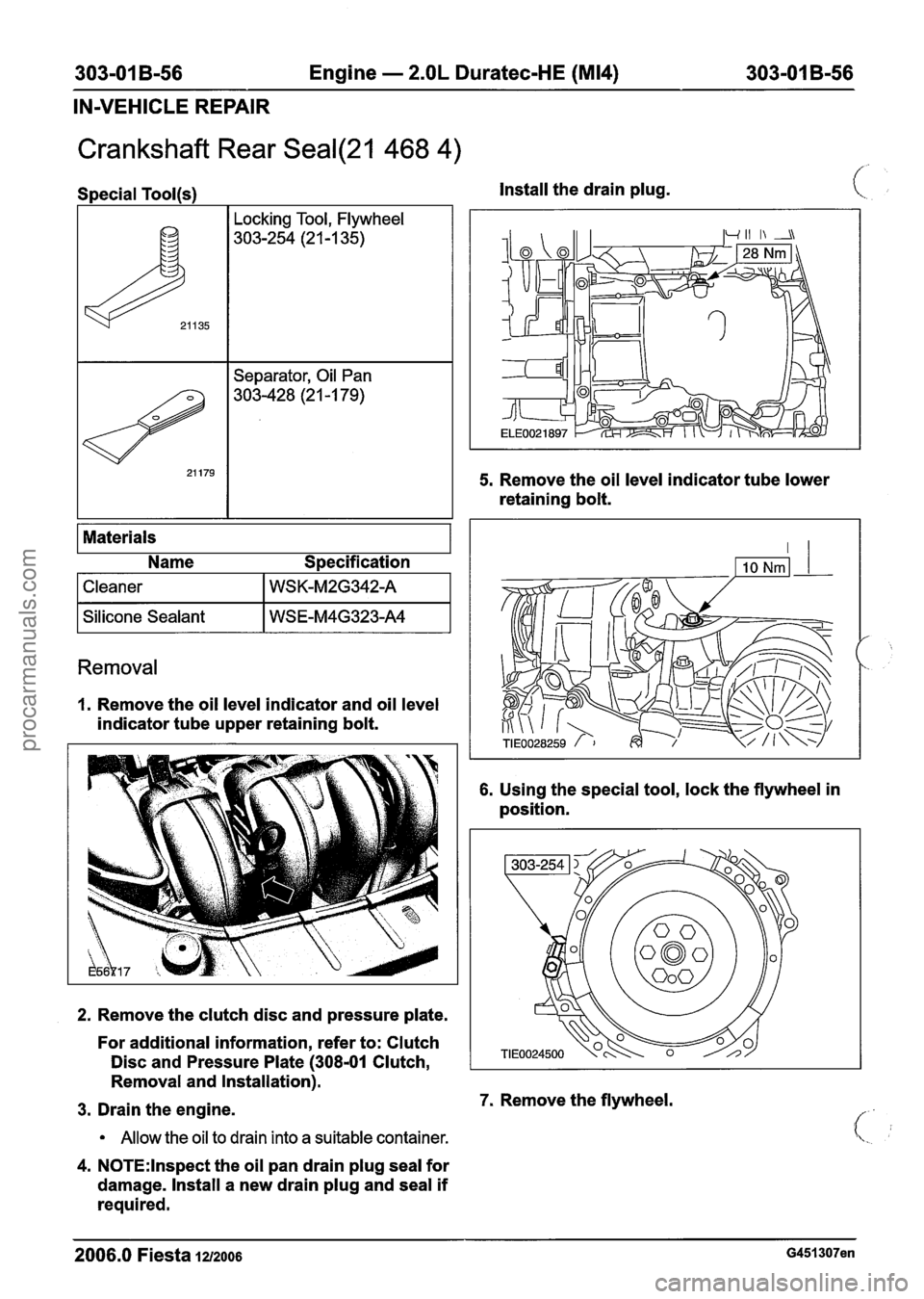

Crankshaft Rear Seal(21 468 4)
Special Tool(s) Install the drain plug.
Materials Name
S~ecification
1 Cleaner I WSK-M2G342-A I
5. Remove the oil level indicator tube lower
retaining bolt.
- -
d 21 135
4 21 179
I Silicone Sealant I WSE-M4G323-A4 I
Locking Tool, Flywheel
303-254 (2 1 -1 35)
Separator, Oil Pan
303-428 (21 -1
79)
Removal
1. Remove the oil level indicator and oil level
indicator tube upper retaining bolt.
2. Remove the clutch disc and pressure plate.
For additional information, refer to: Clutch
Disc and Pressure Plate
(308-01 Clutch,
Removal and Installation).
3. Drain the engine.
Allow the oil to drain into a suitable container.
4. N0TE:lnspect the oil pan drain plug seal for
damage. Install a new drain plug and seal
if
required.
6. Using the special tool, lock the flywheel in
position.
7. Remove the flywheel.
2006.0 Fiesta 1212006 G451307en
procarmanuals.com

303-01 B-57 Engine - 2.OL Duratec-HE (M14) 303-01 B-57
IN-VEHICLE REPAIR

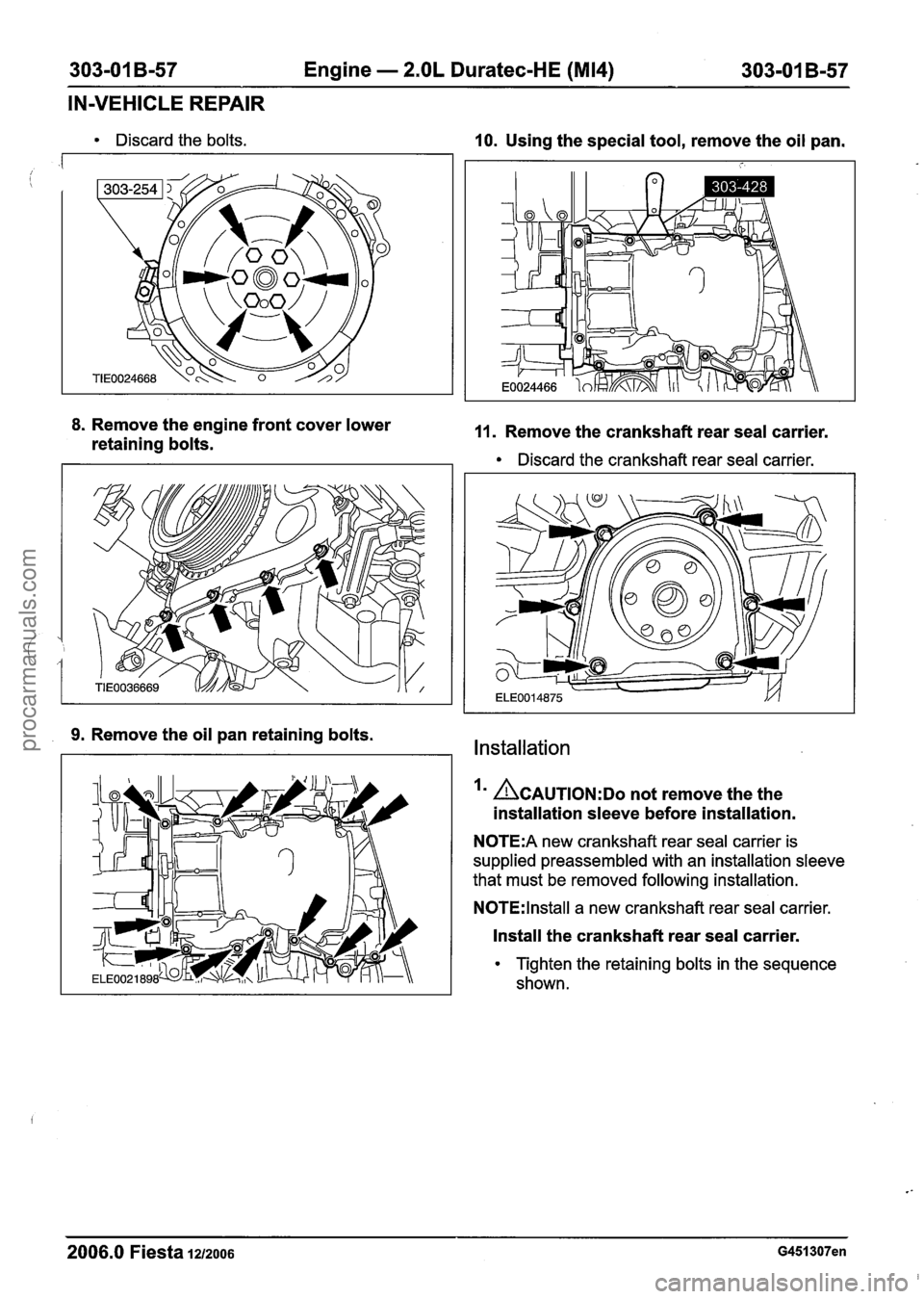

Discard the bolts. 10. Using the special tool, remove the oil pan.
8. Remove the engine front cover lower 11. Remove the crankshaft rear seal carrier.
retaining bolts.
Discard the crankshaft rear seal carrier.
9. Remove the oil pan retaining bolts. Installation
Irn &AUTION:DO not remove the the
installation sleeve before installation.
N0TE:A new crankshaft rear seal carrier is
supplied preassembled with an installation sleeve
that must be removed following installation.
N0TE:lnstall a new crankshaft rear seal carrier.
Install the crankshaft rear seal carrier.
Tighten the retaining bolts in the sequence
shown.
2006.0 Fiesta 1212006 G451307en
procarmanuals.com

303-01 B-58 Engine - 2.OL Duratec-HE (M14) 303-01 B-58
IN-VEHICLE REPAIR
Discard the installation sleeve. Install the oil pan.
2. Clean the mating faces oft he cylinder blocks 6. Install the engine front cover lower retaining the oil pan and the engine front cover with
bolts.
cleaner.
3. Apply a 3 mm bead of sealant to the oil pan.
7. Tighten the oil pan retaining bolts in the
sequence shown.
4. N0TE:lnstall the oil pan within 10 minutes
of applying the silicone sealant and tighten
the retaining bolts within
a further 5 minutes.
Apply a
3 mm bead of sealant to the oil pan.
5. N0TE:Do not tighten the retaining bolts at
this stage.
8. N0TE:lnstall new flywheel retaining bolts.
N0TE:Do not tighten the flywheel retaining bolts
at this stage.
2006.0 Fiesta 1212006 G451307en
