Engine - 1.25L Duratec-1 6V (Sigma)llm4L
303-01 A-I 04
Duratec-1 6V (Sigma)ll .6L Duratec-1 6V (Sigma) 303-01 A-I 04
DISASSEMBLY
All vehicles Remove the special tools.

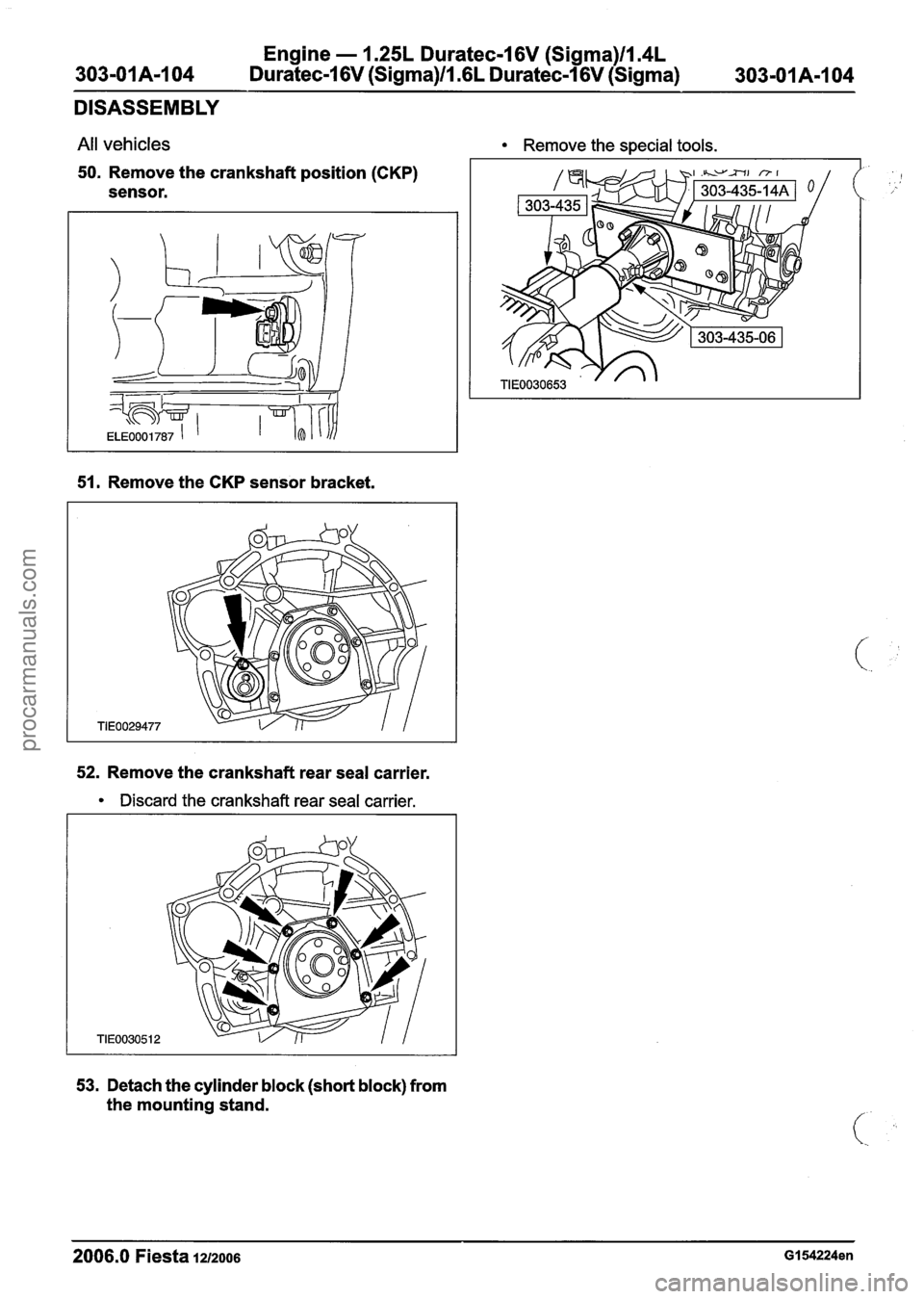

50. Remove the crankshaft position (CKP)
sensor.
51. Remove the CKP sensor bracket.
52. Remove the crankshaft rear seal carrier.
Discard the crankshaft rear seal carrier.
53. Detach the cylinder block (short block) from
the mounting stand.
2006.0 Fiesta 1212006 GI 54224en
procarmanuals.com
Page 581 of 1226

Engine - 1.25L Duratec-1 6V (Sigma)ll.4L
303-01 A-1 05 Duratec-1 6V (Sigma)/l .6L
Duratec-1 6V (Sigma) 303-01 A-1 05
DISASSEMBLY AND ASSEMBLY
OF SUBASSEMBLIES
Cylinder Head(21 165 6)
' Disassembly 5. Remove the fuel supply manifold.
I. Disconnect the temperature and manifold Discard the O-ring seals.
absolute pressure (T-MAP) sensor electrical
connector.
2. Disconnect the throttle plate control motor
(DC-ISC) electrical connector.
3. Disconnect the fuel injector electrical
connectors.
6. Remove the intake manifold.
Discard the gaskets.
7. Remove the engine rear lifting eye.
8. Remove the coolant distribution housing and
1 ~~~0001735 the ignition coil (El).
4. Remove the engine wiring harness.
2006.0 Fiesta 1212006 G202085en
procarmanuals.com
Page 582 of 1226

Engine - 1.25L Duratec-1 6V (Sigma)ll.4L
303-01 A-1 06 Duratec-I 6V (Sigma)ll .6L Duratec-1 6V (Sigma)
303-01 A-I 06
DISASSEMBLY AND ASSEMBLY
OF SUBASSEMBLIES

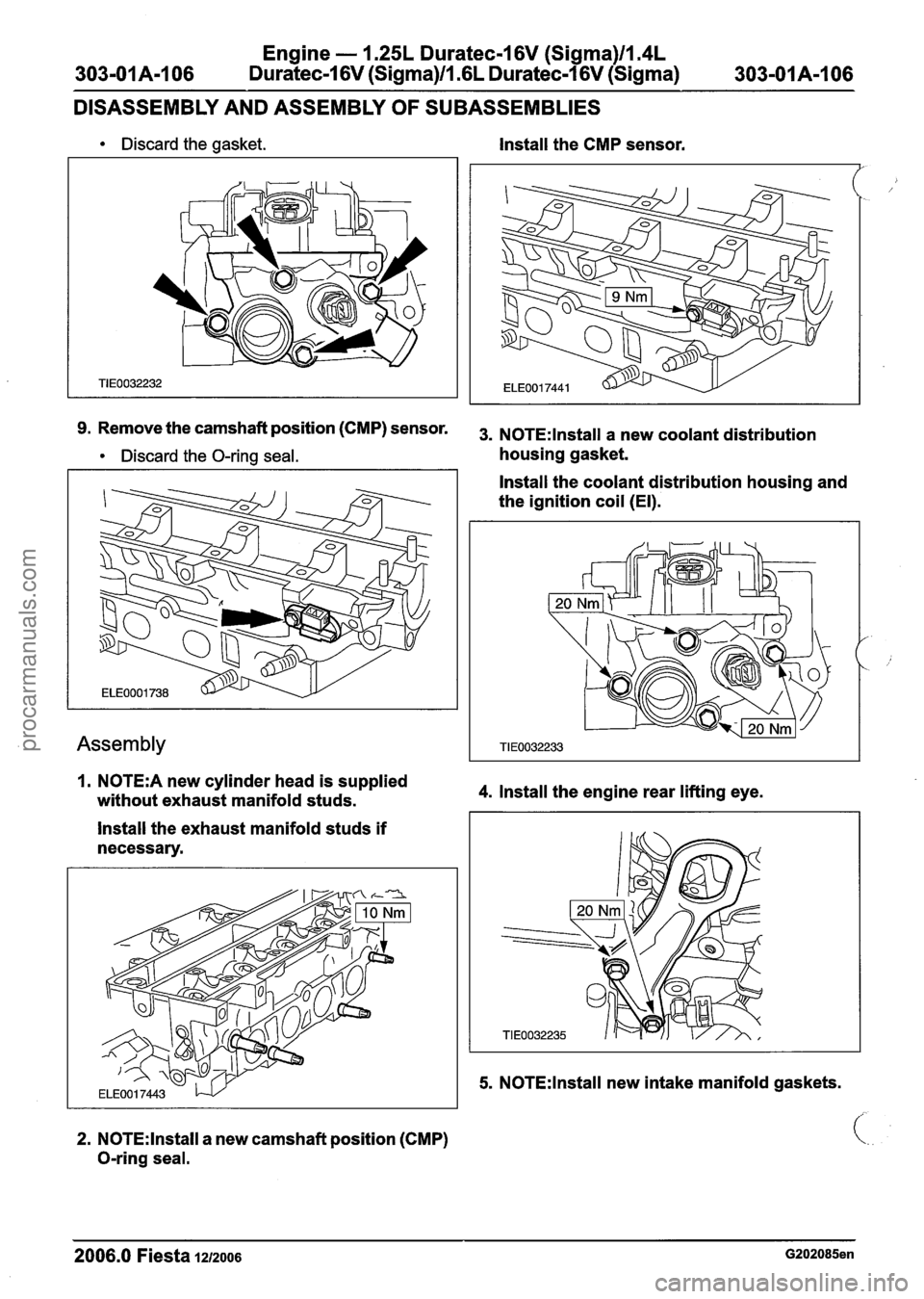

Discard the gasket. Install the CMP sensor.
91 Remove the camshaft position (CMP) sensor. 3. NOTE: Install a new coolant distribution
Discard the O-ring seal. housing gasket.
Assembly
1. N0TE:A new cylinder head is supplied
without exhaust manifold studs.
Install the exhaust manifold studs if
necessary.
2. N0TE:lnstall a new camshaft position (CMP)
O-ring seal. Install
the coolant distribution housing and
the ignition coil (El).
4. Install the engine rear lifting eye.
5. N0TE:lnstall new intake manifold gaskets.
2006.0 Fiesta 1212006 G202085en
procarmanuals.com
Page 583 of 1226

Engine - 1.25L Duratec-1 6V (Sigma)ll.4L
303-01 A-I 07 Duratec-I 6V (Sigma)/l.GL Duratec-1 6V (Sigma)
303-01 A-I 07
DISASSEMBLY AND ASSEMBLY
OF SUBASSEMBLIES
Install the intake manifold. 9. Connect the throttle plate control motor
(DC-ISC) electrical connector.
6. N0TE:lnstall new fuel supply manifold O-ring
seals.
10. Connect the temperature and manifold
Install the fuel supply manifold. absolute pressure (T-MAP)
sensor electrical
connector.
7. Install the engine wiring harness.
8. Connect the fuel injector electrical
connectors.
2006.0 Fiesta 1212006 G202085en
procarmanuals.com
Page 585 of 1226

Engine - 1.25L Duratec-1 6V (Sigma)llI4L
303-OIA-I 09 Duratec-1 6V (Sigma)ll .6L Duratec-1 6V (Sigma)
303-01
A-I 09
ASSEMBLY
, , yl~ockin~ Tool, Timing Belt I
General Equipment
1%
I Five M8 x 20 mm studs I
I Engine hoist I
3031054

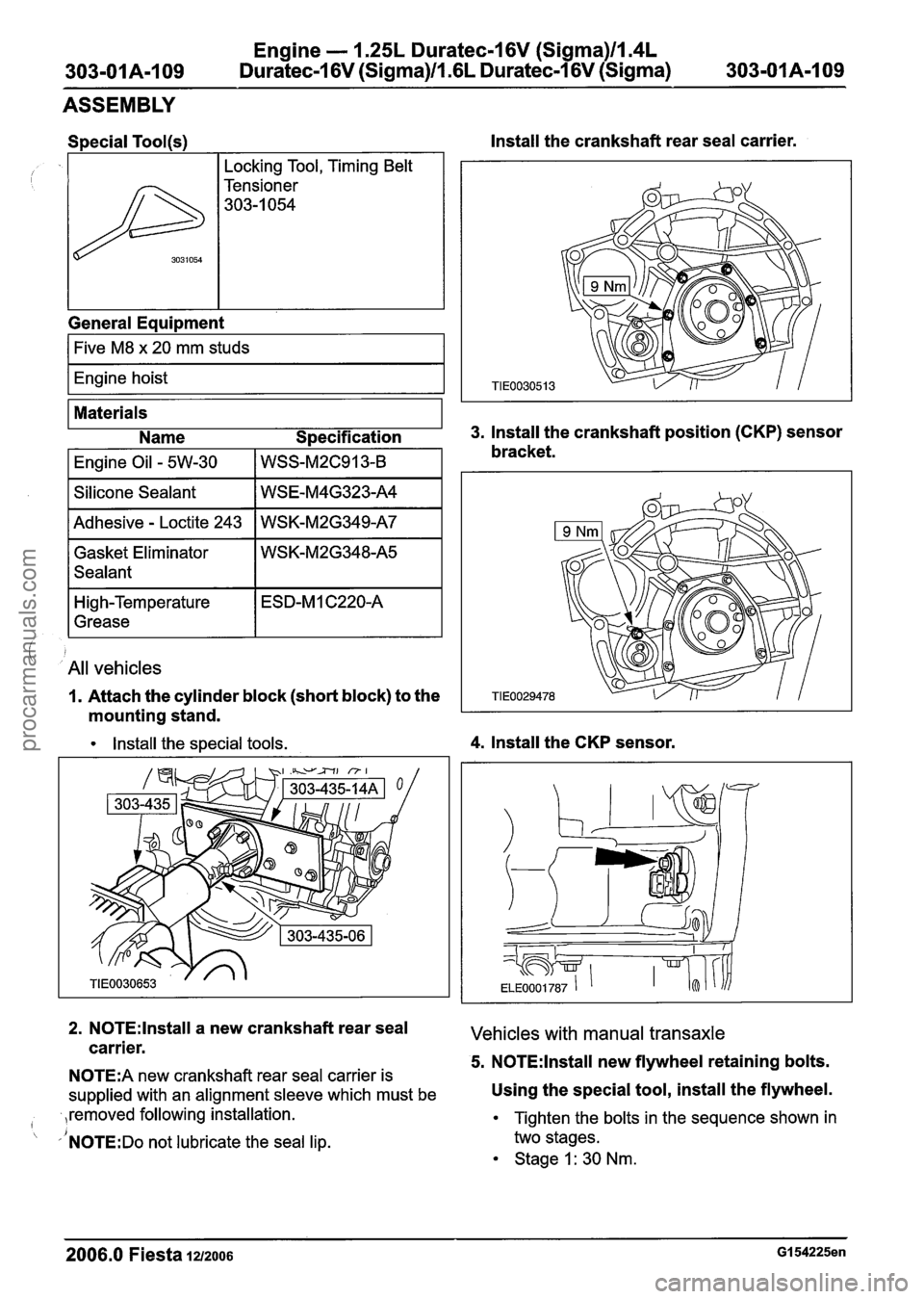

Install the crankshaft rear seal carrier.
Tensioner
303-1 054
Materials
Name Specification
3. Install the crankshaft position (CKP) sensor
I Engine Oil - 5W-30 I WSS-~2~91 3-8 bracket.
I Silicone Sealant I WSE-M4G323-A4 I
I Adhesive - Loctite 243 I WSK-M2G349-A7 I
Gasket Eliminator
Sealant
i All vehicles
High-Temperature
Grease
1. Attach the cylinder block (short block) to the
mounting stand.
ESD-M 1 C220-A
Install the special tools. 4. Install the CKP sensor.
2. N0TE:lnstall a new crankshaft rear seal Vehicles with manual transaxle carrier. 5. N0TE:lnstall new flywheel retaining bolts. N0TE:A new crankshaft rear seal carrier is
supplied with an alignment sleeve which must be Using the special tool, install the flywheel.
,removed following installation. I
'NOTE:DO not lubricate the seal lip.
Tighten the bolts in the sequence shown in
two stages.
Stage I: 30 Nm.
- --
2006.0 Fiesta 1212006 GI 54225en
procarmanuals.com
Page 588 of 1226

303-01 A-I 12
Engine - 1.25L Duratec-1 6V (Sigma)ll.4L
Duratec-1 6V (Sigma)/lm6L Duratec-1 6V (Sigma)
ASSEMBLY
lnstall the drain plug.
lnstall the thermostat housing.
18. Install the positive crankcase ventilation 21. Install the oil pressure switch.
(PCV) cover.
Apply adhesive to the oil pressure switch
threads.
19' ~CAUTION:T~~ knock sensor (KS) cable
must not touch the cylinder head or the
PCV cover. Position the KS cable at
approximately the
10 o'clock position.
lnstall the KS.
20. N0TE:lnstall a new thermostat housing
gasket.
22' ACAUTION:D~ not damage the coolant
pump impeller.
N0TE:lnstall a new coolant pump gasket.
lnstall the coolant pump.
23, Turn the crankshaft to approximately 25
mm before top dead center (BTDC) on
cylinder number
I.
2006.0 Fiesta 1212006 GI 54225en
procarmanuals.com
Page 590 of 1226

Engine - 1.25L Duratec-1 6V (Sigma)lIl4L
303-01 A-I 14 Duratec-1 6V (Sigma)ll .6L Duratec-1 6V (Sigma) 303-01 A-1 14
ASSEMBLY
Apply sealant to the points indicated on the
camshaft bearing cap no.
1 and to the mating
surface of the cylinder head.

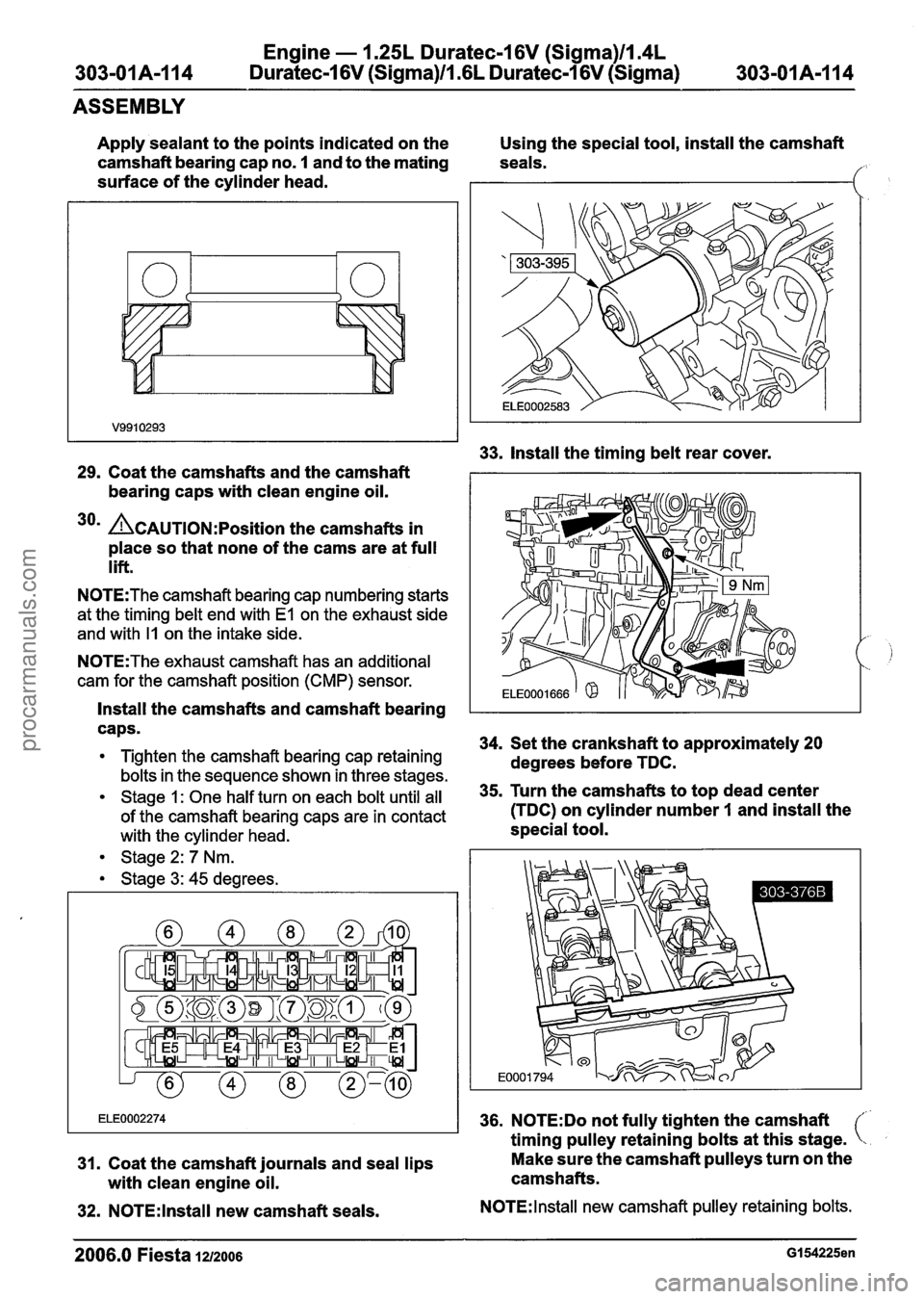

29. Coat the camshafts and the camshaft
bearing caps with clean engine oil.
30m A~~~~10~:~osition the camshafts in
place so that none of the cams are at full
lift.
N0TE:The camshaft bearing cap numbering starts
at the timing
belt end with El on the exhaust side
and with
I1 on the intake side.
N0TE:The exhaust camshaft has an additional
cam for the camshaft position (CMP) sensor.
Install the camshafts and camshaft bearing
caps.
Tighten the camshaft bearing cap retaining
bolts in the sequence shown in three stages.
Stage 1: One half turn on each bolt until all
of the camshaft bearing caps are in contact
with the
cylinder head.
Stage
2: 7 Nm.
Stage
3: 45 degrees.
31. Coat the camshaft journals and seal lips
with clean engine oil.
32. N0TE:lnstall new camshaft seals. Using the
special tool, install the camshaft
seals.
f:
33. Install the timing belt rear cover.
34. Set the crankshaft to approximately 20
degrees before TDC.
35. Turn the camshafts to top dead center
(TDC) on cylinder number
I and install the
special tool.
36. N0TE:Do not fully tighten the camshaft
timing pulley retaining bolts at this stage.
Make sure the camshaft pulleys turn on the
camshafts.
N0TE:lnstall new camshaft pulley retaining bolts.
2006.0 Fiesta 1u2oos GI 54225en
procarmanuals.com
Page 602 of 1226

303-01 A-I 26 Engine
- 1.25L Duratec-I 6V (Sigma)ll.4L
Duratec-1 6V (Sigma)ll .6L
Duratec-1 6V (Sigma) 303-01A-I26
INSTALLATION

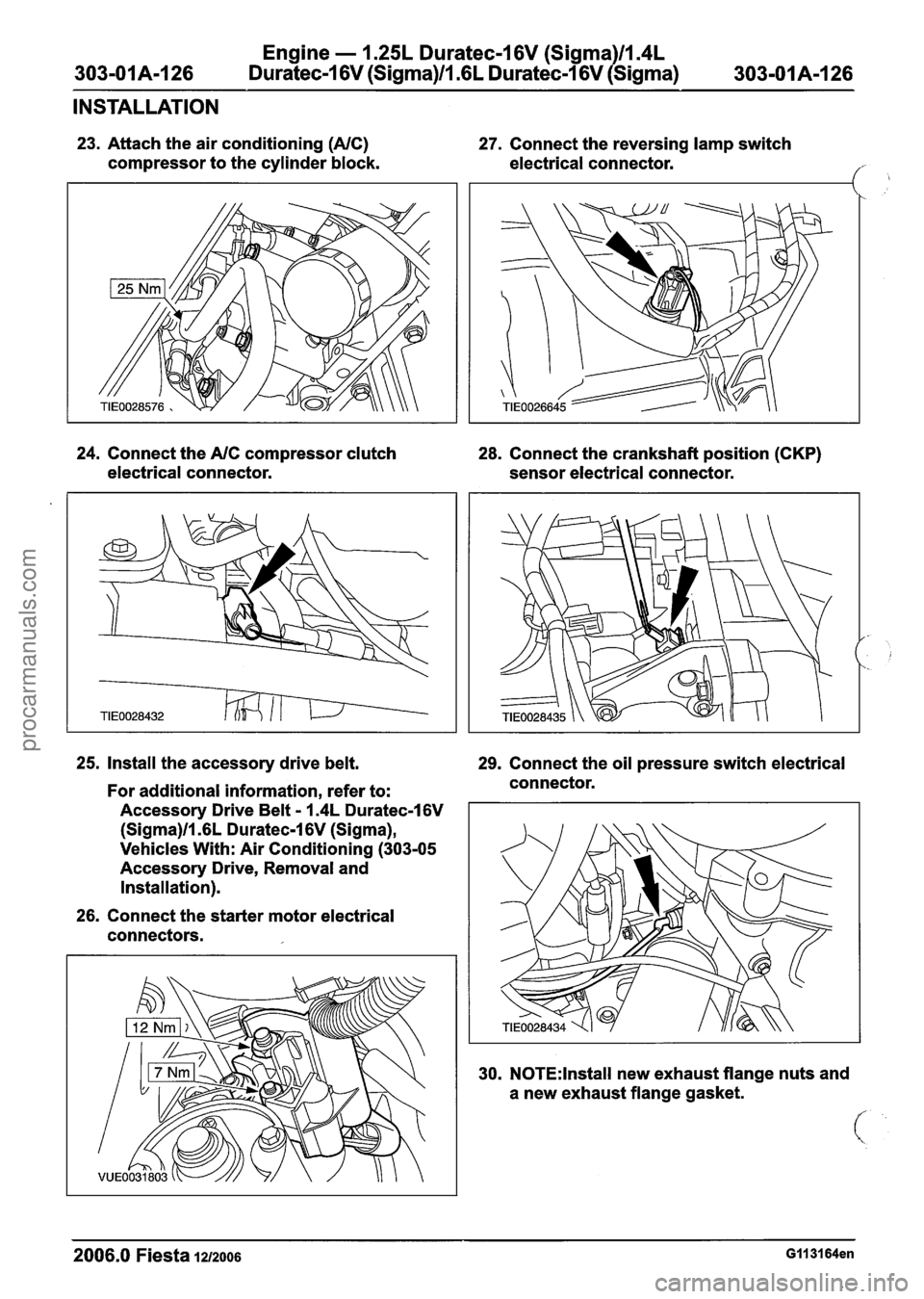

23. Attach the air conditioning (NC)
compressor to the
cylinder block.
27. Connect the reversing lamp switch
electrical connector.
I
24. Connect the NC compressor clutch
28. Connect the crankshaft position (CKP)
electrical connector. sensor electrical connector.
25. Install the accessory drive belt. 29. Connect the oil pressure switch electrical
For
additional information, refer to: connector.
Accessory Drive
Belt - I .4L Duratec-16V
(Sigma)ll .6L Duratec-1 6V (Sigma),
Vehicles With: Air Conditioning (303-05
Accessory Drive,
Removal and
Installation).
26. Connect the starter motor electrical
connectors.
30.
N0TE:lnstall new exhaust flange nuts and
a new exhaust
flange gasket.
2006.0 Fiesta 1212006 Gll3164en
procarmanuals.com
Page 605 of 1226

303-01 A-I 29 Engine
- 1.25L Duratec-I
6V (Sigma)ll.4L
Duratec-I 6V (Sigma)/l .6L Duratec-1 6V (Sigma) 303-01A-129
INSTALLATION

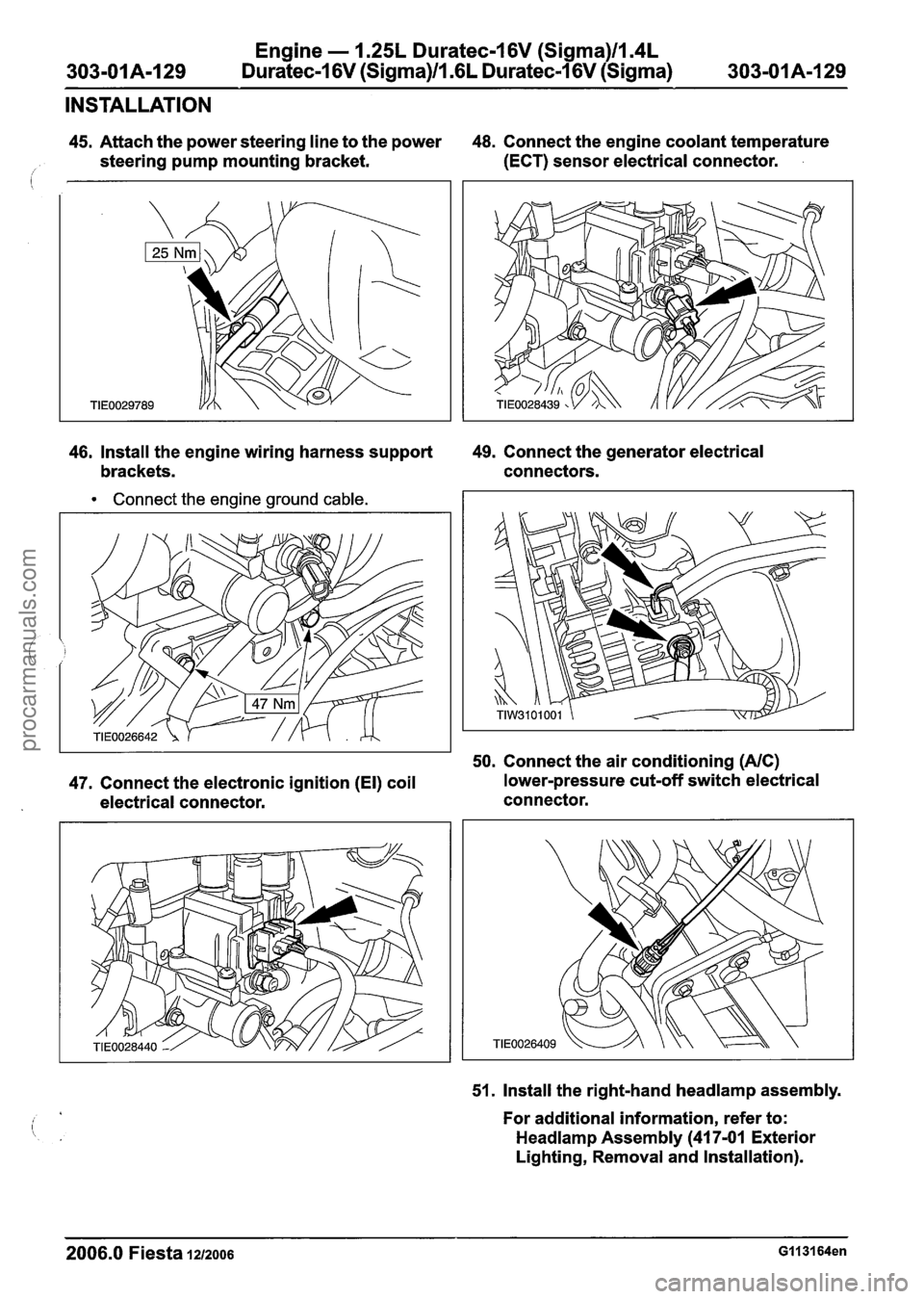

45. Attach the power steering line to the power 48.
Connect the engine coolant temperature
i steering pump mounting bracket. (ECT) sensor electrical connector.
46, Install the engine wiring harness support 49.
Connect the generator electrical
brackets. connectors.
Connect the engine ground cable.
50. Connect the air conditioning (AIC)
47. Connect the electronic ignition (El) coil lower-pressure
cut-off switch electrical
electrical connector. connector.
51. Install the right-hand
headlamp assembly.
For additional information, refer to:
Headlamp Assembly (41 7-01 Exterior
Lighting, Removal and Installation).
2006.0 Fiesta 1212006 GI 131 64en
procarmanuals.com
Page 606 of 1226

303-01 A-I 30 Engine
- 1.25L Duratec-1 6V (Sigma)ll.4L
Duratec-1 6V (Sigma)/l .6L Duratec-1 6V (Sigma)
303-01 A-1 30
INSTALLATION

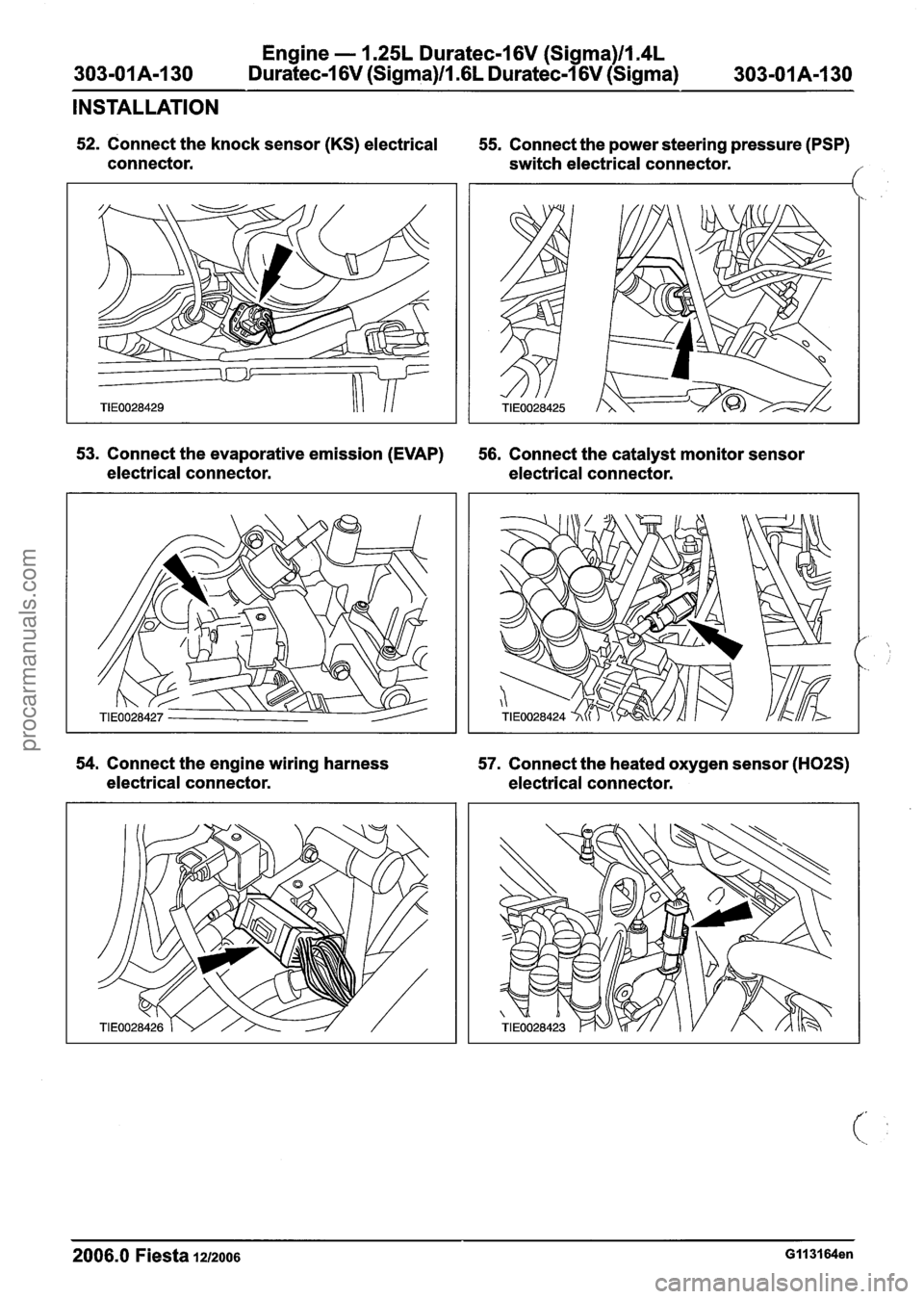

52. Connect the knock sensor (KS) electrical
connector. 55. Connect the power steering pressure (PSP)
switch electrical connector.
f
53. Connect the evaporative emission (EVAP) 56. Connect the catalyst monitor sensor
electrical connector. electrical connector.
54. Connect the engine wiring harness
57. Connect the heated oxygen sensor (H02S)
electrical connector. electrical connector.
2006.0 Fiesta 1212006 GI1 31 64en
