24. Remove the oil pan.
Installation 1. NOTE: If the oil pan is not secured within four minutes, the sealant must be removed and the
sealing area cleaned with metal surface cleaner. Allow to dry until there is no sign of wetness,
or four minutes, whichever is longer. Failure to follow this procedure can cause future oil
leakage.

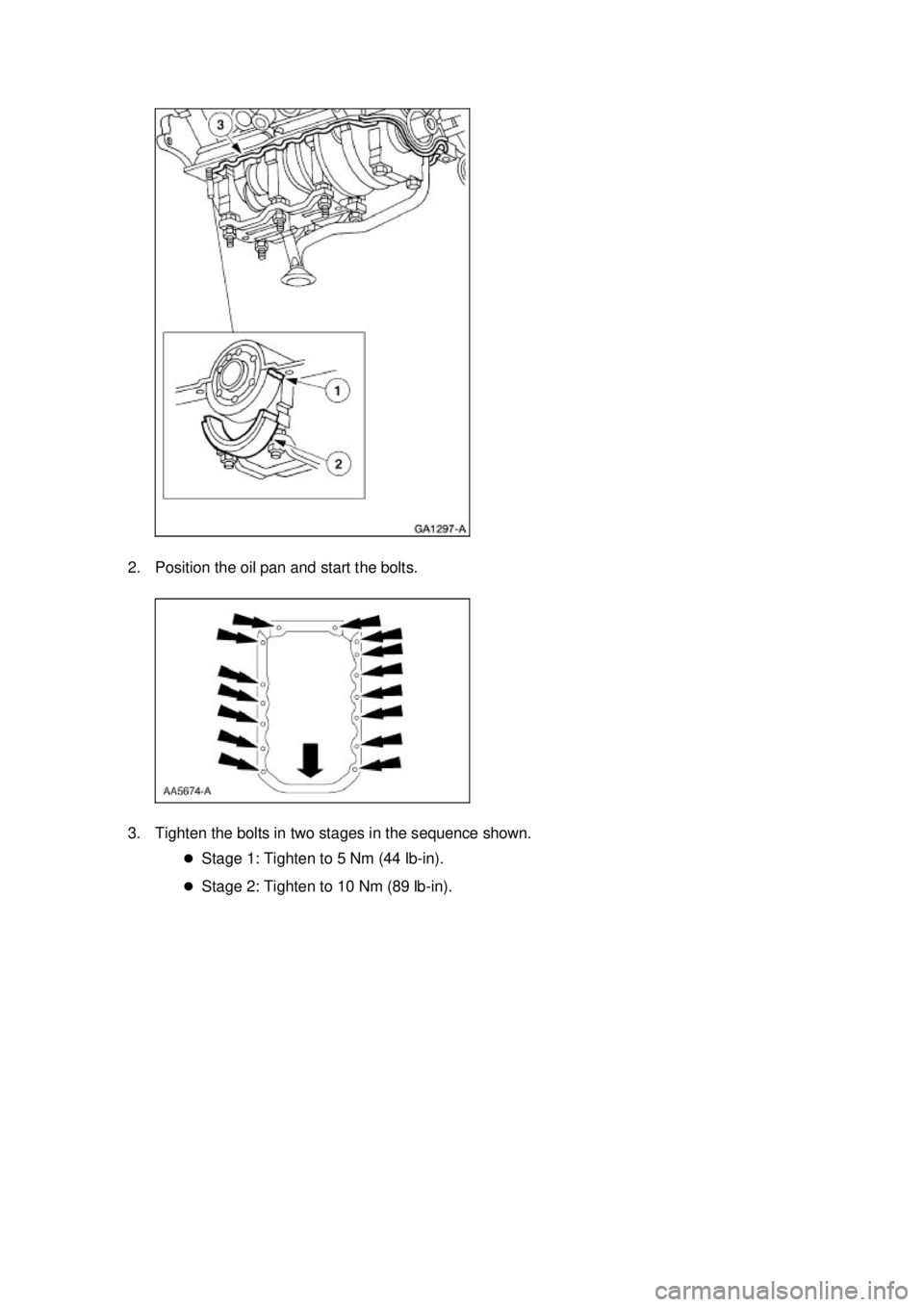

Clean and apply sealant to the oil pan sealing areas shown and install the oil pan rear seal. 1. Apply silicone gasket and sealant to the rear main bearing cap.
2. Install the oil pan rear seal.
3. Clean the oil pan mating surfaces with metal surface cleaner an apply silicone gasket and sealant to the oil pan mating surface. Klj . 6 ba
122003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

2. Position the oil pan and start the bolts.
3. Tighten the bolts in two stages in the sequence shown.
zStage 1: Tighten to 5 Nm (44 lb- in).
z Stage 2: Tighten to 10 Nm (89 lb- in). Klj . 7 ba
122003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

4. Install the transmission lower bolts.
5. Install the oil pan drain plug.
6. Raise the front subframe into position. Klj . 8 ba
122003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

7. Tighten the two bolts.
8. Install the two bolts.
9. Install the four subframe lower bolts.
10. Remove the safety stand. Klj . 9 ba
122003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

11. Install the bracket.
12. Install the starter motor. For additional information, refer to
Section 303 - 06 .
13. Lower the vehicle.
14. Lower the engine.
15. Raise and support the vehicle. For additional information, refer to Section 100 - 02 .
16. Install the RH engine mount nut. Klj . 10 ba
122003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

17. Install the LH engine mount nut.
18. Lower the vehicle.
19. Remove the special tools.
20. Install the coolant recovery reservoir.
21. Install the radiator sight shield. Klj . 11 ba
122003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

22. Install the air cleaner outlet pipe. For additional information, refer to
Section 303 - 12 .
23. Connect the battery ground cable. For additional information, refer to Section 414 - 01 .
24. Fill the engine with clean engine oil.
25. CAUTION: Correct coolant bleeding is critical for correct engine cooling.
Fill and bleed the engine cooling system. For additional information, refer to Section 303 - 03A . Klj . 12 ba
122003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

IN-
VEHICLE REPAIR
Oil Pan Baffle
Removal and Installation 1. Remove the oil pump screen cover and tube (6622). For additional information, refer to Oil Pump Screen and Pickup Tube in this section.
2. Remove the oil pan baffle (6687). zRemove the nuts.
3. To install, reverse the removal procedure.
SECTION 303-
01A: Engine — 3.8L 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

IN-
VEHICLE REPAIR
Flywheel
Removal and Installation 1. Remove the clutch. For additional information, refer to Section 308 - 01 .
2. Remove the flywheel bolts.
3. To install, reverse the removal procedure.
SECTION 303-
01A: Engine — 3.8L 2003 Mustang Workshop Manual Klj . 1 ba
