FORD MUSTANG 2003 Workshop Manual

IN-
VEHICLE REPAIR
Oil Pump Screen and Pickup Tube
Removal and Installation 1. Remove the oil pan (6675). For additional information, refer to Oil Pan in this section.
2. Remove the oil pump screen cover and tube (6622) and discard the gasket. 1. Remove the nut.
2. Remove the two bolts.
3. Remove the oil pump screen cover and tube.
4. Remove and discard the gasket.
3. To install, reverse the removal procedure.
SECTION 303-
01A: Engine — 3.8L 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Klj . 2 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

IN-
VEHICLE REPAIR

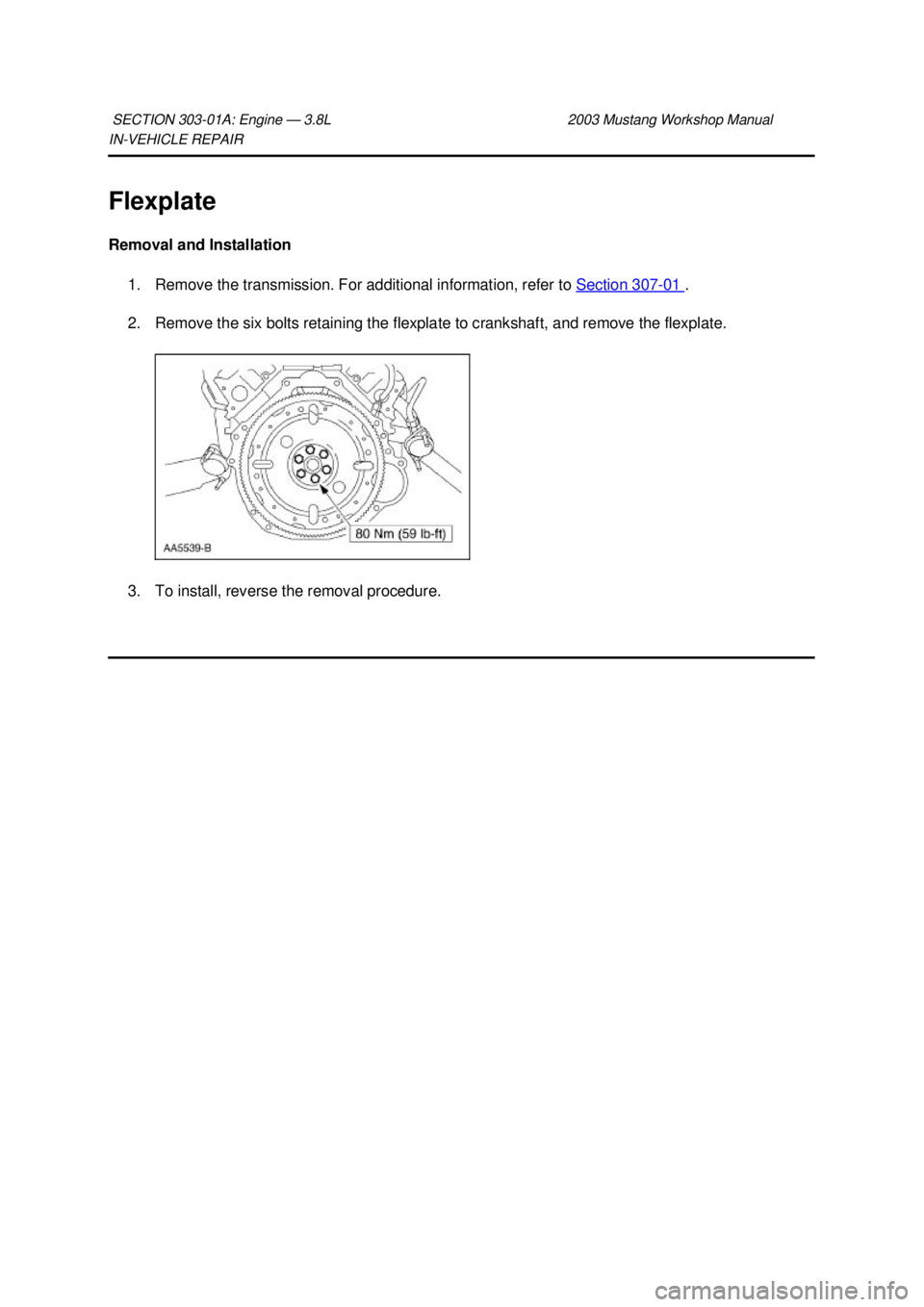

Flexplate
Removal and Installation 1. Remove the transmission. For additional information, refer to Section 307 - 01 .
2. Remove the six bolts retaining the flexplate to crankshaft, and remove the flexplate.
3. To install, reverse the removal procedure.
SECTION 303-
01A: Engine — 3.8L 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

IN-
VEHICLE REPAIR
Crankshaft Rear Seal
Removal 1. Remove the flywheel or the flexplate. For additional information, refer to Flexplate in this
section.
SECTION 303-
01A: Engine — 3.8L 2003 Mustang Workshop Manual Special Tool(s)
Impact Slide Hammer
100-
001 (T50T-100- A) Remover, Crankshaft Rear
Seal
303-
519 (T95P-6701- EH) Replacer, Rear Crankshaft
Seal
303-
516 (T95P-6701- BH) Spacer, Rear Crank Seal
Replacer
303-
561 (T96T-6701- B) Adapter, Crankshaft Rear Seal
(Use only the adapter retaining
bolts)
303-
518 (T95P-6701- DH) Adapter, Crankshaft Rear Seal
(Use only the adapter and the
center jack screw)
303-
S560 (T96T-6701- A)
Material Item Specification
SAE 5W-
20 Premium Synthetic
Blend Motor Oil
XO- 5W20-QSP or equivalent WSS-
M2C153-
H Klj . 1 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

2. Using the special tools, remove the crankshaft rear seal.
Installation 1. Clean and inspect the mating surface.
2. NOTE: Lubricate the crankshaft rear seal lips with clean engine oil prior to installation.
Assemble the special tools and the crankshaft rear seal.
3. Install the special tools on the rear of the crankshaft.

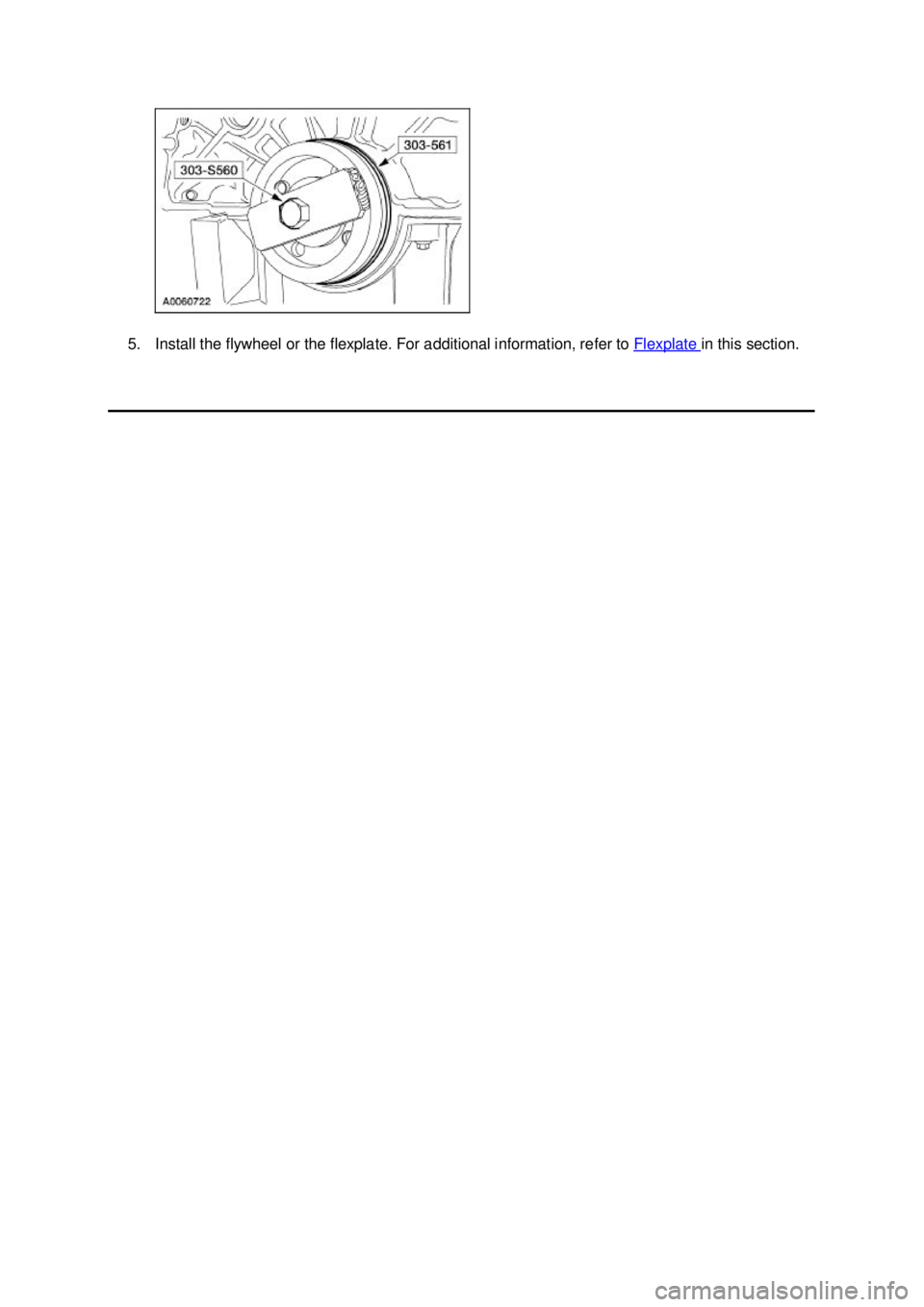

4. Install the crankshaft rear seal. Tighten the center jack screw (303- S560) until the spacer (303-561) contacts the engine block. Klj . 2 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

5. Install the flywheel or the flexplate. For additional information, refer to
Flexplate in this section. Klj . 3 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

IN-
VEHICLE REPAIR
Engine Support Insulators
Removal 1. Disconnect the battery ground cable (14301). For additional information, refer to Section 414 -
01 .
2. Remove the air cleaner outlet tube (9B659). For additional information, refer to Section 303 - 12 .
3. Remove the radiator sight shield (8C291).
4. Remove the coolant recovery reservoir (8A080). 1. Disconnect the hose.
2. Remove the bolts. 3. Remove the coolant recovery reservoir. SECTION 303-
01A: Engine — 3.8L 2003 Mustang Workshop Manual Special Tool(s)
3 Bar Engine Support Kit
303-
F072 Engine Lift Bracket Set
303-
D095 (D94L-6001- A) or
equivalent Klj . 1 ba
82003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

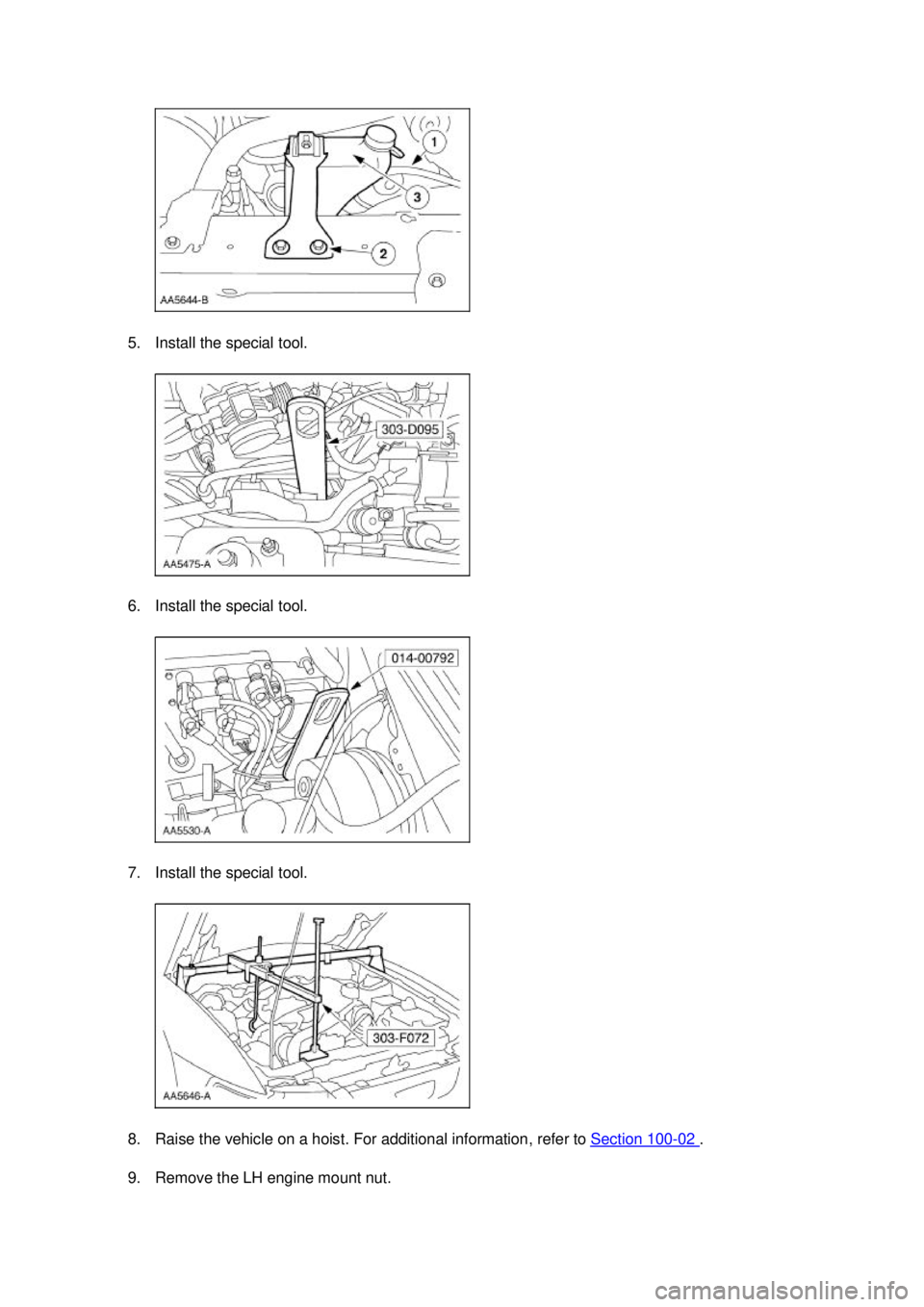

5. Install the special tool.
6. Install the special tool.
7. Install the special tool.
8. Raise the vehicle on a hoist. For additional information, refer to
Section 100 - 02 .
9. Remove the LH engine mount nut. Klj . 2 ba
82003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

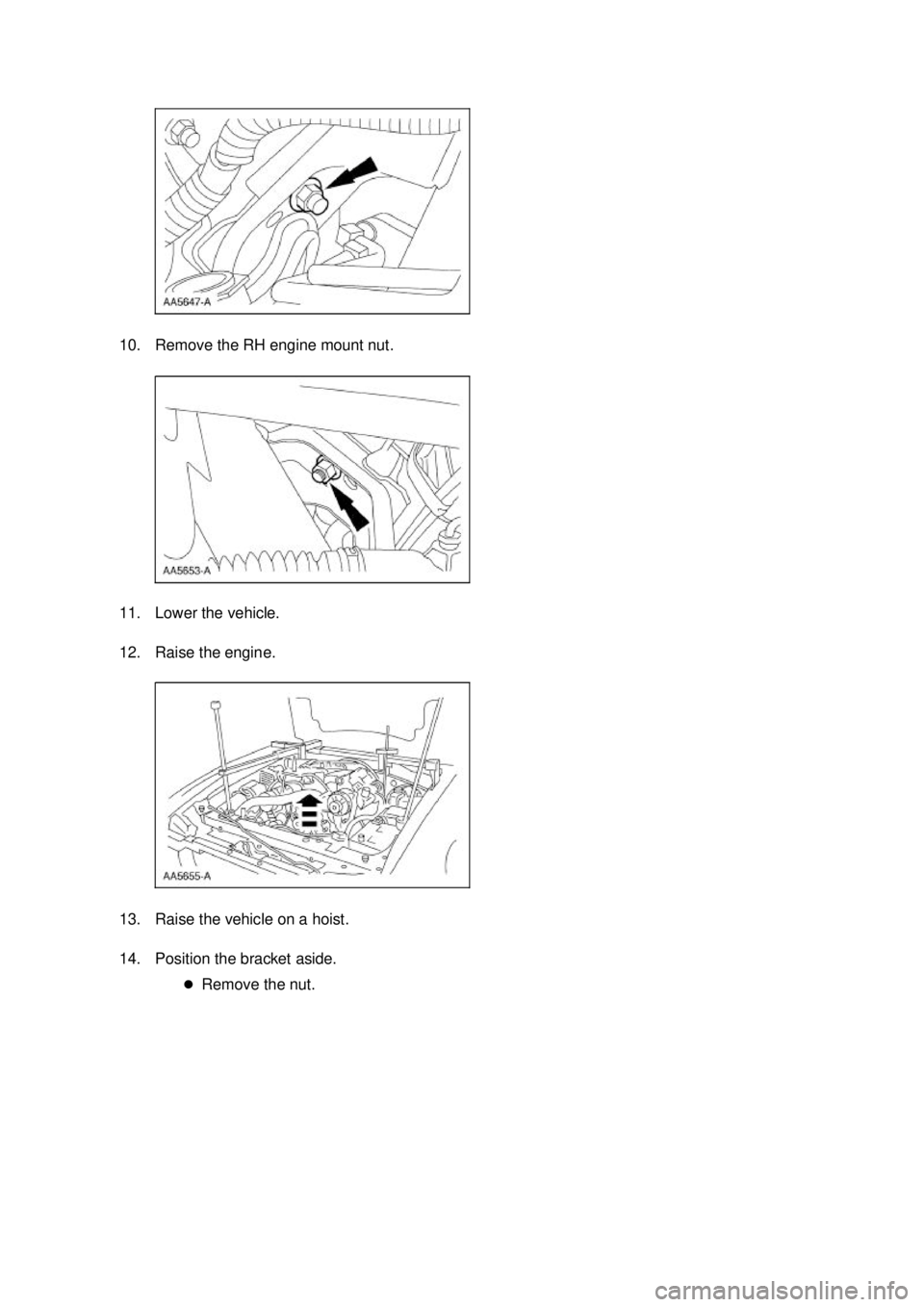

10. Remove the RH engine mount nut.
11. Lower the vehicle.
12. Raise the engine.
13. Raise the vehicle on a hoist.
14. Position the bracket aside.
zRemove the nut. Klj . 3 ba
82003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

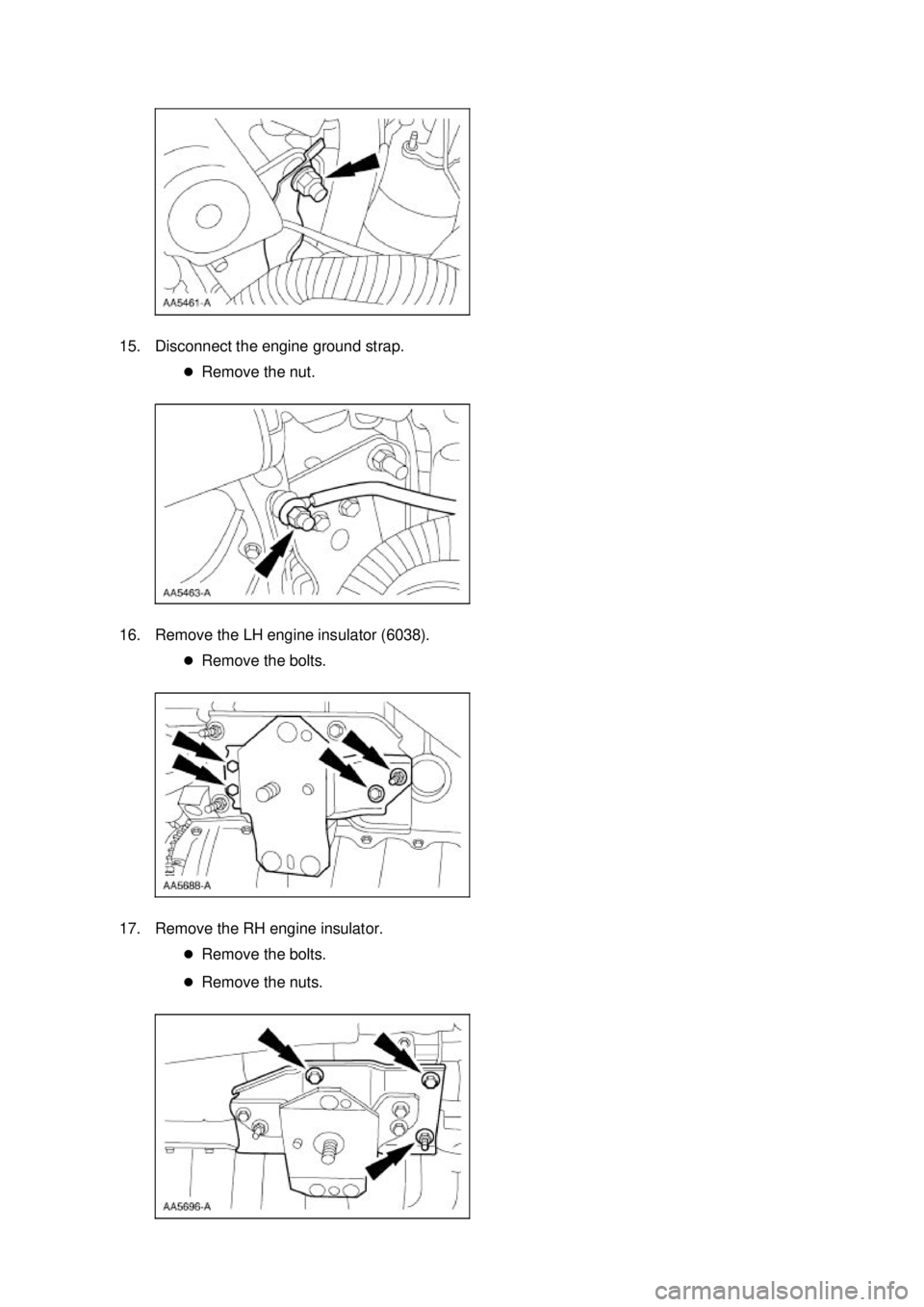

15. Disconnect the engine ground strap.
zRemove the nut.
16. Remove the LH engine insulator (6038). zRemove the bolts.
17. Remove the RH engine insulator. zRemove the bolts.
z Remove the nuts. Klj . 4 ba
82003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
