18.
NOTE: Record the location of the long bolts and the short bolts.

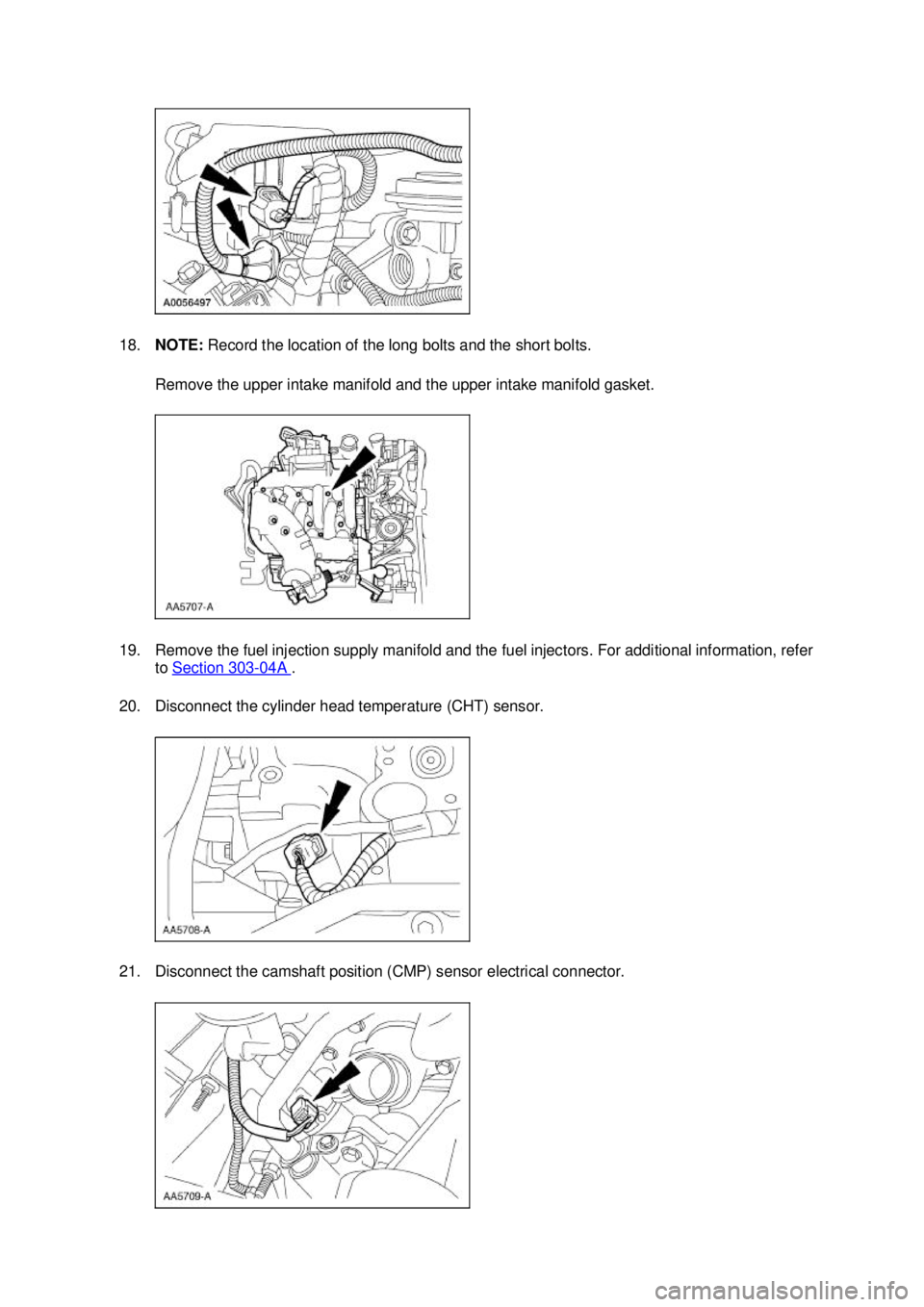

Remove the upper intake manifold and the upper intake manifold gasket.
19. Remove the fuel injection supply manifold and the fuel injectors. For additional information, refer to Section 303 - 04A .
20. Disconnect the cylinder head temperature (CHT) sensor.
21. Disconnect the camshaft position (CMP) sensor electrical connector. Klj . 6 ba
212003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

22. Disconnect the engine oil pressure sender electrical connector.
23. Remove the pin-
type retainer.
24. Disconnect the crankshaft position (CKP) sensor electrical connector.
25. Remove the engine wiring harness.
26. Remove the stud bolt. Klj . 7 ba
212003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

27. Remove the heater water outlet tube.
28.
NOTE: Record the location of the long bolts and the short bolts.
Remove the lower intake manifold and the intake manifold gasket.
29. Remove the accessory drive belt.
30. Remove the water pump pulley. Klj . 8 ba
212003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

31. Remove the A/C compressor bracket.
32. Using the special tool, remove the power steering pump pulley.
33. Remove the power steering pump bracket.
34. Remove the bolts and the generator mounting bracket. Klj . 9 ba
212003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

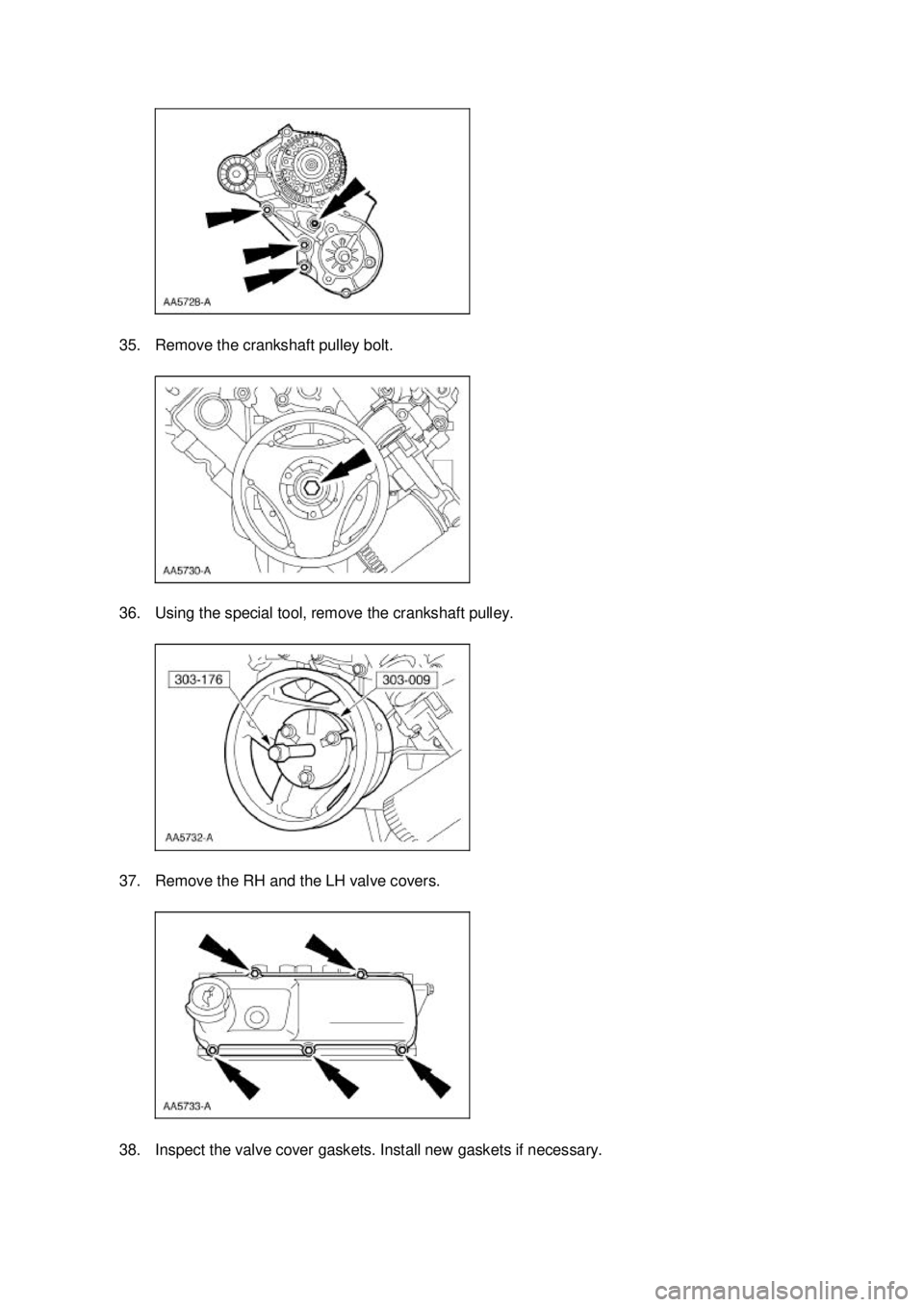

35. Remove the crankshaft pulley bolt.
36. Using the special tool, remove the crankshaft pulley.
37. Remove the RH and the LH valve covers.
38. Inspect the valve cover gaskets. Install new gaskets if necessary. Klj . 10 ba
212003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

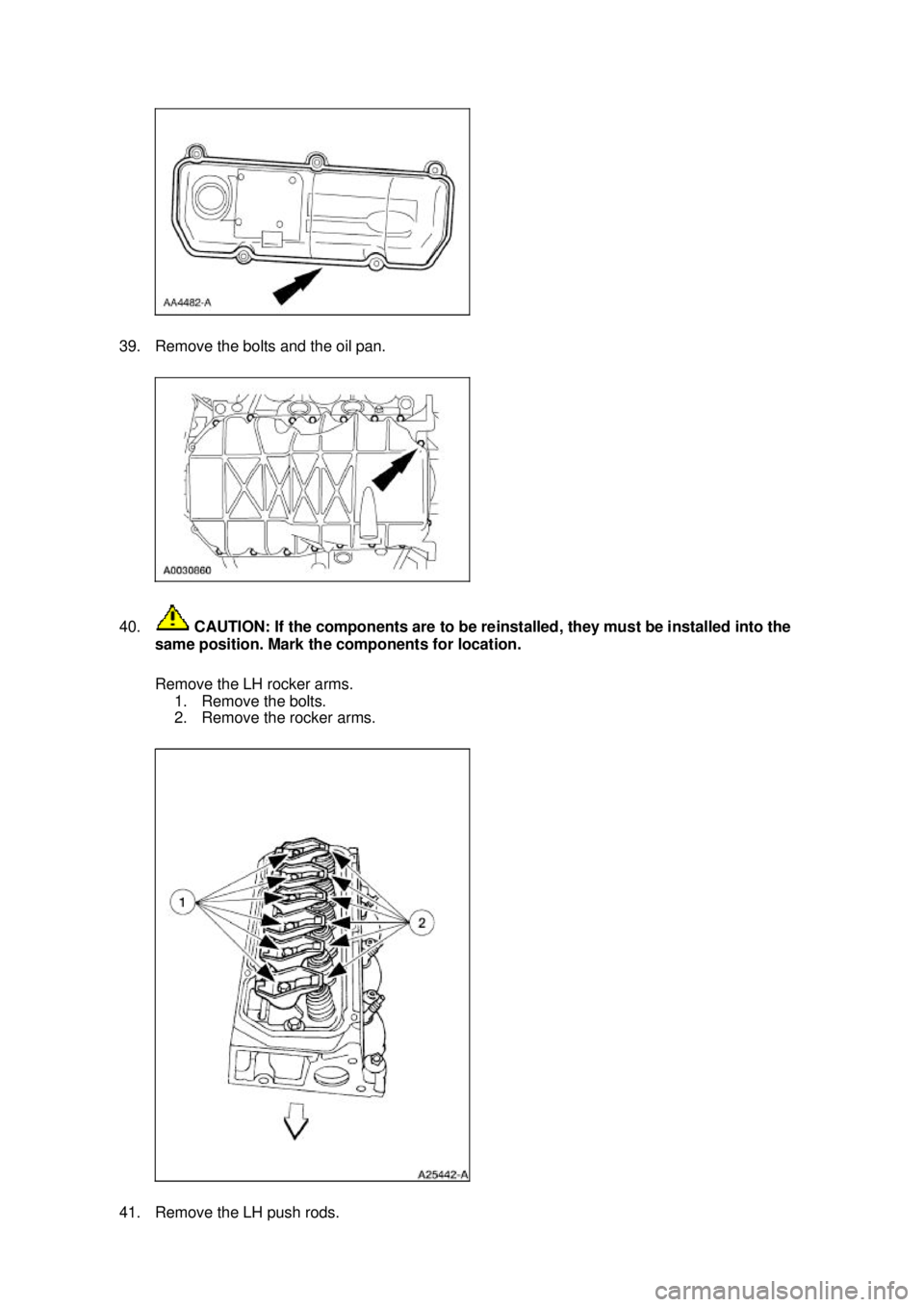

39. Remove the bolts and the oil pan.
40.
CAUTION: If the components are to be reinstalled, they must be installed into the
same position. Mark the components for location.
Remove the LH rocker arms. 1. Remove the bolts.
2. Remove the rocker arms. 41. Remove the LH push rods. Klj . 11 ba
212003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

42.
NOTE: Record the location of the long bolts and the short bolts.

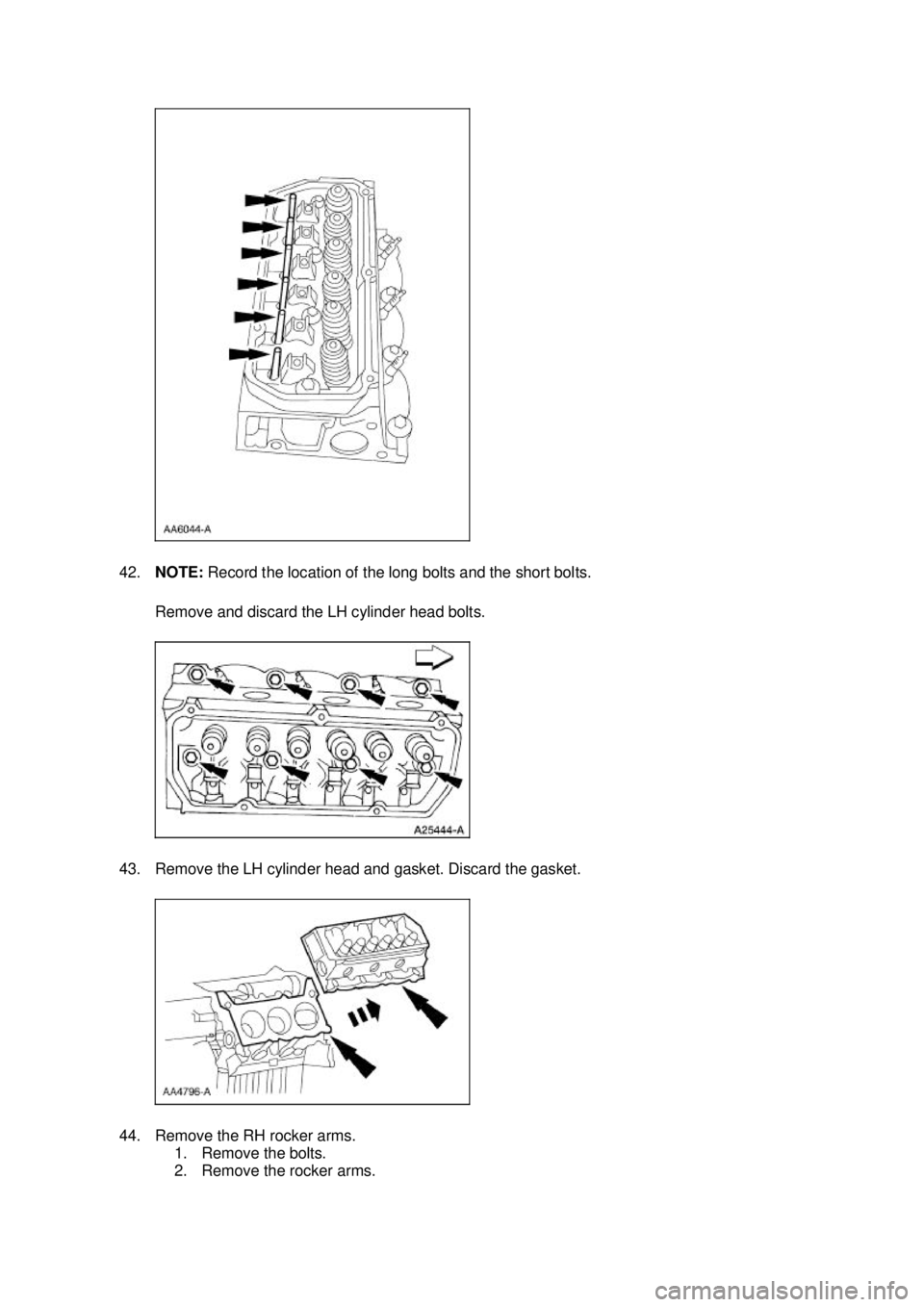

Remove and discard the LH cylinder head bolts.
43. Remove the LH cylinder head and gasket. Discard the gasket.
44. Remove the RH rocker arms. 1. Remove the bolts.
2. Remove the rocker arms. Klj . 12 ba
212003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

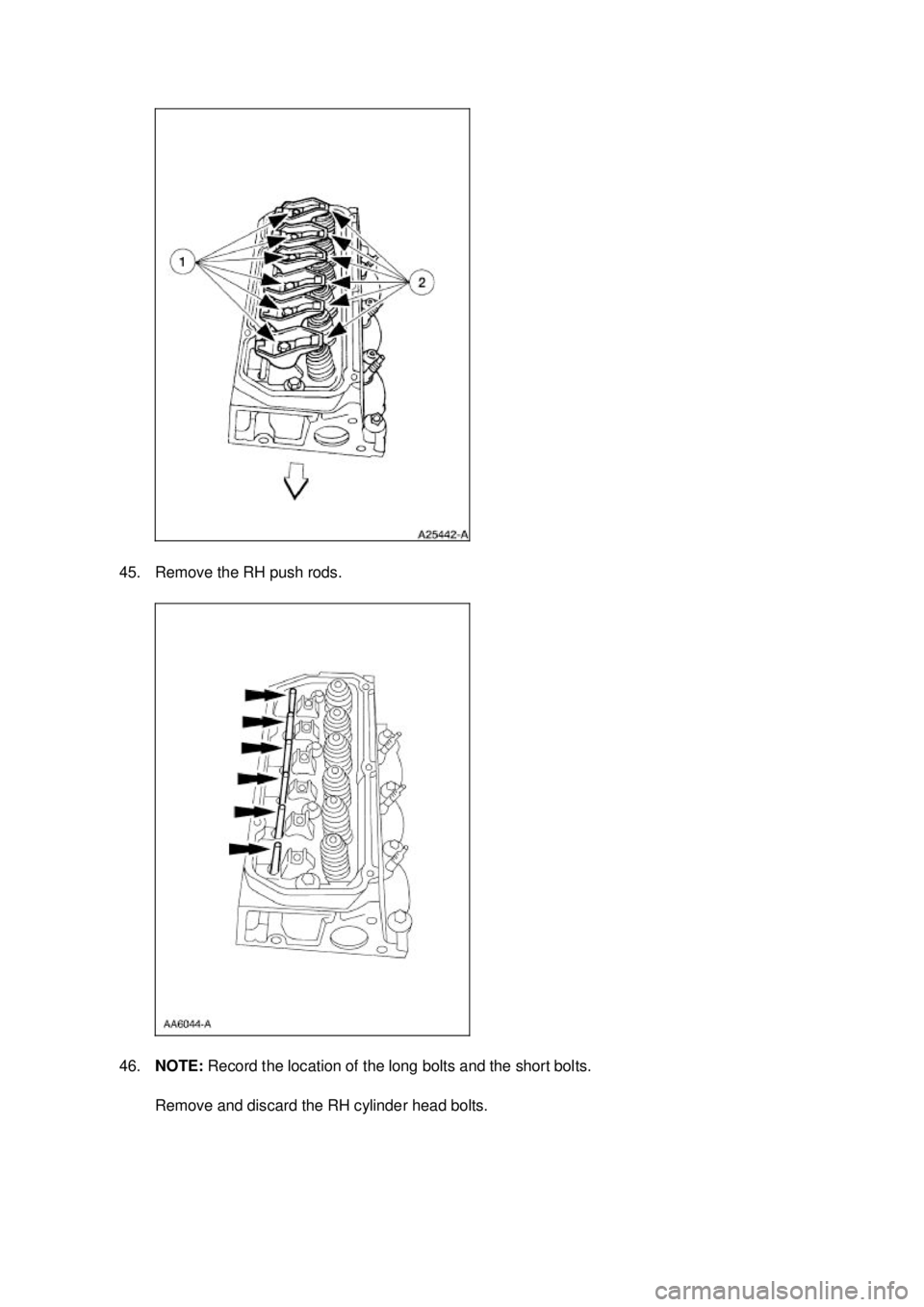

45. Remove the RH push rods.
46.
NOTE: Record the location of the long bolts and the short bolts.
Remove and discard the RH cylinder head bolts. Klj . 13 ba
212003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

47. Remove the RH cylinder head and gasket. Discard the gasket.
48. Remove the camshaft synchronizer. For additional information, refer to
Section 303 - 14 .
49. Remove the bolts and the crankshaft position sensor.
50. Using the special tool, remove the crankshaft front seal.
51. Remove the bolts and the front cover assembly and gasket. Klj . 14 ba
212003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

52. Remove the camshaft position sensor drive gear.
1. Remove the bolt.
2. Remove the camshaft position sensor drive gear.
53. Compress and install a retaining pin to hold the timing chain tensioner.
54. Remove the camshaft sprocket, the crankshaft sprocket and the timing chain as an assembly.
55. Remove the timing chain tensioner. 1. Remove the bolts.
2. Remove the timing chain tensioner. Klj . 15 ba
212003 Mustang Workshop Manual
