Page 2111 of 4378

FORD MUSTANG 2003  Workshop Manual SPECIFICATIONS
a
Refer to the procedure
SECTION 303-
12: Intake Air Distribution and Filtering  2003 Mustang Workshop Manual Torque Specifications
Description  Nm  lb-
ft  lb-
in  Air cleaner and

Page 2112 of 4378

FORD MUSTANG 2003  Workshop Manual DESCRIPTION AND OPERATION
Intake Air Distribution and Filtering
The air intake system consists of the:
�zair intake scoop (Mach I)
�z air cleaner (ACL).
�z air cleaner (ACL) element.
�z mass air

Page 2113 of 4378

FORD MUSTANG 2003  Workshop Manual DESCRIPTION AND OPERATION
Intake Air Distribution and Filtering —
Supercharger,
Charge Air Cooler
The supercharger (SC) is a positive displacement pump. Its purpose is to supply an excess volume

Page 2114 of 4378

FORD MUSTANG 2003  Workshop Manual Klj .  2 ba
  22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 2115 of 4378

FORD MUSTANG 2003  Workshop Manual DIAGNOSIS AND TESTING
Intake Air Distribution and Filtering
Refer to the Powertrain Control/Emissions Diagnosis (PC/ED) manual.
SECTION 303-
12: Intake Air Distribution and Filtering  2003 Mustang

Page 2116 of 4378

FORD MUSTANG 2003  Workshop Manual REMOVAL AND INSTALLATION
Air Cleaner Outlet Pipe —
3.8L
Removal and Installation  1. Remove the air cleaner outlet tube.  1. Loosen the clamps.
2. Disconnect the hose.
3. Remove the tube.
2. To

Page 2117 of 4378

FORD MUSTANG 2003  Workshop Manual REMOVAL AND INSTALLATION
Air Cleaner Outlet Pipe —
4.6L (2V)
Removal and Installation  1. Disconnect the hoses.
2. Remove the air cleaner outlet tube.  1. Loosen the clamps.
2. Remove the tube.

Page 2118 of 4378

FORD MUSTANG 2003  Workshop Manual Klj .  2 ba
  22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Page 2119 of 4378

FORD MUSTANG 2003  Workshop Manual REMOVAL AND INSTALLATION
Air Cleaner Outlet Pipe —
4.6L (4V)
Removal and Installation
Cobra  1. Disconnect the intake air temperature (IAT) sensor.
All vehicles  2. Disconnect the vacuum hose.

Page 2120 of 4378

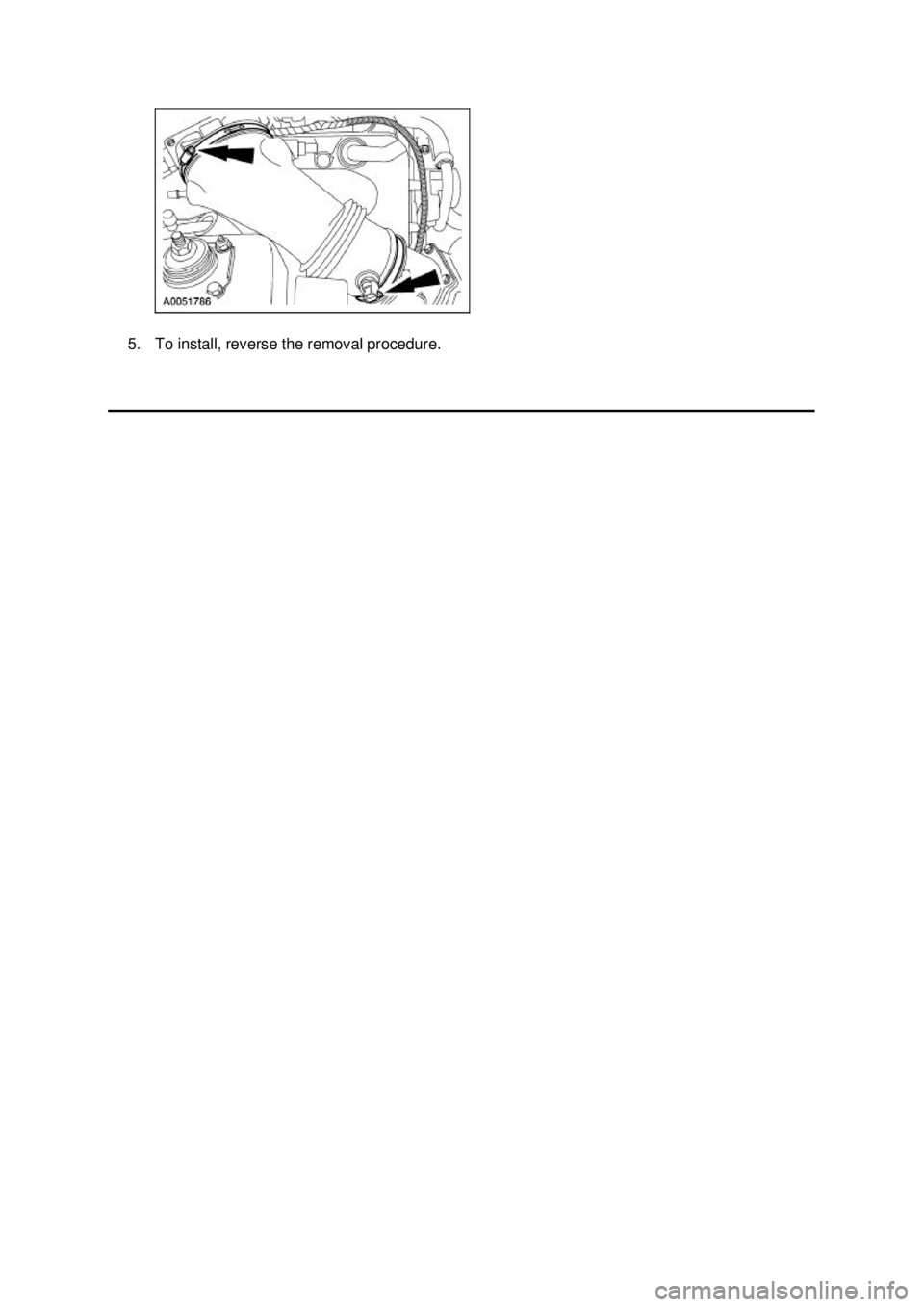

FORD MUSTANG 2003  Workshop Manual 5. To install, reverse the removal procedure.  Klj .  2 ba
  22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
