FORD MUSTANG 2003 Workshop Manual

REMOVAL AND INSTALLATION
Air Cleaner —
3.8L
Removal and Installation 1. Remove the air cleaner outlet tube from the throttle body. For additional information, refer to Air Cleaner Outlet Pipe — 3.8L in this section.
2. Disconnect the connector.
3. Remove the bolt.
4. Remove the air cleaner and duct assembly.
5. To install, reverse the removal procedure.
SECTION 303-
12: Intake Air Distribution and Filtering 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Air Cleaner —
4.6L (2V) and 4.6L (4V)
Removal and Installation
Mach I 1. Disconnect the air intake scoop outlet tube.
All vehicles 2. Remove the air cleaner outlet tube from the throttle body. For additional information, refer to Air Cleaner Outlet Pipe — 4.6L (2V) or
Air Cleaner Outlet Pipe — 4.6L (4V) in this section.
3. Remove the bolt.
4. Remove the air cleaner and duct assembly.
SECTION 303-
12: Intake Air Distribution and Filtering 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

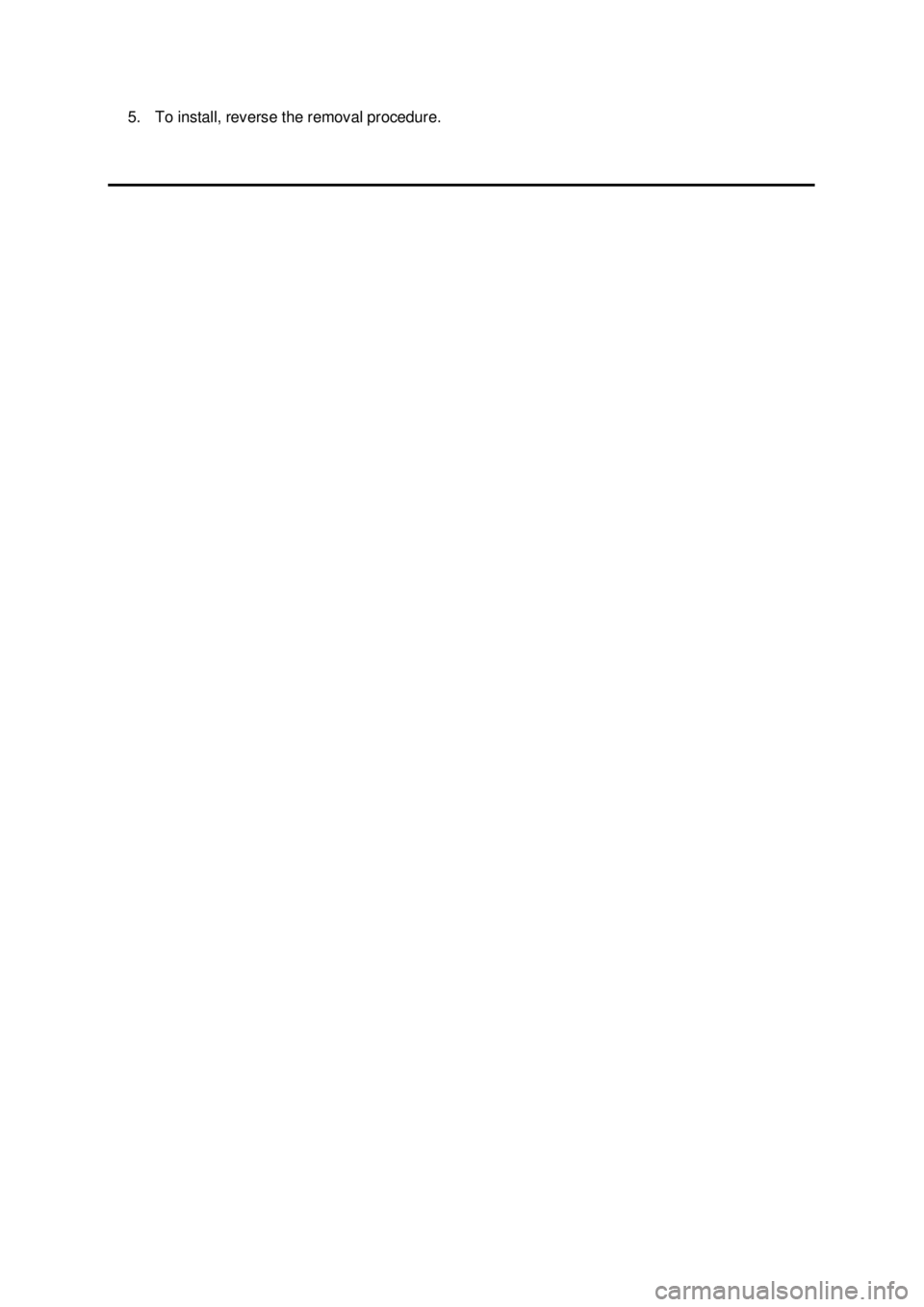

5. To install, reverse the removal procedure. Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Air Cleaner Element —
3.8L
Removal and Installation 1. Remove the air cleaner outlet tube. For additional information, refer to Air Cleaner Outlet Pipe —
3.8L in this section
2. Disconnect the connector.
3. Remove the mass air flow (MAF) sensor. 1. Release the clips.
2. Remove the MAF sensor assembly.
4. Remove the air cleaner element.
5. To install, reverse the removal procedure.
SECTION 303-
12: Intake Air Distribution and Filtering 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Air Cleaner Element —
4.6L (2V)
Removal and Installation 1. Remove the air cleaner outlet tube (9B659). For additional information, refer to Air Cleaner Outlet Pipe — 4.6L (2V) in this section.
2. Remove the mass air flow (MAF) assembly. 1. Release the clip.
2. Remove the MAF sensor assembly and position aside.
3. Remove the air cleaner element.
4. To install, reverse the removal procedure.
SECTION 303-
12: Intake Air Distribution and Filtering 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Air Cleaner Element —
4.6L (4V)
Removal and Installation 1. Open the air cleaner housing.
2. Remove the element.
3. To install, reverse the removal procedure.
SECTION 303-
12: Intake Air Distribution and Filtering 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Air Intake Scoop
Removal and Installation
1. Disconnect the air intake scoop outlet from the air cleaner.
2. Disconnect the air intake scoop water drain hoses.
3. Remove the air intake scoop from the air intake scoop bracket. zRemove the two air intake scoop bolts.
z Lift the air intake scoop from the air intake bracket studs.
4. To install, reverse the removal procedure.
