FORD MUSTANG 2003  Workshop Manual D2 SOLENOID FUNCTIONAL TEST
�z
Install 2,060 kPa (300 psi) pressure gauge into EPC tap.
�z Monitor pressure gauge.
�z Enter the following diagnostic mode on the diagnostic tool:
Parameter; EPC.
�

Page 2362 of 4378

FORD MUSTANG 2003  Workshop Manual XXX.
�z Press "SEND".
�z Does the voltage and solenoid state change?  D5 CHECK LEAD FRAME CONNECTIONS
�z
Key in OFF position.
�z Disconnect: Lead Frame.
�z Inspect for damaged or pushed out pins,

Page 2363 of 4378

FORD MUSTANG 2003  Workshop Manual PINPOINT TEST E: OUTPUT SHAFT SPEED (OSS) SENSORS
Test Step  Result / Action to Take
NOTE:
Refer to the Output Shaft Speed (OSS) Sensor Harness Connector illustration preceding
these pinpoint test

Page 2364 of 4378

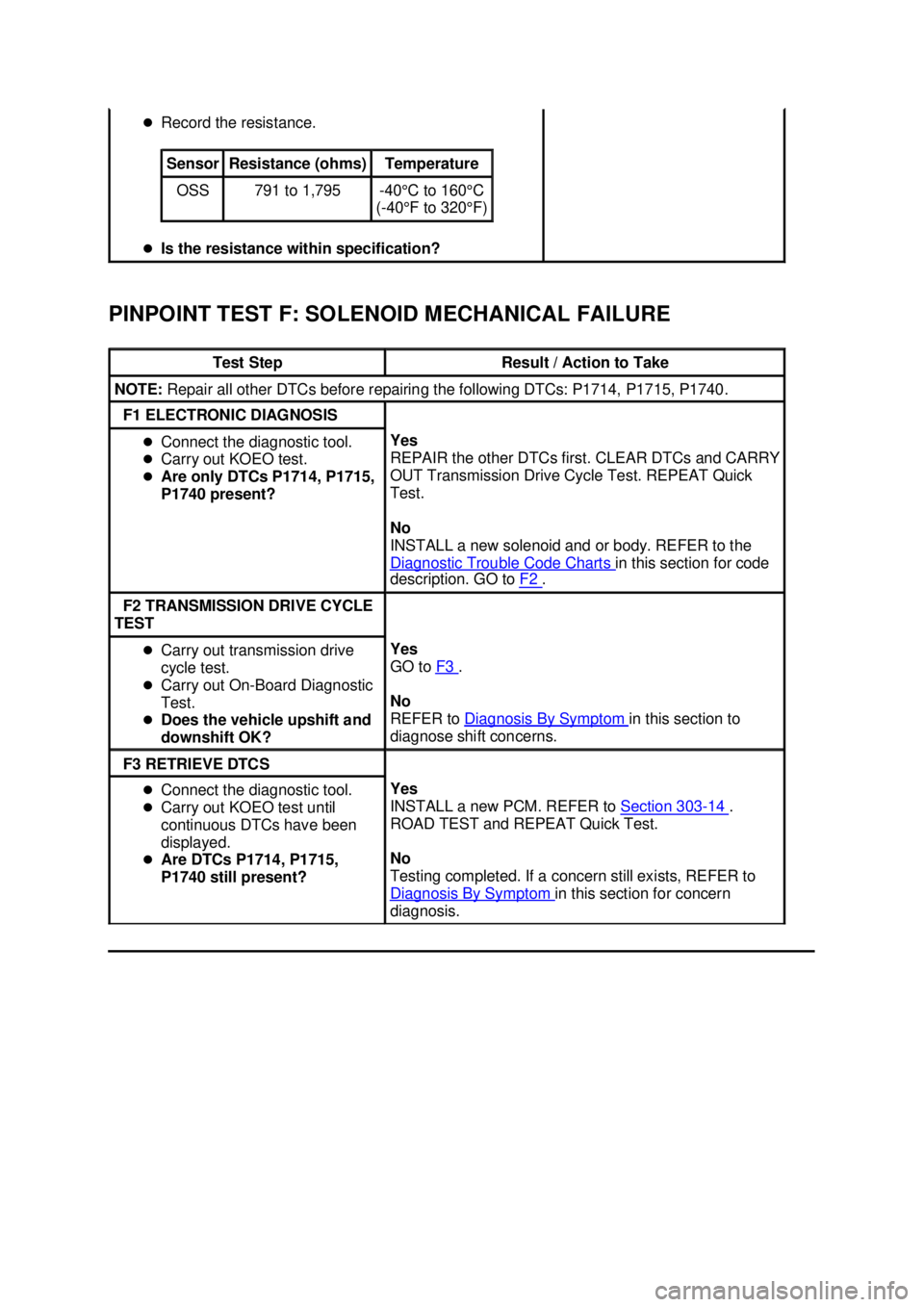

FORD MUSTANG 2003  Workshop Manual PINPOINT TEST F: SOLENOID MECHANICAL FAILURE  �z
Record the resistance.
�z Is the resistance within specification?  Sensor  Resistance (ohms)  Temperature
OSS  791 to 1,795  -
40°C to 160°C
(-40Â

Page 2365 of 4378

FORD MUSTANG 2003  Workshop Manual Klj .  22 ba
  222003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

Page 2366 of 4378

FORD MUSTANG 2003  Workshop Manual DIAGNOSIS AND TESTING
Special Testing Procedures
The special tests are designed to aid the technician in diagnosing the hydraulic and mechanical portion
of the transmission.
Engine Idle Speed Chec

Page 2367 of 4378

FORD MUSTANG 2003  Workshop Manual 2. Start engine and check line pressures. Refer to the Line Pressure Chart to determine if line
pressure is within specification.
a  EPC readings will vary due to EEC strategy. These values are appr

Page 2368 of 4378

FORD MUSTANG 2003  Workshop Manual a
EPC readings will vary due to EEC strategy. These values are approximate pressures. Actual clutch
apply pressures should be within 69- 103 kPa (10-15 psi) of line pressure. For additional informat

Page 2369 of 4378

FORD MUSTANG 2003  Workshop Manual Stall Speed Test
 WARNING: Apply the parking brake firmly while carrying out each stall test.
 CAUTION: Carry out line pressure test prior to carrying out stall test. If the line pressure is
low at

Page 2370 of 4378

FORD MUSTANG 2003  Workshop Manual just long enough to let the engine get to wide open throttle (WOT). While making this test, do
not hold the throttle open for more than 5 seconds at a time.
4. Note the results in each range.
5. Af
