FORD MUSTANG 2003  Workshop Manual Incorrect Pressures
·
Line pressure, EPC pressure  ·
Check pressure at line and EPC taps; refer to Line Pressure
Chart for specifications. If not OK, check the main controls. If
OK, refer to th

Page 2392 of 4378

FORD MUSTANG 2003  Workshop Manual �„
Shift 1- 2, Routine 320
�„ Shift 2- 3, Routine 321
�„ Shift 3- 4, Routine 322
�„ Shift 4- 3, Routine 323
�„ Shift 3- 2, Routine 324
�„ Shift 2- 1, Routine 325
Shift Concerns: Feel

Page 2393 of 4378

FORD MUSTANG 2003  Workshop Manual Shift Concerns: Feel —
Harsh Possible Component  Reference/Action
214 —
ELECTRICAL ROUTINE  Powertrain Control System
·
Electrical inputs/outputs,
vehicle wiring harnesses,
PCM, EPC solenoid

Page 2394 of 4378

FORD MUSTANG 2003  Workshop Manual X = pressure applied  Adjust the digital TR sensor as necessary.
Incorrect Pressures
·
Low reverse clutch pressure,
low reverse band pressure, low
line pressure
�z Forward Off, Intermediate
Of

Page 2395 of 4378

FORD MUSTANG 2003  Workshop Manual Main Controls
·
No. 6 shuttle ball, manual
valve, main regulator valve, low
servo modulator valve stuck,
damaged or assembled
incorrectly  ·
Inspect for damage. Repair as required.  ·
Bolts

Page 2396 of 4378

FORD MUSTANG 2003  Workshop Manual vehicle wiring harnesses,
PCM, shift solenoids,
OSS  Diagnosis (PC/ED) manual for diagnosis and testing of the
Powertrain Control System.  Go To Pinpoint Test A  or
Go To  Pinpoint Test E  . Repai

Page 2397 of 4378

FORD MUSTANG 2003  Workshop Manual piston
·
Springs damaged or
broken  ·
Inspect for damage. Repair as required.  ·
Case bore scored  ·
Inspect for damage. Repair as required.
Shift Concerns: 2-3 Shift (Automatic)  Possible

Page 2398 of 4378

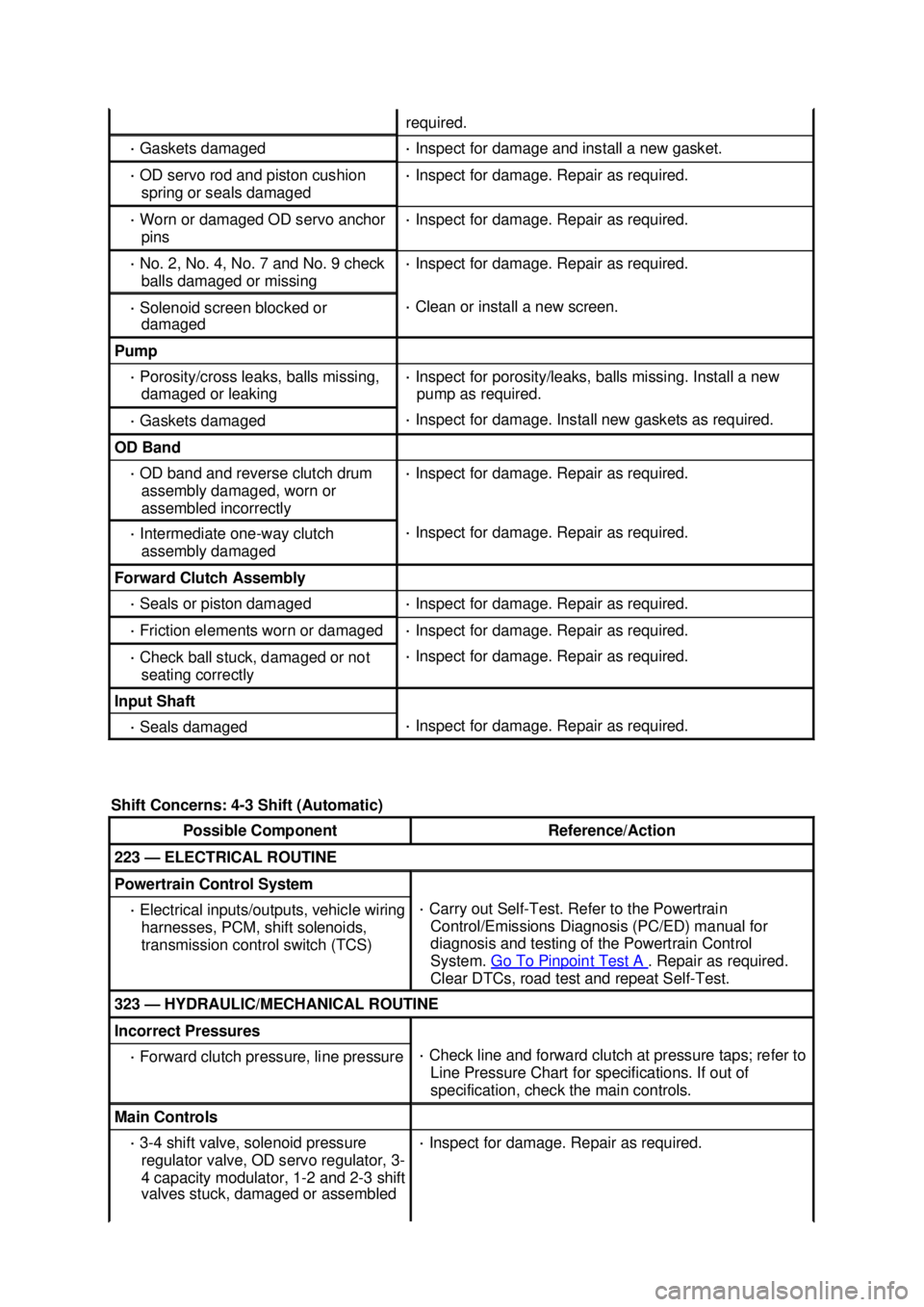

FORD MUSTANG 2003  Workshop Manual Direct Clutch Assembly
·
Seals or piston damaged  ·
Inspect for damage. Repair as required.  ·
Friction elements worn or
damaged  ·
Inspect for damage. Repair as required.  ·
Check ball no

Page 2399 of 4378

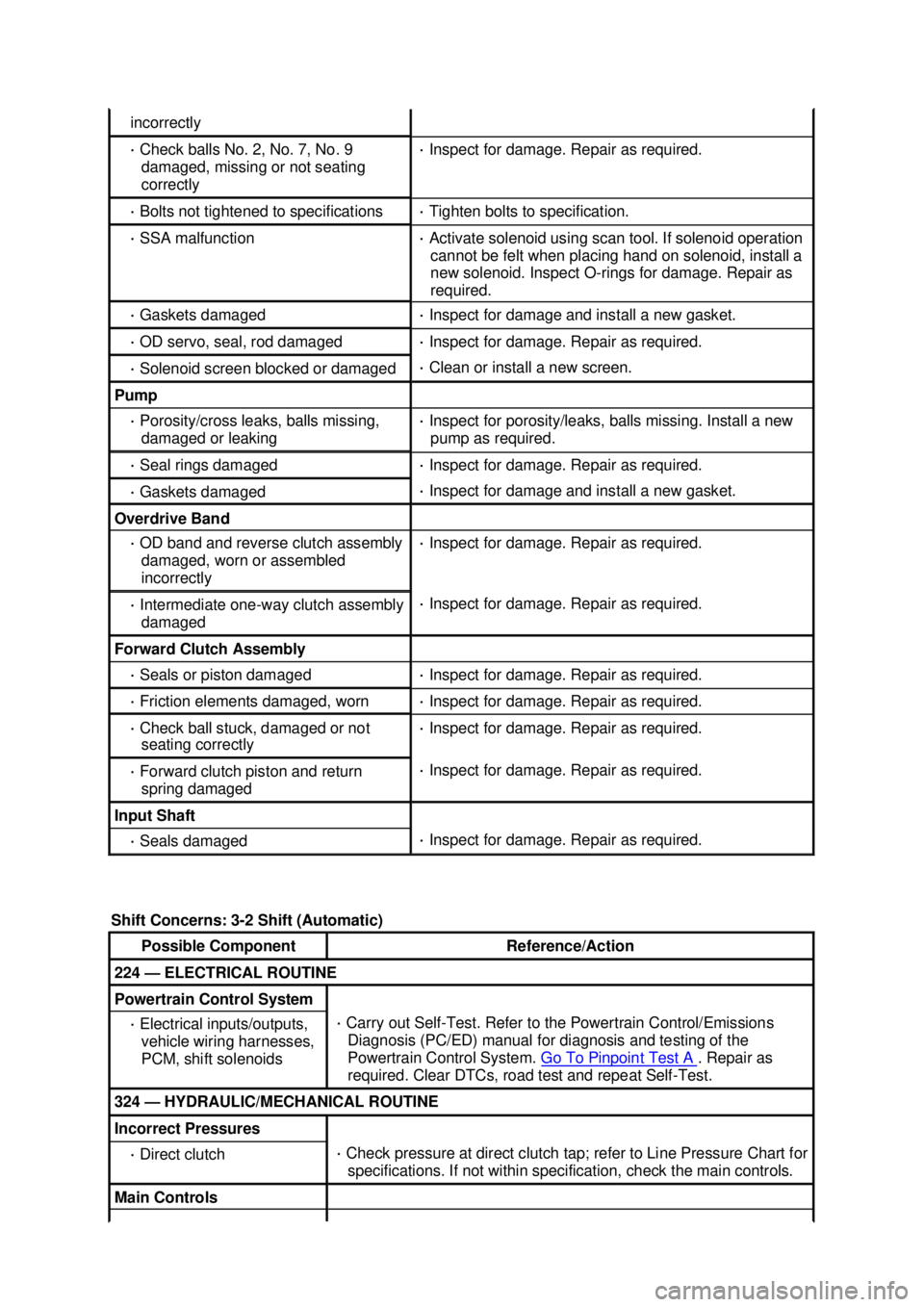

FORD MUSTANG 2003  Workshop Manual required.
·
Gaskets damaged  ·
Inspect for damage and install a new gasket.  ·
OD servo rod and piston cushion
spring or seals damaged  ·
Inspect for damage. Repair as required.  ·
Worn or

Page 2400 of 4378

FORD MUSTANG 2003  Workshop Manual incorrectly
·
Check balls No. 2, No. 7, No. 9
damaged, missing or not seating
correctly  ·
Inspect for damage. Repair as required.  ·
Bolts not tightened to specifications  ·
Tighten bolts
