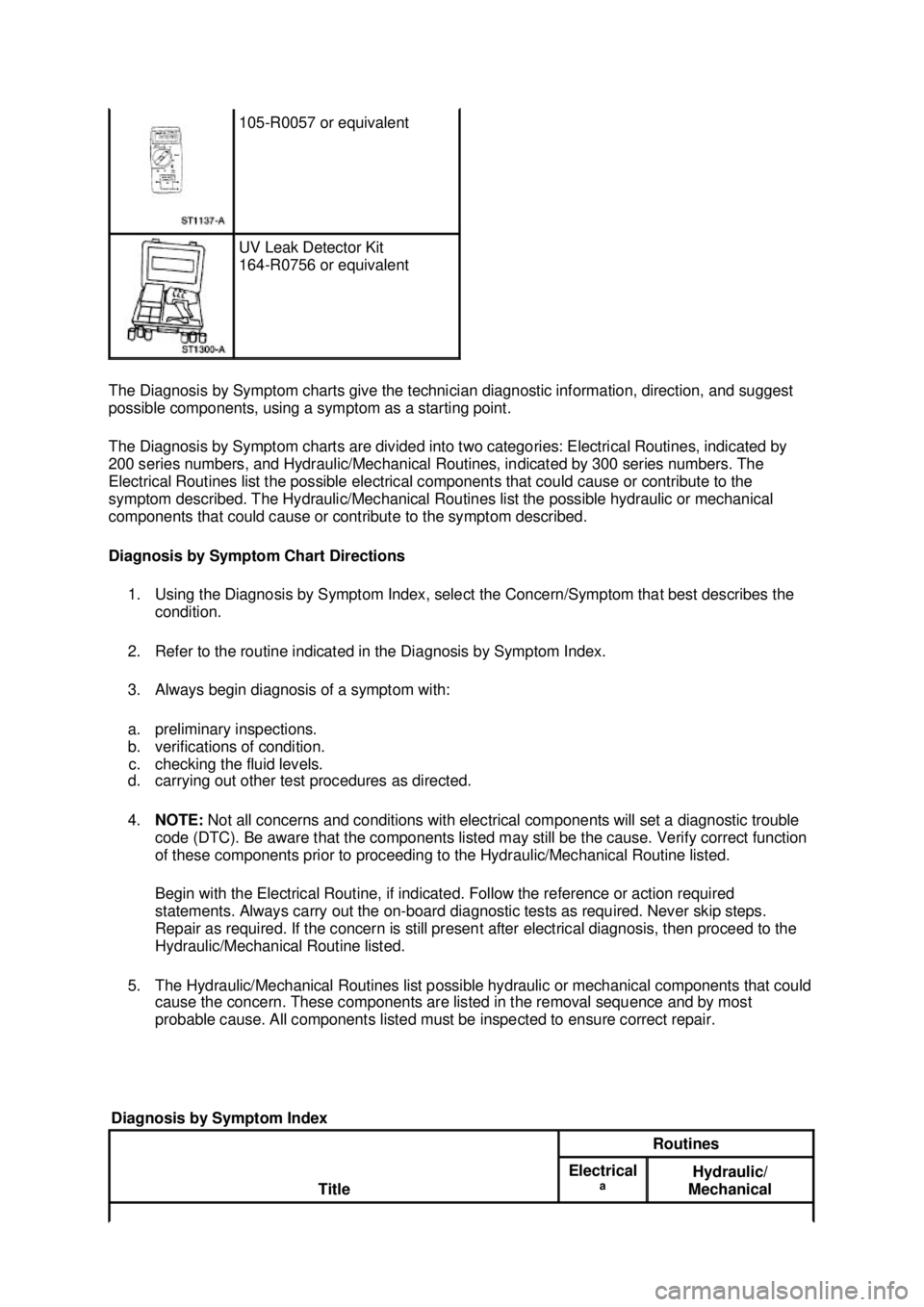

The Diagnosis by Symptom charts give the technician diagnostic information, direction, and suggest
possible components, using a symptom as a starting point.
The Diagnosis by Symptom charts are divided into two categories: Electrical Routines, indicated by
200 series numbers, and Hydraulic/Mechanical Routines, indicated by 300 series numbers. The
Electrical Routines list the possible electrical components that could cause or contribute to the
symptom described. The Hydraulic/Mechanical Routines list the possible hydraulic or mechanical
components that could cause or contribute to the symptom described.
Diagnosis by Symptom Chart Directions
1. Using the Diagnosis by Symptom Index, select the Concern/Symptom that best describes the condition.
2. Refer to the routine indicated in the Diagnosis by Symptom Index.
3. Always begin diagnosis of a symptom with:
a. preliminary inspections.
b. verifications of condition. c. checking the fluid levels.
d. carrying out other test procedures as directed.
4. NOTE: Not all concerns and conditions with electrical components will set a diagnostic trouble
code (DTC). Be aware that the components listed may still be the cause. Verify correct function
of these components prior to proceeding to the Hydraulic/Mechanical Routine listed.
Begin with the Electrical Routine, if indicated. Follow the reference or action required
statements. Always carry out the on- board diagnostic tests as required. Never skip steps.
Repair as required. If the concern is still present after electrical diagnosis, then proceed to the
Hydraulic/Mechanical Routine listed.
5. The Hydraulic/Mechanical Routines list possible hydraulic or mechanical components that could cause the concern. These components are listed in the removal sequence and by most
probable cause. All components listed must be inspected to ensure correct repair. 105-
R0057 or equivalent UV Leak Detector Kit
164-
R0756 or equivalent
Diagnosis by Symptom Index Title Routines
Electrical
a Hydraulic/
Mechanical Klj . 2 ba
312003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...
Page 2382 of 4378

a
Carry out electrical routine first.
Diagnostic Routines Engagement Concerns
No Forward 201 301
No REVERSE 202 302
Harsh REVERSE 203 303
Harsh Forward 204 304
Delayed/Soft Reverse 205 305
Delayed/Soft Forward 206 306
Shift Concerns
Some/All Shifts Missing 210 310
Timing Concerns
—
Early/Late 211 311
—Erratic/Hunting 212 312
Feel
—
Soft/Slipping 213 313
—
Harsh 214 314
No 1st Gear, Engages in Higher Gear 215 315
No Manual 1st Gear 216 316
No Manual 2nd Gear 217 317
Torque Converter Operation Concerns
No Apply 240 340
Always Applied/Stalls Vehicle 241 341
Cycling/Shudder/Chatter 242 342
Other Concerns
No Engine Braking in 2nd Gear, Manual 2nd or Manual 1st
Position 250 350
Gearshift Lever Efforts High 251 351
External Leaks 252 352
Vehicle Driveability Concerns 253 353
Noise/Vibration in Forward or Reverse 254 354
Engine Will Not Crank 255 355
No PARK (P) Range 256 356
Overheating 257 357
Engagement Concern: No Forward Possible Component Reference/Action
201 —
ELECTRICAL ROUTINE ·
No Electrical Concerns 301 —
HYDRAULIC/MECHANICAL ROUTINE Fluid
·
Incorrect level ·
Adjust fluid to correct level. ·
Condition ·
Inspect as under Fluid Condition Check; refer to Verification of Klj . 3 ba
312003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...
Page 2383 of 4378

Condition.
Shift Linkage
·
Damaged or incorrectly
adjusted ·
Inspect and repair as required. Verify transmission shift cable
adjustment; refer to Section 307 - 05 . Adjust transmission shift cable
as necessary. After repairing transmission shift cable, verify the digital
transmission range (TR) sensor is correctly adjusted. Adjust the
digital TR sensor as necessary. Incorrect Pressures
·
Low forward clutch
pressure, low line
pressure ·
Check pressure at line and forward clutch tap. Refer to Line Pressure
Chart for specification. If pressures are low, check the following
components: oil filter and seal assembly, main controls, pump
assembly, forward clutch assembly. Fluid Filter and Seal
Assembly
·
Plugged, damaged ·
Install a new filter and seal assembly. ·
Filter seal damaged Main Controls
·
3- 4 shift valve, main
regulator valve, manual
valve — stuck,
damaged ·
Inspect for damage. Repair as required. ·
Bolts not tightened to
specifications ·
Tighten bolts to specifications. ·
Gaskets damaged ·
Inspect gaskets for damage and install a new gasket. ·
2- 3 accumulator and
seals damaged ·
Inspect piston, seals and bore for damage. Repair as required. ·
Pressure regulator
valve ·
Inspect the diameter for wear. Pump Assembly
·
Bolts not tightened to
specifications ·
Tighten bolts to specifications. ·
Porosity/cross
leaks/ball missing or
leaking, plugged hole ·
Inspect for porosity and leaks. Repair as required. ·
No. 3 and No. 4 seal
rings damaged ·
Inspect seals for damage. Repair as required. ·
Gaskets damaged ·
Inspect for damage and install a new gasket. Forward Clutch
Assembly
·
Seals, piston damaged ·
Inspect seals for damage. Repair as required. ·
Check balls damaged,
missing, mislocated,
not seating correctly ·
Inspect for mislocation, poor seating, damage. Install a new cylinder
as required. ·
Friction elements
damaged or worn ·
Check for abnormal wear, damage. Repair as required. One-
Way Clutch
Assembly (Planetary) ·
Worn, damaged or
assembled incorrectly ·
Inspect for damage. Repair as required. Output Shaft Klj . 4 ba
312003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...
Page 2384 of 4378

·
Damaged ·
Inspect for damage. Install new components as required.
Engagement Concern: No Reverse Possible Component Reference/Action
202 —
ELECTRICAL ROUTINE ·
No Electrical Concerns 302 —
HYDRAULIC/MECHANICAL ROUTINE Fluid
·
Incorrect level ·
Adjust fluid to correct level. ·
Condition ·
Inspect condition of fluid. Shift Linkage
·
Damaged or incorrectly
adjusted ·
Inspect and repair as required. Verify transmission shift cable
adjustment; refer to Section 307 - 05 . Adjust transmission shift
cable as necessary. After repairing transmission shift cable, verify
that the digital TR sensor is correctly adjusted. Adjust the digital
TR sensor as necessary. Incorrect Pressures
·
Low reverse clutch
pressure, low reverse band
pressure, low line pressure ·
Check pressure at line pressure tap; refer to Line Pressure Chart
for specifications. If pressures are low, check the following
components: oil filter and seal assembly, main controls, reverse
servo, pump assembly, reverse clutch assembly. Fluid Filter and Seal
Assembly
·
Plugged, damaged ·
Install a new filter and seal assembly. Main Controls
·
No. 6 shuttle ball, manual
valve, main regulator valve,
1- 2 accumulator seals
stuck or damaged ·
Inspect for damage. Repair as required. ·
Loose bolts ·
Tighten bolts to specifications. ·
Gasket damaged ·
Inspect for damage and install a new gasket. Low/Reverse Servo
·
Seals (piston and cover)
damaged ·
Inspect for damage. Repair as required. ·
Servo cover retaining ring
damaged ·
Anchor pins (case)
damaged Pump Assembly
·
Loose bolts ·
Tighten bolts to specifications. ·
Porosity/cross leaks/ball
missing or leaking, plugged
hole ·
Inspect pump assembly. Install new as required. ·
Gasket damaged ·
Inspect for damage and install a new gasket. ·
No. 1 and 2 seal rings
damaged ·
Inspect for damage. Repair as required. Reverse Clutch Assembly Klj . 5 ba
312003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...
Page 2385 of 4378

·
Seals, piston damaged ·
Inspect for damage. Repair as required. ·
Check ball missing or
damaged ·
Friction elements damaged
or worn Low/Reverse Band
·
Band, servo, anchor pins
damaged or worn ·
Inspect for damage. Repair as required.
Engagement Concern: Harsh Reverse Possible Component Reference/Action
203 —
ELECTRICAL ROUTINE Powertrain Control System
·
Electrical inputs/outputs,
vehicle wiring harnesses,
PCM, TFT sensor, EPC
solenoid ·
Carry out Self-Test; refer to the Powertrain Control/Emissions
Diagnosis (PC/ED) manual for diagnosis and testing of the
Powertrain Control System. Carry out engagement test, EPC test
and Go To Pinpoint Test B or
Go To Pinpoint Test D . Check idle
speed. Repair as required. Clear DTCs, road test and repeat Self-
Test. 303 —
HYDRAULIC/MECHANICAL ROUTINE Fluid
·
Incorrect level ·
Adjust fluid to correct level. ·
Condition ·
Inspect condition of fluid. Engine Driveline
·
Looseness in the
driveshaft, U- joints or the
engine mounts ·
Repair as required. Shift Linkage
·
Damaged or incorrectly
adjusted ·
Inspect and repair as required. Verify transmission shift cable
adjustment; refer to Section 307 - 05 . Adjust transmission shift
cable as necessary. After repairing transmission shift cable, verify
that the digital TR sensor is correctly adjusted. Adjust the digital
TR sensor as necessary. Incorrect Pressures
·
High line pressure, high
EPC pressure ·
Check pressure at line and EPC pressure taps; refer to Line
Pressure Chart for specifications. If high, check the following
components: main controls, oil filter and seal assembly. Fluid Filter and Seal
Assembly
·
Plugged or damaged ·
Install a new filter and seal assembly. ·
Filter seal damaged Main Controls
·
No. 6 shuttle ball, No. 5
check ball, manual valve,
main regulator valve stuck,
damaged or missing ·
Inspect for damage. Repair as required. ·
Bolts not tightened to
specifications ·
Tighten bolts to specifications. Klj . 6 ba
312003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...
Page 2386 of 4378

·
Gasket damaged ·
Inspect for damage and install a new gasket. ·
EPC solenoid stuck or
damaged ·
Inspect for damage, contamination. Carry out EPC test in Routine
No. 203. Repair as required. Low Reverse Servo
·
Seals (piston and cover)
damaged ·
Inspect for damage. Repair as required. ·
Servo cover retaining ring
assembled incorrectly ·
Anchor pins (case)
damaged Pump Assembly
·
Bolts not tightened to
specifications ·
Tighten bolts to specifications. ·
Porosity/cross leaks ·
Inspect pump assembly. Install new as required. ·
Gasket damaged ·
Inspect for damage and install a new gasket. ·
No. 1 and No. 2 seal rings
damaged ·
Inspect for damage. Repair as required. Reverse Clutch Assembly
·
Seals, piston damaged ·
Inspect for damage. Repair as required. ·
Check ball missing or
damaged ·
Friction elements
damaged, worn ·
Return spring piston
damaged, worn Low Reverse Band
·
Band, servo, anchor pin
damaged or worn ·
Inspect for damage. Repair as required.
Engagement Concern: Harsh Forward Possible Component Reference/Action
204 —
ELECTRICAL ROUTINE Powertrain Control
System
·
Electrical inputs/outputs,
vehicle wiring
harnesses, PCM, TFT
sensor, EPC solenoid ·
Carry out Self- Test; refer to the Powertrain Control/Emissions
Diagnosis (PC/ED) manual for diagnosis and testing of the
Powertrain Control System. Carry out engagement test and EPC
test. Go To Pinpoint Test B or
Go To Pinpoint Test D . Check idle
speed. Repair as required. Clear DTCs, road test and repeat Self-
Test. 304 —
HYDRAULIC/MECHANICAL ROUTINE Fluid
·
Incorrect level ·
Adjust fluid to correct level. ·
Condition ·
Inspect condition of fluid. Engine Driveline
·
Looseness in the
driveshaft, U- joints or ·
Repair as required. Klj . 7 ba
312003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...
Page 2387 of 4378

the engine mounts
Incorrect Pressures
·
High forward clutch
pressure, high line
pressure, high EPC
pressure ·
Check pressure at line, EPC and forward pressure taps. Refer to
Line Pressure Chart for specifications. If pressures are high, check
the following possible components: main controls, pump assembly. Main Controls
·
Main regulator valve
stuck, damaged ·
Inspect and repair as required. ·
Bolts not tightened to
specifications ·
Tighten bolts to specifications. ·
Gaskets damaged ·
Inspect for damage and install a new gasket. ·
EPC solenoid stuck or
damaged ·
Inspect for damage or contamination. Carry out EPC test in Routine
204. Repair as required. Case
·
2- 3 accumulator
seal/retainer stuck,
damaged ·
Inspect for damage. Repair as required. Pump Assembly
·
Bolts not tightened to
specifications ·
Tighten bolts to specifications. ·
Porosity/cross leaks ·
Inspect for porosity/leaks. Install a new pump as required. ·
Gaskets damaged ·
Inspect for damage and install a new gasket. Forward Clutch Assembly
·
Check balls missing or
damaged ·
Inspect for mislocation, poor seating, damage. Install a new forward
clutch cylinder. ·
Friction element
damaged or worn ·
Inspect for damage. Repair as required. ·
Forward clutch wave
spring damaged ·
Inspect for damage. Repair as required. ·
Forward clutch return
spring damaged ·
Inspect for damage. Repair as required.
Engagement Concern: Delayed/Soft Reverse Possible Component Reference/Action
205 —
ELECTRICAL
ROUTINE ·
No Electrical Concerns 305 —
HYDRAULIC/MECHANICAL ROUTINE Fluid
·
Incorrect level ·
Adjust fluid to correct level. ·
Condition ·
Inspect condition of fluid. Shift Linkage
·
Damaged or incorrectly
adjusted ·
Inspect and repair as required. Verify transmission shift cable
adjustment; refer to Section 307 - 05 . Adjust transmission shift cable
as necessary. After repairing transmission shift cable, verify that the
digital TR sensor is correctly adjusted. Adjust the digital TR sensor Klj . 8 ba
312003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...
Page 2388 of 4378

as necessary.
Incorrect Pressures
·
Low reverse clutch
pressure, low reverse
band pressure, low line
pressure ·
Check pressure at line tap; refer to Line Pressure Chart for
specifications. If pressures are low, check the following components:
main controls, pump assembly, reverse clutch assembly, reverse
servo. Fluid Filter and Seal
Assembly
·
Plugged, damaged ·
Install a new filter and seal assembly. ·
Filter seal damaged Main Controls
·
No. 6 shuttle ball,
manual valve, main
regulator valve stuck or
damaged ·
Inspect for damage. Repair as required. ·
Bolts not tightened to
specifications ·
Tighten bolts to specifications. ·
Gaskets damaged ·
Inspect for damage and install a new gasket. Case
·
1- 2 accumulator seals
stuck or damaged ·
Inspect for damage. Repair as required. Low Reverse Servo
·
Seals (piston and cover)
damaged ·
Inspect for damage. Repair as required. ·
Servo cover retaining
ring assembled
incorrectly Pump Assembly
·
Bolts not tightened to
specification ·
Tighten bolts to specification. ·
Porosity/cross leaks/ball
missing or leaking ·
Inspect pump assembly. Install new as required. ·
Gaskets damaged ·
Inspect for damage and install a new gasket. ·
No. 1 and No. 2 seal
rings damaged ·
Inspect for damage. Repair as required. Reverse Clutch Assembly
·
Seals, piston damaged ·
Inspect for damage. Install new components as required. ·
Check ball missing or
damaged ·
Friction elements
damaged, worn ·
Return spring and piston
damaged, worn Low Reverse Band
·
Damaged, worn ·
Inspect for damage. Repair as required.
Engagement Concern: Delayed/Soft Forward Klj . 9 ba
312003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...
Page 2389 of 4378

Possible Component Reference/Action
206 —
ELECTRICAL
ROUTINE ·
No Electrical Concerns 306 —
HYDRAULIC/MECHANICAL ROUTINE Fluid
·
Incorrect level ·
Adjust fluid to correct level. ·
Condition ·
Inspect condition of fluid. Shift Linkage
·
Damaged or incorrectly
adjusted ·
Inspect and repair as required. Verify transmission shift cable
adjustment; refer to Section 307 - 05 . Adjust transmission shift cable
as necessary. After repairing transmission shift cable, verify that the
digital TR sensor is correctly adjusted. Adjust the digital TR sensor as
necessary. Incorrect Pressures
·
Low forward clutch
pressure, low line
pressure, low EPC
pressure ·
Check pressure at line, forward clutch and EPC taps; refer to Line
Pressure Chart for specifications. If pressures are low, check the
following components: oil filter and seal assembly, main controls and
pump assembly. Fluid Filter and Seal
Assembly
·
Plugged, damaged ·
Install a new filter and seal assembly. ·
Filter seal damaged Main Controls
·
3- 4 shift valve, main
regulator valve stuck or
damaged ·
Inspect and repair as required. ·
Bolts not tightened to
specifications ·
Tighten bolts to specifications. ·
Gaskets damaged ·
Inspect for damage and repair as required. Case
·
2- 3 or 1- 2 accumulator,
bore damaged or stuck ·
Inspect for damage. Repair as required. Pump Assembly
·
Bolts not tightened to
specification ·
Tighten bolts to specifications. ·
Porosity/cross leaks ·
Inspect pump assembly. Repair as required. ·
Gaskets damaged ·
Inspect for damage. Repair as required. ·
No. 3 and No. 4 seal
rings damaged ·
Inspect for damage. Repair as required. Forward Clutch
Assembly
·
Seals, piston damaged ·
Inspect for damage. Repair as required. ·
Check balls missing,
damaged ·
Inspect for mislocation, poor seating, damage. Install a new cylinder
as required. ·
Friction elements
damaged, worn ·
Check for damage. Repair as required. Klj . 10 ba
312003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...
Page 2390 of 4378

Shift Concerns: Some/All Shifts Missing
Possible Component Reference/Action
210 —
ELECTRICAL ROUTINE Powertrain Control System
·
Electrical inputs/outputs,
vehicle wiring harnesses, PCM,
shift solenoids, output shaft
speed (OSS) sensor, digital TR
sensor ·
Carry out Self-Test; refer to the Powertrain Control/Emissions
Diagnosis (PC/ED) manual for diagnosis and testing of the
Powertrain Control System. Go To Pinpoint Test A ,
Go To Pinpoint Test C or
Go To Pinpoint Test E . Repair as
required. Clear DTCs, road test and repeat Self- Test. 310 —
HYDRAULIC/MECHANICAL ROUTINE Fluid
·
Incorrect level ·
Adjust fluid to correct level. ·
Condition ·
Inspect condition of fluid. Shift Linkage, Digital TR Sensor
·
Damaged or incorrectly
adjusted ·
Inspect and repair as required. Verify transmission shift cable
adjustment; refer to Section 307 - 05 . Adjust transmission shift
cable as necessary. After repairing transmission shift cable,
verify that the digital TR sensor is correctly adjusted. Adjust
the digital TR sensor as necessary. ·
Refer to the following shift routine(s) for further diagnosis:
„ Shift 1- 2, Routine 220/320
„ Shift 2- 3, Routine 221/321
„ Shift 3- 4, Routine 222/322
„ Shift 4- 3, Routine 223/323
„ Shift 3- 2, Routine 224/324
„ Shift 2- 1, Routine 225/325
Shift Concerns: Timing Concerns — Early/Late Possible Component Reference/Action
211 —
ELECTRICAL ROUTINE Powertrain Control System
·
Electrical inputs/outputs,
vehicle wiring harnesses,
PCM, shift solenoids, EPC
solenoid, TFT sensor, OSS ·
Carry out Self- Test. Refer to the Powertrain Control/Emissions
Diagnosis (PC/ED) manual for diagnosis and testing of the
Powertrain Control System. Go To Pinpoint Test A ,
Go To Pinpoint Test C or
Go To Pinpoint Test E . Repair as required.
Clear DTCs, road test and repeat Self- Test. 311 —
HYDRAULIC/MECHANICAL ROUTINE Other
·
Tire size change, axle ratio
change ·
Verify vehicle has original equipment. Refer to Certification
Label and Safety Standard Certification Label. Changes in tire
size or axle ratio will affect shift timing. Fluid
·
Incorrect level ·
Adjust fluid to correct level. ·
Condition ·
Inspect condition of fluid. Powertrain Control System
·
Engine driveability concerns ·
Refer to Routine 253. Klj . 11 ba
312003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...
