Page 2371 of 4378

FORD MUSTANG 2003  Workshop Manual A no-
drive condition can exist even with correct transmission fluid pressure because of inoperative
clutches or bands. An erratic shift can be located through a series of checks by substituting air

Page 2372 of 4378

FORD MUSTANG 2003  Workshop Manual 4. If the difference is greater than 103 kPa (15 psi), there is a leak in the corresponding clutch
pressure circuit. The gauges on the line pressure tap and clutch pressure tap can be switched
to co

Page 2373 of 4378

FORD MUSTANG 2003  Workshop Manual DIAGNOSIS AND TESTING
Leakage Inspection
 CAUTION: Do not try to stop the fluid leak by increasing the torque beyond specifications.
This may cause damage to the case threads.
Check the fluid fill

Page 2374 of 4378

FORD MUSTANG 2003  Workshop Manual Item  Part Number  Description
1  7902  Torque converter
2  7A248  Front pump seal
3  7A248  Front pump seal
4  N605789-S101  Bolt
5  7A106  Front pump body assembly
6  7A136  Pump gasket
7  39

Page 2375 of 4378

FORD MUSTANG 2003  Workshop Manual Fluid Leakage in Torque Converter Area
In diagnosing and correcting fluid leaks in the front pump support and gear and torque converter area,
use the following procedures to locate the exact cause o

Page 2376 of 4378

FORD MUSTANG 2003  Workshop Manual following areas of possible leakage should also be checked to determine if engine oil leakage is
causing the concern.
a. Leakage at the engine valve cover gasket may allow oil to flow over the torqu

Page 2377 of 4378

FORD MUSTANG 2003  Workshop Manual Klj .  5 ba
  52003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

Page 2378 of 4378

FORD MUSTANG 2003  Workshop Manual DIAGNOSIS AND TESTING
Transmission Fluid Cooler
 CAUTION: Whenever a transmission has been disassembled to install new parts, the
cooler bypass valve (CBV), all transmission fluid coolers (in tank

Page 2379 of 4378

FORD MUSTANG 2003  Workshop Manual Klj .  2 ba
  22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

Page 2380 of 4378

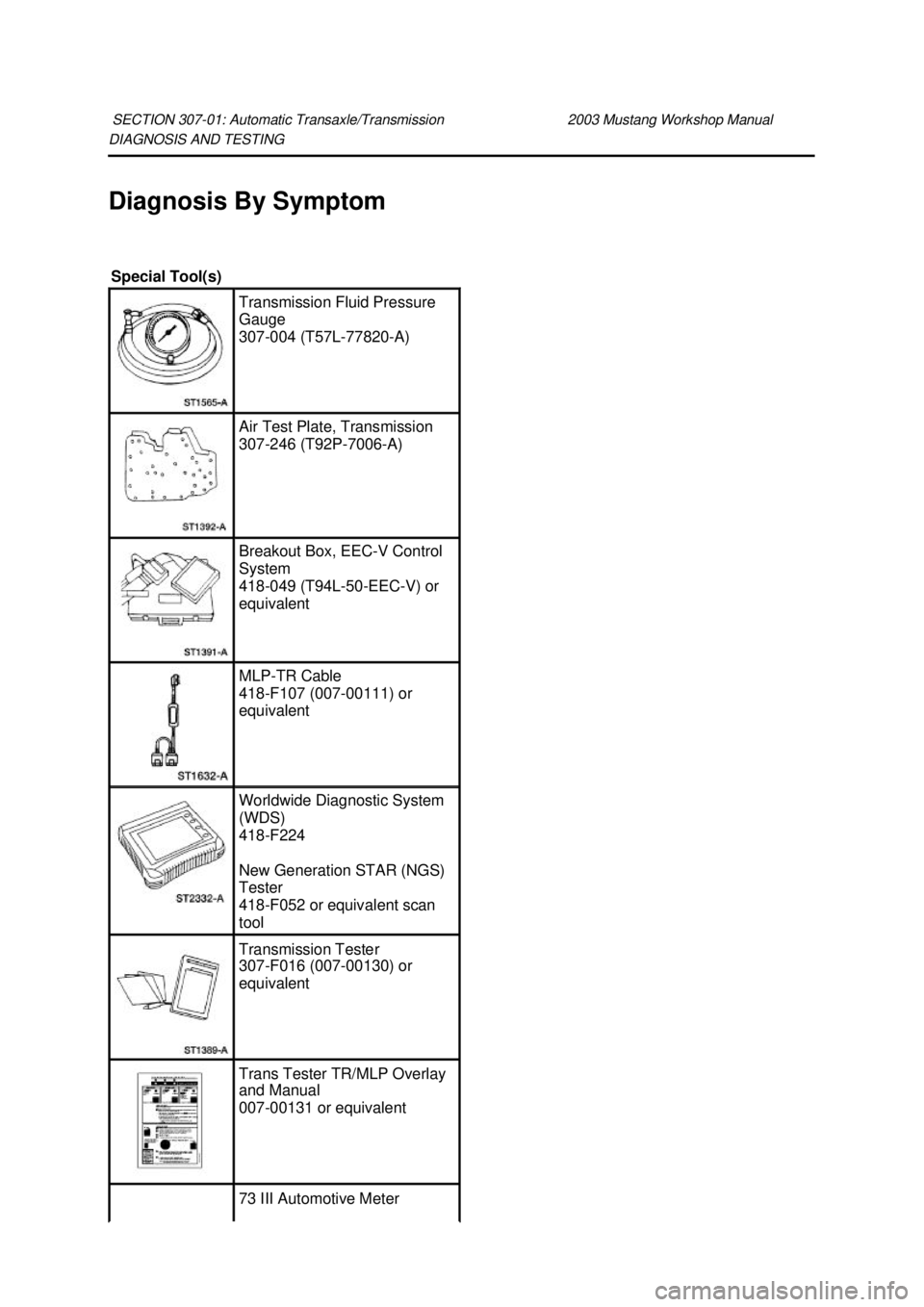

FORD MUSTANG 2003  Workshop Manual DIAGNOSIS AND TESTING
Diagnosis By Symptom
SECTION 307-
01: Automatic Transaxle/Transmission  2003 Mustang Workshop Manual Special Tool(s)
Transmission Fluid Pressure
Gauge
307-
004 (T57L-77820-
