FORD MUSTANG 2003 Workshop Manual

REMOVAL AND INSTALLATION
Motor —
Window Regulator
Removal 1. Remove the door trim panel. For additional information, refer to Section 501 - 05 .
2. Remove the screws and the speaker.
3. Disconnect the electrical connector.
4. Remove the screws and the window regulator motor.
Installation 1. To install, reverse the removal procedure.
SECTION 501-
11: Glass, Frames and Mechanisms 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Motor —
Window Regulator, Quarter
Removal 1. Remove the quarter trim panel. For additional information, refer to Section 501 - 05 .
2. Remove the watershield.
3. Remove the quarter glass window regulator motor.
Installation 1. To install, reverse the removal procedure.
SECTION 501-
11: Glass, Frames and Mechanisms 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Window Regulator —
Power
Removal 1. Remove the door window glass. For additional information, refer to Window Glass — Door in this
section.
2. Disconnect the electrical connector.
3. Remove the channel.
4. Remove the regulator.
Installation 1. To install, reverse the removal procedure. SECTION 501-
11: Glass, Frames and Mechanisms 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Window Regulator —
Quarter
Removal 1. Remove the quarter window glass. For additional information, refer to Window Glass — Quarter
in this section.
2. Remove the nut.
3. Remove the screws and the rear quarter window regulator.
Installation 1. To install, reverse the removal procedure.
SECTION 501-
11: Glass, Frames and Mechanisms 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Windshield Glass
Removal
All vehicles
WARNING: To prevent glass splinters from entering eyes or cutting hands, wear safety
glasses and heavy gloves when cutting glass from the vehicle.
1. Remove the RH and LH windshield side garnish mouldings. zIf equipped with a convertible top, remove the pin- type retainers.
2. Remove the interior rear view mirror.
Convertible
3. Remove the visor trim moulding.
SECTION 501-
11: Glass, Frames and Mechanisms 2003 Mustang Workshop Manual Special Tool(s)
Rotunda Pneumatic Knife with
Offset Blade
107-
R1511 or equivalent The Pumper
164-
R2459 or equivalent Rotunda Interior Auto Glass
Cut-
Out Knife Kit
164- R2450 or equivalent Klj . 1 ba
102003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

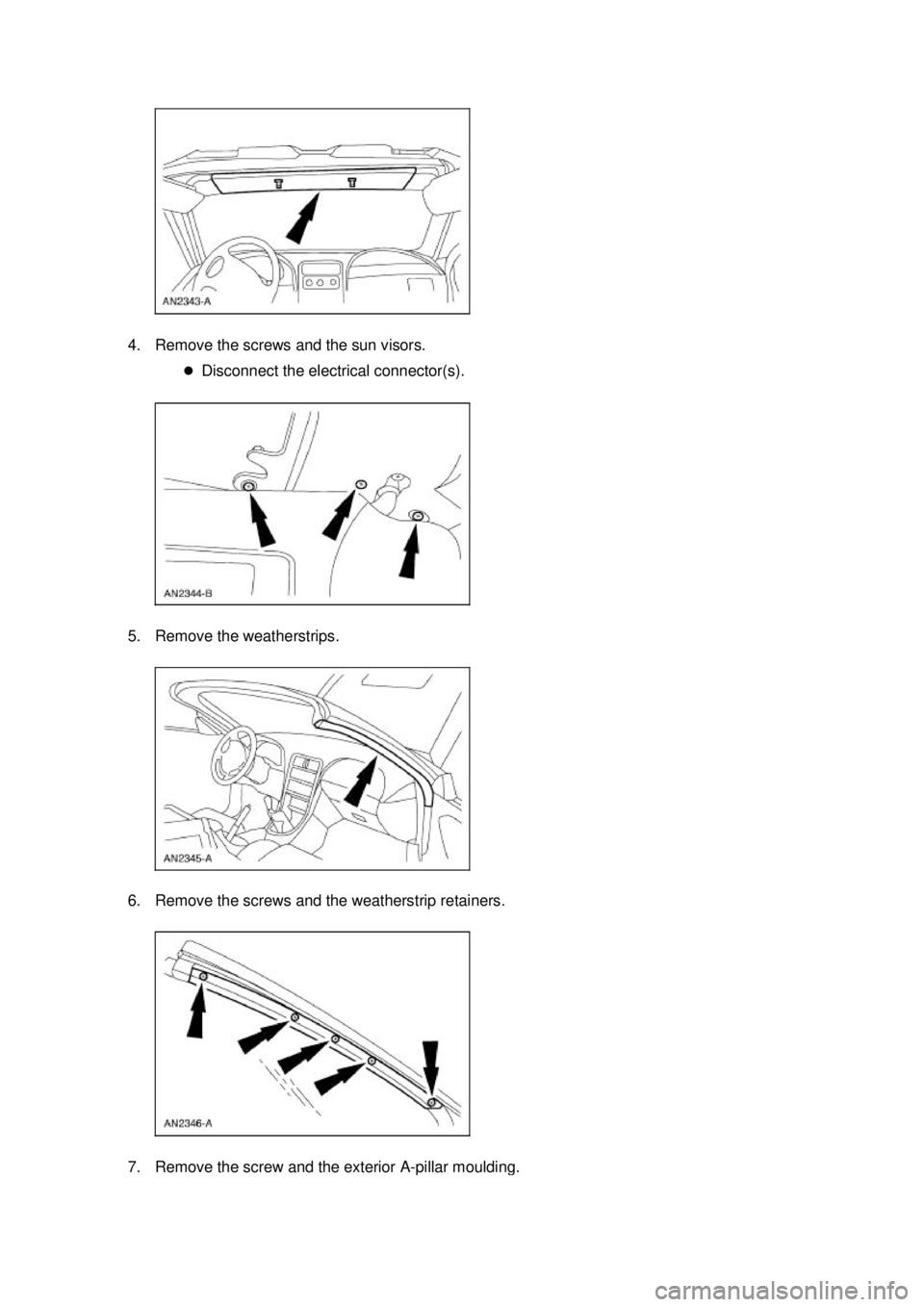

4. Remove the screws and the sun visors.
zDisconnect the electrical connector(s).
5. Remove the weatherstrips.
6. Remove the screws and the weatherstrip retainers. 7. Remove the screw and the exterior A - pillar moulding. Klj . 2 ba
102003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
