FORD MUSTANG 2003 Workshop Manual

10.
CAUTION: Install the steering column bearing so that the inner race is visible when
installed. Item Part Number Description
1 — Outer race
2 — Bearing (in the "UP" position)
3 — Ball
4 — Inner race Klj . 11 ba
182003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

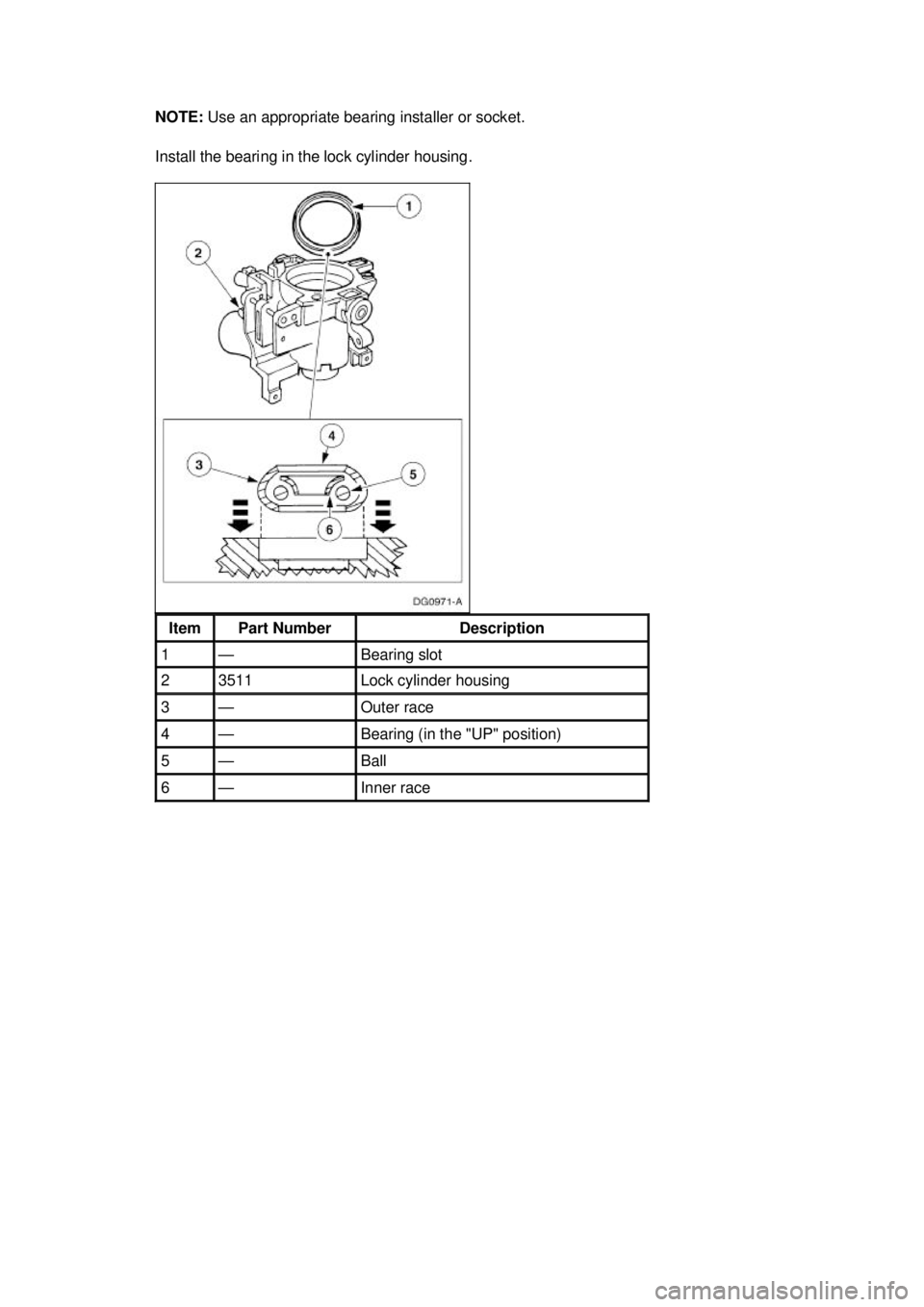

NOTE:
Use an appropriate bearing installer or socket.
Install the bearing in the lock cylinder housing. Item Part Number Description
1 — Bearing slot
2 3511 Lock cylinder housing
3 — Outer race
4 — Bearing (in the "UP" position)
5 — Ball
6 — Inner race Klj . 12 ba
182003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

11. Position the shaft in the steering column lock cylinder housing.
zInstall the bearing tolerance ring on the steering column shaft.
12. Install the bearing sleeve.
13. Install the upper bearing spring. Klj . 13 ba
182003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

14. Install the snap ring.
15. Install the tilt pivot screws loosely and position the actuator housing in a vise.
zLubricate the pivot screws with Ignition Lock Grease F0AZ-19584- A or equivalent
meeting Ford specification ESA- M1C232-A.
16. Place two nuts or spacers to hold the lock levers away from the actuator housing.
17. NOTE: Lubricate the lock cylinder housing pivot bushings with Ignition Lock Grease F0AZ-
19584- A or equivalent meeting Ford specification ESA- M1C232-A. Klj . 14 ba
182003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Install the lock cylinder housing.
zPosition the lock cylinder housing and the shaft assembly on the actuator housing.
z Make sure the upper and lower lock actuators are aligned.
z Install and compress the steering column position spring.
z Align the lock cylinder housing bushings with the pivot screws and tighten the screws.
z Using a long thin screwdriver, remove the nuts installed under the lock levers.
18. Install the bearing tolerance ring.
19. Install the sensor ring. 1. Install the sensor ring.
2. Install the lower bearing spring.
20. Install the ignition switch. Align the ignition switch with the slot and index- mark on the actuator
housing.
zInstall the screws. Klj . 15 ba
182003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

21.
NOTE: The narrow section of the keyhole in the lock gear should be in the one o'clock position.
Install the lock gear. zUse Ignition Lock Grease F0AZ-19584-A or equivalent meeting Ford specification ESA-
M1C232- A to coat the lock gear.
22. Install the lock housing bearing. zThe narrow section of the keyhole should be in the one o'clock position, with the tab
inboard at the three o'clock position, and rotate it counterclockwise.
z Lubricate the lock housing bearing with Ignition Lock Grease F0AZ-19584- A or
equivalent meeting Ford specification ESA-M1C232- A. Klj . 16 ba
182003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

23. Install the upper bearing retainer firmly to engage the four retention tabs into the lock housing.
24. Install the turn indicator cancel cam.
25.
WARNING: To avoid risk of serious personal injury, follow all warnings, cautions,
notes and instructions in the steering column removal and installation procedure.
Install the steering column. For additional information, refer to Column in this section. Klj . 17 ba
182003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Klj . 18 ba
182003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

SPECIFICATIONS
SECTION 211-
05: Steering Column Switches 2003 Mustang Workshop Manual Torque Specifications
Description Nm lb-
ft lb-
in Ignition switch screws 6 — 53
Instrument panel reinforcement screws 9 — 80
Instrument panel steering column cover screws 9 — 80
Key release button bolt 5 — 44 Klj . 1 ba
12003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Steering Column Switches
The steering column switches system consists of the following components:
zmultifunction switch (13K359)
z key release button (manual transmission only) (3F527)
z ignition switch (11572)
The integrated multifunction switch is mounted to the LH side of the steering column and controls the
turn signals, hazard flasher, windshield wiper/washer control, and headlamp dimmer/flash- to-pass.
The key release button is equipped with manual transmissions only.
The ignition switch is mounted below the steering column and is activated by rotating the key lock
cylinder on the steering column. SECTION 211-
05: Steering Column Switches 2003 Mustang Workshop Manual Klj . 1 ba
