FORD MUSTANG 2003 Workshop Manual

REMOVAL AND INSTALLATION
Wheel
Removal and Installation
1. Disconnect the battery ground cable (14301) and wait at least one minute to allow the depletion of the restraint system backup power supply. For additional information, refer to Section 414 -
01 .
2. Turn the steering wheel to the straight- ahead position and the ignition switch to the OFF
position.
3. WARNING: To avoid the risk of serious personal injury, follow all warnings,
cautions, notes and instructions in the beginning of the deactivation procedure.
Deactivate the supplemental restraint system (SRS). For additional information, refer to
Supplemental Restraint System (SRS) Deactivation and Reactivation in this section.
4. WARNING: To avoid risk of serious personal injury, follow all warnings, cautions,
notes and instructions in the driver air bag removal and installation procedure.
Remove the driver air bag module. For additional information, refer to Section 501 - 20B .
5. Remove and discard the steering wheel retaining bolt.
6. CAUTION: Removing the steering wheel without using a puller can damage the
column bearings.
Use a suitable puller to remove the steering wheel (3600).
SECTION 211-
04: Steering Column 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

7. Remove the steering wheel while routing the wires from the clockspring through the steering
wheel.
8. To install, reverse the removal procedure.
9. WARNING: To avoid the risk of serious personal injury, follow all warnings,
cautions, notes and instructions at the beginning of the reactivation procedure.
Reactivate the supplemental restraint system (SRS). For additional information, refer to
Supplemental Restraint System (SRS) Deactivation and Reactivation in this section. Klj . 2 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Column
Removal and Installation
All vehicles
1. Disconnect the battery ground cable and wait at least one minute to allow the depletion of the restraint system backup power supply. For additional information, refer to Section 414 - 01 .
2. WARNING: To avoid the risk of serious personal injury, follow all warnings,
cautions, notes and instructions at the beginning of the deactivation procedure.
Deactivate the supplemental restraint system (SRS). For additional information, refer to
Supplemental Restraint System (SRS) Deactivation and Reactivation in this section.
3. WARNING: To reduce the risk of serious personal injury, follow all warnings,
cautions, notes and instructions in the clockspring removal and installation procedure.
Remove the clockspring (14A664). For additional information, refer to Section 501 - 20B .
4. Remove the multi- function switch (13K359).
1. Remove the screws.
2. Disconnect the electrical connector.
3. Remove the multi- function switch.
5. Disconnect the ignition switch electrical connector. 1. Remove the bolt.
2. Disconnect the electrical connector.
SECTION 211-
04: Steering Column 2003 Mustang Workshop Manual Klj . 1 ba
42003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

6. Remove the pinch bolt and disconnect the coupling from the steering column.
7. Disconnect the electrical connector.
Vehicles with manual transmission 8. Remove the nuts and the steering column. zDiscard the nuts.
Vehicles with automatic transmission 9. Remove the nuts and lower the steering column. zDiscard the nuts. Klj . 2 ba
42003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

10. Disconnect the ignition/shifter interlock and remove the steering column.
All vehicles 11. To install, reverse the removal procedure.
12. WARNING: To avoid the risk of serious personal injury, follow all warnings,
cautions, notes and instructions at the beginning of the reactivation procedure.
Reactivate the supplemental restraint system (SRS). For additional information, refer to
Supplemental Restraint System (SRS) Deactivation and Reactivation in this section. Klj . 3 ba
42003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Klj . 4 ba
42003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Steering Column Shaft
Removal and Installation
1. CAUTION: Do not allow the steering column shaft to rotate while intermediate shaft
is disconnected or damage to the clockspring can result. If there is evidence that the
steering column shaft has rotated the clockspring must be removed and recentered. For
additional information, refer to Section 501 - 20B .
NOTE: Discard the steering column shaft pinch bolt and the lower intermediate shaft- to-steering
gear pinch bolt. Do not reuse, install new bolts.
Remove and discard the steering column shaft pinch bolt and disconnect the intermediate from
the coupling.
2. Raise and support the vehicle. For additional information, refer to Section 100 - 02 .
3. Remove the pinch bolt.
4. Disconnect the intermediate shaft from the gear and remove the intermediate shaft.
SECTION 211-
04: Steering Column 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

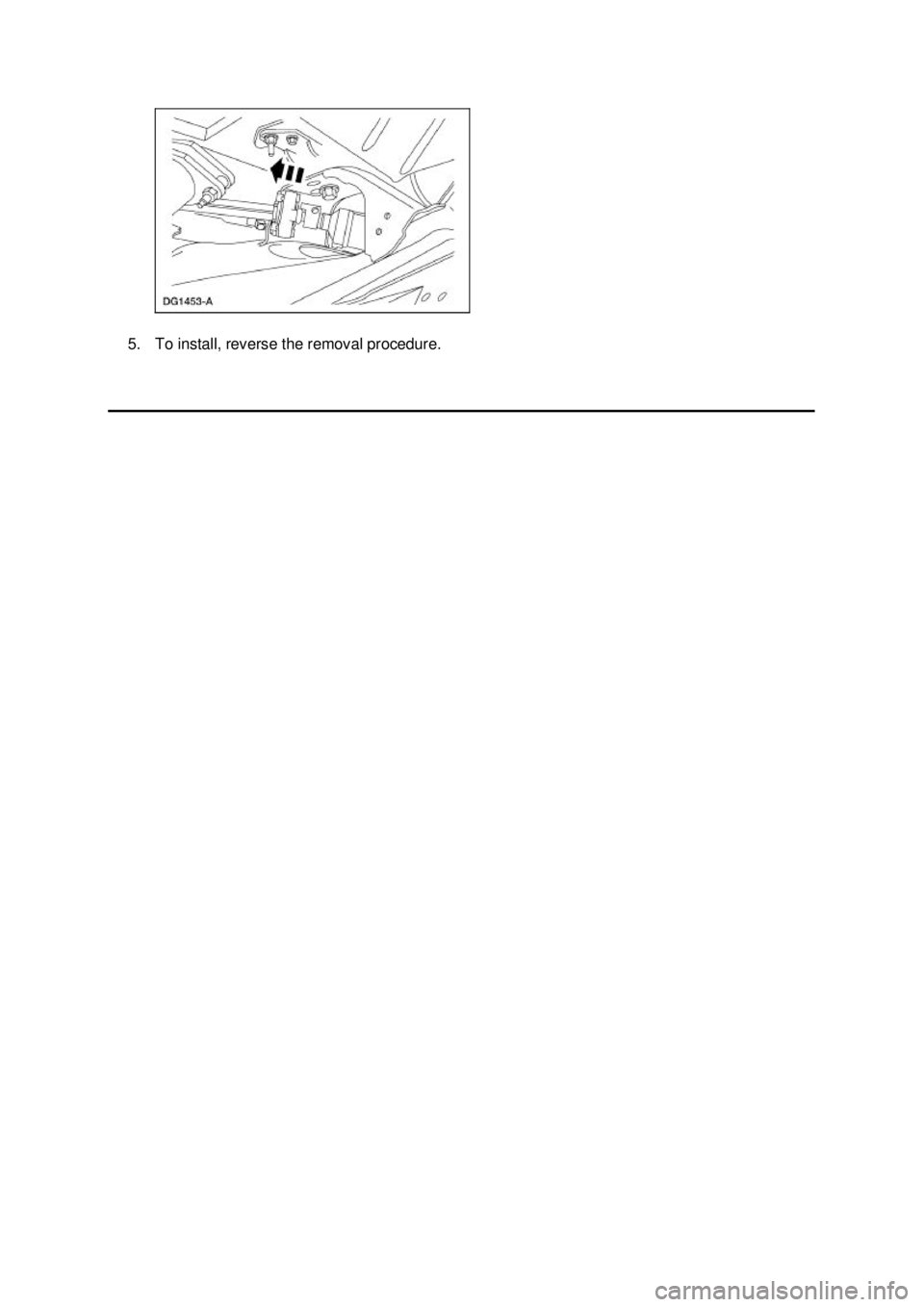

5. To install, reverse the removal procedure. Klj . 2 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Coupling
Removal and Installation
1. CAUTION: Do not allow the steering column shaft to rotate while intermediate shaft
is disconnected or damage to the clockspring can result. If there is evidence that the
steering column shaft has rotated the clockspring must be removed and recentered. For
additional information, refer to Section 501 - 20B .
NOTE: Discard the steering column shaft pinch bolt and the lower intermediate shaft- to-steering
gear pinch bolt upon removal. Do not reuse, install new bolts.
Remove the pinch bolts and disconnect the coupling from the column.
2. Remove the coupling.
3. To install, reverse the removal procedure.
SECTION 211-
04: Steering Column 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Klj . 2 ba
22003 Mustang Workshop Manual
