384V. Final Paint Applying1.Apply final paint. Apply fast drying final paint for 3 or 4 times and synthetic resin paint for 2 or 3 times.
2. Air dry or heat dry.VI.Polishing1. After painting, you can polish with wax to remove the repairing paint shadow for decoration consideration.
2. Take off the shield. After painting, take off the paper, and clean the paint scattered on the other area.
3. Inspect the quality of appearance.

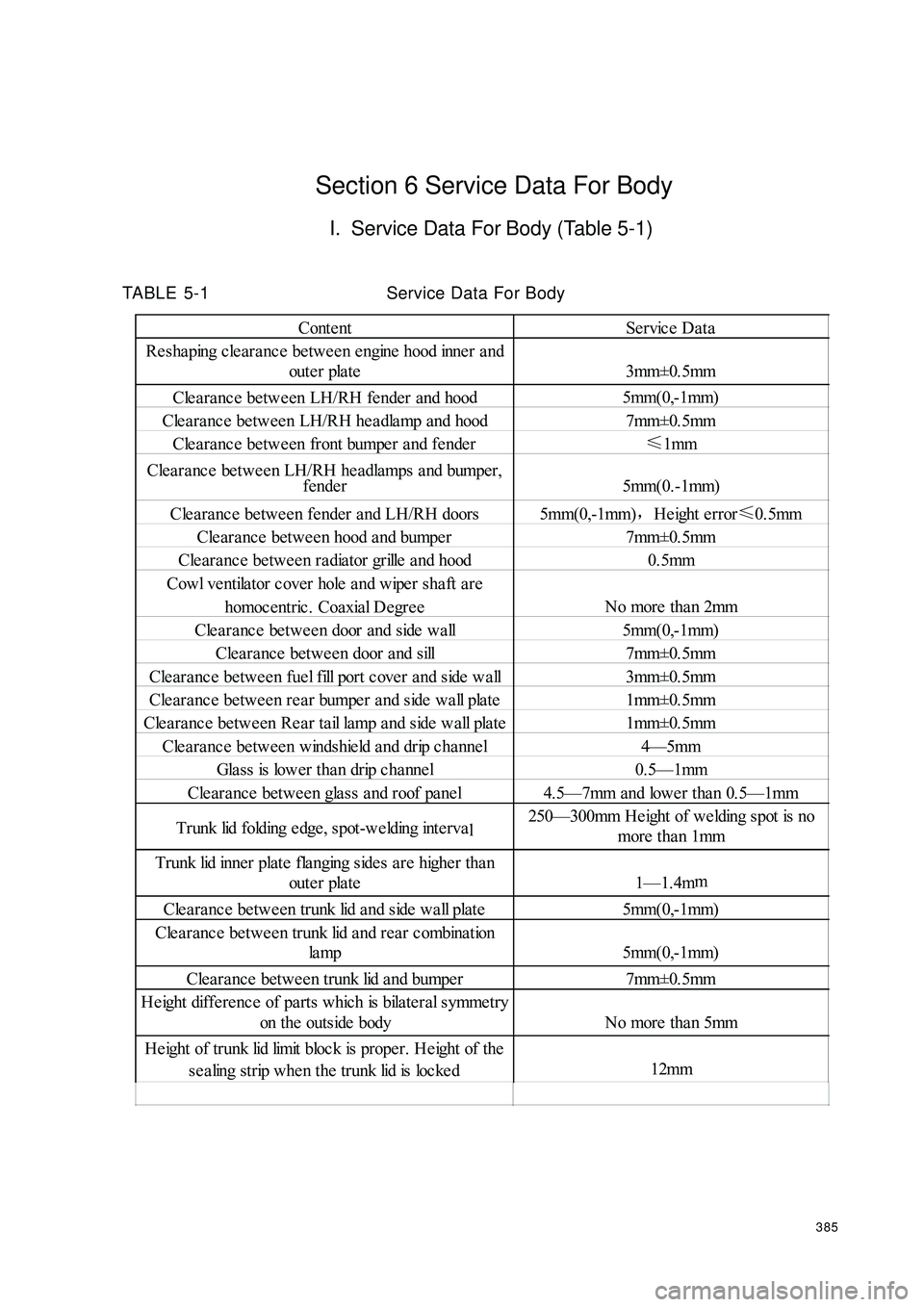

385Section 6 Service Data For BodyI. Service Data For Body (Table 5-1)TABLE 5-1Service Data For BodyContent Service Data
Resha ping cle aranc e be twe e n e ngine hood inne r and
oute r pla te 3mm±0. 5mm
Clea ra nce betwe en LH/RH fender and hood5mm(0,-1mm)
Clea ra nce betwee n LH/RH he adla mp and hood7mm±0.5mmClea ra nce betwe en front bumpe r a nd fe nde r≤
1mmClea ra nc e be twee n LH/RH he adlamps a nd bumper,
fender 5mm(0.-1mm)
Cle a ra nc e be twe e n fender a nd LH/RH doors 5mm(0,-1mm)，
Height error≤
0.5mm
Cle ara nce betwe en hood and bumpe r 7mm±0.5mmCle aranc e be twe en ra dia tor grille a nd hood0.5mmCowl ventila tor cover hole a nd wipe r sha ft a re
homoc entric . Coaxial Degre eNo more than 2mmClearance between door and side wall5mm(0,-1mm)
Clea ra nce betwee n door a nd sill 7mm±0.5mm
Cle aranc e be twe en fue l fill port c ove r a nd side wa ll 3mm±0.5mmClearance between rear bumper and side wall plate 1mm±0.5mmClearance between Rear tail lamp and side wall plate 1mm±0.5mmClea ra nce betwee n windshie ld a nd drip c ha nnel4—5mmGlass is lower than drip channel0.5—1mmCle ara nce betwe en gla ss a nd roof pa nel 4.5—7mm and lower tha n 0.5—1mmTrunk lid folding e dge , spot-we lding inte rval250—300mm He ight of we lding spot is no
more tha n 1mmTrunk lid inner plate fla nging sides a re highe r than
oute r pla te 1—1. 4mmCle ara nce betwe en trunk lid a nd side wa ll plate 5mm(0,-1mm)
Clearance between trunk lid and rear combination
la mp 5mm(0,-1mm)
Clea ra nce betwee n trunk lid a nd bumper 7mm±0.5mmHe ight diffe re nce of pa rts which is bila teral symme try
on the outside bodyNo more than 5mmHeight of trunk lid limit bloc k is proper. He ight of the
se a ling strip when the trunk lid is loc ked12mm
