GEELY CK 2008 Workshop Manual

Table of ContentsPart I Engine ...........................................................................1Chapter 1 Engine Assembly (MR479Q, MR479QA, MR481QA)...................1Section 1 Routine Inspection.........................................................................................1
Section 2 Drive Belt Replacement ...............................................................................5
Section 3 Valve Clearance Adjustment...........................................................................6Chapter 2 Engine Components Replacement
(MR479Q, MR479QA, MR481QA)................................................................10Section 1 Engine Components....................................................................................10
Section 2 Engine Components Replacement............................................................13
Section 3 Timing Belt Replacement.........................................................................17
Section 4 Camshaft Replacement............................................................................22
Section 5 Cylinder Head Gasket Replacement.........................................................28
Section 6 Oil Pump Oil Seal Replacement................................................................33
Section 7 Engine Rear Oil Seal Replacement............................................................34Chapter 3 Lubrication System (MR479Q, MR479QA, MR481QA)...............35Section 1 Oil Pressure Gage Sensor Replacement....................................................35
Section 2 Oil Pump Assembly Replacement..............................................................36
Section 3 Oil Filter Replacement................................................................................38
Section 4 Starter Replacement.................................................................................39
Section 5 Generator Replacement............................................................................40Chapter 4 Fuel System (MR7131A, MR7151A, MR7161A)........................41Section 1 Check Fuel System Pressure.....................................................................41
Section 2 Fuel Pump Inspection...................................................................................42
Section 3 Fuel Injector Replacement.........................................................................43
Section 4 Fuel Pump Replacement............................................................................45
Section 5 Fuel Emission Control System....................................................................47
Section 6 Carbon Canister Replacement....................................................................48Chapter 5 Exhaust System (MR7131A, MR7151A, MR7161A).................50

Chapter 6 Cooling System Inspection
(MR7131A, MR7151A, MR7161A).................................................................52Section 1 System Check
Section 2 Water Pump, Thermostat and Radiator Replacement.................................... 54Chapter 7 Clutch (MR7131A, MR7151A, MR7161A)....................................56Section 1 Clutch Replacement...................................................................................57Chapter 8 Maunal Transaxle Assembly
(MR7131A, MR7151A, MR7161A)................................................................59Section 1 Manual Transaxle Replacement..................................................................60
Section 2 Vehicle Speed Sensor Replacement
Section 3 Transmission Case Oil Seal..........................................................................62
Section 4 Transaxle Case Oil Seal Replacement........................................................63Chapter 9 General Engine Troubles and Their Troubleshooting....................64Section 1 Overview........................................................................................................64
Section 2 General Engine Fault and Troubleshooting.......................................................64
Section 3 Engine Noise Diagnosis and Troubleshooting................................................77Chapter 10 Engine Management Unit..............................................................81Section 1 System Description.........................................................................................81
Section 2 System Component and Working Principle......................................................82Part II Chassis............................................................................85Chapter 1 Transmission Control Device.........................................................85Section 1 Transmission Control Device.........................................................................85
Section 2 Lever Type Transmission Control Device......................................................85
Section 3 Cable Type Transmission Control Module......................................................87Chapter 2 Accelerator Pedal............................................................................90Section 1 Accelerator Pedal..........................................................................................90Chapter 3 Clutch Control System....................................................................91Section 1 Clutch Control System....................................................................................91
Section 2 Clutch Cable Control Mechanism.....................................................................91
Section 3 Clutch hydraulic Control Device.......................................................................94Chapter 4 Propeller Shaft...............................................................................97...............................................................................................52
..............................................................61

Section 1 Propeller Shaft.................................................................................................. 97Chapter 5 Front Suspension System............................................................... 1 0 3Section 1 Front Suspension System................................................................................ 103
Section 2 Front Suspension............................................................................................105
Section 3 Front Wheel Alignment.......................................................................................106
Section 4 Front Strut Assembly....................................................................................... 107
Section 5 Lower Swing Arm Assembly............................................................................ 110
Section 6 Front Stabilizer Bar and Link Rod Assembly.....................................................113Chapter 6 Rear Suspension System................................................................116Section 1 Rear Suspension System
Section 2 Rear Suspension............................................................................................117
Section 3 Rear Wheel Alignment.................................................................................... 118
Section 4 Left & Right Rear Strut Assembly.....................................................................119
Section 5 Rear stabilizer bar assembly, strut rod components..........................................121
Section 6 Left & Right Trailing Rod Assembly.............................................................. 123
Section 7 No. 1 Transverse Arm Assembly..................................................................... 124
Section 8 No. 2 Transverse Arm Assembly..................................................................... 125Chapter 7 Wheel................................................................................................126Section 1 Tire Inspection................................................................................................. 126
Section 2 Wheel Replacement......................................................................................... 127Chapter 8 Power Steering System.................................................................. 1 2 8Section 1 Power Steering System.................................................................................... 128
Section 2 Steering Drive and Control Mechanism......................................................... 130
Section 3 Steering Pipeline Component.......................................................................... 133
Section 4 Power Steering Gear Retaining DeviceChapter 9 Brake System.................................................................................. 1 3 9Section 1 Brake System ................................................................................................... 139
Section 2 Brake Fluid....................................................................................................... 140
Section 3 Brake Pedal...................................................................................................... 141
Section 4 Vacuum Booster with Brake Master Cylinder Assembly....................................143
Section 5 Front Brake Assembly..................................................................................... 144
Section 6 Rear Brake
Section 7 Brake Line ....................................................................................................... 151..................................................................................116
.....................................................................................................147..........................................................136

Section 8 Parking Brake System..................................................................................... 155........................................................157Chapter 1 Survey................................................................................................157
Chapter 2 Starting and Charging System.........................................................161Section 1 Starting System (MR479Q MR479QA MR481QA)..........................................161
Section 2 Charging System (MR479Q, MR479QA, MR481QA).......................................164Chapter 3 Combination Meter System..............................................................171Section 1 Circuit Diagram of Combination Meter and Location of Multi-pin Plug-in
Terminal............................................................................................................................ 171
Section 2 Malfunction Symptom Table and Solution Procedure...........................................174
Section 3 Combination Meter.......................................................................................... 187Chapter 4 Wiper and Washer System...............................................................193Section 1 Wiper and Washer System Inspection............................................................ 193
Section 2 Replacement and Adjustment............................................................................196Chapter 5 Light System......................................................................................198Section 1 Survey of Light System......................................................................................198
Section 2 Light System Symptom Inspection.................................................................. 202
Section 3 Headlamp Replacement....................................................................................211
Section 4 Front Fog Lamp Replacement............................................................................215
Section 5 Rear Combination Lamp Replacement..............................................................217
Section 6 High Mounted Stop Lamp Replacement............................................................218
Section 7 Interior Dome Lamp Replacement.....................................................................219
Section 8 Rear Row Reading Lamp Replacement...........................................................220
Section 9 License Plate Lamp Replacement...................................................................220Chapter 6 Audio System......................................................................................221Section 1 Audio System Description.................................................................................221
Section 2 Audio System Connector Terminal Layout...........................................................224
Section 3 Audio System Inspection................................................................................. 225
Section 4 Audio and Video System Replacement........................................................... 238Chapter 7 SRS (Supplemental Restraint System).............................................242Section 1 SRS-General Information.................................................................................242
Section 2 Troubleshooting................................................................................................ 251Part III Electrical Equipment

Section 3 Removal & Installation................................................................................... 262Chapter 8 MK-20 ABS System........................................................................ 2 7 2Section 1 ABS Diagnosis ................................................................................................. 272
Section 2 ABS System Check .......................................................................................... 276
Section 3 Removal and Installation................................................................................. 292Part IV Air Conditioner and Inside & Outside Trim ......................297Chapter 1 A/C System...................................................................................... 2 9 7Section 1 The Structure & Working Principle of Refrigeration System...............................297
Section 2 Heating System ................................................................................................ 299
Section 3 A/C controlling system.................................................................................... 302
Section 4 Service Caution & Notice................................................................................ 304
Section 5 The Refrigeration System Operation Procedure..............................................305
Section 6 Basic System .................................................................................................... 308
Section 7 A/C System Faults Check & Troubleshooting................................................ 313Chapter 2 Inside & outside Trim and Accessory................................................318Section 1 Configuration Index............................................................................................318(I) Outside Trim And Front Accessory.................................................................................318
(II) Outside Trim and Rear Accessory.................................................................................319
(III) Front inside trim..........................................................................................................320
(IV) Rear inside trim ............................................................................................................321Section 2 Inside & Outside Trim and Accessories Removal and Installation.......................322(I) Front Bumper..................................................................................................................322
(II) Engine Hood.................................................................................................................324
(III) Outside Rear View Mirror
(IV) Rear trunk Lid...............................................................................................................327
(V) Rear Bumper...................................................................................................................329
(VI) Seat Removal, Installation and Adjustment...................................................................331
(VII) Seat Belt.....................................................................................................................335
(VIII) Instrument panel and auxiliary console.....................................................................338
(IX) A pillar inside trim and front door sill ............................................................................343
(X) B pillar inside trim........................................................................................................344
(XI) Cpillar inside trim and rear door sill.............................................................................345
(XII) Roof inside trim
(XIII) Carpet and Heat Insulator.............................................................................................347 ...............................................................................................326
...........................................................................................................346

(XIV) Rear trunk Inside Trim............................................................................348
(XV) Engine Hood Inside Trim...........................................................................349
(XVI) Door..............................................................................................................350Part V Body............................................................................359Chapter 1 General Information.....................................................................359Section 1 Body Structure..............................................................................................359Chapter 2 Body Repair..................................................................................369Section 1 Body Damage Forms and Requirements for Repair....................................369
Section 2 Typical Technology Of Body Panel Repair..................................................372
Section 3 Repair after Body Damage..........................................................................372
Section 4 Features and Composition of Automobile Body............................................. 377
Section 5 Painting Technique after Body Repair............................................................383
Section 6 Service Data For Body................................................................................385

1Part I EngineChapter 1 Engine Assembly
(MR479Q, MR479QA, MR481QA)Section 1 Routine Inspection1. Check coolant
2. Check engine oil
3. Check battery
4. Check air cleaner element assembly
5. Check spark plug
6. Check drive belt
Figure 1
Notice:
zCheck the belt deflection at the specified point See (Figure 1).
zSet tension to specified value when installing new belt.
zCheck the deflection to ensure it is below the specified value after the belt runs for over 5 minutes.
zReinstall the belt which has been running for over 5 minutes. The deflection of the old belt is regarded as
the standard for inspection.
zCheck V-belt for tension and distortion after the engine cranks for 2
turns.
7. Check ignition timing See (Figure 2)
a) Warm up the engine.
b) When using fault diagnosis tester
Connect fault diagnosis tester to fault diagnosis interface socket.
Ignition timing:
MR479Q: 10 ± 2° BTDC (before top dead center) at idle
MR479QA: 10 ± 2° BTDC at idle
MR481QA: 10 ± 2° BTDC at idleFigure 2New Belt mm Old Belt mm
Fan Belt 7～
13. 5
Power steering Belt 5～
66～
8
A/C Belt 6. 5
～78～
9 Belt deflection See (Table 1)
Be lt pre ssure : 98NBelt Looseness
Measuring PointWater pump
Power steering
crankshaftgenerator
Air condition
compressor pump11.5～
9

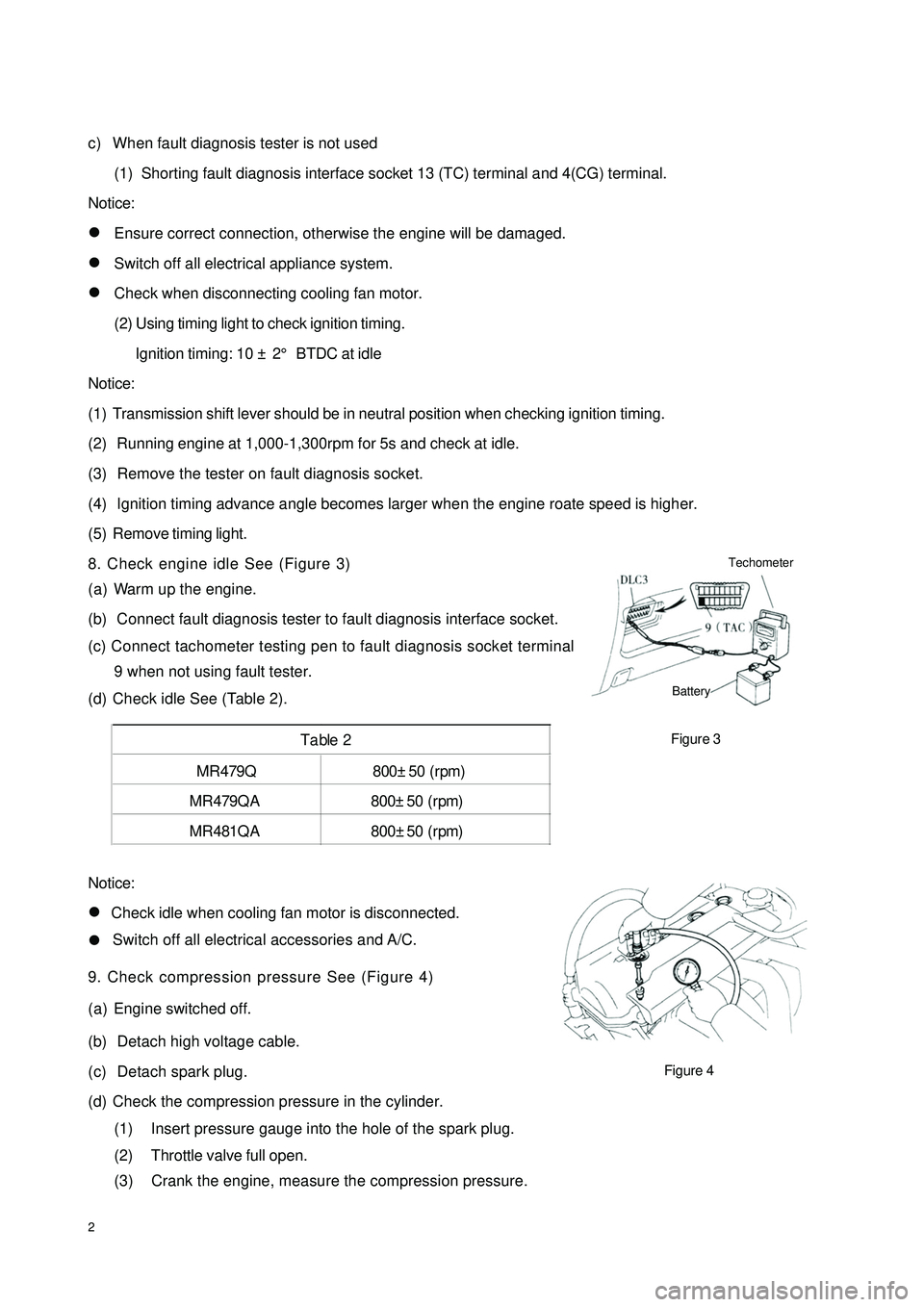

2c) When fault diagnosis tester is not used
(1) Shorting fault diagnosis interface socket 13 (TC) terminal and 4(CG) terminal.
Notice:
zEnsure correct connection, otherwise the engine will be damaged.
zSwitch off all electrical appliance system.
zCheck when disconnecting cooling fan motor.
(2) Using timing light to check ignition timing.
Ignition timing: 10 ± 2° BTDC at idle
Notice:
(1) Transmission shift lever should be in neutral position when checking ignition timing.
(2) Running engine at 1,000-1,300rpm for 5s and check at idle.
(3) Remove the tester on fault diagnosis socket.
(4) Ignition timing advance angle becomes larger when the engine roate speed is higher.
(5) Remove timing light.
8. Check engine idle See (Figure 3)
Notice:
zCheck idle when cooling fan motor is disconnected.
zSwitch off all electrical accessories and A/C.
9. Check compression pressure See (Figure 4)
(a) Engine switched off.
(b) Detach high voltage cable.
(c) Detach spark plug.
(d) Check the compression pressure in the cylinder.
(1) Insert pressure gauge into the hole of the spark plug.
(2) Throttle valve full open.
(3) Crank the engine, measure the compression pressure. MR479Q 800±50 (rpm)
MR479Q A 800±50 (rpm)
MR481Q A 800±50 (rpm)Table 2(a) Warm up the engine.
(b) Connect fault diagnosis tester to fault diagnosis interface socket.
(c) Connect tachometer testing pen to fault diagnosis socket terminal
9 when not using fault tester.
(d) Check idle See (Table 2).
Figure 4Figure 3Techometer
Battery

3The Min. compression pressure: 980 kPa
The tolerance range of the cylinders pressure: 100 kPa
Notice:
zEnsure sufficient battery power and the engine speed is no less than 250 RPM (revolutions per minute).zCheck the compression pressure of other cylinders in the same way.
zComplete the measure as quick as possible.
(4) If the compression pressure in several cylinder is too low, fill some engine oil to the cylinder via the
hole of the spark plug. Check by repeating step 1-3.
Hint:
zIf the compression pressure is improved after filling oil, the piston ring or the cylinder may be abrased
or damaged.
zIf the pressure is still too low, the valve is stagnation or poor seal, or there is a leakage in gasket.
10. Check CO/HC
(a) Start engine.
(b) Running engine at 2500rpm for approximately 3 minutes.
(c) Insert CO/HC meter testing probe into tailpipe at least 40cm during idling.
(d) Check CO/HC concentration at idle and 2500rpm.
Hint:
zComplete measurement within 3 minutes.
zTest the CO/HC emission concentration at idle and 2500 rpm on QC/T630-1999 standard.
(e) Take the following steps to diagnose the fault if the CO/HC concentration does not comply with standard .
(1) Check the oxygen sensor operation.
(2) See (Table 3) for the possible cause and check and repair.
