GEELY CK 2008 Workshop Manual

344(X) B pillar inside trimB pillar inside trim diagram:
B Pillar Inside Trim Diagram
1. Right B Pillar Upper Inside Trim 2. Left B Pillar Upper Inside Trim 3. Right Deflector
4. Left Deflector5. Right B Pillar Lower Inside Trim 6. Left B Pillar Lower Inside Trim
7. Right B Pillar Lower Inside Trim Sound Insulator 8. Left B Pillar Lower Inside Trim Sound Insulator
9. Cross Pan Head Tapping Screw10. Steel Clip
1.Removal
1Remove the installed left B pillar lower inside trim, right B pillar lower inside trim tapping screw with a
cross screwdriver;
2Remove the left B pillar lower inside trim, right B pillar lower inside trim with a opener ;
3Remove the seat belt swing ring;
4Remove the right B pillar upper inside trim, leftB pillar upper inside trim tapping screw with the cross
screwdriver;
5Remove the right B pillar upper inside trim, leftB pillar upper inside trim with a opener.
2.Installation
1Clip B pillar inside trim to the corresponding position with clip and steel clip in order;
2Fix the upper inside trim and lower inside trim to the vehicle body with a tapping screw.
2
453
1
6
10
8 79

345(XI) Cpillar inside trim and rear door sillC pillar inside trim and rear door sill diagram:
C pillar inside trim& rear door sill diagramdiagram
1.Right C Pillar Upper Inside Trim 2.Left C Pillar Upper Inside Trim 3. Right C Pillar Upper Inside
Trim Sound Insulator 4. Left Sound Insulator 5. Right C Pillar Lower Inside Trim 6. Left C Pillar
Lower Inside Trim 7. Right Rear Door Sill 8. Left Rear Door Sill9. E-Clip10. Cross Pan
Head Self-tapping Screw 11. D-Clip
1. Removal
1Remove the installed door sill and C pillar lower inside trim tapping screw and E-clip with a cross
screwdriver;
2Remove C pillar upper inside trim with a opener ;
3Remove C pillar lower inside trim with a opener
2.Installation
1 Clip C pillar inside trim and rear door sill onto the corresponding position in order;
2Tap C pillar upper inside trim and C pillar lower inside trim lightly with a rubber hammer to ensure D-clip
clipped in the vehicle inner panel;
3Fix the rear door sill onto the vehicle body with a tapping screw.112 110843
57
96

346(XII) Roof inside trimRoof Inside Trim Diagram:
Roof inside trim diagram
1. Roof Inside Trim2. Left Sun Visor Bracket 3. Right Sun Visor Bracket 4. Cross Semi-
Countersunk Screw 5. Left Sun Visor Assembly 6. Right Sun Visor Assembly 7 . Cross
Counter Sunk Tapping Screw 8. Glass Box Assembly 9. Right Front Handle Assembly10. Left
Rear Handle Assembly11. Right Rear Handle Assembly12. E-Clip13. Roof Rear Heat Insulator
14. Roof Front Heat Insulator15. Cross Slot Head Screw
1. Removal
1Remove the safe handle, map lamp, left/right A pillar inside trim, left/right B pillar upper inside trim, left/
right C pillar upper inside trim;
2Remove the screw used to install left/right sun visor assembly with a cross screwdriver. Remove the left/
right sun visor assembly
3Remove the plastic clip used to install roof inside trimassembly with opener. Remove the lower dome
lamp connector and roof inside trimassembly.
2. Installation
1Install the dome lamp connector into the corresponding hole and clip the plastic clip onto the corresponding
hole in the vehicle body. Fix the roof inside trimassembly;
2Install the safe handle to the corresponding position on the trim board on the right front pillar with a
tapping screw and clip the safe handle cover;
3Install the left, right sun visor onto the roof inside trimassembly with a tapping screw and fix it to the
corresponding hole on the vehicle body;
4Install left/right A pillar inside trim, left/right B pillar upper inside trim, left/right C pillar upper inside trim. 2 13 4
5
6 7
8
9 10
11
12 13 1415

347(XIII) Carpet and Heat InsulatorCarpet and Heat Insulator Diagram
Carpet and Heat Insulator Diagram
1. Carpet 2. Cowl Lower Sound Insulator 3. Cowl Upper Sound Insulator 4 . Cowl Outer
Panel Heat Insulator 5. Foot Pedal 6. Cross Pan Head Screw 7. Floor Sound Insulator
1. Removal
1Remove the front and rear seats, left front door sill, right front door sill, right B pillar lower inside trim, left
B pillar lower inside trim, right rear door sill, left rear door sill, front and rear part of the auxiliary console;
2Remove the cross pan head screw and remove the foot pedal.
3Remove carpet and cowl lower sound insulator, cowl upper sound insulator, cowl outer panel heat insulator.
2. Installation
1Install the accelerator pedal assembly, brake and clutch pedal assembly, parking brake control mechanism
assembly onto the vehicle body;
2Install the carpet to the corresponding hole. Install both sides of the carpet under the left front door sill,
right front door sill, right B pillar lower inside trim, left B pillar lower inside trim, right rear door sill, left
rear door sill.1 27 3
4
65

348(XIV) Rear trunk Inside TrimRear trunk inside Trim Diagram :
Rear trunk Inside Trim Diagram
1. Right Rear Quarter Trim 2. Left Rear Quarter Trim 3. Lower Rear Board Trim Assembly
4. Spare Tire Press Plate Assembly 5. Rear trunk Stuck Plate 6. Right Rear Combination Lamp Access
Hole Cover 7. Left Rear Combination Lamp Access Hole Cover 8. Rear Partition Inside Trim
9. Rear trunk Miscelleaneous Box10. J-Clip ( Rear Quarter Trim ) 11. Right Outside
Sound Insulator 13. Right Rear Wheel-
house Sound Insulator 14. Right Rear Wheelhouse Sound Insulator15. Right Speaker Grill
16. Left Speaker Grill17. Rear Damper Cover
1. Removal
1Remove the connector and remove the high mounted stop lamp;
2Remove C pillar upper inside trim;
3Remove the rear partition inside trim ;
4Remove the right speaker grill and left speaker grill with a cross screwdriver;
5Remove the lower rear board trim assembly clip with opener. Remove the lower rear board trim assembly;
6Remove the right rear combination lamp access hole cover, left rear combination lamp access hole cover
7Remove the clip installed at the left and right rear quarter trim with a cross screwdriver;
8Remove the clip installed at the left and right rear quarter trim with an opener;
9Remove the rear damper cover; 1
2 3 4
5 6
7 8
9 1011
12 13 14
15 16 17 12. Left Outside Wheelhouse Wheelhouse
Sound Insulator

349VTake out the rear trunk carpet, spare tire cover board and the rear trunk miscelleaneous box. Screw the
spare tire press plate assembly to take out the spare tire.
2. Installation
1Clip the rear trunk inside trim onto the corresponding hole in the reserve order of the removal;
2Install the right rear and left rear combination lamp access hole cover;
3Install the right and left speaker grill to the rear partition inside trim with a cross screwdriver;
4Install the rear partition inside trim to the vehicle body;
5Install the high mounted stop lamp and the C- pillar upper inside trim.(XV) Engine Hood Inside TrimEngine Hood Inside Trim Diagram:
Engine Hood Inside Trim
1. Engine Hood Inside Trim 2. E-Clip
1. Removal
1Open the engine hood and gas spring;
2Remove the clip and remove the engine hood inside trim
2. Installation
1Open the installed engine hood and gas spring;
2Align the corresponding hole position in the the engine hood inside trim and press the clip in by hand.
2 1

350(XVI) DoorFront DoorFront Door Components:
1.Front Door 2.Front Door Hinge 3.Front Door Lock And Door Lock Actuator
4.Front Door Inner Trim Board 5.Power Window Motor 6.Power Window Actuator
7.Door Inside Handle8.Protection Device 9.Door Outside Handle10.Front Door Lock Hole
11.Front Door Glass 12.Door Window Regulator Run 13.Front Door Weatherstrip A
14.Front Door Lower Weatherstrip 15.Front Door Weatherstrip B16.Front Door Lock Striker11
16 10
8 9
3
15
14
13 4 5 6
1 12
2 7

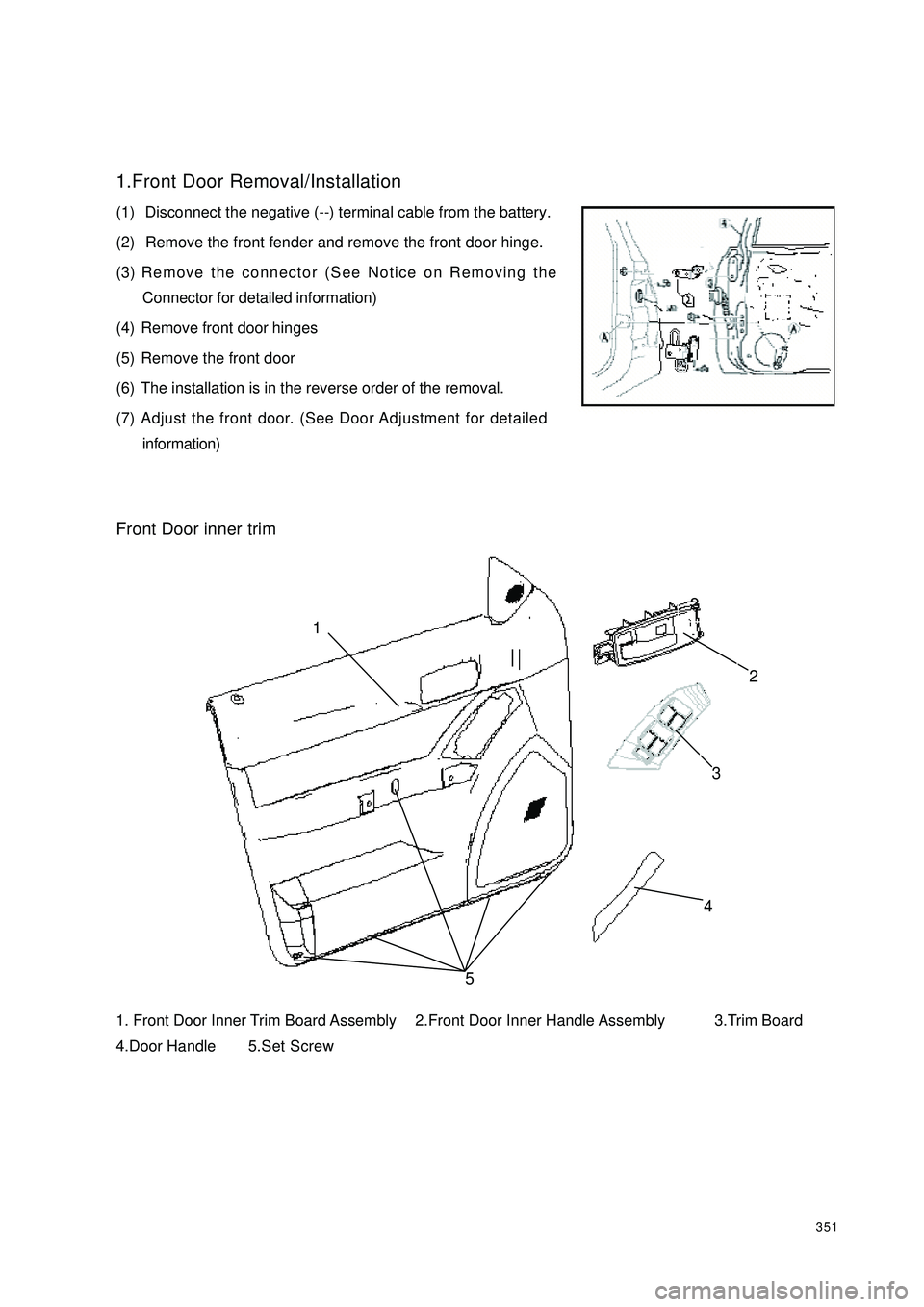

3511.Front Door Removal/Installation
(1) Disconnect the negative (--) terminal cable from the battery.
(2) Remove the front fender and remove the front door hinge.
(3) Remove the connector (See Notice on Removing the
Connector for detailed information)
(4) Remove front door hinges
(5) Remove the front door
(6) The installation is in the reverse order of the removal.
(7) Adjust the front door. (See Door Adjustment for detailed
information)
Front Door inner trim
1. Front Door Inner Trim Board Assembly 2.Front Door Inner Handle Assembly 3.Trim Board
4.Door Handle5.Set Screw1 2 4 3 5 2

Set Screw3521.The Front Door Inner Trim Board Removal/Installation
(1) Remove the set screw.
(2) Remove the front door inner trim board assembly.
(3) Disassemble the inner trim board assembly as required
(4) The installation is in the reverse order of the removal.
2.Front Door Glass Removal And Installation
(1) Lift the front door window glass, make the distance between
the front window glass top and rear door top weatherstrip
to be 130mm.
(2) Disconnect the negative (--) terminal cable from the battery.
(3) Remove the front door frame.
(4) Remove the hole cover.
(5) Remove the screw.
(6) Insert your hand into the front door component hole to lift
the front window glass.
(7) The installation is in the reverse order of the removal.
3.Glass Regulator Removal/Installation
(1) Loose the set screw: (See Figure)Front
Door
Glass

353(2) Get the window regulator from the hole in the lower door
4.Front Door Lock And Door Lock Actuator Removal/In-
stallation
(1) Remove front door component.
(2) Remove the screw and then remove the front door lock and
the door lock actuator.
(3) The installation is in the reverse order of the removal.Power Window Glass
Regulator Actuator
Power Window Glass
Regulator MotorFront Door ComponentScrewFront Door Lock Latch
and Lock Motor
