HONDA CIVIC 2003 7.G Workshop Manual

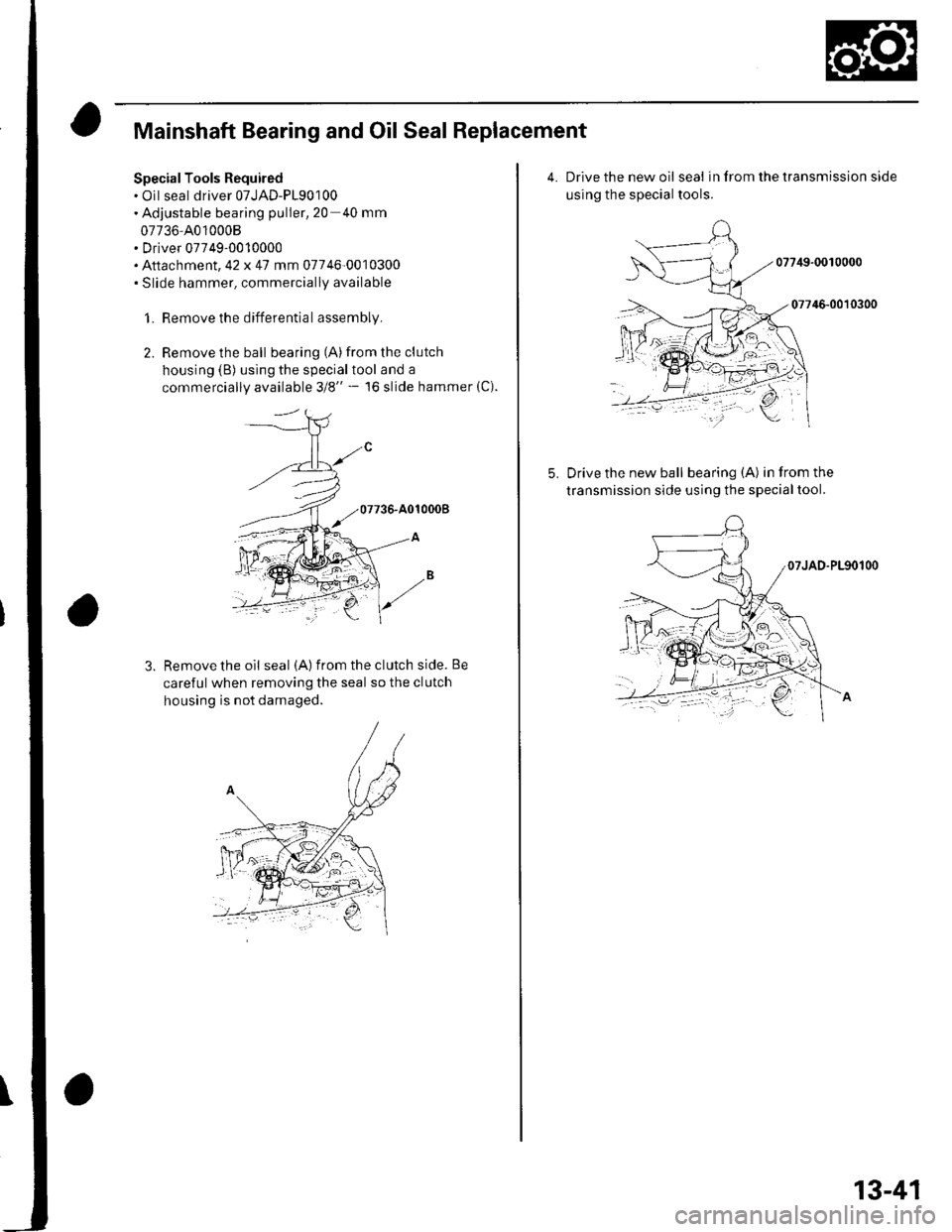

Mainshaft Bearing and Oil Seal Replacement
Special Tools Required. Oil seal driver 07JAD-P190100. Adjustable bearing puller,20 40 mm
07736-4010008. Driver 07749-0010000. Attachment,42 x 47 mm 07746-0010300. Slide hammer, commercially available
1. Remove the differential assembly,
2. Remove the ball bearing (A)from the clutch
housing (B) using the specialtool and a
commercially available 3/8" - l6 slide hammer (C).
Remove the oil seal (A) from the clutch side. Be
careful when removing the seal so the clutch
housing is not damaged.
4.Drive the new oil seal in from the transmission side
using the special tools.
07749-0010000
07746-0010300
Drive the new ball bearing (A) in from the
transmission side using the specialtool.
13-41

Manual Transmission

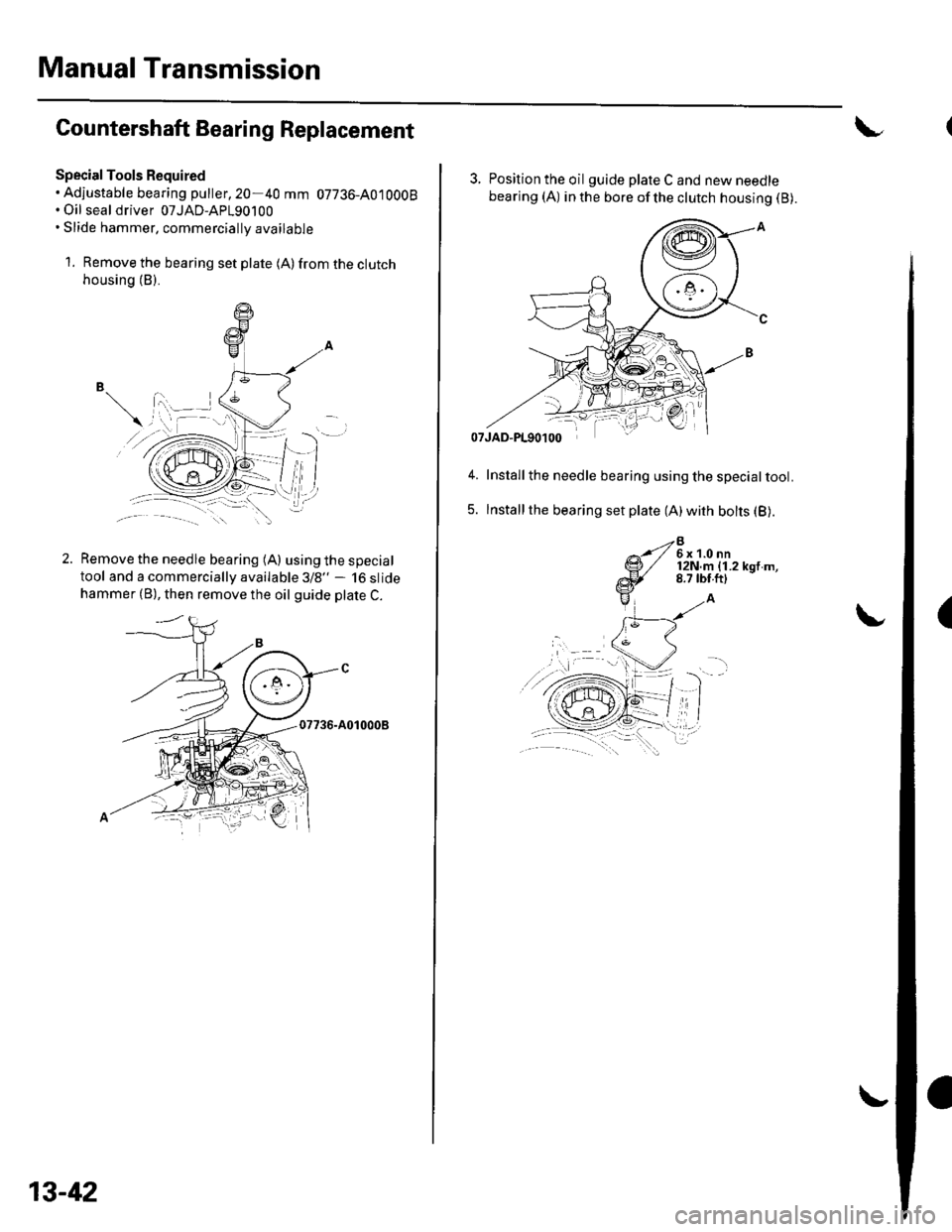

Countershaft Bearing Replacement
Special Tools Required. Adiustable bearing puller,20-40 mm 07736-A0tOOOB. Oil seal driver 07JAD-AP190100. Slide hammer, commercially available
1. Remove the bearing set plate (A)from the clutchhousing (B).
Remove the needle bearing (A) using the special
tool and a commercially available 3/8" - 16 slidehammer (B), then remove the oil guide plate C.
07736-A010008
13-42
3. Position the oil guide plate C and new needle
bearing (A) in the bore of the clutch housing (B).
Installthe needle bearing using the specialtool.
Installthe bearing set plate (A) wirh bolts (B).
B6x 1.0 nn12N.m {1.2 kgt m,8.7 tbf.ft)
(

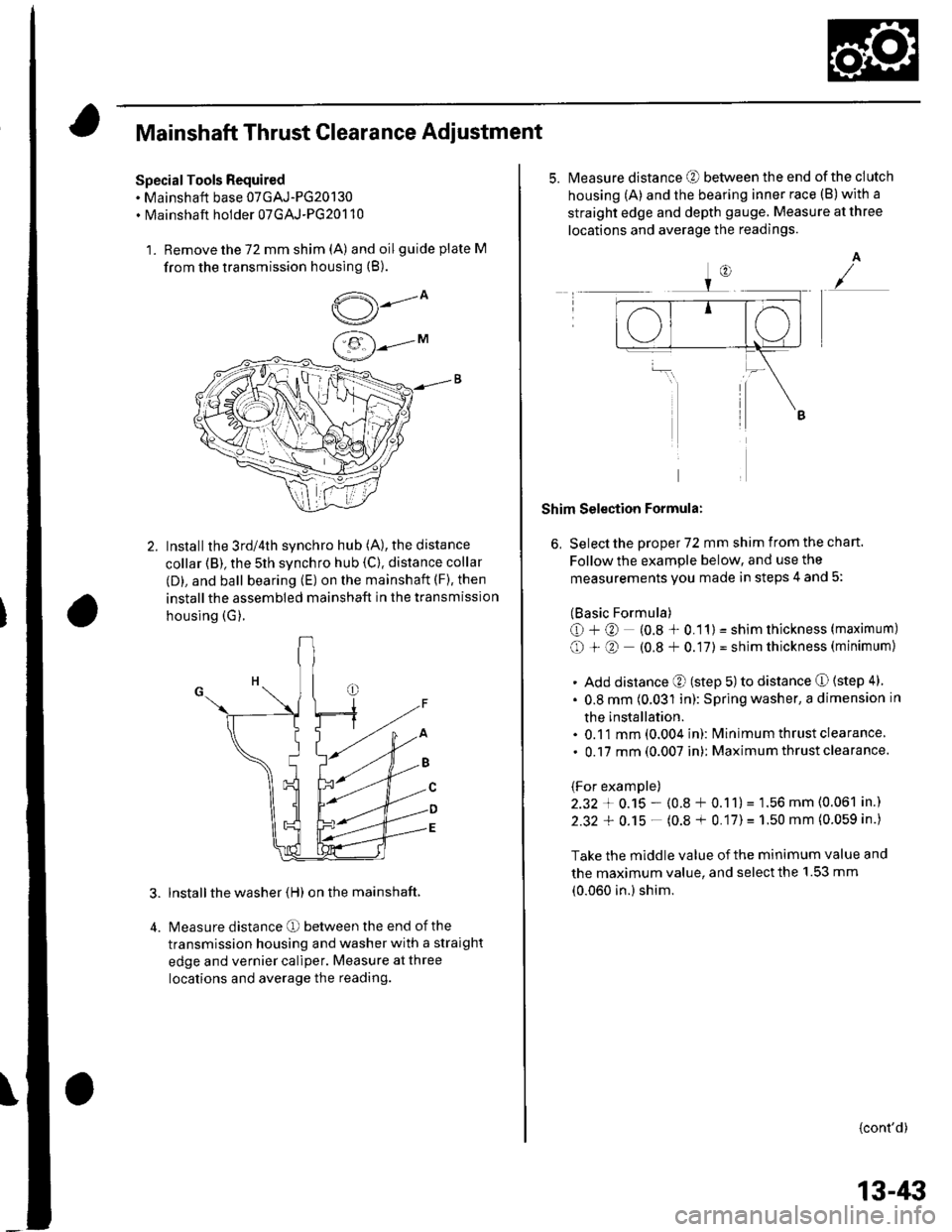

Mainshaft Thrust Clearance Adiustment
Special Tools Required. Mainshaft base 07GAJ-PG20130. Mainshaft holder 07GAJ-PG20110
1. Remove the 72 mm shim (A) and oilguide plate M
from the transmission housing (B).
,5---ov/
Installthe 3rd/4th synchro hub (A), the distance
collar (B), the 5th synchro hub {C). distance collar
(D), and ball bearing (E) on the mainshaft (F), then
installthe assembled mainshaft in the transmission
housing (G).
lnstall the washer (H) on the mainshaft.
Measure distance O between the end of the
transmission housing and washer with a straight
edge and vernier caliper. Measure at three
locations and average the reading.
5.Measure distance @ between the end of the clutch
housing (A) and the bearing inner race (B)with a
straight edge and depth gauge. Measure at three
locations and average the readings.
A
Shim Selection Formula:
6, Select the proper 72 mm shim from the chan.
Follow the example below, and use the
measurements you made in steps 4 and 5:
(Basic Formula)
O+@ (0.8 * 0.11) = shim thickness (maximum)
O + O (0.8 + 0.17) = shim thickness (minimum)
. Add distance O (step 5) to distance O (step 4)
. 0.8 mm (0.031 in): Spring washer, a dimension in
the installation.. 0.11 mm (0.004 in): lvlinimum thrust clearance
. 0.17 mm (0.007 in): Maximum thrust clearance.
(For example)
2.32 + 0.15 - (0.8 + 0.11)= 1.56 mm (0.061 in.)
2.32 + 0.15 - (0.8 + 0.17)= 1.50 mm (0.059 in.)
Take the middle value of the minimum value and
the maximum value, and select the 1.53 mm
(0.060 in.) shim.
{cont'd)
13-/li|

Manual Transmission

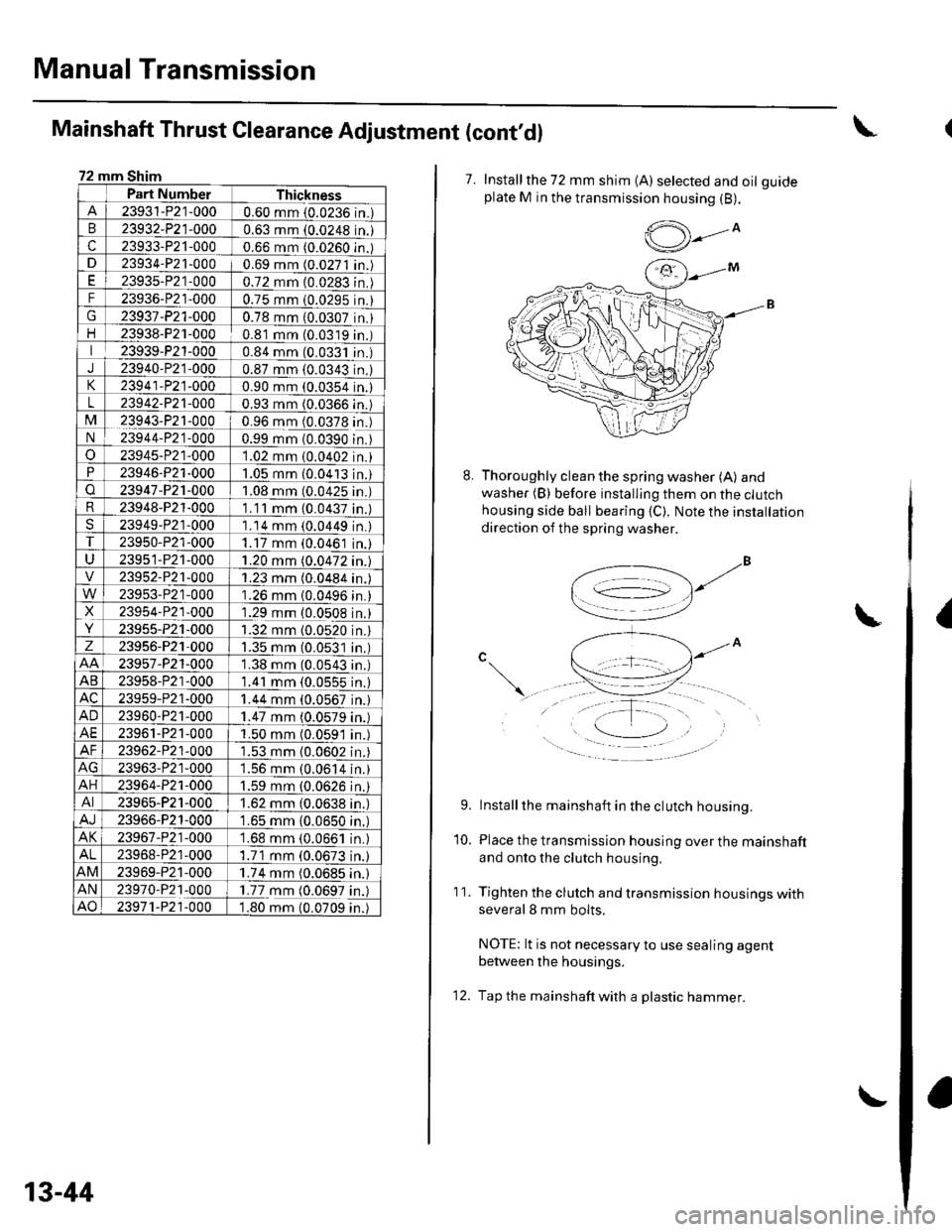

Mainshaft Thrust Clearance Adjustment (cont'dl
72 mm Shim
Part NumberThickness
23931-P21-0000.60 mm {0.0236 in.)
B23932-P21-0000.63 mm (0.0248 in.
c23933-P21-0000.66 mm (0.0260 in.D23934-P21-0000.69 mm (0.0271 in.
E23935-P21-0000.72 mm (0.0283 in.
F23936-P21-0000.75 mm (0.0295 in.
23931-P21-0000.78 mm (0.0307 in.-23938-P2'l-0000.81 mm (0.0319 in
23939-P21-0000.84 mm (0.0331 in
J23940-P21-0000.87 mm {0.0343 in,
23941-P21-0000.90 mm (0.0354 in.
L23942.P21-0000.93 mm (0.0366 in.
M23943-P21-0000.96 mm (0.0378 in.
N239 44-P21 .0000.99 mm (0.0390 in.
o23945-P21-0001.02 mm (0.0402 in.P23946-P21-0001.05 mm (0.0413 in.
o23941-P2't-000'l.08 mm (0.0425 in
R23948-P2'l-000'1 .1 1 mm {0.0437 in
23949-P21-000'1.14 mm (0.0449 inT23950-P21-0001.17 mm {0.0461n.
U23951-P21-0001.20 mm 10.0472n.
23952-P21-0001.23 mm (0.0484n.
23953-P21-0001.26 mm {0.0496n.X23954-P21-0001.29 mm (0.0508n.
23955-P21-0001.32 mm (0.0520n.z23956-P21,0001.35 mm (0.0531 in
23957-P21-0001.38 mm (0.0543 in
AB23958-P21-0001.41 mm (0.0555nAC23959-P21-0001.44 mm (0.0567n.
AD23960-P21-0001.47 mm (0.0579n.
AE23961-P21-0001.50 mm (0.0591n.AF23962-P21-OOO1.53 mm (0.0602n.AG23963-P21-000156 mm (0.0614n.
AH23964-P21-0001.59 mm (0.0626n.
AI23965-P21-0001.62 mm (0.0638 in
AJ23966-P21-0001.65 mm (0.0650 in
AK23967-P21-0001.68 mm (0.0661 in
AL23968-P2r -0001.71 mm (0.0673 in.
AM23969-P21-0001.74 mm (0.0685 in.
AN2397 0-P21-0001.77 mm (0.0697 in.AO23971-P2't-OOO1.80 mm (0.0709 in.
13-44
12.
7. Installthe 72 mm shim (A) selected and oil guideplate M in the transmission housing (B).
,6,,-oV
Thoroughly clean the spring washer (A) and
washer (B) before installing them on the clutchhousing side ball bearing {C). Note the installation
direction of the spring washer.
8.
{
10.
11.
9.lnstallthe mainshaft in the clutch housing.
Place the transmission housing over the mainshaft
and onto the clutch housing.
Tighten the clutch and transmission housings withseveral 8 mm bolts.
NOTE: lt is not necessary to use sealing agent
between the housings.
Tap the mainshaft with a plastic hammer.

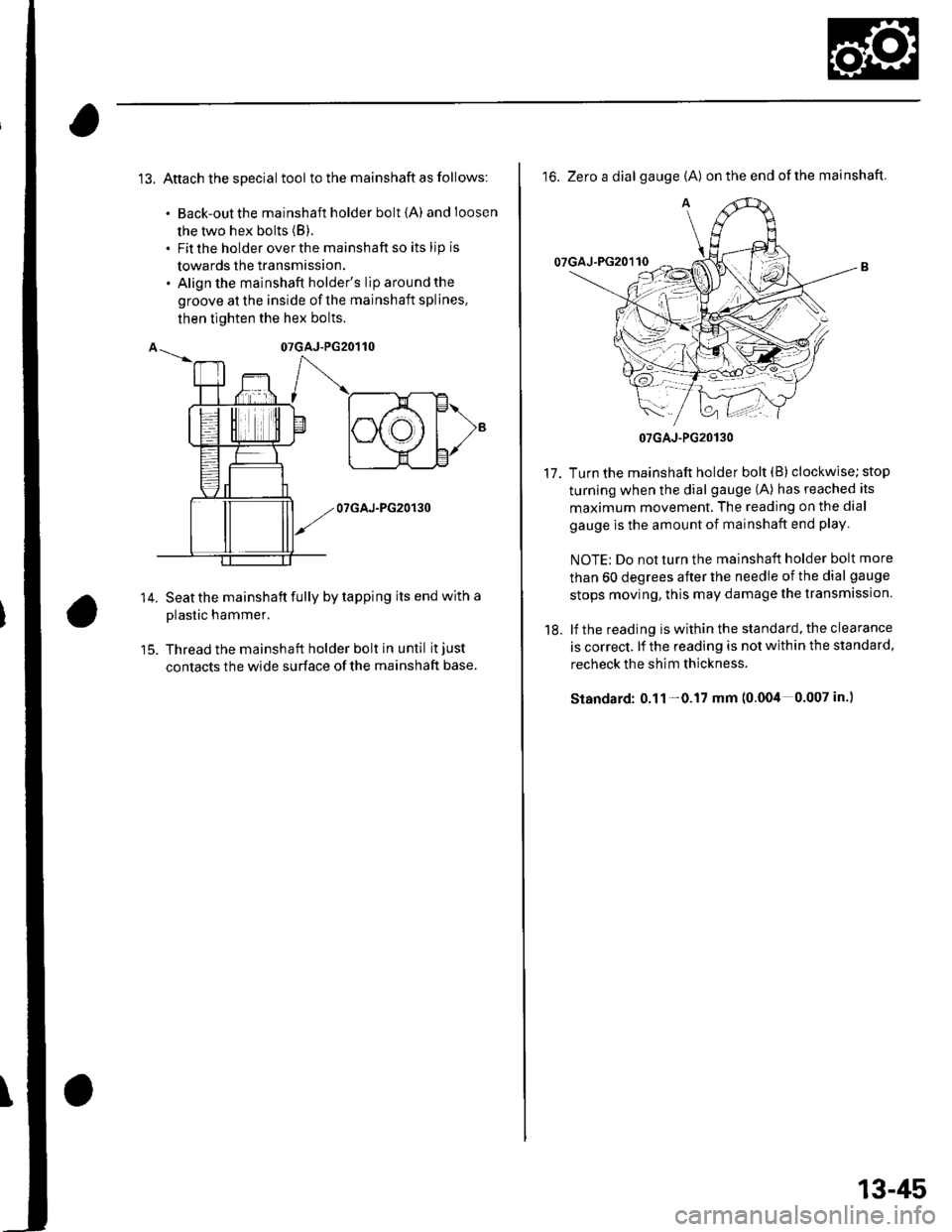

13. Attach the special tool to the mainshaft as follows:
. Back-out the mainshaft holder bolt {A) andloosen
the two hex bolts (B).
. Fit the holder over the mainshaft so its lip is
towards the transmission.. Align the mainshaft holder's lip around the
groove at the inside of the mainshaft splines,
then tighten the hex bolts.
14.
07GAJ-PG20130
Seat the mainshaft fully by tapping its end with a
plastic hammer.
Thread the mainshaft holder bolt in until it just
contacts the wide surface of the mainshaft base.
16. Zero a dial gauge {A) on the end ofthe mainshaft.
Turn the mainshaft holder bolt (B) clockwise; stop
turning when the dial gauge (A) has reached its
maximum movement. The reading on the dial
gauge is the amount of mainshaft end play
NOTE: Do not turn the mainshaft holder bolt more
than 60 degrees after the needle of the dial gauge
stops moving, this may damage the transmission.
lf the reading is within the standard, the clearance
is correct. lf the reading is not within the standard,
recheck the shim thickness.
Standard: 0.11 -0.17 mm (0.004 0.007 in.)
17.
18.
07GAJ-PG20130
13-45

Manual Transmission

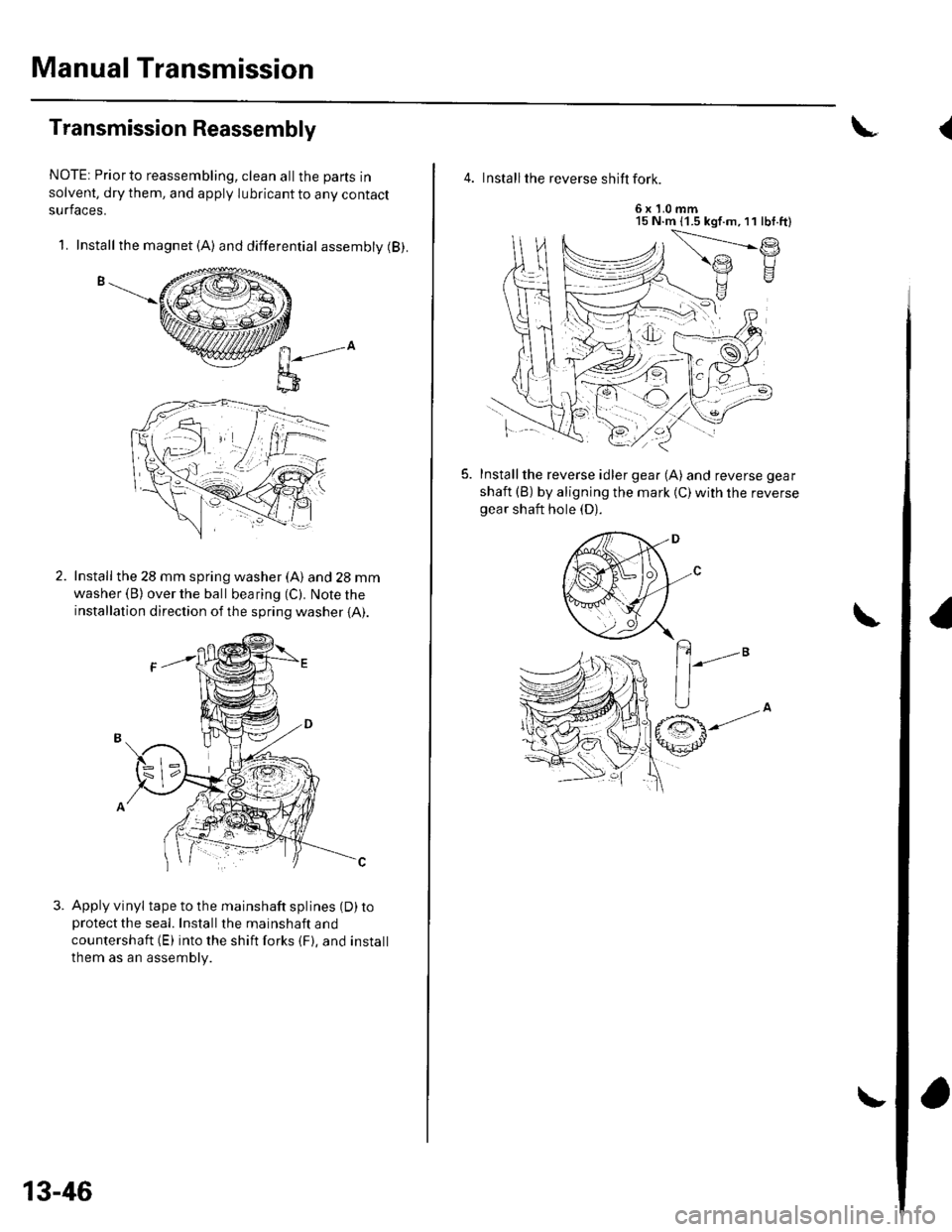

Transmission Reassembly
NOTE: Priorto reassembling, clean allthe parts in
solvent, dry them, and apply lubricant to any contact
surfaces.
1. Install the magnet (A) and differential assembly (B).
n-",-o
l;-D
Install the 28 mm spring washer (A) and 28 mm
washer (B) over the ball bearing (C). Note the
installation direction of the spring washer {A).
Apply vinyl tape to the mainshaft splines (D) toprotectthe seal. Installthe mainshaft and
countershaft (E) into the shift forks {F}. and install
them as an assembly.
13-46
\
4. Install the reverse shift fork.
6x1.0mm15 N.m (1.5 kgf.m,11 lbf.ft)
f.)
Installthe reverse idler gear (A) and reverse gear
shaft (B) by aligning the mark {C)with the reversegear shaft hole (D).
(

-26 x 1,0 mmz/ / 15 N.m--' / {1 5 kgf m,€t I 11 tbf.ft)
Fl g
E

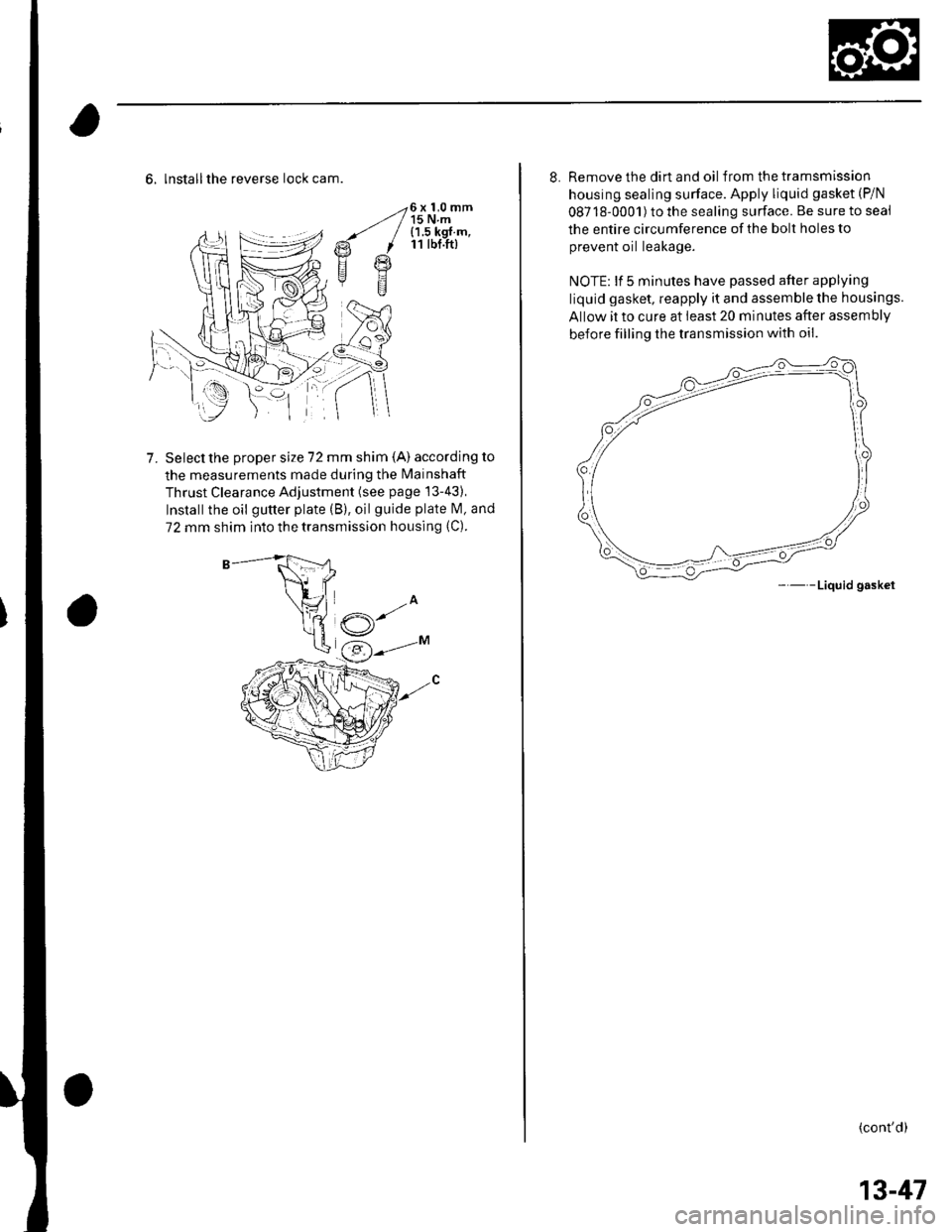

6, lnstallthe reverse lock cam.
Select the proper size 72 mm shim (A) according to
the measurements made during the Mainshaft
Thrust Clearance Adjustment (see page '13-43),
Installthe oil gutter plate (B), oilguide plate l\4, and
72 mm shim into the transmission housing (C).
7.
8. Remove the dirt and oil f rom the tramsmission
housing sealing surface. Apply liquid gasket (P/N
08718-0001) to the sealing surface. Be sure to seai
the entire circumference of the bolt holes to
prevent oil leakage.
NOTE: lf 5 minutes have passed after applying
liquid gasket, reapply it and assemble the housings.
Allow it to cure at least 20 minutes after assembly
before filling the transmission with oil.
- - -Liquid gasket
{cont'd)
13-47

Manual Transmission
Transmission Reassembly (cont'dl
9. Install the 14 x 20 mm dowel pins (A).
34 N.m(3.5 kgf.m,25 rbf.ft)
Set the tapered cone ring (B) as shown. Place the
transmission housing over the clutch housing,
being careful to line up the shafts.
10.
13-48
11. Lower the transmission housing the rest of the wayas you expand the 72 mm snap ring {C). Release
the snap ring so it seats in the groove of the
countershaft bearing.
12. Check that the 52 mm snap ring is securely seatedin the groove of the countershaft bearing.
Dimension O as instalted: 3.3 6.0 mm
{0.13 0.24 in.l
Apply liquid gasket (P/N 08718-0001) to the threads
of the 32 mm sealing cap {D), and install it on thetransmission housing,
Install the transmission hangers A. and B, and the
8 mm flange bolts finger-tight.
13.
't4.
15.
8 x 1.25 mm27 N.m(2.8 kgf.m.20 rbf.ft)
(t
\A
e././
Tighten the 8 mm flange bolts in a crisscross
Pattern In several steDs.
(

16. Remove the dirt and oil from the shift iever cover
sealing surface. Apply liquid gasket (P/N 08718-
0001) to the sealing surface.
NOTE: lf 5 minutes have passed after applylng
liquid gasket. reapply it and assemble the housings.
Allow it to cure at least 20 minutes after assembly
before filling the transmission with oil.
- - -Liquid gasket
17. Installthe 8 x 14 mm dowel pins (A). clutch line clip
bracket (B), and change lever assembly (C).
12 N.m (1.2 kgf.m,9lbt ft)
18. Apply liquid gasket (Pi N 08718-0001) to the threads
of the interlock bolt (D), and install it on the
transmission housing.
6x1.0mm
19. Installthe drain plug (A), filler plug (B), and 10 mm
flange bolt (C) with new washers.
A39Nm(4.0 kgf m,33 tbl.ft)
20.
/..l-.=,'-Bg ^ 44N.m
@ Ut !?iJl'.'l,''
R\-: \
-.-t ?0, ,.ru ^44 N m {4.5 kgt m,33lbf.ft}
Installthe detent bolts (A), spring, and steel balls
with new washers.
{3.0 kgf.m.22lbf.ft)
Apply liquid gasket {P/N 08718-0001}to the threads
oithe back-up light switch (B), and install it in the
transmission housing.
(cont'd)
21.
13-49

Manual Transmission
Transmission Reassembly (cont'dl
22. Installthe vehicle speed sensor (VSS) {A)andO-ring (B).
22 N.m (2.2 kgf.m, r6 lbf.ft)
13-50
(
{
