HONDA INTEGRA 1998 4.G Workshop Manual

Chcck tho SRS unh:Connect the SRS main harness 18P connector terminals No.6 and No. 3 with a jumper wire and backprobe adapters.
Oos6 th6 SRS indicator liqhi so offl
YESNO
Faulty SRS unit or poor contact at the SRS main hamoi318P connector; check lhe connactor.Ittho connector i3 OX, replaco the SRS unit.
Did fuse No.23 {10 Al blow?
YESNO
(B)
To page 23-298
Chock tor a short to ground in thc SRS indic.tor light ci.-cuit:1. Turn the ignition switch OFF.2. Disconnect the dashboard wire harness 5P connectorfrom the gauge assembly.3. Check resistance between the No. 5 terminal of the dash-board wire harness 5P connector and ground. Thereshould be 1 MO or more.
ls the resistance as apocifiad?
YESNO
{c)To page 23-299
Short to ground in tho gauga aatambly; raplace tho gaugeasscmblY.
From page 23-296(A)
SRS MAIN HARNESS 18P CONNECTOR
JUMPER WIRE
)
oasrSoAno unRE HARt{Ess5P @ilFCTOn
GAUGE ASSEMBLY
DASHAOARD WIBE HARNESS5P CONNECTOR
ffiv;1"u*---.--a
] sru
O wire side of female
I terminals
)(cont'd)
UNITsRs
Wire side of female lerminals
f,t
r
23-297

Troubleshooting
The SRS Indicator Light Doesn't Go Off (cont'd)
From pags 23-297(8)
ch.ct tha SRS indicrtor circuit:1. Turn tho ignition switch OFF.2- Remove the gauge assembly. Do not disconnoct thedashboard wire harnosg 5P connector from the gaugg
assemblY.3. Turn the ignitjon switch ON {ll).4. Connect the dashboard wire hrrng6a 5P connector torminals No. I and No.5 with a iumoerwire.
Doe3 th. SRS indicator lisht go otf|
NOYES
Faulty SRS indic.tor light circuh in th. g.ug. r*t mbly;raplroe th. SRS prini.d ciJcuit bolrd in th. g.ug.
9$emblY.
ch.ck loi .n op.n in th. SRS indicltor ligl|t circuh:1. Turn the ignition switch OFF,2, Disconn€ct the dashboard wire harnoss 5P connectorfrom th6 gauge assembly.3. Check resistanco between ths No. 6 t€rminal ot the SRSmain harneas 18P conngctor and No. 5 terminal of th6dashboard wire harness 5P connector; there should bs0-1.00.
lr tha raaidanca aa lpacifiad?
YESNO
(D)
To page 23-300
(E)
To page 23-300
DASHBOARD WIRE HARNESS5P COt{t{ECTOR
SRS MAIT{ HARNESSt8P CON ECTOR
OASHBOARD WIRE HARI{ESS5P COI{NECTOR
OASHBOABD WIRE HARNESS5P CONNECTOR
rt#z;trxistL,iry
lYEr lBruWir6 sido oI fomaleJUMPER W|RE terminals
GAUGE ASSEMBLY
W 6 side of lemale terminals
23-298

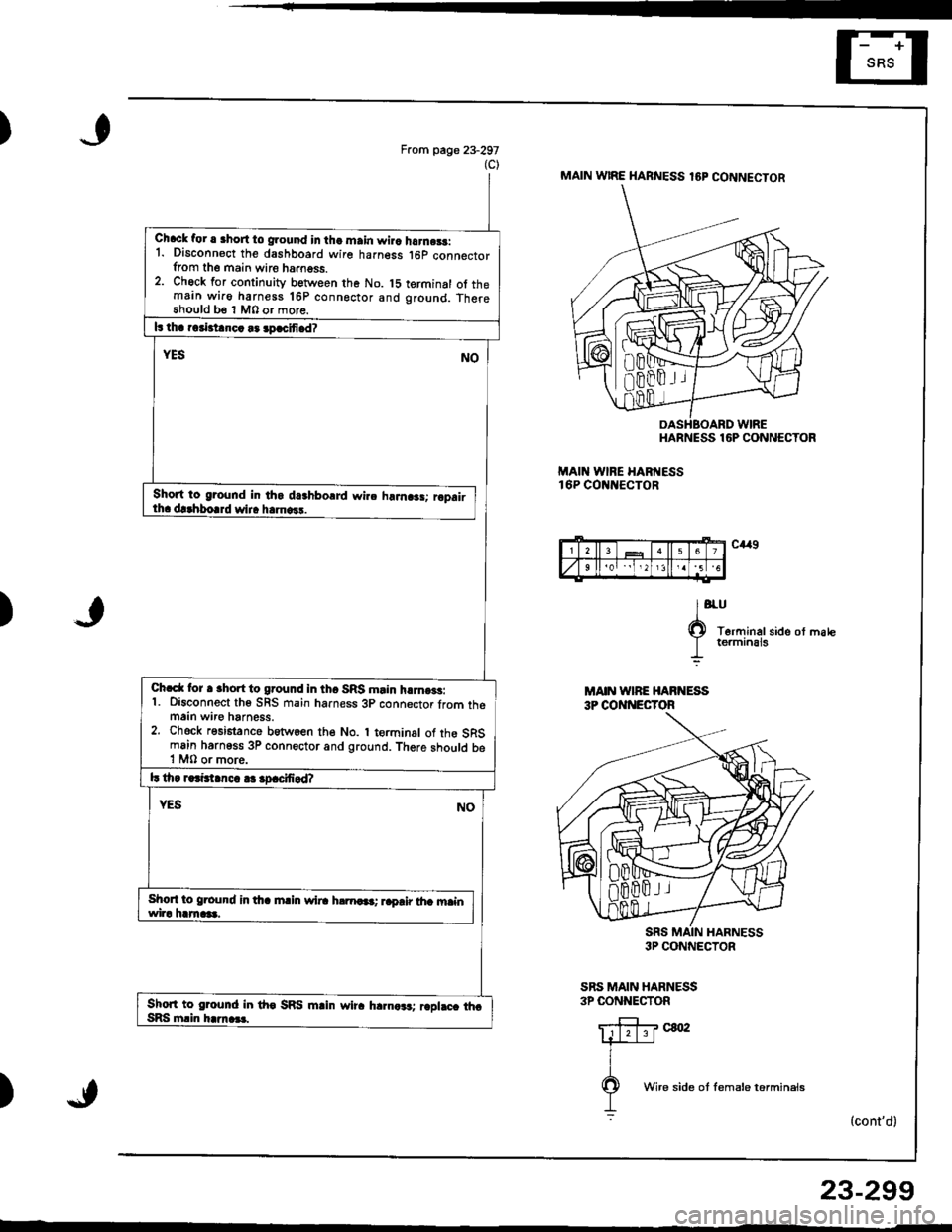

)From page 23-297(c)MAIN w|RE HARNESS lEP CONNECTOR
HARNESS
MAII{ WINE HABTESS16P COt{ItECTOR
16P CONNECTOR
C,!r9
lo'
O T6rrninalside ot matc
I rermrnEts
3P CONNECTOR
SRS MAIN HARNESS3P CONNECTOR
(cont'd)
Chack for a 3hort to ground in tha main wira harnr$:1. Disconn€ct the dashboard wire harness .l6p connectorfrom the main wire ha.ngss.2. Chock for continuity between the No. t5 terminal ot themain wiro harness 16P conngctor and ground. Therethould b€ 1 M0 or more.
L tha rcrbianca ra apacifiad?
YESNO
Short to groond in th6 d8hboard wirc hrJn.3!; ropairth. d!.hborrd wir. h.ma.!.
Chacl lor a rhort to ground in tha SRS main h!]no3s:1. Disconnect th6 SRS main harness 3p connector lrom themain wir€ harness.2. Chock resistance betwoen the No. I terminal of the SRSmain harngss 3P connoctor and ground. There should be1 M0 or more.
l! tho raainanca ar apacifiad?
YESNO
Short to g.ound in dta main wil. h!m6a; raprir tha mainwira hamas.
Shon to ground in tho SRS mlin wira hlrna*t rcplaca thcSRS mlin harnas.
2567
92'5 6
)
MAIN WIRE HAFNESS3P COI{I{ECYOR
)
Wire side ot lemale torminals
23-299

Troubleshooting
The SRS Indicator Light Doesn't Go Off (cont'dl
23-300
t
Fro- !'age 23'298lDASHBOARD WIRE HARNESS5P CONNECTOR
Ch.ct rh. SRS indicator circuh input vohagei1. Reconnect the SRS main harness 18P connector to theSRS unit.2. Connoct a voltmeter between the No. 5 terminal (+) ofthe dashboard 5P connector and oround.3. Turn the ignition switch ON lll), wait tor six seconds,then measure
GAUGE ASSEMBLY
DASHBOARO WIRE HARNESS5P CONl{ECTOR
c557
Wire side ol femaletermrnals
SRS MAI[{ HARNESS 18P COI{I{ECTOR
From page 23-298(E)
SRS MAII HARI{ESS 18P CONNECTOR
SRS MAIN XARI{ESS3P CONNECTOR
f'l! thor6 8.5 V o. mo.e?
Tho problom has disappearod due to disc_onnscting andconnacting tha connectols. Be sure all torminal3 makegood contact, and rechock the sy3tom lsaa Trouble-shooting Intormittont Failurss on pago 23-289).
Poor contact at tho SRS main hamess 18P conncctor; chatclthe conn6c'toa.. lf the connocto. is OK, substitute a known-good SRS unit,and rechock.' It the problom is still prescnt, r.phca the SRS main har-noas.
MAI WIRE HARNESS lGP CONNECTOR
Terminalsid€ ol male terminals
Chock tor an ooen in the dashboard wire haino*!:1. Disconnect the dashboard wire harness 16P connectorfrom the main wire harness.2- Check resistance between the No.6 terminal ofthe SRSmain harness 18P connector and the No. 15 terminal olthe main wire harness 16P connector; resistance shouldbe aDorox. 0 - 1.0 0.
ls th. resistanco a3 spacifigd?
Open in th. BLU wir6 of the drshborrd wirc harnsss;
Chock for an op6n in tha main wire harn6$:1. Disconnect the SRS main harness 3P connector from themain wire harness.2. Check resistance between the No. 6 terminal of the SRSmain harness 18P connector and the No. 1 terminal of theSRS main harness 3P connector; resistance should boaoorox.0-1.0O.
13 th6 r6ktanca as 3pocifiod?
Open in the SRS main ha.n$s; roplac. tha SRS main hsr-nai!i.
Open in the BLU wir. oltha mrin wirc harna.s; r.pair themain wiao hamoss.

)
DTC 1-1 and DTC 1-2
CAUTION: Whenever the ignition switch is ON {lll, or
has been turned OFF for less thsn three minutes, be
ca.eful not to bump the SRS unit; the airbags could
accidentally deploy and cause damage or iniuries.
CABLE REEL2P CONNECTOR
SRS SIMULATORL€AD CoTtaz - s6011Alrd Sns IYFLATORg.prToR
o ! Jrcxatllil - n olrl
*.t sns savE\,' colltcroe c o07TAZ-8E@
CABLE BEEL2P CONNECTOR
SRS SERVICEGoNNECTOR (2 0l
07TAZ - 5250200(cont'd)
Try to roproduce the SRS indicator light:1. Erase the DTC memory lsee page 23-289).2. Turn the ignition switch ON (ll), and check that the SRS indicator light comes on tor about six seconds and then goes
ofJ.
Do€s the SRS indicator light stay on?
YES
h6rmittar'rt Lalul!, 3yrtdll b o|( rt thb tiiru. 5€6 lroubl6-ahootino lmarmitlant Failura. on o.oa 23-289.
Chock fo. an opGn in the dlivgl's cirbag infirtor:'1. Turn the ignition switch OFF.2. Disconnect the battery negative cable, then disconnect thepositive cable, and wail for thrce minutes.3. Disconnect the driver's airbag 2P connectorlrom th€ cablereel 2P connector-CAUTION: Do not disconnoct tho palF€nger'r .ilb.g con-nector.4. Connect the sDecial tool 12 o) to the cable reel 2P connec-tor.5. Reconnect the bsftery positive cable, then reconn€ct thonegative cable.6. Erase the DTC memory (se€ page 23-289).7. Bead the DTC (see page 23-2811.
ls DTC 1-1 oI DTC 1-2 indic.tod?
YESNO
Opon or incro8od r.rist.nco in tho driv6.'3 airbag inf+
lor; replacs tho drivor'3 rirb.g lsoe prgg 23-317).
Ch.ck for an op6n in the cablo re.l:1. Disconnect the battery negativo cabl6, thon disconnectthe positive cable, and wait for three minutes.2. Disconnect the soecial tool (2 o) from rhe cable reel 2Pconnector.3. Remove the dashboard lower cover. and disconnoct thecable reel2P connectorfrom the SRS main harness.4. Connect tho special tool (2 0) to thg SRS main harness2P connector. (cont'dl
To page 23-302
SRS SIMULATOR|.EAO C07TAZ - Si4tor lAand SRS INFLATORSIMULATOR(2 0 JACK)
23-301

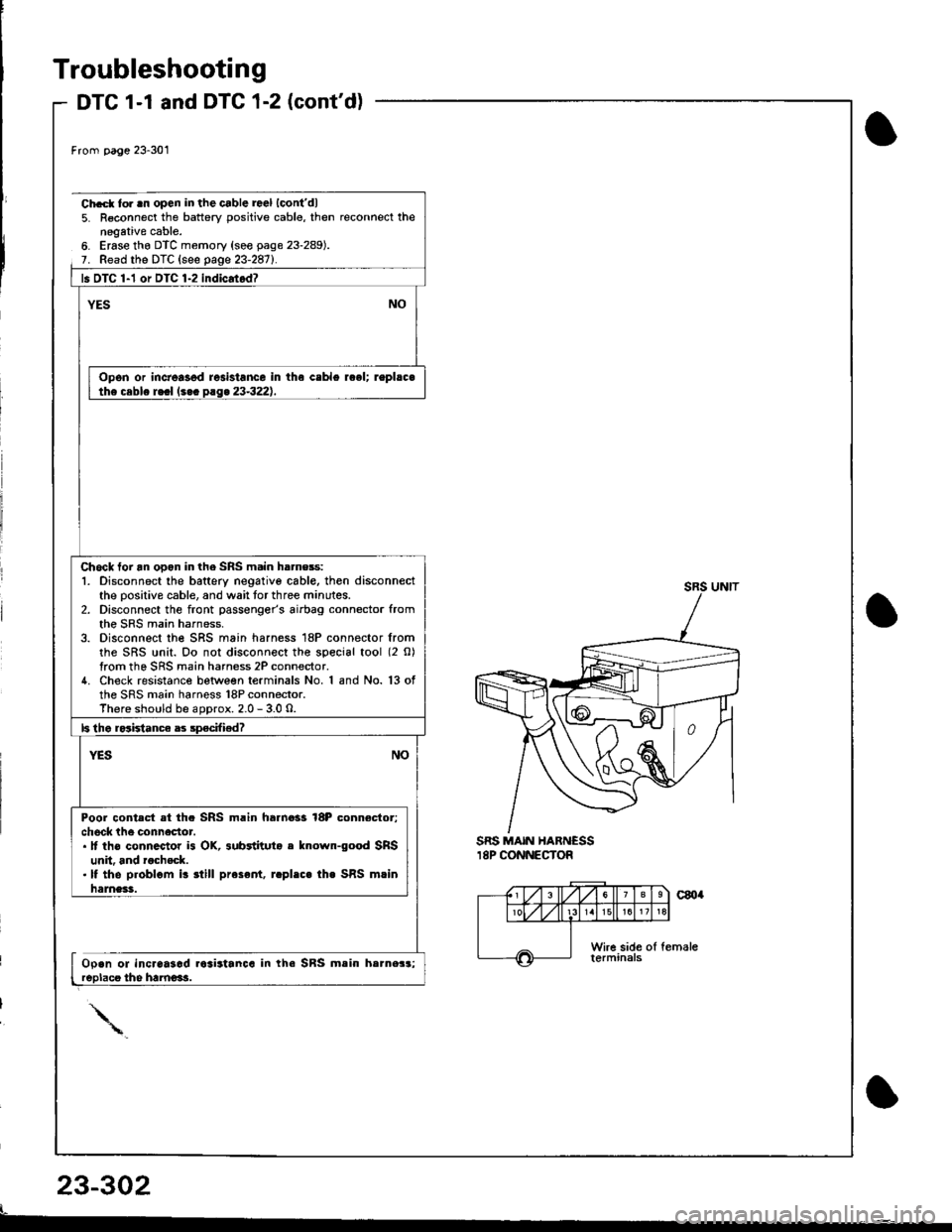

Troubleshooting
DTC 1-1 and DTC 1(cont'd)lJlv r-r o
From p.ge 23-301
SRS MAIN HARNESSI8P CONNECTOR
Ch.cl to. .n open in the cable rael lcont'dl5. R€connect the battery positive cable, then reconnect thenegative cable.6. Erase tho DTC memory (see page 23-289).7. Read the DTC {see qaqe 23-2871.
ls OTC 1-1 or DTC 1-2 indicatod?
YESNO
Opon or increasod resistance in the ceble rcel; repl.c.the ceble re.l (s.c p.g. 23-322),
Chock to. an ooon in the SRS m.in h.rness:1. Disconnect the battery negativo cable, then disconnectthe oositive cable, and wait tor three minutes.2. Disconnect the front passenger's airbag connector fromthe SRS main harness.3. Disconnect the SRS main harness 18P connector fromthe SRS unit. Oo not disconnect the special tool (2 O)from the SRS main harness 2P connector.4. Check resistance between terminals No. 1and No. 13ofthe SRS main harness 18P connector.There should be aoorox. 2.0 - 3.0 o.
b tho rodstanca as specifiedT
YESNO
Poor conted at th. SRS m.in harnoss l8P connector;ch6ck the connector.. It ths conn.ctor is OK, 3ubrtituto e known-good SRSunit. and rachsck.. It the p.oblom i! itill preser|t, r.pl.c. th. SRS mrinhames3.
Open ol incraaiad.cairtanca in the SRs mein herne3reolacs the hamoi!.a;
23-302
t-

DTC 1-3
)
CAUTION: When€ver the ignition 3witch is ON (ll), or
has been turned OFF for le3s lhan three minute3, be
careful not to bump the SRS unit; the airbags could
accidontally d€ploy and cause damage or iniuries.
Chcck for a short to anothor wiro in the driver's airbag inlla-tor:1. Turn the ignition switch OFF.2. Disconnect the battery negative cable, then disconnectthe positive cable, and wait tor three minutes.3. Disconnect the driver's airbag 2P connector from thecable reel 2P connector.CAUTION: Do not diaconnocl the p.sseng.r'5 !irbaOconnoctor.4. Connect the special tool {2 o} to the cable reel 2P connec'tor,5. Reconnect the battery positive cable, then reconnect thenegative cable.
SRS SIMULATORLEAD C0?TAZ - SZ5011Aand SRS INFLATORSIMULATORt2 0 JACKI07SAZ - T8,(}11A
)
Erase the DTC memory (see page 23-2891.Road the DTC (see page 23-287).
o1
,"" rr*u,".GoNNECTOR 12 0)
07TAZ - S250200(cont'd)
SRS SIMULATORI.EAD CorTAZ - SZ5011A.nd SRS INFLATORSIMULATOR12 0 JACKI07SAZ-TBrl011A
TrVto reproduce the SRS indicator light:1. Erase the DTC memory (see page 23-289).2. Turn the ignition switch ON (ll), and checkthatthe SRS indicator light comes on for about six seconds and then goesoff.
Doss tho SRS indicato. liqht stav on?
Intormittent failure, 3yitom i3 OK at thk timo. S€a TrouH€-
Short in tho drivar's sirblg inflstor; replace the driv-
Chock for s shon in tho cablo rool:'1. Disconnect the battery negative cable, then disconnectthe positive cable, and wait tor three minutes.2. Disconnect the special tool (2 0) from the cable re€l 2Pconnector,3. Remove the dashboard lower cover, and disconnect lhecable reel 2P connector from the SRS main harness.4. Connect the special tool (2 O) to the SRS main harness
To page 23-304
)

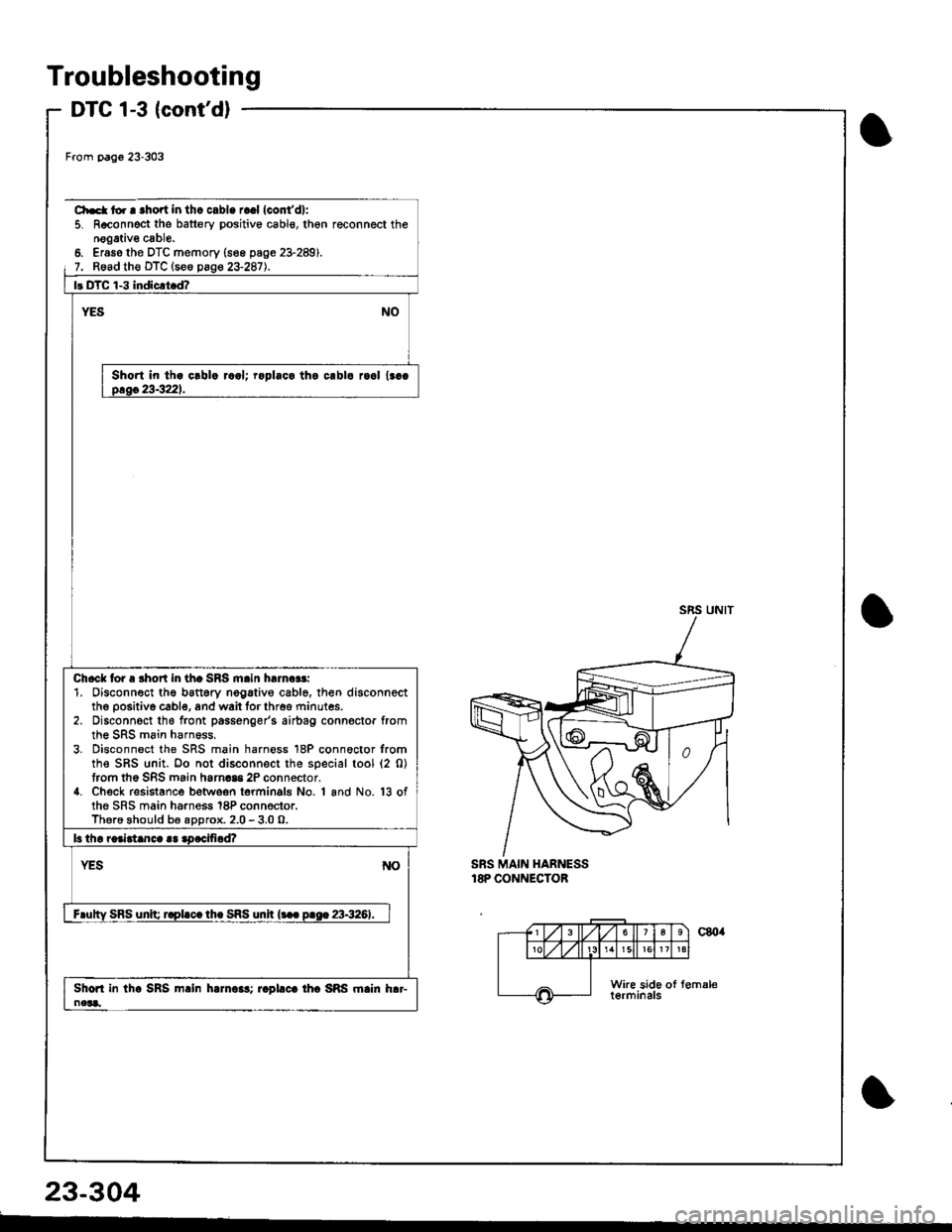

23-303

Troubleshooting
DTC 1-3 (cont'd)
Ch.t to. | .hort in thc cabl. r..l (coni'dl:
5. R€connect the battery positivo cabl€, then reconnect thenggative cabl6.6. Ersso the DTC memory (s6e p8g6 23-289).7. Road th€ DTC (seo pase 23-2871.
l! DTC 1-3 indicrt.d?
YESNO
Sho.t in th. c!bl. r..l; roDl.c. tha c.blo r.ol 1...o'tso 23-3221.
Chock tor a lhort in th. SRS m.in h.rn.$:1. 0isconnect ths batt6ry nogative cable, then disconnectthe positive cabl€, and wait forthres minutes.2. Disconnsct tho front passenger's airbag connoctor fromthe SRS main harn€ss,3. Disconnect the SRS main harness 18P connoctor fromthe SRS unit. Oo not disconnect the special tool (2 0)taom the SRS main harmaa 2P connector.4. Check resistance betwoon termin9ls No. 1 and No. 13ofthe SRS main harness 18P connector.Thero ghould be aDorox. 2.0- 3.0 o.
b tho roaidanca r! aDacifiod?
YESNO
F.utty SRS unlq r.pl.c.lh. SRS unir {... p.sE 23-3261.
Shon in the SRS m.in hamo$; r.Dl.c. th6 SRS rn.in h.r-neL.
From Dago 23-303
SRS MAIN HARNESS18P CONNECTOB
23-304

DTC 1-4
GAUTION: Whenever the ignition ewitch i! ON (ll), or
has been turned OFF tor l€ss than ihre€ minutes, be
caroful not to bump the SRS unit; tho airbag3 could
accidrnta[y deploy and caus€ damage or iniuries.
9--'-.- sns sERvrcE\,/ cli|f\FgfoR {2 ol07TAZ - SZqI200
ol
SRS SERVICEcot{ltEcToR {2 0}07TAZ - S:Zso2qt
CABLE REEL2P CONNECTOR
(cont'd)
Try to r.p.oduco tho SRS indicator light:1. Erase the DTC memory (see page 23-289).2. Turn the ignition switch ON (ll), and check that the SRS indi-
cator light comes on lor about six seconds and then goes
off.
Doo3tho SBS indic.tor light stry on?
YESNO
lnt rmittont tsiluio, systom i! (X tt thb timc. Soo Troublc
shooting Inte.mittani Failutca on P.g. 23-289.
Chock tor a shortto power in tha drivo/! ritbag inflllor:
l. Turn the ignition switch OFF.2. Disconnect the battery negativ€ cable, then disconnsct
th6 oositive cable, and wait for three minutes.
3. Disconn€ct the driver's airbtg 2P connector from the
cable reel 2P conn6ctor.CAUTION: Do not disconnost tha p!r3ong.t's rirbag
connoclor.4. Connect the SRS service connector (2 O) to the cable reel
2P connector,5. Reconnect the battery positive cable, then reconnect thenegative cabl€.6. Erase the DTC memory lsee page 23-289).7. Read the DTC (see gage 23-2aiL
|3 DTC 1-4 indicrtod?
YESNO
Shon to powa. in tha d val's tiabag itlflltor; iopl.cathe ddv.r'. airbag {t€c prge 23-317).
Check for ! short to pow.r in the cabls.oali1. Disconnect the battery negative cable. then disconnectthe positive cable, and wait for three minutes.2. Disconnect th€ special tool (2 o) from the cable reel 2P
conneclor.3. Remove the dashboard lower cover, and disconnect the
cable reel 2P connector from the SRS main harness./t. Connect the special tool (2 o) to tha SRS main harness
2P connector. (cont'd)
To page 23-306
)
,\fr)d
cffi
SRS SIMULATORLEAD C07TAZ - SZ5011Arnd SRS INFLATORSIMULATORt2 0 JACKI07SAz - TBil011A
23-305

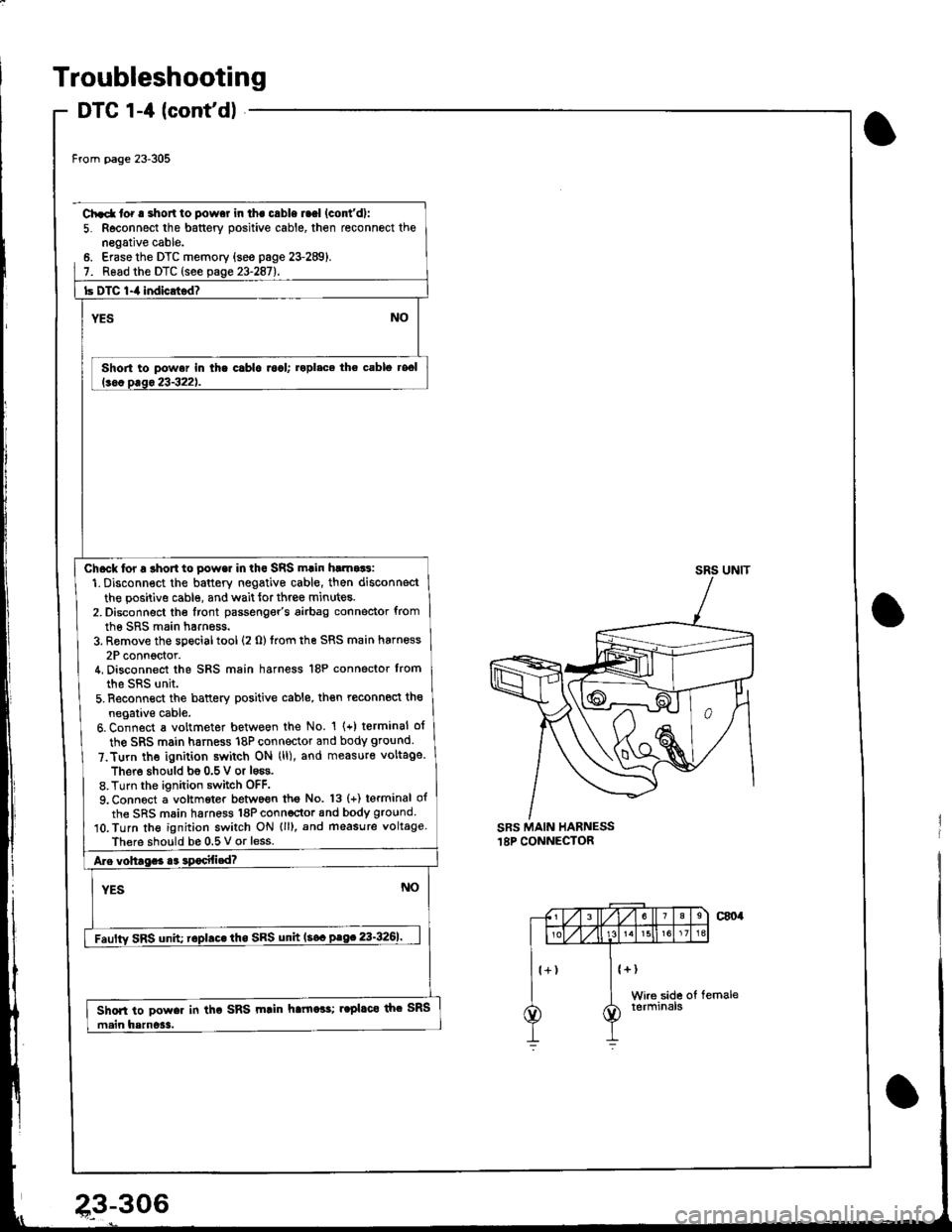

Troubleshooting
DTC 1-'l (cont'd)
From page 23-305
Ch.d to.. shon to powrr in th. crble r.el (cont'd)i
5. Reconnect the battery positive cable, then reconnect thenegative cable.6. Erase the DTC memory {seo page 23-289}.7. Read the DTC (see paoe 23-287).
ls DTC f-il indicatod?
YESNO
Sho to power in the cablo i6al; roplace th€ cablo .ool
ls6c p.go 23-322).
Chack lor a 3hort to gowar in the SRS main hrtnar3:1. Disconnect the battery negative cable, then disconnect
the positive cable, and waitlor three minutea.2. Disconnect the lront passenger's airbag connector from
the SRS main harness.3. Remove the specialtool (2 0)from the SRS main harness
2P connoctor.4, Disconnect the SRS main harness 18P connector lromtne stts untr.
5. Reconnect the battery positive cable, lhen reconnoct the
negative cable.6. Connect a voltmeter between the No 1 (+) terminal of
the SRS main harness l8P connector and body ground
7.Turn the ignition switch ON (ll), and measure voltage
There should b6 0.5 v or l€ss.
8.Tr.rrn the ignition switch OFF.
9. Connoct a voltmster betwoen tho No. 13 (+) terminal ol
the SRS main harness 18P conn€ctor and body ground.
lO.Turn th€ ignition switch ON {ll), and measure voltage.
There should be 0.5 V or less.
Ars vohagaa a3 3pocili.d?
YESNO
Faufty SRS unh; topl.c. th. SRS unh lsoc peg.23'3261.
Shdt to Dow.r in th. SRS mlin h.mo33; r.pl.co th. SRS
main hernos3.
SRS UNIT
SRS MAIN HARNESS.I8P CONNECTOR
