Quick Reference Guide I 19
18 I Quick Reference Guide
IONIQ ELECTRIC HYUNDAI
1 ECO guide2 Speedometer3 Warning and indicator lights4 LCD display (including Trip computer)5 Battery SOC (State of Charge) gauge
3
4
1
2
5
FEATURES AND CONTROLS
WARNINGS AND INDICATORSReady indicator
Service warning
light
Power down warning
lightAir bag warning lightElectric Power Steering
(EPS) warning light
Electronic Brake force
Distribution (EBD)
System warning light
Charging indicator
TPMS Malfunction /
Low tire pressure
warning light
AUTO HOLD indicator
Autonomous
Emergency Braking
(AEB) warning lightLane Departure
Warning System
(LDWS) Indicator
LED headlamp
warning light
Charging system
warning light
(for 12-volt battery)Anti-lock Brake
System (ABS)
warning light
Electic Parking Brake
(EPB) warning light
Parking brake &
brake fluid warning
light
Seat belt
warning light
Turn signal indicator
light
Immobilizer indicator
Master warning light
Electronic Stability
Control (ESC) OFF
indicator light
Electronic Stability
Control (ESC)
Indicator LightLight ON indicator
light
ECO mode indicatorCruise indicator
Adaptive Front Lighting
System (AFLS) warning
lightHigh beam indicator
lightCruise SET indicator
SPORT mode
indicator

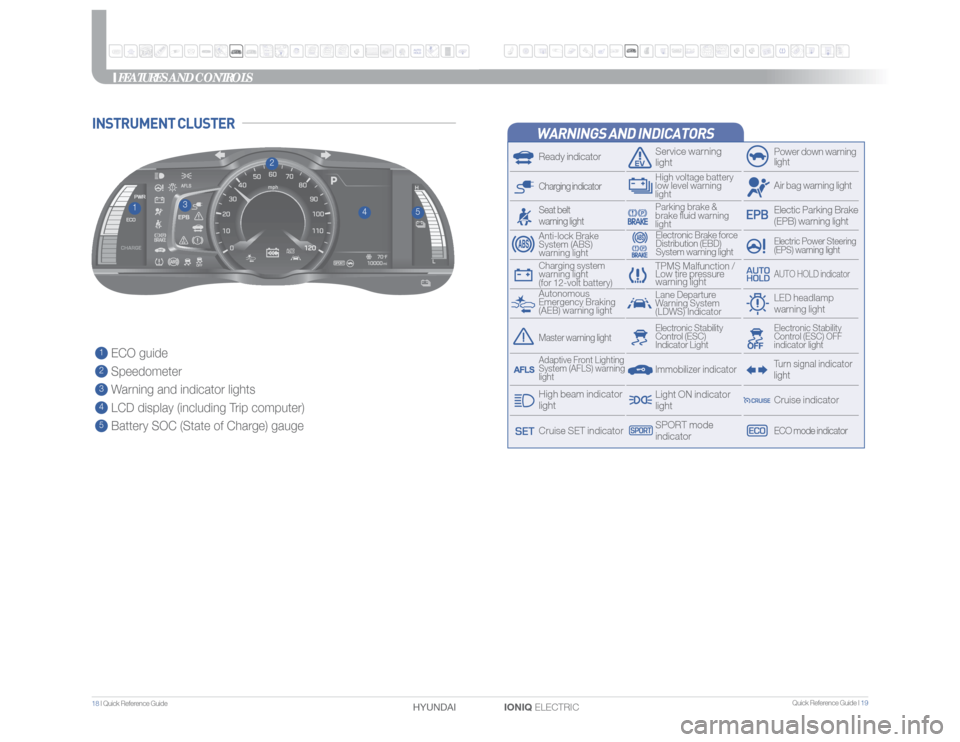

INSTRUMENT CLUSTER
High voltage battery
low level warning
light
Page 12 of 26
Quick Reference Guide I 21
20 I Quick Reference Guide
IONIQ ELECTRIC HYUNDAI
FEATURES AND CONTROLS
Charging indicatorThis indicator shows the charging status of the high
voltage battery.
• When charging, the indicator illuminates in red. The
approximate charge time will be displayed on the dash after
a few minutes.
• When charging is completed, the indicator illuminates
in green.High voltage battery low level warning lightThis warning light illuminates when the high voltage battery
level is low.
When the warning light turns ON, charge the battery
immediately.
The ECO guide shows the energy
consumption rate of the vehicle and
the charge/discharge status of the
regenerative brakes.POWERIt shows the energy consumption rate
of the vehicle when driving uphill or
accelerating.ECOIt shows the energy consumption
rate during normal driving condition.CHARGE
It shows the charging status of the
battery when it is being charged by
the regenerative brakes
(decelerating or driving on a
downhill road).The SOC gauge shows the charging
status of the high voltage battery.
“L(Low)” position on the indicator
indicates that there is not enough
energy in the high voltage battery.
“H(High)” position indicates that the
driving battery is fully charged.
When there are 2~3 gauge bars
(near the “L(Low)” area) on the gauge,
the warning light turns ON and, the
vehicle can drive an additional 12~18
miles depending on the driving
condition. Charging is required.
ECO GUIDEHIGH VOLTAGE BATTERY SOC (STATE OF CHARGE) GAUGE
Ready indicatorWhen the vehicle is ready to be driven, this indicator
is illuminated.
When the ready indicator goes off or blinks, we recommend
the vehicle be checked by an authorized HYUNDAI dealer.Service warning lightIf a problem with the electric vehicle control system
occurs, the service warning light will illuminate.
We recommend the vehicle be checked by an authorized
HYUNDAI dealer.Power down warning lightWhen the vehicle power should be limited for the safety of the
electric vehicle, this warning light illuminates.
Charge the battery immediately when the high voltage
battery level is not enough.
Main indicators in cluster for Electric VehicleNOTE:
DC Quick charge session is time limited and may not reach
maximum charge in one session depending on initial battery % SOC.
The maximum charge possible in Ioniq Electric is 94% SOC on a DC
Quick charger which will show a slightly lower range than with Level-1
and 2 chargers with maximum possible charge to 100%SOC.
Page 13 of 26
Quick Reference Guide I 23
22 I Quick Reference Guide
IONIQ ELECTRIC HYUNDAI

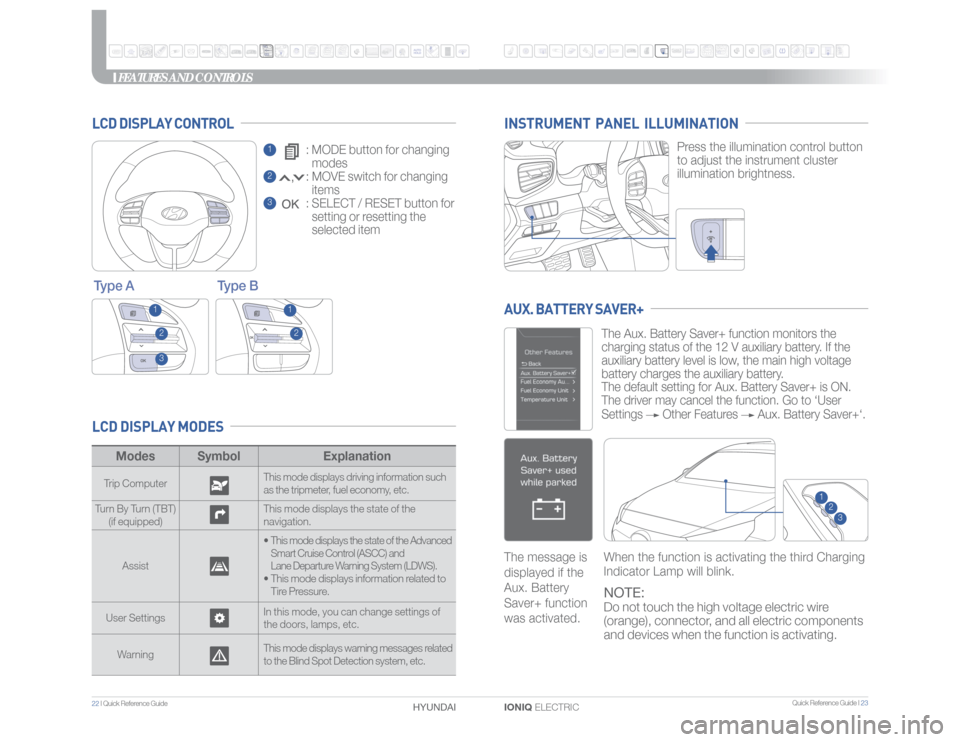

FEATURES AND CONTROLSModes Symbol ExplanationTrip ComputerThis mode displays driving information such
as the tripmeter, fuel economy, etc.
Turn By Turn (TBT)
(if equipped)This mode displays the state of the
navigation.
Assist• This mode displays the state of the Advanced
Smart Cruise Control (ASCC) and
Lane Departure Warning System (LDWS).
•
This mode displays information related to
Tire Pressure.
User SettingsIn this mode, you can change settings of
the doors, lamps, etc.
WarningThis mode displays warning messages related
to the Blind Spot Detection system, etc.
LCD DISPLAY MODES
Type B Type A
1 : MODE button for changing
modes2 : MOVE switch for changing
items3 : SELECT / RESET button for
setting or resetting the
selected item
LCD DISPLAY CONTROL
3
2
2
1
1
Press the illumination control button
to adjust the instrument cluster
illumination brightness.
INSTRUMENT PANEL ILLUMINATION
The Aux. Battery Saver+ function monitors the
charging status of the 12 V auxiliary battery. If the
auxiliary battery level is low, the main high voltage
battery charges the auxiliary battery.
The default setting for Aux. Battery Saver+ is ON.
The driver may cancel the function. Go to ‘User
Settings
Other Features
Aux. Battery Saver+‘.
AUX. BATTERY SAVER+
When the function is activating the third Charging
Indicator Lamp will blink. The message is
displayed if the
Aux. Battery
Saver+ function
was activated.NOTE:Do not touch the high voltage electric wire
(orange), connector, and all electric components
and devices when the function is activating.
1
32
Page 14 of 26
Quick Reference Guide I 25
24 I Quick Reference Guide
IONIQ ELECTRIC HYUNDAI
FEATURES AND CONTROLS
8 Air intake control button9 Mode selection button10 Driver only button11 HEAT button12 EV button13 Climate control information screen
1 Temperature control knob2 Fan speed control knob3 AUTO (automatic control) button4 OFF button5 Front windshield defrost button6 Rear window defrost button7 Air conditioning button

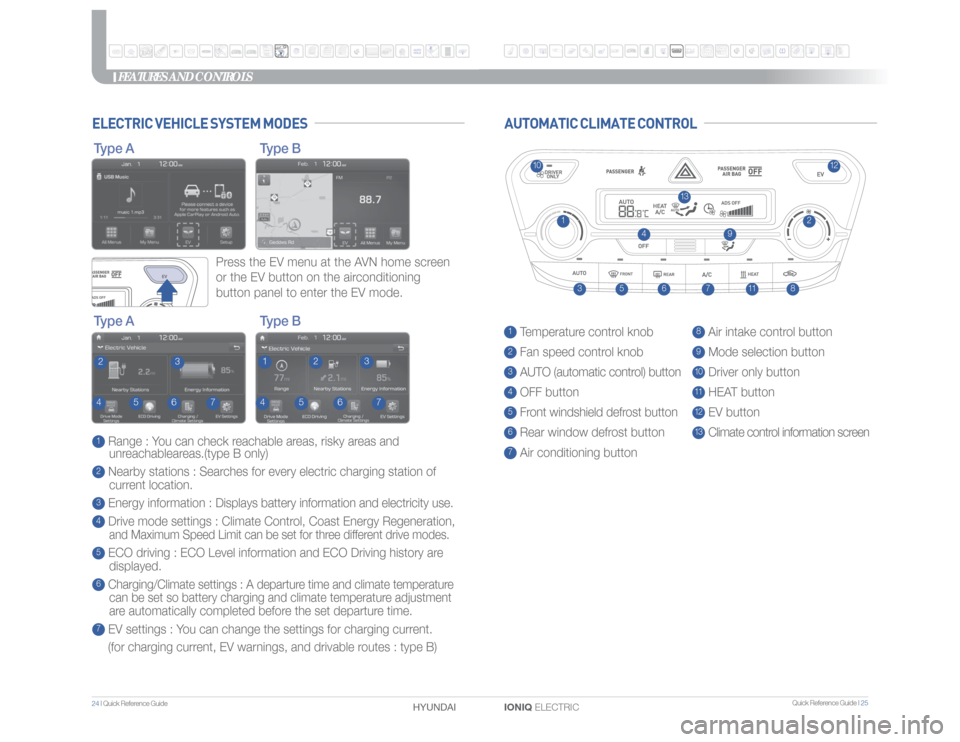

ELECTRIC VEHICLE SYSTEM MODES
AUTOMATIC CLIMATE CONTROL
3
5
6
11
7
8
4
9
13
1
12
10
2
1 Range : You can check reachable areas, risky areas and
unreachableareas.(type B only)2 Nearby stations : Searches for every electric charging station of
current location.3 Energy information : Displays battery information and electricity use.4 Drive mode settings : Climate Control, Coast Energy Regeneration,
and Maximum Speed Limit can be set for three different drive modes.
5 ECO driving : ECO Level information and ECO Driving history are
displayed.6 Charging/Climate settings : A departure time and climate temperature
can
be set so battery charging and climate temperature adjustment
are automatically completed before the set departure time.
7 EV settings : You can change the settings for charging current.
(for charging current, EV warnings, and drivable routes : type B)
Press the EV menu at the AVN home screen
or the EV button on the airconditioning
button panel to enter the EV mode.
Type B
Type B Type A
Type A
3
3
5
5
6
6
7
7
4
4
1
2
2
Page 15 of 26
Quick Reference Guide I 27
26 I Quick Reference Guide
IONIQ ELECTRIC HYUNDAI
FEATURES AND CONTROLS
NOTE:
To reduce the tendency of the glass fogging and also to improve
visibility, keep the interior surface of the windshield clean by wiping it with
a clean cloth and glass cleaner. In addition, select air intake control to the
outside (fresh) air position whenever possible while operating the vehicle.

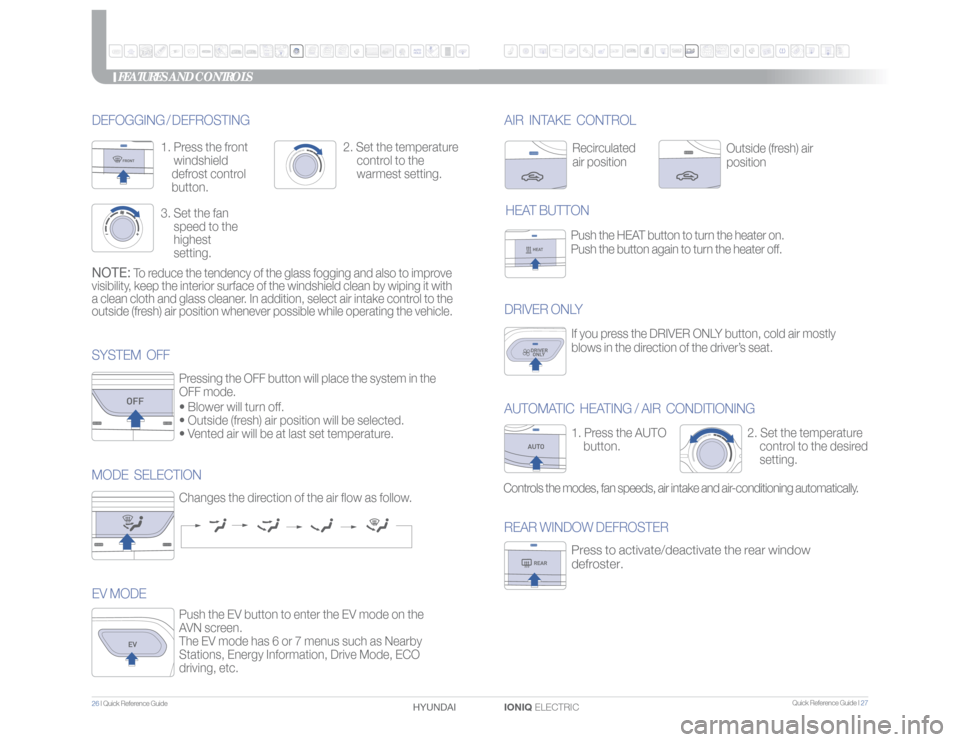

Changes the direction of the air flow as follow.
Push the EV button to enter the EV mode on the
AVN screen.
The EV mode has 6 or 7 menus such as Nearby
Stations, Energy Information, Drive Mode, ECO
driving, etc.
MODE SELECTION
EV MODE SYSTEM OFF
Pressing the OFF button will place the system in the
OFF mode.
• Blower will turn off.
• Outside (fresh) air position will be selected.
• Vented air will be at last set temperature.
AUTOMATIC HEATING / AIR CONDITIONING DEFOGGING
/ DEFROSTING
2. Set the temperature
control to the desired
setting. 3. Set the fan
speed to the
highest
setting.2. Set the temperature
control to the
warmest setting.
1. Press the front
windshield
defrost control
button.
1. Press the AUTO
button.
AIR INTAKE CONTROL
HEAT BUTTON
DRIVER ONLY
Push the HEAT button to turn the heater on.
Push the button again to turn the heater off.
If you press the DRIVER ONLY button, cold air mostly
blows in the direction of the driver’s seat.
Controls the modes, fan speeds, air intake and air-conditioning automatically.
REAR WINDOW DEFROSTER
Press to activate/deactivate the rear window
defroster.
Outside (fresh) air
position
Recirculated
air position
Page 16 of 26
Quick Reference Guide I 29
28 I Quick Reference Guide
IONIQ ELECTRIC HYUNDAI
MULTIMEDIA

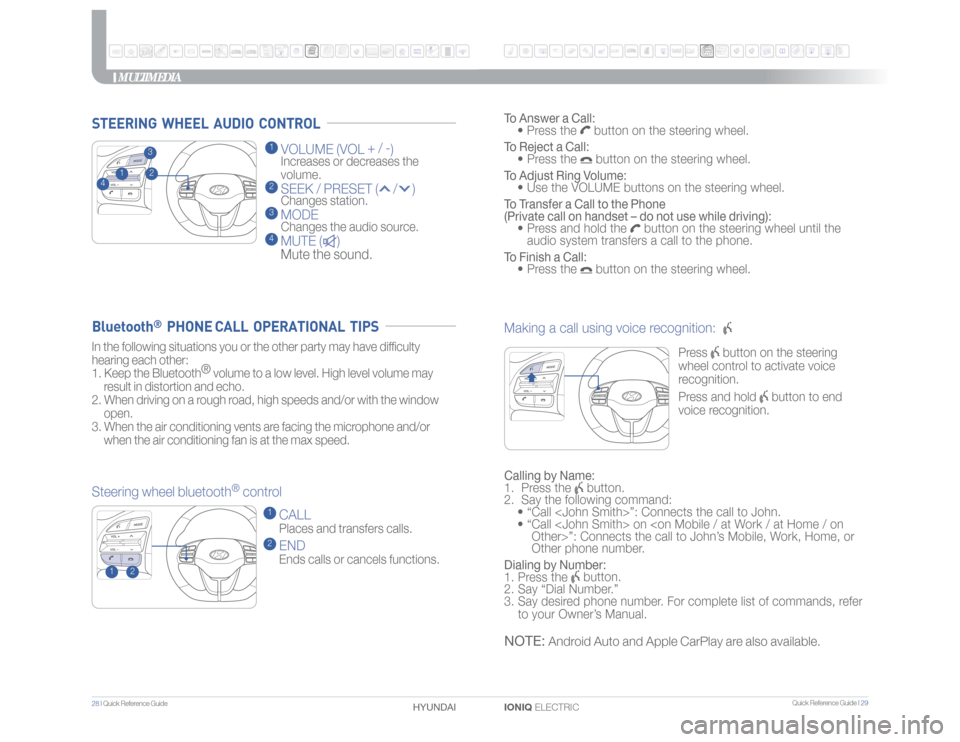

1 VOLUME (VOL + / -
)
Increases or decreases the
volume.
2 SEEK / PRESET ( / ) Changes station.3 MODE Changes the audio source.4 MUTE ( )
Mute the sound.
Making a call using voice recognition:
Press
button on the steering
wheel control to activate voice
recognition.
Press and hold
button to end
voice recognition.
Calling by Name:
1. Press the
button.
2. Say the following command:
• “Call
• “ Call
Other phone number.
Dialing by Number:
1. Press the button.
2. Say “Dial Number.”
3. Say desired phone number. For complete list of commands, refer
to your Owner’s Manual.
STEERING WHEEL AUDIO CONTROL
To Answer a Call:
• Press the
button on the steering wheel.
To Reject a Call:
• Press the button on the steering wheel.
To Adjust Ring Volume:
• Use the VOLUME buttons on the steering wheel.
To Transfer a Call to the Phone
(Private call on handset – do not use while driving):
• Press and hold the
button on the steering wheel until the
audio system transfers a call to the phone.
To Finish a Call:
• Press the
button on the steering wheel.
In the following situations you or the other party may have difficulty
hearing each other:
1. Keep the Bluetooth®
volume to a low level. High level volume may
result in distortion and echo.
2. When driving on a rough road, high speeds and/or with the window
open.
3. When the air conditioning vents are facing the microphone and/or
when the air conditioning fan is at the max speed.
Steering wheel bluetooth
® control
1 CALL Places and transfers calls.2 END Ends calls or cancels functions.
Bluetooth
® PHONE CALL OPERATIONAL TIPS
NOTE:
Android Auto and Apple CarPlay are also available.
2
1
23
1
4
Page 17 of 26
Quick Reference Guide I 31
30 I Quick Reference Guide
IONIQ ELECTRIC HYUNDAI
MULTIMEDIA

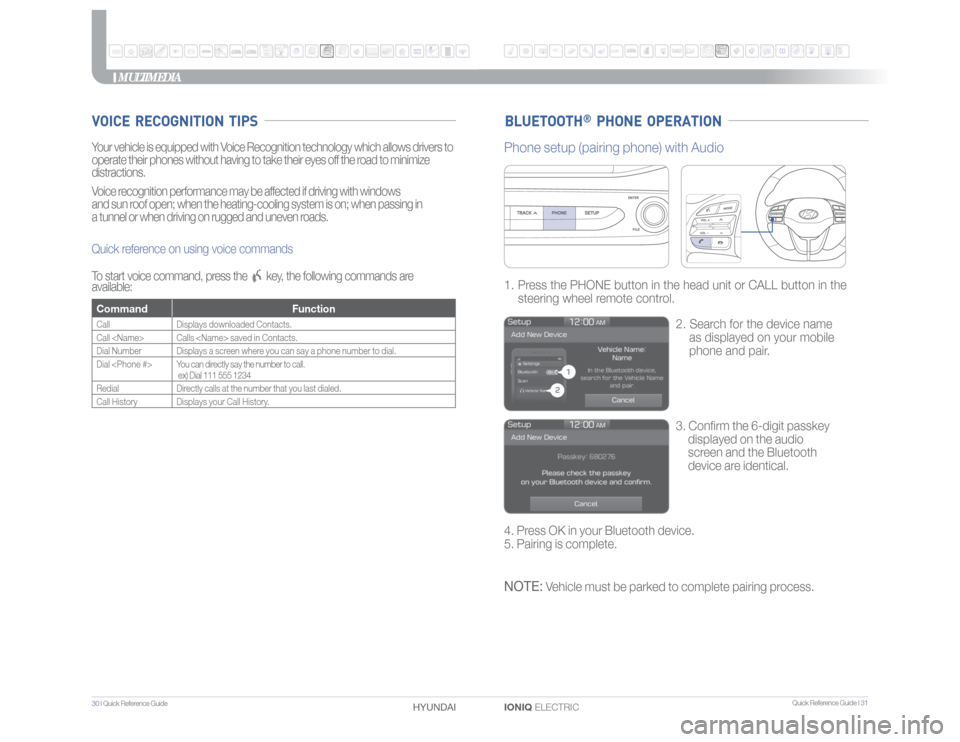

BLUETOOTH
® PHONE OPERATION
VOICE RECOGNITION TIPSYour vehicle is equipped with Voice Recognition technology which allows drivers to
operate their phones without having to take their eyes off the road to minimize
distractions.
Voice recognition performance may be affected if driving with windows
and sun roof open; when the heating-cooling system is on; when passing in
a tunnel or when driving on rugged and uneven roads.
Quick reference on using voice commands
To start voice command, press the
key, the following commands are
available:
Command FunctionCall Displays downloaded Contacts.
Call
Dial Number Displays a screen where you can say a phone number to dial.
Dial
ex) Dial 111 555 1234
RedialDirectly calls at the number that you last dialed.
Call History Displays your Call History.
3. Confirm the 6-digit passkey
displayed on the audio
screen and the Bluetooth
device are identical. 1. Press the PHONE button in the head unit or CALL button in the
steering wheel remote control.
2. Search for the device name
as displayed on your mobile
phone and pair.
Phone setup (pairing phone) with Audio4. Press OK in your Bluetooth device.
5. Pairing is complete.NOTE:
Vehicle must be parked to complete pairing process.
Page 18 of 26
Quick Reference Guide I 33
32 I Quick Reference Guide
IONIQ ELECTRIC HYUNDAI
MULTIMEDIA

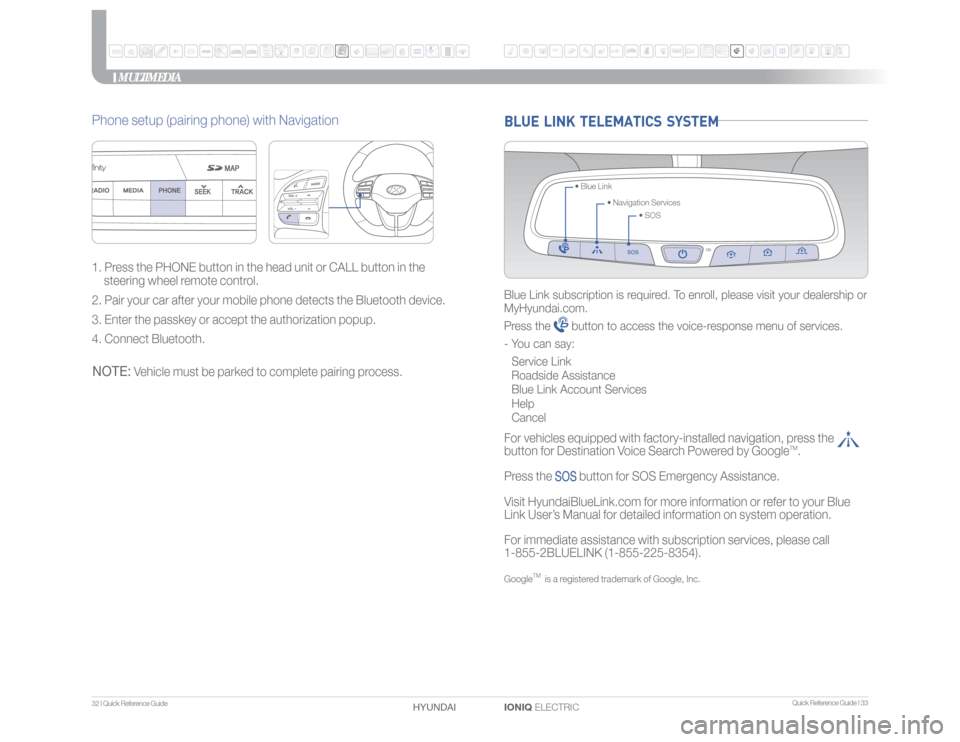

Phone setup (pairing phone) with Navigation1. Press the PHONE button in the head unit or CALL button in the
steering wheel remote control.
2. Pair your car after your mobile phone detects the Bluetooth device.
3. Enter the passkey or accept the authorization popup.
4. Connect Bluetooth.NOTE:
Vehicle must be parked to complete pairing process.
BLUE LINK TELEMATICS SYSTEM
• SOS • Navigation Services • Blue Link
Blue Link subscription is required. To enroll, please visit your dealership or
MyHyundai.com.
Press the
button to access the voice-response menu of services.
- You can say:
Service Link
Roadside Assistance
Blue Link Account Services
Help
Cancel
For vehicles equipped with factory-installed navigation, press the
button for Destination Voice Search Powered by Google
TM.
Press the
button for SOS Emergency Assistance.
Visit HyundaiBlueLink.com for more information or refer to your Blue
Link User’s Manual for detailed information on system operation.
For immediate assistance with subscription services, please call
1-855-2BLUELINK (1-855-225-8354).
Google
TM
is a registered trademark of Google, Inc.
Page 19 of 26
Quick Reference Guide I 35
34 I Quick Reference Guide
IONIQ ELECTRIC HYUNDAI
MULTIMEDIA

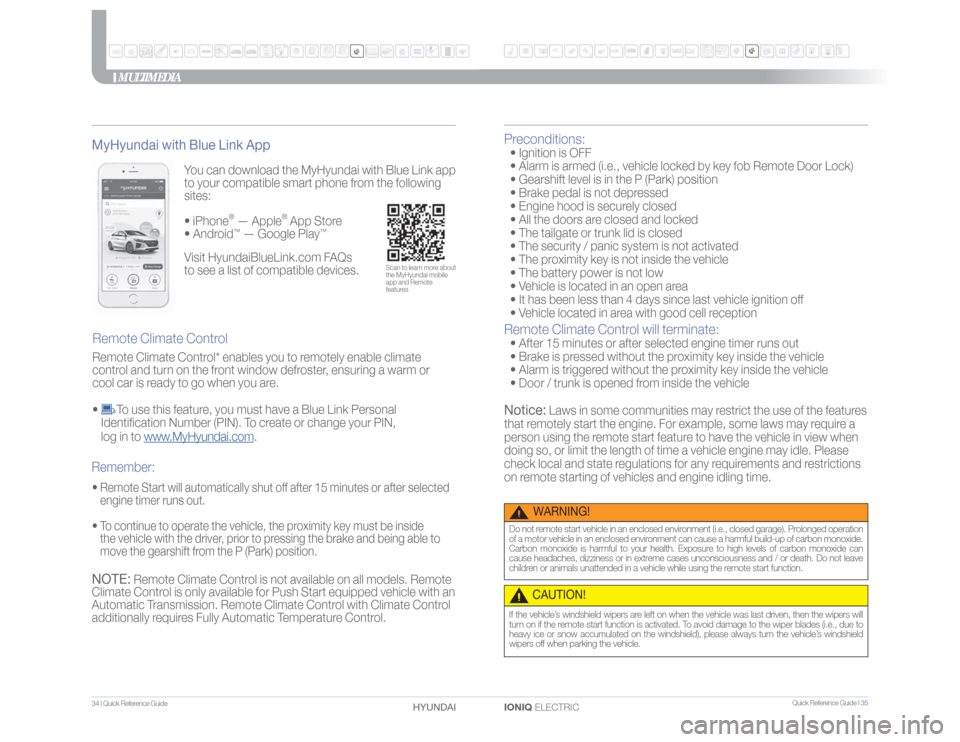

You can download the MyHyundai with Blue Link app
to your compatible smart phone from the following
sites: • iPhone
® — Apple
® App Store
• Android
™ — Google Play
™
Remote Climate Control MyHyundai with Blue Link App• Remote Start will automatically shut off after 15 minutes or after selected
engine timer runs out.
• To continue to operate the vehicle, the proximity key must be inside
the vehicle with the driver, prior to pressing the brake and being able to
move the gearshift from the P (Park) position.Remember:
Scan to learn more about
the MyHyundai mobile
app and Remote
features
Visit HyundaiBlueLink.com FAQs
to see a list of compatible devices.
NOTE:
Remote Climate Control is not available on all models. Remote
Climate Control is only available for Push Start equipped vehicle with an
Automatic Transmission. Remote Climate Control with Climate Control
additionally requires Fully Automatic Temperature Control.
Preconditions: • Ignition is OFF
• Alarm is armed (i.e., vehicle locked by key fob Remote Door Lock)
• Gearshift level is in the P (Park) position
• Brake pedal is not depressed
• Engine hood is securely closed
• All the doors are closed and locked
• The tailgate or trunk lid is closed
• The security / panic system is not activated
• The proximity key is not inside the vehicle
• The battery power is not low
• Vehicle is located in an open area
• It has been less than 4 days since last vehicle ignition off
• Vehicle located in area with good cell receptionRemote Climate Control will terminate: • After 15 minutes or after selected engine timer runs out
• Brake is pressed without the proximity key inside the vehicle
• Alarm is triggered without the proximity key inside the vehicle
• Door / trunk is opened from inside the vehicleNotice:
Laws in some communities may restrict the use of the features
that remotely start the engine. For example, some laws may require a
person using the remote start feature to have the vehicle in view when
doing so, or limit the length of time a vehicle engine may idle. Please
check local and state regulations for any requirements and restrictions
on remote starting of vehicles and engine idling time.
WARNING!
Do not remote start vehicle in an enclosed environment (i.e., closed garage). Prolonged operation
of a motor vehicle in an enclosed environment can cause a harmful build-up of carbon monoxide.
Carbon monoxide is harmful to your health. Exposure to high levels of carbon monoxide can
cause headaches, dizziness or in extreme cases unconsciousness and / or death. Do not leave
children or animals unattended in a vehicle while using the remote start function.
CAUTION!If the vehicle’s windshield wipers are left on when the vehicle was last driven, then the wipers will
turn on if the remote start function is activated. To avoid damage to the wiper blades (i.e., due to
heavy ice or snow accumulated on the windshield), please always turn the vehicle’s windshield
wipers off when parking the vehicle.
Remote Climate Control* enables you to remotely enable climate
control and turn on the front window defroster, ensuring a warm or
cool car is ready to go when you are.
•
To use this feature, you must have a Blue Link Personal
Identification Number (PIN). To create or change your PIN,
log in to www.MyHyundai.com.
Page 20 of 26
Quick Reference Guide I 37
36 I Quick Reference Guide
IONIQ ELECTRIC HYUNDAI
Use the input jack to connect an
external audio device and listen
to it through the audio system in
your vehicle.
iPod
® is a trademark of Apple, Inc.

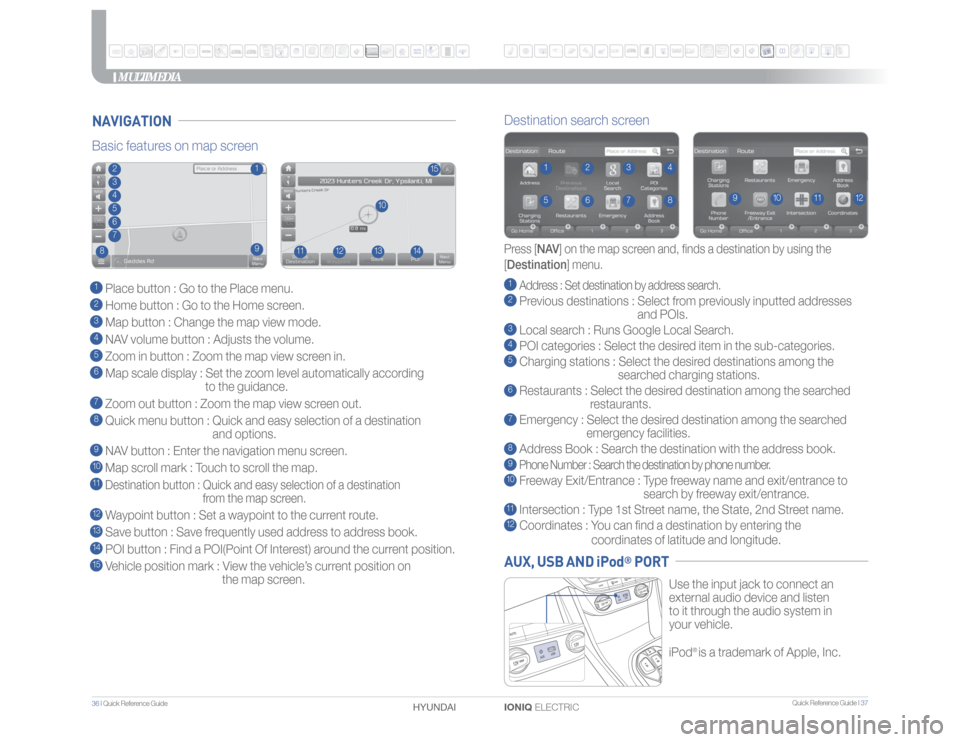

Basic features on map screen1 Place button : Go to the Place menu.2 Home button : Go to the Home screen.3 Map button : Change the map view mode.4 NAV volume button : Adjusts the volume.5 Zoom in button : Zoom the map view screen in.6 Map scale display : Set the zoom level automatically according
to the guidance.7 Zoom out button : Zoom the map view screen out.8 Quick menu button : Quick and easy selection of a destination
and options.9 NAV button : Enter the navigation menu screen.10 Map scroll mark : Touch to scroll the map.
11 Destination button : Quick and easy selection of a destination
from the map screen.12 Waypoint button : Set a waypoint to the current route.13 Save button : Save frequently used address to address book.14 POI button : Find a POI(Point Of Interest) around the current position.15 Vehicle position mark : View the vehicle’s current position on
the map screen.
15
11
10
12
13
14
234
1
567
8
Destination search screen1 Address : Set destination by address search.2 Previous destinations : Select from previously inputted addresses
and POIs.3 Local search : Runs Google Local Search.4 POI categories : Select the desired item in the sub-categories.5 Charging stations : Select the desired destinations among the
searched charging stations.6 Restaurants : Select the desired destination among the searched
restaurants.7 Emergency : Select the desired destination among the searched
emergency facilities.8 Address Book : Search the destination with the address book.9 Phone Number : Search the destination by phone number.10 Freeway Exit/Entrance : Type freeway name and exit/entrance to
search by freeway exit/entrance.11 Intersection : Type 1st Street name, the State, 2nd Street name.12 Coordinates : You can find a destination by entering the
coordinates of latitude and longitude.
Press [NAV] on the map screen and, finds a destination by using the
[Destination] menu.
2
3
4
15
6
7
8
9
10
11
12
NAVIGATION
MULTIMEDIA
9
AUX, USB AND iPod
® PORT
