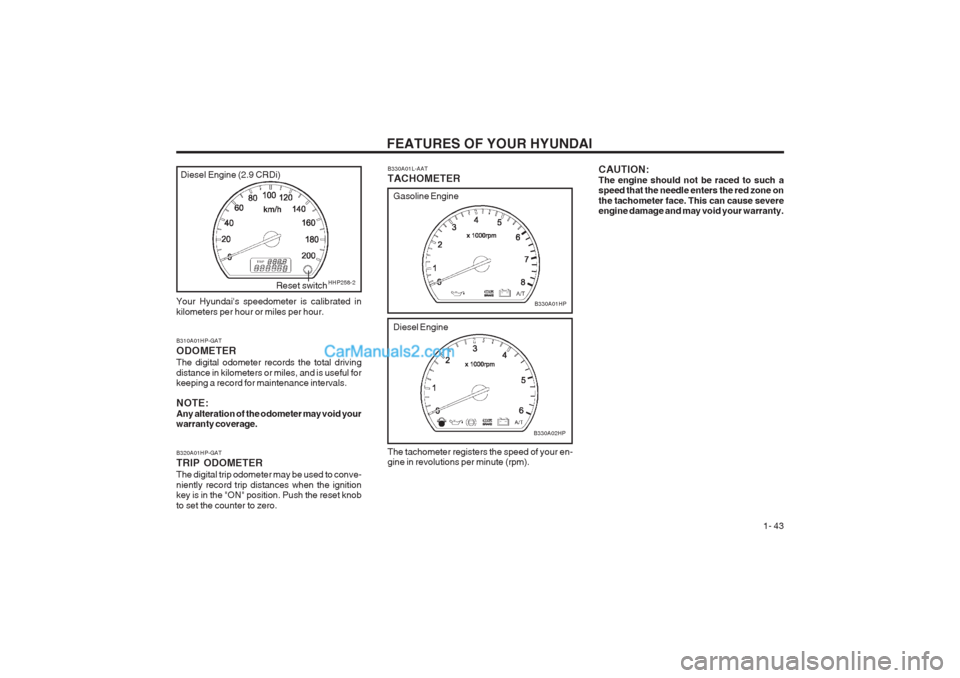

FEATURES OF YOUR HYUNDAI 1- 43
B330A01HP
Gasoline Engine
B310A01HP-GAT ODOMETER The digital odometer records the total driving distance in kilometers or miles, and is useful for keeping a record for maintenance intervals. NOTE: Any alteration of the odometer may void your warranty coverage. B320A01HP-GAT TRIP ODOMETER The digital trip odometer may be used to conve- niently record trip distances when the ignition key is in the "ON" position. Push the reset knob to set the counter to zero.
Diesel Engine
B330A02HP
Your Hyundai's speedometer is calibrated in kilometers per hour or miles per hour.
HHP258-2Reset switch B330A01L-AAT TACHOMETER The tachometer registers the speed of your en- gine in revolutions per minute (rpm). CAUTION: The engine should not be raced to such a speed that the needle enters the red zone on the tachometer face. This can cause severe engine damage and may void your warranty.
Diesel Engine (2.9 CRDi)

FEATURES OF YOUR HYUNDAI

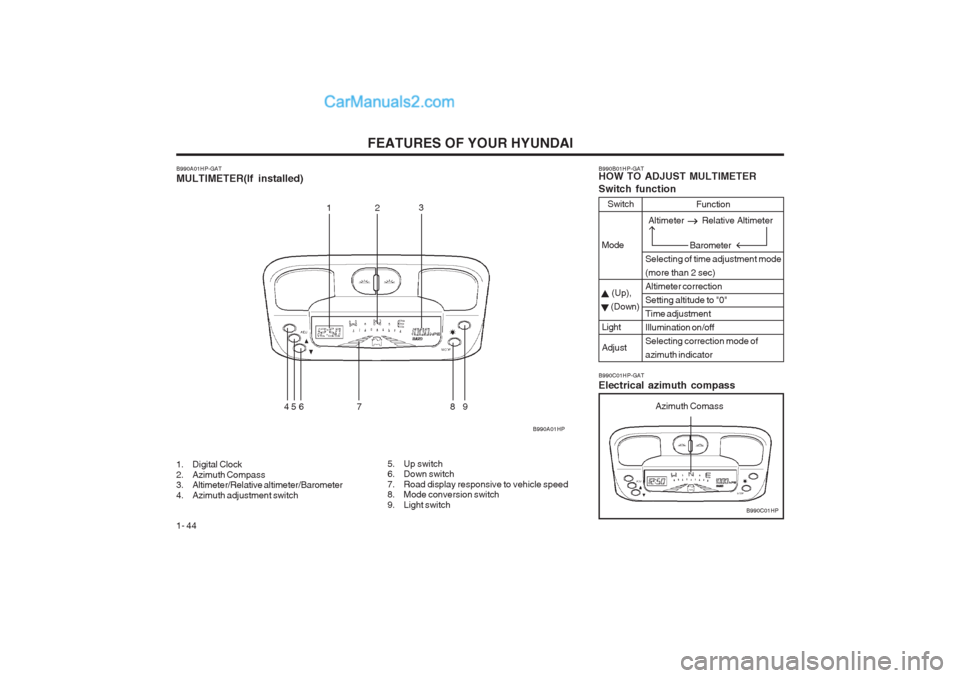

1- 44
B990A01HP-GAT MULTIMETER(If installed)
1. Digital Clock
2. Azimuth Compass
3. Altimeter/Relative altimeter/Barometer
4. Azimuth adjustment switch 5. Up switch
6. Down switch
7. Road display responsive to vehicle speed
8. Mode conversion switch
9. Light switch
12
3
45 6 7 8 9 B990B01HP-GAT HOW TO ADJUST MULTIMETER Switch function
Switch
Mode
(Up),
(Down) LightAdjust Function
Selecting of time adjustment mode (more than 2 sec)Altimeter correctionSetting altitude to "0"Time adjustmentIllumination on/offSelecting correction mode ofazimuth indicator
B990C01HP-GAT Electrical azimuth compass
B990C01HP
B990A01HP
Azimuth Comass
Altimeter Relative Altimeter
Barometer

FEATURES OF YOUR HYUNDAI 1- 45
It displays 16 azimuths according to the vehicle driving direction and the angle of one graduation is 22.5°.
NOTE: If new vehicle is first driven or if the battery has been disconnected, correct the azimuth indicator before driving. Correcting azimuth indicator This is need to correct the error between a current azimuth of terrestrial magnetism sensor and the displayed azimuth in the vehicle position. How to correct azimuth indicator
1. If you push the "ADJ" switch and hold for less
than 3 sec, the azimuth indicator will start to blink.
2. Slowly rotate the vehicle one turn within 128
sec. B990D01HP-GAT ALTIMETER
B990C02HP 3. After the rotation is finished, the azimuth
compass indicator will stop blinking and now correcting error is made.
NOTE: It is normal if the azimuth is displayed abnor- mally in specific places(tunnel, parking lot in building, basement garage, area in the vicin- ity of a transformer station, etc.). The azimuth is displayed normally after escaping those places. Altimeter is operated by atmospheric pressure. The air pressure variation is converted to the altitude on the basis of the sea level(0m, it is equal to 1013.25hpa) by the 50m. The measurement range is 0~2,800m. And when the altitude is under 50m, it is displayed to 0m. B990D01HP
Altitude Correction Displayed altitude could vary even at same place because of air pressure variation at sea level(0m point). So you can correct this display error in ±300m range by pushing " (up)", " (down)" as listed in following table.
Switch (UP) (DOWN)
Pushing time Less than 0.5 sec More than 0.5 sec Less than 0.5 sec More than 0.5 sec Altitude
Increasing by 50m Increasing by 50mgradually Decreasing by 50m Decreasing by 50mgradually
B990E01HP-GAT RELATIVE ALTIMETER Relative altimeter is used when you want to know the altitude of the specific location. And it dis- plays by comparing the altitude of the specific location with the current altitude which the ve- hicle is located in. When the "MODE" switch is pressed for less than 2 sec, the relative altimeter mode is se- lected. B990E01HP

FEATURES OF YOUR HYUNDAI

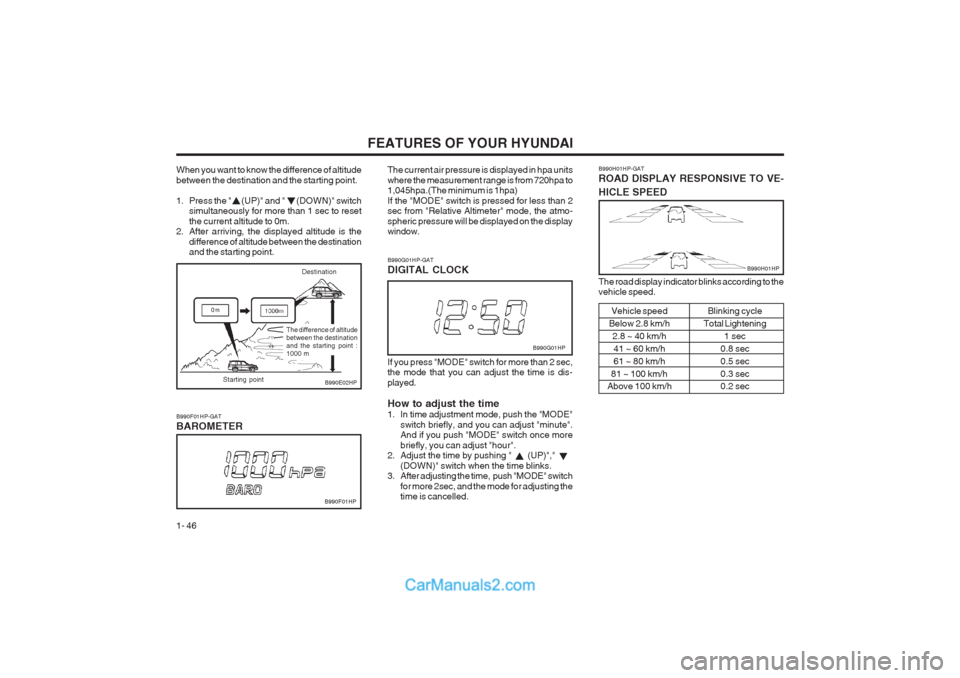

1- 46
When you want to know the difference of altitude between the destination and the starting point.
1. Press the " (UP)" and " (DOWN)" switch simultaneously for more than 1 sec to reset the current altitude to 0m.
2. After arriving, the displayed altitude is the
difference of altitude between the destination and the starting point.
Destination
B990E02HP
B990F01HP-GAT BAROMETER The current air pressure is displayed in hpa units
where the measurement range is from 720hpa to 1,045hpa.(The minimum is 1hpa) If the "MODE" switch is pressed for less than 2 sec from "Relative Altimeter" mode, the atmo- spheric pressure will be displayed on the display window.
B990F01HP
B990G01HP-GAT DIGITAL CLOCK If you press "MODE" switch for more than 2 sec,
the mode that you can adjust the time is dis- played. How to adjust the time
1. In time adjustment mode, push the "MODE" switch briefly, and you can adjust "minute". And if you push "MODE" switch once more briefly, you can adjust "hour".
2. Adjust the time by pushing " (UP)","
(DOWN)" switch when the time blinks.
3. After adjusting the time, push "MODE" switch
for more 2sec, and the mode for adjusting the time is cancelled. B990G01HP
B990H01HP-GAT ROAD DISPLAY RESPONSIVE TO VE- HICLE SPEED
B990H01HP
The road display indicator blinks according to the vehicle speed.Vehicle speed
Below 2.8 km/h 2.8 ~ 40 km/h
41 ~ 60 km/h 61 ~ 80 km/h
81 ~ 100 km/h
Above 100 km/h Blinking cycle
Total Lightening 1 sec
0.8 sec0.5 sec0.3 sec 0.2 sec
The difference of altitude between the destinationand the starting point :1000 m
Starting point

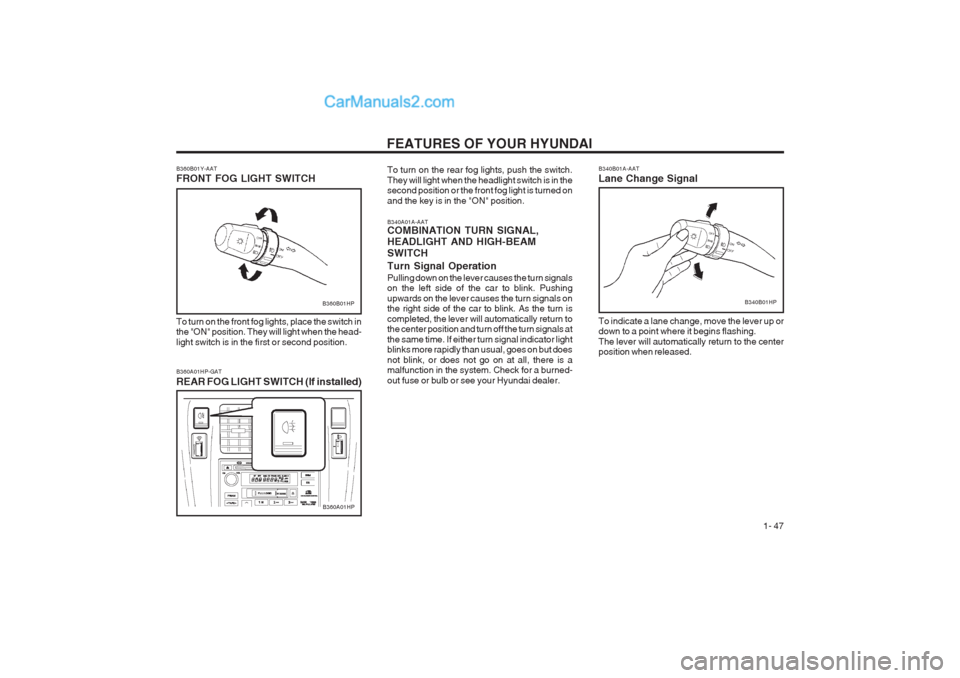

FEATURES OF YOUR HYUNDAI 1- 47
B340A01A-AAT COMBINATION TURN SIGNAL, HEADLIGHT AND HIGH-BEAM SWITCH Turn Signal Operation Pulling down on the lever causes the turn signals on the left side of the car to blink. Pushing upwards on the lever causes the turn signals on the right side of the car to blink. As the turn is completed, the lever will automatically return to the center position and turn off the turn signals at the same time. If either turn signal indicator light blinks more rapidly than usual, goes on but does not blink, or does not go on at all, there is a malfunction in the system. Check for a burned- out fuse or bulb or see your Hyundai dealer.B340B01A-AAT Lane Change Signal
B340B01HP
To indicate a lane change, move the lever up or down to a point where it begins flashing. The lever will automatically return to the center position when released.
To turn on the rear fog lights, push the switch. They will light when the headlight switch is in the second position or the front fog light is turned on and the key is in the "ON" position.
B360A01HP-GAT REAR FOG LIGHT SWITCH (If installed)
B360A01HP
B360B01HP
B360B01Y-AAT FRONT FOG LIGHT SWITCH To turn on the front fog lights, place the switch in the "ON" position. They will light when the head- light switch is in the first or second position.

FEATURES OF YOUR HYUNDAI

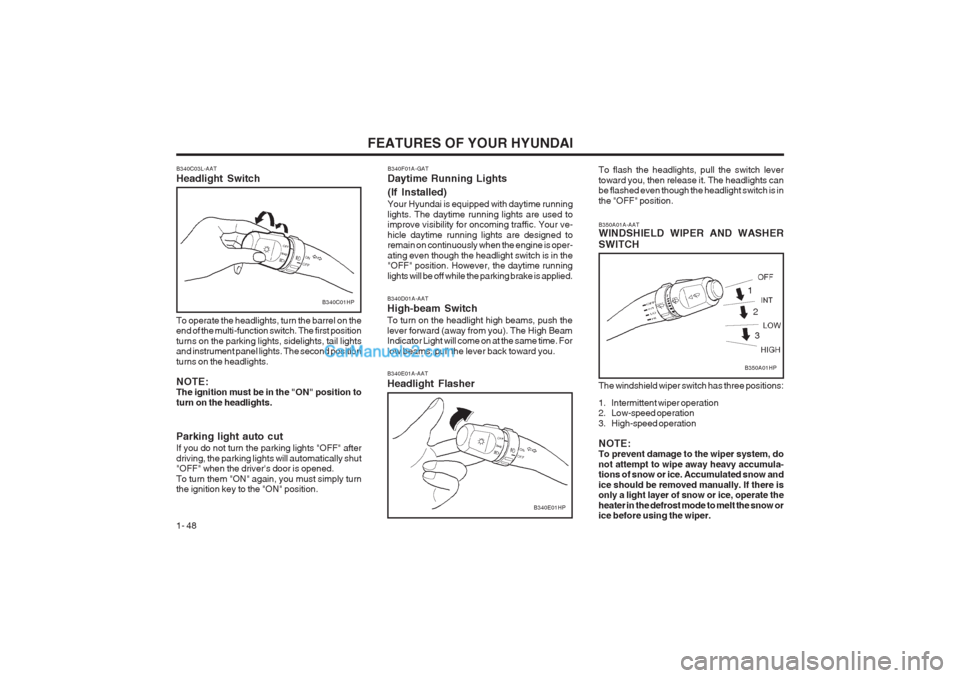

1- 48 B340D01A-AAT High-beam Switch To turn on the headlight high beams, push the lever forward (away from you). The High Beam Indicator Light will come on at the same time. For low beams, pull the lever back toward you. B340E01A-AAT Headlight Flasher
B340E01HP
B340C03L-AAT Headlight Switch
B340C01HP
To operate the headlights, turn the barrel on the end of the multi-function switch. The first position turns on the parking lights, sidelights, tail lights and instrument panel lights. The second position turns on the headlights. NOTE: The ignition must be in the "ON" position to turn on the headlights. Parking light auto cut If you do not turn the parking lights "OFF" after driving, the parking lights will automatically shut "OFF" when the driver's door is opened. To turn them "ON" again, you must simply turn the ignition key to the "ON" position. B340F01A-GAT Daytime Running Lights (If Installed) Your Hyundai is equipped with daytime running lights. The daytime running lights are used to improve visibility for oncoming traffic. Your ve- hicle daytime running lights are designed to remain on continuously when the engine is oper- ating even though the headlight switch is in the "OFF" position. However, the daytime running lights will be off while the parking brake is applied.
To flash the headlights, pull the switch levertoward you, then release it. The headlights can be flashed even though the headlight switch is in the "OFF" position. The windshield wiper switch has three positions:
1. Intermittent wiper operation
2. Low-speed operation
3. High-speed operation NOTE: To prevent damage to the wiper system, do not attempt to wipe away heavy accumula- tions of snow or ice. Accumulated snow and ice should be removed manually. If there is only a light layer of snow or ice, operate the heater in the defrost mode to melt the snow or ice before using the wiper.
B350A01A-AAT WINDSHIELD WIPER AND WASHER SWITCH
B350A01HP
1
2
3

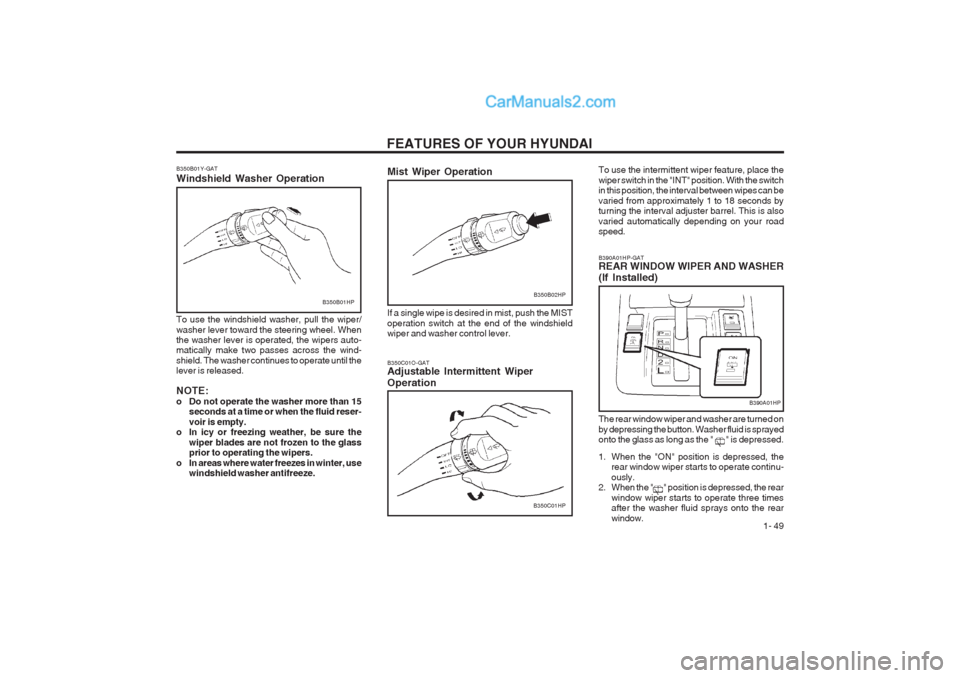

FEATURES OF YOUR HYUNDAI 1- 49
To use the intermittent wiper feature, place the wiper switch in the "INT" position. With the switch in this position, the interval between wipes can be varied from approximately 1 to 18 seconds by turning the interval adjuster barrel. This is also varied automatically depending on your road speed.
B350B01Y-GAT Windshield Washer Operation
B350B01HP
To use the windshield washer, pull the wiper/ washer lever toward the steering wheel. When the washer lever is operated, the wipers auto-matically make two passes across the wind- shield. The washer continues to operate until the lever is released. NOTE:
o Do not operate the washer more than 15 seconds at a time or when the fluid reser-voir is empty.
o In icy or freezing weather, be sure the
wiper blades are not frozen to the glass prior to operating the wipers.
o In areas where water freezes in winter, use windshield washer antifreeze.
B350C01HP
B350C01O-GAT Adjustable Intermittent Wiper Operation
Mist Wiper Operation If a single wipe is desired in mist, push the MIST operation switch at the end of the windshield wiper and washer control lever.
B350B02HP
B390A01HP-GAT REAR WINDOW WIPER AND WASHER (If Installed)
B390A01HP
The rear window wiper and washer are turned on by depressing the button. Washer fluid is sprayed onto the glass as long as the " " is depressed.
1. When the "ON" position is depressed, the rear window wiper starts to operate continu- ously.
2. When the " " position is depressed, the rear
window wiper starts to operate three times after the washer fluid sprays onto the rear window.

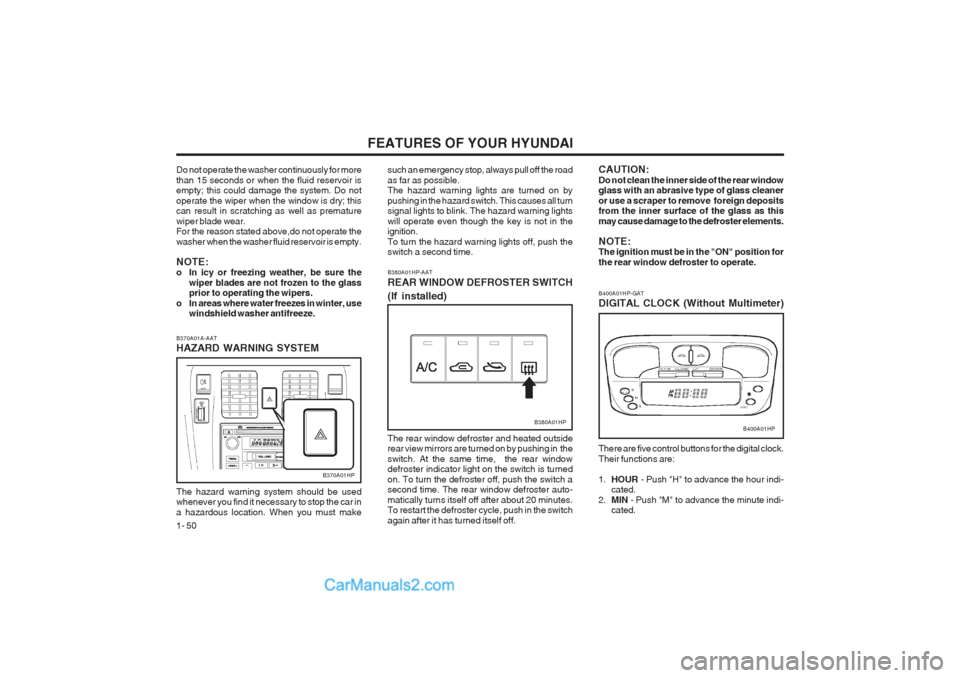

FEATURES OF YOUR HYUNDAI
1- 50
B370A01A-AAT HAZARD WARNING SYSTEM
B370A01HP
The hazard warning system should be used whenever you find it necessary to stop the car in a hazardous location. When you must make B380A01HP-AAT REAR WINDOW DEFROSTER SWITCH (If installed)
B380A01HP
The rear window defroster and heated outside rear view mirrors are turned on by pushing in the
switch. At the same time, the rear window defroster indicator light on the switch is turned on. To turn the defroster off, push the switch a second time. The rear window defroster auto- matically turns itself off after about 20 minutes. To restart the defroster cycle, push in the switch
again after it has turned itself off.
Do not operate the washer continuously for morethan 15 seconds or when the fluid reservoir is empty; this could damage the system. Do not operate the wiper when the window is dry; this can result in scratching as well as premature wiper blade wear. For the reason stated above,do not operate the washer when the washer fluid reservoir is empty. NOTE:
o In icy or freezing weather, be sure the
wiper blades are not frozen to the glassprior to operating the wipers.
o In areas where water freezes in winter, use windshield washer antifreeze. such an emergency stop, always pull off the road as far as possible. The hazard warning lights are turned on by pushing in the hazard switch. This causes all turn signal lights to blink. The hazard warning lights will operate even though the key is not in the ignition. To turn the hazard warning lights off, push the switch a second time.
CAUTION: Do not clean the inner side of the rear window glass with an abrasive type of glass cleaner or use a scraper to remove foreign deposits from the inner surface of the glass as this
may cause damage to the defroster elements. NOTE: The ignition must be in the "ON" position for the rear window defroster to operate.B400A01HP
B400A01HP-GAT DIGITAL CLOCK (Without Multimeter) There are five control buttons for the digital clock. Their functions are: 1.
HOUR - Push "H" to advance the hour indi-
cated.
2. MIN - Push "M" to advance the minute indi-
cated.

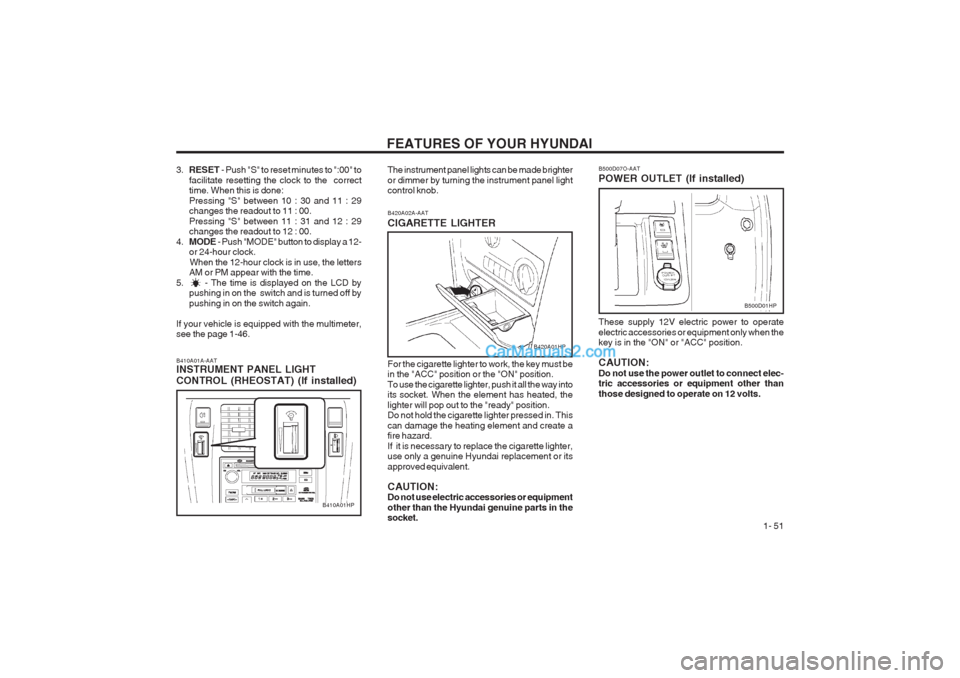

FEATURES OF YOUR HYUNDAI 1- 51
B420A02A-AAT CIGARETTE LIGHTER For the cigarette lighter to work, the key must be in the "ACC" position or the "ON" position. To use the cigarette lighter, push it all the way into its socket. When the element has heated, the lighter will pop out to the "ready" position. Do not hold the cigarette lighter pressed in. This can damage the heating element and create a fire hazard. If it is necessary to replace the cigarette lighter, use only a genuine Hyundai replacement or its approved equivalent. CAUTION: Do not use electric accessories or equipment other than the Hyundai genuine parts in the socket.
B410A01A-AATINSTRUMENT PANEL LIGHT CONTROL (RHEOSTAT) (If installed)
B410A01HP The instrument panel lights can be made brighter or dimmer by turning the instrument panel light control knob.
B420A01HP
B500D01HP
3.
RESET - Push "S" to reset minutes to ":00" to
facilitate resetting the clock to the correct time. When this is done: Pressing "S" between 10 : 30 and 11 : 29 changes the readout to 11 : 00. Pressing "S" between 11 : 31 and 12 : 29 changes the readout to 12 : 00.
4. MODE - Push "MODE" button to display a 12-
or 24-hour clock.
When the 12-hour clock is in use, the letters AM or PM appear with the time.
5. - The time is displayed on the LCD by pushing in on the switch and is turned off by pushing in on the switch again.
If your vehicle is equipped with the multimeter, see the page 1-46. B500D07O-AAT POWER OUTLET (If installed) These supply 12V electric power to operate electric accessories or equipment only when the key is in the "ON" or "ACC" position. CAUTION: Do not use the power outlet to connect elec- tric accessories or equipment other than those designed to operate on 12 volts.

FEATURES OF YOUR HYUNDAI

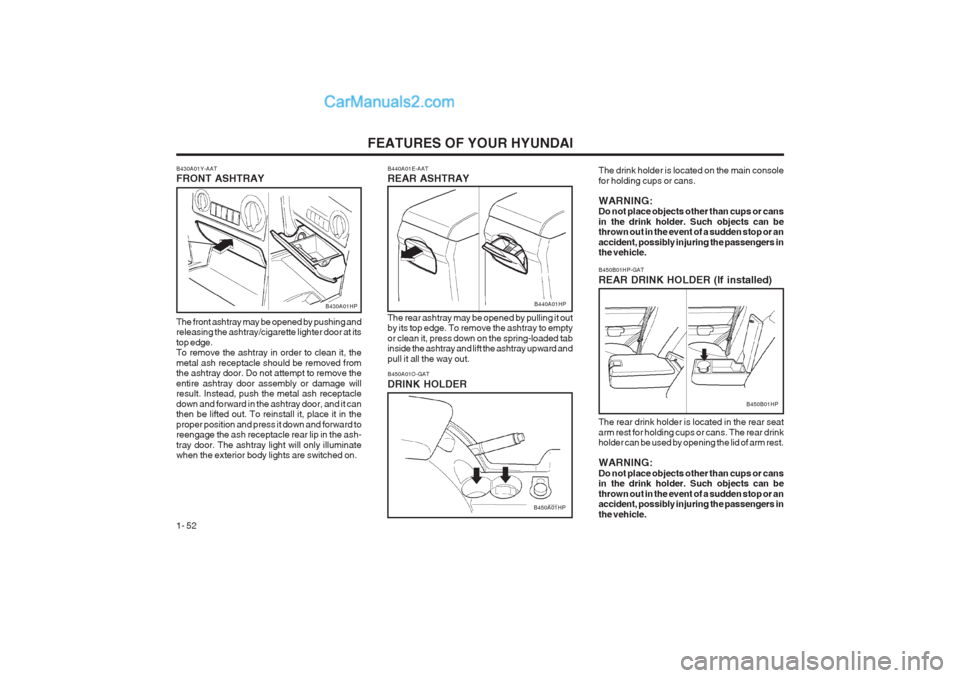

1- 52
B450A01O-GAT DRINK HOLDER
B450A01HP The drink holder is located on the main console for holding cups or cans. WARNING: Do not place objects other than cups or cans in the drink holder. Such objects can be thrown out in the event of a sudden stop or an accident, possibly injuring the passengers in the vehicle. The rear drink holder is located in the rear seat arm rest for holding cups or cans. The rear drink holder can be used by opening the lid of arm rest. WARNING: Do not place objects other than cups or cans in the drink holder. Such objects can be thrown out in the event of a sudden stop or an accident, possibly injuring the passengers in the vehicle.
B450B01HP-GAT REAR DRINK HOLDER (If installed)
B450B01HP
The front ashtray may be opened by pushing and releasing the ashtray/cigarette lighter door at its top edge. To remove the ashtray in order to clean it, the metal ash receptacle should be removed from the ashtray door. Do not attempt to remove the entire ashtray door assembly or damage will result. Instead, push the metal ash receptacle down and forward in the ashtray door, and it can then be lifted out. To reinstall it, place it in the proper position and press it down and forward to reengage the ash receptacle rear lip in the ash- tray door. The ashtray light will only illuminate when the exterior body lights are switched on. B440A01E-AAT REAR ASHTRAY
The rear ashtray may be opened by pulling it out by its top edge. To remove the ashtray to empty or clean it, press down on the spring-loaded tab inside the ashtray and lift the ashtray upward and pull it all the way out.
B440A01HP
B430A01Y-AAT FRONT ASHTRAYB430A01HP
