Hyundai Terracan 2003 Repair Manual

FEATURES OF YOUR HYUNDAI 1- 53

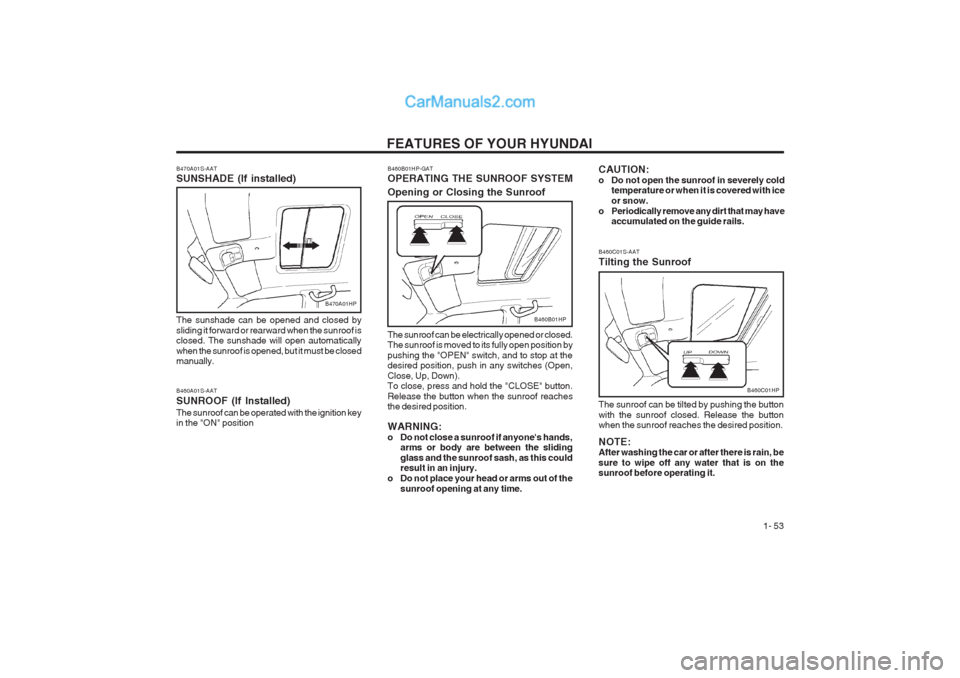

B460C01S-AAT Tilting the Sunroof
B460C01HP
The sunroof can be tilted by pushing the button with the sunroof closed. Release the button when the sunroof reaches the desired position. NOTE: After washing the car or after there is rain, be sure to wipe off any water that is on the sunroof before operating it.
B460B01HP-GAT OPERATING THE SUNROOF SYSTEM Opening or Closing the Sunroof
B460B01HP
The sunroof can be electrically opened or closed. The sunroof is moved to its fully open position by
pushing the "OPEN" switch, and to stop at the desired position, push in any switches (Open, Close, Up, Down). To close, press and hold the "CLOSE" button. Release the button when the sunroof reaches the desired position. WARNING:
o Do not close a sunroof if anyone's hands, arms or body are between the slidingglass and the sunroof sash, as this could result in an injury.
o Do not place your head or arms out of the
sunroof opening at any time.
B460A01S-AAT SUNROOF (If Installed)The sunroof can be operated with the ignition key in the "ON" position
B470A01S-AAT SUNSHADE (If installed)
B470A01HP
The sunshade can be opened and closed by sliding it forward or rearward when the sunroof is closed. The sunshade will open automatically when the sunroof is opened, but it must be closed manually.
CAUTION:
o Do not open the sunroof in severely cold temperature or when it is covered with iceor snow.
o Periodically remove any dirt that may have accumulated on the guide rails.

FEATURES OF YOUR HYUNDAI
1- 54

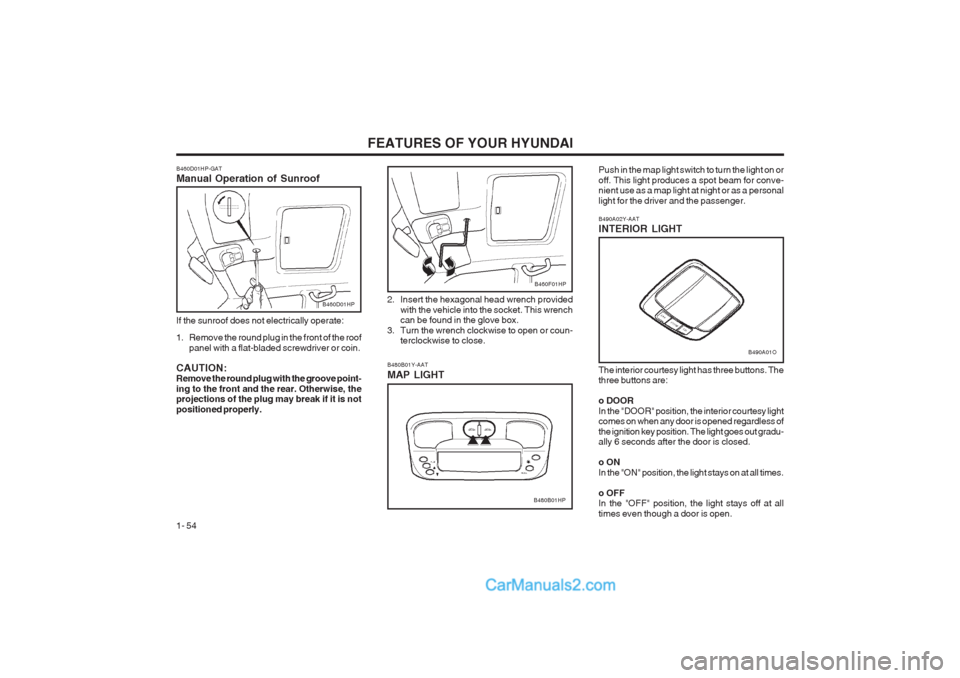

The interior courtesy light has three buttons. The three buttons are: o DOOR
In the "DOOR" position, the interior courtesy light comes on when any door is opened regardless of the ignition key position. The light goes out gradu- ally 6 seconds after the door is closed. o ON In the "ON" position, the light stays on at all times. o OFF In the "OFF" position, the light stays off at all times even though a door is open.
B480B01Y-AAT MAP LIGHT
B480B01HP
B460F01HP
Push in the map light switch to turn the light on or off. This light produces a spot beam for conve- nient use as a map light at night or as a personal light for the driver and the passenger.
B490A01O
B490A02Y-AAT INTERIOR LIGHT
2. Insert the hexagonal head wrench provided
with the vehicle into the socket. This wrench can be found in the glove box.
3. Turn the wrench clockwise to open or coun- terclockwise to close.
B460D01HP-GAT Manual Operation of Sunroof
B460D01HP
If the sunroof does not electrically operate:
1. Remove the round plug in the front of the roof panel with a flat-bladed screwdriver or coin.
CAUTION: Remove the round plug with the groove point- ing to the front and the rear. Otherwise, the projections of the plug may break if it is not positioned properly.

FEATURES OF YOUR HYUNDAI 1- 55
B510A01A-AAT OUTSIDE REAR VIEW MIRROR Manual Type
B510A01HPThe outside rearview mirrors are equipped with a remote control for your convenience. It is operated by the control lever in the bottom front corner of the window. Before driving away, always check that your mirrors are positioned so you can see behind you, both to the left and right sides, as well as directly behind your vehicle. When using the mirror, always exercise caution when attempting to judge the distance of vehicles behind or along side of you. CAUTION: If the mirror control is jammed with ice, do not attempt to break it free using the control handle or by manipulating the face of the mirror. Use an approved spray de-icer (not radiator antifreeze) to release the frozen mechanism or move the vehicle to a warm place and allow the ice to melt.
B500A01A-AAT GLOVE BOX
B500A01HP
WARNING: To avoid the possibility of injury in case of an accident or a sudden stop, the glove box door should be kept closed when the car is in motion.
o To open the glove box, pull on the glove box release lever.B500B01HP
The multi box may be opened by pulling it out by its grip.It is used for storing small articles.
B500B01HP-DAT MULTI BOX

FEATURES OF YOUR HYUNDAI
1- 56

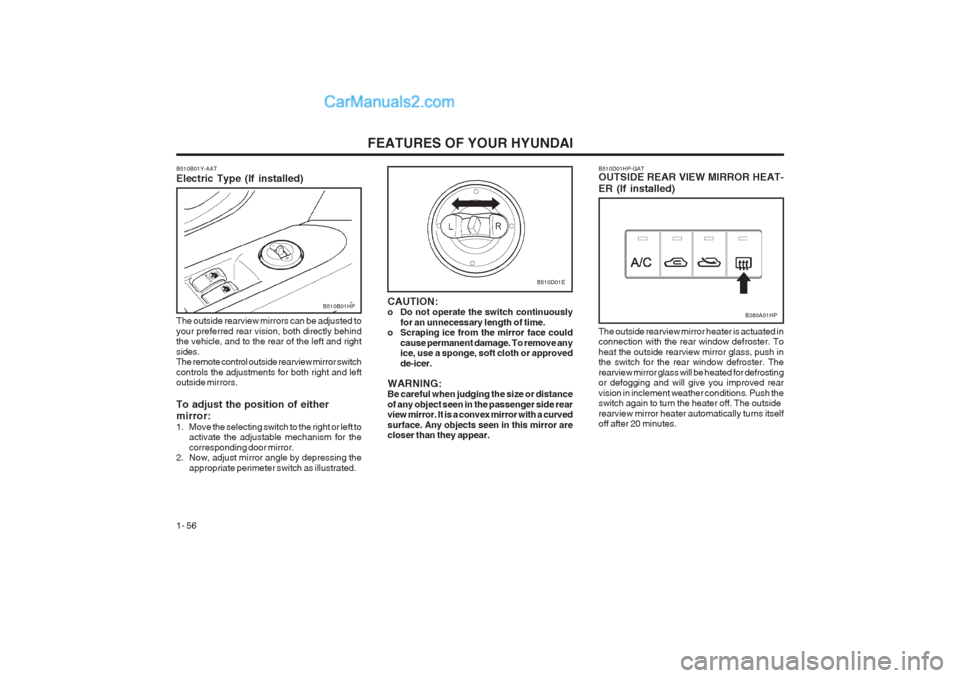

B510D01HP-GAT OUTSIDE REAR VIEW MIRROR HEAT- ER (If installed)
B380A01HP
The outside rearview mirror heater is actuated in connection with the rear window defroster. To heat the outside rearview mirror glass, push in the switch for the rear window defroster. The rearview mirror glass will be heated for defrosting or defogging and will give you improved rear vision in inclement weather conditions. Push the switch again to turn the heater off. The outside rearview mirror heater automatically turns itself off after 20 minutes.
B510D01E
CAUTION:
o Do not operate the switch continuously for an unnecessary length of time.
o Scraping ice from the mirror face could
cause permanent damage. To remove anyice, use a sponge, soft cloth or approved de-icer.
WARNING: Be careful when judging the size or distance of any object seen in the passenger side rear view mirror. It is a convex mirror with a curved surface. Any objects seen in this mirror are closer than they appear.
B510B01Y-AAT Electric Type (If installed)
B510B01HP
The outside rearview mirrors can be adjusted to your preferred rear vision, both directly behind the vehicle, and to the rear of the left and right sides. The remote control outside rearview mirror switch controls the adjustments for both right and left outside mirrors. To adjust the position of either mirror:
1. Move the selecting switch to the right or left to activate the adjustable mechanism for the corresponding door mirror.
2. Now, adjust mirror angle by depressing the
appropriate perimeter switch as illustrated.

FEATURES OF YOUR HYUNDAI 1- 57

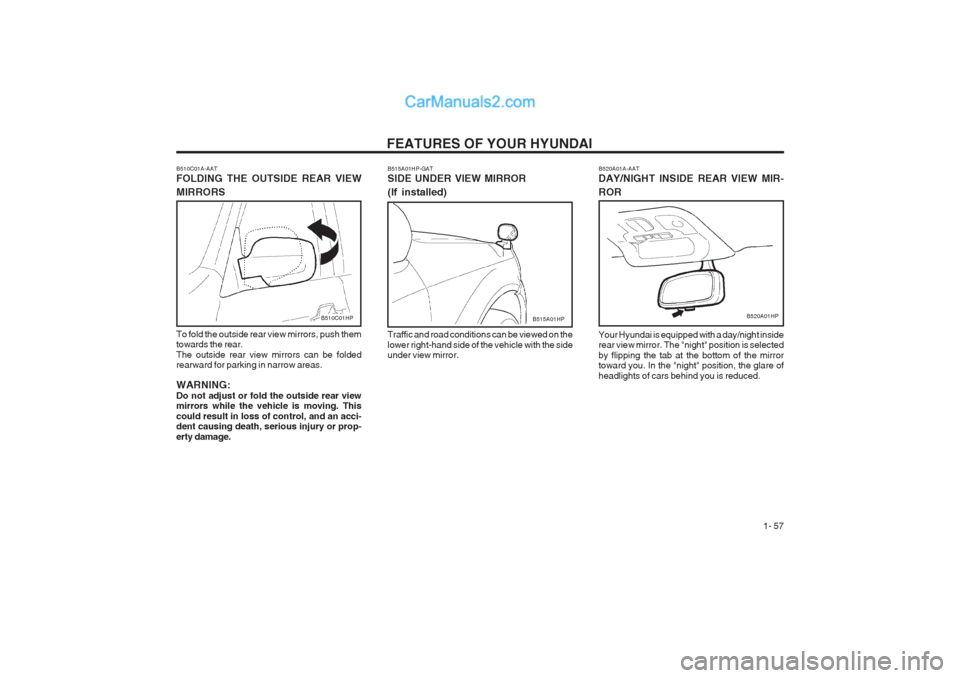

B520A01A-AAT DAY/NIGHT INSIDE REAR VIEW MIR- ROR Your Hyundai is equipped with a day/night inside rear view mirror. The "night" position is selected by flipping the tab at the bottom of the mirror toward you. In the "night" position, the glare of headlights of cars behind you is reduced.
B520A01HP
B510C01A-AAT FOLDING THE OUTSIDE REAR VIEW MIRRORS
To fold the outside rear view mirrors, push them towards the rear. The outside rear view mirrors can be folded rearward for parking in narrow areas. WARNING: Do not adjust or fold the outside rear view mirrors while the vehicle is moving. This could result in loss of control, and an acci- dent causing death, serious injury or prop- erty damage.
B510C01HPB515A01HP-GAT SIDE UNDER VIEW MIRROR (If installed) Traffic and road conditions can be viewed on the lower right-hand side of the vehicle with the side under view mirror.B515A01HP

FEATURES OF YOUR HYUNDAI
1- 58

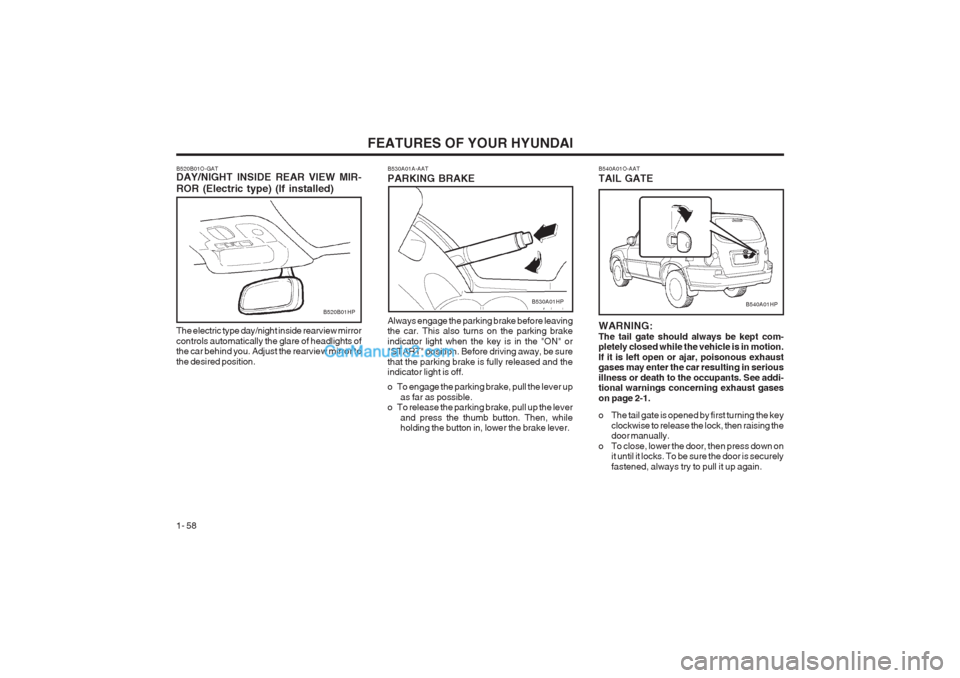

Always engage the parking brake before leaving the car. This also turns on the parking brake indicator light when the key is in the "ON" or "START" position. Before driving away, be sure that the parking brake is fully released and the indicator light is off.
o To engage the parking brake, pull the lever up as far as possible.
o To release the parking brake, pull up the lever
and press the thumb button. Then, while holding the button in, lower the brake lever.
B530A01A-AAT PARKING BRAKE
B520B01O-GAT DAY/NIGHT INSIDE REAR VIEW MIR- ROR (Electric type) (If installed)
B520B01HP
The electric type day/night inside rearview mirror controls automatically the glare of headlights of the car behind you. Adjust the rearview mirror to the desired position.B530A01HP
B540A01O-AAT TAIL GATE
B540A01HP
WARNING: The tail gate should always be kept com- pletely closed while the vehicle is in motion. If it is left open or ajar, poisonous exhaust gases may enter the car resulting in serious illness or death to the occupants. See addi- tional warnings concerning exhaust gases on page 2-1.
o The tail gate is opened by first turning the key clockwise to release the lock, then raising the door manually.
o To close, lower the door, then press down on it until it locks. To be sure the door is securely fastened, always try to pull it up again.

FEATURES OF YOUR HYUNDAI 1- 59

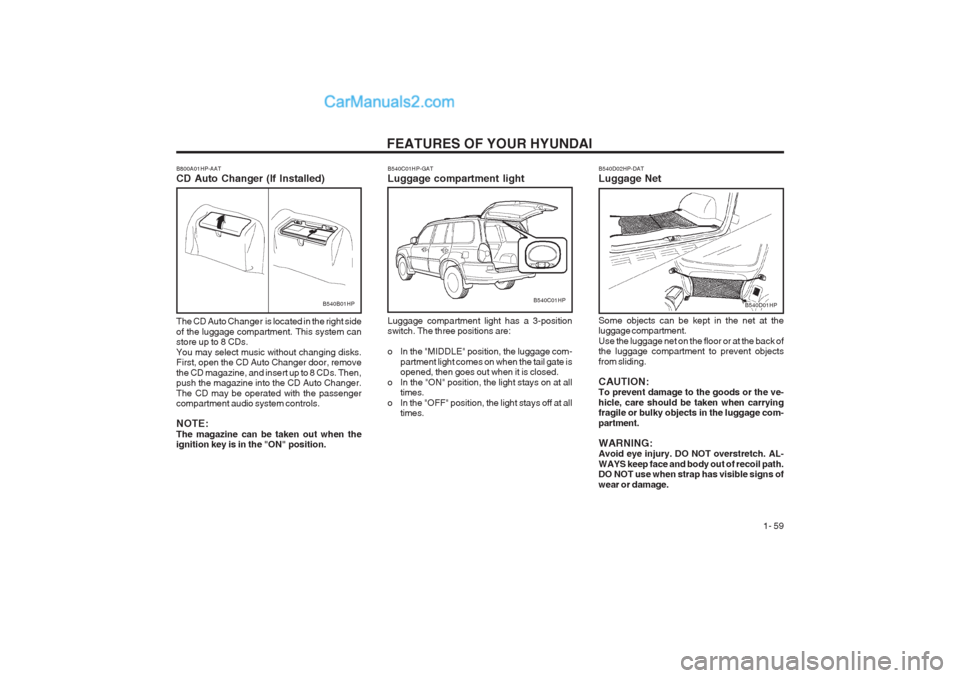

B540B01HPB540C01HP-GAT Luggage compartment light Luggage compartment light has a 3-position switch. The three positions are:
o In the "MIDDLE" position, the luggage com-
partment light comes on when the tail gate is opened, then goes out when it is closed.
o In the "ON" position, the light stays on at all times.
o In the "OFF" position, the light stays off at all times.B540C01HPB540D01HP
B800A01HP-AAT CD Auto Changer (If Installed) The CD Auto Changer is located in the right side of the luggage compartment. This system can store up to 8 CDs. You may select music without changing disks. First, open the CD Auto Changer door, remove the CD magazine, and insert up to 8 CDs. Then, push the magazine into the CD Auto Changer. The CD may be operated with the passenger compartment audio system controls. NOTE: The magazine can be taken out when the ignition key is in the "ON" position. B540D02HP-DAT Luggage Net Some objects can be kept in the net at the luggage compartment. Use the luggage net on the floor or at the back of the luggage compartment to prevent objects from sliding. CAUTION: To prevent damage to the goods or the ve- hicle, care should be taken when carrying fragile or bulky objects in the luggage com- partment. WARNING: Avoid eye injury. DO NOT overstretch. AL- WAYS keep face and body out of recoil path. DO NOT use when strap has visible signs of wear or damage.

FEATURES OF YOUR HYUNDAI
1- 60

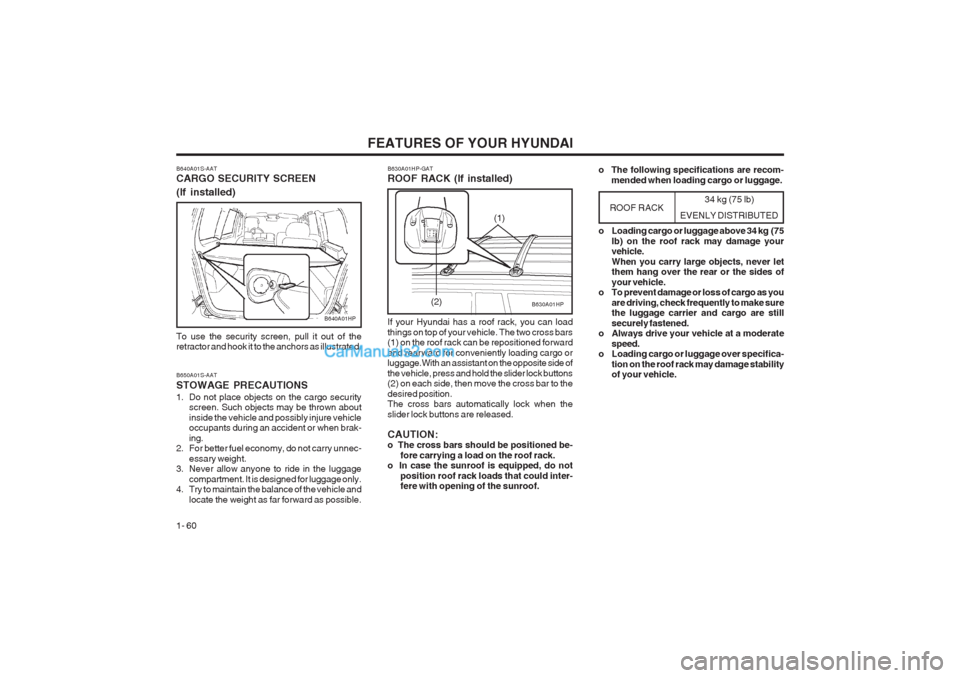

B640A01S-AAT CARGO SECURITY SCREEN (If installed)
B640A01HP
To use the security screen, pull it out of the retractor and hook it to the anchors as illustrated. B650A01S-AAT STOWAGE PRECAUTIONS
1. Do not place objects on the cargo security screen. Such objects may be thrown about inside the vehicle and possibly injure vehicle occupants during an accident or when brak- ing.
2. For better fuel economy, do not carry unnec-
essary weight.
3. Never allow anyone to ride in the luggage
compartment. It is designed for luggage only.
4. Try to maintain the balance of the vehicle and
locate the weight as far forward as possible. 34 kg (75 lb)
EVENLY DISTRIBUTED
B630A01HP
B630A01HP-GAT ROOF RACK (If installed) If your Hyundai has a roof rack, you can load things on top of your vehicle. The two cross bars (1) on the roof rack can be repositioned forward and rearward for conveniently loading cargo or luggage.With an assistant on the opposite side of the vehicle, press and hold the slider lock buttons (2) on each side, then move the cross bar to the desired position. The cross bars automatically lock when the slider lock buttons are released. CAUTION: o The cross bars should be positioned be-
fore carrying a load on the roof rack.
o In case the sunroof is equipped, do not
position roof rack loads that could inter-fere with opening of the sunroof.
ROOF RACK
(2) o Loading cargo or luggage above 34 kg (75
lb) on the roof rack may damage your vehicle. When you carry large objects, never let them hang over the rear or the sides of your vehicle.
o To prevent damage or loss of cargo as you
are driving, check frequently to make sure the luggage carrier and cargo are still securely fastened.
o Always drive your vehicle at a moderate
speed.
o Loading cargo or luggage over specifica-
tion on the roof rack may damage stability of your vehicle.
(1)
o The following specifications are recom-
mended when loading cargo or luggage.

FEATURES OF YOUR HYUNDAI 1- 61
WARNING: Fuel vapors are dangerous. Before refueling, always stop the engine and never allow sparks or open flames near the filler area. If you need to replace the filler cap, use a genuine Hyundai replacement part. If you open the fuel filler cap during high ambient temperatures, a slight "pressure sound" may be heard. This is normal and not a cause for concern. Whenever you open the fuel filler cap, turn it slowly.
B550A01A-AAT HIGH-MOUNTED REAR STOP LIGHT (If Installed)
In addition to the lower-mounted rear stoplights on either side of the car, the high mounted rear stoplight in the center of the rear window also lights when the brakes are applied.
B550A01HP
B560A01HP-GAT REMOTE FUEL-FILLER LID RELEASE
The fuel-filler lid may be opened from inside the vehicle by pulling up on the fuel-filler lid release lever located below the right of the driver's side crash pad. NOTE: If the fuel-filler lid will not open because ice has formed around it, tap lightly or push on the lid to break the ice and release the lid. Do not pry on the lid. If necessary, spray around the lid with an approved de-icer fluid (do not use radiator anti-freeze) or move the vehicle to a warm place and allow the ice to melt.
B560A01HP
B560A02HP

FEATURES OF YOUR HYUNDAI
1- 62

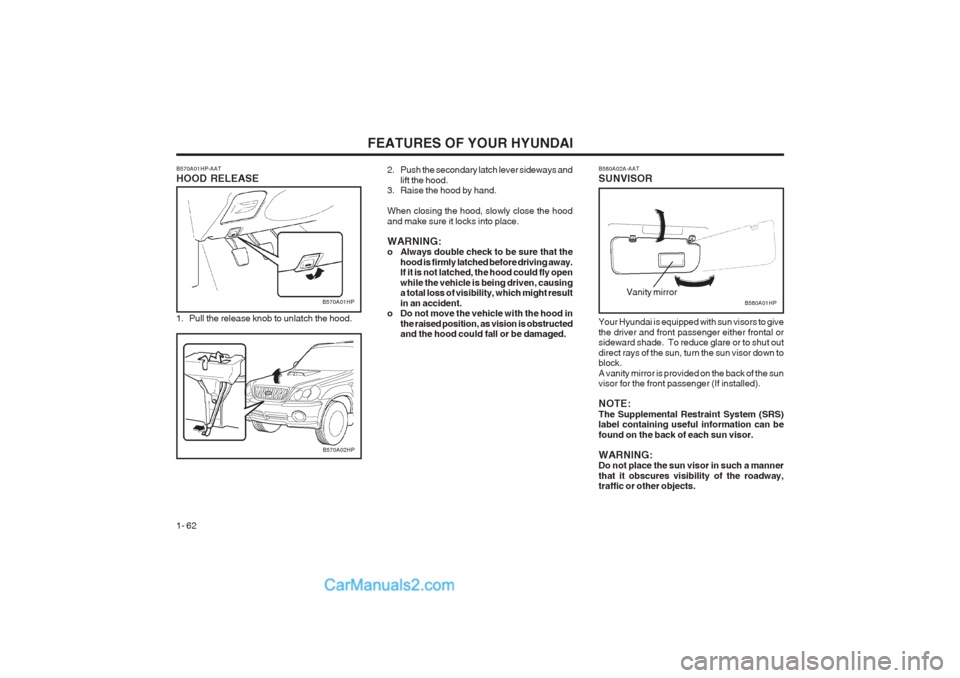

B580A02A-AAT SUNVISOR
B580A01HP
Your Hyundai is equipped with sun visors to give the driver and front passenger either frontal or sideward shade. To reduce glare or to shut out direct rays of the sun, turn the sun visor down to block. A vanity mirror is provided on the back of the sun visor for the front passenger (If installed). NOTE: The Supplemental Restraint System (SRS) label containing useful information can be found on the back of each sun visor. WARNING: Do not place the sun visor in such a manner that it obscures visibility of the roadway, traffic or other objects.Vanity mirror
2. Push the secondary latch lever sideways and lift the hood.
3. Raise the hood by hand. When closing the hood, slowly close the hood and make sure it locks into place. WARNING:
o Always double check to be sure that the
hood is firmly latched before driving away.If it is not latched, the hood could fly open while the vehicle is being driven, causing a total loss of visibility, which might result in an accident.
o Do not move the vehicle with the hood in
the raised position, as vision is obstructed and the hood could fall or be damaged.
B570A02HP
B570A01HP-AAT HOOD RELEASE
1. Pull the release knob to unlatch the hood.
B570A01HP
