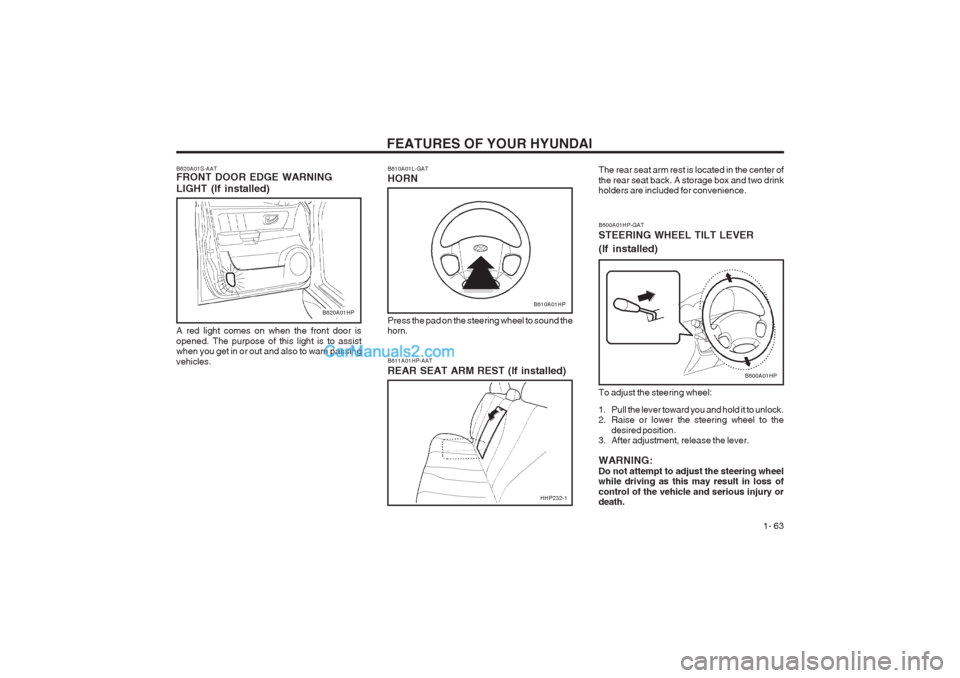

FEATURES OF YOUR HYUNDAI 1- 63
B600A01HP-GAT STEERING WHEEL TILT LEVER (If installed) To adjust the steering wheel:
1. Pull the lever toward you and hold it to unlock.
2. Raise or lower the steering wheel to thedesired position.
3. After adjustment, release the lever. WARNING: Do not attempt to adjust the steering wheel while driving as this may result in loss of control of the vehicle and serious injury or death.
B600A01HP
B620A01S-AAT FRONT DOOR EDGE WARNING LIGHT (If installed) A red light comes on when the front door is opened. The purpose of this light is to assist when you get in or out and also to warn passing vehicles.B610A01L-GAT HORN
B610A01HP
Press the pad on the steering wheel to sound the horn. B611A01HP-AAT REAR SEAT ARM REST (If installed) The rear seat arm rest is located in the center of the rear seat back. A storage box and two drink holders are included for convenience.B620A01HP
HHP232-1

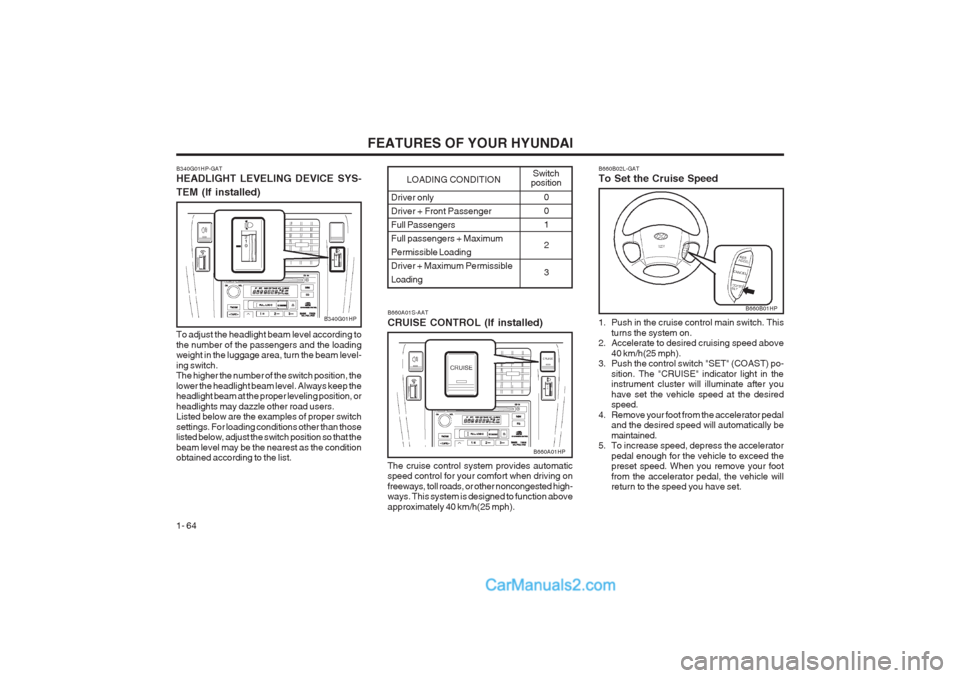

FEATURES OF YOUR HYUNDAI
1- 64
Driver only
Driver + Front PassengerFull PassengersFull passengers + MaximumPermissible Loading
Driver + Maximum PermissibleLoading0 01 2 3
LOADING CONDITION Switch
position
B340G01HP-GAT HEADLIGHT LEVELING DEVICE SYS- TEM (If installed)
To adjust the headlight beam level according to the number of the passengers and the loading weight in the luggage area, turn the beam level- ing switch. The higher the number of the switch position, the lower the headlight beam level. Always keep the headlight beam at the proper leveling position, or headlights may dazzle other road users. Listed below are the examples of proper switch settings. For loading conditions other than those listed below, adjust the switch position so that the beam level may be the nearest as the condition obtained according to the list.
B340G01HPB660A01S-AAT CRUISE CONTROL (If installed) The cruise control system provides automatic speed control for your comfort when driving on freeways, toll roads, or other noncongested high- ways. This system is designed to function above approximately 40 km/h(25 mph).
B660A01HP B660B02L-GAT To Set the Cruise Speed
1. Push in the cruise control main switch. This
turns the system on.
2. Accelerate to desired cruising speed above
40 km/h(25 mph).
3. Push the control switch "SET" (COAST) po-
sition. The "CRUISE" indicator light in the instrument cluster will illuminate after you have set the vehicle speed at the desired speed.
4. Remove your foot from the accelerator pedal and the desired speed will automatically be maintained.
5. To increase speed, depress the accelerator
pedal enough for the vehicle to exceed the preset speed. When you remove your foot from the accelerator pedal, the vehicle will return to the speed you have set.
B660B01HP

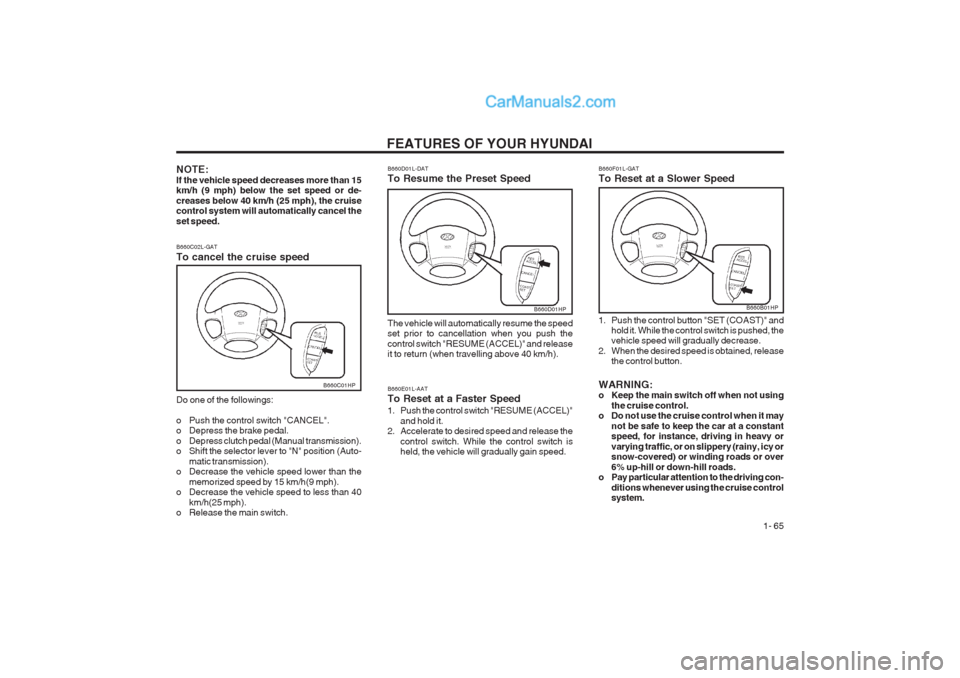

FEATURES OF YOUR HYUNDAI 1- 65
B660D01HP
B660E01L-AAT To Reset at a Faster Speed
1. Push the control switch "RESUME (ACCEL)" and hold it.
2. Accelerate to desired speed and release the
control switch. While the control switch is held, the vehicle will gradually gain speed.
B660C02L-GAT To cancel the cruise speed Do one of the followings:
o Push the control switch "CANCEL".
o Depress the brake pedal.
o Depress clutch pedal (Manual transmission).
o Shift the selector lever to "N" position (Auto-
matic transmission).
o Decrease the vehicle speed lower than the
memorized speed by 15 km/h(9 mph).
o Decrease the vehicle speed to less than 40
km/h(25 mph).
o Release the main switch.
B660C01HP
B660F01L-GAT To Reset at a Slower Speed
1. Push the control button "SET (COAST)" and
hold it. While the control switch is pushed, the vehicle speed will gradually decrease.
2. When the desired speed is obtained, release the control button.
WARNING:
o Keep the main switch off when not using the cruise control.
o Do not use the cruise control when it may
not be safe to keep the car at a constantspeed, for instance, driving in heavy or varying traffic, or on slippery (rainy, icy or snow-covered) or winding roads or over 6% up-hill or down-hill roads.
o Pay particular attention to the driving con-
ditions whenever using the cruise control system.
B660B01HP
NOTE: If the vehicle speed decreases more than 15 km/h (9 mph) below the set speed or de- creases below 40 km/h (25 mph), the cruise control system will automatically cancel the set speed. B660D01L-DAT To Resume the Preset Speed The vehicle will automatically resume the speed set prior to cancellation when you push the control switch "RESUME (ACCEL)" and release it to return (when travelling above 40 km/h).

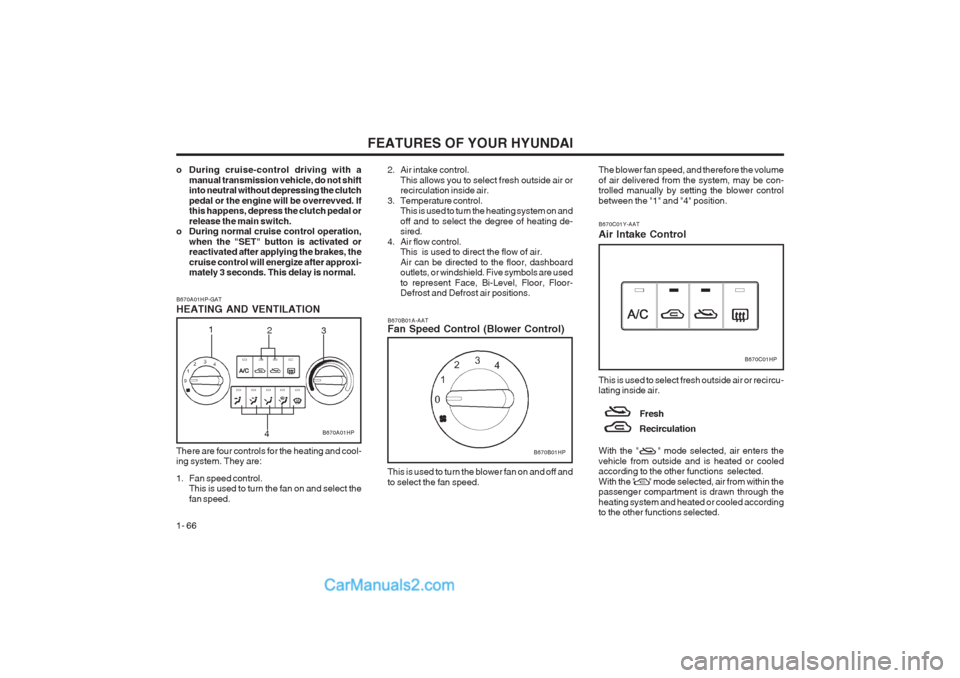

FEATURES OF YOUR HYUNDAI
1- 66
B670B01A-AAT Fan Speed Control (Blower Control)
B670B01HP
This is used to turn the blower fan on and off and to select the fan speed.
B670A01HP-GAT HEATING AND VENTILATION
B670A01HP
2
3
1
4
There are four controls for the heating and cool- ing system. They are:
1. Fan speed control. This is used to turn the fan on and select the fan speed.
2. Air intake control.
This allows you to select fresh outside air or recirculation inside air.
3. Temperature control. This is used to turn the heating system on and off and to select the degree of heating de- sired.
4. Air flow control. This is used to direct the flow of air. Air can be directed to the floor, dashboard outlets, or windshield. Five symbols are used to represent Face, Bi-Level, Floor, Floor- Defrost and Defrost air positions.o During cruise-control driving with a
manual transmission vehicle, do not shift into neutral without depressing the clutch pedal or the engine will be overrevved. If this happens, depress the clutch pedal or release the main switch.
o During normal cruise control operation,
when the "SET" button is activated or reactivated after applying the brakes, the cruise control will energize after approxi- mately 3 seconds. This delay is normal.
B670C01HP
The blower fan speed, and therefore the volume of air delivered from the system, may be con- trolled manually by setting the blower control between the "1" and "4" position.
B670C01Y-AAT Air Intake Control This is used to select fresh outside air or recircu- lating inside air.
Fresh Recirculation
With the " " mode selected, air enters the vehicle from outside and is heated or cooled according to the other functions selected. With the " " mode selected, air from within the passenger compartment is drawn through the heating system and heated or cooled according to the other functions selected.

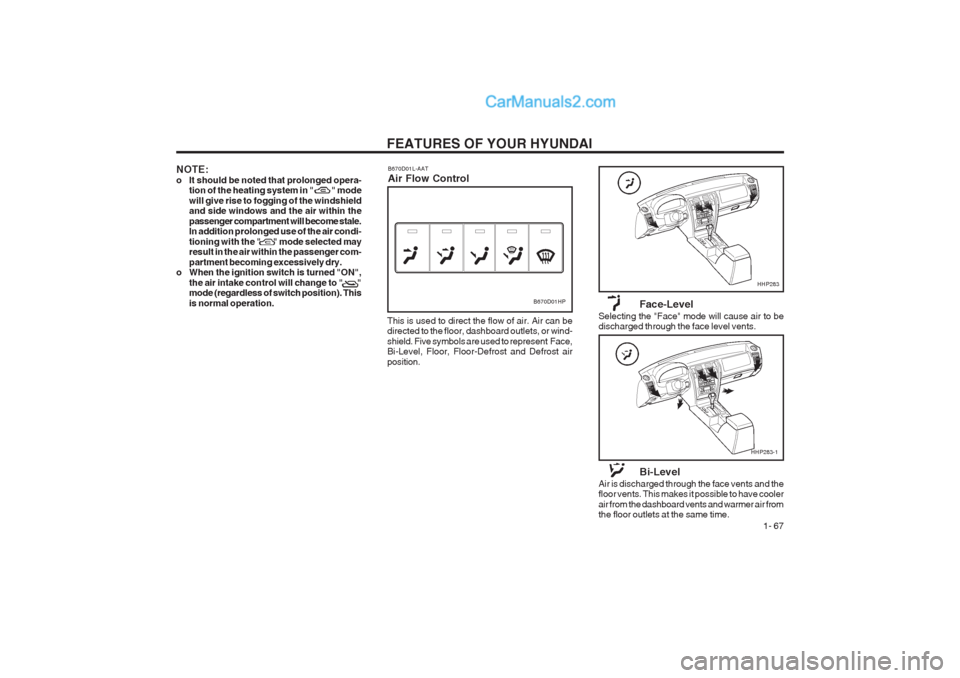

FEATURES OF YOUR HYUNDAI 1- 67
NOTE:
o It should be noted that prolonged opera-tion of the heating system in " " modewill give rise to fogging of the windshield and side windows and the air within the passenger compartment will become stale. In addition prolonged use of the air condi- tioning with the " " mode selected may result in the air within the passenger com- partment becoming excessively dry.
o When the ignition switch is turned "ON",
the air intake control will change to " " mode (regardless of switch position). This is normal operation.
Face-Level
Selecting the "Face" mode will cause air to be discharged through the face level vents.
Bi-Level
Air is discharged through the face vents and thefloor vents. This makes it possible to have cooler air from the dashboard vents and warmer air from the floor outlets at the same time.
B670D01L-AAT Air Flow Control
This is used to direct the flow of air. Air can be directed to the floor, dashboard outlets, or wind- shield. Five symbols are used to represent Face, Bi-Level, Floor, Floor-Defrost and Defrost air position.
B670D01HP
HHP283
HHP283-1

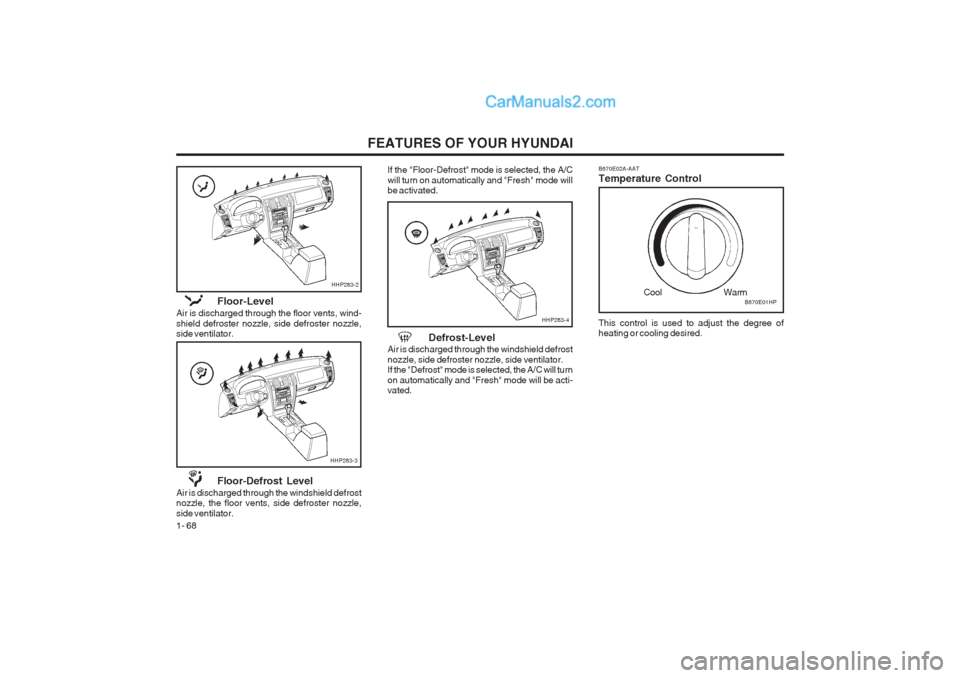

FEATURES OF YOUR HYUNDAI
1- 68
B670E01HP
Cool Warm
B670E02A-AAT Temperature Control This control is used to adjust the degree of heating or cooling desired.Floor-Level
Air is discharged through the floor vents, wind- shield defroster nozzle, side defroster nozzle, side ventilator.
Floor-Defrost Level
Air is discharged through the windshield defrost nozzle, the floor vents, side defroster nozzle, side ventilator.
HHP283-2
HHP283-3
Defrost-Level
Air is discharged through the windshield defrost nozzle, side defroster nozzle, side ventilator. If the "Defrost" mode is selected, the A/C will turn on automatically and "Fresh" mode will be acti- vated.
HHP283-4
If the "Floor-Defrost" mode is selected, the A/C will turn on automatically and "Fresh" mode will be activated.

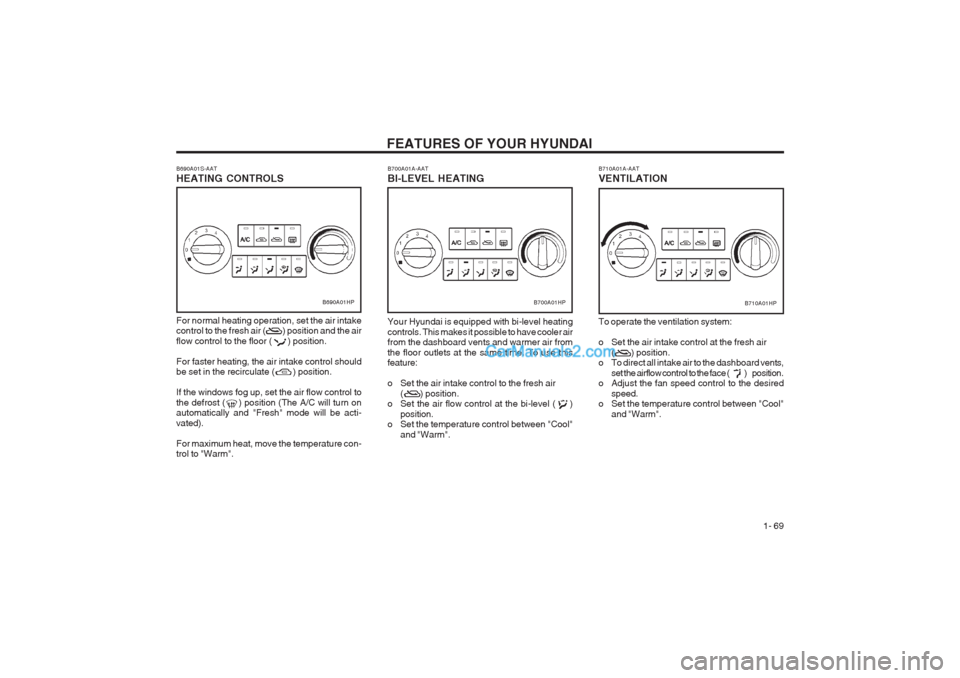

FEATURES OF YOUR HYUNDAI 1- 69
B690A01S-AAT HEATING CONTROLS
B690A01HP
For normal heating operation, set the air intake control to the fresh air ( ) position and the air flow control to the floor ( ) position. For faster heating, the air intake control should be set in the recirculate ( ) position. If the windows fog up, set the air flow control to the defrost ( ) position (The A/C will turn on automatically and "Fresh" mode will be acti-
vated). For maximum heat, move the temperature con- trol to "Warm".
B700A01A-AAT BI-LEVEL HEATING
B700A01HP
Your Hyundai is equipped with bi-level heating controls. This makes it possible to have cooler air from the dashboard vents and warmer air from the floor outlets at the same time. To use this feature:
o Set the air intake control to the fresh air ( ) position.
o Set the air flow control at the bi-level ( )
position.
o Set the temperature control between "Cool"
and "Warm".
B710A01A-AAT VENTILATION
B710A01HP
To operate the ventilation system:
o Set the air intake control at the fresh air ( ) position.
o To direct all intake air to the dashboard vents,
set the airflow control to the face ( ) position.
o Adjust the fan speed control to the desired
speed.
o Set the temperature control between "Cool"
and "Warm".

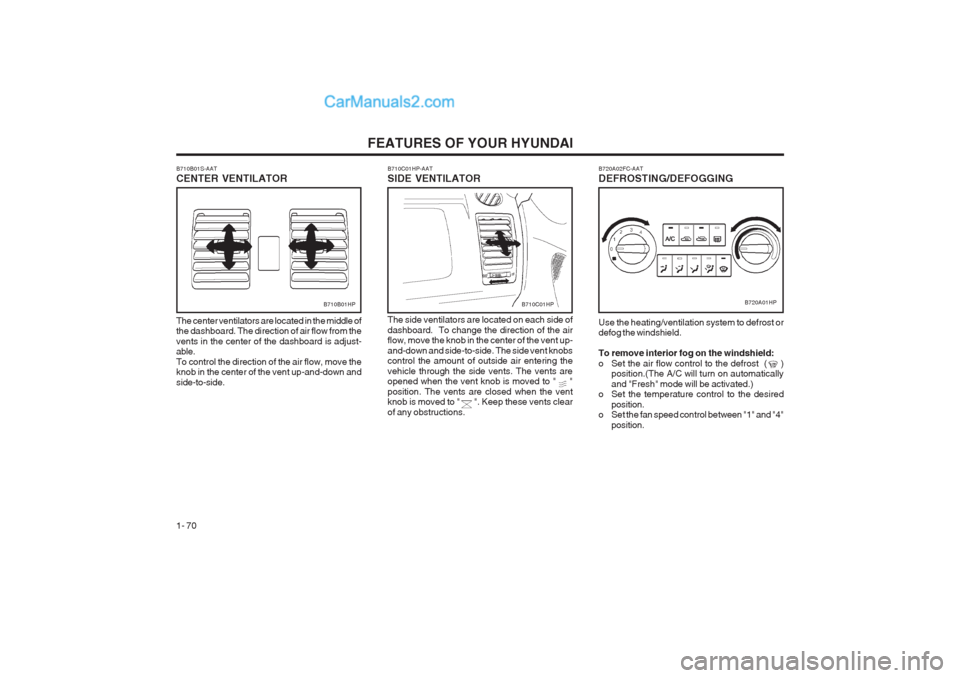

FEATURES OF YOUR HYUNDAI
1- 70 B720A02FC-AAT DEFROSTING/DEFOGGING
B720A01HP
Use the heating/ventilation system to defrost or defog the windshield. To remove interior fog on the windshield:
o Set the air flow control to the defrost ( ) position.(The A/C will turn on automaticallyand "Fresh" mode will be activated.)
o Set the temperature control to the desired
position.
o Set the fan speed control between "1" and "4"
position.B710C01HP
The center ventilators are located in the middle of the dashboard. The direction of air flow from the vents in the center of the dashboard is adjust- able. To control the direction of the air flow, move the knob in the center of the vent up-and-down and side-to-side.
B710B01S-AAT CENTER VENTILATOR
B710B01HP
B710C01HP-AAT SIDE VENTILATOR The side ventilators are located on each side of dashboard. To change the direction of the air flow, move the knob in the center of the vent up- and-down and side-to-side. The side vent knobs control the amount of outside air entering the vehicle through the side vents. The vents are opened when the vent knob is moved to " " position. The vents are closed when the vent knob is moved to " ". Keep these vents clear of any obstructions.

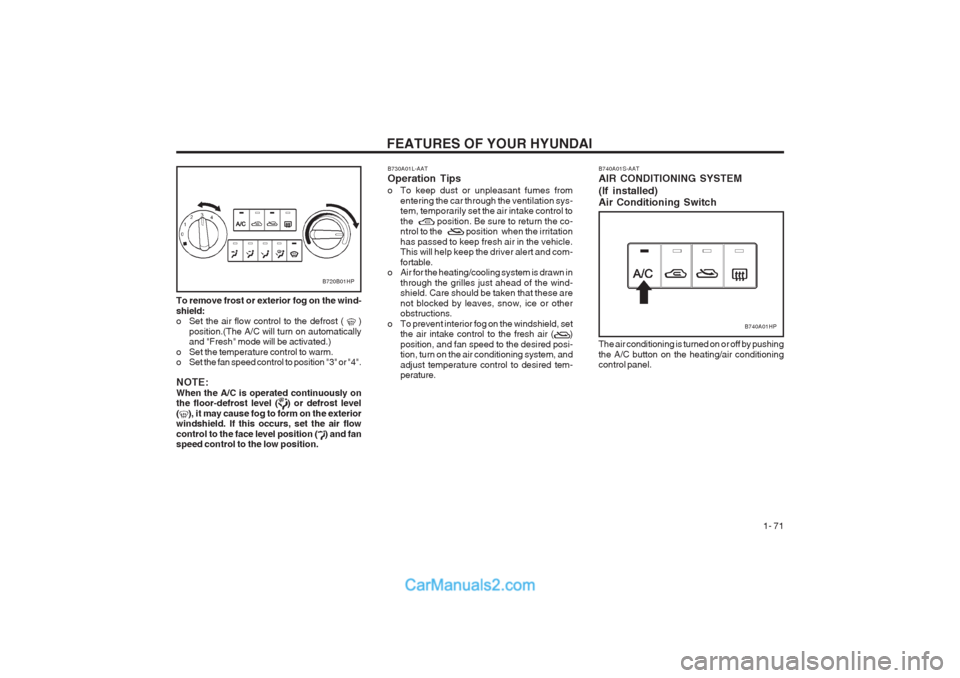

FEATURES OF YOUR HYUNDAI 1- 71
To remove frost or exterior fog on the wind- shield:
o Set the air flow control to the defrost ( )
position.(The A/C will turn on automaticallyand "Fresh" mode will be activated.)
o Set the temperature control to warm.
o Set the fan speed control to position "3" or "4". NOTE: When the A/C is operated continuously on the floor-defrost level (
) or defrost level
(), it may cause fog to form on the exterior
windshield. If this occurs, set the air flow control to the face level position (
) and fan
speed control to the low position.
B720B01HP
B730A01L-AAT Operation Tips
o To keep dust or unpleasant fumes from
entering the car through the ventilation sys-
tem, temporarily set the air intake control to
the position. Be sure to return the co-
ntrol to the position when the irritation has passed to keep fresh air in the vehicle. This will help keep the driver alert and com- fortable.
o Air for the heating/cooling system is drawn in
through the grilles just ahead of the wind- shield. Care should be taken that these are not blocked by leaves, snow, ice or other
obstructions.
o To prevent interior fog on the windshield, set the air intake control to the fresh air ( ) position, and fan speed to the desired posi- tion, turn on the air conditioning system, and adjust temperature control to desired tem- perature.
The air conditioning is turned on or off by pushing the A/C button on the heating/air conditioning control panel.
B740A01S-AAT AIR CONDITIONING SYSTEM (If installed) Air Conditioning Switch
B740A01HP

FEATURES OF YOUR HYUNDAI
1- 72
B740B01HP-GAT
Air Conditioning Operation
Cooling
B740B01HP
To use the air conditioning to cool the interior:
o Set the side vent control to " ", to shut off
the outside air entry.
o Turn on the fan control switch.
o Turn on the air conditioning switch by pushing in on the switch. The air conditioning indicatorlight should come on at the same time.
o Set the air intake control to the fresh air ( ) position.
o Set the temperature control to "Cool". ("Cool" provides maximum cooling. The temperature may be moderated by moving the control toward "Warm".)
o Adjust the fan control to the desired speed. For greater cooling, turn the fan control to one of the higher speeds or temporarily select the recirculate ( ) position on the air intake control. B740C01A-AAT De-Humidified Heating
B740C01HP
For dehumidified heating:
o Turn on the fan control switch.
o Turn on the air conditioning switch. The air conditioning indicator light should come on atthe same time.
o Set the air intake control to the fresh air ( ) position.
o Set the air flow control to the face ( ) position.
o Adjust the fan control to the desired speed.
o For more rapid action, set the fan at one of the higher speeds.
o Adjust the temperature control to provide the desired amount of warmth.
