INFINITI FX35 2004 Service Manual

RFD-4
PREPARATION
Revision: 2004 November 2004 FX35/FX45
KV40104000 ( – )
a: 85 mm (3.35 in) dia.
b: 65 mm (2.56 in) dia.
Drive pinion flange wrenchRemoving and installing drive pinion lock
nut
ST36230000 (J25840-A)
Sliding hammer Removing side flange
KV40104100 ( – )
Axle stand Removing side flange (VQ35DE engine)
KV40101000 ( – )
Axle standRemoving side flange (VK45DE engine)
HT72400000 ( – )
Sliding hammerRemoving differential case assembly
ST3090S000 ( – )
1. ST30031000 (J22912-01) Puller
2. ST30901000 ( – ) Base
Equivalent tool (J26010-01)
a : 90 mm (3.54 in) dia.
b : 80 mm (3.15 in) dia.
c : 50 mm (1.97 in) dia.
d : 79 mm (3.11 in) dia.
e : 45 mm (1.77 in) dia.
f : 35 mm (1.38 in) dia.
Drive pinion rear inner race puller setRemoving and installing drive pinion rear
bearing inner race
ST30611000 (J25742–1)
DriftInstalling pinion rear bearing outer race
(Use with ST30613000) Tool number (Kent-Moore No.)
Tool nameDescription
NT659
ZZA0803D
ZZA0804D
NT159
S-NT125
S-NT640
S-NT090

PREPARATION
RFD-5
C
E
F
G
H
I
J
K
L
MA
B
RFD
Revision: 2004 November 2004 FX35/FX45
Commercial Service ToolsADS000JN
ST3127S000 (J25765-A)
1. GG91030000
Torque wrench (J25765)
2. HT62940000 ( – )
Socket adapter (1/2″)
3. HT62900000 ( – )
Socket adapter (3/8″)
Preload gaugeMeasuring pinion bearing preload and total
preload
ST33290001 (J34286)
Side bearing outer race pullerRemoving oil seal
Differential shim selection (J34309) Adjusting bearing preload gear height Tool number (Kent-Moore No.)
Tool nameDescription
NT124
NT713
NT134
Tool name Description
Power toolLoosening bolts and nuts
PBIC0190E

RFD-6
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING
Revision: 2004 November 2004 FX35/FX45
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTINGPFP:00003
NVH Troubleshooting ChartADS000JO
Use the chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.
×: ApplicableReference page
Refer to RFD-18, "
INSPECTION
" .
Refer to RFD-24, "
TOOTH CONTACT
" .
Refer to RFD-18, "
INSPECTION
" .
Refer to RFD-13, "
Pre-Inspection
" .
—
Refer to MA-31, "
Checking Differential Gear Oil
" .
NVH in PR section.
NVH in FAX, RAX, FSU and RSU sections.
NVH in WT section.
NVH in WT section.
NVH in RAX section.
NVH in BR section.
NVH in PS section.
Possible cause and suspected parts
Rough gear tooth
Improper gear contact
Tooth surfaces worn
Incorrect backlash
Companion flange excessive runout
Improper gear oil
Propeller shaft
Axle and suspension
Tires
Road wheel
Drive shaft
Brakes
Steering
Symptom Differential Noise×××××××××××××

FRONT OIL SEAL
RFD-7
C
E
F
G
H
I
J
K
L
MA
B
RFD
Revision: 2004 November 2004 FX35/FX45
FRONT OIL SEALPFP:38189
Removal and InstallationADS000JP
REMOVAL
1. Remove the rear propeller shaft. Refer to PR-8, "REMOVAL" .
2. Put a matching mark on the end of the drive pinion correspond-
ing to the C position matching mark on the final drive companion
flange.
CAUTION:

For matching mark, use paint. Never damage drive pin-
ion.

The matching mark C on the final drive companion flange
indicates the maximum vertical runout position.
3. Using the drive pinion flange wrench, remove drive pinion lock
nut.
4. Remove the companion flange using the puller.
5. Remove front oil seal using the side bearing outer race puller,
INSTALLATION
1. Apply multi-purpose grease to sealing lips of oil seal. Press front
oil seal into carrier with tool.
NOTE:

When installing the oil seal, be careful not to get it inclined.

Discard the old oil seal. Always replace with new one.
SDIA0963E
Tool number : KV40104000 ( – )
SDIA1589E
Tool number : ST33290001 (J34286)
SDIA1590E
Tool number : ST30720000 (J25405)
SDIA1591E

RFD-8
FRONT OIL SEAL
Revision: 2004 November 2004 FX35/FX45
2. Align the matching mark of drive pinion with the matching mark
C of companion flange, then install the companion flange.
3. Apply oil on the screw part of drive pinion and the seating surface of drive pinion lock nut.
4. Install drive pinion nut with tool.
CAUTION:
The drive pinion lock nut is not reusable. Never reuse drive pinion nut.
5. Install rear propeller shaft. Refer to PR-10, "
INSTALLATION" .
SDIA0963E
Tool number : KV40104000 ( – )

SIDE OIL SEAL
RFD-9
C
E
F
G
H
I
J
K
L
MA
B
RFD
Revision: 2004 November 2004 FX35/FX45
SIDE OIL SEALPFP:33142
Removal and InstallationADS000JQ
REMOVAL
1. Remove side flange with the following procedure for press-fitting.
a. Remove ABS rear wheel sensor. Refer to BRC-57, "
WHEEL SENSORS" .
b. Remove drive shaft and axle assembly. Refer to RAX-9, "
REAR DRIVE SHAFT" and RAX-5, "WHEEL
HUB" .
c. Install axle stand to side flange, and then, pull out the side
flange with using a sliding hammer.
2. Remove side oil seal using a flat-bladed screwdriver.Engine model Toll number A Tool number B
VQ35DE KV40104100 ( – ) ST36230000
(J25840-A)
VK45DE KV40101000 ( – )
SDIA1582E
SDIA1583E
SDIA1584E

RFD-10
SIDE OIL SEAL
Revision: 2004 November 2004 FX35/FX45
INSTALLATION
1. Apply multi-purpose grease to sealing lips of side oil seal.
2. Using the drift, press-fit side oil seal so that its surface comes
face to face with the end surface of the case.
CAUTION:

When installing the side oil seal be careful not to get it
inclined.

Discard the old side oil seal. Always replace them with
new ones.
3. Install the side flange with the following procedure.
a. Attach the protector to side oil seal.
b. After the side flange is inserted and the serrated part of side
gear has engaged the serrated part of flange, remove the pro-
tector.
c. Put suitable drift on the center of side flange, then drive it until
sound changes.
NOTE:
When installation is completed, driving sound of the side flange
turns into a sound which seems to affect the whole final drive.
4. Confirm that the dimension of the side flange installation (Mea-
surement A) in the illustration comes into the following.
5. Install the drive shaft and axle assembly. Refer to RAX-9,
"REAR DRIVE SHAFT" andRAX-5, "WHEEL HUB" .
6. Align the installing position of the ABS rear wheel sensor. Refer to BRC-57, "
WHEEL SENSORS" . Tool number : KV38100200 (J26233)
SDIA1585E
Tool number : KV38107900 (J39352)
SDIA1794E
Measurement A : Approx. 326 - 328 mm (12.83 - 12.91 in)
SDIA1039E

REAR FINAL DRIVE ASSEMBLY
RFD-11
C
E
F
G
H
I
J
K
L
MA
B
RFD
Revision: 2004 November 2004 FX35/FX45
REAR FINAL DRIVE ASSEMBLYPFP:38300
Removal and InstallationADS000JR
REMOVAL
1. Remove exhaust center tube. Refer to EX-3, "EXHAUST SYSTEM" .
2. Remove rear propeller shaft from the final drive. Refer to PR-8, "
REMOVAL" .
3. Remove rear drive shaft from final drive, then suspend it by wire
etc.
4. Remove breather hose from the final drive.
5. Remove ABS rear wheel sensor. Refer to BRC-57, "
WHEEL
SENSORS" .
6. Set transmission jack to rear final drive assembly, and then
remove mounting bolts are nut connecting to the suspension
member.
CAUTION:
Do not place a transmission jack on the rear cover (alumi-
num case).
7. Remove the rear final drive assembly.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
After installation, check the final drive oil level. Refer to MA-31, "
Checking Differential Gear Oil" .
PDIA0886E
1. Rear final drive assembly 2. Rear propeller shaft 3. Washer
4. Lower stopper 5. Upper stopper 6. Drive shaft
SDIA1094E

RFD-12
REAR FINAL DRIVE ASSEMBLY
Revision: 2004 November 2004 FX35/FX45

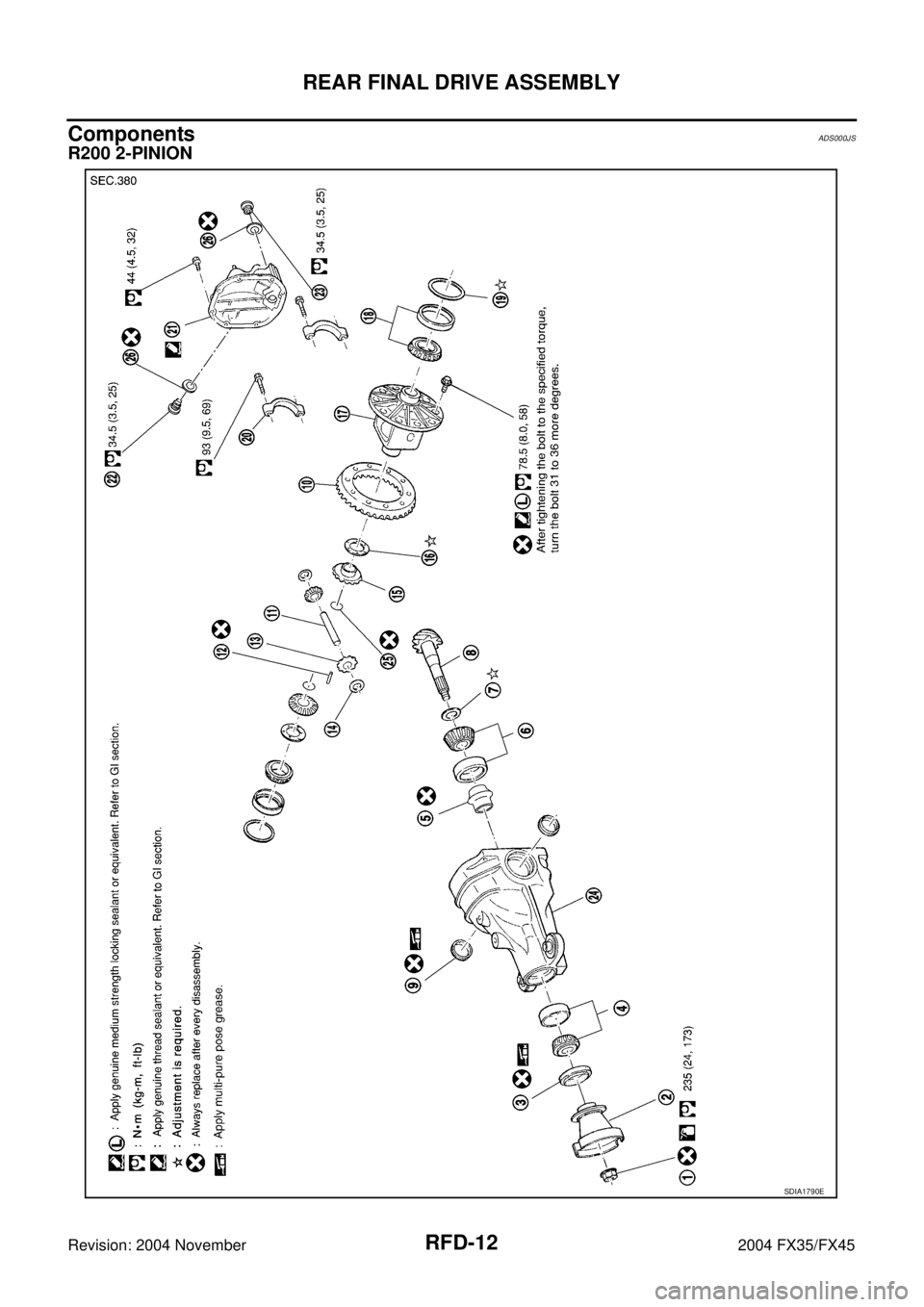

ComponentsADS000JS
R200 2-PINION
SDIA1790E

REAR FINAL DRIVE ASSEMBLY
RFD-13
C
E
F
G
H
I
J
K
L
MA
B
RFD
Revision: 2004 November 2004 FX35/FX45
Pre-InspectionADS000JT
Before disassembling final drive, drain off oil from the gear and remove the rear cover. Then, perform the fol-
lowing inspection.
TOTAL PRELOAD
1. Turn drive pinion in both directions several times to set bearing
rollers.
2. Check total preload with tool.
DRIVE GEAR TO DRIVE PINION BACKLASH
Check drive gear to drive pinion backlash with a dial indicator at sev-
eral points.
DRIVE GEAR RUNOUT
Check runout of drive gear with a dial indicator.
1. Drive pinion lock nut 2. Companion flange (Rebro joint type) 3. Front oil seal
4. Pinion front bearing 5. Pinion bearing adjusting spacer
(Collapsible spacer)6. Pinion rear bearing
7. Pinion height adjusting washer 8. Drive pinion 9. Side oil seal
10. Drive gear 11. Pinion mate shaft 12. Look pin
13. Pinion mate gear 14. Pinion mate thrust washer 15. Side gear
16. Side gear thrust washer 17. Differential case 18. Side bearing
19. Side bearing adjusting washer 20. Bearing cap 21. Rear cover
22. Filler plug 23. Drain plug 24. Gear carrier
25. Circlip 26. Gasket
Tool number : ST3127S000 (J25765-A)
Total preload
(With oil seal): 2.84 - 3.75 N·m
(0.29 - 0.38 kg-m, 26 - 33 in-lb)
SDIA1007E
Drive gear to drive pinion backlash
: 0.10 - 0.15 mm (0.0039 - 0.0059 in)
SPD513
Drive gear runout limit : 0.05 mm (0.0020 in) or less
SPD886
