ENGINE COOLANT
Revision: 2004 November 2004 FX35/FX45
ENGINE COOLANTPFP:KQ100
InspectionABS006JI
LEVEL CHECK

Check if reservoir tank engine coolant level is within “MIN” to
“MAX” when engine is cool.

Adjust the engine coolant level as necessary.
LEAK CHECK

To check for leaks, apply pressure to the cooling system with
radiator cap tester (commercial service tool) and radiator cap
tester adapter (SST).
WARNING:
Do not remove radiator cap when engine is hot. Serious
burns could occur from high-pressure engine coolant
escaping from thermostat housing.
CAUTION:
Higher testing pressure than specified may cause radiator
damage.
NOTE:
In a case engine coolant decreases, replenish radiator with engine coolant.

If anything is found, repair or replace damaged parts.
Changing Engine CoolantABS006JJ
WARNING:

To avoid being scalded, do not change engine coolant when engine is hot.

Wrap a thick cloth around radiator cap and carefully remove radiator cap. First, turn radiator cap a
quarter of a turn to release built-up pressure. Then turn radiator cap all the way.
DRAINING ENGINE COOLANT
1. Remove engine front undercover with power tool.
2. Open radiator drain plug at the bottom of radiator, and then
remove radiator cap.

Be careful not to allow engine coolant to contact drive
belts.
When draining all of engine coolant in the system, open water drain plugs on engine cylinder
block. Refer to EM-241, "
DISASSEMBLY" .
3. Check drained engine coolant for contaminants such as rust, corrosion or discoloration.
If contaminated, flush the engine cooling system. Refer to CO-38, "
FLUSHING COOLING SYSTEM" .
4. Remove reservoir tank, drain engine coolant and clean reservoir tank before installing.
SMA412B
Testing pressure : 157 kPa (1.6 kg/cm2 , 23 psi)
PBIC1528E
SBIA0444E

ENGINE COOLANT
CO-37
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2004 November 2004 FX35/FX45
REFILLING ENGINE COOLANT
1. Install reservoir tank, and radiator drain plug.
CAUTION:
Be sure to clean radiator drain plug and install with new O-ring.
If cylinder block water drain plugs are removed, close and tighten them. Refer to EM-244, "
ASSEM-
BLY" .
2. Remove air relief plug on heater hose.
3. Fill thermostat housing and reservoir tank to specified level.

Refill engine coolant up to filler neck of thermostat housing.

Pour engine coolant through engine coolant filler neck slowly of less than 2 (2-1/8 US qt, 1-3/4
Imp qt) a minute to allow air in system to escape.

Use Genuine Nissan long Life Antifreeze/Coolant or equivalent mixed with water (distilled or
demineralized). Refer to MA-12, "
RECOMMENDED FLUIDS AND LUBRICANTS" .

When engine coolant overflows air relief hole on heater hose,
install air relief plug.
4. Warm up engine to normal operating temperature with radiator cap installed.
5. Run engine at 3,000 rpm for 10 seconds and return to idle speed.

Repeat two or three times.
CAUTION:
Watch water temperature gauge so as not to overheat engine.
6. Stop engine and cool down to less than approximately 50°C (122°F).

Cool down using a fan to reduce the time.

If necessary, refill engine coolant up to filler neck of thermostat housing.
7. Refill reservoir tank to “MAX” level line with engine coolant.
8. Repeat steps 3 through 6 two or more times with radiator cap installed until engine coolant level no longer
drops.
9. Check cooling system for leaks with engine running.Radiator drain plug:
: 1.19 N·m (0.12 kg-m, 11 in-lb)
PBIC1530E
Engine coolant capacity
(With reservoir tank at “MAX” level):
Approx. 10.0 (10-5/8 US qt, 8-3/4 Imp qt)
Reservoir tank engine coolant capacity
(at “MAX” level):
0.8 (7/8 US qt, 3/4 lmp qt)
SMA412B

CO-38
[VK45DE]
ENGINE COOLANT
Revision: 2004 November 2004 FX35/FX45
10. Warm up engine, and check for sound of engine coolant flow while running engine from idle up to 3,000
rpm with heater temperature controller set at several position between “COOL” and “WARM”.

Sound may be noticeable at heater unit.
11. Repeat step 10 three times.
12. If sound is heard, bleed air from cooling system by repeating steps 3 through 6 until engine coolant level
no longer drops.

Clean excess engine coolant from engine.
FLUSHING COOLING SYSTEM
1. Install reservoir tank, and radiator drain plug.
If cylinder block water drain plugs are removed, close and tighten them. Refer to EM-244, "
ASSEM-
BLY" .
2. Fill thermostat housing with water until water spills from the air relief hole, then close air relief plug. Fill
thermostat housing and reservoir tank with water and reinstall radiator cap.
3. Run engine and warm it up to normal operating temperature.
4. Rev engine two or three times under no-load.
5. Stop engine and wait until it cools down.
6. Drain water from the system. Refer to CO-36, "
DRAINING ENGINE COOLANT" .
7. Repeat steps 1 through 5 until clear water begins to drain from radiator.Radiator drain plug:
: 1.19 N·m (0.12 kg-m, 11 in-lb)

RADIATOR
CO-39
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2004 November 2004 FX35/FX45
RADIATORPFP:21400
Removal and InstallationABS006JS
WARNING:
Never remove radiator cap when engine is hot. Serious burns could occur from high-pressure engine
coolant escaping from thermostat housing.
REMOVAL
1. Remove engine cover with power tool. Refer to EM-168, "ENGINE ROOM COVER" .
2. Remove engine front undercover with power tool.
3. Drain engine coolant from radiator. Refer to CO-36, "
Changing Engine Coolant" .
CAUTION:

Perform this step when engine is cold.

Do not spill engine coolant on drive belts.
4. Remove air duct (inlet), air cleaner case and mass air flow sensor assembly. Refer to EM-172, "
AIR
CLEANER AND AIR DUCT" .
5. Remove radiator hoses (upper and lower).
CAUTION:
Be careful not to allow engine coolant to drive belts.
6. Disconnect A/T fluid cooler hoses.
1. Radiator 2. Upper mount bracket 3. Mounting rubber
4. Radiator hose (lower) 5. Radiator drain plug 6. O-ring
7. A/T fluid cooler hose 8. Radiator hose (upper) 9. Reservoir tank hose
10. Reservoir tank cap 11. Reservoir tank 12. Radiator shroud (lower)
13. Radiator shroud
PBIC1531E

CO-40
[VK45DE]
RADIATOR
Revision: 2004 November 2004 FX35/FX45

Install blind plug to avoid leakage of A/T fluid.
7. Remove radiator shroud (lower).

While pressing left and right pawls in direction indicated by
arrows, pull radiator shroud (lower) rearwards to remove.
8. Lift up and remove radiator shroud.
9. Remove washer tank mounting bolts.
10. Rotate two radiator upper mount brackets 90 degrees in the
direction shown in the figure, and remove them.
PBIC1532E
PBIC1535E
PBIC1534E
PBIC1533E

RADIATOR
CO-41
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2004 November 2004 FX35/FX45
11. Lift up and remove radiator.
CAUTION:
Do not damage or scratch A/C condenser and radiator core
when removing.
INSTALLATION
Install in the reverse order of removal.
INSPECTION AFTER INSTALLATION

Check for leaks of engine coolant using radiator cap tester adapter [SST: EG17650301 (J33984-A)] and
radiator cap tester (commercial service tool). Refer to CO-36, "
LEAK CHECK" .

Start and warm up engine. Visually make sure that there is no leaks of engine coolant and A/T fluid.
Checking Radiator CapABS008FY
1. Pull negative-pressure valve to open it and make sure that it
closes completely when released.

Make sure that there is no dirt or damage on the valve seat of
radiator cap negative-pressure valve.

Make sure that there are no unusualness in the opening and
closing conditions of negative-pressure valve.
2. Check radiator cap relief pressure.

When connecting radiator cap to radiator cap tester (commer-
cial service tool) and radiator cap tester adapter [SST], apply
engine coolant to the cap seal surface.

Replace radiator cap if there is an unusualness in negative-
pressure valve, or if the relief pressure exceed the limit.
Checking RadiatorABS008FZ
Check radiator for mud or clogging. If necessary, clean radiator as follows:
CAUTION:

Be careful not to bend or damage the radiator fins.

When radiator is cleaned without removal, remove all surrounding parts such as cooling fan, radi-
ator shroud and horns. Then tape the harness and electrical connectors to prevent water from
entering.
1. Apply water by hose to the back side of the radiator core vertically downward.
2. Apply water again to all radiator core surface once per minute.
3. Stop washing if any stains no longer flow out from radiator.
4. Blow air into the back side of radiator core vertically downward.
PBIC1536E
SMA967B
Standard:
78 - 98 kPa (0.8 - 1.0 kg/cm
2 , 11 - 14 psi)
Limit:
59 kPa (0.6 kg/cm
2 , 9 psi)
SLC755A

CO-42
[VK45DE]
RADIATOR
Revision: 2004 November 2004 FX35/FX45

Use compressed air lower than 490 kPa (5 kg/cm2 , 71 psi) and keep distance more than 30 cm (11.8
in).
5. Blow air again into all the radiator core surfaces once per minute until no water sprays out.

RADIATOR (ALUMINUM TYPE)
CO-43
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2004 November 2004 FX35/FX45
RADIATOR (ALUMINUM TYPE)PFP:21460
Disassembly and AssemblyABS006JL
PREPARATION
1. Attach spacer to tip of radiator plate pliers A (SST).
Spacer specification: 1.5 mm (0.059 in) thick × 18 mm (0.71 in)
wide × 8.5 mm (0.335 in) long.
2. Make sure that when radiator plate pliers A [SST: KV99103510 ( — )] are closed dimension H′′ is
approx. 7.6 mm (0.299 in).
3. Adjust dimension H′′ with spacer, if necessary.
DISASSEMBLY
1. Remove upper and lower tanks with radiator plate pliers B
(SST).

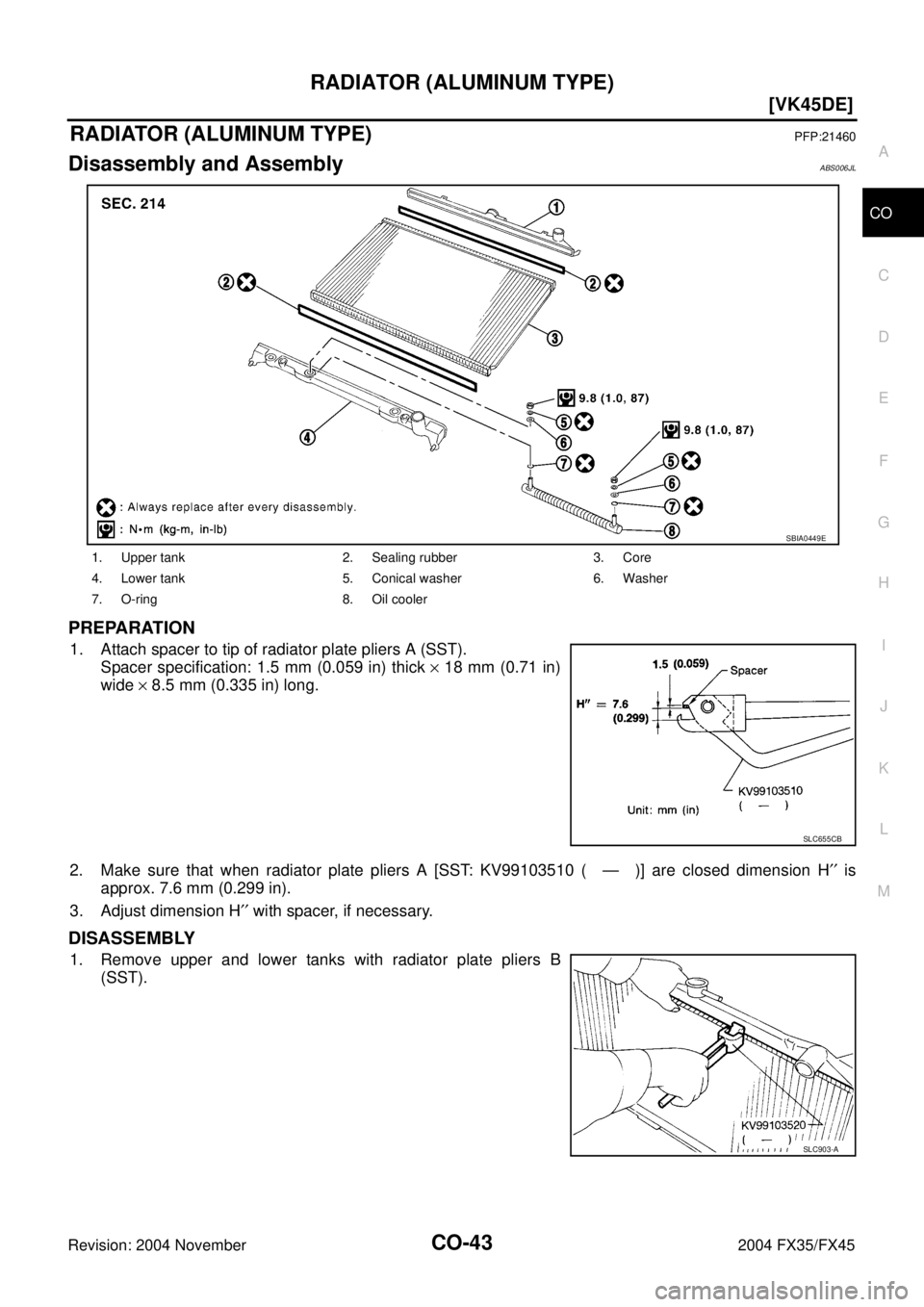

1. Upper tank 2. Sealing rubber 3. Core
4. Lower tank 5. Conical washer 6. Washer
7. O-ring 8. Oil cooler
SBIA0449E
SLC655CB
SLC903-A

CO-44
[VK45DE]
RADIATOR (ALUMINUM TYPE)
Revision: 2004 November 2004 FX35/FX45

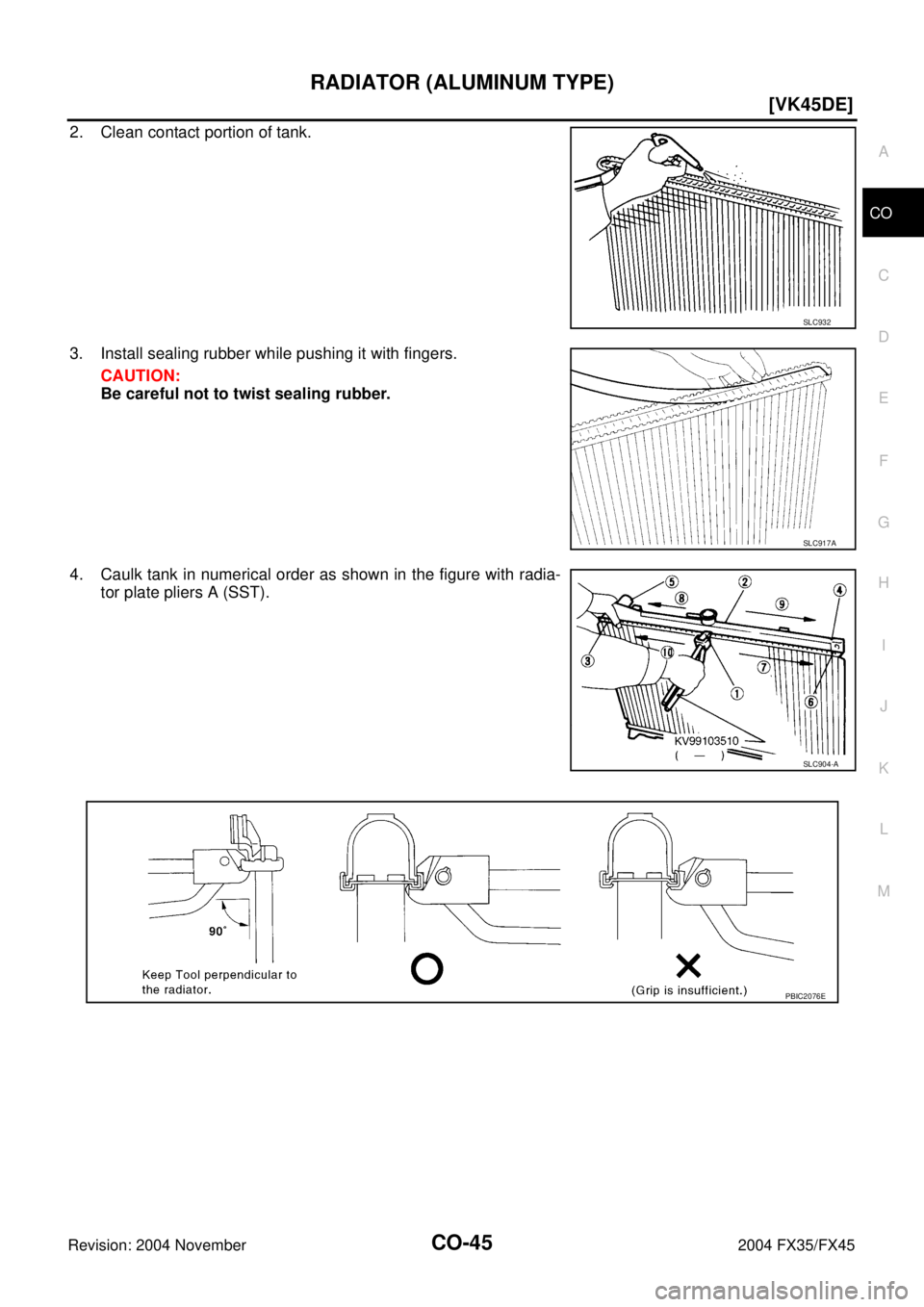

Grip the crimped edge and bend it upwards so that radiator
plate pliers B [SST: KV99103520 ( — )] slips off.
CAUTION:
Do not bend excessively.

In areas where radiator plate pliers B cannot be used, use
flat-blade screwdriver to bend the edge up.
CAUTION:
Be careful not to damage tank.
2. Remove sealing rubber.
3. Make sure the edge stands straight up.

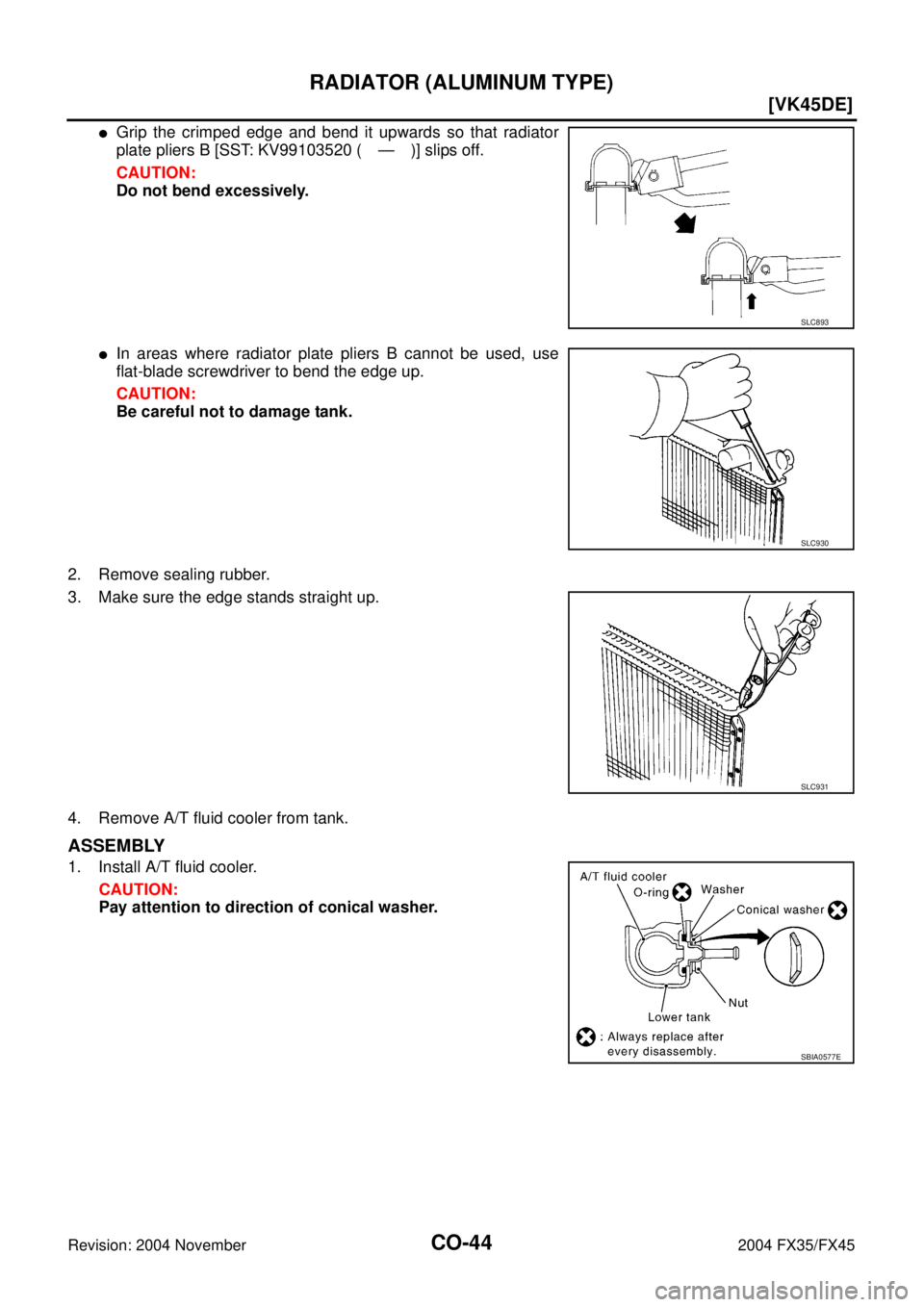

4. Remove A/T fluid cooler from tank.
ASSEMBLY
1. Install A/T fluid cooler.
CAUTION:
Pay attention to direction of conical washer.
SLC893
SLC930
SLC931
SBIA0577E

RADIATOR (ALUMINUM TYPE)
CO-45
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2004 November 2004 FX35/FX45
2. Clean contact portion of tank.
3. Install sealing rubber while pushing it with fingers.
CAUTION:
Be careful not to twist sealing rubber.
4. Caulk tank in numerical order as shown in the figure with radia-
tor plate pliers A (SST).
SLC932
SLC917A
SLC904-A
PBIC2076E
