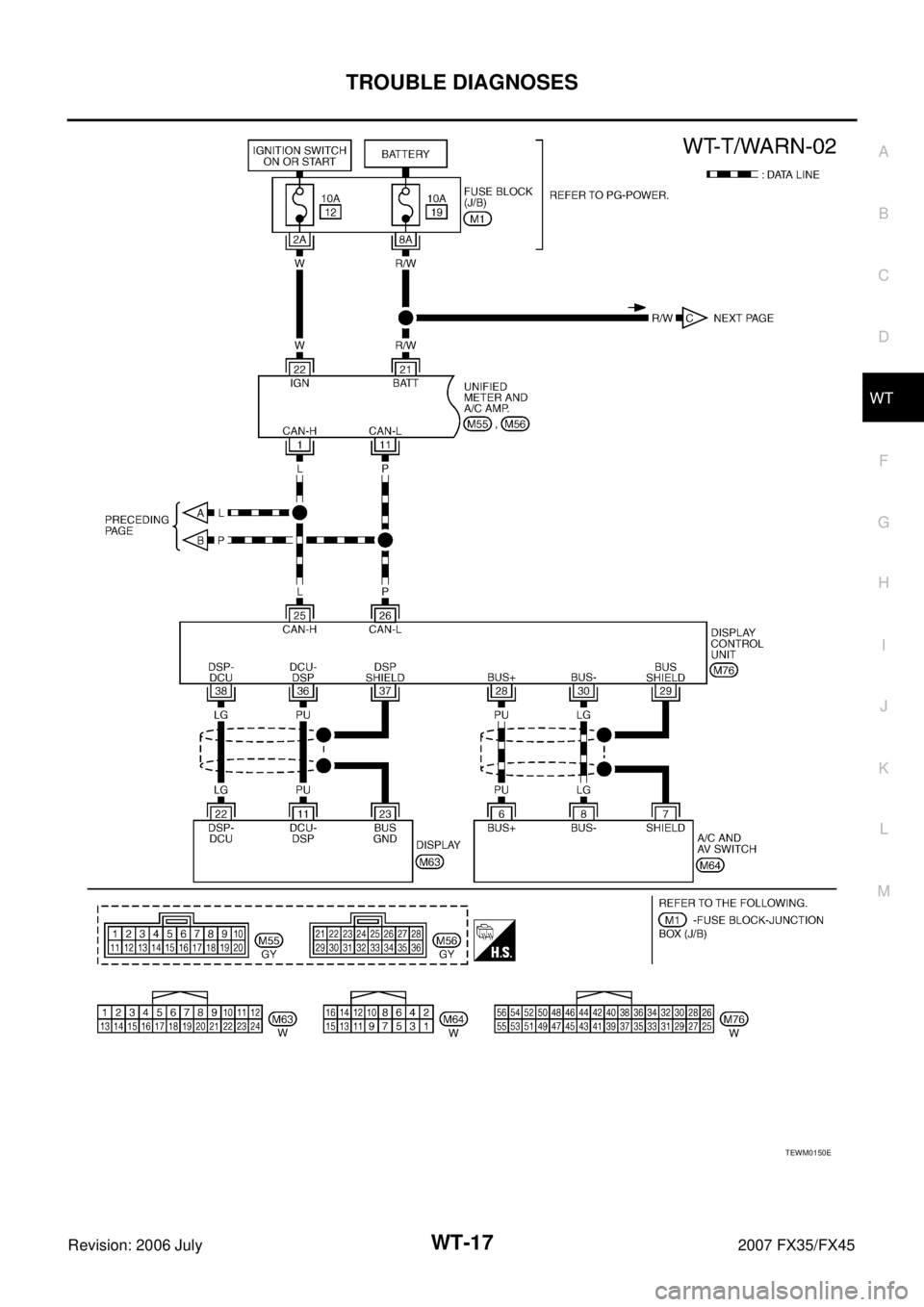

TROUBLE DIAGNOSES WT-17
C
D
F
G H
I
J
K L
M A
B
WT
Revision: 2006 July 2007 FX35/FX45
TEWM0150E

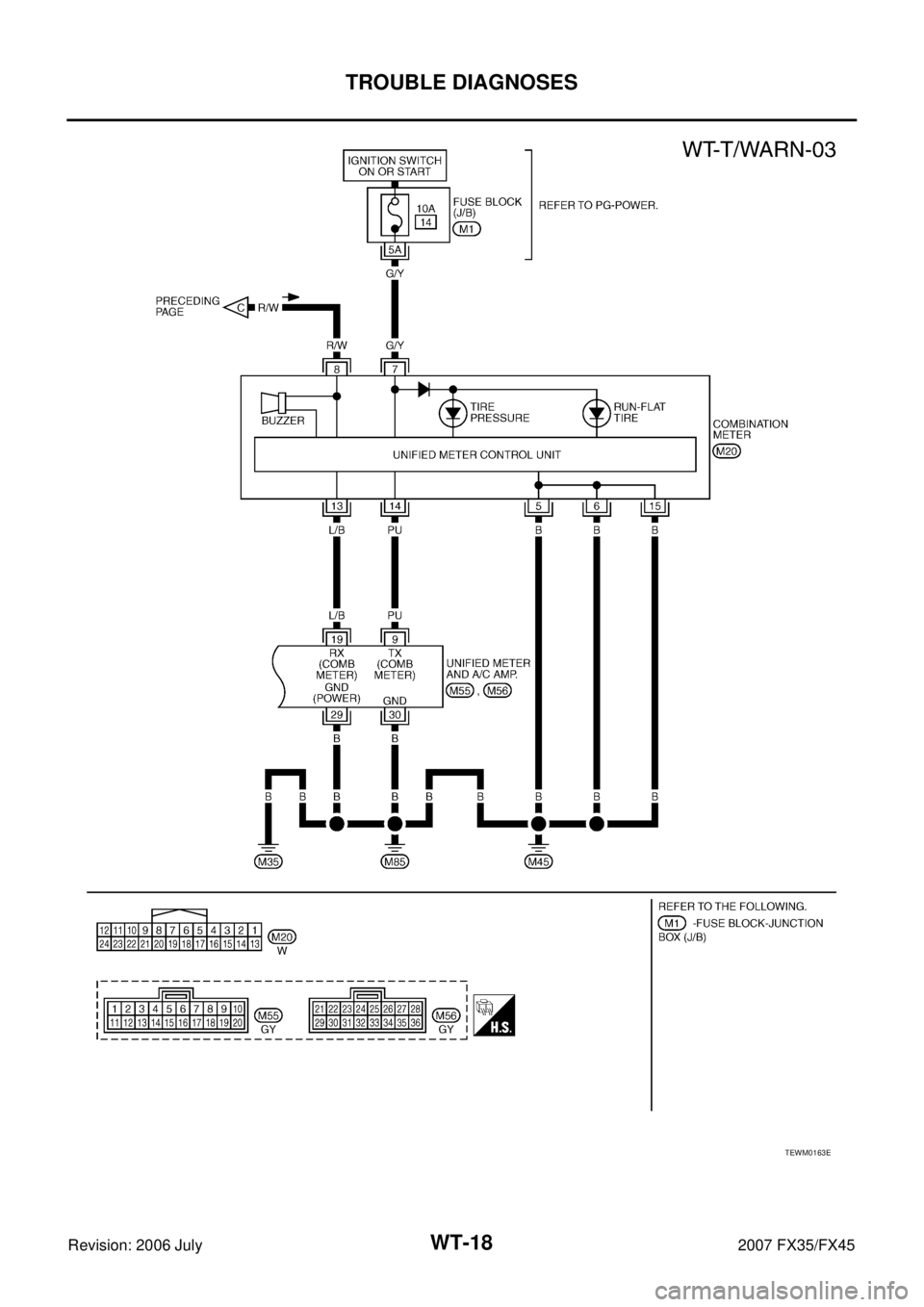

Page 4282 of 4366

WT-18
TROUBLE DIAGNOSES
Revision: 2006 July 2007 FX35/FX45
TEWM0163E
Page 4283 of 4366

TROUBLE DIAGNOSES WT-19
C
D
F
G H
I
J
K L
M A
B
WT
Revision: 2006 July 2007 FX35/FX45
Control Unit Input/Output Signal StandardNES000GU
Standards using a circuit tester and oscilloscope
Terminal
Item Condition Voltage (V)
Approx. value
+ (wire color) –
15 (G)
Ground Tire pressure warning check
connector Always 5V
18 (B) Remote keyless entry receiver
(Ground) —0V
19 (R) Remote keyless entry receiver
(Power supply) Stand-by
Press any of the keyfob
switches
20 (Y) Remote keyless entry receiver
(Signal) Stand-by
Press any of the keyfob
switches
38 (W/L) Ignition switch Ignition switch ON or START Battery voltage (12V) 39 (L) CAN-H — —
40 (P) CAN-L — —
42 (L/R) Battery power supply (Fuse) Always Battery voltage (12V)
45 (G/W) Turn signal (left)
Ignition switch ON
Combination switch is turn
signal (left)
OCC3879D
OCC3882D
OCC3881D
OCC3880D
SKIA3009J
Page 4284 of 4366

WT-20
TROUBLE DIAGNOSES
Revision: 2006 July 2007 FX35/FX45
ID Registration ProcedureNES000GV
ID REGISTRATION WITH ACTIVATION TOOL
This procedure must be done after replacement of a transmitter, BCM or rotating wheels.
1. Perform “CONSULT-II Start Procedure”. Refer to GI-38, "
CONSULT-II Start Procedure" .
2. Select “AIR PRESSURE MONITOR” on “SELECT WORK ITEM”
3. Touch “WORK SUPPORT” on “SELECT DIAG MODE” screen, and select “ID REGIST”.
4. With the transmitter activation tool (J-45295) pushed against the front-left transmitter position of the air valve, press and hold the
button 5 seconds.
5. Register the IDs in order from FR LH, FR RH, RR RH to RR LH. When ID registration of each wheel has been completed, turn
signal lamp blinks.
6. After completing all ID registrations, press “END” to complete the procedure.
NOTE:
Be sure to register the IDs in order from FR LH, FR RH, RR RH, to RR LH, or the self-diagnostic results dis-
play will not function properly.
46 (BR/W)
Ground Turn signal (right)
Ignition switch ON
Combination switch is turn
signal (right)
49 (B) Ground — 0V
52 (B)
55 (G) Battery power supply (F/L) Always Battery voltage (12V) Te r m i n a l
Item Condition Voltage (V)
Approx. value
+ (wire color) –
SKIA3009J
Activation tire position Turn signal lamp CONSULT-II
1 Front LH
2 times flashing “YET”
↓
“DONE”
2 Front RH
3 Rear RH
4 Rear LH
SEIA0460E
Page 4285 of 4366

TROUBLE DIAGNOSES WT-21
C
D
F
G H
I
J
K L
M A
B
WT
Revision: 2006 July 2007 FX35/FX45
ID REGISTRATION WITHOUT TRANSMITTER ACTIVATION TOOL
CAUTION:
This procedure must be done after replacement of a transmitter, BCM, or rotating wheels.
1. Perform “CONSULT-II Start Procedure”. Refer to GI-38, "
CONSULT-II Start Procedure" .
2. Select “AIR PRESSURE MONITOR” on “SELECT WORK ITEM”
3. Touch “WORK SUPPORT” on “SELECT DIAG MODE” screen, and select “ID REGIST”.
4. Adjust the tire pressure to the values shown in the table below for ID registration, and drive the vehicle at 40 km/h (25 MPH) or more for several minutes.
NOTE:
If ID registration is unable, buzzer beeps.
5. After completing all ID registrations, press “END” to complete the procedure.
6. Inflate all tires to proper pressure. Refer to WT-41, "
Tire" .
Tire position
Tire pressure kPa (kg/cm2 , psi)
Front LH 240 (2.4, 34)
Front RH 220 (2.2, 31) Rear RH 200 (2.0, 29)
Rear RH 180 (1.8, 26)
Activation tire position CONSULT-II Front LH “YET” ↓
“DONE”
Front RH
Rear RHRear LH
Page 4286 of 4366

WT-22
TROUBLE DIAGNOSES
Revision: 2006 July 2007 FX35/FX45
Transmitter Wake Up OperationNES000GW
WITH ACTIVATION TOOL
1. With the transmitter activation tool (J-45295) pushed against the
front-left transmitter, press the button for 5 seconds.
When ignition switch ON, as the low tire pressure warning
lamp blinks per the following diagram, the respective transmit-
ter then must be woken up.
2. Register the ID of wheel that low tire pressure warning lamp flashes. When wake up of registered wheel has been completed, turn signal lamp flashes two times.
3. After completing wake up all transmitters, make sure low tire pressure warning lamp goes out.
SEIA0460E
SEIA0794E
Page 4287 of 4366

TROUBLE DIAGNOSES WT-23
C
D
F
G H
I
J
K L
M A
B
WT
Revision: 2006 July 2007 FX35/FX45
Self-DiagnosisNES000GX
DESCRIPTION
During driving, the low tire pressure warning system receives the signal transmitted from the transmitter
installed in each wheel, and gives alarms when the tire pressure becomes low. The control unit (BCM) of this
system has pressure judgment and trouble diagnosis functions.
FUNCTION
When the low tire pressure warning system detects low inflation pressure or another unusual symptom, the
warning lamps in the combination meter comes on. To start the self-diagnostic results mode, ground terminal
of the tire pressure warning check connector. The malfunction location is indicated by the warning lamp flash-
ing and the buzzer sounds.
LOW TIRE PRESSURE WARNING LAMP DIAGNOSTIC CHART
Diagnosis
Item Symptom
(Ignition switch ON) Low tire pressure warning lamp Cause Action
Low tire pres-
sure warning
lamp Warning lamp comes
on immediately and
turns off after 1 sec-
ond All wheel transmit-
ters are “activated”
(working). None (system OK)
Warning lamp blinks
on for 2 seconds,
then turns off for 0.2
seconds-repeats All wheel transmit-
ters are not acti-
vated. Activate all wheel transmit-
ters. Refer to WT-22,
"Transmitter Wake Up Oper-
ation" .
Warning lamp blinks
1 time Front LH wheel
transmitter is not
activated. Activate front LH wheel
transmitter. Refer to WT-22,
"Transmitter Wake Up Oper-
ation" .
Warning lamp blinks
2 times Front RH wheel
transmitter is not
activated. Activate front RH wheel
transmitter. Refer to WT-22,
"Transmitter Wake Up Oper-
ation" .
Warning lamp blinks
3 times Rear RH wheel
transmitter is not
activated. Activate rear RH wheel
transmitter. Refer to WT-22,
"Transmitter Wake Up Oper-
ation" .
SEIA0592E
SEIA0593E
PEIA0073E
SEIA0595E
SEIA0596E
Page 4288 of 4366

WT-24
TROUBLE DIAGNOSES
Revision: 2006 July 2007 FX35/FX45
NOTE:
If more than one wheel transmitter is NOT activated, the warning lamp blinking patterns for those wheels will combine. (Example : one
blink/OFF/three blinks = Rear LH and Rear RH transmitters are not activated.)
RUN-FLAT TIRE WARNING LAMP DIAGNOSTIC CHART
Low tire pres-
sure warning
lamp Warning lamp blinks
4 times Rear LH wheel
transmitter is not
activated. Activate rear LH wheel
transmitter. Refer to WT-22,
"Transmitter Wake Up Oper-
ation" .
Warning lamp comes
on and does not turn
off The fuse for combi-
nation meter from
battery is pulled out. Check the fuse for combina-
tion meter from battery.
Install or replace (if needed).
BCM connector
pulled out. Check BCM connector. Re-
connect if needed.
Low tire pressure or
tire pressure moni-
toring system mal-
function.
Perform CONSULT-II Self
Diagnosis. Refer to WT-
23, "Self-Diagnosis" .
–Perform ID Registration if
needed. Refer to WT-20,
"ID Registration Proce-
dure" .
Turn signal
lamp Turn signal lamp
does not flash 2
times or horn does
not sound after trans-
mitter activation. 1. Tool J-45295 (spe-
cial service tool)
battery low.
2. Ignition OFF dur- ing activation.
3. Tool J-45295 (spe- cial service tool)
not positioned cor-
rectly.
4. Transmitters already activated. 1. Install new battery.
2. Make sure ignition is ON during activation.
3. Position tool correctly dur- ing activation.
4. None
Diagnosis
Item Symptom
(Ignition switch ON) Low tire pressure warning lamp Cause Action
SEIA0597E
SEIA0598E
Diagnosis
Item Symptom
(Ignition Switch ON) Run-flat tire warning lamp Cause Action
Run-flat tire
warning lamp Warning lamp comes
on and does not turn
off Tire pressure drop to
86 kPa (0.88 kg/cm
2 ,
12.5 psi) or less. 1. Check air pressure of
tire.
2. Repair or change the tire (if needed)
3. Perform CONSULT-II Self Diagnosis. Refer to
WT-25, "
CONSULT-II
Function (BCM)"SEIA0793E
Page 4289 of 4366

TROUBLE DIAGNOSES WT-25
C
D
F
G H
I
J
K L
M A
B
WT
Revision: 2006 July 2007 FX35/FX45
CONSULT-II Function (BCM)NES000KR
FUNCTION
CONSULT-II can display each self-diagnostic item using the diagnostic test modes shown following.
CONSULT-II SETTING PROCEDURE
Perform “CONSULT-II Start Procedure”. Refer to GI-38, "CONSULT-II Start Procedure" .
WORK SUPPORT MODE
Operation Procedure
1. Touch necessary test item.
2. The “Work support” screen will be displayed, so perform the fol- lowing test.
Test Item
ID Read
ID Regist
ID Read
The registered ID number is displayed.
ID Regist
Refer to WT-20, "ID Registration Procedure" .
BCM
diagnosis part Diagnostic test mode Function Reference
Air pressure
monitor WORK SUPPORT
This mode enables a technician to adjust some devices
faster and more accurately by following the indications on
CONSULT-II. WT-25, "
WORK SUPPORT
MODE".
SELF-DIAGNOSTIC
RESULTS Self-diagnostic results can be read and erased quickly. WT-26, "
SELF-DIAGNOS-
TIC RESULTS MODE".
DATA MONITOR Input/Output data in the control unit can be read. WT-27, "
DATA MONITOR
MODE".
ACTIVE TEST Diagnostic Test Mode in with CONSULT-II drives some
actuators apart from the control unit (BCM) and also shifts
some parameters in a specified range. WT-27, "
ACTIVE TEST
MODE".
SEIA0583E
SEIA0584E
Page 4290 of 4366

WT-26
TROUBLE DIAGNOSES
Revision: 2006 July 2007 FX35/FX45
SELF-DIAGNOSTIC RESULTS MODE
NOTE:
Before performing the self-diagnosis, be sure to register the ID, or else the actual malfunction location may be different from that dis-
played on CONSULT-II.
How to Erase Self- diagnostic Results
1. Perform applicable inspection of malfunctioning item and then repair or replace.
2. Turn ignition switch “ON” and select “SELF-DIAG RESULTS” mode for “AIR PRESSURE MONITOR” with CONSULT-II.
3. Touch “ERASE” on CONSULT-II screen to erase DTC memory. CAUTION:
If memory cannot be erased, perform applicable diagnosis.
Diagnostic item Diagnostic item is detected when ···
[C1704]
[C1705]
[C1706]
[C1707] LOW PRESSURE FL
LOW PRESSURE FR
LOW PRESSURE RR
LOW PRESSURE RL Front-left tire pressure drops to 173 kPa (1.8 kg/cm
2 , 25 psi) or less.
Front-right tire pressure drops to 173 kPa (1.8 kg/cm2 , 25 psi) or less.
Rear-right tire pressure drops to 173 kPa (1.8 kg/cm2 , 25 psi) or less.
Rear-left tire pressure drops to 173 kPa (1.8 kg/cm2 , 25 psi) or less.
[C1708]
[C1709]
[C1710]
[C1711] [NO DATA] FL
[NO DATA] FR
[NO DATA] RR
[NO DATA] RL Data from front-left transmitter can not be received.
Data from front-right transmitter can not be received.
Data from rear-right transmitter can not be received.
Data from rear-left transmitter can not be received.
[C1712]
[C1713]
[C1714]
[C1715] [CHECKSUM ERR] FL
[CHECKSUM ERR] FR
[CHECKSUM ERR] RR
[CHECKSUM ERR] RL Checksum data from front-left transmitter is malfunctioning.
Checksum data from front-right transmitter is malfunctioning.
Checksum data from rear-right transmitter is malfunctioning.
Checksum data from rear-left transmitter is malfunctioning.
[C1716]
[C1717]
[C1718]
[C1719] [PRESS DATA ERR] FL
[PRESS DATA ERR] FR
[PRESS DATA ERR] RR
[PRESS DATA ERR] RL Air pressure data from front-left transmitter is malfunctioning.
Air pressure data from front-right transmitter is malfunctioning.
Air pressure data from rear-right transmitter is malfunctioning.
Air pressure data from rear-left transmitter is malfunctioning.
[C1720]
[C1721]
[C1722]
[C1723] [CODE ERR] FL
[CODE ERR] FR
[CODE ERR] RR
[CODE ERR] RL Function code data from front-left transmitter is malfunctioning.
Function code data from front-right transmitter is malfunctioning.
Function code data from rear-right transmitter is malfunctioning.
Function code data from rear-left transmitter is malfunctioning.
[C1724]
[C1725]
[C1726]
[C1727] [BATT VOLT LOW] FL
[BATT VOLT LOW] FR
[BATT VOLT LOW] RR
[BATT VOLT LOW] RL Battery voltage of front-left transmitter drops.
Battery voltage of front-right transmitter drops.
Battery voltage of rear-right transmitter drops.
Battery voltage of rear-left transmitter drops.
[C1729] VHCL SPEED SIG ERR Vehicle speed signal is error.
[C1730]
[C1731]
[C1732]
[C1733] FLAT TIRE FL
FLAT TIRE FR
FLAT TIRE RR
FLAT TIRE RL Front-left tire pressure drops to 86 kPa (0.88 kg/cm
2 , 12.5 psi) or less.
Front-right tire pressure drops to 86 kPa (0.88 kg/cm2 , 12.5 psi) or less.
Rear-right tire pressure drops to 86 kPa (0.88 kg/cm2 , 12.5 psi) or less.
Rear-left tire pressure drops to 86 kPa (0.88 kg/cm2 , 12.5 psi) or less.
