INFINITI FX35 2008 Service Manual

MIL AND DATA LINK CONNECTOREC-591
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
MIL AND DATA LINK CONNECTOR
Wiring DiagramINFOID:0000000001326469
TBWM1413E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

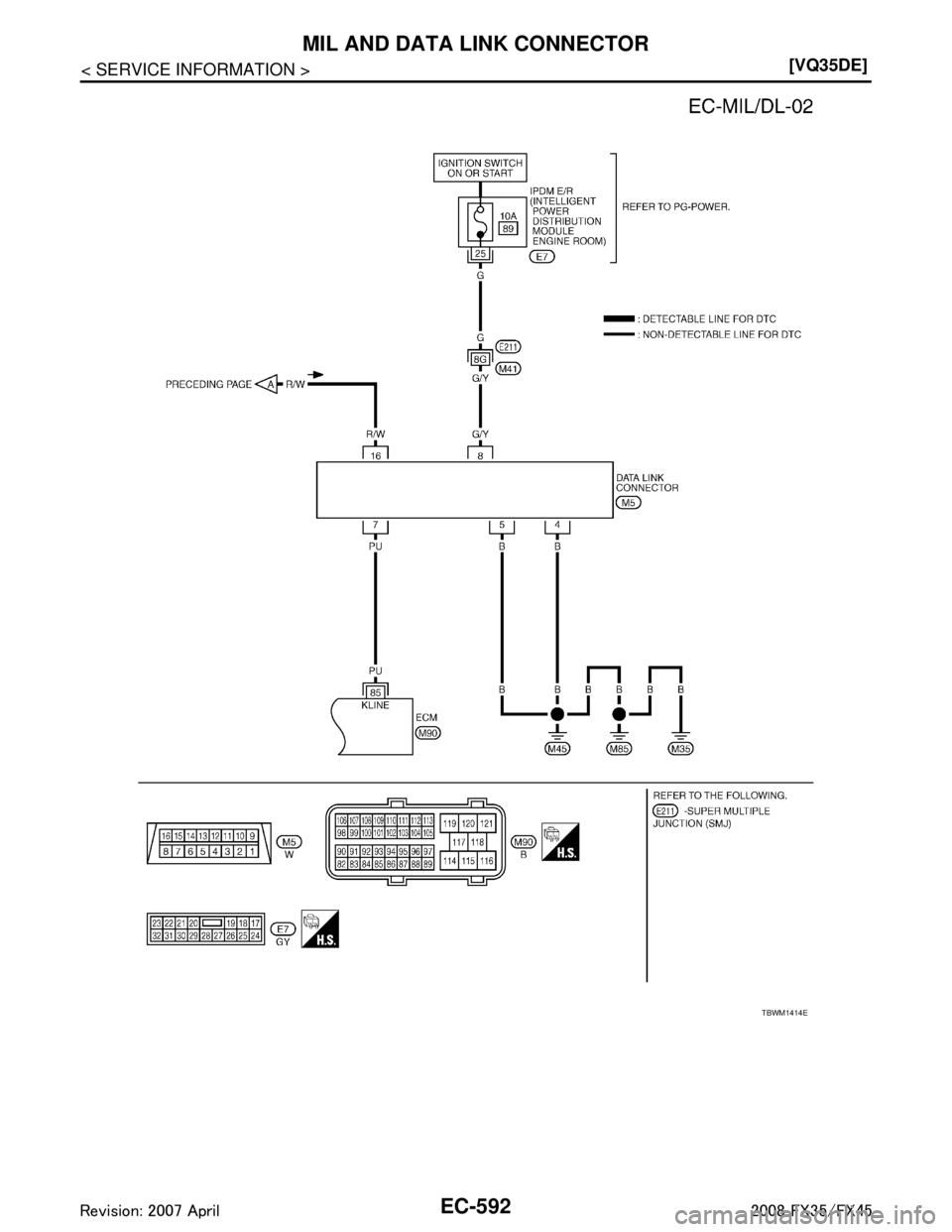

EC-592
< SERVICE INFORMATION >[VQ35DE]
MIL AND DATA LINK CONNECTOR
TBWM1414E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

SERVICE DATA AND SPECIFICATIONS (SDS)
EC-593
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
SERVICE DATA AND SPECIFICATIONS (SDS)
Fuel PressureINFOID:0000000001326470
Idle Speed and Ignition TimingINFOID:0000000001326471
*1: Under the following conditions:
 Air conditioner switch: OFF
 Electric load: OFF (Lights, heater fan & rear window defogger)
 Steering wheel: Kept in straight-ahead position
Calculated Load ValueINFOID:0000000001326472
Mass Air Flow SensorINFOID:0000000001326473
*: Engine is warmed up to normal operating temperature and running under no load.
Intake Air Temperature SensorINFOID:0000000001326474
Engine Coolant Temperature SensorINFOID:0000000001326475
Air Fuel Ratio (A/F) Sensor 1 HeaterINFOID:0000000001326476
Heated Oxygen sensor 2 HeaterINFOID:0000000001326477
Fuel pressure at idling kPa (kg/cm2, psi)
Approximately 350 (3.57, 51)
Target idle speed
No load*1 (in P or N position) 650
±50 rpm
Air conditioner: ON In P or N position 700 rpm or more
Ignition timing In P or N position 15 ° ± 5 ° BTDC
Calculated load value% (Using CONSULT-III or GST)
At idle 5 - 35
At 2,500 rpm 5 - 35
Supply voltageBattery voltage (11 - 14V)
Output voltage at idle 1.0 - 1.2V*
Mass air flow (Using CONSULT-III or GST) 2.0 - 6.0 g·m/sec at idle*
7.0 - 20.0 g·m/sec at 2,500 rpm*
Temperature °C ( °F) Resistance k Ω
25 (77) 1.800 - 2.200
Temperature °C ( °F) Resistance k Ω
20 (68) 2.1 - 2.9
50 (122) 0.68 - 1.00
90 (194) 0.236 - 0.260
Resistance [at 25°C (77 °F)] 2.3 - 4.3 Ω
Resistance [at 25°C (77 °F)] 3.4 - 4.4 Ω
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-594
< SERVICE INFORMATION >[VQ35DE]
SERVICE DATA AND SPECIFICATIONS (SDS)
Crankshaft Position Sensor (POS)
INFOID:0000000001326478
Refer to EC-323, "Component Inspection".
Camshaft Position Sensor (PHASE)INFOID:0000000001326479
Refer to EC-330, "Component Inspection".
Throttle Control MotorINFOID:0000000001326480
Fuel InjectorINFOID:0000000001326481
Fuel PumpINFOID:0000000001326482
Resistance [at 25 °C (77 °F)] Approximately 1 - 15 Ω
Resistance [at 10 - 60°C (50 - 140 °F)] 11.1 - 14.5 Ω
Resistance [at 25°C (77 °F)] 0.2 - 5.0 Ω
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

INDEX FOR DTCEC-595
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
SERVICE INFORMATION
INDEX FOR DTC
DTC No. IndexINFOID:0000000001326483
DTC*1
Items
(CONSULT-III screen terms) Reference page
CONSULT-III
GST*
2ECM*3
U1000 1000*4CAN COMM CIRCUIT EC-724
U1001
1001*4CAN COMM CIRCUIT EC-724
U1010 1010 CONTROL UNIT(CAN) EC-726
P0000 0000NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED.
—
P0011 0011 INT/V TIM CONT-B1 EC-727
P0021 0021 INT/V TIM CONT-B2 EC-727
P0031 0031 A/F SEN1 HTR (B1)EC-739
P0032 0032 A/F SEN1 HTR (B1)EC-739
P0037 0037 HO2S2 HTR (B1)EC-746
P0038 0038 HO2S2 HTR (B1)EC-746
P0051 0051 A/F SEN1 HTR (B2)EC-739
P0052 0052 A/F SEN1 HTR (B2)EC-739
P0057 0057 HO2S2 HTR (B2)EC-746
P0058 0058 HO2S2 HTR (B2)EC-746
P0075 0075 INT/V TIM V/CIR-B1EC-754
P0081 0081 INT/V TIM V/CIR-B2EC-754
P0101 0101 MAF SEN/CIRCUIT-B1EC-761
P0102 0102 MAF SEN/CIRCUIT-B1EC-768
P0103 0103 MAF SEN/CIRCUIT-B1EC-768
P0112 0112 IAT SEN/CIRCUIT-B1EC-775
P0113 0113 IAT SEN/CIRCUIT-B1EC-775
P0117 0117 ECT SEN/CIRCEC-779
P0118 0118 ECT SEN/CIRCEC-779
P0122 0122 TP SEN2/CIRC-B1 EC-784
P0123 0123 TP SEN2/CIRC-B1EC-784
P0125 0125 ECT SENSOREC-790
P0127 0127 IAT SENSOR-B1EC-793
P0128 0128 THERMSTAT FNCTNEC-796
P0130 0130 A/F SENSOR1 (B1)EC-798
P0131 0131 A/F SENSOR1 (B1)EC-806
P0132 0132 A/F SENSOR1 (B1)EC-814
P0133 0133 A/F SENSOR1 (B1)EC-822
P0137 0137 HO2S2 (B1)EC-831
P0138 0138 HO2S2 (B1)EC-840
P0139 0139 HO2S2 (B1)EC-852
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-596
< SERVICE INFORMATION >[VK45DE]
INDEX FOR DTC
P0150 0150 A/F SENSOR1 (B2)
EC-798
P0151 0151 A/F SENSOR1 (B2)EC-806
P0152 0152 A/F SENSOR1 (B2)EC-814
P0153 0153 A/F SENSOR1 (B2)EC-822
P0157 0157 HO2S2 (B2)EC-831
P0158 0158 HO2S2 (B2)EC-840
P0159 0159 HO2S2 (B2)EC-852
P0171 0171 FUEL SYS-LEAN-B1EC-861
P0172 0172 FUEL SYS-RICH-B1EC-871
P0174 0174 FUEL SYS-LEAN-B2EC-861
P0175 0175 FUEL SYS-RICH-B2EC-871
P0181 0181 FTT SENSOREC-881
P0182 0182 FTT SEN/CIRCUITEC-885
P0183 0183 FTT SEN/CIRCUITEC-885
P0222 0222 TP SEN 1/CIRC-B1EC-889
P0223 0223 TP SEN 1/CIRC-B1EC-889
P0300 0300 MULTI CYL MISFIREEC-895
P0301 0301 CYL 1 MISFIREEC-895
P0302 0302 CYL 2 MISFIREEC-895
P0303 0303 CYL 3 MISFIREEC-895
P0304 0304 CYL 4 MISFIREEC-895
P0305 0305 CYL 5 MISFIREEC-895
P0306 0306 CYL 6 MISFIREEC-895
P0307 0307 CYL 7 MISFIREEC-895
P0308 0308 CYL 8 MISFIREEC-895
P0327 0327 KNOCK SEN/CIRC-B1EC-902
P0328 0328 KNOCK SEN/CIRC-B1EC-902
P0332 0332 KNOCK SEN/CIRC-B2EC-902
P0333 0333 KNOCK SEN/CIRC-B2EC-902
P0335 0335 CKP SEN/CIRCUITEC-906
P0340 0340 CMP SEN/CIRC-B1 EC-911
P0420 0420 TW CATALYST SYS-B1EC-917
P0430 0430 TW CATALYST SYS-B2EC-917
P0441 0441 EVAP PURG FLOW/MONEC-921
P0442 0442 EVAP SMALL LEAKEC-926
P0443 0443 PURG VOLUME CONT/VEC-933
P0444 0444 PURG VOLUME CONT/VEC-940
P0445 0445 PURG VOLUME CONT/VEC-940
P0447 0447 VENT CONTROL VALVEEC-946
P0448 0448 VENT CONTROL VALVEEC-951
P0451 0451 EVAP SYS PRES SENEC-957
P0452 0452 EVAP SYS PRES SENEC-960
DTC*1
Items
(CONSULT-III screen terms) Reference page
CONSULT-III
GST*
2ECM*3
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

INDEX FOR DTCEC-597
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
OP0453 0453 EVAP SYS PRES SEN
EC-966
P0455 0455 EVAP GROSS LEAKEC-973
P0456 0456 EVAP VERY SML LEAKEC-979
P0460 0460 FUEL LEV SEN SLOSHEC-986
P0461 0461 FUEL LEVEL SENSOREC-988
P0462 0462 FUEL LEVL SEN/CIRCEC-990
P0463 0463 FUEL LEVL SEN/CIRCEC-990
P0500 0500
VEH SPEED SEN/CIRC*5EC-992
P0506 0506 ISC SYSTEM EC-994
P0507 0507 ISC SYSTEMEC-996
P0550 0550 PW ST P SEN/CIRCEC-998
P0603 0603 ECM BACK UP/CIRCUITEC-1003
P0605 0605 ECMEC-1007
P0643 0643 SENSOR POWER/CIRCEC-1009
P0700 0700 TCM AT- 1 0 1
P0705 0705 PNP SW/CIRCAT- 1 0 2
P0710 0710 ATF TEMP SEN/CIRCAT- 1 3 2
P0717 0717 TURBINE SENSORAT- 1 0 6
P0720 0720
VEH SPD SEN/CIR AT*5AT- 1 0 8
P0731 0731 A/T 1ST GR FNCTN AT- 11 4
P0732 0732 A/T 2ND GR FNCTNAT- 11 6
P0733 0733 A/T 3RD GR FNCTNAT- 11 8
P0734 0734 A/T 4TH GR FNCTNAT- 1 2 0
P0735 0735 A/T 5TH GR FNCTNAT- 1 2 2
P0740 0740 TCC SOLENOID/CIRCAT- 1 2 4
P0744 0744 A/T TCC S/V FNCTNAT- 1 2 6
P0745 0745 L/PRESS SOL/CIRCAT- 1 2 8
P0850 0850 P-N POS SW/CIRCUITEC-1014
P1140 1140 INTK TIM S/CIRC-B1EC-1019
P1145 1145 INTK TIM S/CIRC-B2EC-1019
P1148 1148 CLOSED LOOP-B1EC-1027
P1168 1168 CLOSED LOOP-B2EC-1027
P1211 1211 TCS C/U FUNCTNEC-1028
P1212 1212 TCS/CIRC EC-1029
P1217 1217 ENG OVER TEMPEC-1030
P1225 1225 CTP LEARNING-B1EC-1041
P1226 1226 CTP LEARNING-B1EC-1043
P1421 1421 COLD START CONTROLEC-1045
P1564 1564 ASCD SWEC-1047 (Models with ICC)
EC-1053
(Models with ASCD)
P1568 1568 ICC COMMAND VALUE*
6EC-1059
P1572 1572 ASCD BRAKE SW EC-1060 (Models with ICC)
EC-1068
(Models with ASCD)
DTC*
1
Items
(CONSULT-III screen terms) Reference page
CONSULT-III
GST*
2ECM*3
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-598
< SERVICE INFORMATION >[VK45DE]
INDEX FOR DTC
*1: 1st trip DTC No. is
the same as DTC No.
*2: This number is prescribed by SAE J2012.
*3: In Diagnostic Test Mode II (Self-diagnostic results), this number is controlled by NISSAN.
*4: The troubleshooting for this DTC needs CONSULT-III.
*5: When the fail-safe operations for both self-diagnoses occur, the MIL illuminates.
*6: Models with ICC.
Alphabetical IndexINFOID:0000000001326484
P1574 1574 ASCD VHL SPD SEN EC-1075 (Models with ICC)
EC-1077
(Models with ASCD)
P1610 1610 LOCK MODE BL-4
P1611 1611 ID DISCARD, IMM-ECMBL-4
P1612 1612 CHAIN OF ECM-IMMU BL-4
P1614 1614 CHAIN OF IMMU-KEYBL-4
P1615 1615 DIFFERENCE OF KEYBL-4
P1715 1715 IN PULY SPEEDEC-1079
P1730 1730 A/T INTERLOCK AT- 1 3 9
P1752 1752 I/C SOLENOID/CIRCAT- 1 4 3
P1757 1757 FR/B SOLENOID/CIRCAT- 1 4 5
P1762 1762 D/C SOLENOID/CIRCAT- 1 4 7
P1767 1767 HLR/C SOL/CIRCAT- 1 4 9
P1772 1772 LC/B SOLENOID/CIRCAT- 1 5 1
P1774 1774 LC/B SOLENOID FNCTAT- 1 5 3
P1800 1800 VIAS S/V-1EC-1080
P1805 1805 BRAKE SW/CIRCUITEC-1084
P2100 2100 ETC MOT PWR-B1EC-1088
P2101 2101 ETC FNCTN/CIRC-B1EC-1092
P2103 2103 ETC MOT PWREC-1088
P2118 2118 ETC MOT-B1EC-1098
P2119 2119 ETC ACTR-B1 EC-1102
P2122 2122 APP SEN 1/CIRC EC-1104
P2123 2123 APP SEN 1/CIRCEC-1104
P2127 2127 APP SEN 2/CIRC E C - 111 0
P2128 2128 APP SEN 2/CIRCE C - 111 0
P2135 2135 TP SENSOR-B1E C - 111 6
P2138 2138 APP SENSOREC-1122
P2A00 2A00 A/F SENSOR1 (B1) EC-1129
P2A03 2A03 A/F SENSOR1 (B2)EC-1129
DTC*1
Items
(CONSULT-III screen terms) Reference page
CONSULT-III
GST*
2ECM*3
Items
(CONSULT-III screen terms) DTC*
1
Reference page
CONSULT-III
GST*
2ECM*3
A/F SEN1 HTR (B1) P0031 0031 EC-739
A/F SEN1 HTR (B1) P0032 0032EC-739
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

INDEX FOR DTCEC-599
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
OA/F SEN1 HTR (B2) P0051 0051
EC-739
A/F SEN1 HTR (B2) P0052 0052EC-739
A/F SENSOR1 (B1) P0130 0130EC-798
A/F SENSOR1 (B1) P0131 0131EC-806
A/F SENSOR1 (B1) P0132 0132EC-814
A/F SENSOR1 (B1) P0133 0133EC-822
A/F SENSOR1 (B1) P2A00 2A00EC-1129
A/F SENSOR1 (B2) P0150 0150 EC-798
A/F SENSOR1 (B2) P0151 0151EC-806
A/F SENSOR1 (B2) P0152 0152EC-814
A/F SENSOR1 (B2) P0153 0153EC-822
A/F SENSOR1 (B2) P2A03 2A03EC-1129
A/T 1ST GR FNCTN P0731 0731 AT- 11 4
A/T 2ND GR FNCTN P0732 0732AT- 11 6
A/T 3RD GR FNCTN P0733 0733AT- 11 8
A/T 4THT GR FNCTN P0734 0734AT- 1 2 0
A/T 5TH GR FNCTN P0735 0735AT- 1 2 2
A/T INTERLOCK P1730 1730AT- 1 3 9
A/T TCC S/V FNCTN P0744 0744AT- 1 2 6
APP SEN 1/CIRC P2122 2122EC-1104
APP SEN 1/CIRC P2123 2123EC-1104
APP SEN 2/CIRC P2127 2127 E C - 111 0
APP SEN 2/CIRC P2128 2128E C - 111 0
APP SENSOR P2138 2138EC-1122
ASCD BRAKE SW P1572 1572EC-1060 (Models with ICC)
EC-1068
(Models with ASCD)
ASCD SW P1564 1564 EC-1047
(Models with ICC)
EC-1053
(Models with ASCD)
ASCD VHL SPD SEN P1574 1574 EC-1075
(Models with ICC)
EC-1077
(Models with ASCD)
ATF TEMP SEN/CIRC P0710 0710 AT- 1 3 2
BRAKE SW/CIRCUIT P1805 1805EC-1084
CAN COMM CIRCUIT U1000
1000*4EC-724
CAN COMM CIRCUIT U10011001*4EC-724
CHAIN OF ECM-IMMU P1612 1612 BL-4
CHAIN OF IMMU-KEY P1614 1614BL-4
CKP SEN/CIRCUIT P0335 0335EC-906
CLOSED LOOP-B1 P1148 1148EC-1027
CLOSED LOOP-B2 P1168 1168EC-1027
CMP SEN/CIRC-B1 P0340 0340 EC-911
COLD START CONTROL P1421 1421EC-1045
CONTROL UNIT(CAN) U1010 1010 EC-726
CTP LEARNING-B1 P1225 1225EC-1041
Items
(CONSULT-III screen terms) DTC*
1
Reference page
CONSULT-III
GST*
2ECM*3
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-600
< SERVICE INFORMATION >[VK45DE]
INDEX FOR DTC
CTP LEARNING-B1 P1226 1226
EC-1043
CYL 1 MISFIRE P0301 0301 EC-895
CYL 2 MISFIRE P0302 0302EC-895
CYL 3 MISFIRE P0303 0303EC-895
CYL 4 MISFIRE P0304 0304EC-895
CYL 5 MISFIRE P0305 0305EC-895
CYL 6 MISFIRE P0306 0306EC-895
CYL 7 MISFIRE P0307 0307EC-895
CYL 8 MISFIRE P0308 0308EC-895
D/C SOLENOID/CIRC P1762 1762 AT- 1 4 7
DIFFERENCE OF KEY P1615 1615 BL-4
ECM P0605 0605EC-1007
ECM BACK UP/CIRCUIT P0603 0603EC-1003
ECT SEN/CIRC P0117 0117 EC-779
ECT SEN/CIRC P0118 0118EC-779
ECT SENSOR P0125 0125EC-790
ENG OVER TEMP P1217 1217EC-1030
ETC ACTR-B1 P2119 2119 EC-1102
ETC FNCTN/CIRC-B1 P2101 2101EC-1092
ETC MOT-B1 P2118 2118EC-1098
ETC MOT PWR-B1 P2100 2100EC-1088
ETC MOT PWR P2103 2103EC-1088
EVAP GROSS LEAK P0455 0455 EC-973
EVAP PURG FLOW/MON P0441 0441EC-921
EVAP SMALL LEAK P0442 0442EC-926
EVAP SYS PRES SEN P0451 0451EC-957
EVAP SYS PRES SEN P0452 0452EC-960
EVAP SYS PRES SEN P0453 0453EC-966
EVAP VERY SML LEAK P0456 0456EC-979
FR/B SOLENOID/CIRC P1757 1757 AT- 1 4 5
FTT SEN/CIRCUIT P0182 0182EC-885
FTT SEN/CIRCUIT P0183 0183EC-885
FTT SENSOR P0181 0181EC-881
FUEL LEV SEN SLOSH P0460 0460EC-986
FUEL LEVEL SENSOR P0461 0461EC-988
FUEL LEVL SEN/CIRC P0462 0462EC-990
FUEL LEVL SEN/CIRC P0463 0463EC-990
FUEL SYS-LEAN-B1 P0171 0171EC-861
FUEL SYS-LEAN-B2 P0174 0174EC-861
FUEL SYS-RICH-B1 P0172 0172EC-871
FUEL SYS-RICH-B2 P0175 0175EC-871
HLR/C SOL/CIRC P1767 1767 AT- 1 4 9
Items
(CONSULT-III screen terms) DTC*
1
Reference page
CONSULT-III
GST*
2ECM*3
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
