AT-258
< SERVICE INFORMATION >
OVERHAUL
22. Band servo anchor end pin 23. Detent spring 24. Spacer
25. Seal ring 26. Snap ring 27. Return spring
28. O-ring 29. Servo assembly 30. Snap ring
31. Sub-harness 32. Control valve with TCM 33. Bracket
34. A/T fluid temperature sensor 2 35. Clip 36. Oil pan mounting bolt
37. Oil pan 38. Magnet 39. Drain plug
40. Drain plug gasket 41. Oil pan gasket 42. Terminal cord assembly
43. O-ring 44. Retaining pin 45. Transmission case
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-8, "
Component".
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

OVERHAULAT-259
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
VK45DE models for 4WD
SCIA8101E
1. Rear oil seal 2. Self-sealing bolt 3. Bracket
4. Adapter case 5. Parking actuator support 6. Parking pawl
7. Return spring 8. Pawl shaft 9. Seal ring
10. Needle bearing 11. Gasket 12. Revolution sensor
13. Parking gear 14. Output shaft 15. Bearing race
16. Needle bearing 17. Manual plate 18. Parking rod
19. Manual shaft oil seal 20. Manual shaft 21. O-ring
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

AT-260
< SERVICE INFORMATION >
OVERHAUL
22. Band servo anchor end pin 23. Detent spring 24. Spacer
25. Seal ring 26. Snap ring 27. Return spring
28. O-ring 29. Servo assembly 30. Snap ring
31. Sub-harness 32. Control valve with TCM 33. Bracket
34. A/T fluid temperature sensor 2 35. Clip 36. Bracket
37. Bracket 38. Oil pan mounting bolt 39. Oil pan
40. Magnet 41. Drain plug 42. Drain plug gasket
43. Oil pan gasket 44. Terminal cord assembly 45. O-ring
46. Retaining pin 47. Transmission case
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-8, "
Component".
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

DISASSEMBLYAT-267
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
DISASSEMBLY
DisassemblyINFOID:0000000001327403
CAUTION:
Do not disassemble parts behind drum support. Refer to AT-16, "
Cross-Sectional View (2WD Models)",
AT-17, "
Cross-Sectional View (VQ35DE Models for AWD)" or AT-18, "Cross-Sectional View (VK45DE
Models for AWD)".
1. Drain ATF through drain plug.
2. Remove torque converter by holding it firmly and turning while pulling straight out.
3. Check torque converter one-way clutch using check tool as shown in the figure.
a. Insert check tool into the groove of bearing support built into one-way clutch outer race.
b. When fixing bearing support with check tool, rotate one-way clutch spline using screwdriver.
c. Make sure that inner race rotates clockwise only. If not, replace torque converter assembly.
4. Remove tightening bolts (1) for converter housing and transmis- sion case.
 : Bolt (8)
 Self-sealing bolts (2)
5. Remove converter housing from transmission case. CAUTION:
Be careful not to scratch converter housing.
SCIA5010E
SCIA3171E
SCIA7985E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

DISASSEMBLYAT-269
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P

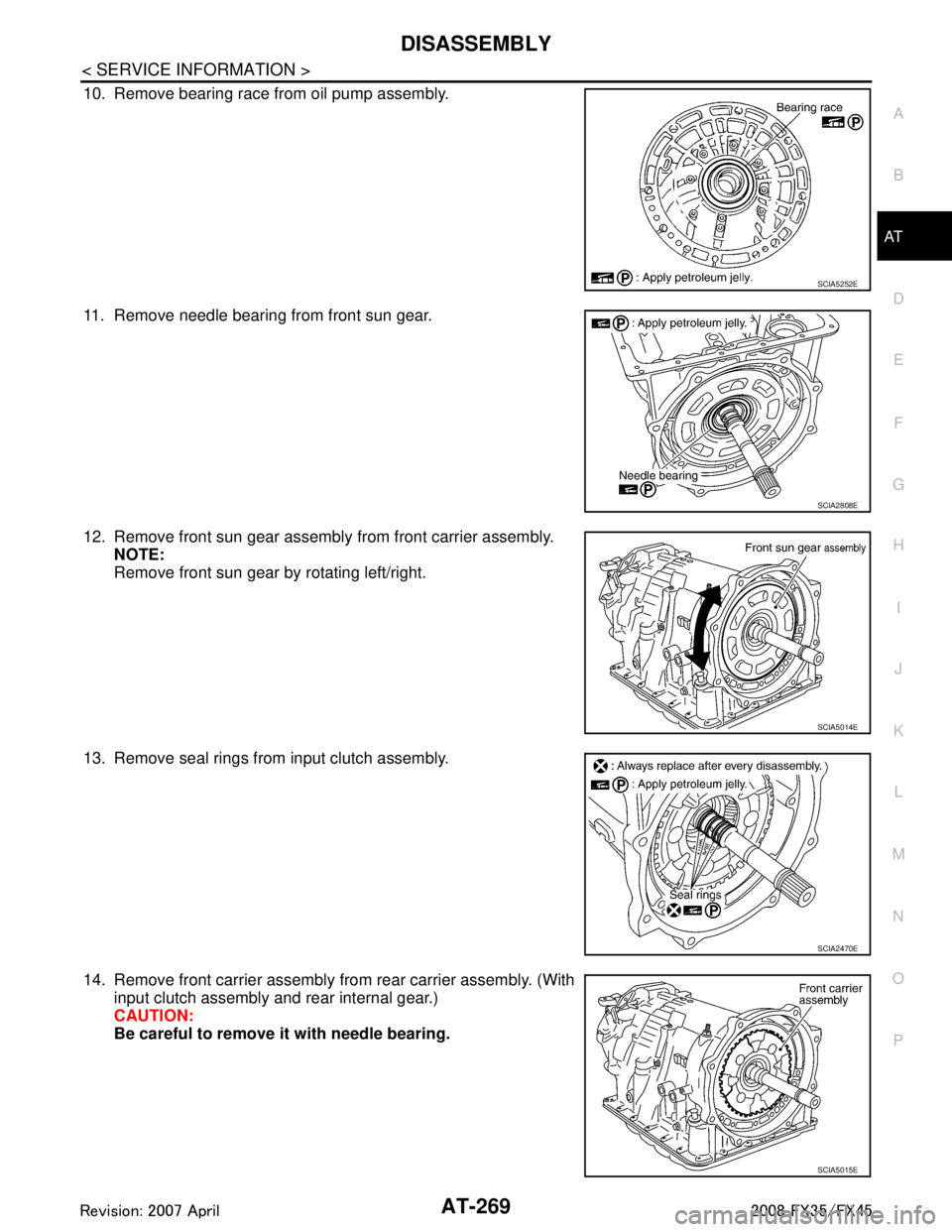

10. Remove bearing race from oil pump assembly.
11. Remove needle bearing from front sun gear.
12. Remove front sun gear assembly from front carrier assembly. NOTE:
Remove front sun gear by rotating left/right.
13. Remove seal rings from input clutch assembly.
14. Remove front carrier assembly from rear carrier assembly. (With input clutch assembly and rear internal gear.)
CAUTION:
Be careful to remove it with needle bearing.
SCIA5252E
SCIA2808E
SCIA5014E
SCIA2470E
SCIA5015E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

AT-276
< SERVICE INFORMATION >
DISASSEMBLY

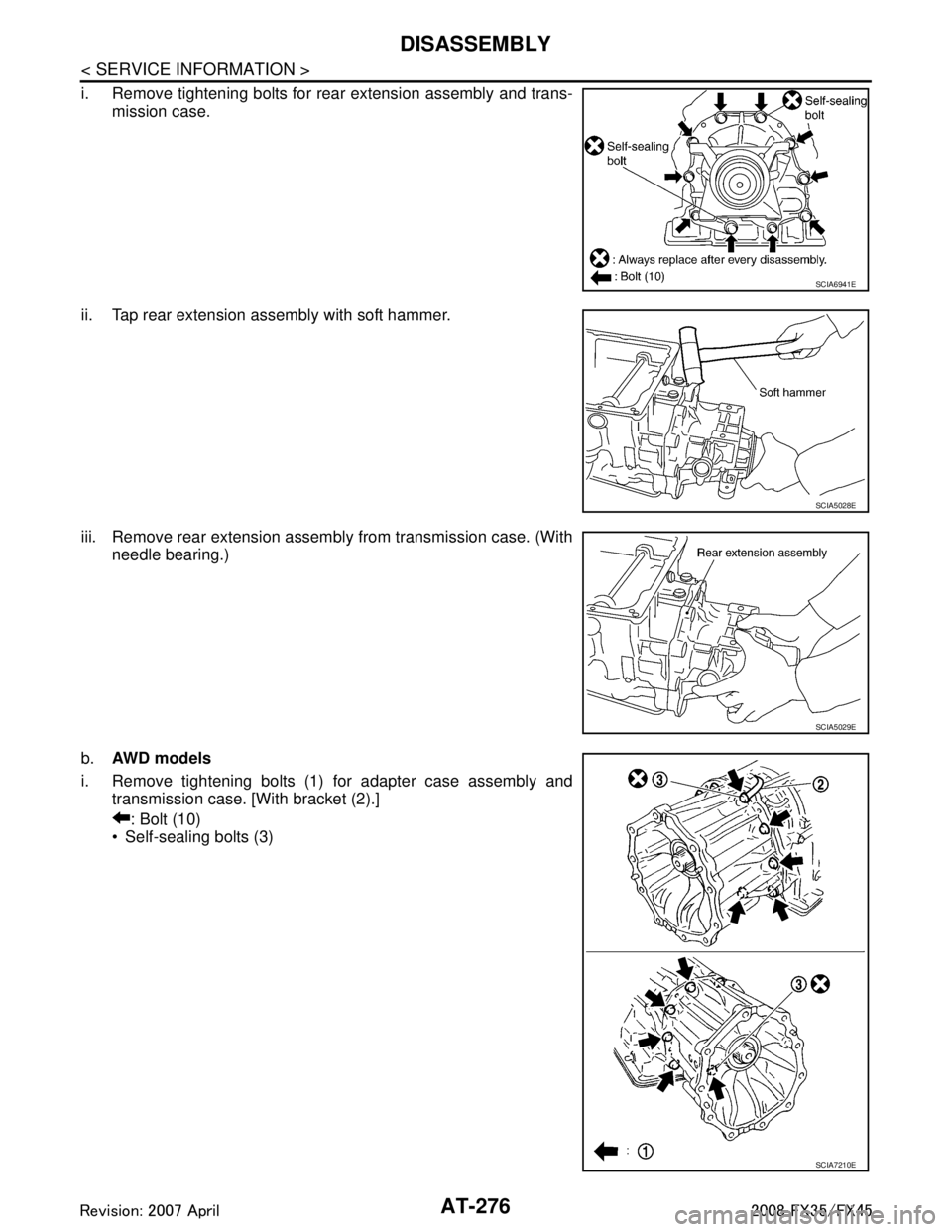

i. Remove tightening bolts for rear extension assembly and trans-mission case.
ii. Tap rear extension assembly with soft hammer.
iii. Remove rear extension assembly from transmission case. (With needle bearing.)
b. AWD models
i. Remove tightening bolts (1) for adapter case assembly and transmission case. [With bracket (2).]
: Bolt (10)
 Self-sealing bolts (3)
SCIA6941E
SCIA5028E
SCIA5029E
SCIA7210E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

AT-278
< SERVICE INFORMATION >
DISASSEMBLY
47. Remove parking gear from output shaft.
48. Remove seal rings from output shaft.
49. Remove needle bearing from transmission case.
50. Remove revolution sensor from transmission case.CAUTION:
 Do not subject it to impact by dropping or hitting it.
 Do not disassemble.
 Do not allow metal filings, etc. to get on the sensor's front
edge magnetic area.
 Do not place in an area affected by magnetism.
51. Remove reverse brake snap ring (fixing plate) using 2 flat- bladed screwdrivers.
NOTE:
Press out snap ring from the transmission case oil pan side gap
using a flat-bladed screwdriver, and remove it using another
screwdriver.
52. Remove reverse brake retaining plate from transmission case. Check facing for burns, cracks or damage. If necessary,
replace the plate.
SCIA5247E
SCIA5209E
SCIA5031E
SCIA2320E
SCIA5032E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

DISASSEMBLYAT-279
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P

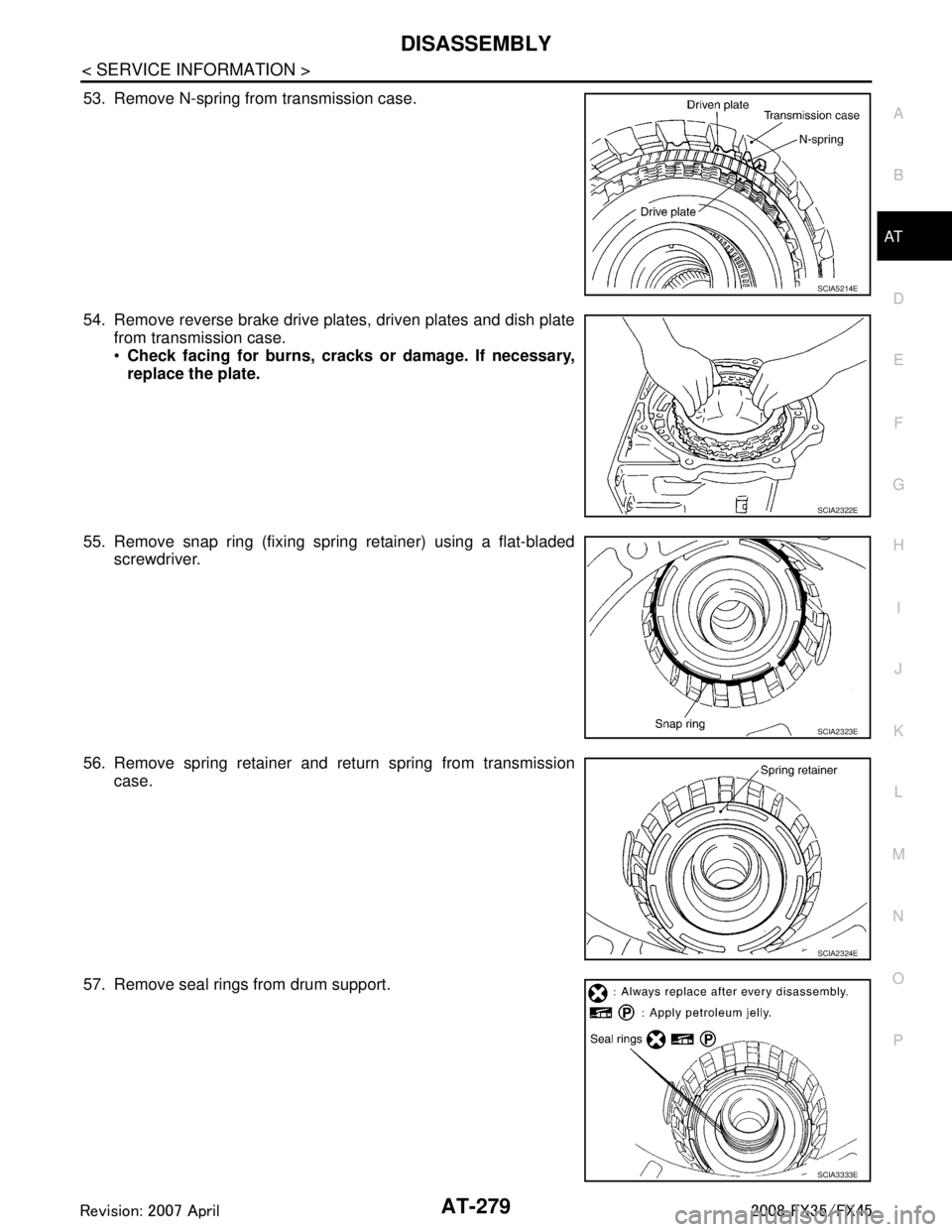

53. Remove N-spring from transmission case.
54. Remove reverse brake drive plates, driven plates and dish plate from transmission case.
Check facing for burns, cracks or damage. If necessary,
replace the plate.
55. Remove snap ring (fixing spring retainer) using a flat-bladed screwdriver.
56. Remove spring retainer and return spring from transmission case.
57. Remove seal rings from drum support.
SCIA5214E
SCIA2322E
SCIA2323E
SCIA2324E
SCIA3333E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

DISASSEMBLYAT-281
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P

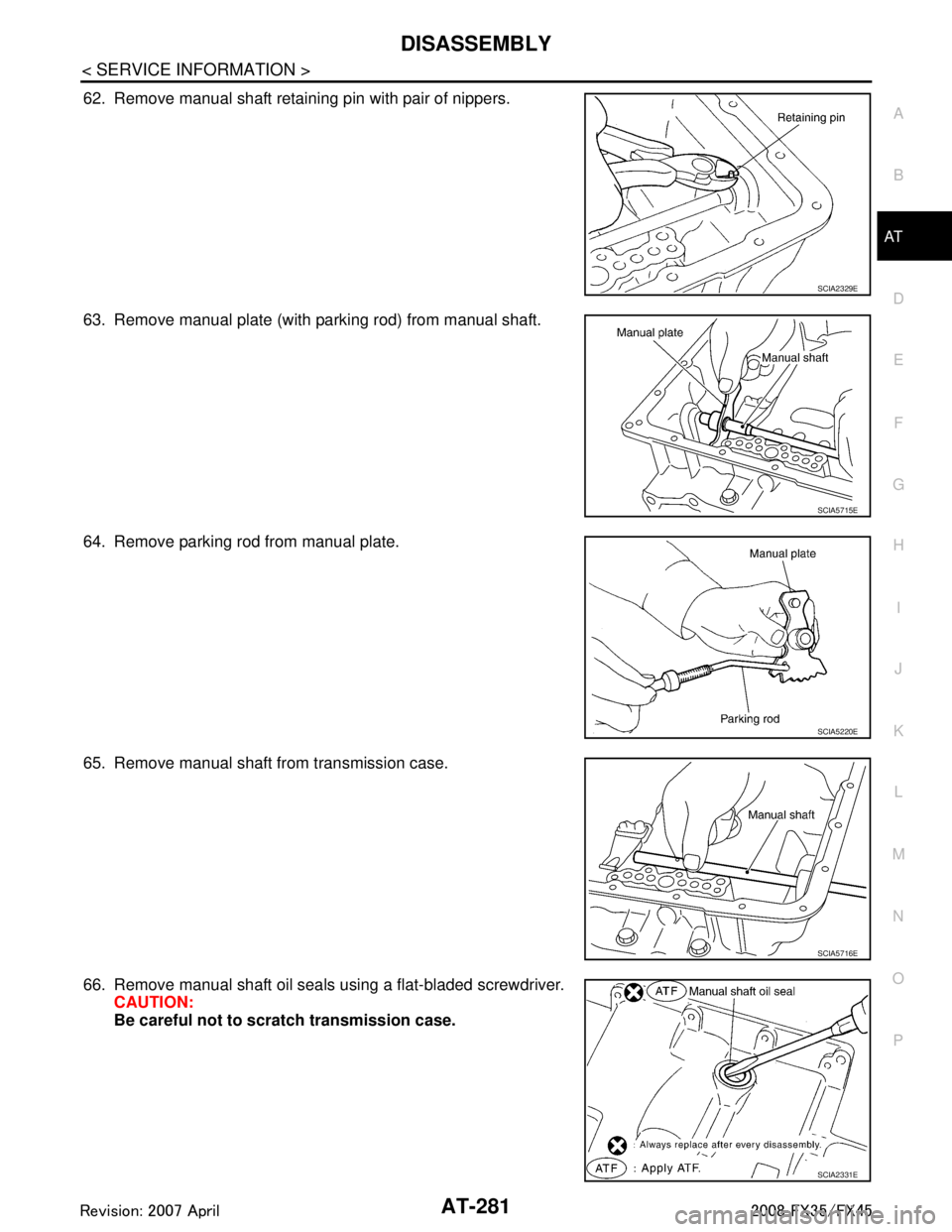

62. Remove manual shaft retaining pin with pair of nippers.
63. Remove manual plate (with parking rod) from manual shaft.
64. Remove parking rod from manual plate.
65. Remove manual shaft from transmission case.
66. Remove manual shaft oil seals using a flat-bladed screwdriver. CAUTION:
Be careful not to scratch transmission case.
SCIA2329E
SCIA5715E
SCIA5220E
SCIA5716E
SCIA2331E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

AT-284
< SERVICE INFORMATION >
DISASSEMBLY
VK45DE models

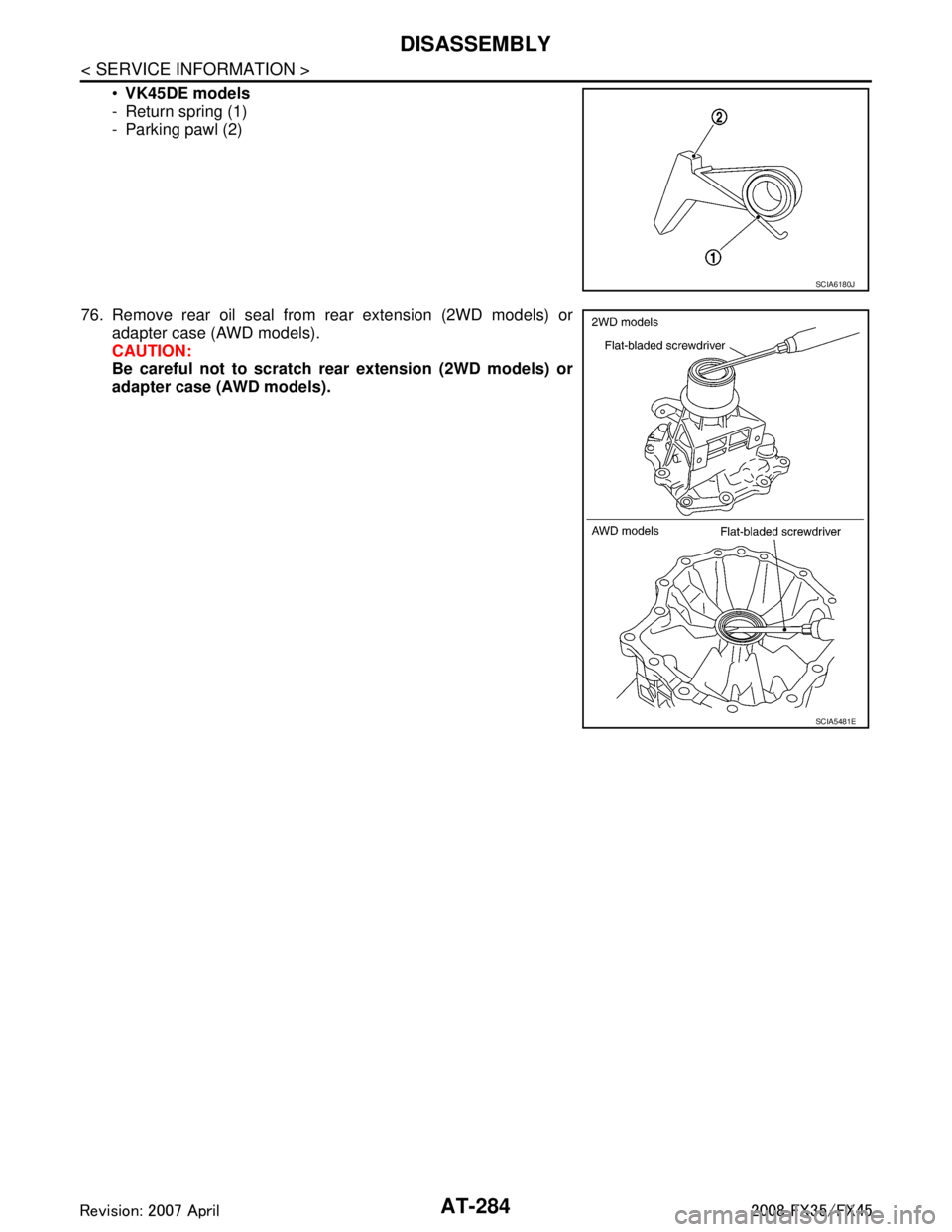

- Return spring (1)
- Parking pawl (2)
76. Remove rear oil seal from rear extension (2WD models) or adapter case (AWD models).
CAUTION:
Be careful not to scratch rear extension (2WD models) or
adapter case (AWD models).
SCIA6180J
SCIA5481E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
