seal INFINITI FX35 2008 Owner's Guide

REPAIR FOR COMPONENT PARTSAT-285
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
REPAIR FOR COMPONENT PARTS

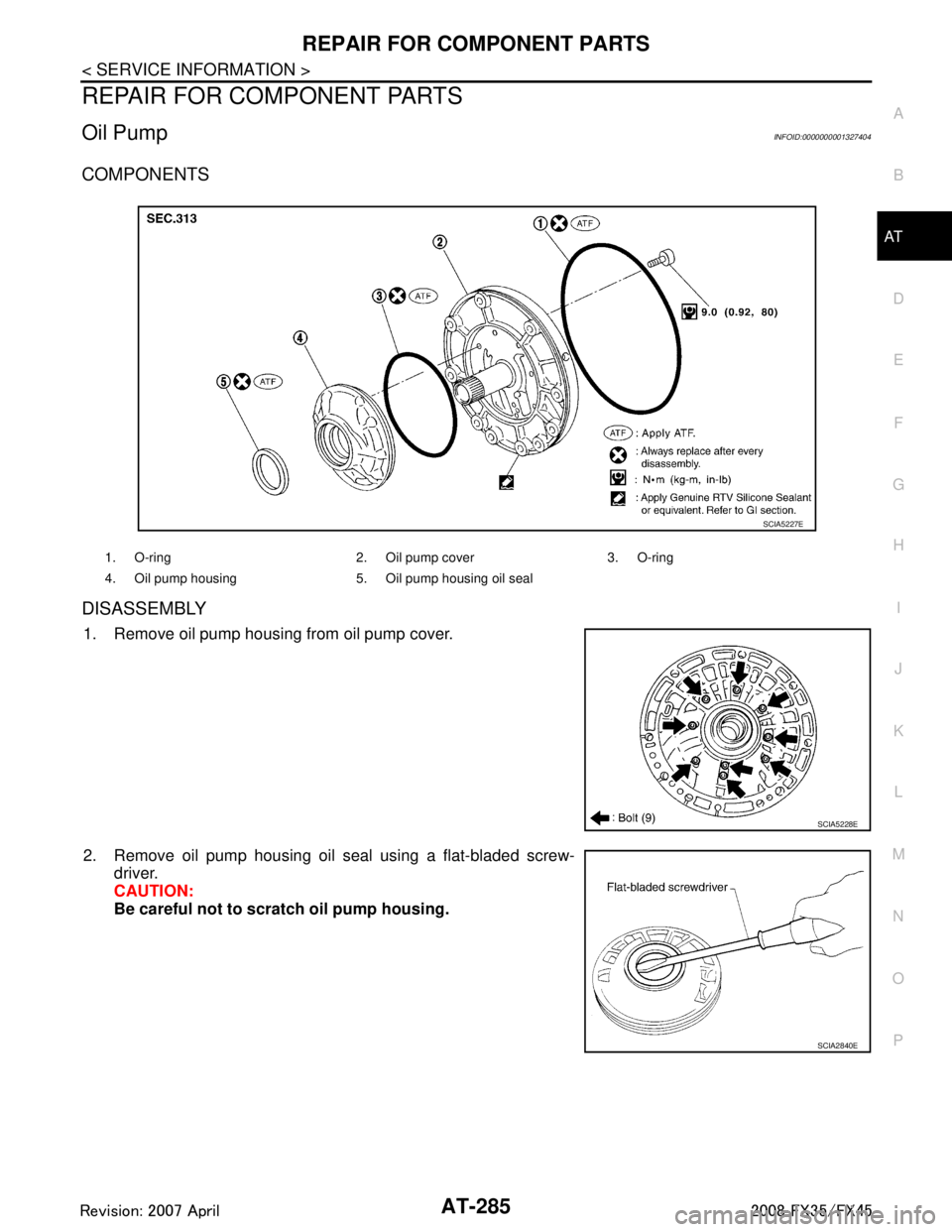

Oil PumpINFOID:0000000001327404
COMPONENTS
DISASSEMBLY
1. Remove oil pump housing from oil pump cover.
2. Remove oil pump housing oil seal using a flat-bladed screw- driver.
CAUTION:
Be careful not to scratch oil pump housing.
1. O-ring 2. Oil pump cover 3. O-ring
4. Oil pump housing 5. Oil pump housing oil seal
SCIA5227E
SCIA5228E
SCIA2840E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

REPAIR FOR COMPONENT PARTSAT-287
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P

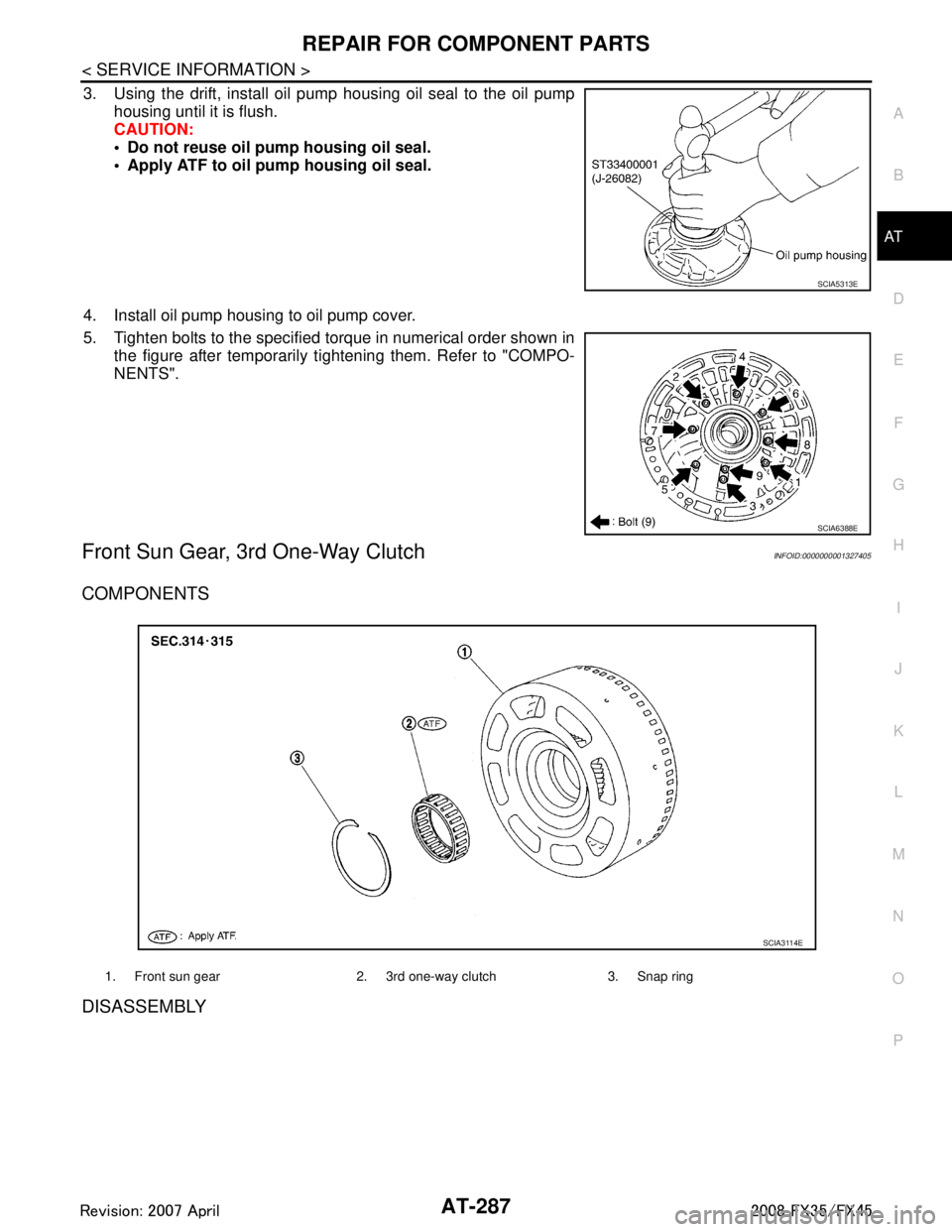

3. Using the drift, install oil pump housing oil seal to the oil pump housing until it is flush.
CAUTION:
 Do not reuse oil pump housing oil seal.
 Apply ATF to oil pump housing oil seal.
4. Install oil pump housing to oil pump cover.
5. Tighten bolts to the specified torque in numerical order shown in the figure after temporarily ti ghtening them. Refer to "COMPO-
NENTS".
Front Sun Gear, 3r d One-Way ClutchINFOID:0000000001327405
COMPONENTS
DISASSEMBLY
SCIA5313E
SCIA6388E
1. Front sun gear 2. 3rd one-way clutch 3. Snap ring
SCIA3114E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

AT-290
< SERVICE INFORMATION >
REPAIR FOR COMPONENT PARTS

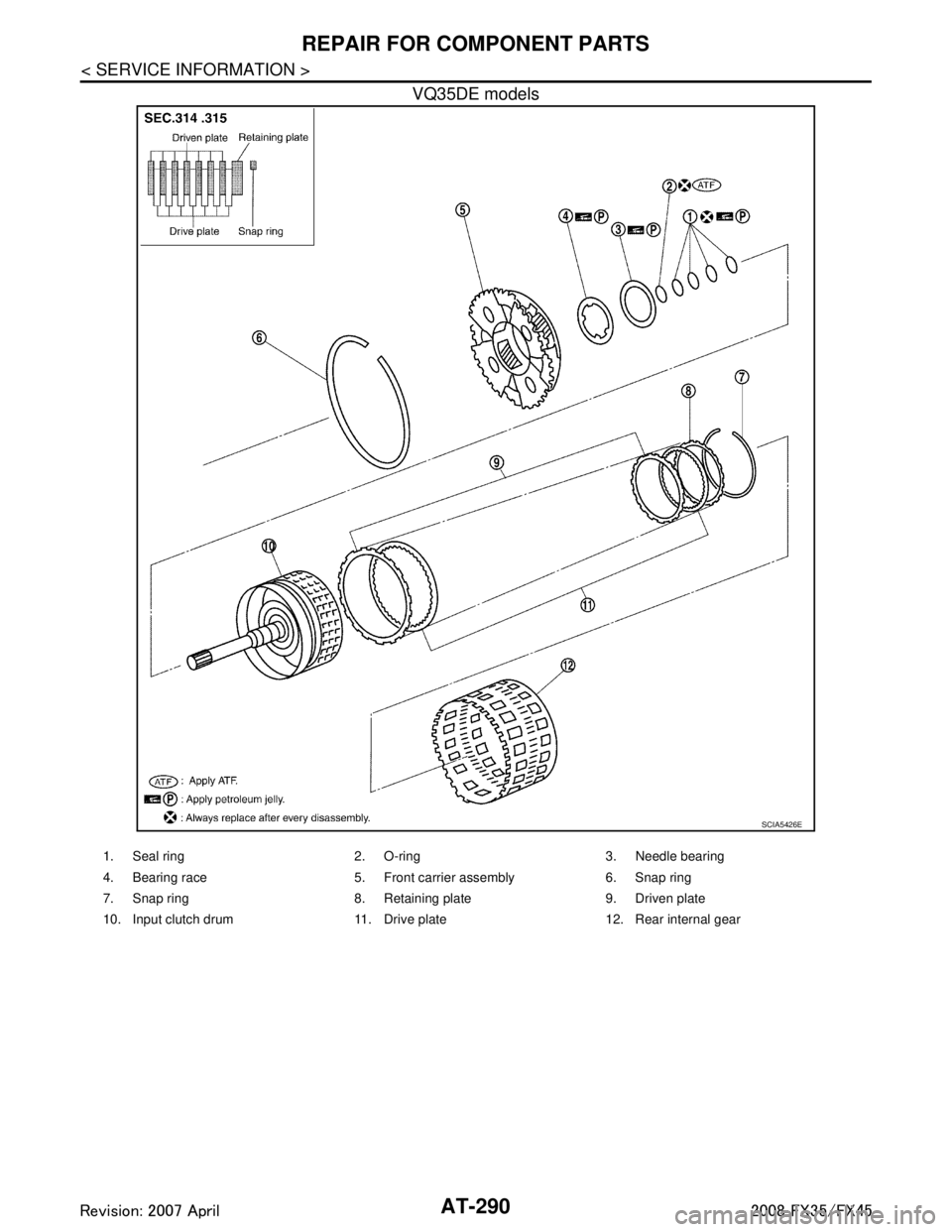

VQ35DE models
SCIA5426E
1. Seal ring 2. O-ring 3. Needle bearing
4. Bearing race 5. Front carrier assembly 6. Snap ring
7. Snap ring 8. Retaining plate 9. Driven plate
10. Input clutch drum 11. Drive plate 12. Rear internal gear
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

REPAIR FOR COMPONENT PARTSAT-291
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
VK45DE models
DISASSEMBLY
SCIA7070E
1. Seal ring 2. O-ring 3. Needle bearing
4. Bearing race 5. Front carrier assembly 6. Needle bearing
7. Snap ring 8. Snap ring 9. Retaining plate
10. Driven plate 11. Input clutch drum 12. Drive plate
13. Rear internal gear
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-8, "
Component".
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

AT-292
< SERVICE INFORMATION >
REPAIR FOR COMPONENT PARTS

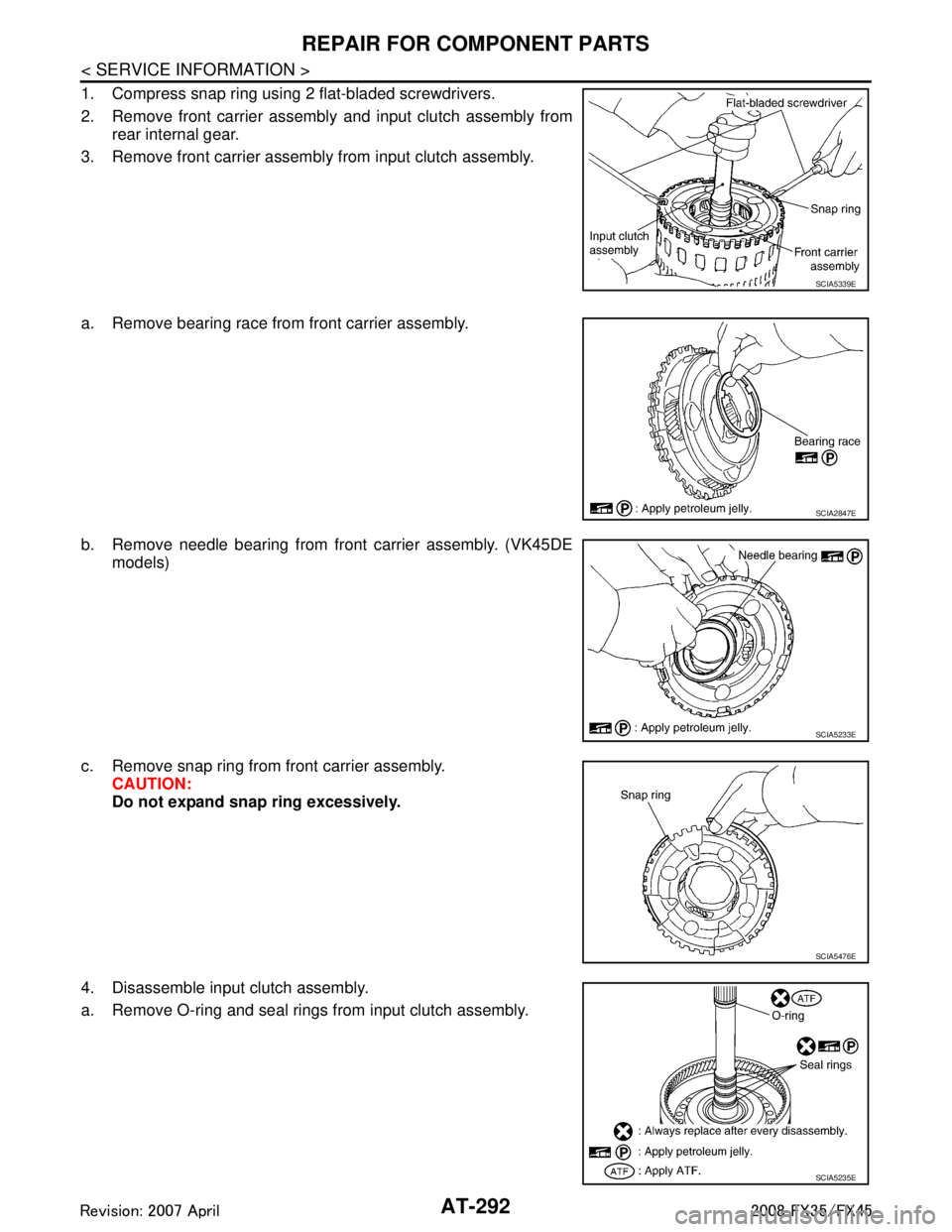

1. Compress snap ring using 2 flat-bladed screwdrivers.
2. Remove front carrier assembly and input clutch assembly fromrear internal gear.
3. Remove front carrier assembly from input clutch assembly.
a. Remove bearing race from front carrier assembly.
b. Remove needle bearing from front carrier assembly. (VK45DE models)
c. Remove snap ring from front carrier assembly. CAUTION:
Do not expand snap ring excessively.
4. Disassemble input clutch assembly.
a. Remove O-ring and seal rings from input clutch assembly.
SCIA5339E
SCIA2847E
SCIA5233E
SCIA5476E
SCIA5235E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

AT-294
< SERVICE INFORMATION >
REPAIR FOR COMPONENT PARTS

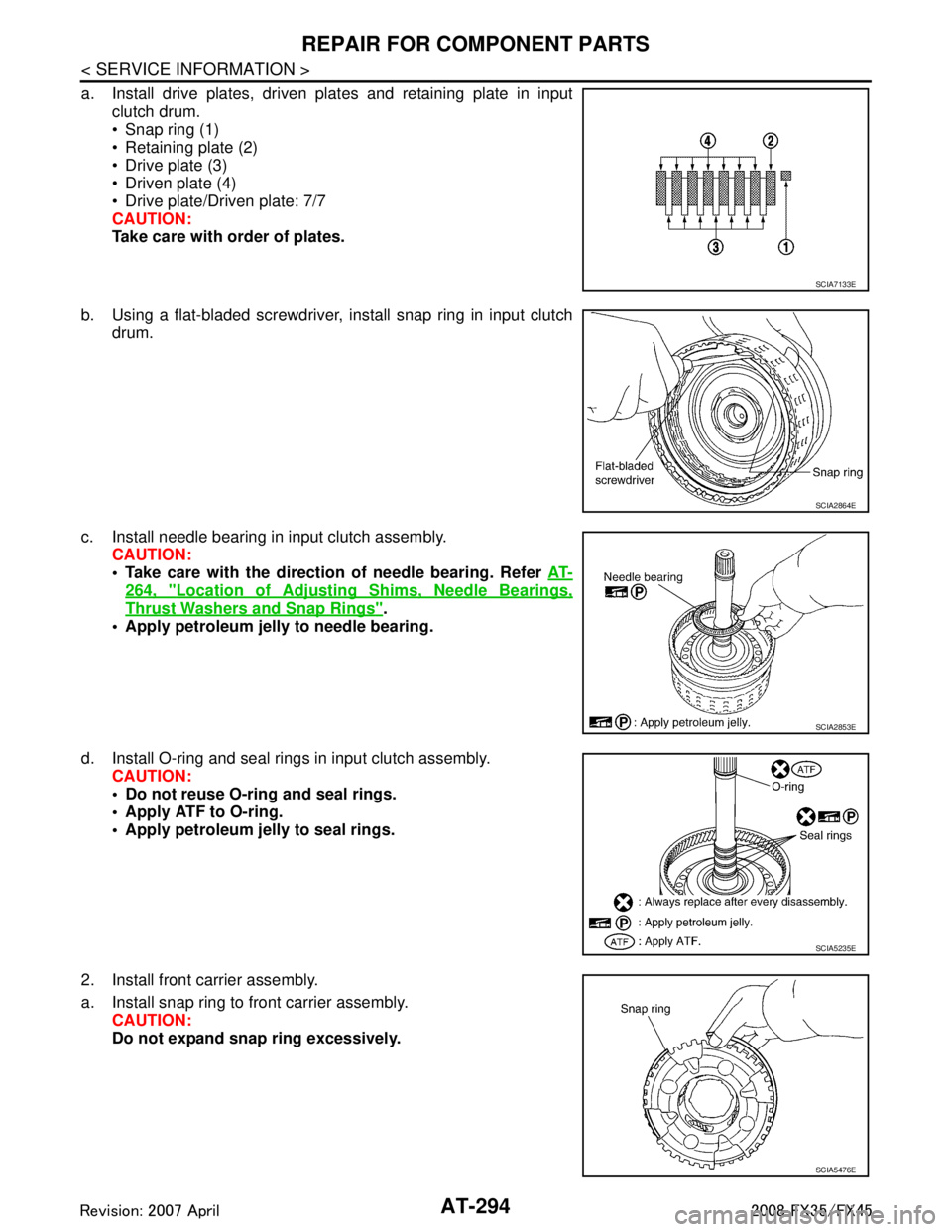

a. Install drive plates, driven plates and retaining plate in inputclutch drum.
 Snap ring (1)
 Retaining plate (2)
 Drive plate (3)
 Driven plate (4)
 Drive plate/Driven plate: 7/7
CAUTION:
Take care with order of plates.
b. Using a flat-bladed screwdriver, install snap ring in input clutch drum.
c. Install needle bearing in input clutch assembly. CAUTION:
 Take care with the direction of needle bearing. Refer AT-
264, "Location of Adjusting Shims, Needle Bearings,
Thrust Washers and Snap Rings".
 Apply petroleum jelly to needle bearing.
d. Install O-ring and seal rings in input clutch assembly. CAUTION:
 Do not reuse O-ring and seal rings.
 Apply ATF to O-ring.
 Apply petroleum je lly to seal rings.
2. Install front carrier assembly.
a. Install snap ring to front carrier assembly. CAUTION:
Do not expand snap ring excessively.
SCIA7133E
SCIA2864E
SCIA2853E
SCIA5235E
SCIA5476E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

AT-296
< SERVICE INFORMATION >
REPAIR FOR COMPONENT PARTS
VK45DE models
DISASSEMBLY
1. Remove needle bearing and bearing races from high and low reverse clutch hub.VQ35DE models
 VK45DE models
1. Needle bearing 2. Bearing race 3. Snap ring
4. High and low reverse clutch hub 5. Needle bearing 6. Snap ring
7. 1st one-way clutch 8. Rear sun gear 9. Seal ring
10. Mid sun gear
SCIA7072E
1. Needle bearing 2. Bearing race 3. Snap ring
4. High and low reverse clutch hub 5. Needle bearing 6. Snap ring
7. 1st one-way clutch 8. Rear sun gear 9. Seal ring
10. Mid sun gear
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-8, "
Component".
SCIA2854E
SCIA5238E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

AT-298
< SERVICE INFORMATION >
REPAIR FOR COMPONENT PARTS
a. Using a flat-bladed screwdriver, remove snap ring from rear sungear.
b. Remove 1st one-way clutch from rear sun gear.
5. Remove seal rings from mid sun gear.
INSPECTION
High and Low Reverse Clutch Hub Snap Ring, Rear Sun Gear Snap Ring
 Check for deformation, fatigue or damage. CAUTION:
If necessary, replace the snap ring.
1st One-way Clutch
 Check frictional surface for wear or damage.CAUTION:
If necessary, replace the 1st one-way clutch.
Mid Sun Gear
 Check for deformation, fatigue or damage.CAUTION:
If necessary, replace the mid sun gear.
Rear Sun Gear
 Check for deformation, fatigue or damage.CAUTION:
If necessary, replace the rear sun gear.
High and Low Reverse Clutch Hub
 Check for deformation, fatigue or damage.CAUTION:
If necessary, replace the high and low reverse clutch hub.
SCIA2859E
SCIA4633E
SCIA2861E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

REPAIR FOR COMPONENT PARTSAT-299
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P

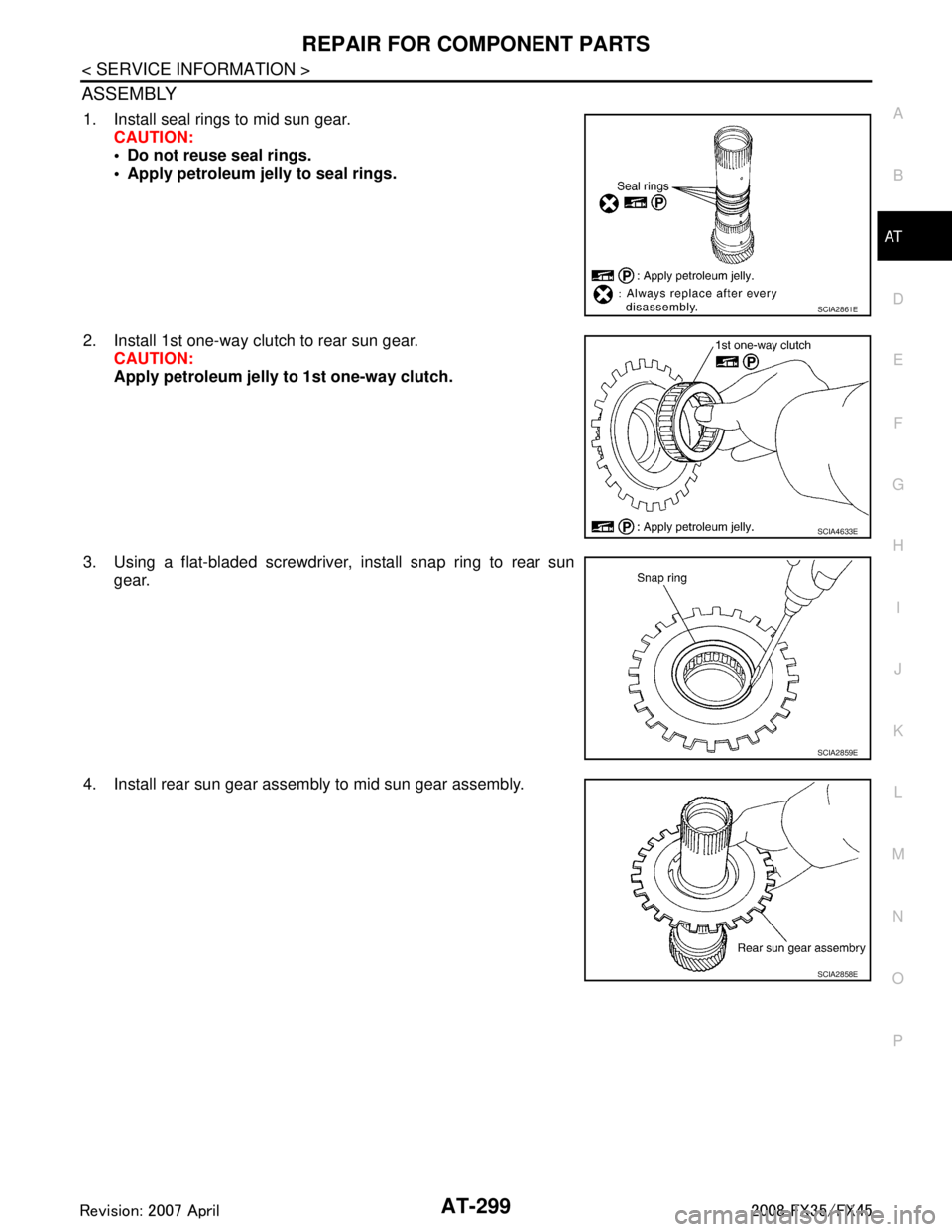

ASSEMBLY
1. Install seal rings to mid sun gear. CAUTION:
 Do not reuse seal rings.
 Apply petroleum jelly to seal rings.
2. Install 1st one-way clutch to rear sun gear. CAUTION:
Apply petroleum jelly to 1st one-way clutch.
3. Using a flat-bladed screwdriver, install snap ring to rear sun gear.
4. Install rear sun gear assembly to mid sun gear assembly.
SCIA2861E
SCIA4633E
SCIA2859E
SCIA2858E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

AT-306
< SERVICE INFORMATION >
ASSEMBLY
ASSEMBLY

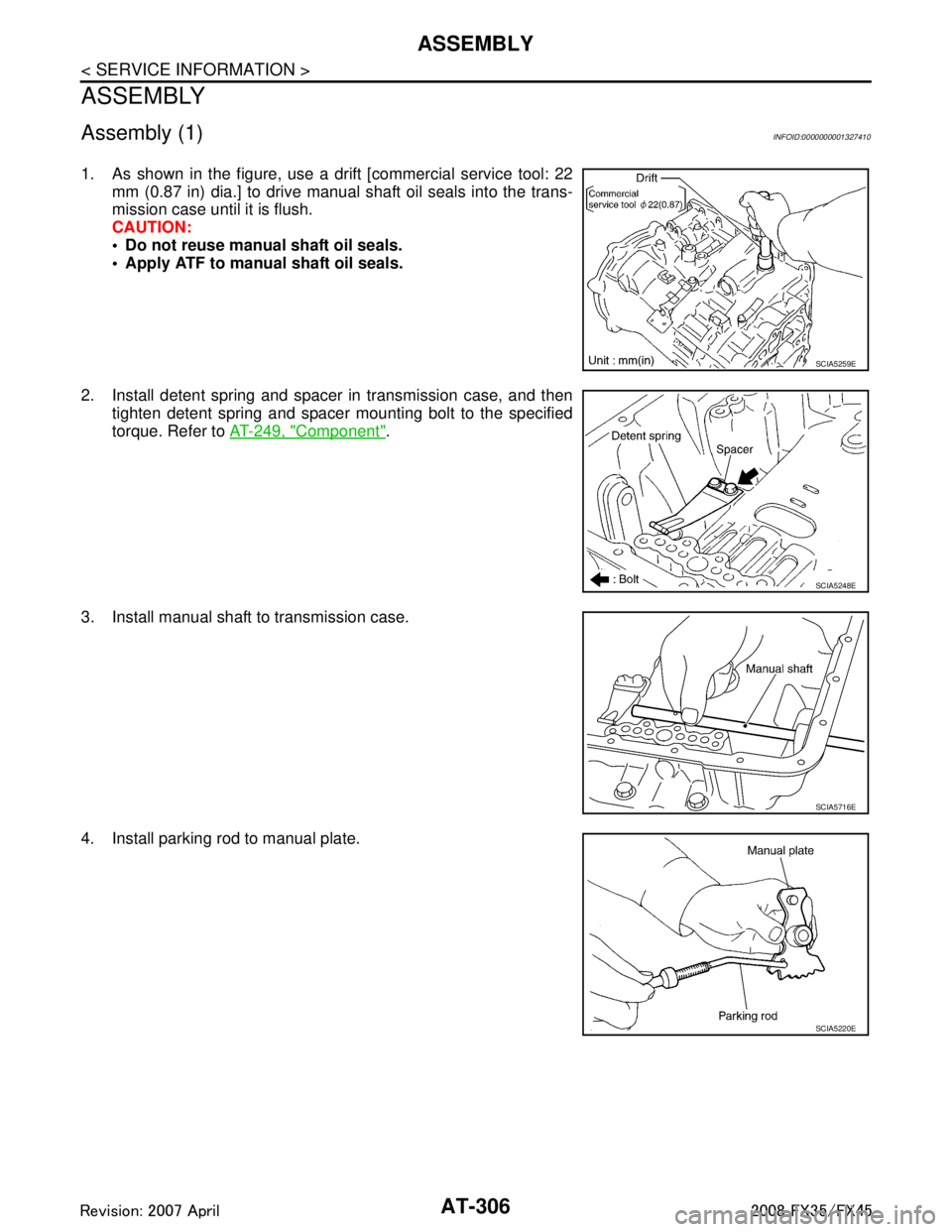

Assembly (1)INFOID:0000000001327410
1. As shown in the figure, use a drift [commercial service tool: 22mm (0.87 in) dia.] to drive manual shaft oil seals into the trans-
mission case until it is flush.
CAUTION:
 Do not reuse manual shaft oil seals.
 Apply ATF to manual shaft oil seals.
2. Install detent spring and spacer in transmission case, and then tighten detent spring and spacer mounting bolt to the specified
torque. Refer to AT-249, "
Component".
3. Install manual shaft to transmission case.
4. Install parking rod to manual plate.
SCIA5259E
SCIA5248E
SCIA5716E
SCIA5220E
