ON-VEHICLE SERVICEAT-233
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
Rear Oil SealINFOID:0000000001327395
REMOVAL
1. Remove center muffler with power tool. Refer to EX-3, "Compo-
nent".
2. Remove rear propeller shaft. Refer to PR-9, "
Removal and
Installation".
3. Remove front propeller shaft (AWD models). Refer to PR-4,
"Removal and Installation".
4. Remove transfer assembly from A/T assembly (AWD models). Refer to TF-40, "
Removal and Installation".
5. Remove rear oil seal using a flat-bladed screwdriver. CAUTION:
Be careful not to scratch rear extension assembly (2WD
models) or adapter case assembly (AWD models).
INSTALLATION
CAUTION:
After completing installati on, check A/T fluid leakage and A/T fluid level. Refer to AT- 11 , "
Checking A/T
Fluid".
1. As shown in the figure, use the drift to drive rear oil seal into rear extension assembly (2WD models) or adapter case assembly
(AWD models) until it is flush.
CAUTION:
Do not reuse rear oil seal.
Apply ATF to rear oil seal.
2. Install transfer assembly to A/T assembly (AWD models). Refer to TF-40, "
Removal and Installation".
3. Install front propeller shaft (AWD models). Refer to PR-4,
"Removal and Installation".
4. Install rear propeller shaft. Refer to PR-9, "
Removal and Installa-
tion".
5. Install center muffler. Refer to EX-3, "
Component".
Revolution Sensor Component (2WD Models Only)INFOID:0000000001327396
COMPONENTS
SCIA5410E
SCIA5411E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 307 of 3924

AT-234
< SERVICE INFORMATION >
ON-VEHICLE SERVICE
REMOVAL
1. Disconnect the battery cable from the negative terminal.
2. Drain ATF through drain plug.
3. Remove front cross bar. Refer to FSU-6, "
Removal and Installation".
4. Remove exhaust front tube and center muffler with power tool. Refer to EX-3, "
Component".
5. Remove rear propeller shaft. Refer to PR-9, "
Removal and Installation".
6. Remove control rod. Refer to AT-206, "
Control Rod Removal and Installation".
7. Remove clips (1), oil pan (2) and oil pan gasket. : Vehicle front
: Bolt (22)
Drain plug (3)
1. Rear extension 2. A/T 3. Oil pan gasket
4. Clip 5. Oil pan mounting bolt 6. Oil pan
7. Drain plug 8. Drain plug gasket 9. Revolution sensor
10. Self-sealing bolt
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-8, "
Component".
However, refer to the following symbol for others.
*: Apply Genuine Anaerobic Liquid Gasket or equivalent. Refer to GI-44, "Recommended Chemical Product and Sealant"
SCIA8043E
SCIA8117E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 310 of 3924

ON-VEHICLE SERVICEAT-237
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
2. Connect revolution sensor connector.
3. Securely fasten revolution sensor harness with clip.
4. Apply recommended sealant (Genuine Anaerobic Liquid Gasket or equivalent. Refer to GI-44, "
Recommended Chemical Product
and Sealant".) to rear extension assembly as shown in the fig-
ure.
CAUTION:
Completely remove all moisture, oil and old sealant, etc.
from transmission case and rear extension assembly
mounting surfaces.
5. Install rear extension assembly to transmission case. (With nee- dle bearing.)
CAUTION:
Insert the tip of parking rod between the parking pole and
the parking actuator suppor t when assembling the rear
extension assembly.
6. Tighten rear extension assembly mounting bolts to specified torque. Refer to "COMPONENTS".
CAUTION:
Do not reuse self-sealing bolts.
7. Install rear engine mounting member. Refer to AT-241,
"Removal and Installation (2WD Models)".
8. Install oil pan to transmission case.
a. Install oil pan gasket to oil pan. CAUTION:
Do not reuse oil pan gasket.
Install it in the direction to align hole positions.
SCIA7524E
SCIA7525E
SCIA8228E
SCIA3431E
SCIA6941E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 322 of 3924

OVERHAULAT-249
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
OVERHAUL
ComponentINFOID:0000000001327400

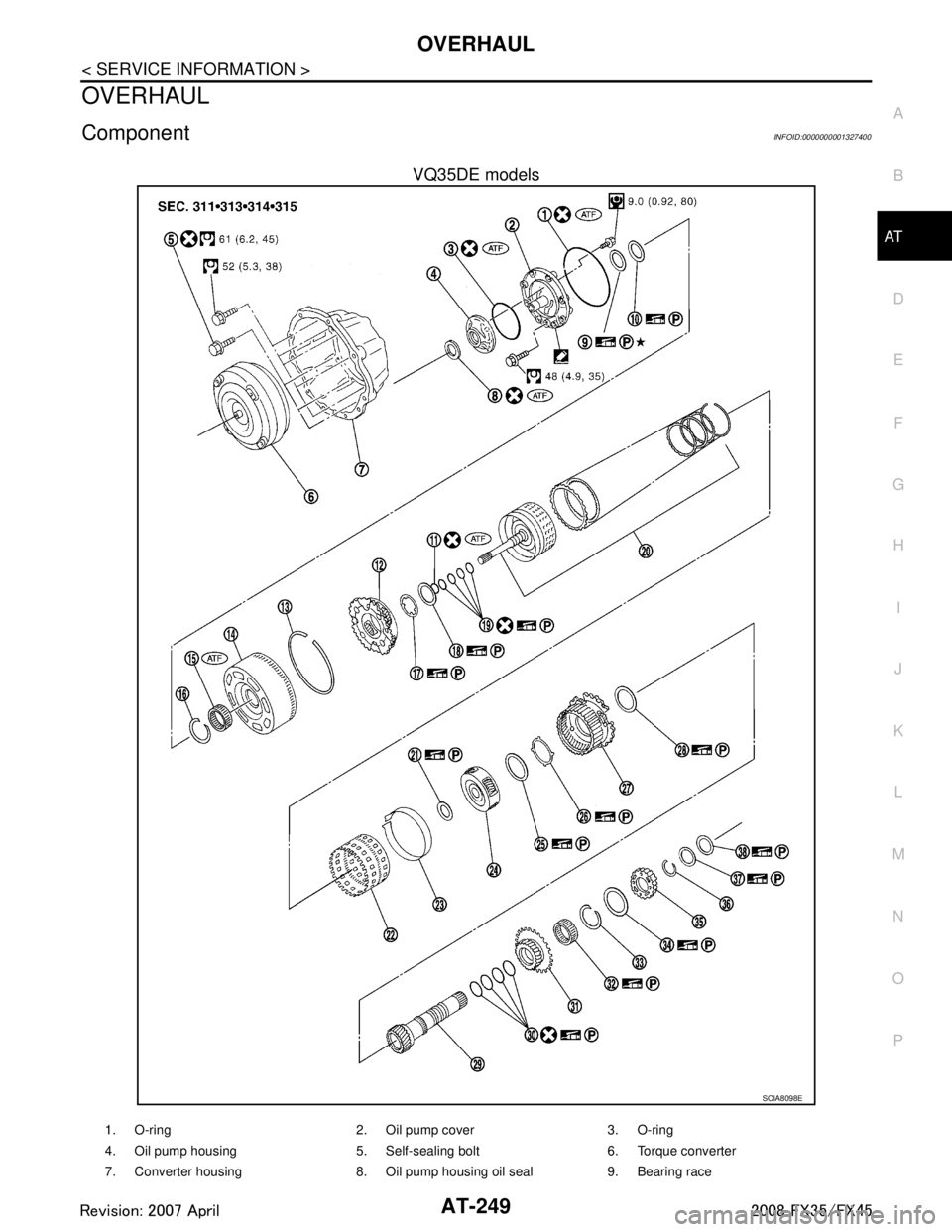

VQ35DE models
SCIA8098E
1. O-ring 2. Oil pump cover 3. O-ring
4. Oil pump housing 5. Self-sealing bolt 6. Torque converter
7. Converter housing 8. Oil pump housing oil seal 9. Bearing race
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 323 of 3924

AT-250
< SERVICE INFORMATION >
OVERHAUL
10. Needle bearing 11. O-ring 12. Front carrier assembly
13. Snap ring 14. Front sun gear 15. 3rd one-way clutch
16. Snap ring 17. Bearing race 18. Needle bearing
19. Seal ring 20. Input clutch assembly 21. Needle bearing
22. Rear internal gear 23. Brake band 24. Mid carrier assembly
25. Needle bearing 26. Bearing race 27. Rear carrier assembly
28. Needle bearing 29. Mid sun gear 30. Seal ring
31. Rear sun gear 32. 1st one-way clutch 33. Snap ring
34. Needle bearing 35. High and low reverse clutch hub 36. Snap ring
37. Bearing race 38. Needle bearing
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-8, "
Component".
However, refer to the following symbol for others.
: Apply Genuine RTV silicone sealant or equivalent. Refer to GI-44, "
Recommended Chemical Product and Sealant".
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 324 of 3924

OVERHAULAT-251
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P

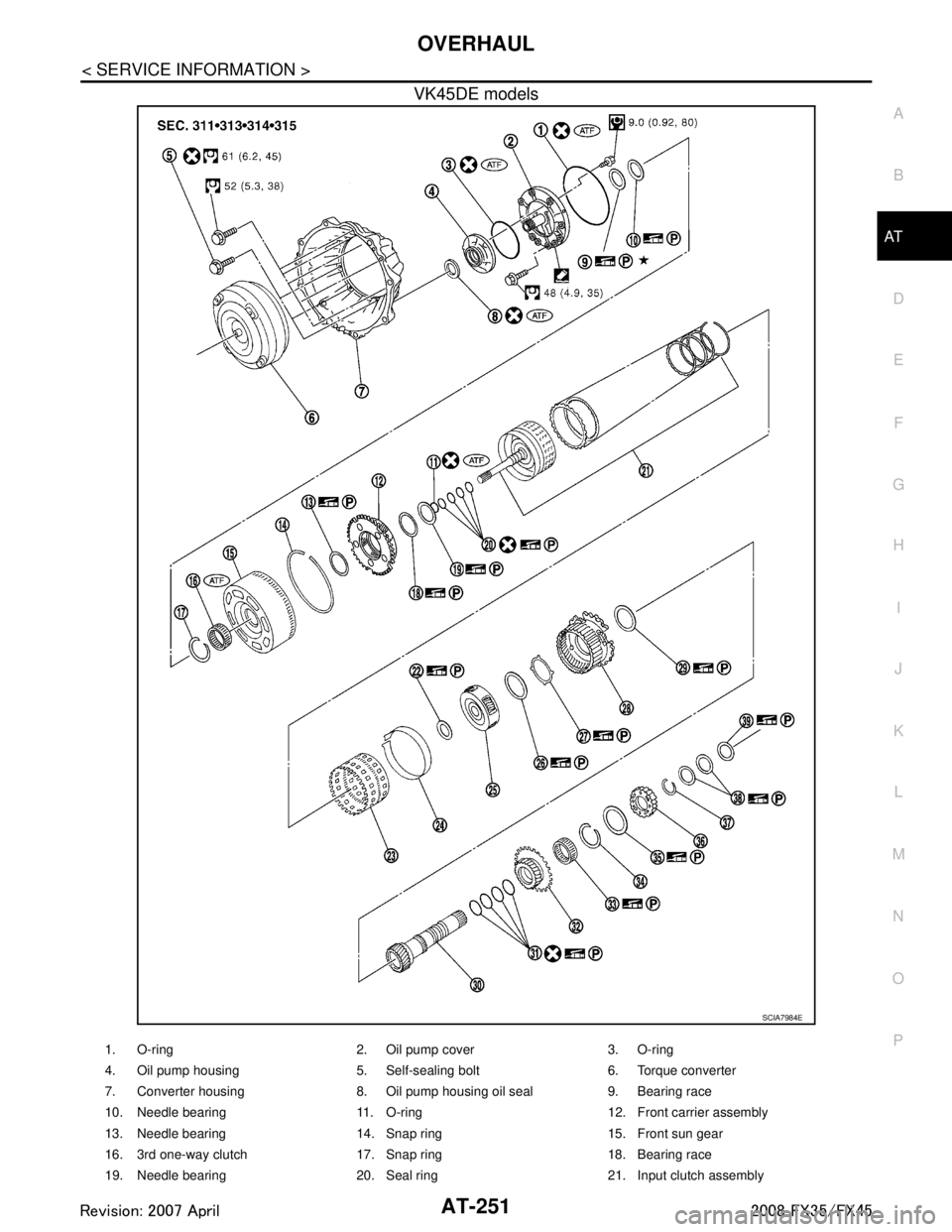

VK45DE models
SCIA7984E
1. O-ring 2. Oil pump cover 3. O-ring
4. Oil pump housing 5. Self-sealing bolt 6. Torque converter
7. Converter housing 8. Oil pump housing oil seal 9. Bearing race
10. Needle bearing 11. O-ring 12. Front carrier assembly
13. Needle bearing 14. Snap ring 15. Front sun gear
16. 3rd one-way clutch 17. Snap ring 18. Bearing race
19. Needle bearing 20. Seal ring 21. Input clutch assembly
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 325 of 3924

AT-252
< SERVICE INFORMATION >
OVERHAUL
22. Needle bearing 23. Rear internal gear 24. Brake band
25. Mid carrier assembly 26. Needle bearing 27. Bearing race
28. Rear carrier assembly 29. Needle bearing 30. Mid sun gear
31. Seal ring 32. Rear sun gear 33. 1st one-way clutch
34. Snap ring 35. Needle bearing 36. High and low reverse clutch hub
37. Snap ring 38. Bearing race 39. Needle bearing
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-8, "
Component".
However, refer to the following symbols for others. : Apply Genuine RTV silicone sealant or equivalent. Refer to GI-44, "
Recommended Chemical Product and Sealant".
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 328 of 3924

OVERHAULAT-255
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
2WD models
SCIA8099E
1. Rear oil seal 2. Self-sealing bolt 3. Rear extension
4. Parking actuator support 5. Return spring 6. Parking pawl
7. Pawl shaft 8. Seal ring 9. Needle bearing
10. Revolution sensor 11. Parking gear 12. Output shaft
13. Bearing race 14. Needle bearing 15. Manual plate
16. Parking rod 17. Manual shaft oil seal 18. Manual shaft
19. O-ring 20. Band servo anchor end pin 21. Detent spring
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 329 of 3924

AT-256
< SERVICE INFORMATION >
OVERHAUL
22. Spacer 23. Seal ring 24. Snap ring
25. Return spring 26. O-ring 27. Servo assembly
28. Snap ring 29. Sub-harness 30. Control valve with TCM
31. Bracket 32. A/T fluid temperature sensor 2 33. Clip
34. Oil pan mounting bolt 35. Oil pan 36. Magnet
37. Drain plug 38. Drain plug gasket 39. Oil pan gasket
40. Terminal cord assembly 41. O-ring 42. Retaining pin
43. Transmission case
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-8, "
Component".
However, refer to the following symbol for others.
*: Apply Genuine Anaerobic Liquid Gasket or equivalent. Refer to GI-44, "Recommended Chemical Product and Sealant".
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 330 of 3924

OVERHAULAT-257
< SERVICE INFORMATION >
DE
F
G H
I
J
K L
M A
B
AT
N
O P
VQ35DE models for AWD
SCIA8100E
1. Rear oil seal 2. Bracket 3. Adapter case
4. Parking actuator support 5. Return spring 6. Parking pawl
7. Pawl shaft 8. Self-sealing bolt 9. Seal ring
10. Needle bearing 11. Gasket 12. Revolution sensor
13. Parking gear 14. Output shaft 15. Bearing race
16. Needle bearing 17. Manual plate 18. Parking rod
19. Manual shaft oil seal 20. Manual shaft 21. O-ring
