PRECAUTIONSATC-5
< SERVICE INFORMATION >
C
DE
F
G H
I
K L
M A
B
AT C
N
O P
 Never release refrigerant into the air. Use appr oved recovery/recycling equipment to capture the
refrigerant every time an air co nditioning system is discharged.
 Always wear eye and hand protection (goggles and gloves) when working with any refrigerant or air
conditioning system.
 Never store or heat refrigerant containers above 52 °C (126 °F).
 Never heat a refrigerant container with an open flame; if container warming is required, place the
bottom of the container in a warm pail of water.
 Never intentionally drop, puncture, or incinerate refrigerant containers.
 Keep refrigerant away from open flames: poison ous gas will be produced if refrigerant burns.
 Refrigerant will displace oxygen, therefore be certa in to work in well ventilated areas to prevent suf-
focation.
 Never pressure test or leak test HFC-134a (R-134a) service equipment and/or vehicle air conditioning
systems with compressed air during repair. Some mixtures of air and HFC-134a (R-134a) have been
shown to be combustible at elevat ed pressures. These mixtures, if ig nited, may cause injury or prop-
erty damage. Additional health a nd safety information may be obtain ed from refrigerant manufactur-
ers.
Precaution for Refrigerant ConnectionINFOID:0000000001328155
A new type refrigerant connection has been introduced to a ll refrigerant lines except the following location.
 Expansion valve to evaporator
 Refrigerant pressure sensor to condenser
ABOUT ONE-TOUCH JOINT
Description
 One-touch joints are pipe joints which do not require tools during piping connection.
 Unlike conventional connection methods using union nuts and flanges, controlling tightening torque at con-
nection point is not necessary.
 When removing a pipe joint, use a disconnector.
COMPONENT PARTS
FUNCTIONS OF COMPONENT PARTS
NOTE:
1 Pipe (Male-side)  Retains O-rings.
 Retains garter spring in cage (A).
2 Garter spring Anchors female-side piping.
3 Indicator ring When connection is made properly, this is ejected from male-side piping. (This part is no longer nec-
essary after connection.)
4 O-ring Seals connection point. (Not reusable)
5 Pipe (Female-side)  Seals connection by compressing O-rings.
 Anchors piping connection using flare (B) and garter spring.
RJIA4383J
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

PRECAUTIONSATC-7
< SERVICE INFORMATION >
C
DE
F
G H
I
K L
M A
B
AT C
N
O P
 Low-pressure pipe 1 to low-pressure pipe 2 (O-ring size: 16)
 High-pressure pipe 1 to high-pressure pipe 2 (O-ring size: 8)
 High-pressure pipe 2 to high-pressure pipe 3 (O-ring size: 8)
 Low-pressure flexible hose to low-pressure pipe 1 (O-ring size: 16)
 Condenser to high-pressure flexible hose (O-ring size: 12)
 Condenser to high-pressure pipe 1 (O-ring size: 8)
FEATURES OF NEW TYPE REFRIGERANT CONNECTION
 The O-ring has been relocated. It has also been provided with a groove for proper installation. This elimi- nates the possibility of the O-ring being caught in, or damaged by, the mating part. The sealing direction of
the O-ring is now set vertically in relation to the c ontacting surface of the mating part to improve sealing
characteristics.
 The reaction force of the O-ring will not occur in the dire ction that causes the joint to pull out, thereby facili-
tating piping connections.

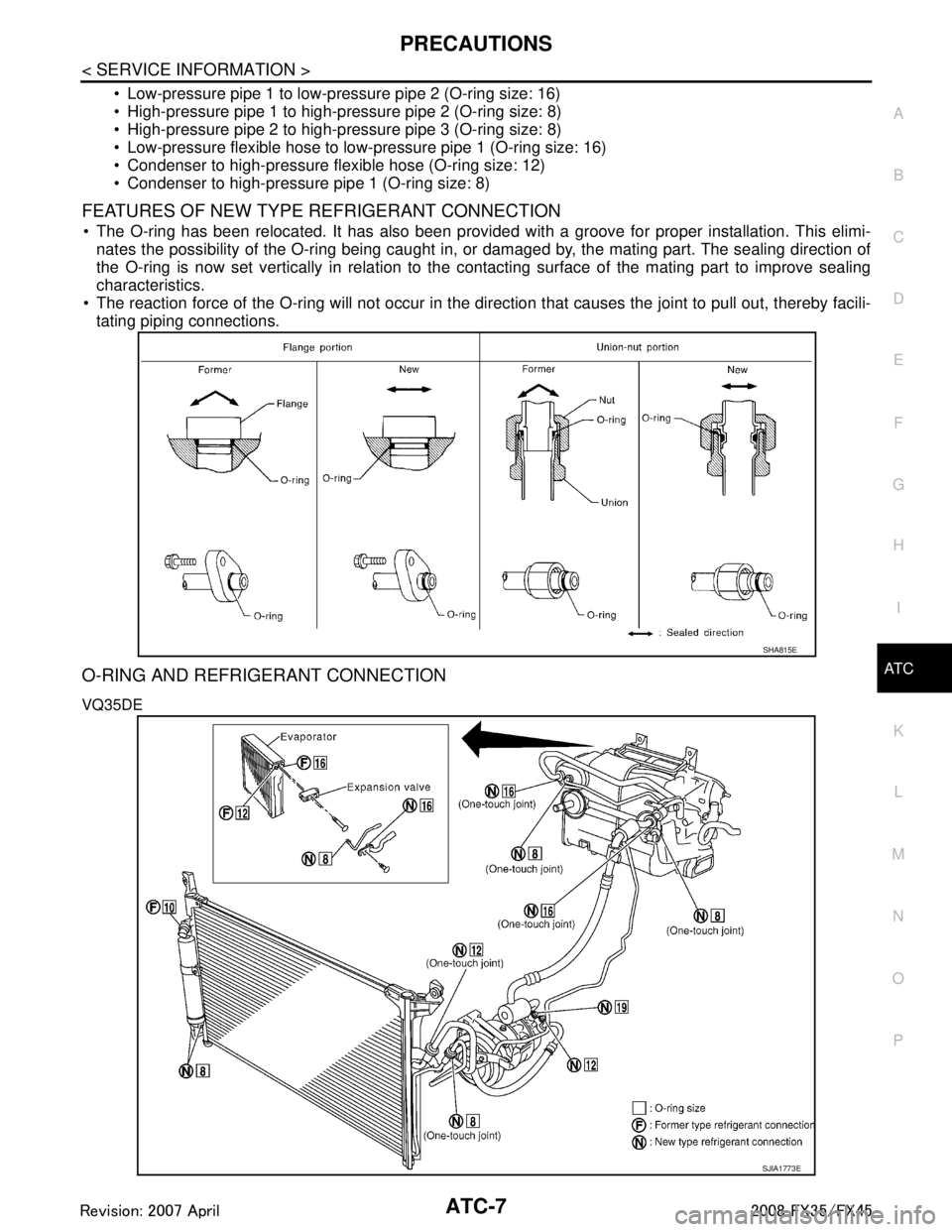

O-RING AND REFRIGERANT CONNECTION
VQ35DE
SHA815E
SJIA1773E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

PRECAUTIONSATC-9
< SERVICE INFORMATION >
C
DE
F
G H
I
K L
M A
B
AT C
N
O P
CAUTION:
When replacing or cleaning refrigerant cycle components, observe the following.
 When the compressor is removed, store it in the sam e way at it is when mounted on the car. Failure
to do so will cause lubricant to enter the low-pressure chamber.
 When connecting tubes, always use a to rque wrench and a back-up wrench.
 After disconnecting tubes, immediately plug all op enings to prevent entry of dust and moisture.
 When installing an air conditioner in the vehicle, connect the pipes at the final stage of the operation.
Never remove the seal caps of pipes and other compon ents until just before required for connection.
 Allow components stored in cool areas to warm to working area temperature before removing seal
caps. This prevents condensation from forming inside A/C components.
 Thoroughly remove moisture from the refriger ation system before charging the refrigerant.
 Always replace used O-rings.
 When connecting tubes, apply lubricant to circle of the O-rings shown in illustration. Be careful not
to apply lubricant to threaded portion.
 O-ring must be closely att ached to the groove of tube.
 When replacing the O-ring, be careful not to damage O-ring and tube.
 Connect tube until a click can be heard, then tighten the nut or bolt by hand. Make sure that the O-
ring is installed to tube correctly.
 After connecting line, perform leak test and make sure that there is no leakage from connections.
When the refrigerant leaking point is found, disconnect that line and replace the O-ring. Then tighten
connections of seal seat to the specified torque.
Precaution for Service of CompressorINFOID:0000000001328156
 Plug all openings to prevent moisture and foreign matter from entering.
 When the compressor is removed, store it in th e same way at it is when mounted on the car.
 When replacing or repairing compressor, follow “Maintenance of Lubricant Quantity in Compressor”
exactly. Refer to ATC-22, "
Maintenance of Lubricant Quantity in Compressor".
 Keep friction surfaces between clut ch and pulley clean. If the surface is contaminated with lubricant,
wipe it off by using a clean w aste cloth moistened with thinner.
 After compressor service operation, turn the compr essor shaft by hand more than five turns in both
directions. This will equally dist ribute lubricant inside the compressor. After the compressor is
installed, let the engine idle and operate the compressor for one hour.
 After replacing the compressor magnet clutch, ap ply voltage to the new one and check for normal
operation.
Precaution for Service EquipmentINFOID:0000000001328157
RECOVERY/RECYCLING EQUIPMENT
Name : Nissan A/C System Oil Type S
RHA861F
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

PRECAUTIONSATC-11
< SERVICE INFORMATION >
C
DE
F
G H
I
K L
M A
B
AT C
N
O P
Never attempt to connect HFC-134a (R-134a) service couplers to a
CFC-12 (R-12) A/C system. T he HFC-134a (R-134a) couplers will
not properly connect to the CFC-12 (R-12) system. However, if an
improper connection is attempted, discharging and contamination
may occur.
REFRIGERANT WEIGHT SCALE
Verify that no refrigerant other than HFC-134a (R-134a) and speci-
fied lubricants have been used with the scale. If the scale controls
refrigerant flow electronically, the hose fitting must be 1/2
″-16 ACME.
CHARGING CYLINDER
Using a charging cylinder is not recommended. Refrigerant may be vented into air from cylinder’s top valve
when filling the cylinder with refrigerant. Also, the accura cy of the cylinder is generally less than that of an
electrical scale or of quality recycle/recharge equipment.
Precaution for Leak Detection DyeINFOID:0000000001328158
 The A/C system contains a fluorescent leak detection dy e used for locating refrigerant leaks. An ultraviolet
(UV) lamp is required to illuminate the dye when inspecting for leaks.
 Always wear fluorescence enhancing UV safety goggles to protect your eyes and enhance the visibility of
the fluorescent dye.
 The fluorescent dye leak detector is not a replacement for an electrical leak detector (SST: J-41995). The flu-
orescent dye leak detector should be used in conjunc tion with an electrical leak detector (SST: J-41995) to
pin-point refrigerant leaks.
 For the purpose of safety and customer’s satisfacti on, read and follow all manufacture’s operating instruc-
tions and precautions prior to performing the work.
 A compressor shaft seal should not necessarily be re paired because of dye seepage. The compressor shaft
seal should only be repaired after confirming the l eak with an electrical leak detector (SST: J-41995).
 Always remove any remaining dye from the leak area after repairs are completed to avoid a misdiagnosis during a future service.
 Never allow dye to come into contact with painted body panels or interior components. If dye is spilled, clean
immediately with the approved dye cleaner. Fluorescent dye left on a surface for an extended period of time
cannot be removed.
 Never spray the fluorescent dye cleaning agent on hot surfaces (engine exhaust manifold, etc.).
 Never use more than one refrigerant dye bot tle (1/4 ounce /7.4 cc) per A/C system.
 Leak detection dyes for HFC-134a (R-134a) and CFC-12 (R-12) A/C systems are different. Never use HFC-
134a (R-134a) leak detection dye in CFC-12 (R-12) A/ C system, or CFC-12 (R-12) leak detection dye in
HFC-134a (R-134a) A/C system, or A/C system damage may result.
 The fluorescent properties of the dye will remain for thr ee years or a little over unless a compressor malfunc-
tion occurs.
IDENTIFICATION
NOTE:
Vehicles with factory installed fluorescent dye have a green label.
Vehicles without factory installed fluorescent dye have a blue label.
IDENTIFICATION LABEL FOR VEHICLE
Shut-off valve rotati on A/C service valve
Clockwise Open
Counterclockwise Close
RHA273D
RHA274D
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

ATC-140
< SERVICE INFORMATION >
REFRIGERANT LINES
2. When testing, circle each fitting completely with probe.
3. Move probe along component approximately 25 to 50 mm (1 to2 in)/sec.
CHECKING PROCEDURE
To prevent inaccurate or false readings, make sure t here is no refrigerant vapor, shop chemicals, or cigarette
smoke in the vicinity of the vehicle. Perform the leak test in calm area (low air/wind movement) so that the
leaking refrigerant is not dispersed.
1. Stop the engine.
2. Connect a suitable A/C manifold gauge set (SST: J-39183) to the A/C service valves.
3. Check if the A/C refrigerant pressu re is at least 345 kPa (3.52 kg/cm
2, 50 psi) above 16°C (61 °F). If less
than specification, recover/evacuate and recharge t he system with the specified amount of refrigerant.
NOTE:
At temperatures below 16 °C (61 °F), leaks may not be detected since the system may not reach 345 kPa
(3.52 kg/cm
2, 50 psi).
4. Perform the leak test from the high-pressure side (compressor discharge a to evaporator inlet h) to the
low-pressure side [evaporator drain hose i to shaft seal o (VK45DE) or n (VQ35DE)]. Refer to ATC-121,
"Component". Perform a leak check for the following areas carefully. Clean the component to be checked
and move the leak detected probe comp letely around the connection/component.
Compressor
Check the fitting of high- and low-pressure flexible hoses, relief valve and shaft seal.
Condenser
Check the fitting of high-pressure flexible hose and pipe, refrigerant pressure sensor.
Liquid tank
Check the fitting of refrigerant connection.
Service valves
Check all around the service valves. Ensure service va lve caps are secured on the service valves (to pre-
vent leaks).
NOTE:
After removing A/C manifold gauge set from service va lves, wipe any residue from valves to prevent any
false readings by leak detector.
Cooling unit (Evaporator)
With engine OFF, turn blower fan on “High” for at leas t 15 seconds to dissipate any refrigerant trace in the
cooling unit. Wait a minimum of 10 minutes accumulation time (refer to the manufacturer’s recommended
procedure for actual wait time) before inserti ng the leak detector probe into the drain hose.
Keep the probe inserted for at least 10 seconds. Use c aution not to contaminate the probe tip with water
or dirt that may be in the drain hose.
5. If a leak detector detects a leak, verify at least once by blowing compressed air into area of suspected
leak, then repeat check as outlined above.
SHA706E
SHA708EA
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

INFINITI MOBILE ENTERTAINMENT SYSTEMAV-153
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
AV
N
O P
Check the inspection items below to diagnose the malfunction.
 Check that the signal is received at the rear seat.
 Check that transmission part has any seals or dirt that interrupts signal.
 Check that the head phone battery has run down.
OK or NG
OK >> GO TO 2.
NG >>  Receive signal with head phone at the rear seat.  Remove seal or dirt that is interrupting signal.
 If the battery has run down, replace it with new one.
2.CHECK HEAD PHONE
Check that sound is heard with another head phone.
OK or NG
OK >> Replace malfunction head phone.
NG >> GO TO 3.
3.CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect DVD player and DVD display connectors.
3. Check continuity between DVD player harness connector B19 terminals 17, 18, 19, 20 and DVD display harness connector
B61 terminals 1, 2, 3, 4.
4. Check continuity between DVD player harness connector B19 terminals 17, 18, 19, 20 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4.CHECK MES SOUND SIGNAL
1. Connect DVD player and DVD display connectors.
2. Turn the ignition switch ACC and Press “POWER” switch of DVD player.
3. Check the signal between DVD player harness connector B19 terminals 17, 18, 20 and 19 with CONSULT-III or oscilloscope.
OK or NG
OK >> Replace DVD display.
NG >> Replace DVD player.
Remote Controller Does Not WorkINFOID:0000000001328785
1.CHECK DVD PLAYER OPERATION SWITCH
SKIA5852E
17 – 1 : Continuity should exist.
18 – 2 : Continuity should exist.
19 – 3 : Continuity should exist.
20 – 4 : Continuity should exist.
17, 18, 19, 20 – Ground : Co ntinuity should not exist.
SKIA7033E
Te r m i n a l
Condition Reference value
(+) (–)
17 19 Play CD or DVD video. Refer to
AV- 1 4 6 , "
Terminal and Ref-
erence Value for DVD Player".
18
20
SKIA7047E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

AV-154
< SERVICE INFORMATION >
INFINITI MOBILE ENTERTAINMENT SYSTEM
1. Turn ignition switch ACC.
2. Press “POWER” switch of DVD player and operate DVD player switch.
Dose the DVD player switches work?
YES >> Replace remote controller.
NO >> GO TO 2.
2.CHECK REMOTE CONTROLLER AND SENSOR
Check the inspection items below to diagnose the malfunction.
 Check that remote controller is facing to the sensor.
 Check that sensor does not have any seals or dirt that is interrupt-
ing signal.
 Check that the remote controller battery has run down.
OK or NG
OK >> GO TO 3.
NG >>  When operating, face remote controller to the sensor.  Remove seal or dirt that is interrupting signal.
 If the battery has run down, replace it with new one.
3.CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect DVD player and DVD display connectors.
3. Check continuity between DVD player harness connector B19 terminal 30 and DVD display harness connector B61 terminal
14.
4. Check continuity between DVD player harness connector B19 terminal 30 (BR) and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4.CHECK DATA (LCD – DVD) SIGNAL
1. Connect DVD display connector.
2. Turn ignition switch ACC.
3. Check the signal between DVD player harness connector B19 terminal 30 and ground.
OK or NG
OK >> Replace DVD player.
NG >> Replace DVD display.
No CD·DVD Sound from All SpeakersINFOID:0000000001328786
1.VERIFY THE PHENOMENON
1. Turn ignition switch ACC.
2. Turn on the radio, receive radio program, che ck that the sound is heard from all the speakers.
SKIA5855E
30 – 14 : Continuity should exist.
30 – Ground : Continuity should not exist.
SKIB0335E
30 – Ground:
SKIA7043ESKIA5832E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

BL-3
C
DE
F
G H
J
K L
M A
B
BL
N
O P
Preliminary Check ...............................................
..
177
Trouble Diagnosis Symptom Chart .......................177
Diagnosis Procedure 1 ..........................................178
Diagnosis Procedure 2 ..........................................182
Diagnosis Procedure 3 ..........................................183
Diagnosis Procedure 4 ..........................................183
Diagnosis Procedure 5 ..........................................183
Diagnosis Procedure 6 ..........................................184
IVIS (INFINITI VEHICLE IMMOBILIZER SYS-
TEM-NATS) ......................................................
185
Component Parts and Harness Connector Loca-
tion ...................................................................... ..
185
System Description ...............................................185
System Composition .............................................186
ECM Re-Communicating Function ........................187
Wiring Diagram - NATS - ......................................188
Terminal and Reference Value for Steering Lock
Unit/with Intelligent Key System ............................
191
Terminal and Reference Value for Intelligent Key
Unit/with Intelligent Key System ............................
191
Terminal and Reference Value for BCM ............. ..192
CONSULT-III Function ..........................................192
Diagnosis Procedure .............................................194
Trouble Diagnosis Symptom Chart ...................... ..195
Security Indicator Inspection .................................195
Diagnosis Procedure 1 ..........................................195
Diagnosis Procedure 2 ..........................................197
Diagnosis Procedure 3 ..........................................197
Diagnosis Procedure 4 ..........................................197
Diagnosis Procedure 5 ..........................................198
Diagnosis Procedure 6 ..........................................200
Removal and Installation NATS Antenna Amp ......201
INTEGRATED HOMELINK TRANSMITTER ..202
Wiring Diagram - TRNSCV - ..................................202
Trouble Diagnosis ..................................................202
BODY REPAIR ................................................204
Body Exterior Paint Color ......................................204
Body Component Parts .........................................205
Corrosion Protection ..............................................208
Body Sealing .........................................................211
Body Construction .................................................215
Body Alignment .....................................................215
Handling Precaution for Plastics ............................225
Precaution in Repairing High Strength Steel .........228
Replacement Operation .........................................230
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

BL-10
< SERVICE INFORMATION >
SQUEAK AND RATTLE TROUBLE DIAGNOSIS
Most of these incidents can be repaired by adjusting, securing or insulating the item(s) or component(s) caus-
ing the noise.
SUNROOF/HEADLINING
Noises in the sunroof/headlining area c an often be traced to one of the following:
1. Sunroof lid, rail, linkage or seals making a rattle or light knocking noise
2. Sunvisor shaft shaking in the holder
3. Front or rear windshield touching headlining and squeaking
Again, pressing on the components to stop the noise while duplicating the conditions can isolate most of these
incidents. Repairs usually consist of insulating with felt cloth tape.
SEATS
When isolating seat noise it's important to note the pos ition the seat is in and the load placed on the seat when
the noise is present. These conditions should be dupl icated when verifying and isolating the cause of the
noise.
Cause of seat noise include:
1. Headrest rods and holder
2. A squeak between the seat pad cushion and frame
3. The rear seatback lock and bracket
These noises can be isolated by moving or pressing on the suspected components while duplicating the con-
ditions under which the noise occurs. Most of thes e incidents can be repaired by repositioning the component
or applying urethane tape to the contact area.
UNDERHOOD
Some interior noise may be caused by components under the hood or on the engine wall. The noise is then
transmitted into the passenger room.
Causes of transmitted underhood noise include:
1. Any component mounted to the engine wall
2. Components that pass through the engine wall
3. Engine wall mounts and connectors
4. Loose radiator mounting pins
5. Hood bumpers out of adjustment
6. Hood striker out of adjustment
These noises can be difficult to isolate since they cannot be reached from the interior of the vehicle. The best
method is to secure, move or insulate one component at a time and test drive the \
vehicle. Also, engine RPM
or load can be changed to isolate the noise. Repairs can usually be made by moving, adjusting, securing, or
insulating the component causing the noise.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

BL-14
< SERVICE INFORMATION >
HOOD
3. Make sure that the hood lock secondary latch is properlyengaged with the secondary striker with hood's own weight.
4. Make sure that the hood lock primary latch is securely engaged with the hood striker with hood's own weight by dropping hood
from approx. 200 mm (7.87 in) height.
CAUTION:
Do not drop hood from a he ight of 300 mm (11.81 in) or
more.
5. Move hood lockup and down until striker smoothly engages the lock when the hood is closed.
6. When pulling the hood opener lever gently, make sure that front end of the hood rises by approximately 20 mm (0.79 in) and that
hood striker and hood lock primary latch is disengaged. Also make sure that hood opener returns to the
original position.
7. After adjustment, tighten lock bolts to the specified torque.
CAUTION:
Adjust evenness between hood and each part to the following specification.
Removal and Installation of Hood AssemblyINFOID:0000000001327784
REMOVAL
Hood and head lamp (C–C) : 0.9 ± 1.5 mm (0.035 ± 0.059 in)
Hood and fender (D–D) : 0.1 ± 1.0 mm (0.004 ± 0.04 in)
PIIB1082E
1. Hood assembly 2. Hood front sealing rubber 3. Hood insulator
4. Hood hinge 5. Hood stay 6. Hood lock
7. Bolt 8. Nut
PIIA6016E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
