INFINITI M35 2006 Factory Service Manual

AT-282
OVERHAUL
Revision: 2006 January2006 M35/M45
VQ35DE models

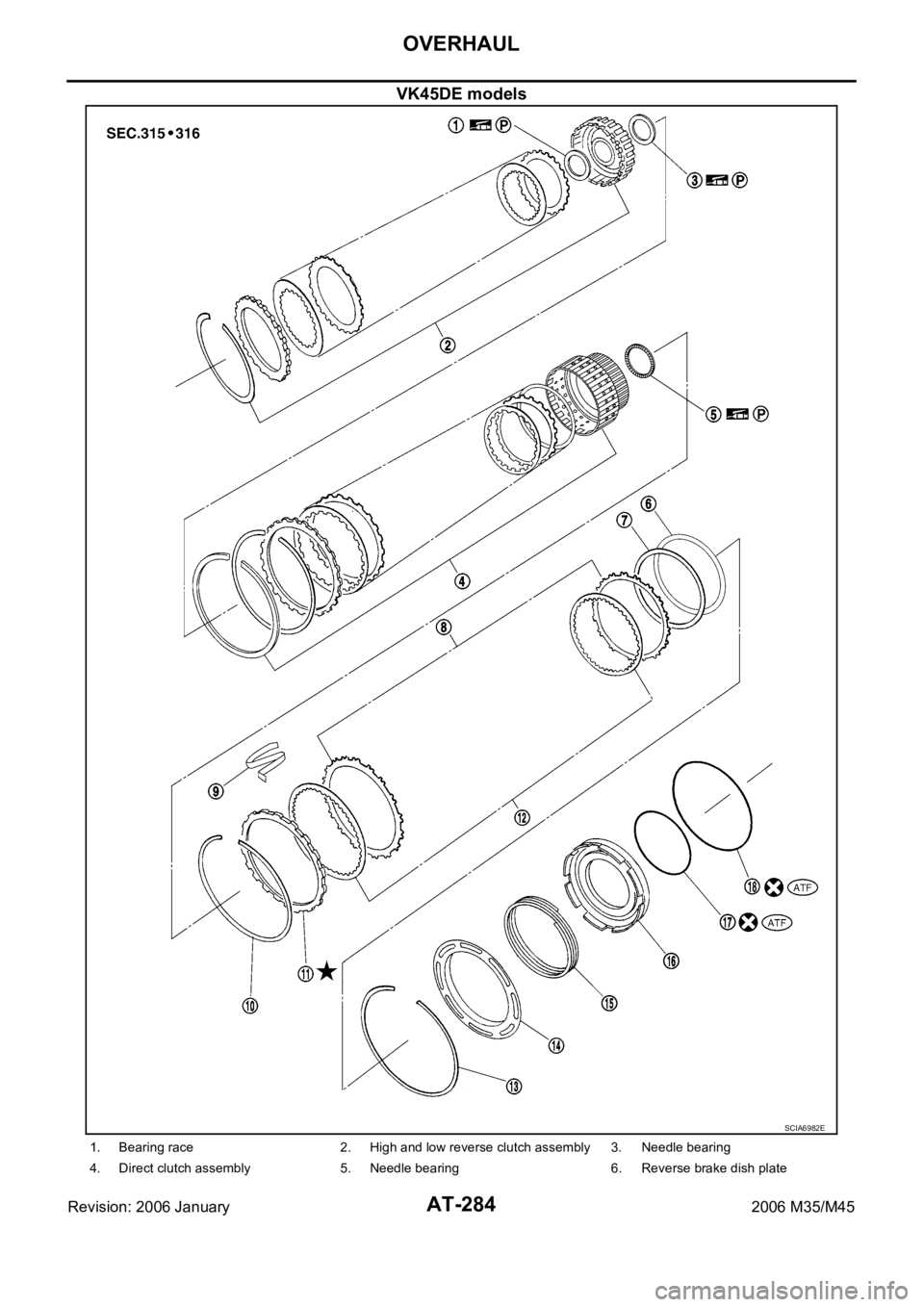

SCIA7001E
1. Needle bearing 2. Bearing race 3. High and low reverse clutch assembly
4. Needle bearing 5. Direct clutch assembly 6. Reverse brake dish plate

OVERHAUL
AT-283
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45
7. Reverse brake dish plate 8. Reverse brake driven plate 9. N-spring
10. Reverse brake drive plate 11. Reverse brake retaining plate 12.Snap ring
13. D-ring 14. D-ring 15. Reverse brake piston
16. Return spring 17. Spring retainer 18. Snap ring
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-11, "
Components" .

AT-284
OVERHAUL
Revision: 2006 January2006 M35/M45
VK45DE models
SCIA6982E
1. Bearing race 2. High and low reverse clutch assembly 3. Needle bearing
4. Direct clutch assembly 5. Needle bearing 6. Reverse brake dish plate

OVERHAUL
AT-285
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45
7. Reverse brake dish plate 8. Reverse brake driven plate 9. N-spring
10. Snap ring 11. Reverse brake retaining plate 12. Reverse brake drive plate
13. Snap ring 14. Spring retainer 15. Return spring
16. Reverse brake piston 17. D-ring 18. D-ring
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-11, "
Components"

AT-286
OVERHAUL
Revision: 2006 January2006 M35/M45
VQ35DE models for 2WD

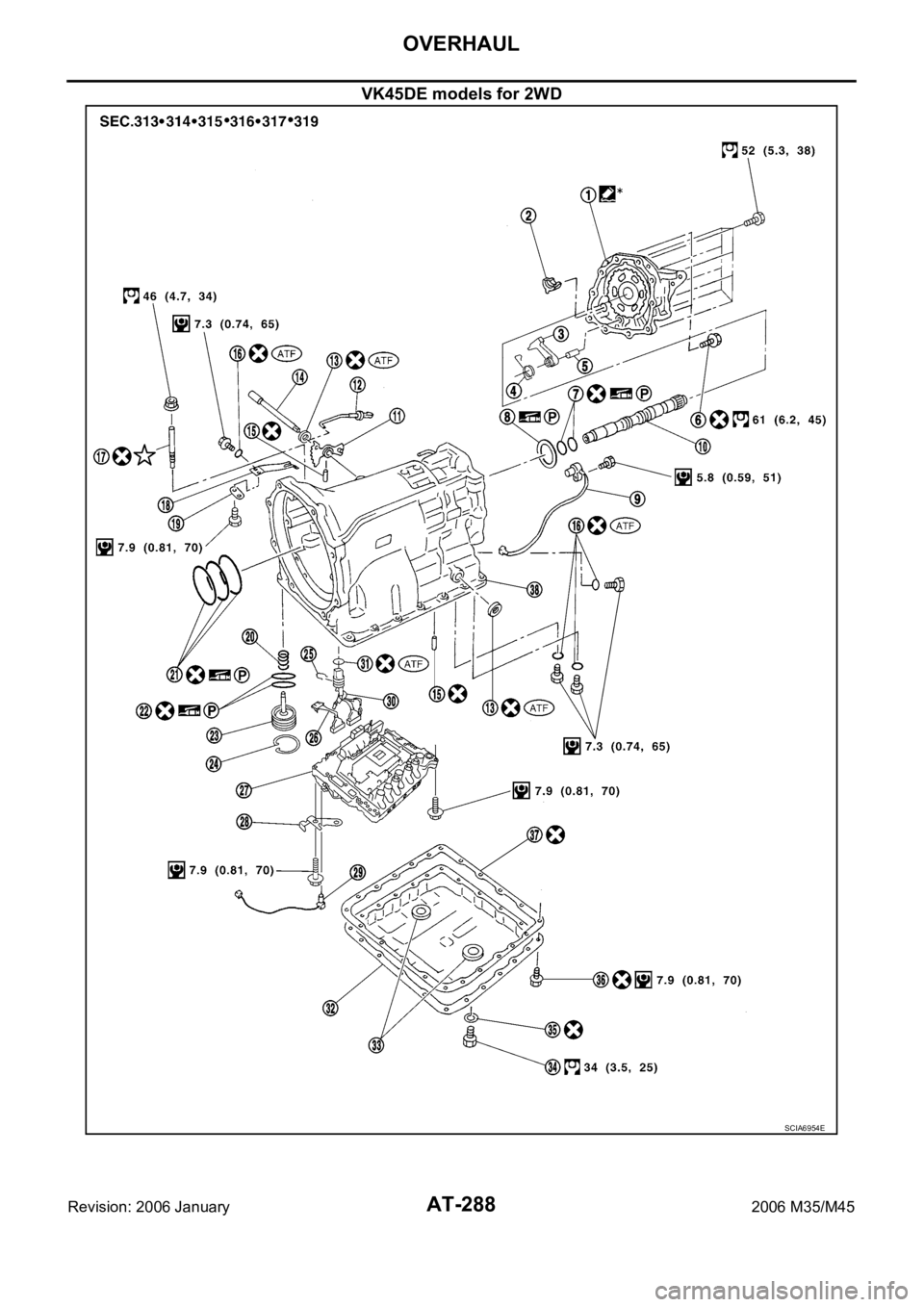

SCIA6911E
1. Rear oil seal 2. Self-sealing bolt 3. Rear extension
4. Parking actuator support 5. Parking pawl 6. Return spring

OVERHAUL
AT-287
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45
7. Pawl shaft 8. Seal ring 9. Needle bearing
10. Revolution sensor 11. Parking gear 12. Output shaft
13. Bearing race 14. Needle bearing 15. Manual plate
16. Parking rod 17. Manual shaft oil seal 18. Manual shaft
19. O-ring 20. Band servo anchor end pin 21. Detent spring
22. Spacer 23. Seal ring 24. Snap ring
25. Return spring 26. O-ring 27. Servo assembly
28. Snap ring 29. Sub-harness 30. Control valve with TCM
31. Bracket 32. A/T fluid temperature sensor 2 33. Oil pan
34. Magnet 35. Drain plug 36. Drain plug gasket
37. Oil pan mounting bolt 38. Oil pan gasket 39. Terminal cord assembly
40. O-ring 41. Retaining pin 42. Transmission case
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-11, "
Components" .
However, refer to the following symbols for others.
*:Apply Genuine Anaerobic Liquid Gasket or equivalent. Refer to GI-48, "Recommended Chemical Products and Sealants"
.

AT-288
OVERHAUL
Revision: 2006 January2006 M35/M45
VK45DE models for 2WD
SCIA6954E

OVERHAUL
AT-289
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45
1. Output shaft & companion flange
complement2. Parking actuator support 3. Parking pawl
4. Return spring 5. Pawl shaft 6. Self-sealing bolt
7. Seal ring 8. Needle bearing 9. Revolution sensor
10. Intermediate shaft 11. Manual plate 12. Parking rod
13. Manual shaft oil seal 14. Manual shaft 15. Retaining pin
16. O-ring 17. Band servo anchor end pin 18. Detent spring
19. Spacer 20. Return spring 21. Seal ring
22. O-ring 23. Servo assembly 24. Snap ring
25. Snap ring 26. Sub-harness 27. Control valve with TCM
28. Bracket 29. A/T fluid temperature sensor 2 30. Terminal cord assembly
31. O-ring 32. Oil pan 33. Magnet
34. Drain plug 35. Drain plug gasket 36. Oil pan mounting bolt
37. Oil pan gasket 38. Transmission case
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-11, "
Components" .
However, refer to the following symbols for others.
*:Apply Genuine Anaerobic Liquid Gasket or equivalent. Refer to GI-48, "Recommended Chemical Products and Sealants" .

AT-290
OVERHAUL
Revision: 2006 January2006 M35/M45
AW D m o d e l s
SCIA6912E
1. Rear oil seal 2. Bracket 3. Adapter case
4. Parking actuator support 5. Parking pawl 6. Return spring

OVERHAUL
AT-291
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45
7. Pawl shaft 8. Self-sealing bolt 9. Seal ring
10. Needle bearing 11. Gasket 12. Revolution sensor
13. Parking gear 14. Output shaft 15. Bearing race
16. Needle bearing 17. Manual plate 18. Parking rod
19. Manual shaft oil seal 20. Manual shaft 21. O-ring
22. Band servo anchor end pin 23. Detent spring 24. Spacer
25. Seal ring 26. Snap ring 27. Return spring
28. O-ring 29. Servo assembly 30. Snap ring
31. Sub-harness 32. Control valve with TCM 33. Bracket
34. A/T fluid temperature sensor 2 35. Oil pan 36. Magnet
37. Drain plug 38. Drain plug gasket 39. Oil pan mounting bolt
40. Oil pan gasket 41. Terminal cord assembly 42. O-ring
43. Retaining pin 44. Transmission case
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-11, "
Components" .
